Integrating AWS Outposts with QFX Series Devices in an IP Fabric Data Center

About This Network Configuration Example

This network configuration example (NCE) shows how to configure a QFX Series device to interoperate with the Amazon Web Services (AWS) Outposts solution. The AWS Outposts solution is designed to bring AWS services (Elastic Compute Cloud, Elastic Block Storage, etc) to an enterprise’s on-premise data center. The ability to locally host AWS resources in a QFX-based data center and have these services mix seamlessly with cloud-based AWS workloads opens up new opportunities for efficiency, resiliency, and performance.

Outpost racks (one or more) are delivered to a customer site. Outpost racks are fully assembled and preconfigured, requiring only power and network connectivity to begin providing service in the data center. This NCE shows how to configure a QFX-based data center fabric to support the AWS Outposts solution.

See Also

Use Case Overview

AWS Outposts in a QFX based Data Center

Enterprises are increasingly migrating business workloads to public clouds like Amazon Web Services. Hosting services in the cloud provides new options for scalability, resiliency, and cost optimization. However, there are cases where you may still need to host a workload in an on-premise data center. Application latency requirements, throughput requirements, and regulatory constraints are all reasons a workload may need to be hosted on-premise. AWS Outposts offers customers the same AWS hardware infrastructure, services, APIs, and tools to build and run their applications on-premise and in the cloud for a truly consistent hybrid experience. AWS compute, storage, database, and other services run locally on Outposts, and customers can access the full range of AWS services available in the Region to build, manage, and scale their on-premise applications using familiar AWS services and tools.

QFX Series switches from Juniper Networks are widely deployed in data centers for their speed, high quality, feature richness and extensive automation capabilities. A modern data center IP fabric typically leverages the QFX5000 Series devices in the leaf (or top-of-rack) role and either the QFX10000 or QFX5000 Series devices in the spine role. The flexibility of the QFX family and the Junos OS provides many architectural options for how a customer can build their data center fabric. This NCE focuses on a simple spine and leaf IP fabric design, which is well suited to accommodate the introduction of the AWS Outposts into the data center fabric.

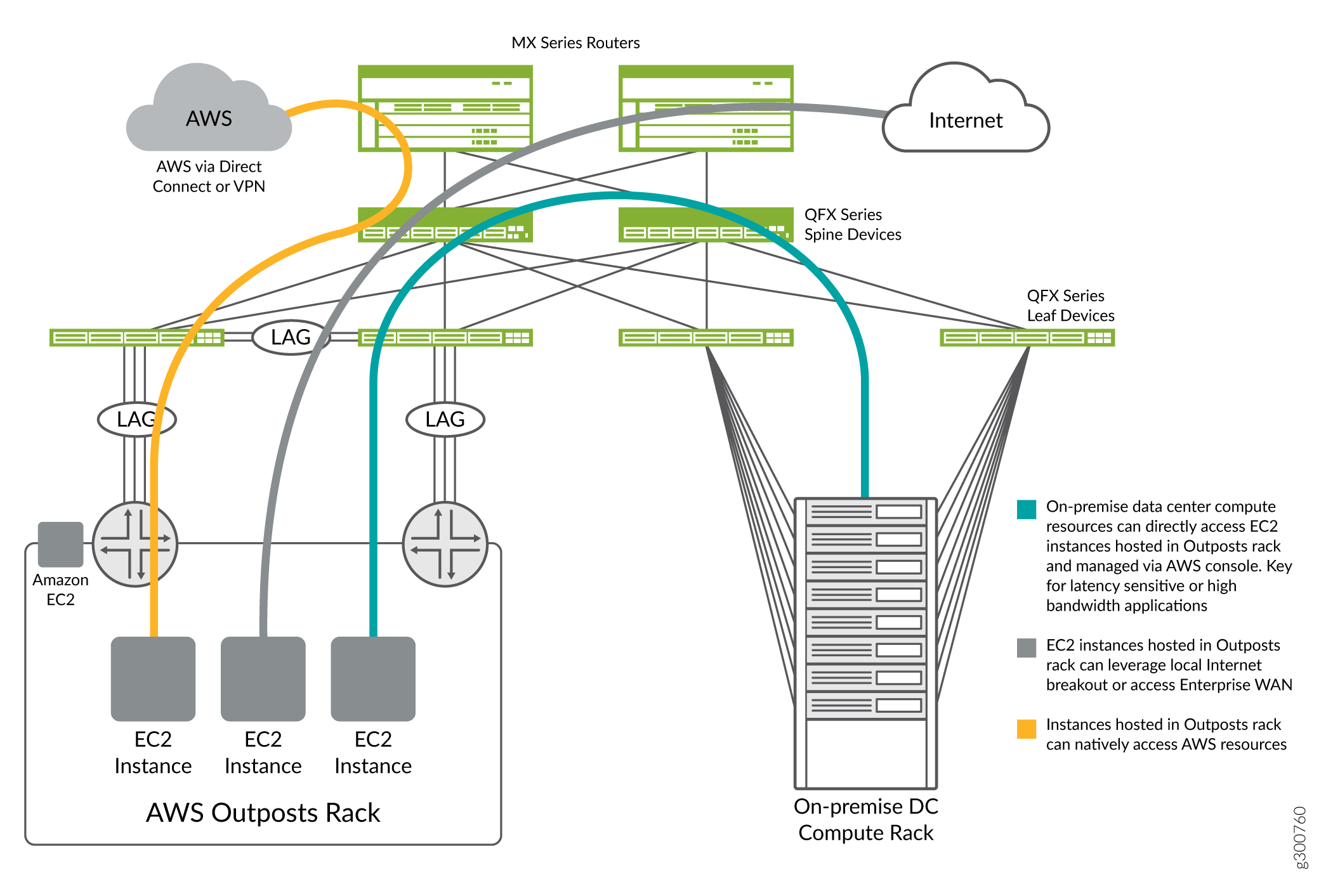

Example use cases for AWS Outposts integration with IP fabric:

Low Latency Access to AWS Workloads

With AWS Outposts integrated into the data center fabric, the workloads hosted in the Outposts solution become a full participant in the data center. This is important for applications where local non-AWS workloads need to interact with AWS workloads. This direct access via the data center fabric provides high bandwidth options (up to 400G) and lower latency paths for applications to interact with AWS resources. Resources in the data center will have direct IP connectivity to resources in the Outpost rack. Research applications requiring large amounts of data or financial applications requiring low latency are good examples where this direct access can provide a significant performance improvement.

On-premise Workloads Leveraging Local Internet Breakout

There are many types of workloads that require Internet connectivity to perform their function or to reach their enterprise users. When migrating these workloads to the cloud, enterprises have traditionally hosted these applications in the AWS cloud and leveraged AWS Internet gateways for access. The integration of AWS Outposts into an on-premise data center provides new and more flexible options for using local data center Internet connectivity for these applications. Doing so can provide faster speeds, lower cost, and different proximity options for Internet destined traffic.

Regulatory Requirements for Data Sovereignty

In various countries, regions, states, etc. there are regulatory limits on how and where data is stored. Enterprises operating in these environments can integrate the AWS Outposts solution into a data center that can meet these regulatory requirements. This allows enterprises to leverage the operational benefits of the AWS cloud, while staying compliant with local data sovereignty requirements.

Technical Overview

AWS Outposts in a QFX Based Data Center Fabric for Locally Hosted Workloads

This NCE covers the integration of a single AWS Outpost rack into a QFX based IP fabric data center.

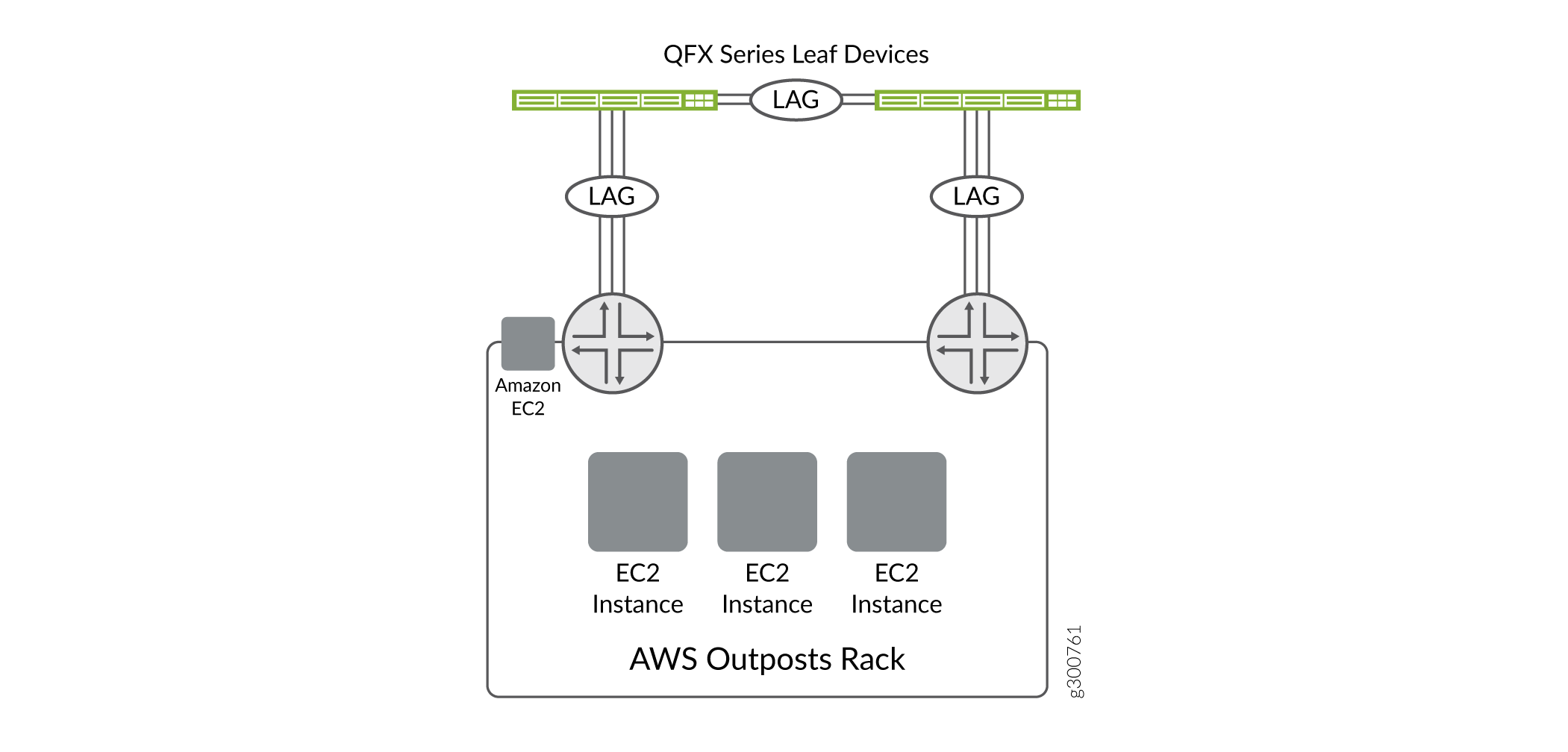

The AWS Outposts solution integrates with existing data centers using a standard Layer 3 IP handoff. Consistent with other AWS connectivity models, there is no direct Layer 2 access to the Outpost resources. The Outpost rack uses two Outpost Network Devices integrated into the rack. As a customer, there is no access to the rack devices and all configuration of the Outpost is performed using the AWS Console.

The Outpost rack provides one uplink connection from each Outpost Network Device. These uplinks can be 1G, 10G, 40G, or 100G and can be organized into LAG bundles for increased throughput and resiliency. Each connection terminates into a dedicated QFX device, most likely a QFX5000 Series device acting as a fabric leaf.

The QFX family includes a number of platforms that can provide connectivity for the Outposts solution. This NCE assumes that we are using two QFX5120-48Ys for the handoff to the AWS Outpost. Unlike other data center connectivity models, we connect each Outpost Network Device to only one of the leaf devices. This results in each QFX5120-48Y being connected to one of the Outpost Network Devices. We also use a link between the two QFX devices to provide resilient connectivity to the Outpost rack in the event of device failure.

Table 1 shows QFX devices that we recommend using to integrate with AWS Outposts.

Table 1: QFX Device Family Options for AWS Outposts

QFX Device

Attributes

AWS Outposts Recommendation

QFX5120-48Y

48 x 10/25G access ports with 8 100G fabric uplink ports

For general purpose data center fabric access. Provides flexibility for 10G or 25G server access for on-premise workloads and connections to AWS Outposts.

QFX5120-32C

32 x 100G access ports

For high speed data center fabrics, the QFX5120-32C provides 100G ports for AWS Outposts or server access.

QFX5110-48S

48 x 10G access ports with 4 100G uplink ports

For data center fabrics that have standardized on 10G, the QFX5110-48S provides 10G ports for AWS Outposts interconnect with 100G uplinks for the data center fabric.

When you order an AWS Outposts solution from AWS, you need to provide the following information about the on-premise data center that is used to build the initial configuration for the rack.

  • Two /27 subnets for rack connectivity. One subnet is used for the control and management channel to the AWS Cloud. Both subnets are used by the Outposts infrastructure elements to connect back to the Region. The traffic destined to these subnets can be control, management or VPC data traffic.

    The subnets are configured on the Outpost prior to installation.

  • Two BGP AS numbers (ASNs): one for the data center (likely an existing ASN) and a second (likely new) ASN for the Outpost, to provide peering between the data center fabric and the Outpost. These can be existing public ASNs or private ASNs. This example uses private ASNs.

    The routing between the QFX devices and the Outpost system is needed to exchange connectivity information with the rack. The Outpost needs reachability to the AWS cloud as well as local data center resources. The existing data center fabric is likely using an IGP, such as OSPF or ISIS, for current operations and the Outpost learns this routing information using the BGP peerings we establish with the Outpost. While you could use statics routes between the data center and the rack, we recommend that you use a dynamic routing protocol.

  • Two subnets and two VLAN IDs are required for each of the links between the QFX devices and the Outpost. The VLANs are used to carry the two point-to-point routed subnets (either /30 or /31) on the same connection. Each of the links between the QFX and the Outpost will be an Ethernet trunk and will carry both subnets.

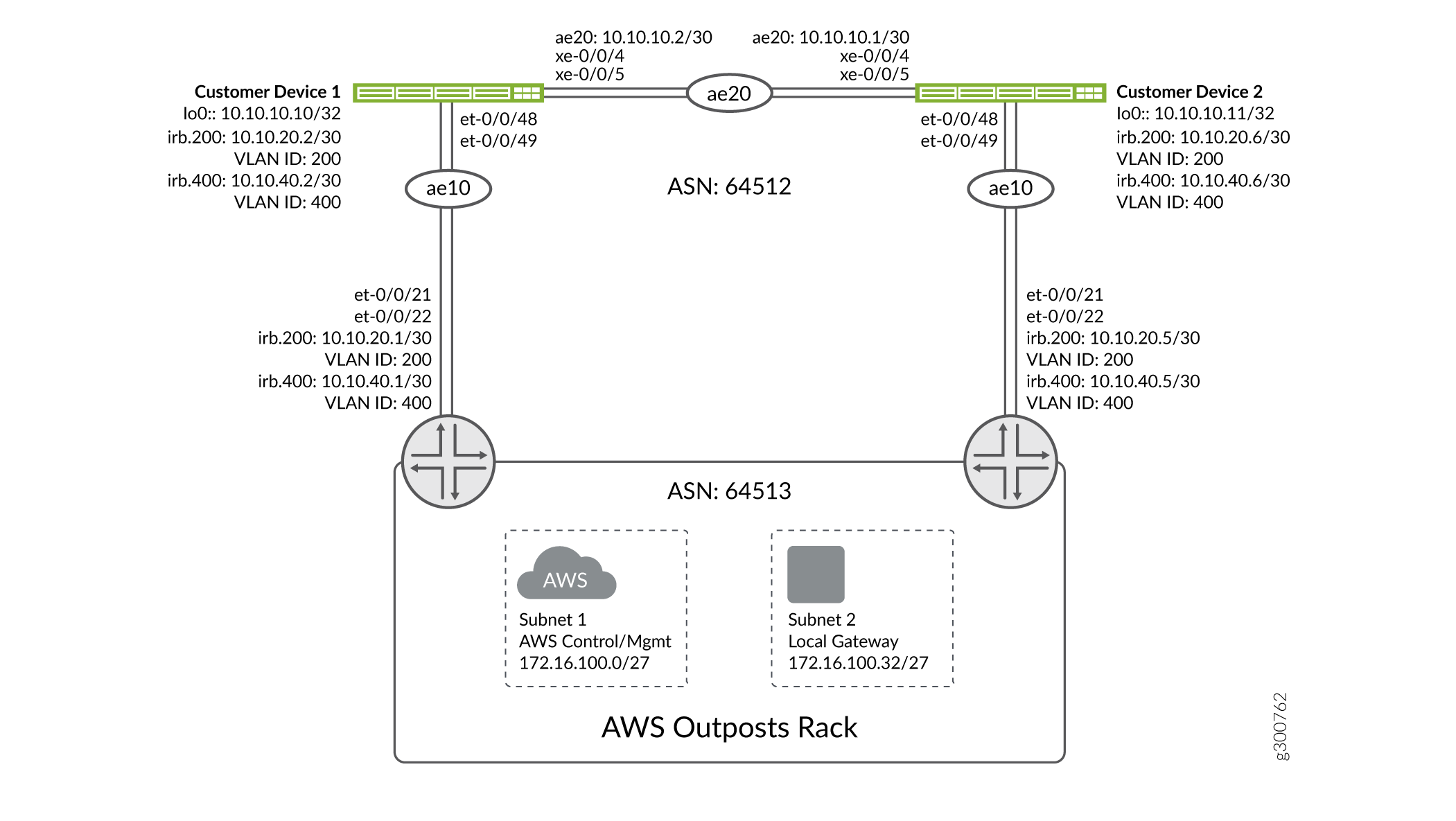

Example: Connecting an AWS Outpost to QFX5120-48Y Leaf Nodes

Requirements

This example uses the following:

  • One operational data center IP fabric running OSPF

  • One AWS Outpost rack

  • Two QFX5120-48Y switches running Junos OS Release 18.4R2, acting as leaf devices

Overview

From the data center fabric there are no special requirements for the AWS Outposts solution. You can leverage fabric architectures like EVPN/VXLAN, IP fabric, or Virtual Chassis to integrate the Outpost into your network. For this example, we will use a simple IP fabric with OSPF as the IGP for internal route propagation. You should review your own fabric requirements and make required modifications to the steps below.

Configuration

Procedure

Step-by-Step Procedure

  1. Before you begin to configure your devices for the Outpost connections, make sure your QFX devices have the following basic configuration.

    This configuration should be applied to both Customer Device 1 and Customer Device 2:

  2. The AWS Outpost supports 1/10/40/100G interface speeds and the rack expects these interfaces to be put into a LAG group. In this example, we are using a LAG bundle named ae10 towards the Outpost.

    We also need a link between the two fabric devices to provide resiliency. This example uses ae20 as the link between the two devices. In some environments, this interconnect may not be necessary because the IP fabric can provide alternate paths.

    Configuration for Customer Device 1:

    Configuration for Customer Device 2:

  3. Configure two subnets to connect to the AWS cloud and the local data center. The subnets are carried between the QFX devices and the Outpost using VLAN IDs provided at time of provisioning. This example uses VLAN ID 200, named AWS-LGW, for the local data center connection, and VLAN ID 400, named AWS-SERVICE-LINK, for the connection to the AWS cloud. The Outpost expects both VLAN tags on the links between the data center edge and the Outpost Network Devices.

    These VLANs are only used between the two devices to carry the two Outposts subnets. The VLANs are not extended into the data center. All traffic into the Outpost will use the Layer 3 interfaces. Customers may wish to use Virtual Routers to separate the AWS service link traffic from the datacenter fabric. This example provides an optional step (step 7) which covers the creation of a dedicated VRF to create this isolation.

    This configuration should be applied to both Customer Device 1 and Customer Device 2:

  4. Add Layer 3 addressing to the interfaces. These are the point-to-point links between the two devices.

    We also configure a loopback address on the QFX devices to establish an IBGP peering between them.

    Configuration for Customer Device 1:

    Configuration for Customer Device 2:

  5. Configure the dynamic routing protocols needed to exchange routes with the Outpost.

    We are using BGP and OSPF in this example. Start with a basic BGP configuration to set up logging and hold-time timers.

    This configuration should be applied to both Customer Device 1 and Customer Device 2:

  6. For BGP peering with the Outpost, set up a peering session for each of the VLANs used for the AWS connection. BGP learns the AWS control routes from one peering and the AWS local connection routes from the second peering.

    This example uses EBGP with private ASNs to build the peerings: 64512 is used for the data center side and 64513 for the Outpost side.

    Configuration for Customer Device 1:

    Configuration for Customer Device 2:

  7. (Optional) You can create a virtual router VRF to separate routing for the AWS service link traffic from the main data center fabric, and to create BGP peering for the service link. Once the VRF is in place, you need to ensure that the service link maintains separation through the data center fabric to the AWS gateway.

  8. With the EBGP peerings established between the data center and the Outpost, configure IBGP to propagate the learned routes between the two QFX devices.

    If a link fails, the QFX devices use this interconnect link to maintain reachability to the data center or the Outpost.

    Configuration for Customer Device 1:

    Configuration for Customer Device 2:

  9. Define the routing policies to exchange routes between the Outpost and the data center fabric. In this example we assume that the data center fabric is running OSPF as the IGP. We want to learn routes from both the Outposts connections and advertise the data center fabric routes to the Outpost Configure policies to advertise OSPF and static routes from the fabric to the Outpost. Default behavior of BGP will import the routes learned from Outpost.

    This configuration should be applied to both Customer Device 1 and Customer Device 2:

  10. (Optional) When using a dedicated VRF for the service link, apply the routing policy to the additional BGP group.

  11. To exchange the QFX loopback addresses for the IBGP sessions, set up OSPF on the link between the two QFX devices. Attach a routing policy to distribute the Outpost learned routes into OSPF.

    Ensure the OSPF configuration is consistent with any existing OSPF fabric configurations.

    This configuration should be applied to both Customer Device 1 and Customer Device 2:

  12. The last step is to add routing options for graceful restart and enable per-flow load balancing.

    This configuration should be applied to both Customer Device 1 and Customer Device 2:
