采用 NAT-T 的基于路由和基于策略的 VPN

set security address-book book1 address Host1 10.1.11.0/24
set security address-book book1 attach zone trust
set security address-book book2 address Host2 10.1.21.0/24
set security address-book book2 attach zone untrust
set security policies from-zone trust to-zone untrust policy to-SRX2 match source-address Host1
set security policies from-zone trust to-zone untrust policy to-SRX2 match destination-address Host2
set security policies from-zone trust to-zone untrust policy to-SRX2 match application any
set security policies from-zone trust to-zone untrust policy to-SRX2 then permit
set security policies from-zone untrust to-zone trust policy from-SRX2 match source-address Host2
set security policies from-zone untrust to-zone trust policy from-SRX2 match destination-address Host1
set security policies from-zone untrust to-zone trust policy from-SRX2 match application any
set security policies from-zone untrust to-zone trust policy from-SRX2 then permit
set security zones security-zone untrust host-inbound-traffic system-services ike
set security zones security-zone untrust host-inbound-traffic system-services ping
set security zones security-zone untrust interfaces st0.0
set security zones security-zone untrust interfaces ge-0/0/1.0
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.11.1/24
set interfaces ge-0/0/1 unit 0 family inet address 172.16.11.1/24
set interfaces st0 unit 0 family inet address 10.1.100.1/24
set routing-options static route 10.1.21.0/24 next-hop st0.0
set routing-options static route 172.16.21.1/32 next-hop 172.16.11.2

[edit]
user@SRX1# show interfaces
ge-0/0/0 {
    unit 0 {
        family inet {
            address 10.1.11.1/24;
        }
    }
}
ge-0/0/1 {
    unit 0 {
        family inet {
            address 172.16.11.1/24;
        }
    }
}
st0 {
    unit 0 {
        family inet {
            address 10.1.100.1/24;
        }
    }
}

[edit]
user@SRX1# show routing-options
static {
    route 10.1.21.0/24 next-hop st0.0;
    route 172.16.21.1/32 next-hop 172.16.11.2;
}

[edit]
user@SRX1# show security
address-book {
    book1 {
        address Host1 10.1.11.0/24;
        attach {
            zone trust;
        }
    }
    book2 {
        address Host2 10.1.21.0/24;
        attach {
            zone untrust;
        }
    }
}
policies {
    from-zone trust to-zone untrust {
        policy to-SRX2 {
            match {
                source-address Host1;
                destination-address Host2;
                application any;
            }
            then {
                permit;
            }
        }
    }
    from-zone untrust to-zone trust {
        policy from-SRX2 {
            match {
                source-address Host2;
                destination-address Host1;
                application any;
            }
            then {
                permit;
            }
        }
    }
}
zones {
    security-zone untrust {
        host-inbound-traffic {
            system-services {
                ike;
                ping;
            }
        }
        interfaces {
            st0.0;
            ge-0/0/1.0;
        }
    }
    security-zone trust {
        host-inbound-traffic {
            system-services {
                all;
            }
            protocols {
                all;
            }
        }
        interfaces {
            ge-0/0/0.0;
        }
    }
}

set security ike proposal ike_prop authentication-method pre-shared-keys
set security ike proposal ike_prop dh-group group2
set security ike proposal ike_prop authentication-algorithm sha1
set security ike proposal ike_prop encryption-algorithm 3des-cbc
set security ike policy ike_pol mode main
set security ike policy ike_pol proposals ike_prop
set security ike policy ike_pol pre-shared-key ascii-text “$ABC123”
set security ike gateway gw1 ike-policy ike_pol
set security ike gateway gw1 address 172.16.21.1
set security ike gateway gw1 local-identity user-at-hostname "srx1@example.com"
set security ike gateway gw1 remote-identity user-at-hostname "srx2@example.com"
set security ike gateway gw1 external-interface ge-0/0/1.0

[edit]
user@SRX1# show security ike
proposal ike_prop {
    authentication-method pre-shared-keys;
    dh-group group2;
    authentication-algorithm sha1;
    encryption-algorithm 3des-cbc;
}
policy ike_pol {
    mode main;
    proposals ike_prop;
    pre-shared-key ascii-text “$9$xPn7-VwsgaJUHqp01IcSs2g”; ## SECRET-DATA
}
gateway gw1 {
    ike-policy ike_pol;
    address 172.16.21.1;
    local-identity user-at-hostname "srx1@example.com";
    remote-identity user-at-hostname "srx2@example.com";
    external-interface ge-0/0/1.0;
}

set security ipsec proposal ipsec_prop protocol esp
set security ipsec proposal ipsec_prop authentication-algorithm hmac-sha1-96
set security ipsec proposal ipsec_prop encryption-algorithm 3des-cbc
set security ipsec policy ipsec_pol perfect-forward-secrecy keys group2
set security ipsec policy ipsec_pol proposals ipsec_prop
set security ipsec vpn vpn1 bind-interface st0.0
set security ipsec vpn vpn1 ike gateway gw1
set security ipsec vpn vpn1 ike ipsec-policy ipsec_pol
set security ipsec vpn vpn1 establish-tunnels immediately

[edit]
user@SRX1# show security ipsec
proposal ipsec_prop {
    protocol esp;
    authentication-algorithm hmac-sha1-96;
    encryption-algorithm 3des-cbc;
}
policy ipsec_pol {
    perfect-forward-secrecy {
        keys group2;
    }
    proposals ipsec_prop;
}
vpn vpn1 {
    bind-interface st0.0;
    ike {
        gateway gw1;
        ipsec-policy ipsec_pol;
    }
    establish-tunnels immediately;
}

set security address-book book1 address Host2 10.1.21.0/24
set security address-book book1 attach zone trust
set security address-book book2 address Host1 10.1.11.0/24
set security address-book book2 attach zone untrust
set security policies from-zone trust to-zone untrust policy to-SRX1 match source-address Host2
set security policies from-zone trust to-zone untrust policy to-SRX1 match destination-address Host1
set security policies from-zone trust to-zone untrust policy to-SRX1 match application any
set security policies from-zone trust to-zone untrust policy to-SRX1 then permit
set security policies from-zone untrust to-zone trust policy from-SRX1 match source-address Host1
set security policies from-zone untrust to-zone trust policy from-SRX1 match destination-address Host2
set security policies from-zone untrust to-zone trust policy from-SRX1 match application any
set security policies from-zone untrust to-zone trust policy from-SRX1 then permit
set security zones security-zone untrust host-inbound-traffic system-services ike
set security zones security-zone untrust host-inbound-traffic system-services ping
set security zones security-zone untrust interfaces ge-0/0/1.0
set security zones security-zone untrust interfaces st0.0
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 10.1.21.1/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.31.1/24
set interfaces st0 unit 0 family inet address 10.1.100.2/24
set routing-options static route 172.16.11.1/32 next-hop 10.1.31.2
set routing-options static route 10.1.11.0/24 next-hop st0.0

[edit]
user@SRX2# show interfaces
ge-0/0/0 {
    unit 0 {
        family inet {
            address 10.1.21.1/24;
        }
    }
}
ge-0/0/1 {
    unit 0 {
        family inet {
            address 10.1.31.1/24;
        }
    }
}
st0 {
    unit 0 {
        family inet {
            address 10.1.100.2/24;
        }
    }
}

[edit]
user@SRX2# show routing-options
static {
    route 172.16.11.1/32 next-hop 10.1.31.2;
    route 10.1.11.0/24 next-hop st0.0;
}

[edit]
user@SRX2# show security
address-book {
    book1 {
        address Host2 10.1.21.0/24;
        attach {
            zone trust;
        }
    }
    book2 {
        address Host1 10.1.11.0/24;
        attach {
            zone untrust;
        }
    }
}
policies {
    from-zone trust to-zone untrust {
        policy to-SRX1 {
            match {
                source-address Host2;
                destination-address Host1;
                application any;
            }
            then {
                permit;
            }
        }
    }
    from-zone untrust to-zone trust {
        policy from-SRX1 {
            match {
                source-address Host1;
                destination-address Host2;
                application any;
            }
            then {
                permit;
            }
        }
    }
}
zones {
    security-zone untrust {
        host-inbound-traffic {
            system-services {
                ike;
                ping;
            }
        }
        interfaces {
            ge-0/0/1.0;
            st0.0;
        }
    }
    security-zone trust {
        host-inbound-traffic {
            system-services {
                all;
            }
            protocols {
                all;
            }
        }
        interfaces {
            ge-0/0/0.0;
        }
    }
}

set security ike proposal ike_prop authentication-method pre-shared-keys
set security ike proposal ike_prop dh-group group2
set security ike proposal ike_prop authentication-algorithm sha1
set security ike proposal ike_prop encryption-algorithm 3des-cbc
set security ike policy ike_pol mode main
set security ike policy ike_pol proposals ike_prop
set security ike policy ike_pol pre-shared-key ascii-text “$ABC123”
set security ike gateway gw1 ike-policy ike_pol
set security ike gateway gw1 address 172.16.11.1
set security ike gateway gw1 local-identity user-at-hostname "srx2@example.com"
set security ike gateway gw1 remote-identity user-at-hostname "srx1@example.com"
set security ike gateway gw1 external-interface ge-0/0/1.0

[edit]
user@SRX2# show security ike
proposal ike_prop {
    authentication-method pre-shared-keys;
    dh-group group2;
    authentication-algorithm sha1;
    encryption-algorithm 3des-cbc;
}
policy ike_pol {
    mode main;
    proposals ike_prop;
    pre-shared-key ascii-text "$9$mP5QF3/At0IE-VsYoa36/"; ## SECRET-DATA
}
gateway gw1 {
    ike-policy ike_pol;
    address 172.16.11.1;
    local-identity user-at-hostname "srx2@example.com";
    remote-identity user-at-hostname "srx1@example.com";
    external-interface ge-0/0/1.0;
}

set security ipsec proposal ipsec_prop protocol esp
set security ipsec proposal ipsec_prop authentication-algorithm hmac-sha1-96
set security ipsec proposal ipsec_prop encryption-algorithm 3des-cbc
set security ipsec policy ipsec_pol perfect-forward-secrecy keys group2
set security ipsec policy ipsec_pol proposals ipsec_prop
set security ipsec vpn vpn1 bind-interface st0.0
set security ipsec vpn vpn1 ike gateway gw1
set security ipsec vpn vpn1 ike ipsec-policy ipsec_pol
set security ipsec vpn vpn1 establish-tunnels immediately

[edit]
user@SRX2# show security ipsec
proposal ipsec_prop {
    protocol esp;
    authentication-algorithm hmac-sha1-96;
    encryption-algorithm 3des-cbc;
}
policy ipsec_pol {
    perfect-forward-secrecy {
        keys group2;
    }
    proposals ipsec_prop;
}
vpn vpn1 {
    bind-interface st0.0;
    ike {
        gateway gw1;
        ipsec-policy ipsec_pol;
    }
    establish-tunnels immediately;
}

set security nat static rule-set rule1 from zone untrust
set security nat static rule-set rule1 rule ipsec match source-address 172.16.11.1/32
set security nat static rule-set rule1 rule ipsec match destination-address 172.16.21.1/32
set security nat static rule-set rule1 rule ipsec then static-nat prefix 10.1.31.1/32
set security policies from-zone trust to-zone untrust policy allow-out match source-address any
set security policies from-zone trust to-zone untrust policy allow-out match destination-address any
set security policies from-zone trust to-zone untrust policy allow-out match application any
set security policies from-zone trust to-zone untrust policy allow-out then permit
set security policies from-zone untrust to-zone trust policy allow-out-in match source-address any
set security policies from-zone untrust to-zone trust policy allow-out-in match destination-address any
set security policies from-zone untrust to-zone trust policy allow-out-in match application any
set security policies from-zone untrust to-zone trust policy allow-out-in then permit
set security zones security-zone trust host-inbound-traffic system-services ping
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust host-inbound-traffic system-services ping
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 family inet address 172.16.21.1/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.31.2/24
set routing-options static route 172.16.11.0/24 next-hop 172.16.21.2

user@SRX1> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
302301  UP     84e8fc61d0750278  ea9a07ef032805b6  Main           172.16.21.1

user@SRX1> show security ike security-associations detail
IKE peer 172.16.21.1, Index 302301, Gateway Name: gw1
  Role: Initiator, State: UP
  Initiator cookie: 84e8fc61d0750278, Responder cookie: ea9a07ef032805b6
  Exchange type: Main, Authentication method: Pre-shared-keys
  Local: 172.16.11.1:4500, Remote: 172.16.21.1:4500
  Lifetime: Expires in 19657 seconds
  Reauth Lifetime: Disabled
  IKE Fragmentation: Disabled, Size: 0
  Remote Access Client Info: Unknown Client
  Peer ike-id: srx2@example.com
  AAA assigned IP: 0.0.0.0
  Algorithms:
   Authentication        : hmac-sha1-96
   Encryption            : 3des-cbc
   Pseudo random function: hmac-sha1
   Diffie-Hellman group  : DH-group-2
  Traffic statistics:
   Input  bytes  :                 1780
   Output bytes  :                 2352
   Input  packets:                    7
   Output packets:                   14
   Input  fragmentated packets:       0
   Output fragmentated packets:       0
  IPSec security associations: 4 created, 0 deleted
  Phase 2 negotiations in progress: 1

    Negotiation type: Quick mode, Role: Initiator, Message ID: 0
    Local: 172.16.11.1:4500, Remote: 172.16.21.1:4500
    Local identity: srx1@example.com
    Remote identity: srx2@example.com
    Flags: IKE SA is created

user@SRX1> show security ipsec security-associations
  Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:3des/sha1   fc5dbac4 2160/ unlim  -   root 4500  172.16.21.1
  >131073 ESP:3des/sha1   45fed9d8 2160/ unlim  -   root 4500  172.16.21.1

user@SRX1> show security ipsec security-associations detail
ID: 131073 Virtual-system: root, VPN Name: vpn1
  Local Gateway: 172.16.11.1, Remote Gateway: 172.16.21.1
  Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Version: IKEv1
  DF-bit: clear, Copy-Outer-DSCP Disabled, Bind-interface: st0.0
  Port: 4500, Nego#: 7, Fail#: 0, Def-Del#: 0 Flag: 0x600a29
  Multi-sa, Configured SAs# 1, Negotiated SAs#: 1
  Tunnel events:
    Fri Jul 22 2022 11:07:40 -0700: IPSec SA rekey successfully completed (3 times)
    Fri Jul 22 2022 08:38:41 -0700: IPSec SA negotiation successfully completed (1 times)
    Fri Jul 22 2022 08:38:41 -0700: User cleared IPSec SA from CLI (1 times)
    Fri Jul 22 2022 08:38:41 -0700: IKE SA negotiation successfully completed (3 times)
    Fri Jul 22 2022 08:38:26 -0700: IPSec SA negotiation successfully completed (1 times)
    Fri Jul 22 2022 08:38:26 -0700: User cleared IPSec SA from CLI (1 times)
    Fri Jul 22 2022 08:38:25 -0700: IPSec SA negotiation successfully completed (1 times)
    Fri Jul 22 2022 08:38:24 -0700: User cleared IPSec SA from CLI (1 times)
    Fri Jul 22 2022 08:37:37 -0700: IPSec SA negotiation successfully completed (1 times)
  Direction: inbound, SPI: fc5dbac4, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 2153 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 1532 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64
  Direction: outbound, SPI: 45fed9d8, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 2153 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 1532 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64

user@SRX2> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
5567091 UP     84e8fc61d0750278  ea9a07ef032805b6  Main           172.16.11.1

user@SRX2> show security ike security-associations detail
IKE peer 172.16.11.1, Index 5567091, Gateway Name: gw1
  Role: Responder, State: UP
  Initiator cookie: 84e8fc61d0750278, Responder cookie: ea9a07ef032805b6
  Exchange type: Main, Authentication method: Pre-shared-keys
  Local: 10.1.31.1:4500, Remote: 172.16.11.1:4500
  Lifetime: Expires in 18028 seconds
  Reauth Lifetime: Disabled
  IKE Fragmentation: Disabled, Size: 0
  Remote Access Client Info: Unknown Client
  Peer ike-id: srx1@example.com
  AAA assigned IP: 0.0.0.0
  Algorithms:
   Authentication        : hmac-sha1-96
   Encryption            : 3des-cbc
   Pseudo random function: hmac-sha1
   Diffie-Hellman group  : DH-group-2
  Traffic statistics:
   Input  bytes  :                 2352
   Output bytes  :                 1780
   Input  packets:                   14
   Output packets:                    7
   Input  fragmentated packets:       0
   Output fragmentated packets:       0
  IPSec security associations: 4 created, 3 deleted
  Phase 2 negotiations in progress: 1

    Negotiation type: Quick mode, Role: Responder, Message ID: 0
    Local: 10.1.31.1:4500, Remote: 172.16.11.1:4500
    Local identity: srx2@example.com
    Remote identity: srx1@example.com
    Flags: IKE SA is created

user@SRX2> show security ipsec security-associations
  Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <131073 ESP:3des/sha1   45fed9d8 1526/ unlim  -   root 4500  172.16.11.1
  >131073 ESP:3des/sha1   fc5dbac4 1526/ unlim  -   root 4500  172.16.11.1

user@SRX2> show security ipsec security-associations detail
ID: 131073 Virtual-system: root, VPN Name: vpn1
  Local Gateway: 10.1.31.1, Remote Gateway: 172.16.11.1
  Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Version: IKEv1
  DF-bit: clear, Copy-Outer-DSCP Disabled, Bind-interface: st0.0
  Port: 4500, Nego#: 25, Fail#: 0, Def-Del#: 0 Flag: 0x600a29
  Multi-sa, Configured SAs# 1, Negotiated SAs#: 1
  Tunnel events:
    Fri Jul 22 2022 11:07:40 -0700: IPSec SA negotiation successfully completed (4 times)
    Fri Jul 22 2022 08:38:41 -0700: Initial-Contact received from peer. Stale IKE/IPSec SAs cleared (1 times)
    Fri Jul 22 2022 08:38:41 -0700: IKE SA negotiation successfully completed (5 times)
    Fri Jul 22 2022 08:38:26 -0700: IPSec SA negotiation successfully completed (1 times)
    Fri Jul 22 2022 08:38:26 -0700: IPSec SA delete payload received from peer, corresponding IPSec SAs cleared (1 times)
    Fri Jul 22 2022 08:38:25 -0700: IPSec SA negotiation successfully completed (1 times)
    Fri Jul 22 2022 08:38:25 -0700: Initial-Contact received from peer. Stale IKE/IPSec SAs cleared (1 times)
    Fri Jul 22 2022 08:37:37 -0700: IPSec SA negotiation successfully completed (1 times)
    Fri Jul 22 2022 08:37:37 -0700: IPSec SA delete payload received from peer, corresponding IPSec SAs cleared (1 times)
    Thu Jul 21 2022 17:57:09 -0700: Peer's IKE-ID validation failed during negotiation (1 times)
    Thu Jul 21 2022 17:49:30 -0700: IKE SA negotiation successfully completed (4 times)
  Direction: inbound, SPI: 45fed9d8, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 1461 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 885 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64
  Direction: outbound, SPI: fc5dbac4, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 1461 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 885 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64

user@Host1> ping 10.1.21.2 count 10 rapid
PING 10.1.21.2 (10.1.21.2): 56 data bytes
!!!!!!!!!!
--- 10.1.21.2 ping statistics ---
10 packets transmitted, 10 packets received, 0% packet loss
round-trip min/avg/max/stddev = 3.437/4.270/7.637/1.158 ms

user@SRX1> show security ipsec statistics
ESP Statistics:
  Encrypted bytes:             1360
  Decrypted bytes:              840
  Encrypted packets:             10
  Decrypted packets:             10
AH Statistics:
  Input bytes:                    0
  Output bytes:                   0
  Input packets:                  0
  Output packets:                 0
Errors:
  AH authentication failures: 0, Replay errors: 0
  ESP authentication failures: 0, ESP decryption failures: 0
  Bad headers: 0, Bad trailers: 0

[edit]

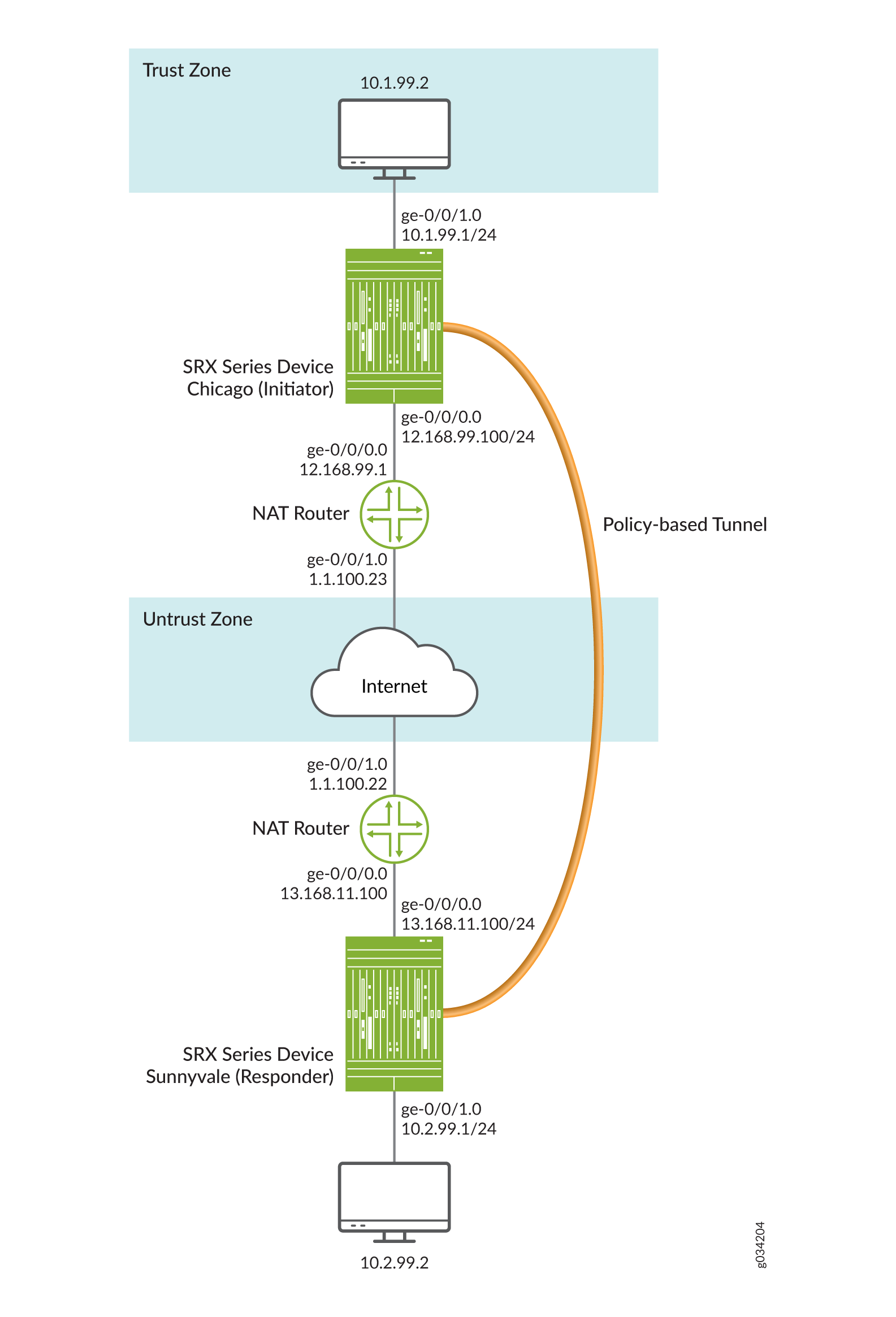

set interfaces ge-0/0/0 unit 0 family inet address 12.168.99.100/24
set interfaces ge-0/0/1 unit 0 family inet address 10.1.99.1/24
set routing-options static route 10.2.99.0/24 next-hop 12.168.99.1
set routing-options static route 1.1.100.0/24 next-hop 12.168.99.1
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust interfaces ge-0/0/0.0

[edit]
user@host# show interfaces
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 12.168.99.100/24;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 10.1.99.1/24;
            }
        }
    }

[edit]
user@host# show routing-options
    static {
        route 10.2.99.0/24 next-hop 12.168.99.1;
        route 1.1.100.0/24 next-hop 12.168.99.1;
    }

[edit]
user@host# show security zones
    security-zone trust {
        host-inbound-traffic {
            system-services {
                all;
            }
            protocols {
                all;
            }
        }
        interfaces {
            ge-0/0/1.0;
        }
    }
    security-zone untrust {
        host-inbound-traffic {
        }
        interfaces {
            ge-0/0/0.0;
        }
    }

set security ike proposal ike_prop authentication-method pre-shared-keys
set security ike proposal ike_prop dh-group group2
set security ike proposal ike_prop authentication-algorithm md5
set security ike proposal ike_prop encryption-algorithm 3des-cbc
set security ike policy ike_pol mode aggressive
set security ike policy ike_pol proposals ike_prop
set security ike policy ike_pol pre-shared-key ascii-text "$ABC123”
set security ike gateway gate ike-policy ike_pol
set security ike gateway gate address 13.168.11.100
set security ike gateway gate external-interface ge-0/0/0.0
set security ike gateway gate local-identity hostname chicago

[edit]
user@host# show security ike
    proposal ike_prop {
        authentication-method pre-shared-keys;
        dh-group group2;
        authentication-algorithm md5;
        encryption-algorithm 3des-cbc;
    }
    policy ike_pol {
        mode aggressive;
        proposals ike_prop;
        pre-shared-key ascii-text "$ABC123”
    }
    gateway gate {
        ike-policy ike_pol;
        address 13.168.11.100;
        local-identity hostname chicago;
        external-interface ge-0/0/0.0;
    }

set security ipsec proposal ipsec_prop protocol esp
set security ipsec proposal ipsec_prop authentication-algorithm hmac-md5-96
set security ipsec proposal ipsec_prop encryption-algorithm 3des-cbc
set security ipsec policy ipsec_pol perfect-forward-secrecy keys group1
set security ipsec policy ipsec_pol proposals ipsec_prop
set security ipsec vpn first_vpn ike gateway gate
set security ipsec vpn first_vpn ike ipsec-policy ipsec_pol
set security ipsec vpn first_vpn establish-tunnels immediately

[edit]
user@host# show security ipsec
    proposal ipsec_prop {
        protocol esp;
        authentication-algorithm hmac-md5-96;
        encryption-algorithm 3des-cbc;
    }
    policy ipsec_pol {
        perfect-forward-secrecy {
            keys group1;
        }
        proposals ipsec_prop;
    }
    vpn first_vpn {
        ike {
            gateway gate;
            ipsec-policy ipsec_pol;
        }
        establish-tunnels immediately;
    }

set security policies from-zone trust to-zone untrust policy pol1 match source-address any
set security policies from-zone trust to-zone untrust policy pol1 match destination-address any
set security policies from-zone trust to-zone untrust policy pol1 match application any
set security policies from-zone trust to-zone untrust policy pol1 then permit tunnel ipsec-vpn first_vpn
set security policies from-zone untrust to-zone trust policy pol1 match application any
set security policies from-zone untrust to-zone trust policy pol1 then permit tunnel ipsec-vpn first_vpn

[edit]
user@host# show security policies
    from-zone trust to-zone untrust {
        policy pol1 {
            match {
                source-address any;
                destination-address any;
                application any;
            }
            then {
                permit {
                    tunnel {
                        ipsec-vpn first_vpn;
                    }
                }
            }
        }
    }
    from-zone untrust to-zone trust {
        policy pol1 {
            match {
                application any;
            }
            then {
                permit {
                    tunnel {
                        ipsec-vpn first_vpn;
                    }
                }
            }
        }
    }

set security nat source rule-set ipsec from zone trust
set security nat source rule-set ipsec to zone untrust
set security nat source rule-set ipsec rule 1 match source-address 0.0.0.0/0
set security nat source rule-set ipsec rule 1 then source-nat interface
set security policies from-zone trust to-zone untrust policy allow-all match source-address any
set security policies from-zone trust to-zone untrust policy allow-all match destination-address any
set security policies from-zone trust to-zone untrust policy allow-all match application any
set security policies from-zone trust to-zone untrust policy allow-all then permit
set security policies from-zone untrust to-zone trust policy allow-all match application any
set security policies from-zone untrust to-zone trust policy allow-all then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/0.0
set security zones security-zone untrust interfaces ge-0/0/1.0
set interfaces ge-0/0/0 unit 0 family inet address 12.168.99.1/24
set interfaces ge-0/0/1 unit 0 family inet address 1.1.100.23/24
set routing-options static route 0.0.0.0/0 next-hop 1.1.100.22

[edit]
user@host# show security nat
        source {
            rule-set ipsec {
                from zone trust;
                to zone untrust;
                rule 1 {
                    match {
                        source-address 0.0.0.0/0;
                    }
                    then {
                        source-nat {
                            interface;
                        }
                    }
                }
            }
        }
    }
    policies {
        from-zone trust to-zone untrust {
            policy allow-all {
                match {
                    source-address any;
                    destination-address any;
                    application any;
                }
                then {
                    permit;
                }
            }
        }
        from-zone untrust to-zone trust {
            policy allow-all {
                match {
                    application any;
                }
                then {
                    permit;
                }
            }
        }
    }
    zones {
        security-zone trust {
            host-inbound-traffic {
                system-services {
                    all;
                }
                protocols {
                    all;
                }
            }
            interfaces {
                ge-0/0/0.0;
            }
        }
        security-zone untrust {
            host-inbound-traffic {
            }
            interfaces {
                ge-0/0/1.0;
            }
        }
    }
}
interfaces {
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 12.168.99.1/24;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 1.1.100.23/24;
            }
        }
    }
}
routing-options {
    static {
        route 0.0.0.0/0 next-hop 1.1.100.22;
    }

set interfaces ge-0/0/0 unit 0 family inet address 13.168.11.100/24
set interfaces ge-0/0/1 unit 0 family inet address 10.2.99.1/24
set routing-options static route 10.1.99.0/24 next-hop 13.168.11.1
set routing-options static route 1.1.100.0/24 next-hop 13.168.11.1
set security zones security-zone untrust interfaces ge-0/0/0.0
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/1.0

[edit]
user@host# show interfaces
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 13.168.11.100/24;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 10.2.99.1/24;
            }
        }
    }

[edit]
user@host# show routing-options
    static {
        route 10.1.99.0/24 next-hop 13.168.11.1;
        route 1.1.100.0/24 next-hop 13.168.11.1;
    }

[edit]
user@host# show security zones
    security-zone untrust {
        host-inbound-traffic {
        }
        interfaces {
            ge-0/0/0.0;
        }
    }
    security-zone trust {
        host-inbound-traffic {
            system-services {
                all;
            }
            protocols {
                all;
            }
        }
        interfaces {
            ge-0/0/1.0;
        }
    }

set security ike proposal ike_prop authentication-method pre-shared-keys
set security ike proposal ike_prop dh-group group2
set security ike proposal ike_prop authentication-algorithm md5
set security ike proposal ike_prop encryption-algorithm 3des-cbc
set security ike policy ike_pol mode aggressive
set security ike policy ike_pol proposals ike_prop
set security ike policy ike_pol pre-shared-key ascii-text "$ABC123"
set security ike gateway gate ike-policy ike_pol
set security ike gateway gate dynamic hostname chicago
set security ike gateway gate external-interface ge-0/0/0.0

[edit]
user@host# show security ike
    proposal ike_prop {
        authentication-method pre-shared-keys;
        dh-group group2;
        authentication-algorithm md5;
        encryption-algorithm 3des-cbc;
    }
    policy ike_pol {
        mode aggressive;
        proposals ike_prop;
        pre-shared-key ascii-text "$ABC123";
    }
    gateway gate {
        ike-policy ike_pol;
        dynamic hostname chicago;
        external-interface ge-0/0/0.0;
    }

set security ipsec proposal ipsec_prop protocol esp
set security ipsec proposal ipsec_prop authentication-algorithm hmac-md5-96
set security ipsec proposal ipsec_prop encryption-algorithm 3des-cbc
set security ipsec policy ipsec_pol perfect-forward-secrecy keys group1
set security ipsec policy ipsec_pol proposals ipsec_prop
set security ipsec vpn first_vpn ike gateway gate
set security ipsec vpn first_vpn ike ipsec-policy ipsec_pol

[edit]
user@host# show security ipsec
    proposal ipsec_prop {
        protocol esp;
        authentication-algorithm hmac-md5-96;
        encryption-algorithm 3des-cbc;
    }
    policy ipsec_pol {
        perfect-forward-secrecy {
            keys group1;
        }
        proposals ipsec_prop;
    }
    vpn first_vpn {
        ike {
            gateway gate;
            ipsec-policy ipsec_pol;
        }
    }

set security policies from-zone trust to-zone untrust policy pol1 match source-address any
set security policies from-zone trust to-zone untrust policy pol1 match destination-address any
set security policies from-zone trust to-zone untrust policy pol1 match application any
set security policies from-zone trust to-zone untrust policy pol1 then permit tunnel ipsec-vpn first_vpn
set security policies from-zone untrust to-zone trust policy pol1 match application any
set security policies from-zone untrust to-zone trust policy pol1 then permit tunnel ipsec-vpn first_vpn

[edit]
user@host# show security policies
    from-zone trust to-zone untrust {
        policy pol1 {
            match {
                source-address any;
                destination-address any;
                application any;
            }
            then {
                permit {
                    tunnel {
                        ipsec-vpn first_vpn;
                    }
                }
            }
        }
    }
    from-zone untrust to-zone trust {
        policy pol1 {
            match {
                application any;
            }
            then {
                permit {
                    tunnel {
                        ipsec-vpn first_vpn;
                    }
                }
            }
        }
    }

set security nat source rule-set ipsec from zone trust
set security nat source rule-set ipsec to zone untrust
set security nat source rule-set ipsec rule 1 match source-address 0.0.0.0/0
set security nat source rule-set ipsec rule 1 then source-nat interface
set security policies from-zone trust to-zone untrust policy allow-all match source-address any
set security policies from-zone trust to-zone untrust policy allow-all match destination-address any
set security policies from-zone trust to-zone untrust policy allow-all match application any
set security policies from-zone trust to-zone untrust policy allow-all then permit
set security policies from-zone untrust to-zone trust policy allow-all match application any
set security policies from-zone untrust to-zone trust policy allow-all then permit
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/0.0
set security zones security-zone untrust interfaces ge-0/0/1.0
set interfaces ge-0/0/0 unit 0 family inet address 13.168.11.1/24
set interfaces ge-0/0/1 unit 0 family inet address 1.1.100.22/24
set routing-options static route 0.0.0.0/0 next-hop 1.1.100.23

[edit]
user@host# show security nat
    nat {
        source {
            rule-set ipsec {
                from zone trust;
                to zone untrust;
                rule 1 {
                    match {
                        source-address 0.0.0.0/0;
                    }
                    then {
                        source-nat {
                            interface;
                        }
                    }
                }
            }
        }
    }
    policies {
        from-zone trust to-zone untrust {
            policy allow-all {
                match {
                    source-address any;
                    destination-address any;
                    application any;
                }
                then {
                    permit;
                }
            }
        }
        from-zone untrust to-zone trust {
            policy allow-all {
                match {
                    application any;
                }
                then {
                    permit;
                }
            }
        }
    }
    zones {
        security-zone trust {
            host-inbound-traffic {
                system-services {
                    all;
                }
                protocols {
                    all;
                }
            }
            interfaces {
                ge-0/0/0.0;
            }
        }
        security-zone untrust {
            host-inbound-traffic {
            }
            interfaces {
                ge-0/0/1.0;
            }
        }
    }
}
interfaces {
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 13.168.11.1/24;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 1.1.100.22/24;
            }
        }
    }
}
routing-options {
    static {
        route 0.0.0.0/0 next-hop 1.1.100.23;
    }

user@host> show security ike security-associations
Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
5649304 UP     c3193077d38e426f  011f0ef28d928f4c  Aggressive     13.168.11.

user@host> show security ike security-associations index 5649304 detail
IKE peer 13.168.11.100, Index 5649304, Gateway Name: gate
  Role: Initiator, State: UP
  Initiator cookie: c3193077d38e426f, Responder cookie: 011f0ef28d928f4c
  Exchange type: Aggressive, Authentication method: Pre-shared-keys
  Local: 12.168.99.100:4500, Remote: 13.168.11.100:4500
  Lifetime: Expires in 26359 seconds
  Reauth Lifetime: Disabled
  IKE Fragmentation: Disabled, Size: 0
  Remote Access Client Info: Unknown Client
  Peer ike-id: 13.168.11.100
  AAA assigned IP: 0.0.0.0
  Algorithms:
   Authentication        : hmac-md5-96
   Encryption            : 3des-cbc
   Pseudo random function: hmac-md5
   Diffie-Hellman group  : DH-group-2
  Traffic statistics:
   Input  bytes  :                 1140
   Output bytes  :                 1203
   Input  packets:                    6
   Output packets:                    6
   Input  fragmentated packets:       0
   Output fragmentated packets:       0
  IPSec security associations: 2 created, 3 deleted
  Phase 2 negotiations in progress: 1

    Negotiation type: Quick mode, Role: Initiator, Message ID: 0
    Local: 12.168.99.100:4500, Remote: 13.168.11.100:4500
    Local identity: chicago
    Remote identity: 13.168.11.100
    Flags: IKE SA is created

user@host> show security ipsec security-associations

Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <2      ESP:3des/md5    aff3ac30 1103/ unlim  -   root 4500  13.168.11.100
  >2      ESP:3des/md5    40539d12 1103/ unlim  -   root 4500  13.168.11.100

user@host> show security ipsec security-associations detail

ID: 2 Virtual-system: root, VPN Name: first_vpn
  Local Gateway: 12.168.99.100, Remote Gateway: 13.168.11.100
  Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Version: IKEv1
  DF-bit: clear, Copy-Outer-DSCP Disabled                             , Policy-name: pol1
  Port: 4500, Nego#: 7, Fail#: 0, Def-Del#: 0 Flag: 0x600829
  Multi-sa, Configured SAs# 1, Negotiated SAs#: 1
  Tunnel events:
    Wed Apr 08 2020 19:13:53: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020
    : IPSec SA delete payload received from peer, corresponding IPSec SAs cleared (1 times)
    Wed Apr 08 2020 19:13:09: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020 19:13:09: User cleared IPSec SA from CLI (1 times)
    Wed Apr 08 2020 19:13:09: IKE SA negotiation successfully completed (5 times)
    Wed Apr 08 2020 19:12:18: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020 19:12:18: User cleared IPSec SA from CLI (1 times)
    Wed Apr 08 2020 19:12:12: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020 19:12:12: User cleared IPSec SA from CLI (1 times)
    Wed Apr 08 2020 19:06:52: Peer's IKE-ID validation failed during negotiation (2 times)
    Wed Apr 08 2020
    : Negotiation failed  with error code NO_PROPOSAL_CHOSEN received from peer (2 times)
    Wed Apr 08 2020 19:05:26: Peer's IKE-ID validation failed during negotiation (1 times)
    Wed Apr 08 2020
    : Negotiation failed  with error code NO_PROPOSAL_CHOSEN received from peer (1 times)
    Wed Apr 08 2020 19:04:26: Peer's IKE-ID validation failed during negotiation (1 times)
    Wed Apr 08 2020
    : Negotiation failed  with error code NO_PROPOSAL_CHOSEN received from peer (1 times)
    Wed Apr 08 2020 19:03:26: Peer's IKE-ID validation failed during negotiation (1 times)
  Direction: inbound, SPI: aff3ac30, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 1093 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 453 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-md5-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64
  Direction: outbound, SPI: 40539d12, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 1093 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 453 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-md5-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64

user@host> show security ike security-associations

Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
2914355 UP     c3193077d38e426f  011f0ef28d928f4c  Aggressive     1.1.100.23

user@host> show security ike security-associations index 2914355 detail

  IKE peer 1.1.100.23, Index 2914355, Gateway Name: gate
  Role: Responder, State: UP
  Initiator cookie: c3193077d38e426f, Responder cookie: 011f0ef28d928f4c
  Exchange type: Aggressive, Authentication method: Pre-shared-keys
  Local: 13.168.11.100:4500, Remote: 1.1.100.23:23434
  Lifetime: Expires in 26137 seconds
  Reauth Lifetime: Disabled
  IKE Fragmentation: Disabled, Size: 0
  Remote Access Client Info: Unknown Client
  Peer ike-id: chicago
  AAA assigned IP: 0.0.0.0
  Algorithms:
   Authentication        : hmac-md5-96
   Encryption            : 3des-cbc
   Pseudo random function: hmac-md5
   Diffie-Hellman group  : DH-group-2
  Traffic statistics:
   Input  bytes  :                 1203
   Output bytes  :                 1140
   Input  packets:                    6
   Output packets:                    6
   Input  fragmentated packets:       0
   Output fragmentated packets:       0
  IPSec security associations: 2 created, 0 deleted
  Phase 2 negotiations in progress: 1

    Negotiation type: Quick mode, Role: Responder, Message ID: 0
    Local: 13.168.11.100:4500, Remote: 1.1.100.23:23434
    Local identity: 13.168.11.100
    Remote identity: chicago
    Flags: IKE SA is created

user@host> show security ipsec security-associations

Total active tunnels: 1     Total Ipsec sas: 1
  ID    Algorithm       SPI      Life:sec/kb  Mon lsys Port  Gateway
  <67108878 ESP:3des/md5  40539d12 939/ unlim   -   root 23434 1.1.100.23
  >67108878 ESP:3des/md5  aff3ac30 939/ unlim   -   root 23434 1.1.100.23

user@host> show security ipsec security-associations detail

  ID: 67108878 Virtual-system: root, VPN Name: first_vpn
  Local Gateway: 13.168.11.100, Remote Gateway: 1.1.100.23
  Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Version: IKEv1
  DF-bit: clear, Copy-Outer-DSCP Disabled                             , Policy-name: pol1
  Port: 23434, Nego#: 8, Fail#: 0, Def-Del#: 0 Flag: 0x608829
  Multi-sa, Configured SAs# 1, Negotiated SAs#: 1
  Tunnel events:
    Wed Apr 08 2020 19:14:22: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020 19:14:15: User cleared IPSec SA from CLI (1 times)
    Wed Apr 08 2020 19:13:39: IPSec SA negotiation successfully completed (3 times)
    Wed Apr 08 2020 19:13:39: IKE SA negotiation successfully completed (4 times)
    Wed Apr 08 2020
    : IPSec SA delete payload received from peer, corresponding IPSec SAs cleared (1 times)
    Wed Apr 08 2020 19:10:39: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020 19:10:20: User cleared IPSec SA from CLI (1 times)
    Wed Apr 08 2020 19:10:08: IPSec SA negotiation successfully completed (1 times)
    Wed Apr 08 2020
    : Tunnel is ready. Waiting for trigger event or peer to trigger negotiation (1 times)
  Direction: inbound, SPI: 40539d12, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 930 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 335 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-md5-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64
  Direction: outbound, SPI: aff3ac30, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 930 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 335 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-md5-96, Encryption: 3des-cbc
    Anti-replay service: counter-based enabled, Replay window size: 64

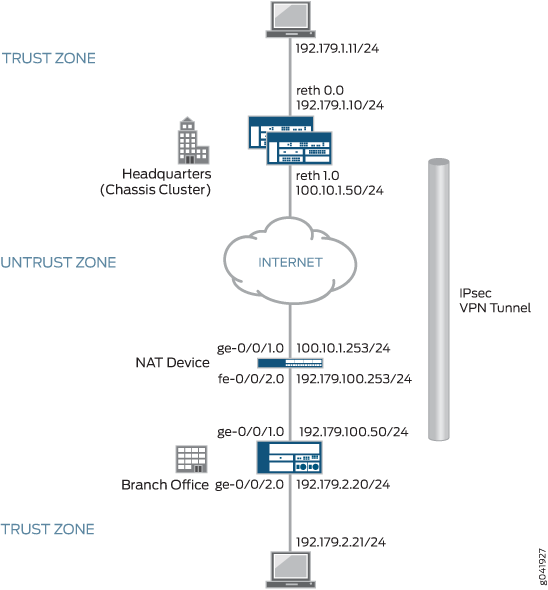

set interfaces ge-0/0/1 unit 0 family inet address 192.179.100.50/24
set interfaces ge-0/0/2 unit 0 family inet address 192.179.2.20/24
set interfaces st0 unit 0 family inet address 172.168.100.1/16
set routing-options static route 192.179.1.0/24 next-hop st0.0
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/2.0
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/1.0
set security zones security-zone untrust interfaces st0.0
set security ike proposal IKE_PROP authentication-method pre-shared-keys
set security ike proposal IKE_PROP dh-group group5
set security ike proposal IKE_PROP authentication-algorithm sha1
set security ike proposal IKE_PROP encryption-algorithm aes-256-cbc
set security ike policy IKE_POL proposals IKE_PROP
set security ike policy IKE_POL pre-shared-key ascii-text "$ABC123"
set security ike gateway HQ_GW ike-policy IKE_POL
set security ike gateway HQ_GW address 100.10.1.50
set security ike gateway HQ_GW local-identity hostname branch.example.net
set security ike gateway HQ_GW external-interface ge-0/0/1.0
set security ike gateway HQ_GW version v2-only
set security ipsec proposal IPSEC_PROP protocol esp
set security ipsec proposal IPSEC_PROP authentication-algorithm hmac-sha1-96
set security ipsec proposal IPSEC_PROP encryption-algorithm aes-256-cbc
set security ipsec policy IPSEC_POL perfect-forward-secrecy keys group5
set security ipsec policy IPSEC_POL proposals IPSEC_PROP
set security ipsec vpn HQ_VPN bind-interface st0.0
set security ipsec vpn HQ_VPN ike gateway HQ_GW
set security ipsec vpn HQ_VPN ike ipsec-policy IPSEC_POL
set security ipsec vpn HQ_VPN establish-tunnels immediately
set security policies default-policy permit-all

[edit]
user@host# show interfaces
ge-0/0/1 {
    unit 0 {
        family inet {
            address 192.179.100.50/24;
        }
    }
}
ge-0/0/2 {
    unit 0 {
        family inet {
            address 192.179.2.20/24;
        }
    }
}
st0 {
    unit 0 {
        family inet {
            address 172.168.100.1/16;
        }
    }
}
[edit]
user@host# show routing-options
static {
    route 192.179.1.0/24 next-hop st0.0;
}
[edit]
user@host# show security zones
security-zone trust {
    host-inbound-traffic {
        system-services {
            all;
        }
        protocols {
            all;
        }
    }
    interfaces {
        ge-0/0/2.0;
    }
}
security-zone untrust {
    host-inbound-traffic {
        system-services {
            all;
        }
        protocols {
            all;
        }
    }
    interfaces {
        ge-0/0/1.0;
        st0.0;
    }
}
[edit]
user@host# show security ike
proposal IKE_PROP {
    authentication-method pre-shared-keys;
    dh-group group5;
    authentication-algorithm sha1;
    encryption-algorithm aes-256-cbc;
}
policy IKE_POL {
    proposals IKE_PROP;
    pre-shared-key ascii-text "$ABC123”
}
gateway HQ_GW{
    ike-policy IKE_POL;
    address 100.10.1.50;
    local-identity hostname branch.example.net;
    external-interface ge-0/0/1.0;
    version v2-only;
}
[edit]
user@host# show security ipsec
proposal IPSEC_PROP {
    protocol esp;
    authentication-algorithm hmac-sha1-96;
    encryption-algorithm aes-256-cbc;
}
policy IPSEC_POL {
    perfect-forward-secrecy {
        keys group5;
    }
    proposals IPSEC_PROP;
}
vpn HQ_VPN {
    bind-interface st0.0;
    ike {
        gateway HQ_GW;
        ipsec-policy IPSEC_POL;
    }
    establish-tunnels immediately;
}
[edit]
user@host# show security policies
default-policy {
    permit-all;
}

set interfaces ge-0/0/1 unit 0 family inet address 100.10.1.253/24
set interfaces fe-0/0/2 unit 0 family inet address 192.179.100.253/24
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces ge-0/0/1.0
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces fe-0/0/2.0
set security nat source rule-set DYNAMIC from zone trust
set security nat source rule-set DYNAMIC to zone untrust
set security nat source rule-set DYNAMIC rule R2R3 match source-address 0.0.0.0/0
set security nat source rule-set DYNAMIC rule R2R3 then source-nat interface
set security policies default-policy permit-all

[edit]
user@host# show interfaces
ge-0/0/1 {
    unit 0 {
        family inet {
            address 100.10.1.253/24;
        }
    }
}
fe-0/0/2 {
    unit 0 {
        family inet {
            address 192.179.100.253/24;
        }
    }
}
[edit]
user@host# show security zones
security-zone trust {
    host-inbound-traffic {
        system-services {
            all;
        }
        protocols {
            all;
        }
    }
    interfaces {
        ge-0/0/1.0;
    }
}
security-zone untrust {
    host-inbound-traffic {
        system-services {
            all;
        }
        protocols {
            all;
        }
    }
    interfaces {
        fe-0/0/2.0;
    }
}
[edit]
user@host# show security nat source
rule-set DYNAMIC {
    from zone untrust;
    to zone trust;
    rule R2R3 {
        match {
            source-address 0.0.0.0/0;
        }
        then {
            source-nat {
                interface;
            }
        }
    }
}
[edit]
user@host# show security policies
default-policy {
    permit-all;
}

set chassis cluster reth-count 5
set chassis cluster redundancy-group 1 node 0 priority 220
set chassis cluster redundancy-group 1 node 1 priority 149
set chassis cluster redundancy-group 1 interface-monitor ge-0/0/1 weight 255
set chassis cluster redundancy-group 1 interface-monitor ge-8/0/1 weight 255
set chassis cluster redundancy-group 1 interface-monitor ge-0/0/2 weight 255
set chassis cluster redundancy-group 1 interface-monitor ge-8/0/2 weight 255
set interfaces ge-0/0/1 gigether-options redundant-parent reth0
set interfaces ge-0/0/2 gigether-options redundant-parent reth1
set interfaces ge-8/0/1 gigether-options redundant-parent reth0
set interfaces ge-8/0/2 gigether-options redundant-parent reth1
set interfaces reth0 redundant-ether-options redundancy-group 1
set interfaces reth0 unit 0 family inet address 192.179.1.10/24
set interfaces reth1 redundant-ether-options redundancy-group 1
set interfaces reth1 unit 0 family inet address 100.10.1.50/24
set interfaces st0 unit 0 family inet address 172.168.100.2/16
set routing-options static route 192.179.2.0/24 next-hop st0.0
set routing-options static route 192.179.100.0/24 next-hop 100.10.1.253
set security zones security-zone untrust host-inbound-traffic system-services all
set security zones security-zone untrust host-inbound-traffic protocols all
set security zones security-zone untrust interfaces st0.0
set security zones security-zone untrust interfaces reth1.0
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces reth0.0
set security ike proposal IKE_PROP authentication-method pre-shared-keys
set security ike proposal IKE_PROP dh-group group5
set security ike proposal IKE_PROP authentication-algorithm sha1
set security ike proposal IKE_PROP encryption-algorithm aes-256-cbc
set security ike policy IKE_POL proposals IKE_PROP
set security ike policy IKE_POL pre-shared-key ascii-text "$ABC123"
set security ike gateway Branch_GW ike-policy IKE_POL
set security ike gateway Branch_GW dynamic hostname branch.example.net
set security ike gateway Branch_GW dead-peer-detection optimized
set security ike gateway Branch_GW external-interface reth1.0
set security ike gateway Branch_GW version v2-only
set security ipsec proposal IPSEC_PROP protocol esp
set security ipsec proposal IPSEC_PROP authentication-algorithm hmac-sha1-96
set security ipsec proposal IPSEC_PROP encryption-algorithm aes-256-cbc
set security ipsec policy IPSEC_POL perfect-forward-secrecy keys group5
set security ipsec policy IPSEC_POL proposals IPSEC_PROP
set security ipsec vpn Branch_VPN bind-interface st0.0
set security ipsec vpn Branch_VPN ike gateway Branch_GW
set security ipsec vpn Branch_VPN ike ipsec-policy IPSEC_POL
set security policies default-policy permit-all

[edit]
user@host# show chassis cluster
reth-count 5;
redundancy-group 1 {
    node 0 priority 220;
    node 1 priority 149;
    interface-monitor {
        ge-0/0/1 weight 255;
        ge-8/0/1 weight 255;
        ge-0/0/2 weight 255;
        ge-8/0/2 weight 255;
    }
}
[edit]
user@host# show interfaces
ge-0/0/1 {
    gigether-options {
        redundant-parent reth0;
    }
}
ge-0/0/2 {
    gigether-options {
        redundant-parent reth1;
    }
}
ge-8/0/1 {
    gigether-options {
        redundant-parent reth0;
    }
}
ge-8/0/2 {
    gigether-options {
        redundant-parent reth1;
    }
}
reth0 {
    redundant-ether-options {
        redundancy-group 1;
    }
    unit 0 {
        family inet {
            address 192.179.1.10/24;
        }
    }
}
reth1 {
    redundant-ether-options {
        redundancy-group 1;
    }
    unit 0 {
        family inet {
            address 100.10.1.50/24;
        }
    }
}
st0 {
    unit 0{
        family inet {
            address 172.168.100.2/16;
        }
    }
}
[edit]
user@host# show routing-options
static {
    route 192.179.2.0/24 next-hop st0.0;
    route 192.179.100.0/24 next-hop 100.10.1.253;
}
[edit]
user@host# show security zones
security-zone trust {
    host-inbound-traffic {
        system-services {
            all;
        }
        protocols {
            all;
        }
    }
    interfaces {
        reth0.0;
    }
}
security-zone untrust {
    host-inbound-traffic {
        system-services {
            all;
        }
        protocols {
            all;
        }
    }
    interfaces {
        st0.0;
        reth1.0;
    }
}
[edit]
user@host# show security ike
proposal IKE_PROP {
    authentication-method pre-shared-keys;
    dh-group group5;
    authentication-algorithm sha1;
    encryption-algorithm aes-256-cbc;
}
policy IKE_POL {
    proposals IKE_PROP;
    pre-shared-key ascii-text “$ABC123”
}
gateway Branch_GW {
    ike-policy IKE_POL;

    dynamic hostname branch.example.net;
    dead-peer-detection optimized;
    external-interface reth1.0;
    version v2-only;
}
[edit]
user@host# show security ipsec
proposal IPSEC_PROP {
    protocol esp;
    authentication-algorithm hmac-sha1-96;
    encryption-algorithm aes-256-cbc;
}
policy IPSEC_POL {
    perfect-forward-secrecy {
        keys group5;
    }
    proposals IPSEC_PROP;
}
vpn Branch_VPN {
    bind-interface st0.0;
    ike {
        gateway Branch_GW;
        ipsec-policy IPSEC_POL;
    }
}
[edit]
user@host# show security policies
default-policy {
    permit-all;
}

user@host# show security ike security-associations
node0:
Index      State  Initiator cookie   Responder cookie  Mode    Remote Address
1367024684 UP     f82c54347e2f3fb1   020e28e1e4cae003  IKEv2    100.10.1.253

user@host# show security ike security-associations detail
node0:
IKE peer 100.10.1.253, Index 1367024684, Gateway Name: Branch_GW
  Location: FPC 5, PIC 0, KMD-Instance 2
  Role: Responder, State: UP
  Initiator cookie: f82c54347e2f3fb1, Responder cookie: 020e28e1e4cae003
  Exchange type: IKEv2, Authentication method: Pre-shared-keys
  Local: 100.10.1.50:4500, Remote: 100.10.1.253:2541
  Lifetime: Expires in 3593 seconds
  Peer ike-id: branch.example.net
  Xauth assigned IP: 0.0.0.0
  Algorithms:
   Authentication        : hmac-sha1-96
   Encryption            : aes256-cbc
   Pseudo random function: hmac-sha1
   Diffie-Hellman group  : DH-group-5
  Traffic statistics:
   Input  bytes  :                  683
   Output bytes  :                  400
   Input  packets:                    2
   Output packets:                    1
  IPSec security associations: 0 created, 0 deleted
  Phase 2 negotiations in progress: 1

user@host# show security ipsec security-associations
node0
  Total active tunnels: 1
  ID        Algorithm            SPI      Life:sec/kb  Mon lsys Port Gateway
  <77856771 ESP:aes-cbc-256/sha1 4ad5af40 7186/unlim   - root   2541 100.10.1.253
  >77856771 ESP:aes-cbc-256/sha1 5bb0a5ee 7186/unlim   - root   2541 100.10.1.253

user@host# show security ipsec security-associations detail
node0
  ID: 77856771 Virtual-system: root, VPN Name: Branch_VPN
  Local Gateway: 100.10.1.50, Remote Gateway: 100.10.1.253
  Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
  Version: IKEv2
    DF-bit: clear
    Bind-interface: st0.0

  Port: 2541, Nego#: 0, Fail#: 0, Def-Del#: 0 Flag: 608a29
  Tunnel Down Reason: SA not initiated
    Location: FPC 5, PIC 0, KMD-Instance 2
    Direction: inbound, SPI: 4ad5af40, AUX-SPI: 0
                              , VPN Monitoring: -
    Hard lifetime: Expires in 7182 seconds
    Lifesize Remaining:  Unlimited
    Soft lifetime: Expires in 6587 seconds
    Mode: Tunnel(0 0), Type: dynamic, State: installed
    Protocol: ESP, Authentication: hmac-sha1-96, Encryption: aes-cbc (256 bits)
    Anti-replay service: counter-based enabled, Replay window size: 64
