Unpacking and Mounting the SRX340

Unpacking the SRX340 Firewall

Ensure that you have the following parts and tools available:

  • Phillips (+) screwdriver, number 2

  • Blank panels to cover any slots not occupied by a component

The SRX340 Firewall is shipped in a cardboard carton and secured with foam packing material. The carton also contains an accessory box and quick start instructions.

Note:

The services gateway is maximally protected inside the cardboard carton. Do not unpack it until you are ready to begin installation.

To unpack the SRX340 Firewall:

  1. Move the cardboard carton to a staging area as close to the installation site as possible, where you have enough room to remove the components from the chassis.
  2. Position the cardboard carton with the arrows pointing up.
  3. Carefully open the top of the cardboard carton.
  4. Remove the foam covering the top of the services gateway.
  5. Remove the accessory box.
  6. Verify the parts received against the lists in Verifying Parts Received with the SRX340 Services Gateway.
  7. Store the brackets and bolts inside the accessory box.
  8. Save the shipping carton and packing materials in case you need to move or ship the services gateway at a later time.

Verifying Parts Received with the SRX340 Firewall

The SRX340 Firewall shipment package contains a packing list. Check the parts in the shipment against the items on the packing list. The packing list specifies the part numbers and carries a brief description of each part in your order.

If any part on the packing list is missing, contact your customer service representative or contact Juniper customer care from within the U.S. or Canada by telephone at 1-888-314-5822. For international-dial or direct-dial options in countries without toll-free numbers, see https://www.juniper.net/support/requesting-support.html.

A fully configured services gateway contains the chassis with installed components, listed in Table 1, and an accessory box, which contains the parts listed in Table 2.

Note:

The parts shipped with your services gateway can vary depending on the configuration you ordered.
Table 1: Parts List for a Fully Configured SRX340 Firewall

Component

Quantity

SRX340 Firewall chassis

1

Mounting brackets

2

Mounting screws to attach the mounting brackets to the chassis

8

USB console cable with Type-A and Mini-B USB plugs

1

Power cord appropriate for your geographical location

1

Table 2: Accessory Parts List for the SRX340 Firewall

Part

Quantity

Juniper Networks Product Warranty and RoHS Card

1

End User License Agreement

1

Documentation Roadmap and Product Warranty

1

Preparing the SRX340 Firewall for Rack-Mount Installation

You can mount an SRX340 Firewall on four-post (telco) racks, enclosed cabinets, and open-frame racks. Center-mount racks are not supported.

Before mounting the SRX340 Firewall in a rack:

Installing the SRX340 Firewall in a Rack

You can front-mount the SRX340 Firewall in a rack. Many types of racks are acceptable, including four-post (telco) racks, enclosed cabinets, and open-frame racks.

Note:

If you are installing multiple devices in one rack, install the lowest one first and proceed upward in the rack.

To install the services gateway in a rack:

  1. Position a mounting bracket on each side of the chassis.
  2. Use a number-2 Phillips (+) screwdriver to install the screws that secure the mounting brackets to the chassis. Use either the front mount position, as shown in Figure 1, or the center mount position, as shown in Figure 2.

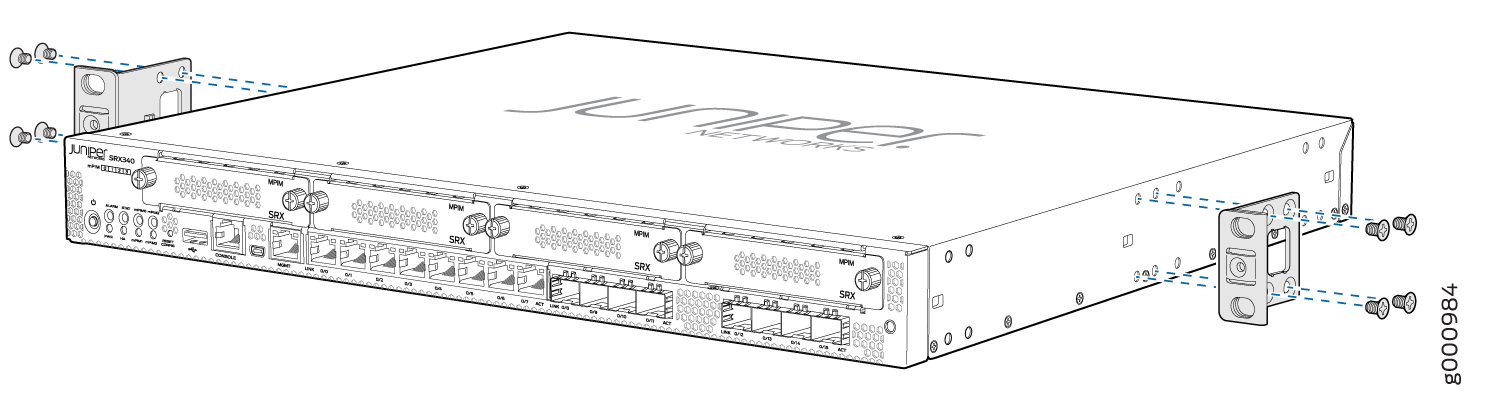

    Figure 1: Installing the Rack Mount Brackets (Front Mount Position)Installing the Rack Mount Brackets (Front Mount Position)

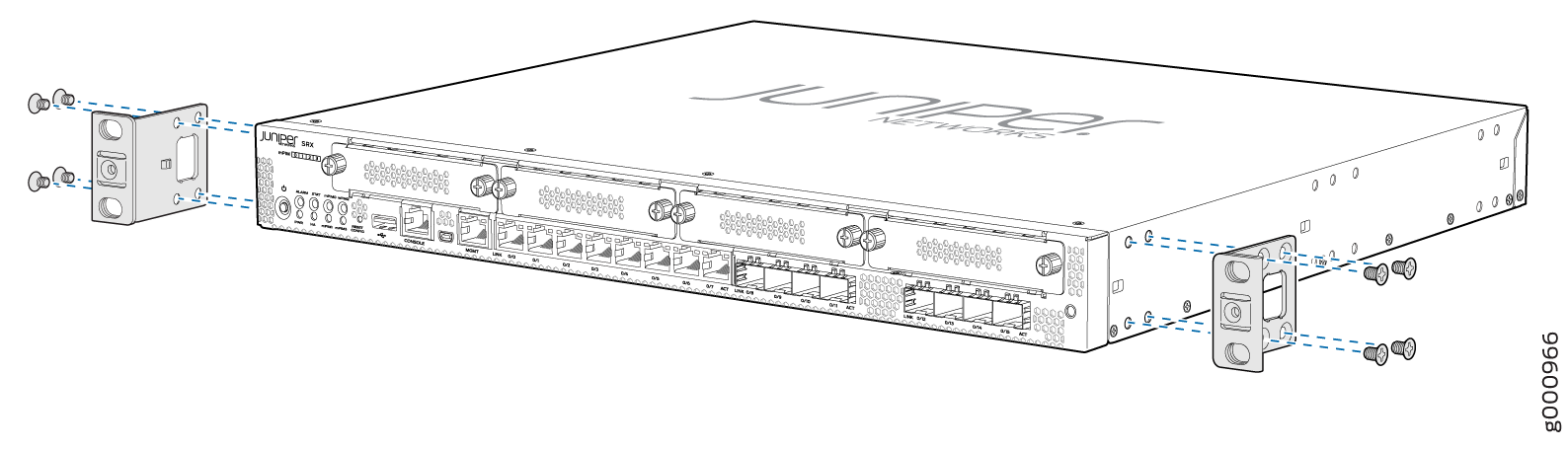

    Figure 2: Installing the Rack Mount Brackets (Center Mount Position)Installing the Rack Mount Brackets (Center Mount Position)
  3. Have one person grasp the sides of the services gateway, lift it, and position it in the rack.
  4. Align the bottom hole in each mounting bracket with a hole in each rack rail, making sure the chassis is level.
  5. Have a second person install a mounting screw into each of the two aligned holes.
  6. Install the second screw in each mounting bracket as shown in Figure 3.
    Figure 3: Installing the Services Gateway in the Rack (Front Mount Shown, Center Mount Similar)Installing the Services Gateway in the Rack (Front Mount Shown, Center Mount Similar)
  7. Verify that the mounting screws on one side of the rack are aligned with the mounting screws on the opposite side and that the services gateway is level.
