Firewall Authentication for Tenant Systems

date_range 28-Nov-23

arrow_backward

arrow_forward

The firewall authentication feature is introduced for tenant systems in Junos OS Release 18.3R1 on the Juniper SRX Series Firewalls to enable you to restrict or permit users individually or in groups. The authentication requests are initiated based on destination addresses defined in the policies.

Understanding Tenant System Firewall Authentication

A firewall user is a network user who must provide a username and password for authentication when initiating a connection across the firewall.

Firewall authentication is a policy-based authentication method, which requires user to initiate an authentication request through HTTP, FTP or Telnet traffic.

Junos OS enables administrators to restrict and permit firewall users to access protected resources behind a firewall based on their source IP address and other credentials.

The primary administrator configures the following:

maximum and reserved number of firewall authentication sessions in the tenant system.
access profile using the profile configuration command at the [edit access] hierarchy which is available to all the tenant systems.

Access profiles allows to:

Storing usernames and passwords of users or point to external authentication servers where such information is stored.
Including the order of authentication methods, LDAP or RADIUS server options, and session options.
Associating with a security policy in the tenant system.

After defining the firewall users, create a policy that requires the users to authenticate through one of the authentication modes defined in the Table 1.

Table 1: Firewall Authentication Options
Authentication Options	Description	Supported Protocols	Supported Backend
Web Authentication	Users use HTTP to connect to an IP address on the device that is enabled for Web authentication and are prompted for the username and password. Subsequent traffic from the user or host to the protected resource is allowed or denied based on the result of this authentication.	HTTP HTTPS	Local LDAP RADIUS SecurId
Pass-through	Inline authentication with a host or a user from one zone tries to access resources on another zone. The device uses the supported protocols to collect username and password information, and subsequent traffic from the user or host is allowed or denied based on the result of this authentication.	HTTP HTTPS TELNET FTP	Local LDAP RADIUS SecurId
Web Redirect	Automatically redirect client to WebAuth page for authentication (http or https)	HTTP HTTPS	Local LDAP RADIUS SecurId
Integrated User Firewall	SRX Series devices uses WMI client (WMIC) requests to the AD to get IP address-to-user mapping information in Security event logs.	none	Active Directory
User-Firewall	Same as pass-through but user information is passed to USERID process to go in Auth Table	HTTP HTTPS	Local LDAP RADIUS SecurId

The tenant system administrator configures the following properties for firewall authentication in the tenant system:

Security policy that specifies firewall authentication for matching traffic. Firewall authentication is specified with the firewall-authentication configuration statement at the [edit security policies from-zone zone-name to-zone zone-name policy policy-name then permit] hierarchy level. In an access profile, users or user groups can be allowed access by the policy can optionally be specified with the client-match configuration statement. If no users or user groups are specified, any user who is successfully authenticated is allowed access.
The type of authentication (pass-through or Web authentication), default access profile, and success banner for the FTP, Telnet, or HTTP session. These properties are configured with the firewall-authentication configuration statement at the [edit access] hierarchy.

Host inbound traffic. Protocols, services, or both are allowed to access the tenant system. The types of traffic are configured with the host-inbound-trafficconfiguration statement at the [edit security zones security-zone zone-name] or [edit security zones security-zone zone-name interfaces interface-name] hierarchy.

Configuring Firewall Authentication for a Tenant System

This example shows how to send different firewall authentication traffic from the client to server across one tenant system using the three authentication modes pass-through, pass-through with web-redirect, and web authentication.

Requirements
Overview
Configuration
Verification

Requirements

This example uses the following hardware and software components:

an SRX4100 device
Junos OS Release 18.3R1 and later
Telnet or HTTP
External authentication servers are RADIUS, LDAP, and SecurID

Ensure to have the following configured to send firewall authentication traffic from client to server:

Configure security zones for a tenant system
Configure interfaces created by the primary administrator

Overview

When a firewall user attempts to initiate a Telnet, HTTP, or HTTPS session to access a resource in another zone, the SRX Series firewall acts a proxy to authenticate the firewall users before allowing the users to access the Telnet, HTTP, or HTTPS servers behind the firewall.

In this example, you can configure a tenant system and bind the security policy to it. When the traffic from is sent from client to server as referred in Figure 1, the users are authenticated based on the authentication process defined in the security policy.

Note:

The primary administrator is responsible for creating tenants and assigning the system resources such as routing-instances, interfaces in routing-instances and security-profile to tenant system.

Table 2: Firewall Configuration for the Tenant System
Feature	Name	Description
security-profile	tn1_pf	Name of the security profile. This profile specifies the resources to allocate to a tenant system to which the security profile is bound.
interfaces	xe-0/0/1 xe-0/0/2	Name of the interfaces. The interfaces provide traffic connectivity.
access profile	local_pf radius_pf securid_pf	Name of the access profiles. These profiles are used to define the users and passwords and to obtain authorization information about the user’s access right.
SSL termination profile	fwauthhttpspf	Name of the profile. This profile is used for SSL termination services.
routing-instances	vr1	Instance type as virtual routing instance.
security policies	p7	Name of the policy. This policy is used to configure pass-through firewall-authentication using fwauthhttpspf SSL termination profile.
	p1	Name of the policy. This policy is used to configure pass-through firewall-authentication using local_pf access profile.
	p4	Name of the policy. This policy is used to configure pass-through web-redirect firewall-authentication using radius_pf.
	p3	Name of the policy. This policy is used to configure web-authentication firewall-authentication.

Topology

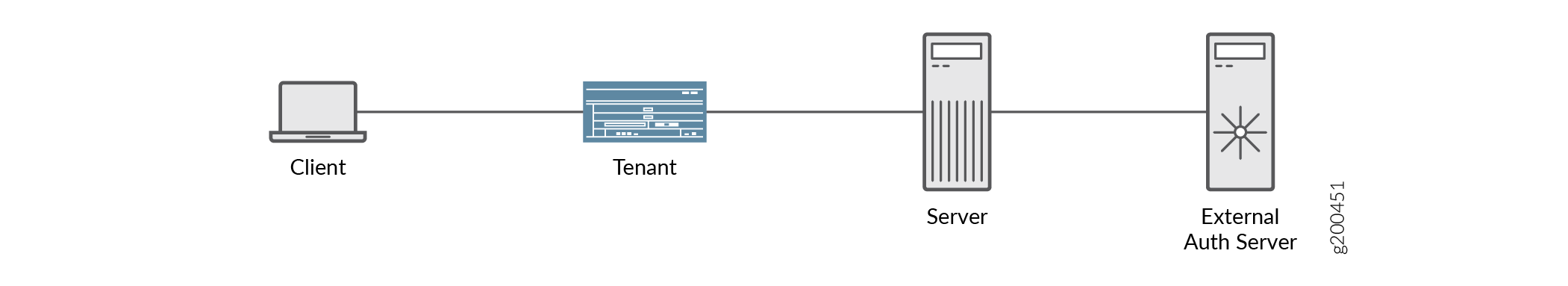

Figure 1 shows the topology used in this configuration example. The tenant shown in this topology is an SRX Series Firewall partitioned to multiple tenants. The external servers supported are RADIUS, LDAP, and SecurID. The communication from the client to the tenant happens over xe-0/0/1 interface and from the tenant to the server happens over xe-0/0/2 interface.

Figure 1: Topology for Tenant System

Configuration

CLI Quick Configuration
Configuring access profiles and firewall authentication
Results

CLI Quick Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, copy and paste the commands into the CLI at the [edit] hierarchy level, and then enter commit from configuration mode.

content_copy zoom_out_map
set system security-profile tn1_pf policy maximum 500
set system security-profile tn1_pf policy reserved 100
set system security-profile tn1_pf zone maximum 50
set system security-profile tn1_pf zone reserved 10
set tenants tn1 security-profile tn1_pf
set services ssl termination profile fwauthhttpspf server-certificate device
set interfaces xe-0/0/1 unit 0 family inet address 192.0.2.0/24
set interfaces xe-0/0/1 unit 0 family inet address 192.0.2.254/16 web-authentication http
set interfaces xe-0/0/2 unit 0 family inet address 198.51.100.0/24 web-authentication http
set access profile local_pf client test firewall-user password "$ABC123"
set access profile local_pf client test1 client-group local-group1
set access profile local_pf client test1 client-group local-group2
set access profile local_pf client test1 firewall-user password "$BCD678"
set access profile local_pf client test2 client-group local-group2
set access profile local_pf client test2 firewall-user password "$DEF234"
set access profile local_pf client test3 client-group local-group3
set access profile local_pf client test3 firewall-user password "$DBC123"
set access profile local_pf client test4 client-group local-group4
set access profile local_pf client test4 firewall-user password "$FAB123"
set access profile radius_pf authentication-order radius
set access profile radius_pf radius-server 203.0.113.1 secret "$AFD123"
set access profile securid_pf authentication-order securid
set tenants tn1 routing-instances vr1 instance-type virtual-router
set tenants tn1 routing-instances vr1 interface xe-0/0/1.0
set tenants tn1 routing-instances vr1 interface xe-0/0/2.0
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p1 match source-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p1 match destination-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p1 match application junos-telnet
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p1 then permit firewall-authentication pass-through access-profile local_pf
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p7 match source-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p7 match destination-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p7 match application any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p7 then permit firewall-authentication pass-through access-profile local_pf
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p7 then permit firewall-authentication pass-through ssl-termination-profile fwauthhttpspf
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p4 match source-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p4 match destination-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p4 match application junos-http
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p4 then permit firewall-authentication pass-through access-profile radius_pf
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p4 then permit firewall-authentication pass-through web-redirect
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p3 match source-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p3 match destination-address any
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p3 match application junos-http
set tenants tn1 security policies from-zone tn1_trust to-zone tn1_untrust policy p3 then permit firewall-authentication web-authentication
set tenants tn1 security policies policy-rematch
set tenants tn1 security zones security-zone tn1_trust interfaces xe-0/0/1.0 host-inbound-traffic system-services all
set tenants tn1 security zones security-zone tn1_trust interfaces xe-0/0/1.0 host-inbound-traffic protocols all
set tenants tn1 security zones security-zone tn1_untrust interfaces xe-0/0/2.0 host-inbound-traffic system-services all
set tenants tn1 security zones security-zone tn1_untrust interfaces xe-0/0/2.0 host-inbound-traffic protocols all
set tenants tn1 access firewall-authentication pass-through default-profile local_pf
set tenants tn1 access firewall-authentication pass-through telnet banner login ****tenant1_telnet_login_banner
set tenants tn1 access firewall-authentication pass-through telnet banner success ****tenant1_telnet_success_banner
set tenants tn1 access firewall-authentication pass-through telnet banner fail ****tenant1_telnet_fail_banner
set tenants tn1 access firewall-authentication web-authentication default-profile securid_pf
set tenants tn1 access firewall-authentication web-authentication banner success ****tenant1_webauth_success_banner

Configuring access profiles and firewall authentication

Step-by-Step Procedure
Step-by-Step Procedure
Step-by-Step Procedure

Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For instructions on how to do that, see Using the CLI Editor in Configuration Mode.

Configure a security profile tn1_pf and bind it to the tenant system.

content_copy zoom_out_map
[edit system security-profile]
user@host# set tn1_pf policy maximum 500
user@host# set tn1_pf policy reserved 100
user@host# set tn1_pf zone maximum 50
user@host# set tn1_pf zone reserved 10

Create a tenant system tn1 and bind the security profile tn1_pf to the tenant system.
```
[edit tenants]
user@host# set tn1 security-profile tn1_pf
```
Define the access profile used for SSL termination services for HTTPS traffic to trigger pass-through authentication.
```
[edit services]
user@host# set ssl termination profile fwauthhttpspf server-certificate device
```

Configure interfaces and assign IP addresses. Enable web authentication at xe-0/0/1 interface.

content_copy zoom_out_map
[edit interfaces]
user@host# set interfaces xe-0/0/1 unit 0 family inet address 192.0.2.0/24
user@host# set interfaces xe-0/0/1 unit 0 family inet address 192.0.2.254/24 web-authentication http
user@host# set interfaces xe-0/0/2 unit 0 family inet address 198.51.100.0/24 web-authentication http

Configure routing instances and add interfaces to it.

content_copy zoom_out_map
[edit tenants tn1 routing-instances]
user@host# set vr1 instance-type virtual-router
user@host# set vr1 interface xe-0/0/1.0
user@host# set vr1 interface xe-0/0/2.0

Step-by-Step Procedure

The primary administrator is responsible for configuring access profiles in the tenant system. To configure access profiles:

Create the access profiles to be used for firewall authentication. Access profiles defines clients as firewall users and the passwords that provide them access for firewall authentication. When unauthenticated traffic is permitted for firewall authentication, the user is authenticated based on the access profile configured in this command.

content_copy zoom_out_map
[edit access profile]
user@host# set local_pf client test firewall-user password "$ABC123"
user@host# set local_pf client test1 client-group local-group1
user@host# set local_pf client test1 client-group local-group2
user@host# set local_pf client test1 firewall-user password "$BCD678"
user@host# set local_pf client test2 client-group local-group2
user@host# set local_pf client test2 firewall-user password "$DEF234"
user@host# set local_pf client test3 client-group local-group3
user@host# set local_pf client test3 firewall-user password "$DBC123"
user@host# set local_pf client test4 client-group local-group4
user@host# set local_pf client test4 firewall-user password "$FAB123"

Create an access profile to configure the RADIUS server.

content_copy zoom_out_map
[edit access profile]
user@host# set radius_pf authentication-order radius
user@host# set radius_pf radius-server 203.0.113.1 secret "$AFD123"

Create an access profile to configure SecurID as the server to be used for external authentication.
```
[edit access profile]
user@host# set securid_pf authentication-order securid
```

Step-by-Step Procedure

Configure different security policies that permit HTTP, HTTPS, and Telnet traffic between zones using pass-through (direct and web-redirect) and web authentication modes in a tenant system.

Configure policy p1 for pass-through authentication for Telnet traffic.

content_copy zoom_out_map
[edit tenants tn1 security policies]
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p1 match source-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p1 match destination-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p1 match application junos-telnet
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p1 then permit firewall-authentication pass-through access-profile local_pf

Configure policy p7 for pass-through authentication for HTTPS traffic.

content_copy zoom_out_map
[edit tenants tn1 security policies]
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p7 match source-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p7 match destination-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p7 match application junos-https
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p7 then permit firewall-authentication pass-through access-profile local_pf
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p7 then permit firewall-authentication pass-through ssl-termination-profile fwauthhttpspf

Configure policy p4 for pass through authentication using web-redirect for HTTP traffic.

content_copy zoom_out_map
[edit tenants tn1 security policies]
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p4 match source-address ipv6_addr1
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p4 match destination-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p4 match application junos-http
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p4 then permit firewall-authentication pass-through access-profile radius_pf
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p4 then permit firewall-authentication pass-through web-redirect

Configure policy p3 for web authentication for HTTP traffic.

content_copy zoom_out_map
[edit tenants tn1 security policies]
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p3 match source-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p3 match destination-address any
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p3 match application junos-http
user@host# set from-zone tn1_trust to-zone tn1_untrust policy p3 then permit firewall-authentication web-authentication
user@host# set policy-rematch

Configure zones and assign interfaces to each zone in a tenant system.

content_copy zoom_out_map
[edit tenants tn1 security zones]
user@host# set security-zone tn1_trust interfaces xe-0/0/1.0 host-inbound-traffic system-services all
user@host# set security-zone tn1_trust interfaces xe-0/0/1.0 host-inbound-traffic protocols all
user@host# set security-zone tn1_untrust interfaces xe-0/0/2.0 host-inbound-traffic system-services all
user@host# set security-zone tn1_untrust interfaces xe-0/0/2.0 host-inbound-traffic protocols all

Define a success banner for Telnet sessions. Configure firewall authentication pass-through and web authentication banner for applications in a tenant system.

content_copy zoom_out_map
[edit tenants tn1 access firewall-authentication]
user@host# set pass-through default-profile local_pf
user@host# set pass-through telnet banner login ****tenant1_telnet_login_banner
user@host# set pass-through telnet banner success ****tenant1_telnet_success_banner
user@host# set pass-through telnet banner fail ****tenant1_telnet_fail_banner
user@host# set web-authentication default-profile securid_pf
user@host# set web-authentication banner success ****tenant1_webauth_success_banner

Results

From configuration mode, confirm your configuration by entering the show system security-profile, show interfaces, show access, show tenants, and show services ssl termination commands. If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it.

content_copy zoom_out_map
user@host# show interfaces
xe-0/0/1 {
    unit 0 {
        family inet {
            address 192.0.2.0/24;
            address 192.0.2.254/24 {
                web-authentication {
                    http;
                    https;
                }
            }
        }
    }
}
xe-0/0/2 {
    unit 0 {
        family inet {
            address 198.51.100.0/24;
        }
    }
}

content_copy zoom_out_map
user@host#show services ssl termination
profile fwauthhttpspf {
    server-certificate device;
}

content_copy zoom_out_map
user@host#show access
profile local_pf {
    client test {
        firewall-user {
            password "$ABC123"; ## SECRET-DATA
        }
    }
    client test1 {
        client-group [ local-group1 local-group2 ];
        firewall-user {
            password "$BCD678"; ## SECRET-DATA
        }
    }
    client test2 {
        client-group local-group2;
        firewall-user {
            password "$DEF234"; ## SECRET-DATA
        }
    }
    client test3 {
        client-group local-group3;
        firewall-user {
            password "$DBC123"; ## SECRET-DATA
        }
    }
    client test4 {
        client-group local-group4;
        firewall-user {
            password "$FAB123"; ## SECRET-DATA
        }
    }
    session-options {
        client-session-timeout 3;
    }
}
profile radius_pf {
    authentication-order radius;
    session-options {
        client-session-timeout 3;
    }
    radius-server {
        203.0.113.1 secret "$AFD123"; ## SECRET-DATA
    }
}

content_copy zoom_out_map
user@host#  show system security-profile
tn1_pf {
    policy {
        maximum 500;
        reserved 100;
    }
    zone {
        maximum 50;
        reserved 10;
    }
}

content_copy zoom_out_map
user@host#  show tenants
tn1 {
    routing-instances {
        vr1 {
            instance-type virtual-router;
            interface xe-0/0/1.0;
            interface xe-0/0/2.0;
        }
    }
    security-profile {
        tn1_pf;
    }
    security {
        policies {
            from-zone tn1_trust to-zone tn1_untrust {
                policy p2 {
                    match {
                        source-address any;
                        destination-address any;
                        application any;
                    }
                    then {
                        permit {
                            firewall-authentication {
                                pass-through {
                                    access-profile ldap_pf;
                                }
                            }
                        }
                    }
                }
            }
        }
        zones {
            security-zone tn1_trust {
                interfaces {
                    xe-0/0/1.0 {
                        host-inbound-traffic {
                            system-services {
                                all;
                            }
                            protocols {
                                all;
                            }
                        }
                    }
                }
            }
            security-zone tn1_untrust {
                interfaces {
                    xe-0/0/2.0 {
                        host-inbound-traffic {
                            system-services {
                                all;
                            }
                            protocols {
                                all;
                            }
                        }
                    }
                }
            }
        }
    }
    access {
        firewall-authentication {
            pass-through {
                default-profile local_pf;
                telnet {
                    banner {
                        login ****tenant1_telnet_login_banner;
                        success ****tenant1_telnet_success_banner;
                        fail ****tenant1_telnet_fail_banner;
                    }
                }
            }
            web-authentication {
                default-profile radius_pf;
                banner {
                    success ****tenant1_webauth_success_banner;
                }
            }
        }
    }
}

If you are done configuring the device, enter commitfrom configuration mode.

Verification

Verifying Firewall User Authentication and Monitoring Users and IP Addresses in the Authentication Table

Purpose
Action
Meaning

Purpose

The administrator for tenant system can use the show security firewall-authentication users or show security firewall-authentication history commands to view the information about firewall users and history for the tenant system. The administrator for the tenant system can use the same commands to view information for all tenant systems.

Action

From operational mode, enter the following show commands:

content_copy zoom_out_map
user@host> show security firewall-authentication history tenant tn1 identifier 10
Username: test
Source IP: 10.12.12.10Authentication state: Success
Authentication method: Pass-through using HTTP
Access start date: 2018-05-31
Access start time: 17:07:38
Duration of user access: 0:10:01
Lsys: root-logical-system
Tenant: tn1
Source zone: trust-tn1
Destination zone: untrust-tn1
Access profile: test
Bytes sent by this user: 380
Bytes received by this user: 0
user@host> show security firewall-authentication history tenant tn1
History of firewall authentication data:
  Authentications: 2
          Id Source Ip                         Date       Time     Duration   Status   User
           1 203.0.113.10                       2018-05-27 09:33:05 0:01:44    Success  test
           2 203.0.113.10                       2018-05-27 10:01:09 0:10:02    Success  test

user@host> show security firewall-authentication users tenant tn1
Firewall authentication data:
  Total users in table: 1
          Id Source Ip                         Src zone Dst zone Profile    Age Status   User
           2 203.0.113.10                        N/A      N/A      test         1 Success  test

Meaning

The output displays the authenticated firewall users and the firewall authentication history of the users for the tenant system

Understanding Integrated User Firewall Support in a Tenant System

Tenant system supports the user firewall authentication in shared and active mode.

Starting in Junos OS Release 19.1R1, user firewall authentication is supported on tenant systems using a shared model. In this model, the primary logical system shares the user firewall configuration and authentication entries with the tenant system. The primary logical system shares the authentication data with the tenant system, which is collected from the Local authentication, Active Directory (AD) authentication, firewall authenticationft, Juniper Identity Management Service (JIMS), and ClearPass authentication.

In the shared model, user firewall related configuration is configured under the primary logical system, such as authentication source, authentication source priority, authentication entries timeout, and IP query or individual query and so on. The user firewall provides user information service for an application on the SRX Series Firewall, such as policy and logging. Traffic from a tenant system queries the authentication tables from the primary logical system.

The authentication tables are managed by a primary logical system. The tenant systems share the authentication tables. Traffic from the primary logical system and the tenant systems query the same authentication table. Tenant systems enable the use of the source-identity in security policy.

For example, if the primary logical system is configured with employee and the tenant system is configured with the source-identity manager, then the reference group of this authentication entry includes employee and manager. This reference group contains the same authentication entries from primary logical system and tenant system.

Starting in Junos OS Release 19.3R1, support for user firewall authentication is enhanced by using a customized model through integrated JIMS with active mode. In this model, the tenant system extracts the authentication entries from the root level. The primary logical system is configured to the JIMS server based on the logical system and tenant system name. In active mode the SRX Series Firewall actively queries the authenticaton entries received from the JIMS server through HTTPs protocol. To reduce the data exchange, firewall filters are applied.

The user firewall uses the tenant system name as a diffrentiator and is consistent between the JIMS server and SRX Series Firewall. The JIMS server sends the diffrentiator which is included in the authentication entry. The authentication entries are distributed into the root logical system, when the diffrentiator is set as default for the primary logical system.

The user firewall support In-service software upgrade (ISSU) for tenant systems, as user firewall changes the internal database table format from Junos OS Release 19.2R1 onwards. Prior to Junos OS Release 19.2R1, the ISSU is not supported for tenant systems.

Starting in Junos OS Release 20.2R1, logical systems and tenant systems support user firewall authentication with Unified Access Control (UAC).

Limitation of Using User Firewall Authentication in Tenant Systems
Limitation of using User Firewall Authentication in customized model on Tenant Systems

Limitation of Using User Firewall Authentication in Tenant Systems

Using user firewall authentication on tenant systems has the following limitation:

The IP addresses under different tenant systems must not overlap. If the address overlap, then the authentication entry is changed when different users log in under different tenant systems.

Limitation of using User Firewall Authentication in customized model on Tenant Systems

Using user firewall authentication in customized model on tenant systems has the following limitation:

The JIMS server configurations to be configured under the root logical systems.
The tenant system name should be consistent and unique between the JIMS server and the SRX Series Firewall.

Example: Configuring Integrated User Firewall Identification Management for a Tenant System

This example shows how to configure the SRX Series Firewall's advanced query feature for obtaining user identity information from the Juniper Identity Management Service (JIMS) and the security policy to match the source identity for a tenant system. In the primary logical system, user firewall is configured with JIMS, and then the primary logical system manages all of authentication entries coming from JIMS. In this example, the primary logical systems shares the authentication entries with the tenant systems.

Requirements
Overview
Configuration
Verification

Requirements

This example uses the following hardware and software components:

SRX1500 devices operating in chassis clustering
JIMS server
Junos OS Release 19.1 R1

Overview

In this example, you can configure JIMS with HTTPs connection on port 443 and primary server with IPv4 address on the primary logical system, policy p1 with source-identity "group1" of dc0 domain on tenant system TN1, policy p1 with source-identity "group1" of dc0 domain on tenant system TN2, and send traffic from and through tenant system TN1 to tenant system TN2. You can view the authentication entries on primary logical system and tenant systems (TN1 and TN2) even after rebooting the primary node.

Configuration

CLI Quick Configuration
Configuring user firewall identification management
Results

CLI Quick Configuration

content_copy zoom_out_map
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match source-address any
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match destination-address any
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match application any
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match source-identity "example.com\group1"
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 then permit
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 match source-address any
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 match destination-address any
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 match application any
set tenants TN1 security policies from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 then permit
set tenants TN1 security policies from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 match source-address any
set tenants TN1 security policies from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 match destination-address any
set tenants TN1 security policies from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 match application any
set tenants TN1 security policies from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 then permit
set tenants TN1 security policies policy-rematch
set tenants TN2 security policies from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match source-address any
set tenants TN2 security policies from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match destination-address any
set tenants TN2 security policies from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match application any
set tenants TN2 security policies from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match source-identity "example.com\group2"
set tenants TN2 security policies from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 then permit
set tenants TN2 security policies policy-rematch
set services user-identification identity-management connection connect-method https
set services user-identification identity-management connection port 443
set services user-identification identity-management connection primary address 192.0.2.5
set services user-identification identity-management connection primary client-id otest
set services user-identification identity-management connection primary client-secret "$ABC123"
set security policies from-zone root_trust to-zone root_trust policy root_policy1 match source-address any
set security policies from-zone root_trust to-zone root_trust policy root_policy1 match destination-address any
set security policies from-zone root_trust to-zone root_trust policy root_policy1 match application any
set security policies from-zone root_trust to-zone root_trust policy root_policy1 then permit
set security policies policy-rematch
set security zones security-zone root_trust interfaces reth1.0 host-inbound-traffic system-services all
set security zones security-zone root_trust interfaces reth1.0 host-inbound-traffic protocols all
set security zones security-zone root_trust interfaces lt-0/0/0.1 host-inbound-traffic system-services all
set security zones security-zone root_trust interfaces lt-0/0/0.1 host-inbound-traffic protocols all
set firewall family inet filter impair-ldap term allow_all then accept

Configuring user firewall identification management

Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For instructions on how to do that, see Using the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To configure user firewall identification management:

Log in to the primary logical system as the primary administrator and enter configuration mode.
```
user@host> configure
user@host#
```

Create tenant systems.

content_copy zoom_out_map
[edit tenants]
user@host#set TN1
user@host#set TN2

Configure a security policy TN1_policy1 with source-identity group1 on the tenant system TN1 that permits traffic from TN1_trust to TN1_trust.

content_copy zoom_out_map
[edit security policies]
user@host#set from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match source-address any
user@host#set from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match destination-address any
user@host#set from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match application any
user@host#set from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 match source-identity "example.com\group1"
user@host#set from-zone TN1_trust to-zone TN1_trust policy TN1_policy1 then permit

Configure a security policy TN1_policy2 that permits traffic from TN1_trust to TN1_untrust.

content_copy zoom_out_map
[edit security policies]
user@host#set from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 match source-address any
user@host#set from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 match destination-address any
user@host#set from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 match application any
user@host#set from-zone TN1_trust to-zone TN1_untrust policy TN1_policy2 then permit

Configure a security policy TN1_policy3 that permits traffic from TN1_untrust to TN1_trust.

content_copy zoom_out_map
[edit security policies]
user@host#set from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 match source-address any
user@host#set from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 match destination-address any
user@host#set from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 match application any
user@host#set from-zone TN1_untrust to-zone TN1_trust policy TN1_policy3 then permit
user@host#set policy-rematch

Configure security zone and assign interfaces to each zone.

content_copy zoom_out_map
[edit security zones]
user@host#set security-zone TN1_trust interfaces reth2.0 host-inbound-traffic system-services all
user@host#set security-zone TN1_trust interfaces reth2.0 host-inbound-traffic protocols all
user@host#set security-zone TN1_trust interfaces lt-0/0/0.11 host-inbound-traffic system-services all
user@host#set security-zone TN1_trust interfaces lt-0/0/0.11 host-inbound-traffic protocols all
user@host#set security-zone TN1_untrust interfaces reth3.0 host-inbound-traffic system-services all
user@host#set security-zone TN1_untrust interfaces reth3.0 host-inbound-traffic protocols all

Configure a security policy TN2_policy1 with source-identity group1 that permits traffic from TN2_untrust to TN2_untrust on TN2.

content_copy zoom_out_map
[edit security policies]
user@host#set from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match source-address any
user@host#set from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match destination-address any
user@host#set from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match application any
user@host#set from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 match source-identity "example.com\group2"
user@host#set from-zone TN2_untrust to-zone TN2_untrust policy TN2_policy1 then permit
user@host#set policy-rematch

Configure security zones and assign interfaces to each zone on TN2.

content_copy zoom_out_map
[edit security zones]
user@host#set security-zone TN2_untrust interfaces reth4.0 host-inbound-traffic system-services all
user@host#set security-zone TN2_untrust interfaces reth4.0 host-inbound-traffic protocols all
user@host#set security-zone TN2_untrust interfaces lt-0/0/0.21 host-inbound-traffic system-services all
user@host#set security-zone TN2_untrust interfaces lt-0/0/0.21 host-inbound-traffic protocols all

Configure JIMS as the authentication source for advanced query requests with the primary address. The SRX Series Firewall requires this information to contact the server.

content_copy zoom_out_map
[edit services user-identification identity-management]
user@host#set connection port 443
user@host#set connection connect-method https
user@host#set connection primary address 192.0.2.5
user@host#set connection primary client-id otest
user@host#set connection primary client-secret test
user@host#set authentication-entry-timeout 0

Configure security policies and zones on the primary logical system.

content_copy zoom_out_map
[edit security policies]
user@host#set from-zone root_trust to-zone root_trust policy root_policy1 match source-address any
user@host#set from-zone root_trust to-zone root_trust policy root_policy1 match destination-address any
user@host#set from-zone root_trust to-zone root_trust policy root_policy1 match application any
user@host#set from-zone root_trust to-zone root_trust policy root_policy1 then permit
user@host#set policy-rematch

Configure security zones and assign interfaces to each zone on primary logical system.

content_copy zoom_out_map
[edit security zones]
user@host#set security-zone root_trust interfaces reth1.0 host-inbound-traffic system-services all
user@host#set security-zone root_trust interfaces reth1.0 host-inbound-traffic protocols all
user@host#set security-zone root_trust interfaces lt-0/0/0.1 host-inbound-traffic system-services all
user@host#set security-zone root_trust interfaces lt-0/0/0.1 host-inbound-traffic protocols all
user@host#set firewall family inet filter impair-ldap term allow_all then accept

Results

From configuration mode, confirm your configuration by entering the show services user-identification identity-management show chassis cluster command. If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it.

content_copy zoom_out_map
user@host# show services user-identification identity-management
connection {
    connect-method https;
    port 443;
    primary {
        address 192.0.2.5;
        client-id otest;
        client-secret "$ABC123"; ## SECRET-DATA
    }
}

content_copy zoom_out_map
user@host# show chassis cluster
reth-count 5;
    control-ports {
    fpc 3 port 0;
    fpc 9 port 0;
}
redundancy-group 0 {
    node 0 priority 200;
    node 1 priority 1;
}
redundancy-group 1 {
    node 0 priority 100;
    node 1 priority 1;
}
redundancy-group 2 {
    node 0 priority 100;
    node 1 priority 1;
}
redundancy-group 3 {
    node 0 priority 100;
    node 1 priority 1;
}
redundancy-group 4 {
    node 0 priority 100;
    node 1 priority 1;
}

If you are done configuring the device, enter commit from configuration mode.

Verification

To confirm that the configuration is working properly, perform the below tasks:

Verifying chassis cluster status and authentication entries
Verifying chassis cluster status

Verifying chassis cluster status and authentication entries

Purpose
Action
Meaning

Purpose

To verify authentication entries in a tenant system.

Action

To verify the configuration is working properly, enter the show services user-identification authentication-table authentication-source identity-management tenant TN1 command.

content_copy zoom_out_map
user@host> show services user-identification authentication-table authentication-source identity-management tenant TN1
node0:
--------------------------------------------------------------------------
Logical System: root-logical-system
Domain: ad2012.jims.com
Total entries: 3
Source IP       Username       groups(Ref by policy)          state
2001:db8:aaaa:  N/A                                           Valid
2001:db8:aaaa:  administrator                                 Valid
203.0.113.50    administrator                                 Valid
node1:
--------------------------------------------------------------------------
Logical System: root-logical-system
Domain: ad2012.jims.com
Total entries: 3
Source IP       Username       groups(Ref by policy)          state
2001:db8:aaaa:  N/A                                           Valid
2001:db8:aaaa:  administrator                                 Valid
203.0.113.50    administrator                                 Valid

Meaning

The output displays the authentication entries that are shared from the primary logical system to the tenant system.

Purpose

Verify chassis cluster status after rebooting the primary node.

Action

To verify the configuration is working properly, enter the show chassis cluster status command.

content_copy zoom_out_map
user@host> show chassis cluster status
Monitor Failure codes:
CS  Cold Sync monitoring        FL  Fabric Connection monitoring
GR  GRES monitoring             HW  Hardware monitoring
IF  Interface monitoring        IP  IP monitoring
LB  Loopback monitoring         MB  Mbuf monitoring
NH  Nexthop monitoring          NP  NPC monitoring
SP  SPU monitoring              SM  Schedule monitoring
CF  Config Sync monitoring      RE  Relinquish monitoring
Cluster ID: 6
Node   Priority Status               Preempt Manual   Monitor-failures
Redundancy group: 0 , Failover count: 0
node0  200      hold                 no      no       None
node1  1        secondary            no      no       None
Redundancy group: 1 , Failover count: 0
node0  0        hold                 no      no       CS
node1  1        secondary            no      no       None
Redundancy group: 2 , Failover count: 0
node0  0        hold                 no      no       CS
node1  1        secondary            no      no       None
Redundancy group: 3 , Failover count: 0
node0  0        hold                 no      no       CS
node1  1        secondary            no      no       None
Redundancy group: 4 , Failover count: 0
node0  0        hold                 no      no       CS
node1  1        secondary            no      no       None

Meaning

The output displays user identification management session existing on TN1 and TN2 after rebooting the primary node.

Example: Configure Integrated User Firewall in Customized Model for Tenant System

This example shows how to configure the integrated user firewall by using a customized model through the Juniper Identity Management Service (JIMS) server with active mode for a tenant system. The primary logical systems does not share the authentication entries with the tenant systems. The SRX Series Firewall queries the authentication entries received from the JIMS server through HTTPs protocol in active mode.

In this example following configurations are performed:

Active JIMS Server Configuration
Tenant System IP Query Configuration
Tenant System Authentication Entry Configuration
Tenant System Security Policy Configuration

Requirements
Overview
Configuration
Verification

Requirements

This example uses the following hardware and software components:

JIMS server version 2.0
Junos OS Release 19.3R1

Before you begin, be sure you have following information:

The IP address of the JIMS server.
The port number on the JIMS server for receiving HTTPs requests.
The client ID from the JIMS server for active query server.
The client secret from the JIMS server for active query server.

Overview

In this example, you can configure JIMS with HTTPs connection on port 443 and primary server with IPv4 address on the primary logical system, policy p2 with source-identity group1 on tenant system TSYS1.

Configuration

CLI Quick Configuration
Configuring Integrated User Firewall in Customized Model:
Results

CLI Quick Configuration

content_copy zoom_out_map
set services user-identification logical-domain-identity-management active query-server jims1 connection connect-method https
set services user-identification logical-domain-identity-management active query-server jims1 connection port 443
set services user-identification logical-domain-identity-management active query-server jims1 connection primary address 192.0.2.5
set services user-identification logical-domain-identity-management active query-server jims1 connection primary client-id otest
set services user-identification logical-domain-identity-management active query-server jims1 connection primary client-secret "$ABC123"
set tenants TSYS1 services user-identification logical-domain-identity-management active ip-query query-delay-time 30
set tenants TSYS1 services user-identification logical-domain-identity-management active invalid-authentication-entry-timeout 1
set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match source-address any
set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match destination-address any
set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match application any
set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match source-identity "example.com\group1"
set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 then permit

Configuring Integrated User Firewall in Customized Model:

Step-by-Step Procedure

To configure Integrated User Firewall in Customized Model:

Configure JIMS as the authentication source for advanced query requests with the primary address. The SRX Series Firewall requires this information to contact the server.

content_copy zoom_out_map
user@host# set services user-identification logical-domain-identity-management active query-server jims1 connection connect-method https
user@host# set services user-identification logical-domain-identity-management active query-server jims1 connection port 443
user@host# set services user-identification logical-domain-identity-management active query-server jims1 connection primary address 192.0.2.5
user@host# set services user-identification logical-domain-identity-management active query-server jims1 connection primary client-id otest
user@host# set services user-identification logical-domain-identity-management active query-server jims1 connection primary client-secret "$ABC123"

Configure the IP query delay time for TSYS1.

content_copy zoom_out_map
user@host# set tenants TSYS1 services user-identification logical-domain-identity-management active ip-query query-delay-time 30

Configure the authentication entry attributes for TSYS1.

content_copy zoom_out_map
user@host# set tenants TSYS1 services user-identification logical-domain-identity-management active invalid-authentication-entry-timeout 1

Configure the security policy p2 that permits traffic from-zone untrust to-zone trust for TSYS1.

content_copy zoom_out_map
user@host# set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match source-address any
user@host# set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match destination-address any
user@host# set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match application any
user@host# set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 match source-identity "example.com\group1"
user@host#set tenants TSYS1 security policies from-zone untrust to-zone trust policy p2 then permit

Results

From configuration mode, confirm your configuration by entering the show services user-identification logical-domain-identity-management and show tenants TSYS1 commands. If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it.

content_copy zoom_out_map
user@host# show services user-identification logical-domain-identity-management
active {
    query-server jims1 {
        connection {
            connect-method https;
            port 443;
            primary {
                address 10.1.1.1;
                client-id otest;
                client-secret "$ABC123"; ## SECRET-DATA
            }
        }
    }
}

content_copy zoom_out_map
user@host# show tenants TSYS1
security {
    policies {
        from-zone untrust to-zone trust {
            policy p2 {
                match {
                    source-address any;
                    destination-address any;
                    application any;
                    source-identity "example.com\group1";
                }
                then {
                    permit;
                }
            }
        }
    }
}
services {
    user-identification {
        logical-domain-identity-management {
            active {
                invalid-authentication-entry-timeout 1;
                ip-query {
                    query-delay-time 30;
                }
            }
        }
    }
}

If you are done configuring the device, enter commit from configuration mode.

Verification

To confirm that the configuration is working properly, perform the below tasks:

Verifying the User Identification Identity Management status
Verifying the User Identification Identity Management status counters
Verifying the User Identification Authentication Table

Verifying the User Identification Identity Management status

Purpose
Action
Meaning

Purpose

Verify the user identification status for identity-management as the authentication source.

Action

To verify the configuration is working properly, enter the show services user-identification logical-domain-identity-management status command.

content_copy zoom_out_map
user@host>show services user-identification logical-domain-identity-management status
node0:
--------------------------------------------------------------------------
      Query server name                 :jims1
      Primary server :
     Address                      : 10.1.1.1
     Port                         : 443
     Connection method            : HTTPS
     Connection status            : Online
     Last received status message : OK (200)
     Access token                 : isdHIbl8BXwxFftMRubGVsELRukYXtW3rtKmHiL
     Token expire time            : 2017-11-27 23:45:22
     Secondary server :
     Address                      : Not configured

Meaning

The output displays the statistical data about the advanced user query function batch queries and IP queries, or show status on the Juniper Identity Management Service servers.

Verifying the User Identification Identity Management status counters

Purpose
Action
Meaning

Purpose

Verify the user identification counters for identity-management as the authentication source.

Action

To verify the configuration is working properly, enter the show services user-identification logical-domain-identity-management counters command.

content_copy zoom_out_map
user@host>show services user-identification logical-domain-identity-management counters
node0:
      --------------------------------------------------------------------------
   Query server name                      :jims1
    Primary server :
     Address                           : 10.208.137.208
     Batch query sent number           : 65381
     Batch query total response number : 64930
     Batch query error response number : 38
     Batch query last response time    : 2018-08-14 15:10:52
     IP query sent number              : 10
     IP query total response number    : 10
     IP query error response number    : 0
     IP query last response time       : 2018-08-13 12:41:56
  Secondary server :
 Address                           : Not configured

Meaning

The output displays the statistical data about the advanced user query function batch queries and IP queries, or show counters on the Juniper Identity Management Service servers.

Verifying the User Identification Authentication Table

Purpose
Action
Meaning

Purpose

Verify the user identity information authentication table entries for the specified authentication source.

Action

To verify the configuration is working properly, enter the show services user-identification authentication-table authentication-source all tenant TSYS1 command.

content_copy zoom_out_map
user@host>show services user-identification authentication-table authentication-source all tenant TSYS1
node0:
      --------------------------------------------------------------------------
   Tenant System: TSYS1
Domain: ad03.net
Total entries: 4
Source IP       Username       groups(Ref by policy)          state
10.12.0.2        administrator  posture-healthy                Valid
10.12.0.15       administrator  posture-healthy                Valid
2001:db8:3000::5         N/A            posture-healthy                Valid
fe80::342c:302b N/A            posture-healthy                Valid

Meaning

The output displays the entire content of the specified authentication source’s authentication table, or a specific domain, group, or user based on the user name. Display the identity information for a user based on the IP address of the user’s device.

Change History Table

Feature support is determined by the platform and release you are using. Use Feature Explorer to determine if a feature is supported on your platform.

Release

Description

19.3R1

Starting in Junos OS Release 19.3R1, support for user firewall authentication is enhanced by using a customized model through integrated JIMS with active mode.

19.1R1

arrow_backward PREVIOUS Flow Trace for Tenant Systems

NEXT arrow_forward Security Policies for Tenant Systems

Helped me install or use the product
Accelerated my deployment

Discuss the product with a co-worker
Make a purchase inquiry

Logical Systems and Tenant Systems User Guide for Security Devices

ON THIS PAGE

Firewall Authentication for Tenant Systems

Understanding Tenant System Firewall Authentication

Configuring Firewall Authentication for a Tenant System

Requirements

Overview

Topology

Configuration

CLI Quick Configuration

Configuring access profiles and firewall authentication

Step-by-Step Procedure

Step-by-Step Procedure

Step-by-Step Procedure

Results

Verification

Verifying Firewall User Authentication and Monitoring Users and IP Addresses in the Authentication Table

Purpose

Action

Meaning

See Also

Understanding Integrated User Firewall Support in a Tenant System

Limitation of Using User Firewall Authentication in Tenant Systems

Limitation of using User Firewall Authentication in customized model on Tenant Systems

See Also

Example: Configuring Integrated User Firewall Identification Management for a Tenant System

Requirements

Overview

Configuration

CLI Quick Configuration

Configuring user firewall identification management

Step-by-Step Procedure

Results

Verification

Verifying chassis cluster status and authentication entries

Purpose

Action

Meaning

Verifying chassis cluster status

Purpose

Action

Meaning

See Also

Example: Configure Integrated User Firewall in Customized Model for Tenant System

Requirements

Overview

Configuration

CLI Quick Configuration

Configuring Integrated User Firewall in Customized Model:

Step-by-Step Procedure

Results

Verification

Verifying the User Identification Identity Management status

Purpose

Action

Meaning

Verifying the User Identification Identity Management status counters

Purpose

Action

Meaning

Verifying the User Identification Authentication Table

Purpose

Action

Meaning

Change History Table

Stay in touch
