예: ISP 네트워크에서 라우팅 정책 사용

date_range 19-Jan-25

arrow_backward

arrow_forward

이 예는 일반적인 ISP(인터넷 서비스 프로바이더) 네트워크에서 라우팅 정책을 사용하는 방법에 대한 사례 연구입니다.

요구 사항

이 예를 구성하기 전에 디바이스 초기화를 제외한 특별한 구성은 필요하지 않습니다.

개요

이 네트워크 예에서 ISP의 AS 번호는 64510입니다. ISP에는 교환 지점에서 연결하는 두 개의 전송 피어(AS 64514 및 AS 64515)가 있습니다. 또한 ISP는 특정 고객 경로를 교환하는 두 개의 프라이빗 피어(AS 64513 및 AS 64516)에 연결됩니다. ISP에는 두 명의 고객(AS 64511 및 AS 64512)이 있습니다.

ISP 정책은 아웃바운드 방향으로 구성됩니다. 즉, 이 예는 ISP가 피어 및 고객에게 알리는 경로에 초점을 맞추고 다음을 포함합니다.

ISP는 AS 64510 및 라우팅 공간 172.16.32.0/21로 할당되었습니다. 두 고객 네트워크를 제외한 다른 모든 고객 경로는 정적 경로로 시뮬레이션됩니다.
교환 피어는 인터넷의 다른 부분으로의 전송 서비스에 사용됩니다. 즉, ISP는 해당 BGP 피어의 모든 경로(전체 인터넷 라우팅 테이블)를 수락합니다. 최적화된 인터넷 라우팅 테이블을 유지하기 위해 ISP는 전송 피어에 두 개의 집계 경로만 보급하도록 구성되어 있습니다.
ISP 관리자는 프라이빗 피어에 대한 모든 데이터가 직접 링크를 사용하길 원합니다. 그 결과, ISP의 모든 고객 경로가 해당 프라이빗 피어에 보급됩니다. 그런 다음 이러한 피어는 ISP에 모든 고객 경로를 보급합니다.
마지막으로, 고객마다 요구 사항이 다릅니다. Customer-1에는 단일 기본 경로가 필요합니다. 고객-2에는 특정 경로가 필요합니다.

토폴로지

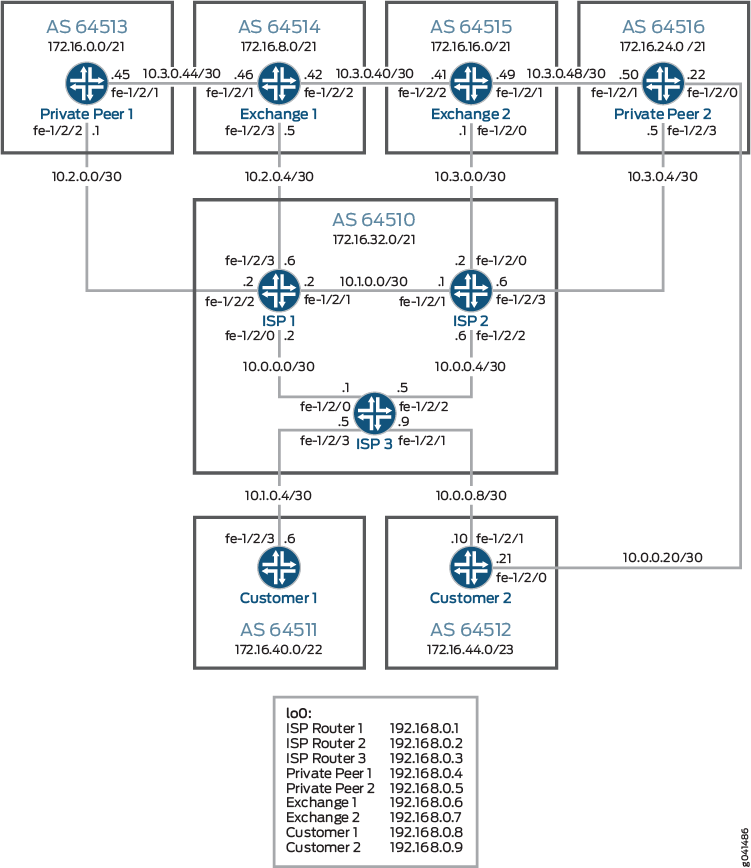

그림 1은 샘플 네트워크를 표시합니다.

그림 1: ISP 네트워크 예시

토폴로지의 모든 디바이스에 대한 명령 설정

CLI 빠른 구성

이 예를 빠르게 구성하려면, 아래 명령을 복사하여 텍스트 파일로 붙여 넣은 다음 모든 라인브레이크를 제거하고, 네트워크 구성을 일치하는 데 필요한 세부 사항을 바꾸고 [edit] 계층 수준에서 명령을 CLI로 복사해 붙여 넣습니다.

디바이스 고객-1

content_copy zoom_out_map
set interfaces fe-1/2/3 unit 0 description to_ISP-3
set interfaces fe-1/2/3 unit 0 family inet address 10.1.0.6/30
set interfaces lo0 unit 0 family inet address 192.168.0.8/32
set protocols bgp group ext type external
set protocols bgp group ext export send-statics
set protocols bgp group ext peer-as 64510
set protocols bgp group ext neighbor 10.1.0.5
set policy-options policy-statement send-statics term static-routes from protocol static
set policy-options policy-statement send-statics term static-routes then accept
set routing-options static route 172.16.40.0/25 reject
set routing-options static route 172.16.40.128/25 reject
set routing-options static route 172.16.41.0/25 reject
set routing-options static route 172.16.41.128/25 reject
set routing-options autonomous-system 64511

디바이스 고객-2

content_copy zoom_out_map
set interfaces fe-1/2/1 unit 0 description to_ISP-3
set interfaces fe-1/2/1 unit 0 family inet address 10.0.0.10/30
set interfaces fe-1/2/0 unit 0 description to-Private-Peer-2
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.21/30
set interfaces lo0 unit 0 family inet address 192.168.0.9/32
set protocols bgp group ext type external
set protocols bgp group ext import inbound-routes
set protocols bgp group ext export outbound-routes
set protocols bgp group ext neighbor 10.0.0.9 peer-as 64510
set protocols bgp group ext neighbor 10.0.0.22 peer-as 64516
set policy-options policy-statement inbound-routes term AS64510-primary from protocol bgp
set policy-options policy-statement inbound-routes term AS64510-primary from as-path AS64510-routes
set policy-options policy-statement inbound-routes term AS64510-primary then local-preference 200
set policy-options policy-statement inbound-routes term AS64510-primary then accept
set policy-options policy-statement inbound-routes term AS64516-backup from protocol bgp
set policy-options policy-statement inbound-routes term AS64516-backup from as-path AS64516-routes
set policy-options policy-statement inbound-routes term AS64516-backup then local-preference 50
set policy-options policy-statement inbound-routes term AS64516-backup then accept
set policy-options policy-statement outbound-routes term statics from protocol static
set policy-options policy-statement outbound-routes term statics then accept
set policy-options policy-statement outbound-routes term internal-bgp-routes from protocol bgp
set policy-options policy-statement outbound-routes term internal-bgp-routes from as-path my-own-routes
set policy-options policy-statement outbound-routes term internal-bgp-routes then accept
set policy-options policy-statement outbound-routes term no-transit then reject
set policy-options as-path my-own-routes "()"
set policy-options as-path AS64510-routes "64510 .*"
set policy-options as-path AS64516-routes "64516 .*"
set routing-options static route 172.16.44.0/26 reject
set routing-options static route 172.16.44.64/26 reject
set routing-options static route 172.16.44.128/26 reject
set routing-options static route 172.16.44.192/26 reject
set routing-options autonomous-system 64512

디바이스 ISP-1

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 description to_ISP-3
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.2/30
set interfaces fe-1/2/1 unit 0 description to_ISP-2
set interfaces fe-1/2/1 unit 0 family inet address 10.1.0.2/30
set interfaces fe-1/2/2 unit 0 description to_Private-Peer-1
set interfaces fe-1/2/2 unit 0 family inet address 10.2.0.2/30
set interfaces fe-1/2/3 unit 0 description to_Exchange-1
set interfaces fe-1/2/3 unit 0 family inet address 10.2.0.6/30
set interfaces lo0 unit 0 family inet address 192.168.0.1/32
set protocols bgp group int type internal
set protocols bgp group int local-address 192.168.0.1
set protocols bgp group int export internal-peers
set protocols bgp group int neighbor 192.168.0.2
set protocols bgp group int neighbor 192.168.0.3
set protocols bgp group to_64513 type external
set protocols bgp group to_64513 export private-peer
set protocols bgp group to_64513 peer-as 64513
set protocols bgp group to_64513 neighbor 10.2.0.1
set protocols bgp group to_64514 type external
set protocols bgp group to_64514 export exchange-peer
set protocols bgp group to_64514 peer-as 64514
set protocols bgp group to_64514 neighbor 10.2.0.5
set protocols ospf area 0.0.0.0 interface fe-1/2/0.0
set protocols ospf area 0.0.0.0 interface fe-1/2/1.0
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set policy-options policy-statement exchange-peer term AS64510-Aggregate from protocol aggregate
set policy-options policy-statement exchange-peer term AS64510-Aggregate from route-filter 172.16.32.0/21 exact
set policy-options policy-statement exchange-peer term AS64510-Aggregate then accept
set policy-options policy-statement exchange-peer term Customer-2-Aggregate from protocol aggregate
set policy-options policy-statement exchange-peer term Customer-2-Aggregate from route-filter 172.16.40.0/22 exact
set policy-options policy-statement exchange-peer term Customer-2-Aggregate then accept
set policy-options policy-statement exchange-peer term reject-all-other-routes then reject
set policy-options policy-statement internal-peers term statics from protocol static
set policy-options policy-statement internal-peers term statics then accept
set policy-options policy-statement internal-peers term next-hop-self then next-hop self
set policy-options policy-statement private-peer term statics from protocol static
set policy-options policy-statement private-peer term statics then accept
set policy-options policy-statement private-peer term isp-and-customer-routes from protocol bgp
set policy-options policy-statement private-peer term isp-and-customer-routes from route-filter 172.16.32.0/21 orlonger
set policy-options policy-statement private-peer term isp-and-customer-routes then accept
set policy-options policy-statement private-peer term reject-all then reject
set routing-options static route 172.16.32.0/24 reject
set routing-options static route 172.16.33.0/24 reject
set routing-options aggregate route 172.16.32.0/21
set routing-options aggregate route 172.16.40.0/22
set routing-options router-id 192.168.0.1
set routing-options autonomous-system 64510

디바이스 ISP-2

content_copy zoom_out_map
set interfaces fe-1/2/1 unit 0 description to_ISP-1
set interfaces fe-1/2/1 unit 0 family inet address 10.1.0.1/30
set interfaces fe-1/2/2 unit 0 description to_ISP-3
set interfaces fe-1/2/2 unit 0 family inet address 10.0.0.6/30
set interfaces fe-1/2/3 unit 0 description to_Private-Peer-2
set interfaces fe-1/2/3 unit 0 family inet address 10.3.0.6/30
set interfaces fe-1/2/0 unit 0 description to_Exchange-2
set interfaces fe-1/2/0 unit 0 family inet address 10.3.0.2/30
set interfaces lo0 unit 0 family inet address 192.168.0.2/32
set protocols bgp group int type internal
set protocols bgp group int local-address 192.168.0.2
set protocols bgp group int export internal-peers
set protocols bgp group int neighbor 192.168.0.1
set protocols bgp group int neighbor 192.168.0.3
set protocols bgp group AS-64516 type external
set protocols bgp group AS-64516 export private-peer
set protocols bgp group AS-64516 peer-as 64516
set protocols bgp group AS-64516 neighbor 10.3.0.5
set protocols bgp group AS-64515 type external
set protocols bgp group AS-64515 export exchange-peer
set protocols bgp group AS-64515 peer-as 64515
set protocols bgp group AS-64515 neighbor 10.3.0.1
set protocols ospf area 0.0.0.0 interface fe-1/2/2.0
set protocols ospf area 0.0.0.0 interface fe-1/2/1.0
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set policy-options policy-statement exchange-peer term AS64510-Aggregate from protocol aggregate
set policy-options policy-statement exchange-peer term AS64510-Aggregate from route-filter 172.16.32.0/21 exact
set policy-options policy-statement exchange-peer term AS64510-Aggregate then accept
set policy-options policy-statement exchange-peer term Customer-2-Aggregate from protocol aggregate
set policy-options policy-statement exchange-peer term Customer-2-Aggregate from route-filter 172.16.44.0/23 exact
set policy-options policy-statement exchange-peer term Customer-2-Aggregate then accept
set policy-options policy-statement exchange-peer term reject-all-other-routes then reject
set policy-options policy-statement internal-peers term statics from protocol static
set policy-options policy-statement internal-peers term statics then accept
set policy-options policy-statement internal-peers term next-hop-self then next-hop self
set policy-options policy-statement private-peer term statics from protocol static
set policy-options policy-statement private-peer term statics then accept
set policy-options policy-statement private-peer term isp-and-customer-routes from protocol bgp
set policy-options policy-statement private-peer term isp-and-customer-routes from route-filter 172.16.32.0/21 orlonger
set policy-options policy-statement private-peer term isp-and-customer-routes then accept
set policy-options policy-statement private-peer term reject-all then reject
set routing-options static route 172.16.34.0/24 reject
set routing-options static route 172.16.35.0/24 reject
set routing-options aggregate route 172.16.44.0/23
set routing-options aggregate route 172.16.32.0/21
set routing-options router-id 192.168.0.2
set routing-options autonomous-system 64510

디바이스 ISP-3

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 description to_ISP-1
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.1/30
set interfaces fe-1/2/2 unit 0 description to_ISP-2
set interfaces fe-1/2/2 unit 0 family inet address 10.0.0.5/30
set interfaces fe-1/2/3 unit 0 description to_Customer-1
set interfaces fe-1/2/3 unit 0 family inet address 10.1.0.5/30
set interfaces fe-1/2/1 unit 0 description to_Customer-2
set interfaces fe-1/2/1 unit 0 family inet address 10.0.0.9/30
set interfaces lo0 unit 0 family inet address 192.168.0.3/32
set protocols bgp group int type internal
set protocols bgp group int local-address 192.168.0.3
set protocols bgp group int export internal-peers
set protocols bgp group int neighbor 192.168.0.1
set protocols bgp group int neighbor 192.168.0.2
set protocols bgp group to_64511 type external
set protocols bgp group to_64511 export customer-1-peer
set protocols bgp group to_64511 neighbor 10.1.0.6 peer-as 64511
set protocols bgp group to_64512 type external
set protocols bgp group to_64512 export customer-2-peer
set protocols bgp group to_64512 neighbor 10.0.0.10 peer-as 64512
set protocols ospf area 0.0.0.0 interface fe-1/2/0.0
set protocols ospf area 0.0.0.0 interface fe-1/2/2.0
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set policy-options policy-statement customer-1-peer term defaut-route from route-filter 0.0.0.0/0 exact
set policy-options policy-statement customer-1-peer term defaut-route then accept
set policy-options policy-statement customer-1-peer term reject-all-other-routes then reject
set policy-options policy-statement customer-2-peer term statics from protocol static
set policy-options policy-statement customer-2-peer term statics then accept
set policy-options policy-statement customer-2-peer term isp-and-customer-routes from protocol bgp
set policy-options policy-statement customer-2-peer term isp-and-customer-routes from route-filter 172.16.32.0/21 orlonger
set policy-options policy-statement customer-2-peer term isp-and-customer-routes then accept
set policy-options policy-statement customer-2-peer term default-route from route-filter 0.0.0.0/0 exact
set policy-options policy-statement customer-2-peer term default-route then accept
set policy-options policy-statement customer-2-peer term reject-all-other-routes then reject
set policy-options policy-statement if-upstream-routes-exist term only-certain-contributing-routes from route-filter 172.16.8.0/21 exact
set policy-options policy-statement if-upstream-routes-exist term only-certain-contributing-routes then accept
set policy-options policy-statement if-upstream-routes-exist term reject-all-other-routes then reject
set policy-options policy-statement internal-peers term statics from protocol static
set policy-options policy-statement internal-peers term statics then accept
set policy-options policy-statement internal-peers term next then next-hop self
set routing-options static route 172.16.36.0/24 reject
set routing-options static route 172.16.37.0/24 reject
set routing-options static route 172.16.38.0/24 reject
set routing-options static route 172.16.39.0/24 reject
set routing-options generate route 0.0.0.0/0 policy if-upstream-routes-exist
set routing-options router-id 192.168.0.3
set routing-options autonomous-system 64510

장치 교환-1

content_copy zoom_out_map
set interfaces fe-1/2/3 unit 0 description to_ISP-1
set interfaces fe-1/2/3 unit 0 family inet address 10.2.0.5/30
set interfaces fe-1/2/2 unit 0 description to_Exchange-2
set interfaces fe-1/2/2 unit 0 family inet address 10.3.0.42/30
set interfaces fe-1/2/1 unit 0 description to_Private-Peer-1
set interfaces fe-1/2/1 unit 0 family inet address 10.3.0.45/30
set interfaces lo0 unit 0 family inet address 192.168.0.6/32
set protocols bgp group ext type external
set protocols bgp group ext export send-static
set protocols bgp group ext peer-as 64510
set protocols bgp group ext neighbor 10.2.0.6
set protocols bgp group ext neighbor 10.3.0.41 peer-as 64515
set policy-options policy-statement send-static from protocol static
set policy-options policy-statement send-static then accept
set routing-options static route 172.16.8.0/21 reject
set routing-options autonomous-system 64514

디바이스 교환-2

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 description to_ISP-2
set interfaces fe-1/2/0 unit 0 family inet address 10.3.0.1/30
set interfaces fe-1/2/2 unit 0 description to_Exchange-1
set interfaces fe-1/2/2 unit 0 family inet address 10.3.0.41/30
set interfaces fe-1/2/1 unit 0 description to_Private-Peer-2
set interfaces fe-1/2/1 unit 0 family inet address 10.3.0.49/30
set interfaces lo0 unit 0 family inet address 192.168.0.7/32
set protocols bgp group ext type external
set protocols bgp group ext export outbound-routes
set protocols bgp group ext neighbor 10.3.0.2 peer-as 64510
set protocols bgp group ext neighbor 10.3.0.50 peer-as 64516
set protocols bgp group ext neighbor 10.3.0.42 peer-as 64514
set policy-options policy-statement outbound-routes term statics from protocol static
set policy-options policy-statement outbound-routes term statics then accept
set routing-options autonomous-system 64515
set routing-options static route 172.16.16.0/21 reject

디바이스 Private-Peer-1

content_copy zoom_out_map
set interfaces fe-1/2/2 unit 0 description to_ISP-1
set interfaces fe-1/2/2 unit 0 family inet address 10.2.0.1/30
set interfaces fe-1/2/1 unit 0 description to_Exchange-1
set interfaces fe-1/2/1 unit 0 family inet address 10.3.0.46/30
set interfaces lo0 unit 0 family inet address 192.168.0.4/32
set protocols bgp group ext type external
set protocols bgp group ext peer-as 64510
set protocols bgp group ext neighbor 10.2.0.2
set routing-options autonomous-system 64513

디바이스 Private-Peer-2

content_copy zoom_out_map
set interfaces fe-1/2/3 unit 0 description to_ISP-2
set interfaces fe-1/2/3 unit 0 family inet address 10.3.0.5/30
set interfaces fe-1/2/0 unit 0 description to_Customer-1
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.22/30
set interfaces fe-1/2/1 unit 0 description to_Exchange-2
set interfaces fe-1/2/1 unit 0 family inet address 10.3.0.50/30
set interfaces lo0 unit 0 family inet address 192.168.0.5/32
set protocols bgp group ext type external
set protocols bgp group ext export outbound-routes
set protocols bgp group ext peer-as 64510
set protocols bgp group ext neighbor 10.3.0.6
set protocols bgp group to-64512 type external
set protocols bgp group to-64512 peer-as 64512
set protocols bgp group to-64512 neighbor 10.0.0.21
set protocols bgp group to-64512 export internal-routes
set protocols bgp group to-64515 type external
set protocols bgp group to-64515 export outbound-routes
set protocols bgp group to-64515 peer-as 64515
set protocols bgp group to-64515 neighbor 10.3.0.49
set policy-options policy-statement if-upstream-routes-exist term as-64515-routes from route-filter 172.16.16.0/21 exact
set policy-options policy-statement if-upstream-routes-exist term as-64515-routes then accept
set policy-options policy-statement if-upstream-routes-exist term reject-all-other-routes then reject
set policy-options policy-statement internal-routes term statics from protocol static
set policy-options policy-statement internal-routes term statics then accept
set policy-options policy-statement internal-routes term default-route from route-filter 0.0.0.0/0 exact
set policy-options policy-statement internal-routes term default-route then accept
set policy-options policy-statement internal-routes term reject-all-other-routes then reject
set policy-options policy-statement outbound-routes term statics from protocol static
set policy-options policy-statement outbound-routes term statics then accept
set policy-options policy-statement outbound-routes term allowed-bgp-routes from as-path my-own-routes
set policy-options policy-statement outbound-routes term allowed-bgp-routes from as-path AS64512-routes
set policy-options policy-statement outbound-routes term allowed-bgp-routes then accept
set policy-options policy-statement outbound-routes term no-transit then reject
set policy-options as-path my-own-routes "()"
set policy-options as-path AS64512-routes 64512
set routing-options static route 172.16.24.0/25 reject
set routing-options static route 172.16.24.128/25 reject
set routing-options static route 172.16.25.0/26 reject
set routing-options static route 172.16.25.64/26 reject
set routing-options generate route 0.0.0.0/0 policy if-upstream-routes-exist
set routing-options autonomous-system 64516

디바이스 Customer-1 구성

절차

단계별 절차
결과

단계별 절차

다음 예는 구성 계층에서 다양한 수준의 탐색이 필요합니다. CLI 탐색에 대한 내용은 Junos OS CLI 사용자 가이드의 구성 모드에서 CLI 편집기 사용을(를) 참조하십시오.

디바이스 Customer-1에는 고객 경로를 시뮬레이션하도록 구성된 여러 정적 경로가 있습니다. 이러한 경로는 ISP로 전송됩니다.

디바이스 Customer-1 구성:

디바이스 인터페이스를 구성합니다.

content_copy zoom_out_map
[edit interfaces]
user@Customer-1# set fe-1/2/3 unit 0 description to_ISP-3
user@Customer-1# set fe-1/2/3 unit 0 family inet address 10.1.0.6/30
user@Customer-1# set lo0 unit 0 family inet address 192.168.0.8/32

고정 경로를 구성합니다.

content_copy zoom_out_map
[edit routing-options static]
user@Customer-1# set route 172.16.40.0/25 reject
user@Customer-1# set route 172.16.40.128/25 reject
user@Customer-1# set route 172.16.41.0/25 reject
user@Customer-1# set route 172.16.41.128/25 reject

정적 경로를 전송하도록 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement send-statics term static-routes]
user@Customer-1# set from protocol static
user@Customer-1# set then accept

ISP에 대한 외부 BGP(EBGP) 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group ext]
user@Customer-1# set type external
user@Customer-1# set export send-statics
user@Customer-1# set peer-as 64510
user@Customer-1# set neighbor 10.1.0.5

AS(Autonomous System) 번호를 구성합니다.
```
[edit routing-options]
user@Customer-1# set autonomous-system 64511
```

결과

구성 모드에서 show interfaces, show protocols, show policy-options 및 show routing-options 명령을 입력하여 구성을 확인합니다. 출력 결과가 의도한 구성대로 표시되지 않으면 이 예의 지침을 반복하여 구성을 수정하십시오.

content_copy zoom_out_map
user@Customer-1# show interfaces
fe-1/2/1 {
    unit 0 {
        description to_ISP-3;
        family inet {
            address 10.1.0.6/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.8/32;
        }
    }
}

content_copy zoom_out_map
user@Customer-1# show protocols
bgp {
    group ext {
        type external;
        export send-statics;
        peer-as 64510;
        neighbor 10.1.0.5;
    }
}

content_copy zoom_out_map
user@Customer-1# show policy-options
policy-statement send-statics {
    term static-routes {
        from protocol static;
        then accept;
    }
}

content_copy zoom_out_map
user@Customer-1# show routing-options
static {
    route 172.16.40.0/25 reject;
    route 172.16.40.128/25 reject;
    route 172.16.41.0/25 reject;
    route 172.16.41.128/25 reject;
}
autonomous-system 64511;

디바이스 구성을 마쳤으면 구성 모드에서 commit을(를) 입력합니다.

디바이스 구성 고객-2

절차

단계별 절차
결과

단계별 절차

디바이스 Customer-2에는 고객 경로를 시뮬레이션하도록 구성된 두 개의 정적 경로가 있습니다. 이러한 경로는 ISP로 전송됩니다. 고객-2에는 ISP에 대한 링크와 AS 8000에 대한 링크가 있습니다. 이 고객은 ISP 및 AS 64516에서 특정 고객 경로를 요청했습니다. 고객-2는 인터넷 전송 서비스에 ISP를 사용하려고 하며 ISP에 기본 경로를 요청했습니다.

디바이스 Customer-2 구성:

디바이스 인터페이스를 구성합니다.

content_copy zoom_out_map
[edit interfaces]
user@Customer-2# set fe-1/2/1 unit 0 description to_ISP-3
user@Customer-2# set fe-1/2/1 unit 0 family inet address 10.0.0.10/30
user@Customer-2# set fe-1/2/0 unit 0 description to-Private-Peer-2
user@Customer-2# set fe-1/2/0 unit 0 family inet address 10.0.0.21/30
user@Customer-2# set lo0 unit 0 family inet address 192.168.0.9/32

고정 경로를 구성합니다.

content_copy zoom_out_map
[edit routing-options static]
user@Customer-2# set route 172.16.44.0/26 reject
user@Customer-2# set route 172.16.44.64/26 reject
user@Customer-2# set route 172.16.44.128/26 reject
user@Customer-2# set route 172.16.44.192/26 reject

가져오기 라우팅 정책을 구성합니다.

로컬 기본 설정 값이 가장 높은 경로가 선호됩니다. ISP의 경로는 디바이스 프라이빗-피어-2의 동일한 경로보다 선호됩니다

content_copy zoom_out_map
[edit policy-options policy-statement inbound-routes]
user@Customer-2# set term AS64510-primary from protocol bgp
user@Customer-2# set term AS64510-primary from as-path AS64510-routes
user@Customer-2# set term AS64510-primary then local-preference 200
user@Customer-2# set term AS64510-primary then accept
[edit policy-options policy-statement inbound-routes]
user@Customer-2# set term AS64516-backup from protocol bgp
user@Customer-2# set term AS64516-backup from as-path AS64516-routes
user@Customer-2# set term AS64516-backup then local-preference 50
user@Customer-2# set term AS64516-backup then accept
[edit policy-options]
user@Customer-2# set as-path AS64510-routes "64510 .*"
user@Customer-2# set as-path AS64516-routes "64516 .*"

내보내기 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement outbound-routes]
user@Customer-2# set term statics from protocol static
user@Customer-2# set term statics then accept
user@Customer-2# set term internal-bgp-routes from protocol bgp
user@Customer-2# set term internal-bgp-routes from as-path my-own-routes
user@Customer-2# set term internal-bgp-routes then accept
user@Customer-2# set term no-transit then reject
[edit policy-options]
user@Customer-2# set as-path my-own-routes "()"

ISP 및 디바이스 Private-Peer-2에 대한 외부 BGP(EBGP) 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group ext]
user@Customer-2# set type external
user@Customer-2# set import inbound-routes
user@Customer-2# set export outbound-routes
user@Customer-2# set neighbor 10.0.0.9 peer-as 64510
user@Customer-2# set neighbor 10.0.0.22 peer-as 64516

AS(Autonomous System) 번호를 구성합니다.
```
[edit routing-options]
user@Customer-2# set autonomous-system 64512
```

결과

content_copy zoom_out_map
user@Customer-2# show interfaces
fe-1/2/1 {
    unit 0 {
        description to_ISP-3;
        family inet {
            address 10.0.0.10/30;
        }
    }
}
fe-1/2/0 {
    unit 0 {
        description to-Private-Peer-2;
        family inet {
            address 10.0.0.21/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.9/32;
        }
    }
}

content_copy zoom_out_map
user@Customer-2# show protocols
bgp {
    group ext {
        type external;
        import inbound-routes;
        export outbound-routes;
        neighbor 10.0.0.9 {
            peer-as 64510;
        }
        neighbor 10.0.0.22 {
            peer-as 64516;
        }
    }
}

content_copy zoom_out_map
user@Customer-2# show policy-options
policy-statement inbound-routes {
    term AS64510-primary {
        from {
            protocol bgp;
            as-path AS64510-routes;
        }
        then {
            local-preference 200;
            accept;
        }
    }
    term AS64516-backup {
        from {
            protocol bgp;
            as-path AS64516-routes;
        }
        then {
            local-preference 50;
            accept;
        }
    }
}
policy-statement outbound-routes {
    term statics {
        from protocol static;
        then accept;
    }
    term internal-bgp-routes {
        from {
            protocol bgp;
            as-path my-own-routes;
        }
        then accept;
    }
    term no-transit {
        then reject;
    }
}
as-path my-own-routes "()";
as-path AS64510-routes "64510 .*";
as-path AS64516-routes "64516 .*";

content_copy zoom_out_map
user@Customer-2# show routing-options
static {
    route 172.16.44.0/26 reject;
    route 172.16.44.64/26 reject;
    route 172.16.44.128/26 reject;
    route 172.16.44.192/26 reject;
}
autonomous-system 64512;

디바이스 구성을 마쳤으면 구성 모드에서 commit을(를) 입력합니다.

디바이스 ISP-1 및 ISP-2 구성

절차

단계별 절차
결과

단계별 절차

디바이스 ISP-1 및 디바이스 ISP-2에는 각각 두 개의 정책이 구성되어 있습니다. private-peer 정책 및 exchange-peer 정책. 구성이 유사하기 때문에 이 예에서는 디바이스 ISP-2에 대한 단계별 구성만 보여줍니다.

디바이스 ISP-2에서 프라이빗 피어 정책은 ISP 고객 경로를 디바이스 프라이빗-피어-2로 보냅니다. 이 정책은 모든 로컬 정적 경로(로컬 디바이스 ISP-2 고객)와 172.16.32.0/21 범위(다른 ISP 라우터에서 보급)의 모든 BGP 경로를 허용합니다. 이 두 정책 용어는 ISP 고객 경로를 나타냅니다. 최종 정책 용어는 교환 피어에서 보낸 전체 인터넷 라우팅 테이블을 포함하는 다른 모든 경로를 거부합니다. 다음 두 가지 이유로 이러한 경로를 디바이스 프라이빗-피어-2로 전송할 필요가 없습니다.

이 예에서 피어는 이미 Device Exchange-2에 대한 연결을 유지하고 있으므로 경로가 중복됩니다.
프라이빗 피어는 고객 경로만 원합니다. 정책은 private-peer 이 목표를 달성합니다. 이 exchange-peer 정책은 Device Exchange-2에 경로를 보냅니다.

이 예에서는 Device Exchange-2에 두 개의 경로만 전송하면 됩니다.

172.16.32.0/21의 AS 64510 라우팅 공간을 나타내는 집계 경로입니다. 이 경로는 로컬에서 집계 경로로 구성되며 정책에 의해 exchange-peer 보급됩니다.
Customer-2, 172.16.44.0/23에 할당된 주소 공간입니다. 고객이 AS 64516 피어(Device Private-Peer-2)에도 연결되어 있으므로 이 더 작은 집계 경로를 Device Exchange-2로 보내야 합니다.

이 두 경로를 디바이스 Exchange-2로 보내면 인터넷의 다른 네트워크가 ISP 또는 프라이빗 피어를 통해 고객에게 연결할 수 있습니다. ISP가 /21 집계만 유지 관리하는 동안 프라이빗 피어만 /23 네트워크를 보급하는 경우 고객을 대상으로 하는 모든 트래픽은 AS 64516으로만 전송됩니다. 고객도 ISP의 경로를 원하기 때문에 디바이스 ISP-2가 172.16.44.0/23 경로를 알립니다. 더 큰 집계 경로와 마찬가지로 172.16.44.0/23 경로는 로컬로 구성되며 exchange-peer 정책에 의해 보급됩니다. 이 정책의 마지막 용어는 ISP의 특정 고객 네트워크, 디바이스 프라이빗-피어-1의 고객 경로, 디바이스 프라이빗-피어-2의 고객 경로, 디바이스 Exchange-1의 라우팅 테이블을 포함한 모든 경로를 거부합니다. 본질적으로, 이 마지막 용어는 ISP가 인터넷 전반에 대한 전송 서비스를 수행하는 것을 방지합니다.

디바이스 ISP-2 구성:

디바이스 인터페이스를 구성합니다.

content_copy zoom_out_map
[edit interfaces]
user@ISP-2# set fe-1/2/1 unit 0 description to_ISP-1
user@ISP-2# set fe-1/2/1 unit 0 family inet address 10.1.0.1/30
user@ISP-2# set fe-1/2/2 unit 0 description to_ISP-3
user@ISP-2# set fe-1/2/2 unit 0 family inet address 10.0.0.6/30
user@ISP-2# set fe-1/2/3 unit 0 description to_Private-Peer-2
user@ISP-2# set fe-1/2/3 unit 0 family inet address 10.3.0.6/30
user@ISP-2# set fe-1/2/0 unit 0 description to_Exchange-2
user@ISP-2# set fe-1/2/0 unit 0 family inet address 10.3.0.2/30
user@ISP-2# set lo0 unit 0 family inet address 192.168.0.2/32

IGP(Interior Gateway Protocol)를 구성합니다.

content_copy zoom_out_map
[edit protocols ospf area 0.0.0.0]
user@ISP-2# set interface fe-1/2/2.0
user@ISP-2# set interface fe-1/2/1.0
user@ISP-2# set interface lo0.0 passive

정적 및 집계 경로를 구성합니다.

content_copy zoom_out_map
[edit routing-options static]
user@ISP-2# set route 172.16.34.0/24 reject
user@ISP-2# set route 172.16.35.0/24 reject
[edit routing-options aggregate]
user@ISP-2# set route 172.16.44.0/23
user@ISP-2# set route 172.16.32.0/21

Exchange 피어에 대한 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement exchange-peer]
user@ISP-2# set term AS64510-Aggregate from protocol aggregate
user@ISP-2# set term AS64510-Aggregate from route-filter 172.16.32.0/21 exact
user@ISP-2# set term AS64510-Aggregate then accept
user@ISP-2# set term Customer-2-Aggregate from protocol aggregate
user@ISP-2# set term Customer-2-Aggregate from route-filter 172.16.44.0/23 exact
user@ISP-2# set term Customer-2-Aggregate then accept
user@ISP-2# set term reject-all-other-routes then reject

내부 피어에 대한 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement internal-peers]
user@ISP-2# set term statics from protocol static
user@ISP-2# set term statics then accept
user@ISP-2# set term next-hop-self then next-hop self

프라이빗 피어에 대한 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement private-peer]
user@ISP-2# set term statics from protocol static
user@ISP-2# set term statics then accept
user@ISP-2# set term isp-and-customer-routes from protocol bgp
user@ISP-2# set term isp-and-customer-routes from route-filter 172.16.32.0/21 orlonger
user@ISP-2# set term isp-and-customer-routes then accept
user@ISP-2# set term reject-all then reject

다른 ISP 디바이스에 대한 내부 BGP(IBGP) 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group int]
user@ISP-2# set type internal
user@ISP-2# set local-address 192.168.0.2
user@ISP-2# set export internal-peers
user@ISP-2# set neighbor 192.168.0.1
user@ISP-2# set neighbor 192.168.0.3

교환 피어 및 프라이빗 피어에 대한 EBGP 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group AS-64516]
user@ISP-2# set type external
user@ISP-2# set export private-peer
user@ISP-2# set peer-as 64516
user@ISP-2# set neighbor 10.3.0.5
[edit protocols bgp group AS-64515]
user@ISP-2# set type external
user@ISP-2# set export exchange-peer
user@ISP-2# set peer-as 64515
user@ISP-2# set neighbor 10.3.0.1

AS(Autonomous System) 번호와 라우터 ID를 구성합니다.

content_copy zoom_out_map
[edit routing-options]
user@ISP-2# set router-id 192.168.0.2
user@ISP-2# set autonomous-system 64510

결과

content_copy zoom_out_map
user@ISP-2# show interfaces
fe-1/2/0 {
    unit 0{
        description to_Exchange-2;
        family inet {
            address 10.3.0.2/30;
        }
    }
}
fe-1/2/1 {
    unit 0{
        description to_ISP-1;
        family inet {
            address 10.1.0.1/30;
        }
    }
}
fe-1/2/2 {
    unit 0 {
        description to_ISP-3;
        family inet {
            address 10.0.0.6/30;
        }
    }
}
fe-1/2/3 {
    unit 0 {
        description to_Private-Peer-2;
        family inet {
            address 10.3.0.6/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.2/32;
        }
    }
}

content_copy zoom_out_map
user@ISP-2# show protocols
bgp {
    group int {
        type internal;
        local-address 192.168.0.2;
        export internal-peers;
        neighbor 192.168.0.1;
        neighbor 192.168.0.3;
    }
    group AS-64516 {
        type external;
        export private-peer;
        peer-as 64516;
        neighbor 10.3.0.5;
    }
    group AS-64515 {
        type external;
        export exchange-peer;
        peer-as 64515;
        neighbor 10.3.0.1;
    }
}
ospf {
    area 0.0.0.0 {
        interface fe-1/2/2.0;
        interface fe-1/2/1.0;
        interface lo0.0 {
            passive;
        }
    }
}

content_copy zoom_out_map
user@ISP-2# show policy-options
policy-statement exchange-peer {
    term AS64510-Aggregate {
        from {
            protocol aggregate;
            route-filter 172.16.32.0/21 exact;
        }
        then accept;
    }
    term Customer-2-Aggregate {
        from {
            protocol aggregate;
            route-filter 172.16.44.0/23 exact;
        }
        then accept;
    }
    term reject-all-other-routes {
        then reject;
    }
}
policy-statement internal-peers {
    term statics {
        from protocol static;
        then accept;
    }
    term next-hop-self {
        then {
            next-hop self;
        }
    }
}
policy-statement private-peer {
    term statics {
        from protocol static;
        then accept;
    }
    term isp-and-customer-routes {
        from {
            protocol bgp;
            route-filter 172.16.32.0/21 orlonger;
        }
        then accept;
    }
    term reject-all {
        then reject;
    }
}

content_copy zoom_out_map
user@ISP-2# show routing-options
static {
    route 172.16.34.0/24 reject;
    route 172.16.35.0/24 reject;
}
aggregate {
    route 172.16.44.0/23;
    route 172.16.32.0/21;
}
router-id 192.168.0.2;
autonomous-system 64510;

디바이스 구성을 마쳤으면 구성 모드에서 commit을(를) 입력합니다.

디바이스 ISP-3 구성

절차

단계별 절차
결과

단계별 절차

디바이스 ISP-3에서는 각 고객에 대해 별도의 정책이 적용됩니다. Customer-1의 기본 경로가 정책에 의해 customer-1-peer 전송됩니다. 이 정책은 inet.0에서 0.0.0.0/0 기본 경로를 찾아 수락합니다. 또한 이 정책은 다른 모든 경로를 거부하므로 ISP 라우터의 모든 BGP 경로를 전송하지 않습니다. 이 customer-2-peer 정책은 Customer-2에 대한 것이며 기본 경로도 전송하고 다른 전송 BGP 경로는 전송하지 않는 동일한 정책 조건을 포함합니다. 정책의 추가 약관은 customer-2-peer ISP 고객 경로를 고객-2로 보냅니다. 디바이스 ISP-3에는 로컬 고객을 나타내는 로컬 고정 경로가 있기 때문에 이러한 경로는 다른 ISP 라우터에 의해 로컬 라우터에 공지된 다른 모든 내부 경로와 함께 전송됩니다.

디바이스 Exchange-1(172.16.8.0/21)의 업스트림 경로가 있는 경우 디바이스 ISP-3은 기본 경로를 생성합니다.

디바이스 ISP-3 구성:

디바이스 인터페이스를 구성합니다.

content_copy zoom_out_map
[edit interfaces]
user@ISP-3# set fe-1/2/0 unit 0 description to_ISP-1
user@ISP-3# set fe-1/2/0 unit 0 family inet address 10.0.0.1/30
user@ISP-3# set fe-1/2/2 unit 0 description to_ISP-2
user@ISP-3# set fe-1/2/2 unit 0 family inet address 10.0.0.5/30
user@ISP-3# set fe-1/2/3 unit 0 description to_Customer-1
user@ISP-3# set fe-1/2/3 unit 0 family inet address 10.1.0.5/30
user@ISP-3# set fe-1/2/1 unit 0 description to_Customer-2
user@ISP-3# set fe-1/2/1 unit 0 family inet address 10.0.0.9/30
user@ISP-3# set lo0 unit 0 family inet address 192.168.0.3/32

IGP(Interior Gateway Protocol)를 구성합니다.

content_copy zoom_out_map
[edit protocols ospf area 0.0.0.0]
user@ISP-3# set interface fe-1/2/0.0
user@ISP-3# set interface fe-1/2/2.0
user@ISP-3# set interface lo0.0 passive

고정 경로를 구성합니다.

content_copy zoom_out_map
[edit routing-options static]
user@ISP-3# set route 172.16.36.0/24 reject
user@ISP-3# set route 172.16.37.0/24 reject
user@ISP-3# set route 172.16.38.0/24 reject
user@ISP-3# set route 172.16.39.0/24 reject

특정 업스트림 경로가 존재하는 경우에만 기본 정적 경로를 생성하는 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement if-upstream-routes-exist term only-certain-contributing-routes]
user@ISP-3# set from route-filter 172.16.8.0/21 exact
user@ISP-3# set then accept
[edit policy-options policy-statement if-upstream-routes-exist]
user@ISP-3# set term reject-all-other-routes then reject
[edit routing-options generate route 0.0.0.0/0]
user@ISP-3# set policy if-upstream-routes-exist

Customer-1에 대한 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement customer-1-peer]
user@ISP-3# set term defaut-route from route-filter 0.0.0.0/0 exact
user@ISP-3# set term defaut-route then accept
user@ISP-3# set term reject-all-other-routes then reject

Customer-2에 대한 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement customer-2-peer]
user@ISP-3# set term statics from protocol static
user@ISP-3# set term statics then accept
user@ISP-3# set term isp-and-customer-routes from protocol bgp
user@ISP-3# set term isp-and-customer-routes from route-filter 172.16.32.0/21 orlonger
user@ISP-3# set term isp-and-customer-routes then accept
user@ISP-3# set term default-route from route-filter 0.0.0.0/0 exact
user@ISP-3# set term default-route then accept
user@ISP-3# set term reject-all-other-routes then reject

내부 피어에 대한 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement internal-peers]
user@ISP-3# set term statics from protocol static
user@ISP-3# set term statics then accept
user@ISP-3# set term next then next-hop self

다른 ISP 디바이스에 대한 내부 BGP(IBGP) 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group int]
user@ISP-3# set type internal
user@ISP-3# set local-address 192.168.0.3
user@ISP-3# set export internal-peers
user@ISP-3# set neighbor 192.168.0.1
user@ISP-3# set neighbor 192.168.0.2

고객 피어에 대한 EBGP 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group to_64511]
user@ISP-3# set type external
user@ISP-3# set export customer-1-peer
user@ISP-3# set neighbor 10.1.0.6 peer-as 64511
[edit protocols bgp group to_64512]
user@ISP-3# set type external
user@ISP-3# set export customer-2-peer
user@ISP-3# set neighbor 10.0.0.10 peer-as 64512

AS(Autonomous System) 번호와 라우터 ID를 구성합니다.

content_copy zoom_out_map
[edit routing-options]
user@ISP-3# set router-id 192.168.0.3
user@ISP-3# set autonomous-system 64510

결과

content_copy zoom_out_map
user@ISP-3# show interfaces
fe-1/2/0 {
    unit 0 {
        description to_ISP-1;
        family inet {
            address 10.0.0.1/30;
        }
    }
}
fe-1/2/1 {
    unit 0 {
        description to_Customer-2;
        family inet {
            address 10.0.0.9/30;
        }
    }
}
fe-1/2/2 {
    unit 0 {
        description to_ISP-2;
        family inet {
            address 10.0.0.5/30;
        }
    }
}
fe-1/2/3 {
    unit 0 {
        description to_Customer-1;
        family inet {
            address 10.1.0.5/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.3/32;
        }
    }
}

content_copy zoom_out_map
user@ISP-3# show protocols
bgp {
    group int {
        type internal;
        local-address 192.168.0.3;
        export internal-peers;
        neighbor 192.168.0.1;
        neighbor 192.168.0.2;
    }
    group to_64511 {
        type external;
        export customer-1-peer;
        neighbor 10.1.0.6 {
            peer-as 64511;
        }
    }
    group to_64512 {
        type external;
        export customer-2-peer;
        neighbor 10.0.0.10 {
            peer-as 64512;
        }
    }
}
ospf {
    area 0.0.0.0 {
        interface fe-1/2/0.0;
        interface fe-1/2/2.0;
        interface lo0.0 {
            passive;
        }
    }
}

content_copy zoom_out_map
user@ISP-3# show policy-options
policy-statement customer-1-peer {
    term defaut-route {
        from {
            route-filter 0.0.0.0/0 exact;
        }
        then accept;
    }
    term reject-all-other-routes {
        then reject;
    }
}
policy-statement customer-2-peer {
    term statics {
        from protocol static;
        then accept;
    }
    term isp-and-customer-routes {
        from {
            protocol bgp;
            route-filter 172.16.32.0/21 orlonger;
        }
        then accept;
    }
    term default-route {
        from {
            route-filter 0.0.0.0/0 exact;
        }
        then accept;
    }
    term reject-all-other-routes {
        then reject;
    }
}
policy-statement if-upstream-routes-exist {
    term only-certain-contributing-routes {
        from {
            route-filter 172.16.8.0/21 exact;
        }
        then accept;
    }
    term reject-all-other-routes {
        then reject;
    }
}
policy-statement internal-peers {
    term statics {
        from protocol static;
        then accept;
    }
    term next {
        then {
            next-hop self;
        }
    }
}

content_copy zoom_out_map
user@ISP-3# show routing-options
static {
    route 172.16.36.0/24 reject;
    route 172.16.37.0/24 reject;
    route 172.16.38.0/24 reject;
    route 172.16.39.0/24 reject;
}
generate {
    route 0.0.0.0/0 policy if-upstream-routes-exist;
}
router-id 192.168.0.3;
autonomous-system 64510;

디바이스 구성을 마쳤으면 구성 모드에서 commit을(를) 입력합니다.

디바이스 Exchange-2 구성

절차

단계별 절차
결과

단계별 절차

디바이스 Exchange-2는 모든 BGP 경로를 모든 BGP 피어와 교환합니다. Device Exchange-2에 대한 outbound-routes 정책은 BGP를 사용하여 로컬로 정의된 정적 경로를 보급합니다. 마지막 then reject 용어를 제외하면 모든 BGP 경로를 모든 외부 BGP 피어로 전송하는 기본 BGP 내보내기 정책이 적용됩니다.

Device Exchange-2를 구성하려면 다음을 수행합니다.

디바이스 인터페이스를 구성합니다.

content_copy zoom_out_map
[edit interfaces]
user@Exchange-2# set fe-1/2/0 unit 0 description to_ISP-2
user@Exchange-2# set fe-1/2/0 unit 0 family inet address 10.3.0.1/30
user@Exchange-2# set fe-1/2/2 unit 0 description to_Exchange-1
user@Exchange-2# set fe-1/2/2 unit 0 family inet address 10.3.0.41/30
user@Exchange-2# set fe-1/2/1 unit 0 description to_Private-Peer-2
user@Exchange-2# set fe-1/2/1 unit 0 family inet address 10.3.0.49/30
user@Exchange-2# set lo0 unit 0 family inet address 192.168.0.7/32

고정 경로를 구성합니다.

content_copy zoom_out_map
[edit routing-options static]
set route 172.16.16.0/21 reject

특정 내부 경로가 존재하는 경우에만 기본 정적 경로를 생성하는 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement outbound-routes term statics]
user@Exchange-2# set from protocol static
user@Exchange-2# set then accept

고객 피어에 대한 EBGP 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group ext]
user@Exchange-2# set type external
user@Exchange-2# set export outbound-routes
user@Exchange-2# set neighbor 10.3.0.2 peer-as 64510
user@Exchange-2# set neighbor 10.3.0.50 peer-as 64516
user@Exchange-2# set neighbor 10.3.0.42 peer-as 64514

AS(Autonomous System) 번호를 구성합니다.
```
[edit routing-options]
user@Exchange-2# set autonomous-system 64515
```

결과

content_copy zoom_out_map
user@Exchange-2 show interfaces
fe-1/2/0 {
    unit 0 {
        description to_ISP-2;
        family inet {
            address 10.3.0.1/30;
        }
    }
}
fe-1/2/1 {
    unit 0 {
        description to_Private-Peer-2;
        family inet {
            address 10.3.0.49/30;
        }
    }
}
fe-1/2/2 {
    unit 0 {
        description to_Exchange-1;
        family inet {
            address 10.3.0.41/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.7/32;
        }
    }
}

content_copy zoom_out_map
user@Exchange-2# show protocols
bgp {
    group ext {
        type external;
        export outbound-routes;
        neighbor 10.3.0.2 {
            peer-as 64510;
        }
        neighbor 10.3.0.50 {
            peer-as 64516;
        }
        neighbor 10.3.0.42 {
            peer-as 64514;
        }
    }
}

content_copy zoom_out_map
user@Exchange-2# show policy-options
policy-statement outbound-routes {
    term statics {
        from protocol static;
        then accept;
    }
}

content_copy zoom_out_map
user@Exchange-2# show routing-options
static {
    route 172.16.16.0/21 reject;
}
autonomous-system 64515;

디바이스 구성을 마쳤으면 구성 모드에서 commit을(를) 입력합니다.

디바이스 Private-Peer-2 구성

절차

단계별 절차
결과

단계별 절차

디바이스 Private-Peer-2는 두 가지 주요 기능을 수행합니다.

AS 64516에 대한 로컬 경로를 교환 피어와 ISP 라우터 모두에 보급합니다. 이 outbound-routes 정책은 라우터의 로컬 정적 경로(즉, 고객)를 광고하고, AS 64516 또는 AS 64512에서 시작된 BGP에서 학습한 모든 경로도 광고합니다. 이러한 경로에는 AS 64512 고객 외에 다른 AS 64516 고객 경로가 포함됩니다. AS 경로는 정책의 AS 경로 정규식 일치 기준에 의해 식별됩니다.
AS 64512 고객 라우터에 0.0.0.0/0 기본 경로를 보급합니다. 이를 위해 프라이빗 피어는 라우터에 로컬로 0.0.0.0/0에 대해 생성된 경로를 생성합니다. 이 생성된 경로에는 특정 경로만 생성된 경로에 기여할 수 있도록 허용하는 라는 정책이 if-upstream-routes-exist추가로 할당되어 라우팅 테이블에서 활성 경로로 만듭니다. 경로가 활성화되면 BGP 및 구성된 정책을 사용하여 AS 64512 라우터로 전송할 수 있습니다. 이 if-upstream-routes-exist 정책은 Device Exchange-2에서 172.16.32.0/21 경로만 수락하고 다른 모든 경로는 거부합니다. 172.16.32.0/21 경로가 교환 피어에 의해 철회되면 프라이빗 피어는 0.0.0.0/0 기본 경로를 잃고 AS 64512 고객 라우터에서 기본 경로를 철회합니다.

디바이스 Private-Peer-2 구성:

디바이스 인터페이스를 구성합니다.

content_copy zoom_out_map
[edit interfaces]
user@Private-Peer-2# set fe-1/2/3 unit 0 description to_ISP-2
user@Private-Peer-2# set fe-1/2/3 unit 0 family inet address 10.3.0.5/30
user@Private-Peer-2# set fe-1/2/0 unit 0 description to_Customer-1
user@Private-Peer-2# set fe-1/2/0 unit 0 family inet address 10.0.0.22/30
user@Private-Peer-2# set fe-1/2/1 unit 0 description to_Exchange-2
user@Private-Peer-2# set fe-1/2/1 unit 0 family inet address 10.3.0.50/30
user@Private-Peer-2# set lo0 unit 0 family inet address 192.168.0.5/32

고정 경로를 구성합니다.

content_copy zoom_out_map
[edit routing-options static]
user@Private-Peer-2# set route 172.16.24.0/25 reject
user@Private-Peer-2# set route 172.16.24.128/25 reject
user@Private-Peer-2# set route 172.16.25.0/26 reject
user@Private-Peer-2# set route 172.16.25.64/26 reject

특정 내부 경로가 존재하는 경우에만 기본 정적 경로를 생성하는 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement if-upstream-routes-exist]
user@Private-Peer-2# set term as-64515-routes from route-filter 172.16.16.0/21 exact
user@Private-Peer-2# set term as-64515-routes then accept
user@Private-Peer-2# set term reject-all-other-routes then reject
[edit routing-options generate route 0.0.0.0/0]
user@Private-Peer-2# set policy if-upstream-routes-exist

로컬 정적 경로와 기본 경로를 보급하는 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement internal-routes]
user@Private-Peer-2# set term statics from protocol static
user@Private-Peer-2# set term statics then accept
user@Private-Peer-2# set term default-route from route-filter 0.0.0.0/0 exact
user@Private-Peer-2# set term default-route then accept
user@Private-Peer-2# set term reject-all-other-routes then reject

로컬 고객 경로를 광고하는 라우팅 정책을 구성합니다.

content_copy zoom_out_map
[edit policy-options policy-statement outbound-routes]
user@Private-Peer-2# set term statics from protocol static
user@Private-Peer-2# set term statics then accept
user@Private-Peer-2# set term allowed-bgp-routes from as-path my-own-routes
user@Private-Peer-2# set term allowed-bgp-routes from as-path AS64512-routes
user@Private-Peer-2# set term allowed-bgp-routes then accept
user@Private-Peer-2# set term no-transit then reject
[edit policy-options]
user@Private-Peer-2# set as-path my-own-routes "()"
user@Private-Peer-2# set as-path AS64512-routes 64512

Customer-2에 대한 EBGP 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group to-64512]
user@Private-Peer-2# set type external
user@Private-Peer-2# set export internal-routes
user@Private-Peer-2# set peer-as 64512
user@Private-Peer-2# set neighbor 10.0.0.21

디바이스 Exchange-2에 대한 EBGP 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group to-64515]
user@Private-Peer-2# set type external
user@Private-Peer-2# set export outbound-routes
user@Private-Peer-2# set peer-as 64515
user@Private-Peer-2# set neighbor 10.3.0.49

ISP에 대한 EBGP 연결을 구성합니다.

content_copy zoom_out_map
[edit protocols bgp group ext]
user@Private-Peer-2# set type external
user@Private-Peer-2# set export outbound-routes
user@Private-Peer-2# set peer-as 64510
user@Private-Peer-2# set neighbor 10.3.0.6

AS(Autonomous System) 번호를 구성합니다.

content_copy zoom_out_map
[edit routing-options]
user@Private-Peer-2# set autonomous-system 64516

결과

content_copy zoom_out_map
user@Private-Peer-2# show interfaces
fe-1/2/0 {
    unit 0 {
        description to_Customer-1;
        family inet {
            address 10.0.0.22/30;
        }
    }
}
fe-1/2/1 {
    unit 0 {
        description to_Exchange-2;
        family inet {
            address 10.3.0.50/30;
        }
    }
}
fe-1/2/3 {
    unit 0 {
        description to_ISP-2;
        family inet {
            address 10.3.0.5/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.5/32;
        }
    }
}

content_copy zoom_out_map
user@Private-Peer-2# show protocols
bgp {
    group ext {
        type external;
        export outbound-routes;
        peer-as 64510;
        neighbor 10.3.0.6;
    }
    group to-64512 {
        type external;
        export internal-routes;
        peer-as 64512;
        neighbor 10.0.0.21;
    }
    group to-64515 {
        type external;
        export outbound-routes;
        peer-as 64515;
        neighbor 10.3.0.49;
    }
}

content_copy zoom_out_map
user@Private-Peer-2# show policy-options
policy-statement if-upstream-routes-exist {
    term as-64515-routes {
        from {
            route-filter 172.16.16.0/21 exact;
        }
        then accept;
    }
    term reject-all-other-routes {
        then reject;
    }
}
policy-statement internal-routes {
    term statics {
        from protocol static;
        then accept;
    }
    term default-route {
        from {
            route-filter 0.0.0.0/0 exact;
        }
        then accept;
    }
    term reject-all-other-routes {
        then reject;
    }
}
policy-statement outbound-routes {
    term statics {
        from protocol static;
        then accept;
    }
    term allowed-bgp-routes {
        from as-path [ my-own-routes AS64512-routes ];
        then accept;
    }
    term no-transit {
        then reject;
    }
}
as-path my-own-routes "()";
as-path AS64512-routes 64512;

content_copy zoom_out_map
user@Private-Peer-2# show routing-options
static {
    route 172.16.24.0/25 reject;
    route 172.16.24.128/25 reject;
    route 172.16.25.0/26 reject;
    route 172.16.25.64/26 reject;
}
generate {
    route 0.0.0.0/0 policy if-upstream-routes-exist;
}
autonomous-system 64516;

디바이스 구성을 마쳤으면 구성 모드에서 commit을(를) 입력합니다.

검증

구성이 올바르게 작동하고 있는지 확인합니다.

디바이스 Customer-1에서 경로 확인
디바이스 고객-2에서 경로 확인
디바이스 ISP-1에서 경로 확인
디바이스 ISP-2에서 경로 확인
디바이스 ISP-3에서 경로 확인
디바이스 Exchange-1에서 경로 확인
디바이스 Exchange-2에서 경로 확인
디바이스 private-peer-1에서 경로 확인
디바이스 private-peer-2에서 경로 확인

디바이스 Customer-1에서 경로 확인

목적
작업
의미

목적

디바이스 Customer-1에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@Customer-1> show route

inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 00:09:25, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.1.0.5 via fe-1/2/3.0
10.1.0.4/30        *[Direct/0] 23:50:20
                    > via fe-1/2/3.0
10.1.0.6/32        *[Local/0] 5d 21:56:47
                      Local via fe-1/2/3.0
172.16.40.0/25     *[Static/5] 22:59:04
                      Reject
172.16.40.128/25   *[Static/5] 22:59:04
                      Reject
172.16.41.0/25     *[Static/5] 22:59:04
                      Reject
172.16.41.128/25   *[Static/5] 22:59:04
                      Reject
192.168.0.8/32     *[Direct/0] 5d 21:25:45
                    > via lo0.0

의미

디바이스 Customer-1에는 4개의 정적 경로가 있으며 BGP를 통해 기본 경로를 학습했습니다.

디바이스 고객-2에서 경로 확인

목적
작업
의미

목적

디바이스 Customer-2에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@Customer-2> show route
inet.0: 22 destinations, 23 routes (22 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 00:10:35, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
                    [BGP/170] 04:58:09, localpref 50
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.22 via fe-1/2/0.0
10.0.0.8/30        *[Direct/0] 23:51:29
                    > via fe-1/2/0.10
10.0.0.10/32       *[Local/0] 23:52:49
                      Local via fe-1/2/0.10
10.0.0.20/30       *[Direct/0] 23:52:49
                    > via fe-1/2/0.0
10.0.0.21/32       *[Local/0] 23:52:49
                      Local via fe-1/2/0.0
172.16.24.0/25     *[BGP/170] 04:58:09, localpref 50
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.22 via fe-1/2/0.0
172.16.24.128/25   *[BGP/170] 04:58:09, localpref 50
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.22 via fe-1/2/0.0
172.16.25.0/26     *[BGP/170] 04:58:09, localpref 50
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.22 via fe-1/2/0.0
172.16.25.64/26    *[BGP/170] 04:58:09, localpref 50
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.22 via fe-1/2/0.0
172.16.32.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.33.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.34.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.35.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.36.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.37.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.38.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.39.0/24     *[BGP/170] 22:38:47, localpref 200
                      AS path: 64510 I, validation-state: unverified
                    > to 10.0.0.9 via fe-1/2/0.10
172.16.44.0/26     *[Static/5] 22:57:28
                      Reject
172.16.44.64/26    *[Static/5] 22:57:28
                      Reject
172.16.44.128/26   *[Static/5] 22:57:28
                      Reject
172.16.44.192/26   *[Static/5] 22:57:28
                      Reject
192.168.0.9/32     *[Direct/0] 23:52:49
                    > via lo0.0

의미

디바이스 고객-2는 ISP와의 세션 및 프라이빗 피어와의 세션을 통해 기본 경로를 학습했습니다. ISP에서 학습한 경로는 로컬 선호가 더 높기 때문에 선호됩니다.

디바이스 ISP-1에서 경로 확인

목적
작업

목적

디바이스 ISP-1에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@ISP-1> show route
inet.0: 42 destinations, 53 routes (42 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 22:44:26, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
10.0.0.0/30        *[Direct/0] 23:52:01
                    > via fe-1/2/0.0
10.0.0.2/32        *[Local/0] 23:52:01
                      Local via fe-1/2/0.0
10.0.0.4/30        *[OSPF/10] 23:51:06, metric 2
                      to 10.1.0.1 via fe-1/2/1.0
                    > to 10.0.0.1 via fe-1/2/0.0
10.0.0.20/30       *[BGP/170] 23:50:55, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 23:51:28, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
10.1.0.0/30        *[Direct/0] 23:52:01
                    > via fe-1/2/1.0
10.1.0.2/32        *[Local/0] 23:52:01
                      Local via fe-1/2/1.0
10.2.0.0/30        *[Direct/0] 23:52:01
                    > via fe-1/2/2.0
10.2.0.2/32        *[Local/0] 23:52:01
                      Local via fe-1/2/2.0
10.2.0.4/30        *[Direct/0] 23:52:00
                    > via fe-1/2/3.0
10.2.0.6/32        *[Local/0] 23:52:00
                      Local via fe-1/2/3.0
10.3.0.4/30        *[BGP/170] 23:51:28, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
10.3.0.48/30       *[BGP/170] 23:50:55, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
172.16.8.0/21      *[BGP/170] 00:11:08, localpref 100
                      AS path: 64514 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.16.0/21     *[BGP/170] 02:02:10, localpref 100, from 192.168.0.2
                      AS path: 64515 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 02:02:10, localpref 100
                      AS path: 64514 64515 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.24.0/25     *[BGP/170] 23:06:33, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 23:06:33, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.24.128/25   *[BGP/170] 23:06:33, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 23:06:33, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.25.0/26     *[BGP/170] 23:06:33, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 23:06:33, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.25.64/26    *[BGP/170] 23:06:33, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 23:06:33, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.32.0/21     *[Aggregate/130] 22:44:27
                      Reject
172.16.32.0/24     *[Static/5] 22:44:27
                      Reject
172.16.33.0/24     *[Static/5] 22:44:27
                      Reject
172.16.34.0/24     *[BGP/170] 22:39:20, localpref 100, from 192.168.0.2
                      AS path: I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
172.16.35.0/24     *[BGP/170] 22:39:20, localpref 100, from 192.168.0.2
                      AS path: I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
172.16.36.0/24     *[BGP/170] 22:39:20, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.37.0/24     *[BGP/170] 22:39:20, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.38.0/24     *[BGP/170] 22:39:20, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.39.0/24     *[BGP/170] 22:39:20, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.40.0/22     *[Aggregate/130] 22:44:27
                      Reject
172.16.40.0/25     *[BGP/170] 23:00:47, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.40.128/25   *[BGP/170] 23:00:47, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.41.0/25     *[BGP/170] 23:00:47, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.41.128/25   *[BGP/170] 23:00:47, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.44.0/26     *[BGP/170] 22:58:01, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
                    [BGP/170] 22:58:01, localpref 100
                      AS path: 64514 64515 64516 64512 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.44.64/26    *[BGP/170] 22:58:01, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
                    [BGP/170] 22:58:01, localpref 100
                      AS path: 64514 64515 64516 64512 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.44.128/26   *[BGP/170] 22:58:01, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
                    [BGP/170] 22:58:01, localpref 100
                      AS path: 64514 64515 64516 64512 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.44.192/26   *[BGP/170] 22:58:01, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
                    [BGP/170] 22:58:01, localpref 100
                      AS path: 64514 64515 64516 64512 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
192.168.0.1/32     *[Direct/0] 23:52:01
                    > via lo0.0
192.168.0.2/32     *[OSPF/10] 23:51:06, metric 1
                    > to 10.1.0.1 via fe-1/2/1.0
192.168.0.3/32     *[OSPF/10] 23:51:06, metric 1
                    > to 10.0.0.1 via fe-1/2/0.0
192.168.0.5/32     *[BGP/170] 23:50:55, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.1.0.1 via fe-1/2/1.0
                    [BGP/170] 23:51:28, localpref 100
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.2.0.5 via fe-1/2/3.0
172.16.233.5/32       *[OSPF/10] 23:52:07, metric 1
                      MultiRecv

디바이스 ISP-2에서 경로 확인

목적
작업

목적

디바이스 ISP-2에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@ISP-2> show route
inet.0: 41 destinations, 59 routes (41 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 22:45:44, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
10.0.0.0/30        *[OSPF/10] 23:52:25, metric 2
                      to 10.0.0.5 via fe-1/2/2.0
                    > to 10.1.0.2 via fe-1/2/1.0
10.0.0.4/30        *[Direct/0] 23:53:21
                    > via fe-1/2/2.0
10.0.0.6/32        *[Local/0] 23:53:23
                      Local via fe-1/2/2.0
10.0.0.20/30       *[BGP/170] 23:53:11, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:53:09, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
10.1.0.0/30        *[Direct/0] 23:53:19
                    > via fe-1/2/1.0
10.1.0.1/32        *[Local/0] 23:53:23
                      Local via fe-1/2/1.0
10.3.0.0/30        *[Direct/0] 23:53:22
                    > via fe-1/2/0.0
10.3.0.2/32        *[Local/0] 23:53:23
                      Local via fe-1/2/0.0
10.3.0.4/30        *[Direct/0] 23:53:23
                    > via fe-1/2/3.0
                    [BGP/170] 23:53:11, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:53:09, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
                    [BGP/170] 23:52:13, localpref 100, from 192.168.0.1
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.1.0.2 via fe-1/2/1.0
10.3.0.6/32        *[Local/0] 23:53:23
                      Local via fe-1/2/3.0
10.3.0.48/30       *[BGP/170] 23:53:11, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
172.16.8.0/21      *[BGP/170] 00:12:26, localpref 100, from 192.168.0.1
                      AS path: 64514 I, validation-state: unverified
                    > to 10.1.0.2 via fe-1/2/1.0
                    [BGP/170] 00:12:26, localpref 100
                      AS path: 64515 64514 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.16.0/21     *[BGP/170] 02:03:28, localpref 100
                      AS path: 64515 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.24.0/25     *[BGP/170] 23:07:51, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:07:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.24.128/25   *[BGP/170] 23:07:51, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:07:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.25.0/26     *[BGP/170] 23:07:51, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:07:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.25.64/26    *[BGP/170] 23:07:51, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:07:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.32.0/21     *[Aggregate/130] 22:40:38
                      Reject
172.16.32.0/24     *[BGP/170] 22:45:44, localpref 100, from 192.168.0.1
                      AS path: I, validation-state: unverified
                    > to 10.1.0.2 via fe-1/2/1.0
172.16.33.0/24     *[BGP/170] 22:45:44, localpref 100, from 192.168.0.1
                      AS path: I, validation-state: unverified
                    > to 10.1.0.2 via fe-1/2/1.0
172.16.34.0/24     *[Static/5] 22:40:38
                      Reject
172.16.35.0/24     *[Static/5] 22:40:38
                      Reject
172.16.36.0/24     *[BGP/170] 22:40:38, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.37.0/24     *[BGP/170] 22:40:38, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.38.0/24     *[BGP/170] 22:40:38, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.39.0/24     *[BGP/170] 22:40:38, localpref 100, from 192.168.0.3
                      AS path: I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.40.0/25     *[BGP/170] 23:02:05, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.40.128/25   *[BGP/170] 23:02:05, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.41.0/25     *[BGP/170] 23:02:05, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.41.128/25   *[BGP/170] 23:02:05, localpref 100, from 192.168.0.3
                      AS path: 64511 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
172.16.44.0/23     *[Aggregate/130] 22:40:38
                      Reject
172.16.44.0/26     *[BGP/170] 22:59:19, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.44.64/26    *[BGP/170] 22:59:19, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.44.128/26   *[BGP/170] 22:59:19, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.44.192/26   *[BGP/170] 22:59:19, localpref 100, from 192.168.0.3
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.5 via fe-1/2/2.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 22:59:19, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
192.168.0.1/32     *[OSPF/10] 23:52:25, metric 1
                    > to 10.1.0.2 via fe-1/2/1.0
192.168.0.2/32     *[Direct/0] 23:53:23
                    > via lo0.0
192.168.0.3/32     *[OSPF/10] 23:52:30, metric 1
                    > to 10.0.0.5 via fe-1/2/2.0
192.168.0.5/32     *[BGP/170] 23:53:11, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.5 via fe-1/2/3.0
                    [BGP/170] 23:53:09, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.1 via fe-1/2/0.0
172.16.233.5/32       *[OSPF/10] 23:53:25, metric 1
                      MultiRecv

디바이스 ISP-3에서 경로 확인

목적
작업

목적

디바이스 ISP-3에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@ISP-3> show route

inet.0: 40 destinations, 41 routes (40 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Aggregate/130] 23:53:57, metric2 1
                    > to 10.0.0.2 via fe-1/2/0.0
                    [BGP/170] 22:46:17, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
10.0.0.0/30        *[Direct/0] 23:53:52
                    > via fe-1/2/0.0
10.0.0.1/32        *[Local/0] 23:53:53
                      Local via fe-1/2/0.0
10.0.0.4/30        *[Direct/0] 23:53:54
                    > via fe-1/2/2.0
10.0.0.5/32        *[Local/0] 23:53:54
                      Local via fe-1/2/2.0
10.0.0.8/30        *[Direct/0] 23:53:53
                    > via fe-1/2/1.0
10.0.0.9/32        *[Local/0] 23:53:53
                      Local via fe-1/2/1.0
10.0.0.20/30       *[BGP/170] 23:53:02, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
10.1.0.0/30        *[OSPF/10] 23:53:03, metric 2
                    > to 10.0.0.6 via fe-1/2/2.0
                      to 10.0.0.2 via fe-1/2/0.0
10.1.0.4/30        *[Direct/0] 23:53:54
                    > via fe-1/2/3.0
10.1.0.5/32        *[Local/0] 23:53:54
                      Local via fe-1/2/3.0
10.3.0.4/30        *[BGP/170] 23:52:46, localpref 100, from 192.168.0.1
                      AS path: 64514 64515 64516 I, validation-state: unverified
                    > to 10.0.0.2 via fe-1/2/0.0
10.3.0.48/30       *[BGP/170] 23:53:02, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.8.0/21      *[BGP/170] 00:12:59, localpref 100, from 192.168.0.1
                      AS path: 64514 I, validation-state: unverified
                    > to 10.0.0.2 via fe-1/2/0.0
172.16.16.0/21     *[BGP/170] 02:04:01, localpref 100, from 192.168.0.2
                      AS path: 64515 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.24.0/25     *[BGP/170] 23:08:24, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.24.128/25   *[BGP/170] 23:08:24, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.25.0/26     *[BGP/170] 23:08:24, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.25.64/26    *[BGP/170] 23:08:24, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.32.0/24     *[BGP/170] 22:46:17, localpref 100, from 192.168.0.1
                      AS path: I, validation-state: unverified
                    > to 10.0.0.2 via fe-1/2/0.0
172.16.33.0/24     *[BGP/170] 22:46:17, localpref 100, from 192.168.0.1
                      AS path: I, validation-state: unverified
                    > to 10.0.0.2 via fe-1/2/0.0
172.16.34.0/24     *[BGP/170] 22:41:11, localpref 100, from 192.168.0.2
                      AS path: I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.35.0/24     *[BGP/170] 22:41:11, localpref 100, from 192.168.0.2
                      AS path: I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.36.0/24     *[Static/5] 22:41:11
                      Reject
172.16.37.0/24     *[Static/5] 22:41:11
                      Reject
172.16.38.0/24     *[Static/5] 22:41:11
                      Reject
172.16.39.0/24     *[Static/5] 22:41:11
                      Reject
172.16.40.0/25     *[BGP/170] 23:02:38, localpref 100
                      AS path: 64511 I, validation-state: unverified
                    > to 10.1.0.6 via fe-1/2/3.0
172.16.40.128/25   *[BGP/170] 23:02:38, localpref 100
                      AS path: 64511 I, validation-state: unverified
                    > to 10.1.0.6 via fe-1/2/3.0
172.16.41.0/25     *[BGP/170] 23:02:38, localpref 100
                      AS path: 64511 I, validation-state: unverified
                    > to 10.1.0.6 via fe-1/2/3.0
172.16.41.128/25   *[BGP/170] 23:02:38, localpref 100
                      AS path: 64511 I, validation-state: unverified
                    > to 10.1.0.6 via fe-1/2/3.0
172.16.44.0/26     *[BGP/170] 22:59:52, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.10 via fe-1/2/1.0
172.16.44.64/26    *[BGP/170] 22:59:52, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.10 via fe-1/2/1.0
172.16.44.128/26   *[BGP/170] 22:59:52, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.10 via fe-1/2/1.0
172.16.44.192/26   *[BGP/170] 22:59:52, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.10 via fe-1/2/1.0
192.168.0.1/32     *[OSPF/10] 23:53:03, metric 1
                    > to 10.0.0.2 via fe-1/2/0.0
192.168.0.2/32     *[OSPF/10] 23:53:03, metric 1
                    > to 10.0.0.6 via fe-1/2/2.0
192.168.0.3/32     *[Direct/0] 23:53:54
                    > via lo0.0
192.168.0.5/32     *[BGP/170] 23:53:02, localpref 100, from 192.168.0.2
                      AS path: 64516 I, validation-state: unverified
                    > to 10.0.0.6 via fe-1/2/2.0
172.16.233.5/32       *[OSPF/10] 23:53:58, metric 1
                      MultiRecv

디바이스 Exchange-1에서 경로 확인

목적
작업

목적

Device Exchange-1에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@Exchange-1> show route

inet.0: 23 destinations, 24 routes (23 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.20/30       *[BGP/170] 23:53:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
10.2.0.4/30        *[Direct/0] 23:54:23
                    > via fe-1/2/3.0
10.2.0.5/32        *[Local/0] 23:54:29
                      Local via fe-1/2/3.0
10.3.0.4/30        *[BGP/170] 23:53:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
10.3.0.40/30       *[Direct/0] 23:54:27
                    > via fe-1/2/2.0
10.3.0.42/32       *[Local/0] 23:54:29
                      Local via fe-1/2/2.0
10.3.0.44/30       *[Direct/0] 23:54:29
                    > via fe-1/2/1.0
10.3.0.45/32       *[Local/0] 23:54:29
                      Local via fe-1/2/1.0
172.16.8.0/21      *[Static/5] 00:13:31
                      Reject
172.16.16.0/21     *[BGP/170] 02:04:33, localpref 100
                      AS path: 64515 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.24.0/25     *[BGP/170] 23:08:56, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.24.128/25   *[BGP/170] 23:08:56, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.25.0/26     *[BGP/170] 23:08:56, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.25.64/26    *[BGP/170] 23:08:56, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.32.0/21     *[BGP/170] 22:46:49, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.6 via fe-1/2/3.0
                    [BGP/170] 22:41:43, localpref 100
                      AS path: 64515 64510 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.40.0/22     *[BGP/170] 22:46:49, localpref 100
                      AS path: 64510 64511 I, validation-state: unverified
                    > to 10.2.0.6 via fe-1/2/3.0
172.16.44.0/23     *[BGP/170] 22:41:43, localpref 100
                      AS path: 64515 64510 64512 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.44.0/26     *[BGP/170] 23:00:24, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.44.64/26    *[BGP/170] 23:00:24, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.44.128/26   *[BGP/170] 23:00:24, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
172.16.44.192/26   *[BGP/170] 23:00:24, localpref 100
                      AS path: 64515 64516 64512 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
192.168.0.5/32     *[BGP/170] 23:53:51, localpref 100
                      AS path: 64515 64516 I, validation-state: unverified
                    > to 10.3.0.41 via fe-1/2/2.0
192.168.0.6/32     *[Direct/0] 23:54:29
                    > via lo0.0

디바이스 Exchange-2에서 경로 확인

목적
작업
의미

목적

Device Exchange-2에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@Exchange-2> show route
inet.0: 24 destinations, 26 routes (23 active, 0 holddown, 1 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.20/30       *[BGP/170] 23:54:44, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
10.3.0.0/30        *[Direct/0] 23:54:57
                    > via fe-1/2/0.0
10.3.0.1/32        *[Local/0] 23:54:57
                      Local via fe-1/2/0.0
10.3.0.4/30        *[BGP/170] 23:54:44, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
10.3.0.40/30       *[Direct/0] 23:54:57
                    > via fe-1/2/2.0
10.3.0.41/32       *[Local/0] 23:54:57
                      Local via fe-1/2/2.0
10.3.0.48/30       *[Direct/0] 23:54:57
                    > via fe-1/2/1.0
                    [BGP/170] 23:54:44, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
10.3.0.49/32       *[Local/0] 23:54:57
                      Local via fe-1/2/1.0
172.16.8.0/21      *[BGP/170] 00:14:01, localpref 100
                      AS path: 64514 I, validation-state: unverified
                    > to 10.3.0.42 via fe-1/2/2.0
172.16.16.0/21     *[Static/5] 02:05:03
                      Reject
172.16.24.0/25     *[BGP/170] 23:09:26, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.24.128/25   *[BGP/170] 23:09:26, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.25.0/26     *[BGP/170] 23:09:26, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.25.64/26    *[BGP/170] 23:09:26, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.32.0/21     *[BGP/170] 22:42:13, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.2 via fe-1/2/0.0
                    [BGP/170] 22:47:19, localpref 100
                      AS path: 64514 64510 I, validation-state: unverified
                    > to 10.3.0.42 via fe-1/2/2.0
172.16.40.0/22     *[BGP/170] 22:47:19, localpref 100
                      AS path: 64514 64510 64511 I, validation-state: unverified
                    > to 10.3.0.42 via fe-1/2/2.0
172.16.44.0/23     *[BGP/170] 22:42:13, localpref 100
                      AS path: 64510 64512 I, validation-state: unverified
                    > to 10.3.0.2 via fe-1/2/0.0
172.16.44.0/26     *[BGP/170] 23:00:54, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.44.64/26    *[BGP/170] 23:00:54, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.44.128/26   *[BGP/170] 23:00:54, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
172.16.44.192/26   *[BGP/170] 23:00:54, localpref 100
                      AS path: 64516 64512 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
192.168.0.5/32     *[BGP/170] 23:54:44, localpref 100
                      AS path: 64516 I, validation-state: unverified
                    > to 10.3.0.50 via fe-1/2/1.0
192.168.0.7/32     *[Direct/0] 23:54:57
                    > via lo0.0

의미

Device Exchange-2에서 경로의 다음 홉은 경로가 수신된 Device Private-Peer-2에 대한 자체 인터페이스이기 때문에 기본 경로 0/0이 숨겨집니다. 루프를 피하기 위해 경로가 숨겨져 있습니다.

디바이스 private-peer-1에서 경로 확인

목적
작업

목적

디바이스 Private-Peer-1에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@Private-Peer-1> show route

inet.0: 13 destinations, 13 routes (13 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.2.0.0/30        *[Direct/0] 23:58:57
                    > via fe-1/2/2.0
10.2.0.1/32        *[Local/0] 5d 21:34:22
                      Local via fe-1/2/2.0
10.3.0.44/30       *[Direct/0] 23:59:02
                    > via fe-1/2/1.0
10.3.0.46/32       *[Local/0] 1d 03:19:52
                      Local via fe-1/2/1.0
172.16.32.0/24     *[BGP/170] 22:51:22, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.33.0/24     *[BGP/170] 22:51:22, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.34.0/24     *[BGP/170] 22:46:16, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.35.0/24     *[BGP/170] 22:46:16, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.36.0/24     *[BGP/170] 22:46:16, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.37.0/24     *[BGP/170] 22:46:16, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.38.0/24     *[BGP/170] 22:46:16, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
172.16.39.0/24     *[BGP/170] 22:46:16, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.2.0.2 via fe-1/2/2.0
192.168.0.4/32     *[Direct/0] 5d 21:34:22
                    > via lo0.0

디바이스 private-peer-2에서 경로 확인

목적
작업

목적

디바이스 Private-Peer-2에서 라우팅 테이블의 경로를 확인합니다.

작업

content_copy zoom_out_map
user@Private-Peer-2> show route


inet.0: 29 destinations, 29 routes (29 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Aggregate/130] 1d 02:13:28
                    > to 10.3.0.49 via fe-1/2/1.0
10.0.0.20/30       *[Direct/0] 1d 00:00:53
                    > via fe-1/2/0.0
10.0.0.22/32       *[Local/0] 4d 23:51:14
                      Local via fe-1/2/0.0
10.3.0.4/30        *[Direct/0] 23:59:36
                    > via fe-1/2/3.0
10.3.0.5/32        *[Local/0] 5d 21:34:57
                      Local via fe-1/2/3.0
10.3.0.48/30       *[Direct/0] 23:59:35
                    > via fe-1/2/1.0
10.3.0.50/32       *[Local/0] 1d 03:20:27
                      Local via fe-1/2/1.0
172.16.8.0/21      *[BGP/170] 00:18:39, localpref 100
                      AS path: 64515 64514 I, validation-state: unverified
                    > to 10.3.0.49 via fe-1/2/1.0
172.16.16.0/21     *[BGP/170] 02:09:41, localpref 100
                      AS path: 64515 I, validation-state: unverified
                    > to 10.3.0.49 via fe-1/2/1.0
172.16.24.0/25     *[Static/5] 23:14:04
                      Reject
172.16.24.128/25   *[Static/5] 23:14:04
                      Reject
172.16.25.0/26     *[Static/5] 23:14:04
                      Reject
172.16.25.64/26    *[Static/5] 23:14:04
                      Reject
172.16.32.0/21     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64515 64510 I, validation-state: unverified
                    > to 10.3.0.49 via fe-1/2/1.0
172.16.32.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.33.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.34.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.35.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.36.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.37.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.38.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.39.0/24     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64510 I, validation-state: unverified
                    > to 10.3.0.6 via fe-1/2/3.0
172.16.40.0/22     *[BGP/170] 22:51:57, localpref 100
                      AS path: 64515 64514 64510 64511 I, validation-state: unverified
                    > to 10.3.0.49 via fe-1/2/1.0
172.16.44.0/23     *[BGP/170] 22:46:51, localpref 100
                      AS path: 64515 64510 64512 I, validation-state: unverified
                    > to 10.3.0.49 via fe-1/2/1.0
172.16.44.0/26     *[BGP/170] 23:05:32, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.21 via fe-1/2/0.0
172.16.44.64/26    *[BGP/170] 23:05:32, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.21 via fe-1/2/0.0
172.16.44.128/26   *[BGP/170] 23:05:32, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.21 via fe-1/2/0.0
172.16.44.192/26   *[BGP/170] 23:05:32, localpref 100
                      AS path: 64512 I, validation-state: unverified
                    > to 10.0.0.21 via fe-1/2/0.0
192.168.0.5/32     *[Direct/0] 5d 21:34:57
                    > via lo0.0

arrow_backward PREVIOUS 예: 알려진 잘못된 경로 거부

NEXT arrow_forward 정책 표현식 이해

Helped me install or use the product
Accelerated my deployment

Discuss the product with a co-worker
Make a purchase inquiry

라우팅 정책, 방화벽 필터 및 트래픽 폴리서 사용자 가이드

이 페이지에서

이 기계 번역이 도움이 되었습니까?

면책 조항:

예: ISP 네트워크에서 라우팅 정책 사용

요구 사항

개요

토폴로지

토폴로지의 모든 디바이스에 대한 명령 설정

CLI 빠른 구성

디바이스 Customer-1 구성

절차

단계별 절차

결과

디바이스 구성 고객-2

절차

단계별 절차

결과

디바이스 ISP-1 및 ISP-2 구성

절차

단계별 절차

결과

디바이스 ISP-3 구성

절차

단계별 절차

결과

디바이스 Exchange-2 구성

절차

단계별 절차

결과

디바이스 Private-Peer-2 구성

절차

단계별 절차

결과

검증

디바이스 Customer-1에서 경로 확인

목적

작업

의미

디바이스 고객-2에서 경로 확인

목적

작업

의미

디바이스 ISP-1에서 경로 확인

목적

작업

디바이스 ISP-2에서 경로 확인

목적

작업

디바이스 ISP-3에서 경로 확인

목적

작업

디바이스 Exchange-1에서 경로 확인

목적

작업

디바이스 Exchange-2에서 경로 확인

목적

작업

의미

디바이스 private-peer-1에서 경로 확인

목적

작업

디바이스 private-peer-2에서 경로 확인

목적

작업

관련 항목

Stay in touch
