Return an EX4100 Chassis or Component

date_range 14-Dec-23

How to Return an EX4100 Switch or Component for Repair or Replacement

If you need to return a switch or hardware component to Juniper Networks for repair or replacement, follow this procedure:

  1. Determine the serial number of the chassis if you need to return the switch. If you need to return one or more components, determine the serial number for each component. For instructions, see Locate the Serial Number on an EX4100 Switch or Component.
  2. Obtain a Return Material Authorization (RMA) number from the Juniper Networks Technical Assistance Center (JTAC) as described in Contact Customer Support to Obtain Return Material Authorization.
    Note:

    Obtain an RMA number before you return any component to Juniper Networks. Juniper Networks reserves the right to refuse shipments that lack an RMA. Refused shipments are returned to the customer through collect freight, meaning that you pay for the returned delivery.

  3. Pack the switch or component for shipping as described in Pack an EX4100 Switch or Component for Shipping.

For more information about return and repair policies, see the customer support page at https://www.juniper.net/support/guidelines.html.

Locate the Serial Number on an EX4100 Switch or Component

If you are returning a switch or hardware component to Juniper Networks for repair or replacement, you must locate the serial number of the switch or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) to obtain a Return Material Authorization (RMA) number.

If the switch is operational and you can access the CLI, you can list serial numbers for the switch and for some components with a CLI command.

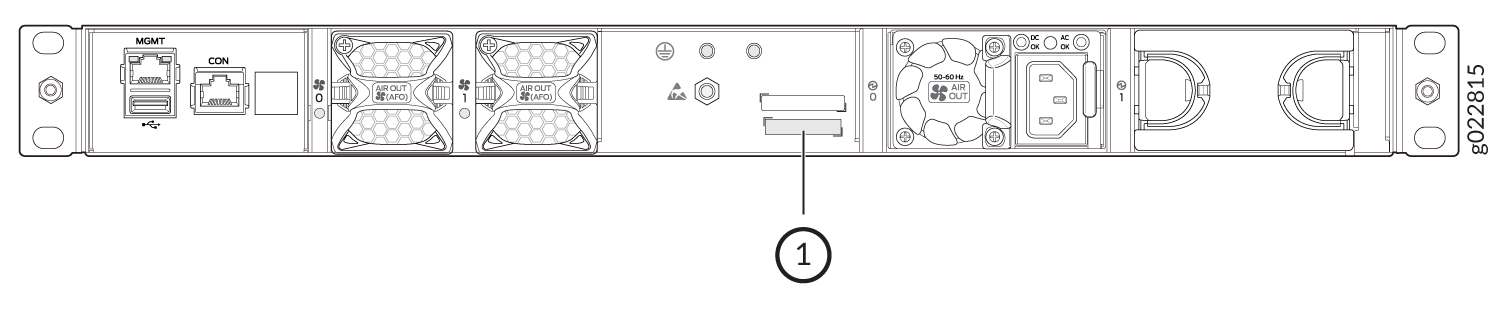

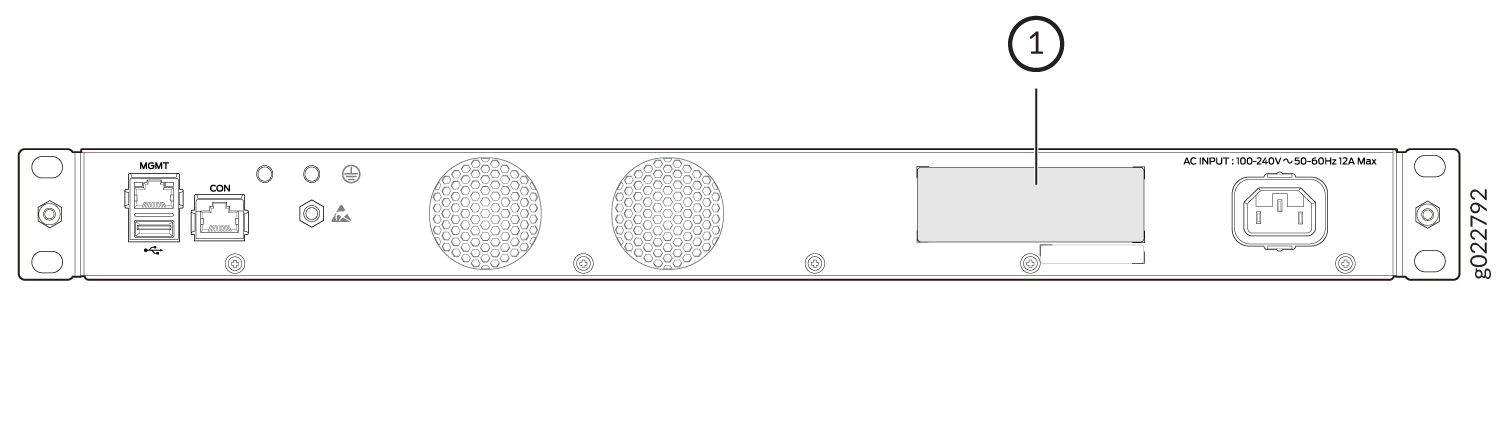

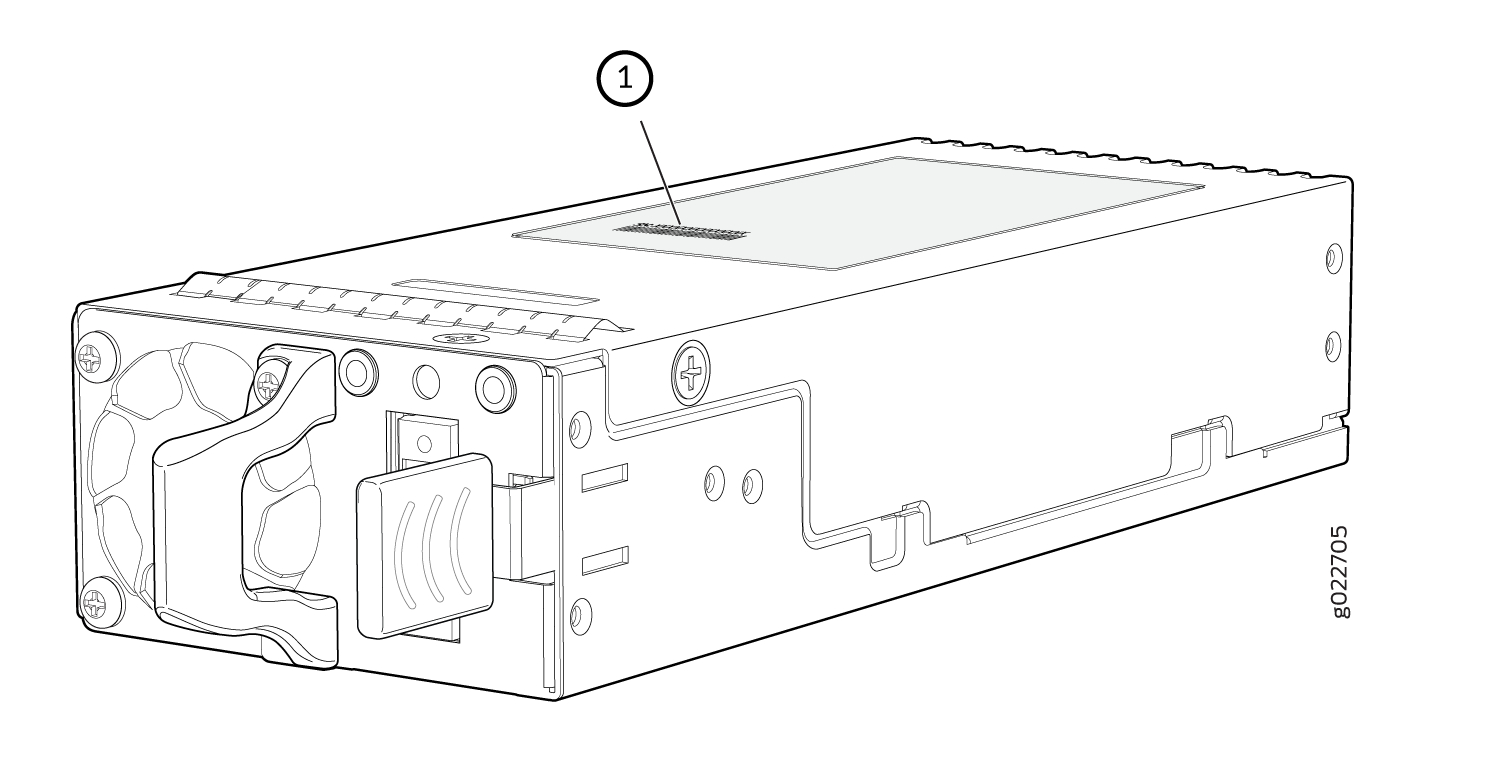

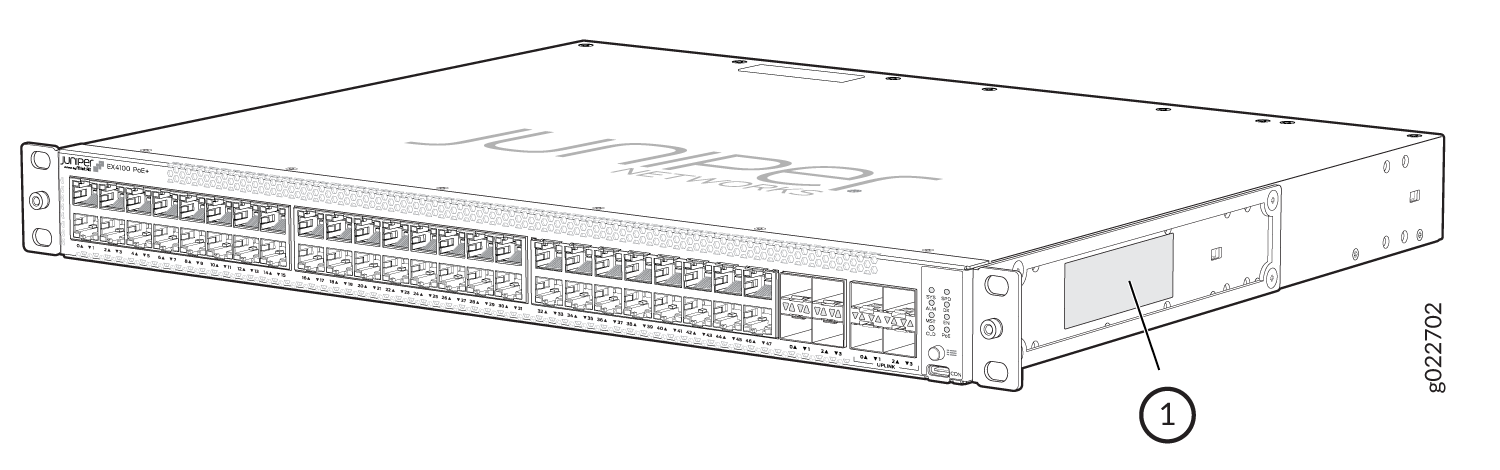

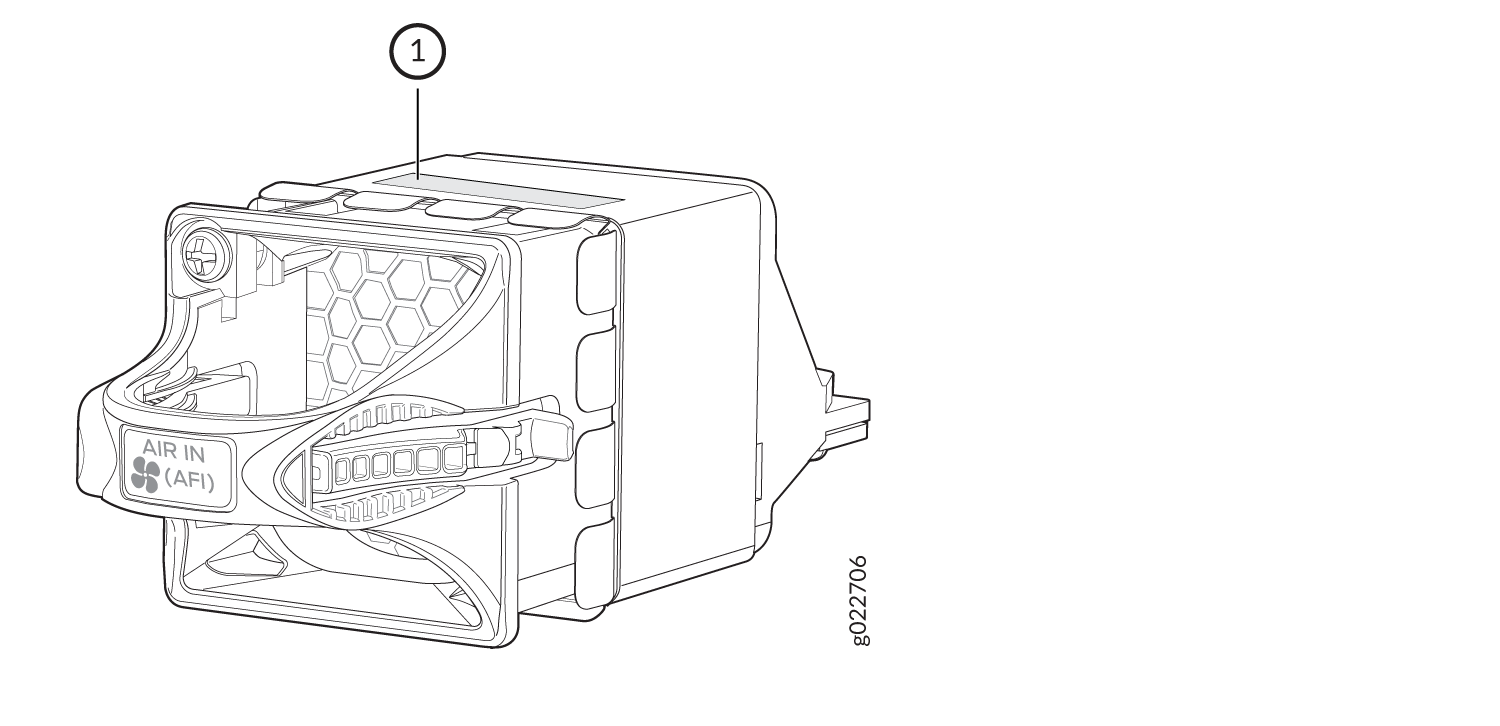

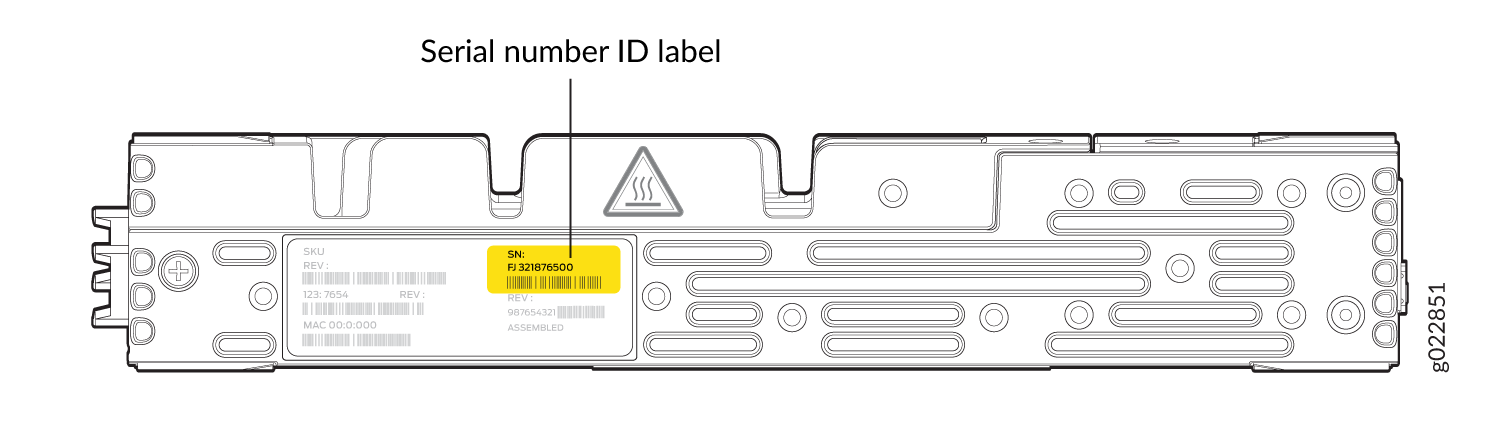

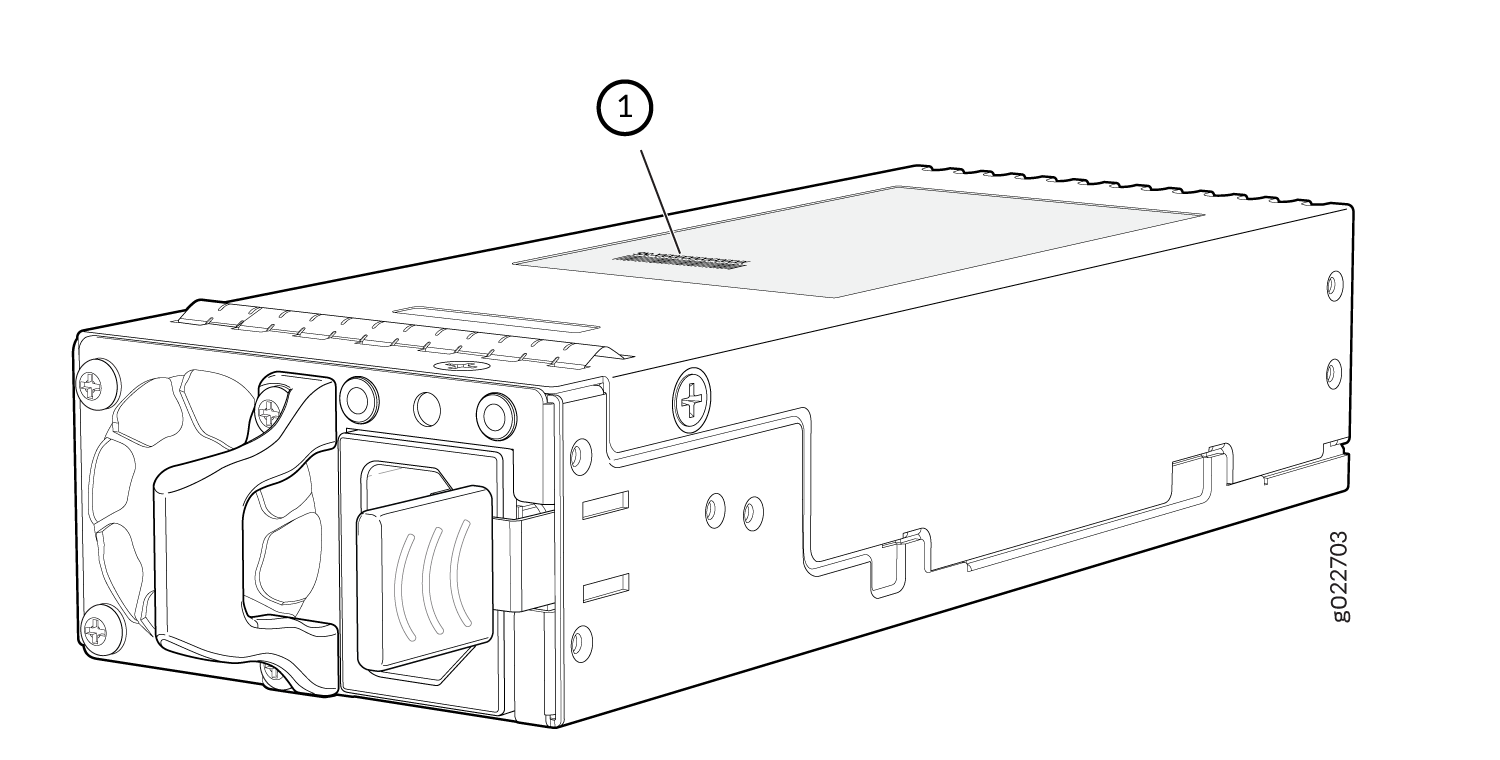

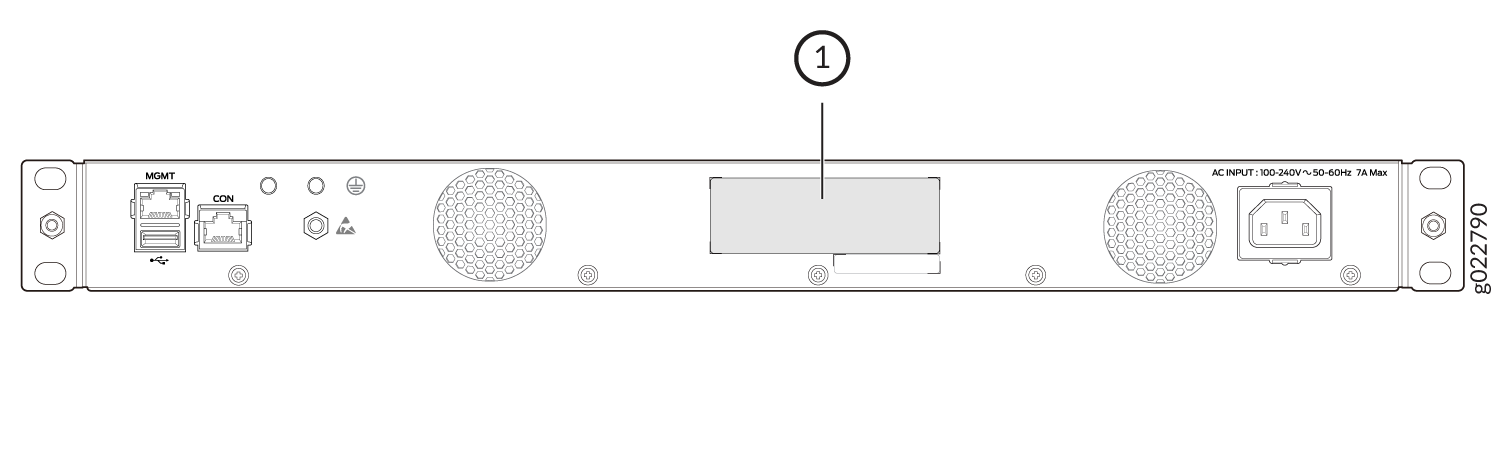

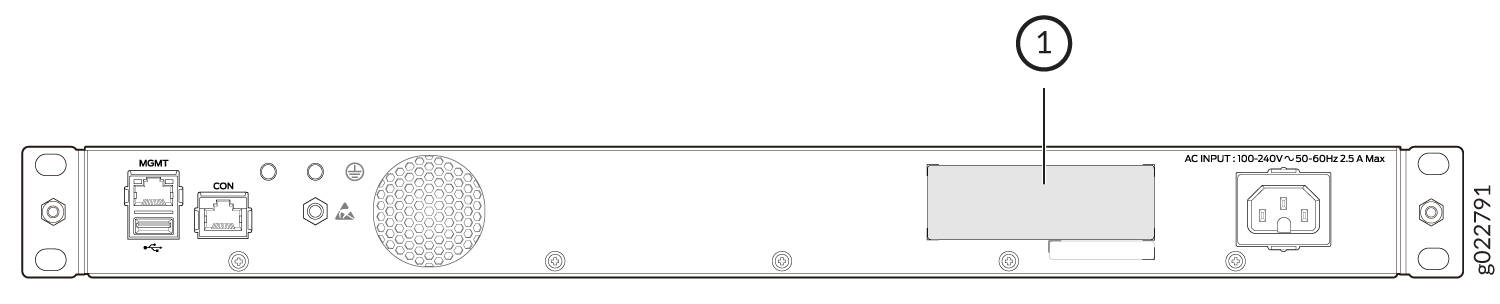

You can also find the serial number ID label on the physical switch or component. This option is helpful in either of these instances:

  • You do not have access to the CLI.

  • The serial number does not appear in the command output.

Note:

If you want to find the serial number on the physical switch component, you will need to remove the component from the switch chassis.

List the Switch and Components Details with the CLI

To list the switch and switch components and their serial numbers, enter the CLI command show chassis hardware extensive.

The following output lists the switch components and serial numbers for an EX4100 switch.

content_copy zoom_out_map
show chassis hardware extensive
Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                FA1422AN0045      EX4100-48P
 Jedec Code:   0x0000            EEPROM Version:    0x00
                                 S/N:               FA1422AN0045
 Assembly ID:  0xf000            Assembly Version:  00.00
 Date:         00-00-0000        Assembly Flags:    0x00
 Board Information Record:
  Address 0x00: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 I2C Hex Data:
  Address 0x00: 00 00 00 00 f0 00 00 00 00 00 00 00 00 00 00 00
  Address 0x10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x20: 46 41 31 34 32 32 41 4e 30 30 34 35 00 00 00 00
  Address 0x30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Pseudo CB 0
Routing Engine 0          BUILTIN      BUILTIN           RE-EX4100-48P
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          BUILTIN           S/N:               BUILTIN
 Assembly ID:  0xf010            Assembly Version:  01.04
 Date:         04-13-2022        Assembly Flags:    0x00
                                 CLEI Code:         DUMMY_CLEI
                                 FRU Model Number:  EX4100-48P
 Board Information Record:
  Address 0x00: ad 01 00 80 04 69 8f 0f 2a c8 ff ff ff ff ff ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 fe f0 10 01 04 00 00 00 00 00 00 00 00
  Address 0x10: 00 00 00 00 42 55 49 4c 54 49 4e 00 00 00 00 00
  Address 0x20: 42 55 49 4c 54 49 4e 00 00 00 00 00 00 0d 04 07
  Address 0x30: e6 ff ff ff ad 01 00 80 04 69 8f 0f 2a c8 ff ff
  Address 0x40: ff ff ff ff 01 44 55 4d 4d 59 5f 43 4c 45 49 45
  Address 0x50: 58 34 31 30 30 2d 34 38 50 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 31 00 00 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 7b 46 41 31 34 32 32 41 4e 30 30 34 35
  flash/s     8 MB  mx25ll64                             SPI Flash
  usb0 (addr 0.1) XHCI root HUB 0      Marvell           uhub0
  usb1 (addr 0.1) USB2.0 Hub 1544      vendor 0x05e3     uhub1
  usb2 (addr 0.2) USBFlashDrive 4096   USB               umass0
  usb3 (addr 0.3) USB Flash Module 72  Swissbit          umass1
FPC 0            REV 04   650-134056   FA1422AN0045      EX4100-48P
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          650-134056        S/N:               FA1422AN0045
 Assembly ID:  0x05c2            Assembly Version:  01.04
 Date:         04-13-2022        Assembly Flags:    0x00
 Version:      REV 04            CLEI Code:         DUMMY_CLEI
 ID: EX4100-48P                  FRU Model Number:  EX4100-48P
 Board Information Record:
  Address 0x00: ad 01 00 80 04 69 8f 0f 2a c8 ff ff ff ff ff ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 fe 05 c2 01 04 52 45 56 20 30 34 00 00
  Address 0x10: 00 00 00 00 36 35 30 2d 31 33 34 30 35 36 00 00
  Address 0x20: 46 41 31 34 32 32 41 4e 30 30 34 35 00 0d 04 07
  Address 0x30: e6 ff ff ff ad 01 00 80 04 69 8f 0f 2a c8 ff ff
  Address 0x40: ff ff ff ff 01 44 55 4d 4d 59 5f 43 4c 45 49 45
  Address 0x50: 58 34 31 30 30 2d 34 38 50 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 31 00 00 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 7b 46 41 31 34 32 32 41 4e 30 30 34 35
  CPU                     BUILTIN      BUILTIN           FPC CPU
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          BUILTIN           S/N:               BUILTIN
 Assembly ID:  0xf020            Assembly Version:  01.04
 Date:         04-13-2022        Assembly Flags:    0x00
 Board Information Record:
  Address 0x00: ad 01 00 80 04 69 8f 0f 2a c8 ff ff ff ff ff ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 fe f0 20 01 04 00 45 56 20 30 34 00 00
  Address 0x10: 00 00 00 00 42 55 49 4c 54 49 4e 00 35 36 00 00
  Address 0x20: 42 55 49 4c 54 49 4e 00 30 30 34 35 00 0d 04 07
  Address 0x30: e6 ff ff ff ad 01 00 80 04 69 8f 0f 2a c8 ff ff
  Address 0x40: ff ff ff ff 00 44 55 4d 4d 59 5f 43 4c 45 49 45
  Address 0x50: 58 34 31 30 30 2d 34 38 50 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 31 00 00 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 7b 46 41 31 34 32 32 41 4e 30 30 34 35
  PIC 0          REV 04   BUILTIN      BUILTIN           48x10M/100M/1G Base-T
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          BUILTIN           S/N:               BUILTIN
 Assembly ID:  0xf050            Assembly Version:  01.04
 Date:         04-13-2022        Assembly Flags:    0x00
 Version:      REV 04            CLEI Code:         DUMMY_CLEI
                                 FRU Model Number:  EX4100-48P
 Board Information Record:
  Address 0x00: ad 01 00 80 04 69 8f 0f 2a c8 ff ff ff ff ff ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 fe f0 50 01 04 52 45 56 20 30 34 00 00
  Address 0x10: 00 00 00 00 42 55 49 4c 54 49 4e 00 35 36 00 00
  Address 0x20: 42 55 49 4c 54 49 4e 00 30 30 34 35 00 0d 04 07
  Address 0x30: e6 ff ff ff ad 01 00 80 04 69 8f 0f 2a c8 ff ff
  Address 0x40: ff ff ff ff 01 44 55 4d 4d 59 5f 43 4c 45 49 45
  Address 0x50: 58 34 31 30 30 2d 34 38 50 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 31 00 00 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 7b 55 55 55 55 55 55 55 55 55 55 55 55
  PIC 1          REV 04   650-134056   FA1422AN0045      4x1G/10G/25G SFP/SFP+/SFP28
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          650-134056        S/N:               FA1422AN0045
 Assembly ID:  0xf051            Assembly Version:  01.04
 Date:         04-13-2022        Assembly Flags:    0x00
 Version:      REV 04            CLEI Code:         DUMMY_CLEI
                                 FRU Model Number:  EX4100-48P
 Board Information Record:
  Address 0x00: ad 01 00 80 04 69 8f 0f 2a c8 ff ff ff ff ff ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 fe f0 51 01 04 52 45 56 20 30 34 00 00
  Address 0x10: 00 00 00 00 36 35 30 2d 31 33 34 30 35 36 00 00
  Address 0x20: 46 41 31 34 32 32 41 4e 30 30 34 35 00 0d 04 07
  Address 0x30: e6 ff ff ff ad 01 00 80 04 69 8f 0f 2a c8 ff ff
  Address 0x40: ff ff ff ff 01 44 55 4d 4d 59 5f 43 4c 45 49 45
  Address 0x50: 58 34 31 30 30 2d 34 38 50 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 31 00 00 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 7b 55 55 55 55 55 55 55 55 55 55 55 55
  PIC 2          REV 04   650-134056   FA1422AN0045      4x1G/10G SFP/SFP+
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          650-134056        S/N:               FA1422AN0045
 Assembly ID:  0xf052            Assembly Version:  01.04
 Date:         04-13-2022        Assembly Flags:    0x00
 Version:      REV 04            CLEI Code:         DUMMY_CLEI
                                 FRU Model Number:  EX4100-48P
 Board Information Record:
  Address 0x00: ad 01 00 80 04 69 8f 0f 2a c8 ff ff ff ff ff ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 fe f0 52 01 04 52 45 56 20 30 34 00 00
  Address 0x10: 00 00 00 00 36 35 30 2d 31 33 34 30 35 36 00 00
  Address 0x20: 46 41 31 34 32 32 41 4e 30 30 34 35 00 0d 04 07
  Address 0x30: e6 ff ff ff ad 01 00 80 04 69 8f 0f 2a c8 ff ff
  Address 0x40: ff ff ff ff 01 44 55 4d 4d 59 5f 43 4c 45 49 45
  Address 0x50: 58 34 31 30 30 2d 34 38 50 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 31 00 00 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 7b 55 55 55 55 55 55 55 55 55 55 55 55
Power Supply 0   REV 05   640-060601   1EDSB490H14       JPSU-920W-AC-AFO
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          640-060601        S/N:               1EDSB490H14
 Assembly ID:  0x0493            Assembly Version:  05.05
 Date:         11-29-2021        Assembly Flags:    0x00
 Version:      REV 05            CLEI Code:         CMUPAELBAA
 ID: JPSU-920W-AC-AFO            FRU Model Number:  JPSU-920-AC-AFO
 Board Information Record:
  Address 0x00: b0 01 ff ff ff ff ff ff ff ff ff ff 09 20 00 ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 ff 04 93 05 05 52 45 56 20 30 35 00 00
  Address 0x10: 00 00 00 00 36 34 30 2d 30 36 30 36 30 31 00 00
  Address 0x20: 31 45 44 53 42 34 39 30 48 31 34 00 00 1d 0b 07
  Address 0x30: e5 ff ff ff b0 01 ff ff ff ff ff ff ff ff ff ff
  Address 0x40: 09 20 00 ff 01 43 4d 55 50 41 45 4c 42 41 41 4a
  Address 0x50: 50 53 55 2d 39 32 30 2d 41 43 2d 41 46 4f 00 00
  Address 0x60: 00 00 00 00 00 00 41 30 30 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 21 ff ff ff ff ff ff ff ff ff ff ff ff
Power Supply 1   REV 05   640-060601   1EDSB490GTM       JPSU-920W-AC-AFO
 Jedec Code:   0x7fb0            EEPROM Version:    0x02
 P/N:          640-060601        S/N:               1EDSB490GTM
 Assembly ID:  0x0493            Assembly Version:  05.05
 Date:         11-29-2021        Assembly Flags:    0x00
 Version:      REV 05            CLEI Code:         CMUPAELBAA
 ID: JPSU-920W-AC-AFO            FRU Model Number:  JPSU-920-AC-AFO
 Board Information Record:
  Address 0x00: b0 01 ff ff ff ff ff ff ff ff ff ff 09 20 00 ff
 I2C Hex Data:
  Address 0x00: 7f b0 02 ff 04 93 05 05 52 45 56 20 30 35 00 00
  Address 0x10: 00 00 00 00 36 34 30 2d 30 36 30 36 30 31 00 00
  Address 0x20: 31 45 44 53 42 34 39 30 47 54 4d 00 00 1d 0b 07
  Address 0x30: e5 ff ff ff b0 01 ff ff ff ff ff ff ff ff ff ff
  Address 0x40: 09 20 00 ff 01 43 4d 55 50 41 45 4c 42 41 41 4a
  Address 0x50: 50 53 55 2d 39 32 30 2d 41 43 2d 41 46 4f 00 00
  Address 0x60: 00 00 00 00 00 00 41 30 30 ff ff ff ff ff ff ff
  Address 0x70: ff ff ff 21 ff ff ff ff ff ff ff ff ff ff ff ff
Fan Tray 0                                               Fan Module, Airflow Out (AFO)
 Jedec Code:   0x7fb0            EEPROM Version:    0x00
 Assembly ID:  0xf040            Assembly Version:  00.00
 Date:         00-00-0000        Assembly Flags:    0x00
 Board Information Record:
  Address 0x00: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 I2C Hex Data:
  Address 0x00: 7f b0 00 00 f0 40 00 00 00 00 00 00 00 00 00 00
  Address 0x10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Fan Tray 1                                               Fan Module, Airflow Out (AFO)
 Jedec Code:   0x7fb0            EEPROM Version:    0x00
 Assembly ID:  0xf040            Assembly Version:  00.00
 Date:         00-00-0000        Assembly Flags:    0x00
 Board Information Record:
  Address 0x00: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 I2C Hex Data:
  Address 0x00: 7f b0 00 00 f0 40 00 00 00 00 00 00 00 00 00 00
  Address 0x10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  Address 0x70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

For information about the show chassis hardware command, see show chassis hardware.

Locate the Chassis Serial Number ID Label on an EX4100 Switch

As indicated by the following figures, locate the serial number ID label of an EX4100 chassis and EX4100 FRU.

Figure 1: Location of the Serial Number ID Label on EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T Switches Location of the Serial Number ID Label on EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T Switches
  1

Serial Number ID Label


Figure 2: Location of the Serial Number ID Label on EX4100-24MP and EX4100-48MP Switch Location of the Serial Number ID Label on EX4100-24MP and EX4100-48MP Switch
  1

Serial Number ID Label



Locate the Serial Number ID Labels on FRUs in an EX4100 Switch

The power supplies and fan modules installed in EX4100 switches are field-replaceable units (FRUs). You must remove the FRU from the switch chassis to see its serial number ID label.

  • Power supply—The serial number ID label is on the top of the power supply (see Figure 3 and Figure 4).

    Figure 3: Location of the Serial Number ID Label on an AC Power Supply Used in EX4100 Switches Location of the Serial Number ID Label on an AC Power Supply Used in EX4100 Switches
      1

    Serial Number ID Label


    Figure 4: Location of the Serial Number ID Label on an DC Power Supply Used in EX4100 Switches Location of the Serial Number ID Label on an DC Power Supply Used in EX4100 Switches
      1

    Serial Number ID Label


  • Fan module—The serial number ID label is on the top of the fan module (see Figure 5).

    Figure 5: Location of the Serial Number ID Label on the Fan Module Used in EX4100 Switches Location of the Serial Number ID Label on the Fan Module Used in EX4100 Switches
      1

    Serial Number ID Label



Contact Customer Support to Obtain a Return Material Authorization

If you need to return a device or hardware component to Juniper Networks for repair or replacement, obtain a Return Material Authorization (RMA) number from Juniper Networks Technical Assistance Center (JTAC). You must obtain an RMA number before you attempt to return the component.

After locating the serial number of the device or hardware component you want to return, open a service request with the Juniper Networks Technical Assistance Center (JTAC) on the Web or by telephone.

Before you request an RMA number from JTAC, be prepared to provide the following information:

  • Your existing service request number, if you have one

  • Serial number of the component

  • Your name, organization name, telephone number, fax number, and shipping address

  • Details of the failure or problem

  • Type of activity being performed on the device when the problem occurred

  • Configuration data displayed by one or more show commands

You can contact JTAC 24 hours a day, seven days a week on the Web or by telephone:

Note:

For international or direct-dial options in countries without toll free numbers, see https://support.juniper.net/support.

If you are contacting JTAC by telephone, enter your 12-digit service request number followed by the pound (#) key for an existing case, or press the star (*) key to be routed to the next available support engineer.

The support representative validates your request and issues an RMA number for return of the component.

Pack an EX4100 Switch or Component for Shipping

If you are returning the switch or component to Juniper Networks for repair or replacement, pack the item as described in this topic.

Before you pack the switch or component, ensure that you have:

Pack an EX4100 Switch for Shipping

Before you pack the switch:

  1. On the console or other management device connected to the switch, enter the CLI operational mode and issue the following command to shut down the switch software:

    content_copy zoom_out_map
    user@switch> request system halt

    Wait until a message appears on the console confirming that the operating system has halted.

  2. Disconnect power from the switch.

  3. Remove the cables that connect the switch to external devices.

  4. Remove all optical transceivers installed in the switch (see Remove a Transceiver).

If you need to transport the switch to another location or return the switch to Juniper Networks, you need to pack the switch securely in its original packaging to prevent damage during shipping.

Ensure that you have the following parts and tools:

  • Number 2 Phillips (+) screwdriver—not provided

  • The original switch packing material (cardboard box, accessory box and its contents, and foam padding)

  • An ESD grounding strap—not provided

  • Antistatic bag—not provided

CAUTION:

Do not pack the switch in anything except its original container, or the switch might be damaged in transit.

To pack the switch:

  1. If the switch is installed in a rack or cabinet, have one person support the weight of the switch while another person unscrews and removes the mounting screws.
  2. Remove the switch from the rack or cabinet and place the switch on a flat, stable surface.
  3. Use the screwdriver to remove the rack mounting brackets from the switch chassis.
  4. Place the switch in an antistatic bag.
  5. Place the bottom portion of the packaging foam in the shipping carton.
  6. Place the switch inside the cavity in the bottom packaging foam.
  7. Place the top portion of the packaging foam on top of the switch.
  8. If you are returning accessories or field-replaceable units (FRUs) with the switch, pack them as instructed in Pack EX4100 Switch Components for Shipping.
  9. Place the accessory box by the rear end of the chassis in the shipping carton.
  10. Close the top of the cardboard shipping box and seal it with packing tape.
  11. Write the RMA number on the exterior of the box to ensure proper tracking.

Pack EX4100 Switch Components for Shipping

Ensure that you have the following parts and tools available:

  • Antistatic bag, one for each component—not provided

  • An ESD grounding strap—not provided

To pack the switch components:

CAUTION:

Do not stack switch components. Return individual components in separate boxes if they do not fit together on one level in the shipping box.

  • Place individual components in antistatic bags.

  • Use the original packing materials if they are available. If the original packing materials are not available, ensure the component is adequately packed to prevent damage during transit. The packing material you use must be able to support the weight of the component.

  • Ensure that the components are adequately protected by wrapping them well with packing materials. Pack the component in an oversized box (if the original box is not available) with extra packing material around the unit so that the component is prevented from moving around inside the box.

  • Securely tape the box closed.

  • Write the RMA number on the exterior of the box to ensure proper tracking.

external-footer-nav
