BGP Session and Route Flaps

date_range 20-Dec-24

Understanding BGP Session Resets

Certain configuration actions and events cause BGP sessions to be reset (dropped and then reestablished).

If you configure both route reflection and VPNs on the same routing device, the following modifications to the route reflection configuration cause current BGP sessions to be reset:

  • Adding a cluster ID—If a BGP session shares the same autonomous system (AS) number with the group where you add the cluster ID, all BGP sessions are reset regardless of whether the BGP sessions are contained in the same group.

  • Creating a new route reflector—If you have an internal BGP (IBGP) group with an AS number and create a new route reflector group with the same AS number, all BGP sessions in the IBGP group and the new route reflector group are reset.

  • Changing configuration statements that affect BGP peers, such as renaming a BGP group, resets the BGP sessions.

  • If you change the address family specified in the [edit protocols bgp family] hierarchy level, all current BGP sessions on the routing device are dropped and then reestablished.

Example: Preventing BGP Session Flaps When VPN Families Are Configured

This example shows a workaround for a known issue in which BGP sessions sometimes go down and then come back up (in other words, flap) when virtual private network (VPN) families are configured. If any VPN family (for example, inet-vpn, inet6-vpn, inet-mpvn, inet-mdt, inet6-mpvn, l2vpn, iso-vpn, and so on) is configured on a BGP master instance, a flap of either a route reflector (RR) internal BGP (IBGP) session or an external BGP (EBGP) session causes flaps of other BGP sessions configured with the same VPN family.

Requirements

Before you begin:

  • Configure router interfaces.

  • Configure an interior gateway protocol (IGP).

  • Configure BGP.

  • Configure VPNs.

Overview

When a router or switch is configured as either a route reflector (RR) or an AS boundary router (an external BGP peer) and a VPN family (for example, the family inet-vpn unicast statement) is configured, a flap of either the RR IBGP session or the EBGP session causes flaps of all other BGP sessions that are configured with the family inet-vpn unicast statement. This example shows how to prevent these unnecessary session flaps.

The reason for the flapping behavior is related to BGP operation in Junos OS when originating VPN routes.

BGP has the following two modes of operation with respect to originating VPN routes:

  • If BGP does not need to propagate VPN routes because the session has no EBGP peer and no RR clients, BGP exports VPN routes directly from the instance.inet.0 routing table to other PE routers. This behavior is efficient in that it avoids the creation of two copies of many routes (one in the instance.inet.0 table and one in the bgp.l3vpn.0 table).

  • If BGP does need to propagate VPN routes because the session has an EBGP peer or RR clients, BGP first exports the VPN routes from the instance.inet.0 table to the bgp.l3vpn.0 table. Then BGP exports the routes to other PE routers. In this scenario, two copies of the route are needed to enable best-route selection. A PE router might receive the same VPN route from a CE device and also from an RR client or EBGP peer.

Note:

The route export is not performed if the route in instance.inet.0 is a secondary route. In Junos OS, a route is only exported one time from one routing table as a primary route to another routing table as a secondary route. Because the route in instance.inet.0 is already a secondary route, it is not allowed to be moved again to the bgp.l3vpn.0 table, as needed to be advertised. The route does not reach the bgp.l3vpn.0 table and thus is not advertised. One workaround is to send the routes that should be advertised to inet.0 so that they are advertised.

When, because of a configuration change, BGP transitions from needing two copies of a route to not needing two copies of a route (or the reverse), all sessions over which VPN routes are exchanged go down and then come back up. Although this example focuses on the family inet-vpn unicast statement, the concept applies to all VPN network layer reachability information (NLRI) families. This issue impacts logical systems as well. All BGP sessions in the master instance related to the VPN NLRI family are brought down to implement the table advertisement change for the VPN NLRI family. Changing an RR to a non-RR or the reverse (by adding or removing the cluster statement) causes the table advertisement change. Also, configuring the first EBGP session or removing the EBGP session from the configuration in the master instance for a VPN NLRI family causes the table advertisement change.

The way to prevent these unnecessary session flaps is to configure an extra RR client or EBGP session as a passive session with a neighbor address that does not exist. This example focuses on the EBGP case, but the same workaround works for the RR case.

When a session is passive, the routing device does not send Open requests to a peer. Once you configure the routing device to be passive, the routing device does not originate the TCP connection. However, when the routing device receives a connection from the peer and an Open message, it replies with another BGP Open message. Each routing device declares its own capabilities.

Topology

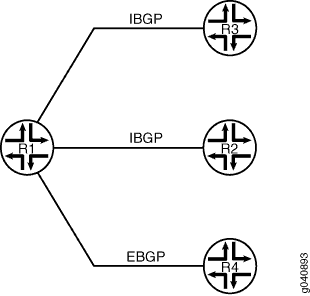

Figure 1 shows the topology for the EBGP case. Router R1 has an IBGP session with Routers R2 and R3 and an EBGP session with Router R4. All sessions have the family inet-vpn unicast statement configured. If the R1-R4 EBGP session flaps, the R1-R2 and R1-R3 BGP sessions flap also.

Figure 1: Topology for the EBGP CaseTopology for the EBGP Case

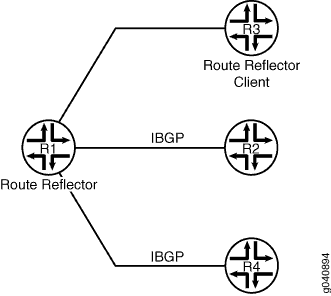

Figure 2 shows the topology for the RR case. Router R1 is the RR, and Router R3 is the client. Router R1 has IBGP sessions with Routers R2 and R3. All sessions have the family inet-vpn unicast statement configured. If the R1-R3 session flaps, the R1-R2 and R1-R4 sessions flap also.

Figure 2: Topology for the RR CaseTopology for the RR Case

Configuration

CLI Quick Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy level.

content_copy zoom_out_map
set protocols bgp family inet-vpn unicast
set protocols bgp family l2vpn signaling
set protocols bgp group R1-R4 type external
set protocols bgp group R1-R4 local-address 4.4.4.2
set protocols bgp group R1-R4 neighbor 4.4.4.1 peer-as 200
set protocols bgp group R1-R2-R3 type internal
set protocols bgp group R1-R2-R3 log-updown
set protocols bgp group R1-R2-R3 local-address 15.15.15.15
set protocols bgp group R1-R2-R3 neighbor 12.12.12.12
set protocols bgp group R1-R2-R3 neighbor 13.13.13.13
set protocols bgp group Fake type external
set protocols bgp group Fake passive
set protocols bgp group Fake neighbor 100.100.100.100 peer-as 500

Procedure

Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To configure the EBGP scenario:

  1. Configure one or more VPN families.

    content_copy zoom_out_map
    [edit protocols bgp]
    user@R1# set family inet-vpn unicast
    user@R1# set family l2vpn signaling

  2. Configure the EBGP session.

    content_copy zoom_out_map
    [edit protocols bgp]
    user@R1# set group R1-R4 type external
    user@R1# set group R1-R4 local-address 4.4.4.2
    user@R1# set group R1-R4 neighbor 4.4.4.1 peer-as 200

  3. Configure the IBGP sessions.

    content_copy zoom_out_map
    [edit protocols bgp]
    user@R1# set group R1-R2-R3 type internal
    user@R1# set group R1-R2-R3 local-address 15.15.15.15
    user@R1# set group R1-R2-R3 neighbor 12.12.12.12
    user@R1# set group R1-R2-R3 neighbor 13.13.13.13

  4. (Optional) Configure BGP so that it generates a syslog message whenever a BGP peer makes a state transition.

    content_copy zoom_out_map
    [edit protocols bgp]
    user@R1# set group R1-R2-R3 log-updown


    Enabling the log-updown statement causes BGP state transitions to be logged at warning level.

Procedure

Step-by-Step Procedure

To verify that unnecessary session flaps are occurring:

  1. Run the show bgp summary command to verify that the sessions have been established.

    content_copy zoom_out_map
    user@R1> show bgp summary
    Groups: 2 Peers: 3 Down peers: 0
    Table       Tot Paths Act Paths Suppressed History Damp State Pending
    bgp.l3vpn.0 0         0         0          0       0          0
    bgp.l2vpn.0 0         0         0          0       0          0
    inet.0      0         0         0          0       0          0
    Peer        AS  InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
    4.4.4.1     200 6     5      0    0     1:08 Establ
    bgp.l3vpn.0: 0/0/0/0
    bgp.l2vpn.0: 0/0/0/0
    12.12.12.12 100 3     7      0    0     1:18 Establ
    bgp.l3vpn.0: 0/0/0/0
    bgp.l2vpn.0: 0/0/0/0
    13.13.13.13 100 3     6      0    0     1:14 Establ
    bgp.l3vpn.0: 0/0/0/0
    bgp.l2vpn.0: 0/0/0/0

  2. Deactivate the EBGP session.

    content_copy zoom_out_map
    user@R1# deactivate group R1-R4
    user@R1# commit

    content_copy zoom_out_map
    Mar 10 18:27:40 R1: rpd[1464]: bgp_peer_delete:6589: NOTIFICATION sent to 4.4.4.1 (External AS 200): code 6 (Cease) subcode 3 (Peer Unconfigured), Reason: Peer Deletion
    Mar 10 18:27:40 R1: rpd[1464]: bgp_adv_main_update:7253: NOTIFICATION sent to 12.12.12.12 (Internal AS 100): code 6 (Cease) subcode 6 (Other Configuration Change), Reason: Configuration change - VPN table advertise
    Mar 10 18:27:40 R1: rpd[1464]: bgp_adv_main_update:7253: NOTIFICATION sent to 13.13.13.13 (Internal AS 100): code 6 (Cease) subcode 6 (Other Configuration Change), Reason: Configuration change - VPN table advertise

  3. Run the show bgp summary command to view the session flaps.

    content_copy zoom_out_map
    user@R1> show bgp summary
    Groups: 1 Peers: 2 Down peers: 2
    Table       Tot Paths Act Paths Suppressed History Damp State Pending
    bgp.l3vpn.0 0         0         0          0       0          0
    bgp.l2vpn.0 0         0         0          0       0          0
    inet.0      0         0         0          0       0          0
    Peer        AS   InPkt  OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
    12.12.12.12 100  4      9      0    1     19   Active
    13.13.13.13 100  4      8      0    1     19   Active
    content_copy zoom_out_map
    user@R1> show bgp summary
    Groups: 1 Peers: 2 Down peers: 0
    Table       Tot Paths Act Paths Suppressed History Damp State Pending
    bgp.l3vpn.0 0         0         0          0       0          0
    bgp.l2vpn.0 0         0         0          0       0          0
    inet.0      0         0         0          0       0          0
    Peer        AS  InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
    12.12.12.12 100 2     3      0    1     0    Establ
    bgp.l3vpn.0: 0/0/0/0
    bgp.l2vpn.0: 0/0/0/0
    13.13.13.13 100 2     3      0    1     0    Establ
    bgp.l3vpn.0: 0/0/0/0
    bgp.l2vpn.0: 0/0/0/0


Procedure

Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To prevent unnecessary BGP session flaps:

  1. Add a passive EBGP session with a neighbor address that does not exist in the peer autonomous system (AS).

    content_copy zoom_out_map
    [edit protocols bgp]
    user@R1# set group Fake type external
    user@R1# set group Fake passive
    user@R1# set neighbor 100.100.100.100 peer-as 500

  2. Run the show bgp summary command to verify that the real sessions have been established and the passive session is idle.

    content_copy zoom_out_map
    user@R1> show bgp summary
    Groups: 3 Peers: 4 Down peers: 1
    Table       Tot Paths Act Paths Suppressed History Damp State Pending
    bgp.l3vpn.0 0         0         0          0       0          0
    bgp.l2vpn.0 0         0         0          0       0          0
    Peer            AS  InPkt OutPkt OutQ Flaps Last Up/Dwn   State|#Active/Received/Accepted/Damped...
    4.4.4.1         200 9500  9439   0    0     2d   23:14:23 Establ
    bgp.l3vpn.0: 0/0/0/0
    bgp.l2vpn.0: 0/0/0/0
    12.12.12.12     100 10309 10239  0    0     3d    5:17:49 Establ
    bgp.l3vpn.0: 0/0/0/0
    13.13.13.13     100 10306 10241  0    0     3d    5:18:25 Establ
    bgp.l3vpn.0: 0/0/0/0
    100.100.100.100 500 0     0      0    0     2d   23:38:52 Idle

Verification

Confirm that the configuration is working properly.

Bringing Down the EBGP Session

Purpose

Try to cause the flap issue after the workaround is configured.

Action
content_copy zoom_out_map
user@R1# deactivate group R1-R4
user@R1# commit

Verifying That the IBGP Sessions Remain Up

Purpose

Make sure that the IBGP sessions do not flap after the EBGP session is deactivated.

Action
content_copy zoom_out_map
user@R1> show bgp summary
Groups: 2 Peers: 3 Down peers: 1
Table       Tot Paths Act Paths Suppressed History Damp State Pending
bgp.l3vpn.0 0         0         0          0       0          0
bgp.l2vpn.0 0         0         0          0       0          0
Peer            AS  InPkt OutPkt OutQ Flaps Last Up/Dwn    State|#Active/Received/Accepted/Damped...
12.12.12.12     100 10312 10242  0    0     3d    5:19:01  Establ
bgp.l3vpn.0: 0/0/0/0
13.13.13.13     100 10309 10244  0    0     3d    5:19:37  Establ
bgp.l3vpn.0: 0/0/0/0
100.100.100.100 500 0     0      0    0     2d   23:40:04  Idle
content_copy zoom_out_map
user@R1> show bgp summary
Groups: 3 Peers: 4 Down peers: 1
Table       Tot Paths Act Paths Suppressed History Damp State Pending
bgp.l3vpn.0 0         0         0          0       0          0
bgp.l2vpn.0 0         0         0          0       0          0
Peer            AS  InPkt OutPkt OutQ Flaps Last Up/Dwn    State|#Active/Received/Accepted/Damped...
4.4.4.1         200 5     4      0    0     28             Establ
bgp.l3vpn.0: 0/0/0/0
bgp.l2vpn.0: 0/0/0/0
12.12.12.12     100 10314 10244  0    0     3d    5:19:55  Establ
bgp.l3vpn.0: 0/0/0/0
13.13.13.13     100 10311 10246  0    0     3d    5:20:31  Establ
bgp.l3vpn.0: 0/0/0/0
100.100.100.100 500 0     0      0    0     2d   23:40:58  Idle

Understanding Damping Parameters

BGP route flapping describes the situation in which BGP systems send an excessive number of update messages to advertise network reachability information. BGP flap damping is a method of reducing the number of update messages sent between BGP peers, thereby reducing the load on these peers, without adversely affecting the route convergence time for stable routes.

Flap damping reduces the number of update messages by marking routes as ineligible for selection as the active or preferable route. Marking routes in this way leads to some delay, or suppression, in the propagation of route information, but the result is increased network stability. You typically apply flap damping to external BGP (EBGP) routes (routes in different ASs). You can also apply flap damping within a confederation, between confederation member ASs. Because routing consistency within an AS is important, do not apply flap damping to internal BGP (IBGP) routes. (If you do, it is ignored.)

There is an exception that rule. Starting in Junos OS Release 12.2, you can apply flap damping at the address family level. In a Junos OS Release 12.2 or later installation, when you apply flap damping at the address family level, it works for both IBGP and EBGP.

By default, route flap damping is not enabled. Damping is applied to external peers and to peers at confederation boundaries.

When you enable damping, default parameters are applied, as summarized in Table 1.

Table 1: Damping Parameters

Damping Parameter

Description

Default Value

Possible Values

half-life minutes

Decay half-life—Number of minutes after which an arbitrary value is halved if a route stays stable.

15 (minutes)

1 through 45

max-suppress minutes

Maximum hold-down time for a route, in minutes.

60 (minutes)

1 through 720

reuse

Reuse threshold—Arbitrary value below which a suppressed route can be used again.

750

1 through 20,000

suppress

Cutoff (suppression) threshold—Arbitrary value above which a route can no longer be used or included in advertisements.

3000

1 through 20,000

To change the default BGP flap damping values, you define actions by creating a named set of damping parameters and including it in a routing policy with the damping action. For the damping routing policy to work, you also must enable BGP route flap damping.

Example: Configuring BGP Route Flap Damping Parameters

This example shows how to configure damping parameters.

Requirements

Before you begin, configure router interfaces and configure routing protocols.

Overview

This example has three routing devices. Device R2 has external BGP (EBGP) connections with Device R1 and Device R3.

Device R1 and Device R3 have some static routes configured for testing purposes, and these static routes are advertised through BGP to Device R2.

Device R2 damps routes received from Device R1 and Device R3 according to these criteria:

  • Damp all prefixes with a mask length equal to or greater than 17 more aggressively than routes with a mask length between 9 and 16.

  • Damp routes with a mask length between 0 and 8, inclusive, less than routes with a mask length greater than 8.

  • Do not damp the 10.128.0.0/9 prefix at all.

The routing policy is evaluated when routes are being exported from the routing table into the forwarding table. Only the active routes are exported from the routing table.

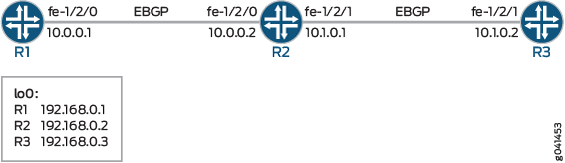

Figure 3 shows the sample network.

Figure 3: BGP Flap Damping TopologyBGP Flap Damping Topology

CLI Quick Configuration shows the configuration for all of the devices in Figure 3.

The section #d83e76__d83e263 describes the steps on Device R2.

Configuration

Procedure

CLI Quick Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy level.

Device R1

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.1/30
set interfaces lo0 unit 0 family inet address 192.168.0.1/32
set protocols bgp group ext type external
set protocols bgp group ext export send-direct-and-static
set protocols bgp group ext peer-as 200
set protocols bgp group ext neighbor 10.0.0.2
set policy-options policy-statement send-direct-and-static term 1 from protocol direct
set policy-options policy-statement send-direct-and-static term 1 from protocol static
set policy-options policy-statement send-direct-and-static term 1 then accept
set routing-options static route 172.16.0.0/16 reject
set routing-options static route 172.16.128.0/17 reject
set routing-options static route 172.16.192.0/20 reject
set routing-options static route 10.0.0.0/9 reject
set routing-options static route 172.16.233.0/7 reject
set routing-options static route 10.224.0.0/11 reject
set routing-options static route 0.0.0.0/0 reject
set routing-options autonomous-system 100

Device R2

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.2/30
set interfaces fe-1/2/1 unit 0 family inet address 10.1.0.1/30
set interfaces lo0 unit 0 family inet address 192.168.0.2/32
set protocols bgp damping
set protocols bgp group ext type external
set protocols bgp group ext import damp
set protocols bgp group ext export send-direct
set protocols bgp group ext neighbor 10.0.0.1 peer-as 100
set protocols bgp group ext neighbor 10.1.0.2 peer-as 300
set policy-options policy-statement damp term 1 from route-filter 10.128.0.0/9 exact damping dry
set policy-options policy-statement damp term 1 from route-filter 0.0.0.0/0 prefix-length-range /0-/8 damping timid
set policy-options policy-statement damp term 1 from route-filter 0.0.0.0/0 prefix-length-range /17-/32 damping aggressive
set policy-options policy-statement send-direct term 1 from protocol direct
set policy-options policy-statement send-direct term 1 then accept
set policy-options damping aggressive half-life 30
set policy-options damping aggressive suppress 2500
set policy-options damping timid half-life 5
set policy-options damping dry disable
set routing-options autonomous-system 200

Device R3

content_copy zoom_out_map
set interfaces fe-1/2/1 unit 0 family inet address 10.1.0.2/30
set interfaces lo0 unit 0 family inet address 192.168.0.3/32
set protocols bgp group ext type external
set protocols bgp group ext export send-direct-and-static
set protocols bgp group ext peer-as 200
set protocols bgp group ext neighbor 10.1.0.1
set policy-options policy-statement send-direct-and-static term 1 from protocol direct
set policy-options policy-statement send-direct-and-static term 1 from protocol static
set policy-options policy-statement send-direct-and-static term 1 then accept
set routing-options static route 10.128.0.0/9 reject
set routing-options autonomous-system 300
Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To configure damping parameters:

  1. Configure the interfaces.

    content_copy zoom_out_map
    [edit interfaces]
    user@R2# set fe-1/2/0 unit 0 family inet address 10.0.0.2/30
    user@R2# set fe-1/2/1 unit 0 family inet address 10.1.0.1/30
    user@R2# set lo0 unit 0 family inet address 192.168.0.2/32

  2. Configure the BGP neighbors.

    content_copy zoom_out_map
    [edit protocols bgp group ext]
    user@R2# set type external
    user@R2# set neighbor 10.0.0.1 peer-as 100
    user@R2# set neighbor 10.1.0.2 peer-as 300

  3. Create and configure the damping parameter groups.

    content_copy zoom_out_map
    [edit policy-options]
    user@R2# set damping aggressive half-life 30
    user@R2# set damping aggressive suppress 2500
    user@R2# set damping timid half-life 5
    user@R2# set damping dry disable

  4. Configure the damping policy.

    content_copy zoom_out_map
    [edit policy-options policy-statement damp term 1]
    user@R2# set from route-filter 10.128.0.0/9 exact damping dry
    user@R2# set from route-filter 0.0.0.0/0 prefix-length-range /0-/8 damping timid
    user@R2# set from route-filter 0.0.0.0/0 prefix-length-range /17-/32 damping aggressive

  5. Enable damping for BGP.

    content_copy zoom_out_map
    [edit protocols bgp]
    user@R2# set damping

  6. Apply the policy as an import policy for the BGP neighbor.

    content_copy zoom_out_map
    [edit protocols bgp group ext]
    user@R2# set import damp

    Note:

    You can refer to the same routing policy one or more times in the same or different import statements.

  7. Configure an export policy.

    content_copy zoom_out_map
    [edit policy-options policy-statement send-direct term 1]
    user@R2# set from protocol direct
    user@R2# set then accept

  8. Apply the export policy.

    content_copy zoom_out_map
    [edit protocols bgp group ext]
    user@R2# set export send-direct

  9. Configure the autonomous system (AS) number.

    content_copy zoom_out_map
    [edit routing-options]
    user@R2# set autonomous-system 200

Results

From configuration mode, confirm your configuration by issuing the show interfaces, show protocols, show policy-options, and show routing-options commands. If the output does not display the intended configuration, repeat the instructions in this example to correct the configuration.

content_copy zoom_out_map
user@R2# show interfaces
fe-1/2/0 {
    unit 0 {
        family inet {
            address 10.0.0.2/30;
        }
    }
}
fe-1/2/1 {
    unit 0 {
        family inet {
            address 10.1.0.1/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.2/32;
        }
    }
}
content_copy zoom_out_map
user@R2# show protocols
bgp {
    damping;
    group ext {
        type external;
        import damp;
        export send-direct;
        neighbor 10.0.0.1 {
            peer-as 100;
        }
        neighbor 10.1.0.2 {
            peer-as 300;
        }
    }
}
content_copy zoom_out_map
user@R2# show policy-options
policy-statement damp {
    term 1 {
        from {
            route-filter 10.128.0.0/9 exact damping dry;
            route-filter 0.0.0.0/0 prefix-length-range /0-/8 damping timid;
            route-filter 0.0.0.0/0 prefix-length-range /17-/32 damping aggressive;
        }
    }
}
policy-statement send-direct {
    term 1 {
        from protocol direct;
        then accept;
    }
}
damping aggressive {
    half-life 30;
    suppress 2500;
}
damping timid {
    half-life 5;
}
damping dry {
    disable;
}
content_copy zoom_out_map
user@R2# show routing-options
autonomous-system 200;

If you are done configuring the device, enter commit from configuration mode.

Verification

Confirm that the configuration is working properly.

Causing Some Routes to Flap

Purpose

To verify your route flap damping policy, some routes must flap. Having a live Internet feed almost guarantees that a certain number of route flaps will be present. If you have control over a remote system that is advertising the routes, you can modify the advertising router's policy to effect the advertisement and withdrawal of all routes or of a given prefix. In a test environment, you can cause routes to flap by clearing the BGP neighbors or by restarting the routing process on the BGP neighbors, as shown here.

Action

From operational mode on Device R1 and Device R3, enter the restart routing command.

CAUTION:

Use this command cautiously in a production network.

content_copy zoom_out_map
user@R1> restart routing

R1 started, pid 10474
content_copy zoom_out_map
user@R3> restart routing

R3 started, pid 10478
Meaning

On Device R2, all of the routes from the neighbors are withdrawn and re-advertised.

Checking the Route Flaps

Purpose

View the number of neighbor flaps.

Action

From operational mode, enter the show bgp summary command.

content_copy zoom_out_map
user@R2> show bgp summary

Groups: 1 Peers: 2 Down peers: 0
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
inet.0
                      12          1         11          0         11          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.0.0.1                100         10         10       0       4        2:50 0/9/0/9              0/0/0/0
10.1.0.2                300         10         10       0       4        2:53 1/3/1/2              0/0/0/0
Meaning

This output was captured after the routing process was restarted on Device R2’s neighbors four times.

Verifying Route Flap Damping

Purpose

Verify that routes are being hidden due to damping.

Action

From operational mode, enter the show route damping suppressed command.

content_copy zoom_out_map
user@R2> show route damping suppressed

inet.0: 15 destinations, 17 routes (6 active, 0 holddown, 11 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0           [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
10.0.0.0/9          [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
10.0.0.0/30         [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
10.1.0.0/30         [BGP ] 00:00:15, localpref 100
                      AS path: 300 I, validation-state: unverified
                    > to 10.1.0.2 via fe-1/2/1.0
10.224.0.0/11       [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.0.0/16       [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.128.0/17     [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
172.16.192.0/20     [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
192.168.0.1/32      [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
192.168.0.3/32      [BGP ] 00:00:15, localpref 100
                      AS path: 300 I, validation-state: unverified
                    > to 10.1.0.2 via fe-1/2/1.0
172.16.233.0/7         [BGP ] 00:00:12, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 10.0.0.1 via fe-1/2/0.0
Meaning

The output shows some routing instability. Eleven routes are hidden due to damping.

Displaying the Details of a Damped Route

Purpose

Display the details of damped routes.

Action

From operational mode, enter the show route damping suppressed 172.16.192.0/20 detail command.

content_copy zoom_out_map
user@R2> show route damping suppressed 172.16.192.0/20 detail

inet.0: 15 destinations, 17 routes (6 active, 0 holddown, 11 hidden)
172.16.192.0/20 (1 entry, 0 announced)
         BGP                 /-101
                Next hop type: Router, Next hop index: 758
                Address: 0x9414484
                Next-hop reference count: 9
                Source: 10.0.0.1
                Next hop: 10.0.0.1 via fe-1/2/0.0, selected
                Session Id: 0x100201
                State: <Hidden Ext>
                Local AS:   200 Peer AS:   100
                Age: 52
                Validation State: unverified
                Task: BGP_100.10.0.0.1+55922
                AS path: 100 I
                Localpref: 100
                Router ID: 192.168.0.1
                Merit (last update/now): 4278/4196
                damping-parameters: aggressive
                Last update:       00:00:52 First update:       01:01:55
                Flaps: 8
                Suppressed. Reusable in:       01:14:40
                Preference will be: 170
Meaning

This output indicates that the displayed route has a mask length that is equal to or greater than /17, and confirms that it has been correctly mapped to the aggressive damping profile. You can also see the route’s current (and last) figure of merit value, and when the route is expected to become active if it remains stable.

Verifying That Default Damping Parameters Are in Effect

Purpose

Locating a damped route with a /16 mask confirms that the default parameters are in effect.

Action

From operational mode, enter the show route damping suppressed detail | match 0/16 command.

content_copy zoom_out_map
user@R2> show route damping suppressed detail | match 0/16

172.16.0.0/16 (1 entry, 0 announced)
content_copy zoom_out_map
user@R2> show route damping suppressed 172.16.0.0/16 detail

inet.0: 15 destinations, 17 routes (6 active, 0 holddown, 11 hidden)
172.16.0.0/16 (1 entry, 0 announced)
         BGP                 /-101
                Next hop type: Router, Next hop index: 758
                Address: 0x9414484
                Next-hop reference count: 9
                Source: 10.0.0.1
                Next hop: 10.0.0.1 via fe-1/2/0.0, selected
                Session Id: 0x100201
                State: <Hidden Ext>
                Local AS:   200 Peer AS:   100
                Age: 1:58
                Validation State: unverified
                Task: BGP_100.10.0.0.1+55922
                AS path: 100 I
                Localpref: 100
                Router ID: 192.168.0.1
                Merit (last update/now): 3486/3202
                Default damping parameters used
                Last update:       00:01:58 First update:       01:03:01
                Flaps: 8
                Suppressed. Reusable in:       00:31:40
                Preference will be: 170
Meaning

Routes with a /16 mask are not impacted by the custom damping rules. Therefore, the default damping rules are in effect.

To repeat, the custom rules are as follows:

  • Damp all prefixes with a mask length equal to or greater than 17 more aggressively than routes with a mask length between 9 and 16.

  • Damp routes with a mask length between 0 and 8, inclusive, less than routes with a mask length greater than 8.

  • Do not damp the 10.128.0.0/9 prefix at all.

Filtering the Damping Information

Purpose

Use OR groupings or cascaded piping to simplify the determination of what damping profile is being used for routes with a given mask length.

Action

From operational mode, enter the show route damping suppressed command.

content_copy zoom_out_map
user@R2> show route damping suppressed detail | match "0 announced | damp"

0.0.0.0/0 (1 entry, 0 announced)
                damping-parameters: timid
10.0.0.0/9 (1 entry, 0 announced)
                Default damping parameters used
                damping-parameters: aggressive
                damping-parameters: aggressive
10.224.0.0/11 (1 entry, 0 announced)
                Default damping parameters used
172.16.0.0/16 (1 entry, 0 announced)
                Default damping parameters used
172.16.128.0/17 (1 entry, 0 announced)
                damping-parameters: aggressive
172.16.192.0/20 (1 entry, 0 announced)
                damping-parameters: aggressive
192.168.0.1/32 (1 entry, 0 announced)
                damping-parameters: aggressive
192.168.0.3/32 (1 entry, 0 announced)
                damping-parameters: aggressive
172.16.233.0/7 (1 entry, 0 announced)
                damping-parameters: timid
Meaning

When you are satisfied that your EBGP routes are correctly associated with a damping profile, you can issue the clear bgp damping operational mode command to restore an active status to your damped routes, which will return your connectivity to normal operation.

Example: Configuring BGP Route Flap Damping Based on the MBGP MVPN Address Family

This example shows how to configure an multiprotocol BGP multicast VPN (also called Next-Generation MVPN) with BGP route flap damping.

Requirements

This example uses Junos OS Release 12.2. BGP route flap damping support for MBGP MVPN, specifically, and on an address family basis, in general, is introduced in Junos OS Release 12.2.

Overview

BGP route flap damping helps to diminish route instability caused by routes being repeatedly withdrawn and readvertised when a link is intermittently failing.

This example uses the default damping parameters and demonstrates an MBGP MVPN scenario with three provider edge (PE) routing devices, three customer edge (CE) routing devices, and one provider (P) routing device.

Topology

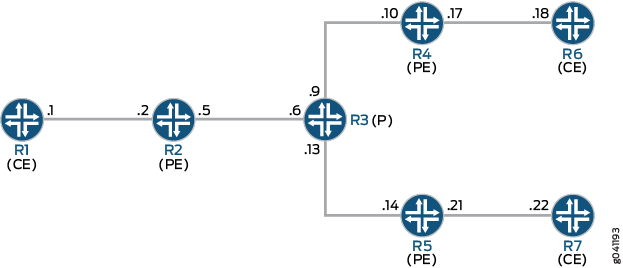

Figure 4 shows the topology used in this example.

Figure 4: MBGP MVPN with BGP Route Flap DampingMBGP MVPN with BGP Route Flap Damping

On PE Device R4, BGP route flap damping is configured for address family inet-mvpn. A routing policy called dampPolicy uses the nlri-route-type match condition to damp only MVPN route types 3, 4, and 5. All other MVPN route types are not damped.

This example shows the full configuration on all devices in the CLI Quick Configuration section. The Configuring Device R4 section shows the step-by-step configuration for PE Device R4.

Configuration

CLI Quick Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy level.

Device R1

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 1 family inet address 10.1.1.1/30
set interfaces ge-1/2/0 unit 1 family mpls
set interfaces lo0 unit 1 family inet address 172.16.1.1/32
set protocols ospf area 0.0.0.0 interface lo0.1 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/0.1
set protocols pim rp static address 172.16.100.1
set protocols pim interface all
set routing-options router-id 172.16.1.1

Device R2

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 2 family inet address 10.1.1.2/30
set interfaces ge-1/2/0 unit 2 family mpls
set interfaces ge-1/2/1 unit 5 family inet address 10.1.1.5/30
set interfaces ge-1/2/1 unit 5 family mpls
set interfaces vt-1/2/0 unit 2 family inet
set interfaces lo0 unit 2 family inet address 172.16.1.2/32
set interfaces lo0 unit 102 family inet address 172.16.100.1/32
set protocols mpls interface ge-1/2/1.5
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 172.16.1.2
set protocols bgp group ibgp family inet-vpn any
set protocols bgp group ibgp family inet-mvpn signaling
set protocols bgp group ibgp neighbor 172.16.1.4
set protocols bgp group ibgp neighbor 172.16.1.5
set protocols ospf area 0.0.0.0 interface lo0.2 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/1.5
set protocols ldp interface ge-1/2/1.5
set protocols ldp p2mp
set policy-options policy-statement parent_vpn_routes from protocol bgp
set policy-options policy-statement parent_vpn_routes then accept
set routing-instances vpn-1 instance-type vrf
set routing-instances vpn-1 interface ge-1/2/0.2
set routing-instances vpn-1 interface vt-1/2/0.2
set routing-instances vpn-1 interface lo0.102
set routing-instances vpn-1 route-distinguisher 100:100
set routing-instances vpn-1 provider-tunnel ldp-p2mp
set routing-instances vpn-1 vrf-target target:1:1
set routing-instances vpn-1 protocols ospf export parent_vpn_routes
set routing-instances vpn-1 protocols ospf area 0.0.0.0 interface lo0.102 passive
set routing-instances vpn-1 protocols ospf area 0.0.0.0 interface ge-1/2/0.2
set routing-instances vpn-1 protocols pim rp static address 172.16.1.2 with 172.16.4.1100.1
set routing-instances vpn-1 protocols pim interface ge-1/2/0.2 mode sparse
set routing-instances vpn-1 protocols mvpn
set routing-options router-id 172.16.1.2
set routing-options autonomous-system 1001

Device R3

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 6 family inet address 10.1.1.6/30
set interfaces ge-1/2/0 unit 6 family mpls
set interfaces ge-1/2/1 unit 9 family inet address 10.1.1.9/30
set interfaces ge-1/2/1 unit 9 family mpls
set interfaces ge-1/2/2 unit 13 family inet address 10.1.1.13/30
set interfaces ge-1/2/2 unit 13 family mpls
set interfaces lo0 unit 3 family inet address 172.16.1.3/32
set protocols mpls interface ge-1/2/0.6
set protocols mpls interface ge-1/2/1.9
set protocols mpls interface ge-1/2/2.13
set protocols ospf area 0.0.0.0 interface lo0.3 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/0.6
set protocols ospf area 0.0.0.0 interface ge-1/2/1.9
set protocols ospf area 0.0.0.0 interface ge-1/2/2.13
set protocols ldp interface ge-1/2/0.6
set protocols ldp interface ge-1/2/1.9
set protocols ldp interface ge-1/2/2.13
set protocols ldp p2mp
set routing-options router-id 172.16.1.3

Device R4

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 10 family inet address 10.1.1.10/30
set interfaces ge-1/2/0 unit 10 family mpls
set interfaces ge-1/2/1 unit 17 family inet address 10.1.1.17/30
set interfaces ge-1/2/1 unit 17 family mpls
set interfaces vt-1/2/0 unit 4 family inet
set interfaces lo0 unit 4 family inet address 172.16.1.4/32
set interfaces lo0 unit 104 family inet address 172.16.100.1/32
set protocols rsvp interface all aggregate
set protocols mpls interface all
set protocols mpls interface ge-1/2/0.10
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 172.16.1.4
set protocols bgp group ibgp family inet-vpn unicast
set protocols bgp group ibgp family inet-vpn any
set protocols bgp group ibgp family inet-mvpn signaling damping
set protocols bgp group ibgp neighbor 172.16.1.2 import dampPolicy
set protocols bgp group ibgp neighbor 172.16.1.5
set protocols ospf traffic-engineering
set protocols ospf area 0.0.0.0 interface all
set protocols ospf area 0.0.0.0 interface lo0.4 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/0.10
set protocols ldp interface ge-1/2/0.10
set protocols ldp p2mp
set policy-options policy-statement dampPolicy term term1 from family inet-mvpn
set policy-options policy-statement dampPolicy term term1 from nlri-route-type 3
set policy-options policy-statement dampPolicy term term1 from nlri-route-type 4
set policy-options policy-statement dampPolicy term term1 from nlri-route-type 5
set policy-options policy-statement dampPolicy term term1 then accept
set policy-options policy-statement dampPolicy then damping no-damp
set policy-options policy-statement dampPolicy then accept
set policy-options policy-statement parent_vpn_routes from protocol bgp
set policy-options policy-statement parent_vpn_routes then accept
set policy-options damping no-damp disable
set routing-instances vpn-1 instance-type vrf
set routing-instances vpn-1 interface vt-1/2/0.4
set routing-instances vpn-1 interface ge-1/2/1.17
set routing-instances vpn-1 interface lo0.104
set routing-instances vpn-1 route-distinguisher 100:100
set routing-instances vpn-1 vrf-target target:1:1
set routing-instances vpn-1 protocols ospf export parent_vpn_routes
set routing-instances vpn-1 protocols ospf area 0.0.0.0 interface lo0.104 passive
set routing-instances vpn-1 protocols ospf area 0.0.0.0 interface ge-1/2/1.17
set routing-instances vpn-1 protocols pim rp static address 172.16.100.1
set routing-instances vpn-1 protocols pim interface ge-1/2/1.17 mode sparse
set routing-instances vpn-1 protocols mvpn
set routing-options router-id 172.16.1.4
set routing-options autonomous-system 64501

Device R5

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 14 family inet address 10.1.1.14/30
set interfaces ge-1/2/0 unit 14 family mpls
set interfaces ge-1/2/1 unit 21 family inet address 10.1.1.21/30
set interfaces ge-1/2/1 unit 21 family mpls
set interfaces vt-1/2/0 unit 5 family inet
set interfaces lo0 unit 5 family inet address 172.16.1.5/32
set interfaces lo0 unit 105 family inet address 172.16.100.5/32
set protocols mpls interface ge-1/2/0.14
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 172.16.1.5
set protocols bgp group ibgp family inet-vpn any
set protocols bgp group ibgp family inet-mvpn signaling
set protocols bgp group ibgp neighbor 172.16.1.2
set protocols bgp group ibgp neighbor 172.16.1.4
set protocols ospf area 0.0.0.0 interface lo0.5 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/0.14
set protocols ldp interface ge-1/2/0.14
set protocols ldp p2mp
set policy-options policy-statement parent_vpn_routes from protocol bgp
set policy-options policy-statement parent_vpn_routes then accept
set routing-instances vpn-1 instance-type vrf
set routing-instances vpn-1 interface vt-1/2/0.5
set routing-instances vpn-1 interface ge-1/2/1.21
set routing-instances vpn-1 interface lo0.105
set routing-instances vpn-1 route-distinguisher 100:100
set routing-instances vpn-1 vrf-target target:1:1
set routing-instances vpn-1 protocols ospf export parent_vpn_routes
set routing-instances vpn-1 protocols ospf area 0.0.0.0 interface lo0.105 passive
set routing-instances vpn-1 protocols ospf area 0.0.0.0 interface ge-1/2/1.21
set routing-instances vpn-1 protocols pim rp static address 172.16.100.2
set routing-instances vpn-1 protocols pim interface ge-1/2/1.21 mode sparse
set routing-instances vpn-1 protocols mvpn
set routing-options router-id 172.16.1.5
set routing-options autonomous-system 1001

Device R6

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 18 family inet address 10.1.1.18/30
set interfaces ge-1/2/0 unit 18 family mpls
set interfaces lo0 unit 6 family inet address 172.16.1.6/32
set protocols sap listen 233.1.1.1
set protocols ospf area 0.0.0.0 interface lo0.6 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/0.18
set protocols pim rp static address 172.16.100.2
set protocols pim interface all
set routing-options router-id 172.16.1.6

Device R7

content_copy zoom_out_map
set interfaces ge-1/2/0 unit 22 family inet address 10.1.1.22/30
set interfaces ge-1/2/0 unit 22 family mpls
set interfaces lo0 unit 7 family inet address 172.16.1.7/32
set protocols ospf area 0.0.0.0 interface lo0.7 passive
set protocols ospf area 0.0.0.0 interface ge-1/2/0.22
set protocols pim rp static address 172.16.100.2
set protocols pim interface all
set routing-options router-id 172.16.1.7

Configuring Device R4

Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To configure Device R4:

  1. Configure the interfaces.

    content_copy zoom_out_map
    [edit interfaces]
    user@R4# set ge-1/2/0 unit 10 family inet address 10.1.1.10/30
    user@R4# set ge-1/2/0 unit 10 family mpls
    user@R4# set ge-1/2/1 unit 17 family inet address 10.1.1.17/30
    user@R4# set ge-1/2/1 unit 17 family mpls
    user@R4# set vt-1/2/0 unit 4 family inet
    user@R4# set lo0 unit 4 family inet address 172.16.1.4/32
    user@R4# set lo0 unit 104 family inet address 172.16.100.4/32

  2. Configure MPLS and the signaling protocols on the interfaces.

    content_copy zoom_out_map
    [edit protocols]
    user@R4# set mpls interface all
    user@R4# set mpls interface ge-1/2/0.10
    user@R4# set rsvp interface all aggregate
    user@R4# set ldp interface ge-1/2/0.10
    user@R4# set ldp p2mp

  3. Configure BGP.

    The BGP configuration enables BGP route flap damping for the inet-mvpn address family. The BGP configuration also imports into the routing table the routing policy called dampPolicy. This policy is applied to neighbor PE Device R2.

    content_copy zoom_out_map
    [edit protocols bgp group ibgp]
    user@R4# set type internal
    user@R4# set local-address 172.16.1.4
    user@R4# set family inet-vpn unicast
    user@R4# set family inet-vpn any
    user@R4# set family inet-mvpn signaling damping
    user@R4# set neighbor 172.16.1.2 import dampPolicy
    user@R4# set neighbor 172.16.1.5

  4. Configure an interior gateway protocol.

    content_copy zoom_out_map
    [edit protocols ospf]
    user@R4# set traffic-engineering
    [edit protocols ospf area 0.0.0.0]
    user@R4# set interface all
    user@R4# set interface lo0.4 passive
    user@R4# set interface ge-1/2/0.10

  5. Configure a damping policy that uses the nlri-route-type match condition to damp only MVPN route types 3, 4, and 5.

    content_copy zoom_out_map
    [edit policy-options policy-statement dampPolicy term term1]
    user@R4# set from family inet-mvpn
    user@R4# set from nlri-route-type 3
    user@R4# set from nlri-route-type 4
    user@R4# set from nlri-route-type 5
    user@R4# set then accept

  6. Configure the damping policy to disable BGP route flap damping.

    The no-damp policy (damping no-damp disable) causes any damping state that is present in the routing table to be deleted. The then damping no-damp statement applies the no-damp policy as an action and has no from match conditions. Therefore, all routes that are not matched by term1 are matched by this term, with the result that all other MVPN route types are not damped.

    content_copy zoom_out_map
    [edit policy-options policy-statement dampPolicy]
    user@R4# set then damping no-damp
    user@R4# set then accept
    [edit policy-options]
    user@R4# set damping no-damp disable

  7. Configure the parent_vpn_routes to accept all other BGP routes that are not from the inet-mvpn address family.

    This policy is applied as an OSPF export policy in the routing instance.

    content_copy zoom_out_map
    [edit policy-options policy-statement parent_vpn_routes]
    user@R4# set from protocol bgp
    user@R4# set then accept

  8. Configure the VPN routing and forwarding (VRF) instance.

    content_copy zoom_out_map
    [edit routing-instances vpn-1]
    user@R4# set instance-type vrf
    user@R4# set interface vt-1/2/0.4
    user@R4# set interface ge-1/2/1.17
    user@R4# set interface lo0.104
    user@R4# set route-distinguisher 100:100
    user@R4# set vrf-target target:1:1
    user@R4# set protocols ospf export parent_vpn_routes
    user@R4# set protocols ospf area 0.0.0.0 interface lo0.104 passive
    user@R4# set protocols ospf area 0.0.0.0 interface ge-1/2/1.17
    user@R4# set protocols pim rp static address 172.16.100.2
    user@R4# set protocols pim interface ge-1/2/1.17 mode sparse
    user@R4# set protocols mvpn

  9. Configure the router ID and the autonomous system (AS) number.

    content_copy zoom_out_map
    [edit routing-options]
    user@R4# set router-id 172.16.1.4
    user@R4# set autonomous-system 1001

  10. If you are done configuring the device, commit the configuration.

    content_copy zoom_out_map
    user@R4# commit


Results

From configuration mode, confirm your configuration by entering the show interfaces, show protocols, show policy-options, show routing-instances, and show routing-options commands. If the output does not display the intended configuration, repeat the instructions in this example to correct the configuration.

content_copy zoom_out_map
user@R4# show interfaces
ge-1/2/0 {
    unit 10 {
        family inet {
            address 10.1.1.10/30;
        }
        family mpls;
    }
}
ge-1/2/1 {
    unit 17 {
        family inet {
            address 10.1.1.17/30;
        }
        family mpls;
    }
}
vt-1/2/0 {
    unit 4 {
        family inet;
    }
}
lo0 {
    unit 4 {
        family inet {
            address 172.16.1.4/32;
        }
    }
    unit 104 {
        family inet {
            address 172.16.100.4/32;
        }
    }
}
content_copy zoom_out_map
user@R4# show protocols
rsvp {
    interface all {
        aggregate;
    }
}
mpls {
    interface all;
    interface ge-1/2/0.10;
}
bgp {
    group ibgp {
        type internal;
        local-address 172.16.1.4;
        family inet-vpn {
            unicast;
            any;
        }
        family inet-mvpn {
            signaling {
                damping;
            }
        }
        neighbor 172.16.1.2 {
            import dampPolicy;
        }
        neighbor 172.16.1.5;
    }
}
ospf {
    traffic-engineering;
    area 0.0.0.0 {
        interface all;
        interface lo0.4 {
            passive;
        }
        interface ge-1/2/0.10;
    }
}
ldp {
    interface ge-1/2/0.10;
    p2mp;
}
content_copy zoom_out_map
user@R4# show policy-options
policy-statement dampPolicy {
    term term1 {
        from {
            family inet-mvpn;
            nlri-route-type [ 3 4 5 ];
        }
        then accept;
    }
    then {
        damping no-damp;
        accept;
    }
}
policy-statement parent_vpn_routes {
    from protocol bgp;
    then accept;
}
damping no-damp {
    disable;
}
content_copy zoom_out_map
user@R4# show routing-instances
vpn-1 {
    instance-type vrf;
    interface vt-1/2/0.4;
    interface ge-1/2/1.17;
    interface lo0.104;
    route-distinguisher 100:100;
    vrf-target target:1:1;
    protocols {
        ospf {
            export parent_vpn_routes;
            area 0.0.0.0 {
                interface lo0.104 {
                    passive;
                }
                interface ge-1/2/1.17;
            }
        }
        pim {
            rp {
                static {
                    address 172.16.100.2;
                }
            }
            interface ge-1/2/1.17 {
                mode sparse;
            }
        }
        mvpn;
    }
}
content_copy zoom_out_map
user@R4# show routing-optons
router-id 172.16.1.4;
autonomous-system 1001;

Verification

Confirm that the configuration is working properly.

Verifying That Route Flap Damping Is Disabled

Purpose

Verify the presence of the no-damp policy, which disables damping for MVPN route types other than 3, 4, and 5.

Action

From operational mode, enter the show policy damping command.

content_copy zoom_out_map
user@R4> show policy damping
Default damping information:
  Halflife: 15 minutes
  Reuse merit: 750 Suppress/cutoff merit: 3000
  Maximum suppress time: 60 minutes
  Computed values:
    Merit ceiling: 12110
    Maximum decay: 6193
Damping information for "no-damp":
  Damping disabled
Meaning

The output shows that the default damping parameters are in effect and that the no-damp policy is also in effect for the specified route types.

Verifying Route Flap Damping

Purpose

Check whether BGP routes have been damped.

Action

From operational mode, enter the show bgp summary command.

content_copy zoom_out_map
user@R4> show bgp summary
Groups: 1 Peers: 2 Down peers: 0
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
bgp.l3vpn.0
                       6          6          0          0          0          0
bgp.l3vpn.2
                       0          0          0          0          0          0
bgp.mvpn.0
                       2          2          0          0          0          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
172.16.1.2                1001       3159       3155       0       0    23:43:47 Establ
  bgp.l3vpn.0: 3/3/3/0
  bgp.l3vpn.2: 0/0/0/0
  bgp.mvpn.0: 1/1/1/0
  vpn-1.inet.0: 3/3/3/0
  vpn-1.mvpn.0: 1/1/1/0
172.16.1.5                1001       3157       3154       0       0    23:43:40 Establ
  bgp.l3vpn.0: 3/3/3/0
  bgp.l3vpn.2: 0/0/0/0
  bgp.mvpn.0: 1/1/1/0
  vpn-1.inet.0: 3/3/3/0
  vpn-1.mvpn.0: 1/1/1/0
Meaning

The Damp State field shows that zero routes in the bgp.mvpn.0 routing table have been damped. Further down, the last number in the State field shows that zero routes have been damped for BGP peer 172.16.1.2.

Understanding BGP-Static Routes for Preventing Route Flaps

BGP-static routes can be configured to ensure that a prefix does not flap. BGP-static routes do not flap unless they are deleted manually. If the BGP-static routes are configured globally, then each neighbor, group, or all neighbors must be explicitly configured to receive them. Peer routers receive advertisements for these routes regardless of dynamic routing information learned by the advertising router for those prefixes. Despite being the active route, BGP-static routes are never advertised to a BGP neighbor for which they are not configured. You can specify any number of BGP-static routes in the configuration. You can also define a policy to specify which BGP-static routes need to be advertised and included in a BGP advertisement.

BGP-static routes are placed in the routing table. If the BGP-static routes are active routes (if there are no other routes for that prefix), they are placed in the forwarding table. These routes are advertised only to those BGP hosts that are configured to receive them. The configured BGP-static routes are not advertised by any other protocol besides BGP. Service providers who have one or more single-homed customers can configure BGP-static routes on a BGP network to advertise static paths for these customers.

Note:

Configuring the advertisement of BGP-static routes at the neighbor level causes an internal group split. Configure the advertisement of BGP-static routes only at the global and group levels to keep the configuration simple. The configured BGP-static routes do not affect the VPN routes that are advertised.

If a BGP-static route is advertised to a neighbor, it is the only route advertised for the prefix. BGP-static routes are not considered as candidate routes for BGP multipath or protocol-independent multipath. They do not cause an aggregate or generated route to be added to the routing table.

CAUTION:

Configuring BGP-static routes on networks that are accessible by multiple paths and are not the only point of access to all of the paths might cause traffic to be silently dropped or discarded. In a multihomed network, BGP-static routes can be configured on devices that are the only point of access to other paths. By default, all BGP-static routes that are advertised to the internal peers include a local-pref value of 0 to mitigate the risk of a null route for multihomed networks. You can override this default value by setting an explicit preference2 value on the BGP-static routes.

Configuring BGP-Static Routes for Preventing Route Flaps

BGP-static routes are configured to ensure that routes to a customer network do not flap. The configured BGP-static routes are not advertised by any other protocol besides BGP. BGP-static routes are configured globally, but each neighbor, group, or all neighbors must be explicitly configured to receive them. Peer routers will receive advertisements for these routes regardless of dynamic routing information learned by the advertising router for those prefixes. You can specify any number of BGP-static routes in the configuration. You can also define a policy to specify which BGP-static routes need to be advertised.

Before you configure BGP-static routes:

  1. Ensure that the IGP and BGP protocols are configured and working.

  2. Ensure that BGP-static route that you configure is behind a customer router.

    Do not use BGP-static routes for prefixes that BGP uses to reach BGP neighbors.

To configure BGP-static routes:

  1. Configure a BGP-static route for a customer router on a BGP network to advertise static paths for these customers.

    You can also configure other configuration options such as as-path, color, community, tag, and preference as needed.

    content_copy zoom_out_map
    [edit routing-options]
    user@host# set bgp-static route destination-prefix

  2. Configure the BGP groups or the BGP neighbors that are to receive the BGP-static route advertisements.

    You can also configure this statement at a global level if you want every host on the BGP network to receive the BGP-static advertisements.

    content_copy zoom_out_map
    [edit protocols bgp]
    user@host# set advertise-bgp-static

  3. (Optional) Specify an additional export policy to control whether or not a given BGP-static route needs to be advertised.

    The policy is applied to the BGP-static route and not the active route.

    content_copy zoom_out_map
    [edit policy-options policy-statement policy name]
    user@host# set from prefix-list xyz
    user@host# set then accept

  4. Apply the defined policy to a BGP group or neighbor.
    content_copy zoom_out_map
    [edit protocols bgp group group-name]
    user@host# set advertise-bgp-static export policy name


Example: Configuring BGP-Static Routes to Prevent Route Flaps

This example shows how to configure BGP-static routes. BGP hosts advertise these BGP-static routes only to those neighbors who are configured to receive these routes. A BGP-static route is configured to ensure that a prefix does not flap. However, If the BGP-static routes are configured globally, then each neighbor, group, or all neighbors must be explicitly configured to receive them.

Requirements

This example uses the following hardware and software components:

  • Seven MX Series routers with BGP enabled on the connected interfaces

  • Junos OS Release 14.2 or later running on all devices

Overview

Beginning with Junos OS Release 14.2, you can configure and advertise BGP-static routes in a BGP network. You can advertise a BGP-static route in a BGP network even if it is not the active route for the prefix. BGP-static routes do not flap unless they are deleted manually. You can define a policy that determines which BGP-static routes need to be advertised and included in the advertisements. Peer routers receive advertisements for these BGP-static routes regardless of dynamic routing information learned by the advertising router.

In the sample BGP network, Devices CE1, CE2, and CE3 are directly connected to Routers PE1, PE2, and PE3. Both PE1 and PE2 are connected to Router P. Router P is directly connected to Router PE3. EBGP is configured on the provider edge and customer edge routers. IBGP is configured on directly connected provider edge routers. The IGP protocol IS-IS is configured on all provider routers. Configure a BGP-static route on Router PE1 to ensure that customer route 10.0.0.28 behind CE1 does not flap. Provider Router PE2 is configured to receive the BGP-static route. The objective is to advertise a BGP-static route only to CE2 and not to CE3, and to demonstrate that the configured BGP-static route does not flap.

Topology

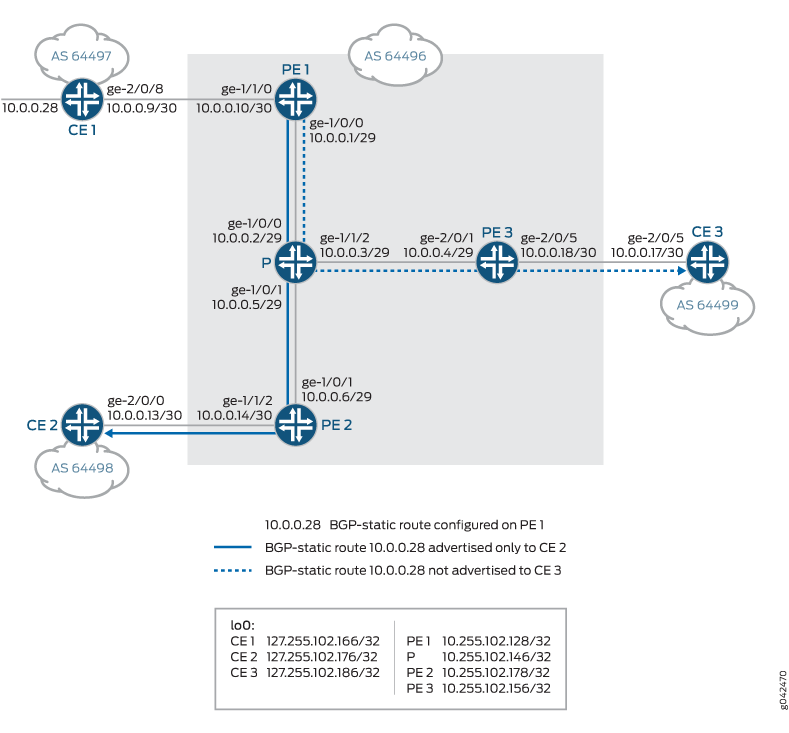

Figure 5 shows the sample topology.

Figure 5: Configuring BGP-Static RouteConfiguring BGP-Static Route

Configuration

CLI Quick Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, copy and paste the commands into the CLI at the [edit] hierarchy level, and then enter commit from configuration mode.

Router P

content_copy zoom_out_map
set interfaces ge-1/0/0 unit 2 description P->PE1
set interfaces ge-1/0/0 unit 2 family inet address 10.0.0.2/29
set interfaces ge-1/0/0 unit 2 family iso
set interfaces ge-1/0/1 unit 5 description P->PE2
set interfaces ge-1/0/1 unit 5 family inet address 10.0.0.5/29
set interfaces ge-1/0/1 unit 5 family iso
set interfaces ge-1/1/2 unit 3 description P->PE3
set interfaces ge-1/1/2 unit 3 family inet address 10.0.0.3/29
set interfaces ge-1/1/2 unit 3 family iso
set interfaces lo0 unit 0 family inet address 10.255.102.146/32 primary
set interfaces lo0 unit 0 family iso address 49.0001.1720.1600.1050.00
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 10.255.102.146
set protocols bgp group ibgp neighbor 10.255.102.128 description PE1
set protocols bgp group ibgp neighbor 10.255.102.178 description PE2
set protocols bgp group ibgp neighbor 10.255.102.156 description PE3
set protocols isis interface ge-1/0/0.2
set protocols isis interface ge-1/0/1.5
set protocols isis interface ge-1/1/2.3
set protocols isis interface lo0.0 passive
set routing-options router-id 10.255.102.146
set routing-options autonomous-system 64496

Router PE1

content_copy zoom_out_map
set interfaces ge-1/0/0 unit 1 description PE1->P
set interfaces ge-1/0/0 unit 1 family inet address 10.0.0.1/29
set interfaces ge-1/0/0 unit 1 family iso
set interfaces ge-1/1/0 unit 10 description PE1->CE1
set interfaces ge-1/1/0 unit 10 family inet address 10.0.0.10/30
set interfaces lo0 unit 0 family inet address 10.255.102.128/32
set interfaces lo0 unit 0 family iso address 49.0001.1720.1600.1010.00
set protocols bgp group ebgp type external
set protocols bgp group ebgp peer-as 64497
set protocols bgp group ebgp neighbor 10.0.0.9 description CE1
set protocols bgp group ebgp neighbor 10.0.0.9 local-address 10.0.0.10
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 10.255.102.128
set protocols bgp group ibgp export export-self
set protocols bgp group ibgp neighbor 10.255.102.146 description P
set protocols bgp group ibgp neighbor 10.255.102.178 description PE2
set protocols bgp group ibgp neighbor 10.255.102.178 advertise-bgp-static
set protocols bgp group ibgp neighbor 10.255.102.156 description PE3
set protocols isis interface ge-1/0/0.1
set protocols isis interface lo0.0 passive
set policy-options policy-statement export-self then next-hop self
set routing-options bgp-static route 10.0.0.28/32 preference2 4294967195
set routing-options bgp-static route 10.0.0.28/32 as-path path 64497
set routing-options router-id 10.255.102.128
set routing-options autonomous-system 64496

Router PE2

content_copy zoom_out_map
set interfaces ge-1/0/1 unit 6 description PE2->P
set interfaces ge-1/0/1 unit 6 family inet address 10.0.0.6/29
set interfaces ge-1/0/1 unit 6 family iso
set interfaces ge-1/1/2 unit 14 description PE2->CE2
set interfaces ge-1/1/2 unit 14 family inet address 10.0.0.14/30
set interfaces lo0 unit 0 family inet address 10.255.102.178/32
set interfaces lo0 unit 0 family iso address 49.0001.1720.1600.1030.00
set protocols bgp group ebgp type external
set protocols bgp group ebgp peer-as 64498
set protocols bgp group ebgp neighbor 10.0.0.13 description CE2
set protocols bgp group ebgp neighbor 10.0.0.13 local-address 10.0.0.14
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 10.255.102.178
set protocols bgp group ibgp export export-self
set protocols bgp group ibgp neighbor 10.255.102.146 description P
set protocols bgp group ibgp neighbor 10.255.102.128 description PE1
set protocols bgp group ibgp neighbor 10.255.102.156 description PE3
set protocols isis interface ge-1/0/1.6
set protocols isis interface lo0.0 passive
set policy-options policy-statement export-self then next-hop self
set routing-options router-id 10.255.102.178
set routing-options autonomous-system 64496

Router PE3

content_copy zoom_out_map
set interfaces ge-2/0/1 unit 4 description PE3->P
set interfaces ge-2/0/1 unit 4 family inet address 10.0.0.4/29
set interfaces ge-2/0/5 unit 18 description PE3->CE3
set interfaces ge-2/0/5 unit 18 family inet address 10.0.0.18/30
set interfaces lo0 unit 0 family inet address 10.255.102.156/32
set interfaces lo0 unit 0 family iso address 49.0001.1720.1600.1070.00
set protocols bgp group ebgp type external
set protocols bgp group ebgp peer-as 64499
set protocols bgp group ebgp neighbor 10.0.0.17 description CE3
set protocols bgp group ebgp neighbor 10.0.0.17 local-address 10.0.0.18
set protocols bgp group ibgp type internal
set protocols bgp group ibgp local-address 10.255.102.156
set protocols bgp group ibgp export export-self
set protocols bgp group ibgp neighbor 10.255.102.146 description P
set protocols bgp group ibgp neighbor 10.255.102.128 description PE1
set protocols bgp group ibgp neighbor 10.255.102.178 description PE2
set protocols isis interface ge-2/0/1.4
set protocols isis interface lo0.0 passive
set policy-options policy-statement export-self then next-hop self
set routing-options router-id 10.255.102.156
set routing-options autonomous-system 64496

Router CE1

content_copy zoom_out_map
set interfaces ge-2/0/8 unit 9 description CE1->PE1
set interfaces ge-2/0/8 unit 9 family inet address 10.0.0.9/30
set interfaces lo0 unit 0 family inet address 127.255.102.166/32
set interfaces lo0 unit 0 family inet address 10.0.0.28/32
set protocols bgp group ebgp type external
set protocols bgp group ebgp export export-direct
set protocols bgp group ebgp peer-as 64496
set protocols bgp group ebgp neighbor 10.0.0.10 description PE1
set protocols bgp group ebgp neighbor 10.0.0.10 local-address 10.0.0.9
set policy-options policy-statement export-direct from protocol direct route-filter 10.0.0.0/29 or longer
set policy-options policy-statement export-direct then accept
set routing-options autonomous-system 64497

Router CE2

content_copy zoom_out_map
set interfaces ge-2/0/0 unit 13 description CE2->PE2
set interfaces ge-2/0/0 unit 13 family inet address 10.0.0.13/30
set interfaces lo0 unit 0 family inet address 127.255.102.176/32
set protocols bgp group ebgp type external
set protocols bgp export export-direct
set protocols bgp group ebgp peer-as 64496
set protocols bgp group ebgp neighbor 10.0.0.14 description PE2
set protocols bgp group ebgp neighbor 10.0.0.14 local-address 10.0.0.13
set policy-options policy-statement export-direct from protocol direct route-filter 10.0.0.0/29 or longer
set policy-options policy-statement export-direct then accept
set routing-options router-id 127.255.102.176
set routing-options autonomous-system 64498

Router CE3

content_copy zoom_out_map
set interfaces ge-2/0/5 unit 17 description CE3->PE3
set interfaces ge-2/0/5 unit 17 family inet address 10.0.0.17/30
set interfaces lo0 unit 0 family inet address 127.255.102.186/32
set protocols bgp group ebgp type external
set protocols bgp export export-direct
set protocols bgp group ebgp peer-as 64496
set protocols bgp group ebgp neighbor 10.0.0.18 description PE3
set protocols bgp group ebgp neighbor 10.0.0.18 local-address 10.0.0.17
set policy-options policy-statement export-direct from protocol direct route-filter 10.0.0.0/29 or longer
set policy-options policy-statement export-direct then accept
set routing-options router-id 127.255.102.186
set routing-options autonomous-system 64499

Procedure

Step-by-Step Procedure

The following example requires that you navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode in the CLI User Guide.

To configure Router PE1:

  1. Configure the interfaces with IPv4 addresses.

    content_copy zoom_out_map
    [edit interfaces]
    user@PE1# set ge-1/0/0 unit 1 description PE1->P
    user@PE1# set ge-1/0/0 unit 1 family inet address 10.0.0.1/29
    user@PE1# set ge-1/1/0 unit 10 description PE1->CE1
    user@PE1# set ge-1/1/0 unit 10 family inet address 10.0.0.10/30

  2. Enable the IS-IS protocol on interfaces connected to provider routers for learning and exchanging routes learned.

    content_copy zoom_out_map
    [edit interfaces]
    user@PE1# set ge-1/0/0 unit 1 family iso

  3. Configure loopback addresses for inet and IS-IS.

    content_copy zoom_out_map
    [edit interfaces lo0 unit 0]
    user@PE1# set family inet address 10.255.102.128/32
    user@PE1# set family iso address 49.0001.1720.1600.1010.00

  4. Configure the IS-IS interfaces.

    content_copy zoom_out_map
    [edit protocols isis]
    user@PE1# set interface ge-1/0/0.1
    user@PE1# set interface lo0.0 passive

  5. Configure EBGP.

    content_copy zoom_out_map
    [edit protocols bgp group ebgp]
    user@PE1# set type external
    user@PE1# set peer-as 64497
    user@PE1# set neighbor 10.0.0.9 description CE1
    user@PE1# set neighbor 10.0.0.9 local-address 10.0.0.10

  6. Configure an IBGP neighbor on internal routers connected to the provider network.

    content_copy zoom_out_map
    [edit protocols bgp group ibgp]
    user@PE1# set type internal
    user@PE1# set local-address 10.255.102.128
    user@PE1# set export export-self
    user@PE1# set neighbor 10.255.102.146 description P
    user@PE1# set neighbor 10.255.102.178 description PE2
    user@PE1# set neighbor 10.255.102.156 description PE3

  7. Configure the BGP static route.

    content_copy zoom_out_map
    [edit routing-options]
    user@PE1# set bgp-static route 10.0.0.28/32 preference2 4294967195
    user@PE1# set bgp-static route 10.0.0.28/32 as-path path 64497

  8. Configure the BGP neighbor PE2 to receive BGP-static advertisements.

    content_copy zoom_out_map
    [edit protocols bgp group ibgp neighbor 10.255.102.178]
    user@PE1# set advertise-bgp-static

  9. Define a policy to export routes to the BGP network.

    content_copy zoom_out_map
    [edit policy-options policy-statement export-self]
    user@PE1# set then next-hop self

  10. Apply the policy to the IBGP group.

    content_copy zoom_out_map
    [edit protocols bgp group ibgp]
    user@PE1# set export export-self

  11. Configure the router id and the autonomous system (AS) number.

    content_copy zoom_out_map
    [edit routing-options]
    user@PE1# set router-id 10.255.102.128
    user@PE1# set autonomous-system 64496


Results

From configuration mode, confirm your configuration by entering the show interfaces, show policy-options, show protocols, and show routing-options commands. If the output does not display the intended configuration, repeat the instructions in this example to correct the configuration.

content_copy zoom_out_map
[edit]
user@PE1> show interfaces
ge-1/0/0 {
    unit 1 {
        description PE1->P;
        family inet {
            address 10.0.0.1/29;
        }
        family iso;
    }
    ge-1/1/0 {
        unit 10 {
            description PE1->CE1;
            family inet {
                address 10.0.0.10/30;
            }
        }
    }
}
lo0 {
    unit 0{
        family inet {
            address 10.255.102.128/32;
        }
        family iso {
            address 49.0001.1720.1600.1010.00;
        }
    }
}
content_copy zoom_out_map
[edit]
user@PE1> show protocols
bgp {
    group ebgp {
        type external;
        peer-as 64497;
        neighbor 10.0.0.9 {
            description CE1;
            local-address 10.0.0.10;
        }
    }
    group ibgp {
        type internal;
        local-address 10.255.102.128;
        export export-self;
        neighbor 10.255.102.146 {
            description P;
        }
        neighbor 10.255.102.178 {
            description PE2;
            advertise-bgp-static;
        }
        neighbor 10.255.102.156 {
            description PE3;
        }
    }
}
isis {
    interface ge-1/0/0.1;
    interface lo0.0 {
        passive;
    }
}
content_copy zoom_out_map
[edit]
user@PE1> show routing-options
bgp-static {
    route 10.0.0.28/32 {
        preference2 4294967195;
        as-path {
            path 64497;
        }
    }
}
router-id 10.255.102.128;
autonomous-system 64496;
content_copy zoom_out_map
[edit]
user@PE1> show policy-options
policy-statement export-self {
    then {
        next-hop self;
    }
}

If you are done configuring the device, enter commit from configuration mode.

content_copy zoom_out_map
[edit]
user@PE1# commit

Verification

Confirm that the configuration is working properly.

Verifying the BGP Neighbors

Purpose

Verify that BGP is running on the configured interfaces and that the BGP session is active for each neighbor address.

Action

From operational mode, run the show bgp neighbor command on Router PE1.

content_copy zoom_out_map
user@PE1> show bgp neighbor
Peer: 10.0.0.9+34260 AS 64497    Local: 10.0.0.10+45824 AS 64496
  Description: CE1
  Type: External    State: Established    Flags: <sync>
  Last State: OpenConfirm   Last Event: RecvKeepAlive
  Last Error: Cease
  Options: <Preference LocalAddress PeerAS Refresh>
  LocalAddress: 10.0.0.10 Holdtime: 90 Preference: 170
  Number of flaps: 0
  Peer ID: 127.255.102.166       Local ID: 10.255.102.128   Active Holdtime: 90
  Keepalive Interval: 30         Group index: 0           Peer index: 0
  BFD: disabled, down
  Local Interface: ge-1/1/0.0
  NLRI for restart configured on peer: inet-unicast
  NLRI advertised by peer: inet-unicast
  NLRI for this session: inet-unicast
  Peer supports Refresh capability (2)
  Stale routes from peer are kept for: 300
  Peer does not support Restarter functionality
  NLRI that restart is negotiated for: inet-unicast
  NLRI of received end-of-rib markers: inet-unicast
  NLRI of all end-of-rib markers sent: inet-unicast
  Peer supports 4 byte AS extension (peer-as 64497)
  Peer does not support Addpath
  Table inet.0 Bit: 10000
    RIB State: BGP restart is complete
    Send state: in sync
    Active prefixes:              1
    Received prefixes:            1
    Accepted prefixes:            1
    Suppressed due to damping:    0
    Advertised prefixes:          2
  Last traffic (seconds): Received 14   Sent 13   Checked 4
  Input messages:  Total 249     Updates 2       Refreshes 0     Octets 4764
  Output messages: Total 250     Updates 2       Refreshes 0     Octets 4883

Peer: 10.255.102.146+179 AS 64496  Local: 10.255.102.128+53460 AS 64496
  Description: P
  Type: Internal    State: Established    Flags: <Sync>
Last State: OpenConfirm   Last Event: RecvKeepAlive
Last Error: None
Export: [ export-self ]
Options: <Preference LocalAddress Refresh>
Local Address: 10.255.102.128  Holdtime: 90 Preference: 170
Number of flaps: 0
Peer ID: 10.255.102.146      Local ID: 10.255.102.128     Active Holdtime: 90
Keepalive Interval: 30         Group index: 0         Peer index: 0
BFD: disabled, down
NLRI for restart configured on peer: inet-unicast
NLRI advertised by peer: inet-unicast
NLRI for this session: inet-unicast
Peer supports Refresh capability (2)
Stale routes from peer are kept for: 300
Peer does not support Restarter functionality
Restart flag received from the peer: Notification
NLRI that restart is negotiated for: inet-unicast
NLRI of received end-of-rib markers: inet-unicast
NLRI of all end-of-rib markers sent: inet-unicast
Peer does not support LLGR Restarter functionality
Peer supports 4 byte AS extension (peer-as 64496)
Peer does not support Addpath
Table inet.0 Bit: 10001
  RIB State: BGP restart is complete
  Send state: in sync
  Active prefixes:              0
  Received prefixes:            0
  Accepted prefixes:            0
  Suppressed due to damping:    0
  Advertised prefixes:          1
Last traffic (seconds): Received 12   Sent 1    Checked 63
Input messages:  Total 246    Updates 1       Refreshes 0     Octets 4678
Output messages: Total 249    Updates 1       Refreshes 0     Octets 4834
Output Queue[0]: 0            (inet.0, inet-unicast)

Peer: 10.255.102.178+53463 AS 64496 Local: 10.255.102.128+179 AS 64496
Description: PE2   Type: Internal    State: Established    Flags: <Synch>
Last State: OpenConfirm   Last Event: RecvKeepAlive
Last Error: None
Export: [ export-self ]
Options:   <Preference LocalAddress Refresh>
Options:   <AdvertiseBGPStatic>
Local Address: 10.255.102.128 Holdtime: 90 Preference: 170
Number of flaps: 0
Peer ID: 10.255.102.178   Local ID: 10.255.102.128     Active Holdtime: 90
Keepalive Interval: 30         Group index: 1    Peer index: 0
BFD: disabled, down
NLRI for restart configured on peer: inet-unicast
NLRI advertised by peer: inet-unicast
NLRI for this session: inet-unicast
Peer supports Refresh capability (2)
Stale routes from peer are kept for: 300
Peer does not support Restarter functionality
Restart flag received from the peer: Notification
NLRI that restart is negotiated for: inet-unicast
NLRI of received end-of-rib markers: inet-unicast
NLRI of all end-of-rib markers sent: inet-unicast
Peer does not support LLGR Restarter functionality
Peer supports 4 byte AS extension (peer-as 64496)
Peer does not support Addpath
Table inet.0 Bit: 10002
  RIB State: BGP restart is complete
  Send state: in sync
  Active prefixes:              1
  Received prefixes:            1
  Accepted prefixes:            1
  Suppressed due to damping:    0
  Advertised prefixes:          1
Last traffic (seconds): Received 9    Sent 10   Checked 22
Input messages:  Total 247    Updates 2       Refreshes 0     Octets 4777
Output messages: Total 248    Updates 1       Refreshes 0     Octets 4815
Output Queue[0]: 0            (inet.0, inet-unicast)

Peer: 10.255.102.156+179 AS 64496 Local: 10.255.102.128+53462 AS 64496
Description: PE3
Type: Internal    State: Established    Flags:  <Synch>
Last State: OpenConfirm   Last Event: RecvKeepAlive
Last Error: None
Export: [ export-self ]
Options:  <Preference LocalAddress Refresh>
Local Address: 10.255.255.11 Holdtime: 90 Preference: 170
Number of flaps: 0
Peer ID: 10.255.102.156   Local ID: 10.255.102.128     Active Holdtime: 90
Keepalive Interval: 30         Group index: 0    Peer index: 1
BFD: disabled, down
NLRI for restart configured on peer: inet-unicast
NLRI advertised by peer: inet-unicast
NLRI for this session: inet-unicast
Peer supports Refresh capability (2)
Stale routes from peer are kept for: 300
Peer does not support Restarter functionality
Restart flag received from the peer: Notification
NLRI that restart is negotiated for: inet-unicast
NLRI of received end-of-rib markers: inet-unicast
NLRI of all end-of-rib markers sent: inet-unicast
Peer does not support LLGR Restarter functionality
Peer supports 4 byte AS extension (peer-as 64496)
Peer does not support Addpath
Table inet.0 Bit: 10001
  RIB State: BGP restart is complete
  Send state: in sync
  Active prefixes:              1
  Received prefixes:            1
  Accepted prefixes:            1
  Suppressed due to damping:    0
  Advertised prefixes:          1
Last traffic (seconds): Received 21   Sent 10   Checked 10
Input messages:  Total 245    Updates 2       Refreshes 0     Octets 4695
Output messages: Total 247    Updates 1       Refreshes 0     Octets 4796
Output Queue[0]: 0            (inet.0, inet-unicast)
Meaning

The output displays the BGP neighbors of Router PE1 and the configured BGP options such as whether the neighbor is configured to receive BGP-static routes. Router PE2 is configured to receive BGP-static route advertisements.

Verifying BGP Groups

Purpose

Verify that the intended BGP groups or neighbors are configured to receive the BGP-static routes.

Action

From operational mode, run the show bgp group command.

content_copy zoom_out_map
user@PE1> show bgp group

Group Type: External                               Local AS: 64496
Name: ebgp            Index: 3                   Flags: <Export Eval>
Holdtime: 0 Local AS: 64496 Local System AS: 64496
Total peers: 1        Established: 1
10.0.0.9+179
inet.0: 0/1/1/0

Group Type: Internal    AS: 64496                      Local AS: 64496
Name: ibgp            Index: 0                   Flags: <Export Eval>
Export: [ export-self ]
Options: <AdvertiseBGPStatic>
Holdtime: 0
Total peers: 1        Established: 1
10.255.102.178+179
inet.0: 0/0/0/0

Group Type: Internal    AS: 64496                      Local AS: 64496
Name: ibgp            Index: 0                   Flags: <Export Eval>
Export: [ export-self ]
Holdtime: 0
Total peers: 2        Established: 2
10.255.102.156+179
10.255.102.146+179
inet.0: 0/3/2/0


Groups: 3  Peers: 4    External: 1    Internal: 3    Down peers: 0   Flaps: 0
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
inet.0					3          3          0          0          0          0
Meaning

The output shows the BGP neighbor that is configured to receive BGP-static advertisements.

Verifying the Routes

Purpose

Verify that the configured BGP-static route is saved in the routing table of the configured BGP neighbors.

Action

From operational mode, run the show route protocol bgp-static command to display the routing table.

content_copy zoom_out_map
user@PE1> show route protocol bgp-static
inet.0: 13 destinations, 14 routes (13 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.28/32       *[BGP-Static/4294967292/-101] 00:43:15
                      Discard

iso.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
inet6.0: 15 destinations, 15 routes (15 active, 0 holddown, 0 hidden)
content_copy zoom_out_map
User@PE1> show route 10.0.0.28/32


inet.0: 13 destinations, 14 routes (13 active, 1 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.28/32       *[BGP/170] 00:00:15, localpref 100
                      AS path: 64497 I, validation-state: unverified
                   > to 10.0.0.9 via ge-2/1/8.0
                   [BGP-Static/4294967292/-101] 02:42:51
                      Discard
Meaning

The output shows the BGP-static route configured on the device. The active path is learned from CE1, and the BGP-static route is inactive.

Verifying That the Configured Hosts Receive the BGP-Static Routes

Purpose

Verify that the BGP-static route is being advertised to the host configured to receive it.

Action

On Devices CE2 and CE3, from operational mode, run the show route protocol bgp command to display the learned routes in the routing table.

content_copy zoom_out_map
user@CE2> show route protocol bgp

inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.28/32        *[BGP/170] 01:52:10, localpref 100
                      AS path: 64496 64497 I, validation-state: unverified
                    > to 10.0.0.14 via ge-2/0/0.13
1.0.0.29/32          *[BGP/170] 01:52:06, localpref 100
                      AS path: 64496 64499 I, validation-state: unverified
                    > to 10.0.0.14 via ge-2/0/0.13

iso.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)

inet6.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)


user@CE3> show route protocol bgp


inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.0.0.28/32        *[BGP/170] 01:52:19, localpref 100
                      AS path: 64496 64497 I, validation-state: unverified
                    > to 10.0.0.18 via ge-2/0/5.17

1.0.0.29/32        *[BGP/170] 01:52:15, localpref 100
                      AS path: 64496 64498 I, validation-state: unverified
                    > to 10.0.0.18 via ge-2/0/5.17

iso.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)

inet6.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
Meaning

Both Devices CE2 and CE3 have a route to 10.0.0.28/32. CE2 has received the BGP-static route and CE3 has received a dynamically-learned route, but you cannot tell the difference.

Verifying That the Configured BGP-Static Route Does Not Flap

Purpose

Verify that the BGP-static route does not flap even when the BGP peering session between Router PE1 and Device CE1 goes down.

Action

Deactivate the BGP peering session between Router PE1 and Device CE1. PE1 does not have a dynamically learned route to 10.0.0.28/32, but still has the configured BGP-static route.

content_copy zoom_out_map
[edit]
user@PE1# deactivate protocols bgp group ebgp
user@PE1# commit
content_copy zoom_out_map
user@PE1> show route 10.0.0.28/32
inet.0: 13 destinations, 13 routes (13 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.28/32         *[BGP-Static/4294967292/-101] 02:46:21
                      Discard
user@CE2> show route protocol bgp
inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.28/32        *[BGP/170] 01:52:48, localpref 100
                      AS path: 64496 64497 I, validation-state: unverified
                    > to 10.0.0.18 via ge-2/0/5.17
1.0.0.29/32         *[BGP/170] 01:52:44, localpref 100
                      AS path: 64496 64499 I, validation-state: unverified
                    > to 10.0.0.18 via ge-2/0/5.17

iso.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)

inet6.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
user@CE3> show route protocol bgp
inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.29/32         *[BGP/170] 01:52:47, localpref 100
                      AS path: 64496 64498 I, validation-state: unverified
                    > to 10.0.0.18 via ge-2/0/5.17

iso.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)

inet6.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
Meaning

Router PE1 and Device CE2 still have the configured BGP-static route. However, Device CE3 does not have the route to 10.0.0.28/32 because this prefix has flapped. BGP-static routes do not flap unless deleted manually.

Change History Table

Feature support is determined by the platform and release you are using. Use Feature Explorer to determine if a feature is supported on your platform.

Release
Description
12.2
Starting in Junos OS Release 12.2, you can apply flap damping at the address family level.
external-footer-nav
