Example: Configuring Cross Connect on NFX150 Devices

date_range 18-Feb-21

arrow_backward

arrow_forward

This example shows how to configure cross-connect on NFX150 devices.

Requirements

This example uses the following hardware and software components:

NFX150 running Junos OS Release 18.1R1

Overview

The Cross-connect feature enables traffic switching between any two VNF interfaces. You can bidirectionally switch either all traffic or traffic belonging to a particular VLAN between any two VNF interfaces.

Note:

This feature does not support unidirectional traffic flow.

The Cross-connect feature supports the following:

Port cross-connect between two VNF interfaces for all network traffic.
VLAN-based traffic forwarding between VNF interfaces that support the following functions:
- Provides an option to switch traffic based on a VLAN ID.
- Supports network traffic flow from trunk to access port through POP operation.
- Supports network traffic flow from access to trunk port through PUSH operation.
- Supports VLAN PUSH, POP, and SWAP operations.

Topology

This example uses the topology shown in Figure 1.

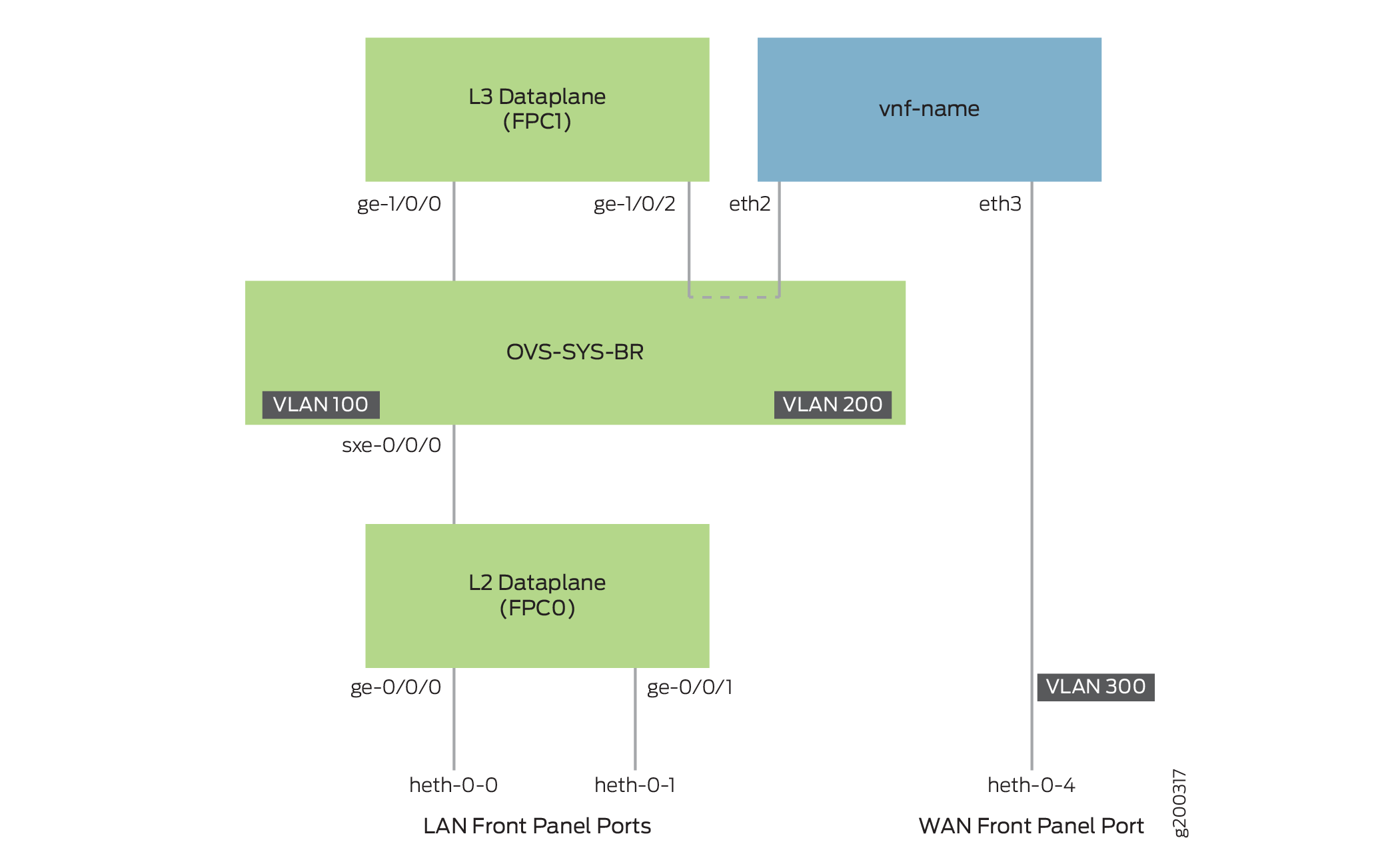

Figure 1: Configuring Cross-Connect

Create VLANs

Step-by-Step Procedure

Configure VLANs for the LAN-side interfaces.

content_copy zoom_out_map
user@host# set vlans vlan100 vlan-id 100
user@host# set vlans vlan200 vlan-id 200

Map the Interfaces

Step-by-Step Procedure

Map the heth-0-0 physical port to the FPC0 interface.

content_copy zoom_out_map
user@host# set vmhost virtualization-options interfaces ge-0/0/0 mapping interface heth-0-0

Map the heth-0-1 physical port to the FPC0 interface.

content_copy zoom_out_map
user@host# set vmhost virtualization-options interfaces ge-0/0/1 mapping interface heth-0-1

Map the FPC1 interface ge-1/0/2 to the system bridge OVS.
```
user@host# set vmhost virtualization-options interfaces ge-1/0/2
```

Configure the Layer 2 Datapath

Step-by-Step Procedure

Configure the LAN-side front panel ports and add them to the LAN-side VLAN.

content_copy zoom_out_map
user@host# set interfaces ge-0/0/0 unit 0 family ethernet-switching interface-mode trunk
user@host# set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members vlan100

Configure the internal-facing interfaces as trunk ports and add them to the LAN-side VLAN. The internal-facing interfaces are typically trunk ports, as they must support traffic from multiple front panel ports and VLANs.
```
user@host# set interfaces sxe-0/0/0 unit 0 family ethernet-switching interface-mode trunk
user@host# set interfaces sxe-0/0/0 unit 0 family ethernet-switching vlan members vlan100
```

Configure the Layer 3 Datapath

Step-by-Step Procedure

Configure VLAN tagging on ge-1/0/0:

content_copy zoom_out_map
user@host# set interfaces ge-1/0/0 vlan-tagging
user@host# set interfaces ge-1/0/0 unit 0 vlan-id 100
user@host# set interfaces ge-1/0/0 unit 0 family inet address 192.0.3.1/24

Configure VLAN tagging on ge-1/0/2:

content_copy zoom_out_map
user@host# set interfaces ge-1/0/2 vlan-tagging
user@host# set interfaces ge-1/0/2 unit 0 vlan-id 200
user@host# set interfaces ge-1/0/2 unit 0 family inet address 203.0.113.2/24

Configure the VNF

Step-by-Step Procedure

Launch the VNF:

content_copy zoom_out_map
user@host# set virtual-network-functions vnf-name image /var/public/centos-updated1.img
user@host# set virtual-network-functions vnf-name image image-type raw

Specify the number of CPUs required for the VNF:
```
user@host# set virtual-network-functions vnf-name virtual-cpu count 1
```

Pin a virtual CPU to a physical CPU:

content_copy zoom_out_map
user@host# set virtual-network-functions vnf-name virtual-cpu 0 physical-cpu 2

Create a host VLAN:

content_copy zoom_out_map
user@host# set vmhost vlans vlan200 vlan-id 200

Configure the VNF interfaces as trunk ports and add them to the LAN-side VLAN:

content_copy zoom_out_map
user@host# set virtual-network-functions vnf-name interfaces eth2 mapping vlan mode trunk
user@host# set virtual-network-functions vnf-name interfaces eth2 mapping vlan members vlan200

Attach a VNF interface to a physical interface by using the SR-IOV virtual function:

content_copy zoom_out_map
user@host# set virtual-network-functions vnf-name interfaces eth3 mapping interface heth-0-4 virtual-function vlan-id 300

Specify the memory allocation for the VNF:
```
user@host# set virtual-network-functions memory size 1048576
```

Configure Cross-Connect

Step-by-Step Procedure

Configure cross-connect:

content_copy zoom_out_map
user@host# set vmhost cross-connect c1 virtual-interface ge-1/0/2
user@host# set vmhost cross-connect c1 virtual-network-function vnf-name interface eth2

Verifying the Configuration

Verify the Control Plane Configuration
Verify the Data Plane Configuration

Verify the Control Plane Configuration

Purpose
Action

Purpose

Verify the control plane configuration:

Action

To verify the control plane configuration:

Verify that the VLANs and VLAN memberships are correct by using the show vmhost vlans command.

content_copy zoom_out_map
user@host> show vmhost vlans
Routing instance        VLAN name             Tag          Interfaces
vmhost                  custom-br
                                                           ge-1/0/2.0
                                                           vnf-name_eth2.0
vmhost                  vlan200               200

Verify that the VNF is operational. View the status of the VNF to ensure that the VNF is up and running.

content_copy zoom_out_map
user@host# show virtual-network-functions vnf-name
ID       Name                                              State      Liveliness
--------------------------------------------------------------------------------
2        vnf-name                                           Running    alive

The Liveliness output field of the VNF indicates whether the IP address of the VNF is reachable or not reachable from Junos.

To view more details of the VNF:

content_copy zoom_out_map
user@host# show virtual-network-functions vnf-name detail
Virtual Network Function Information
------------------------------------

Id:                 2
Name:               vnf-name
State:              Running
Liveliness:         Up
IP Address:         192.0.2.101
VCPUs:              1
Maximum Memory:     1048576 KiB
Used Memory:        1048576 KiB
Used 1G Hugepages:  0
Used 2M Hugepages:  0
Error:              None

Verify the Data Plane Configuration

Purpose
Action

Purpose

Verify the data plane configuration.

Action

To verify the data plane configuration:

Verify the status of the physical ports.

content_copy zoom_out_map
user@host> show interfaces heth-0-0 statistics
Physical interface: heth-0-0, Enabled, Physical link is Up
  Link-level type: Ethernet, Media type: Copper, MTU: 9192, Speed: 1Gbps, Duplex: Full-duplex, Auto-negotiation: Enabled
  Device flags   : Present Running
  Current address: 00:00:5e:00:53:8d, Hardware address: 00:00:5e:00:53:8d
    Input packets : 311143
    Output packets: 674
  MAC statistics:
    Input bytes: 19913152, Input packets: 311143, Output bytes: 48658, Output packets: 674
  VF statistics:
    VF Number: 0, PCI Address: 0000:02:10:1, Mapped to: ge-0/0/0
      Input bytes: 19909120, Input packets: 311080, Output bytes: 48658, Output packets: 674, Multicast packets: 311080
    VF Number: 1, PCI Address: 0000:02:10:5, Mapped to: ge-0/0/0
      Input bytes: 0, Input packets: 0, Output bytes: 0, Output packets: 0, Multicast packets: 0
    VF Number: 2, PCI Address: 0000:02:11:1, Mapped to: ge-0/0/0
      Input bytes: 0, Input packets: 0, Output bytes: 0, Output packets: 0, Multicast packets: 0
    VF Number: 3, PCI Address: 0000:02:11:5, Mapped to: ge-0/0/0
      Input bytes: 0, Input packets: 0, Output bytes: 0, Output packets: 0, Multicast packets: 0

Verify the status of the Layer 2 (ge-0/0/x) and Layer 3 (ge-1/0/x) interfaces.

content_copy zoom_out_map
user@host > show interfaces interface-name statistics

For example:

content_copy zoom_out_map
user@host > show interfaces ge-0/0/0 statistics
Physical interface: ge-0/0/0, Enabled, Physical link is Up
  Interface index: 144, SNMP ifIndex: 518
  Link-level type: Ethernet, MTU: 9192, LAN-PHY mode, Speed: 1000mbps, BPDU Error: None, Loop Detect PDU Error: None, Ethernet-Switching Error: None,
  MAC-REWRITE Error: None, Loopback: Disabled, Source filtering: Disabled, Flow control: Enabled
  Device flags   : Present Running
  Interface flags: SNMP-Traps Internal: 0x4000
  Link flags     : None
  CoS queues     : 8 supported, 8 maximum usable queues
  Current address: 00:00:5e:00:53:43, Hardware address: 00:00:5e:00:53:43
  Last flapped   : 2018-04-18 05:38:22 UTC (6d 00:28 ago)
  Statistics last cleared: Never
  Input rate     : 0 bps (0 pps)
  Output rate    : 0 bps (0 pps)
  Input errors: 0, Output errors: 0
  Active alarms  : None
  Active defects : None
  PCS statistics                      Seconds
    Bit errors                             0
    Errored blocks                         0
  Ethernet FEC statistics              Errors
    FEC Corrected Errors                    0
    FEC Uncorrected Errors                  0
    FEC Corrected Errors Rate               0
    FEC Uncorrected Errors Rate             0
  PRBS Statistics : Disabled
  Interface transmit statistics: Disabled

  Logical interface ge-0/0/0.0 (Index 333) (SNMP ifIndex 524)
    Flags: Up SNMP-Traps 0x24024000 Encapsulation: Ethernet-Bridge
    Input packets : 311115
    Output packets: 22
    Protocol eth-switch, MTU: 9192
      Flags: Trunk-Mode

content_copy zoom_out_map
user@host > show interfaces ge-1/0/2 statistics
Physical interface: ge-1/0/2, Enabled, Physical link is Up
  Interface index: 158, SNMP ifIndex: 536
  Link-level type: Ethernet, MTU: 1518, LAN-PHY mode, Link-mode: Full-duplex, Speed: 1000mbps, BPDU Error: None, Loop Detect PDU Error: None,
  Ethernet-Switching Error: None, MAC-REWRITE Error: None, Loopback: Disabled, Source filtering: Disabled, Flow control: Enabled, Auto-negotiation: Enabled,
  Remote fault: Online
  Device flags   : Present Running
  Interface flags: SNMP-Traps Internal: 0x4000
  CoS queues     : 8 supported, 8 maximum usable queues
  Current address: 00:00:5e:00:53:5d, Hardware address: 00:00:5e:00:53:5d
  Last flapped   : 2018-04-23 06:03:29 UTC (1d 00:04 ago)
  Statistics last cleared: Never
  Input rate     : 0 bps (0 pps)
  Output rate    : 0 bps (0 pps)
  Input errors: 0, Output errors: 0
  Active alarms  : None
  Active defects : None
  PCS statistics                      Seconds
    Bit errors                             0
    Errored blocks                         0
  Ethernet FEC statistics              Errors
    FEC Corrected Errors                    0
    FEC Uncorrected Errors                  0
    FEC Corrected Errors Rate               0
    FEC Uncorrected Errors Rate             0
  PRBS Statistics : Disabled
  Interface transmit statistics: Disabled

  Logical interface ge-1/0/2.0 (Index 342) (SNMP ifIndex 538)
    Flags: Up SNMP-Traps 0x4000 VLAN-Tag [ 0x8100.200 ]  Encapsulation: ENET2
    Input packets : 0
    Output packets: 0
    Security: Zone: untrust
    Allowed host-inbound traffic : dns dhcp tftp https
    Protocol inet, MTU: 1500
    Max nh cache: 75000, New hold nh limit: 75000, Curr nh cnt: 0, Curr new hold cnt: 0, NH drop cnt: 0
      Flags: Sendbcast-pkt-to-re
      Addresses, Flags: Is-Preferred Is-Primary
        Destination: 203.0.113/24, Local: 203.0.113.2, Broadcast: 203.0.113.255
    Protocol multiservice, MTU: Unlimited

  Logical interface ge-1/0/2.32767 (Index 343) (SNMP ifIndex 545)
    Flags: Up SNMP-Traps 0x4004000 VLAN-Tag [ 0x0000.0 ]  Encapsulation: ENET2
    Input packets : 0
    Output packets: 0
    Security: Zone: Null
    Protocol multiservice, MTU: Unlimited
      Flags: None

arrow_backward PREVIOUS Example: Configuring Service Chaining for LAN-WAN Routing

NEXT arrow_forward Example: Configuring Service Chaining for LAN Routing

How to Configure the NFX150

ON THIS PAGE

Example: Configuring Cross Connect on NFX150 Devices

Requirements

Overview

Topology

Configuration

Create VLANs

Step-by-Step Procedure

Map the Interfaces

Step-by-Step Procedure

Configure the Layer 2 Datapath

Step-by-Step Procedure

Configure the Layer 3 Datapath

Step-by-Step Procedure

Configure the VNF

Step-by-Step Procedure

Configure Cross-Connect

Step-by-Step Procedure

Verifying the Configuration

Verify the Control Plane Configuration

Purpose

Action

Verify the Data Plane Configuration

Purpose

Action

Stay in touch

Helped me install or use the product
Accelerated my deployment

Discuss the product with a co-worker
Make a purchase inquiry

How to Configure the NFX150

ON THIS PAGE

Example: Configuring Cross Connect on NFX150 Devices

Requirements

Overview

Topology

Configuration

Create VLANs

Step-by-Step Procedure

Map the Interfaces

Step-by-Step Procedure

Configure the Layer 2 Datapath

Step-by-Step Procedure

Configure the Layer 3 Datapath

Step-by-Step Procedure

Configure the VNF

Step-by-Step Procedure

Configure Cross-Connect

Step-by-Step Procedure

Verifying the Configuration

Verify the Control Plane Configuration

Purpose

Action

Verify the Data Plane Configuration

Purpose

Action

Related Documentation

Stay in touch
