Validation Framework

date_range 27-Feb-25
JVD-ENTWIRED-MAA-01-01

Test Bed

For the evaluation of this JVD, a typical branch deployment was used. This provides repeatable scenarios using a minimum number of devices while still being able to execute all necessary functions (basically a single switch and AP are enough for most test cases). If you want to know more about such branch designs, Review the JVD Distributed Enterprise Branch EX.

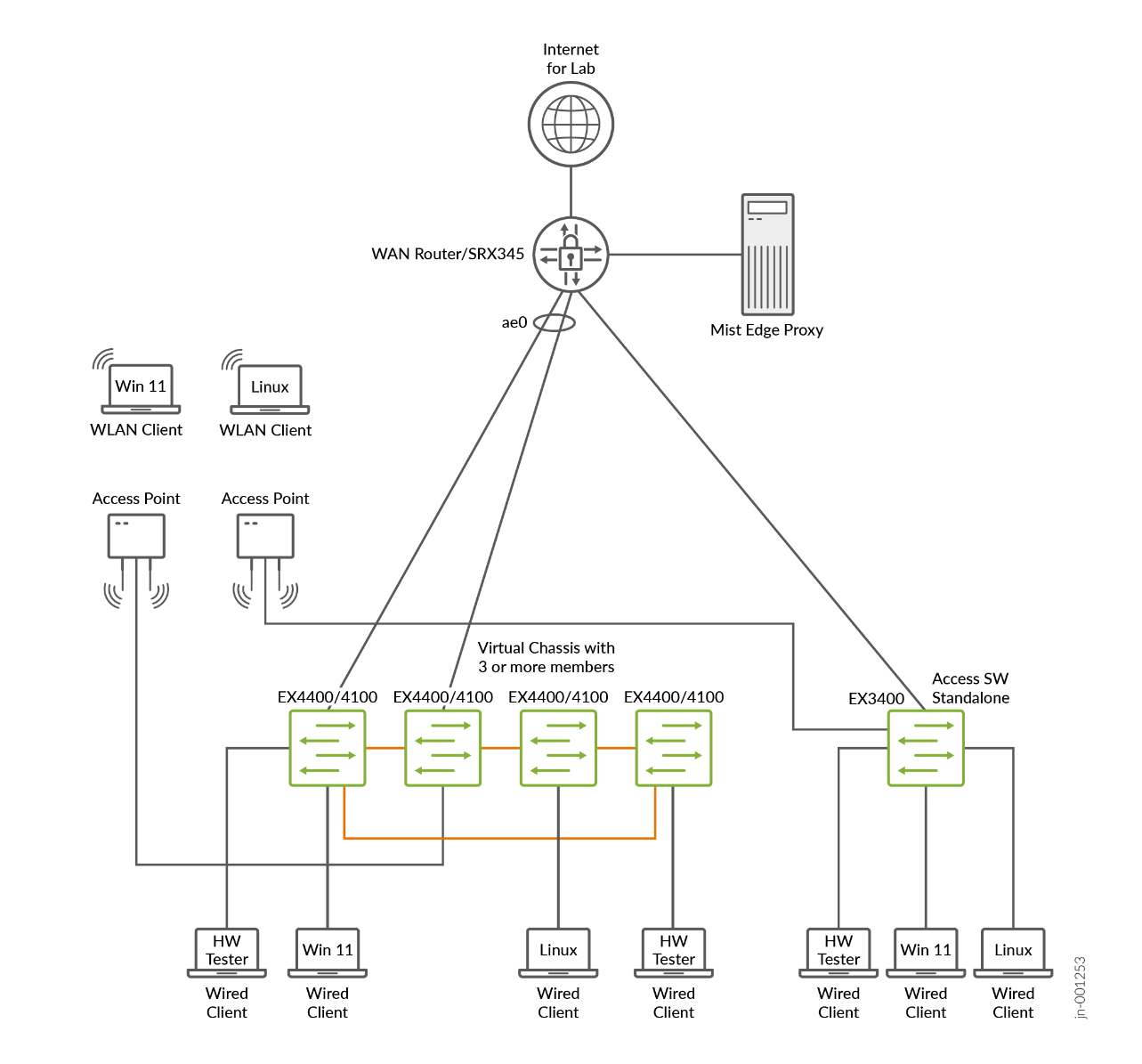

Figure 1: Test Bed for this JVD Test Bed for this JVD

Platforms / Devices Under Test (DUT)

Table 1: Devices Under Test
Devices Under Test
Platform Device Firmware Release
Juniper Standalone Switch EX3400 Junos OS Release 23.2R2.21
Juniper Virtual Chassis EX4400 Junos OS Release 23.2R2.21
Juniper Access Point AP-45 Mist FW >=0.14.28806
Mist-Edge X6 0.1.3247+deb11
WAN-Router SRX345 Junos OS
Windows 11 Professional Desktop Windows Supplicant Windows 11 Professional
Linux Desktop Linux Supplicant Ubuntu 20.04.x
Wired Hardware Test equipment Spirent

Test Bed Configuration

In the appendix section of this document, we share how some tests were performed. Contact Juniper Networks or your Juniper Networks account representative to obtain the full archive of the test bed configuration used for this JVD.
