Return Procedures for the PTX10008 Chassis or Components

date_range 25-Feb-25
arrow_backward
arrow_forward

To return a PTX10008 router or component, read the following sections:

Return a PTX10008 Router or Component for Repair or Replacement

If you need to return a PTX10008 router, or a component to Juniper Networks for repair or replacement, follow this procedure:

  1. Determine the serial number of the component. For instructions, see Locate the Serial Number on a PTX10008 Router or Component.
  2. Obtain a Return Materials Authorization (RMA) number from the Juniper Technical Assistance Center (JTAC), as described in Contact Customer Support to Obtain a Return Materials Authorization for a PTX10008 Router or Component.
    Note:

    Do not return any component to Juniper Networks unless you have first obtained an RMA number. Juniper Networks reserves the right to refuse shipments that do not have an RMA. Refused shipments are returned to the customer through collect freight.

  3. Pack the router or component for shipping, as described in How to Pack a PTX10008 or Component for Shipping.

For more information about return and repair policies, see the customer support page at https://www.juniper.net/support/guidelines.html.

See Also

Locate the Serial Number on a PTX10008 Router or Component

If you are returning a router or component to Juniper Networks for repair or replacement, you must locate the serial number of the router or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain a Return Materials Authorization (RMA). See Contact Customer Support to Obtain a Return Materials Authorization for a PTX10008 Router or Component.

If the router is operational and you can access the command-line interface (CLI), you can use a CLI command to list serial numbers for the router and for some components. If you do not have access to the CLI or if the serial number for the component does not appear in the command output, you can locate the serial number ID label on the router or component.

Note:

If you want to find the serial number ID label on a component, you need to remove the component from the router chassis, for which you must have the required parts and tools available.

List the PTX10008 Chassis and Component Details Using the CLI

To list the PTX10008 chassis and the components and their serial numbers, use the show chassis hardware CLI operational mode command. See the following examples for different types of configurations and the related output.

  • This example shows a PTX10008 with a JNP10008-SF SIB running Junos OS.

    content_copy zoom_out_map
    user@device> show chassis hardware

Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                DE519             JNP10008 [PTX10008]
Midplane         REV 27   750-071974   ACPD6951          Midplane 8
Routing Engine 1          BUILTIN      BUILTIN           RE-PTX-2X00x4
CB 1             REV 31   750-052688   ACPB6939          Control Board
FPC 0            REV 35   750-071976   ACNS6795          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
    Xcvr 0       REV 01   740-061405   1ACQ103601D       QSFP-100GBASE-SR4
FPC 1            REV 35   750-071976   ACPD2139          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
FPC 2            REV 37   750-071976   ACNP1701          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
    Xcvr 0       REV 01   740-061405   1ACQ12110AU       QSFP-100GBASE-SR4
    Xcvr 1       REV 01   740-061405   1ACQ12110NW       QSFP-100GBASE-SR4
    Xcvr 2       REV 01   740-061405   1ACQ12110NV       QSFP-100GBASE-SR4
    Xcvr 3       REV 01   740-061405   1ACQ12110AE       QSFP-100GBASE-SR4
    Xcvr 4       REV 01   740-061405   1ACQ12110HA       QSFP-100GBASE-SR4
    Xcvr 5       REV 01   740-061405   1ACQ12110NY       QSFP-100GBASE-SR4
    Xcvr 6       REV 01   740-061405   1ACQ12110GX       QSFP-100GBASE-SR4
    Xcvr 7       REV 01   740-061405   1ACQ121107B       QSFP-100GBASE-SR4
    Xcvr 8       REV 01   740-061405   1ACQ12110AD       QSFP-100GBASE-SR4
    Xcvr 9       REV 01   740-061405   1ACQ12110NC       QSFP-100GBASE-SR4
FPC 3            REV 32   750-071976   ACNS7312          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
FPC 4            REV 35   750-071976   ACPH7094          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
    Xcvr 0       REV 01   740-054053   QF3208KQ          QSFP+-4X10G-SR
    Xcvr 1       REV 01   740-054053   QF4605YH          QSFP+-4X10G-SR
    Xcvr 2       REV 01   740-054053   QG1500SJ          QSFP+-4X10G-SR
    Xcvr 3       REV 01   740-054053   QF4605YM          QSFP+-4X10G-SR
FPC 5            REV 35   750-071976   ACPD3055          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
FPC 6            REV 35   750-071976   ACPD1831          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
FPC 7            REV 35   750-071976   ACPD2168          LC1101 - 30C / 30Q / 96X
  CPU                     BUILTIN      BUILTIN           FPC CPU
  PIC 0                   BUILTIN      BUILTIN           30x100GE/30x40GE/96x10GE
    Xcvr 28      REV 01   740-058734   1ECQ113834H       QSFP-100GBASE-SR4
    Xcvr 29      REV 01   740-032986   QF4303FE          QSFP+-40G-SR4
FPD Board        REV 07   711-054687   ACPC7192          Front Panel Display
Power Supply 0   REV 01   740-073147   1EDM6130223       Power Supply DC
Power Supply 1   REV 01   740-073147   1EDM6130145       Power Supply DC
Power Supply 2   REV 01   740-073147   1EDM6130205       Power Supply DC
Power Supply 3   REV 01   740-073147   1EDM6130288       Power Supply DC
Power Supply 4   REV 01   740-073147   1EDM6171060       Power Supply DC
Power Supply 5   REV 01   740-073147   1EDM6130352       Power Supply DC
FTC 0            REV 14   750-072657   ACNZ3483          Fan Controller 8
FTC 1            REV 14   750-072657   ACPE3951          Fan Controller 8
Fan Tray 0       REV 09   760-072656   ACNX9388          Fan Tray 8
Fan Tray 1       REV 09   760-072656   ACNV1977          Fan Tray 8
SIB 0            REV 24   750-072655   ACNZ2090          Switch Fabric 8
SIB 1            REV 24   750-072655   ACNZ2155          Switch Fabric 8
SIB 2            REV 24   750-072655   ACNY6520          Switch Fabric 8
SIB 3            REV 24   750-072655   ACNX7482          Switch Fabric 8
SIB 4            REV 24   750-072655   ACNZ2246          Switch Fabric 8
SIB 5            REV 24   750-072655   ACNZ2234          Switch Fabric 8

  • This example shows a PTX10008 with a JNP10008-SF3 SIB running Junos OS Evolved.

    content_copy zoom_out_map
    user@device> show chassis hardware
Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                JN001             JNP10008 [PTX10008]
Midplane 0       REV 06   750-054097   ACAM4922          Midplane 8
PSM 0            Rev 02   740-069994   1F219110277       JNP10K 5500W AC/HVDC Power Supply Unit
PSM 1            Rev 03   740-069994   1F269200064       JNP10K 5500W AC/HVDC Power Supply Unit
PSM 2            Rev 02   740-069994   1F219110456       JNP10K 5500W AC/HVDC Power Supply Unit
PSM 3            Rev 02   740-069994   1F219110340       JNP10K 5500W AC/HVDC Power Supply Unit
PSM 4            Rev 02   740-069994   1F219110310       JNP10K 5500W AC/HVDC Power Supply Unit
PSM 5            Rev 02   740-069994   1F219110329       JNP10K 5500W AC/HVDC Power Supply Unit
Routing Engine 0          BUILTIN      BUILTIN           JNP10K-RE1-E
Routing Engine 1          BUILTIN      BUILTIN           JNP10K-RE1-E
CB 0             REV 14   750-079562   CAKY1871          Control Board
CB 1             REV 14   750-079562   CAKY1881          Control Board
FPC 0            REV 07   750-093524   BCBA1286          JNP10K-LC1201
  CPU            REV 03   711-072984   CALJ4961          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
    Xcvr 0       XXXX     NON-JNPR     1829730235        QSFP56-DD-400G-CR8-CU-1M
    Xcvr 1       REV 01   720-087756   1J1C45A414100     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 2       REV 01   720-087756   1J1C45A414100     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 3       REV 01   720-087756   1J1C45A414048     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 4       REV 01   720-087756   1J1C45A414048     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 5       REV 01   720-087756   1J1C45A414107     QSFP56-DD-400G-CR8-CU-1M
  MEZZ 0         REV 03   711-084968   BCAY0470          JNP10K-LC1201 MEZZ Board
FPC 1            REV 07   750-093524   BCAY8271          JNP10K-LC1201
  CPU            REV 03   711-072984   CALJ4968          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
    Xcvr 32      REV 01   720-087756   1J1C45A414140     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 33      REV 01   720-087756   1J1C45A414137     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 34      REV 01   720-087756   1J1C45A414137     QSFP56-DD-400G-CR8-CU-1M
    Xcvr 35      XXXX     NON-JNPR     1829730171        QSFP56-DD-400G-CR8-CU-1M
  MEZZ 0         REV 03   711-084968   CALS8492          JNP10K-LC1201 MEZZ Board
FPC 2            REV 07   750-093524   BCAZ2821          JNP10K-LC1201
  CPU            REV 03   711-072984   BCAY0404          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
  MEZZ 0         REV 03   711-084968   BCAY0449          JNP10K-LC1201 MEZZ Board
FPC 3            REV 07   750-093524   BCAY8286          JNP10K-LC1201
  CPU            REV 03   711-072984   CALJ4944          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
FPC 4            REV 07   750-093524   BCAY8278          JNP10K-LC1201
  CPU            REV 03   711-072984   CALJ4964          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
  MEZZ 0         REV 03   711-084968   CALS8503          JNP10K-LC1201 MEZZ Board
FPC 6            REV 07   750-093524   BCBA1277          JNP10K-LC1201
  CPU            REV 03   711-072984   BCAY0388          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
  MEZZ 0         REV 03   711-084968   BCAY0456          JNP10K-LC1201 MEZZ Board
FPC 7            REV 07   750-093524   BCAY8288          JNP10K-LC1201
  CPU            REV 03   711-072984   BCAW3545          JNP10K-LC1201 PMB Board
  PIC 0                   BUILTIN      BUILTIN           JNP10K-36QDD-LC-PIC
  MEZZ 0         REV 03   711-084968   CALS8484          JNP10K-LC1201 MEZZ Board
SIB 0            REV 11   750-083423   BCAY0351          SIB-JNP10008
SIB 1            REV 06   750-083423   BCAN8992          SIB-JNP10008
SIB 2            REV 11   750-083423   BCAY0349          SIB-JNP10008
SIB 3            REV 06   750-083423   BCAN8990          SIB-JNP10008
SIB 4            REV 06   750-083423   BCAP3582          SIB-JNP10008
SIB 5            REV 06   750-083423   BCAP3563          SIB-JNP10008
FTC 0            REV 02   750-083435   BCAJ6881          Fan Controller 8
FTC 1            REV 02   750-083435   BCAJ3351          Fan Controller 8
Fan Tray 0       REV 05   760-086563   BCAF4564          Fan Tray 8
Fan Tray 1       REV 05   760-086563   BCAF4569          Fan Tray 8

Locate the Chassis Serial Number ID Label on a PTX10008

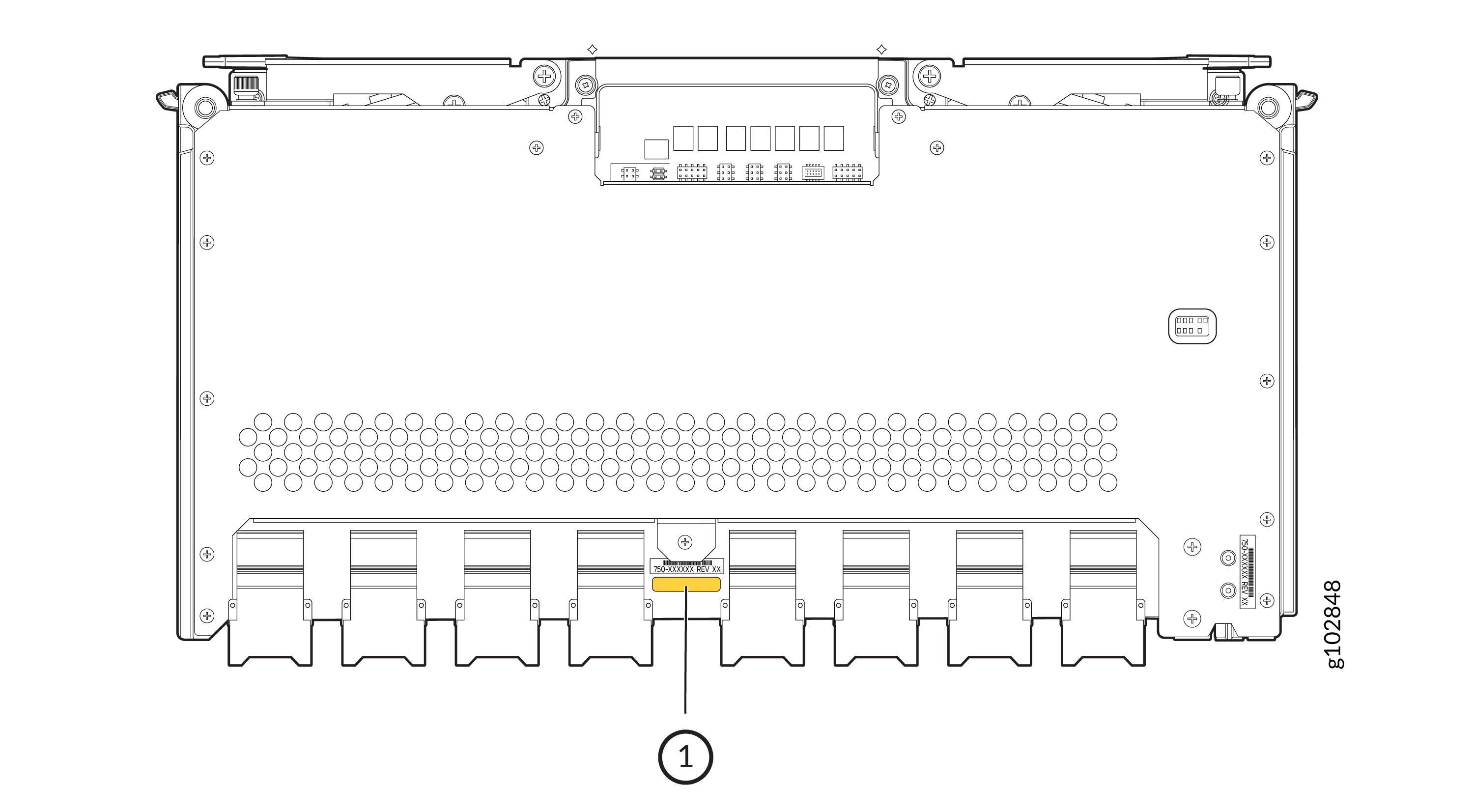

The serial number ID label is located on a label on the right side of the chassis.

Figure 1: PTX10008 Chassis Serial Number LabelPTX10008 Chassis Serial Number Label

Locate the Serial Number ID Labels on PTX10008 Power Supplies

The power supplies installed in a PTX10008 are field-replaceable units (FRUs). You must remove each FRU from the router chassis to see the FRU serial number ID label.

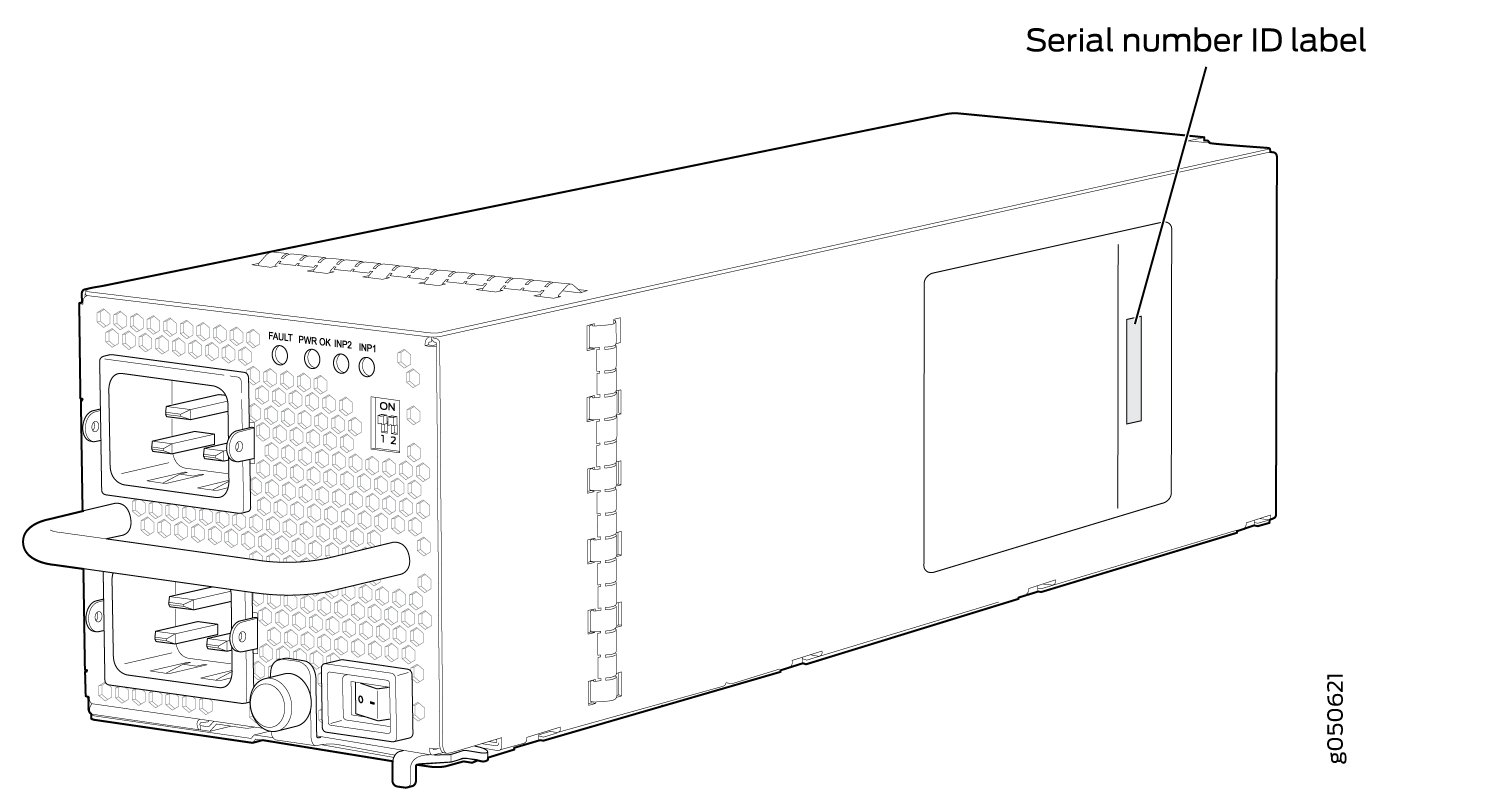

  • JNP10K-PWR-AC power supply—The serial number ID label is on the right side of the JNP10K-PWR-AC power supply.

    Figure 2: JNP10K-PWR-AC Power Supply Serial Number LocationJNP10K-PWR-AC Power Supply Serial Number Location

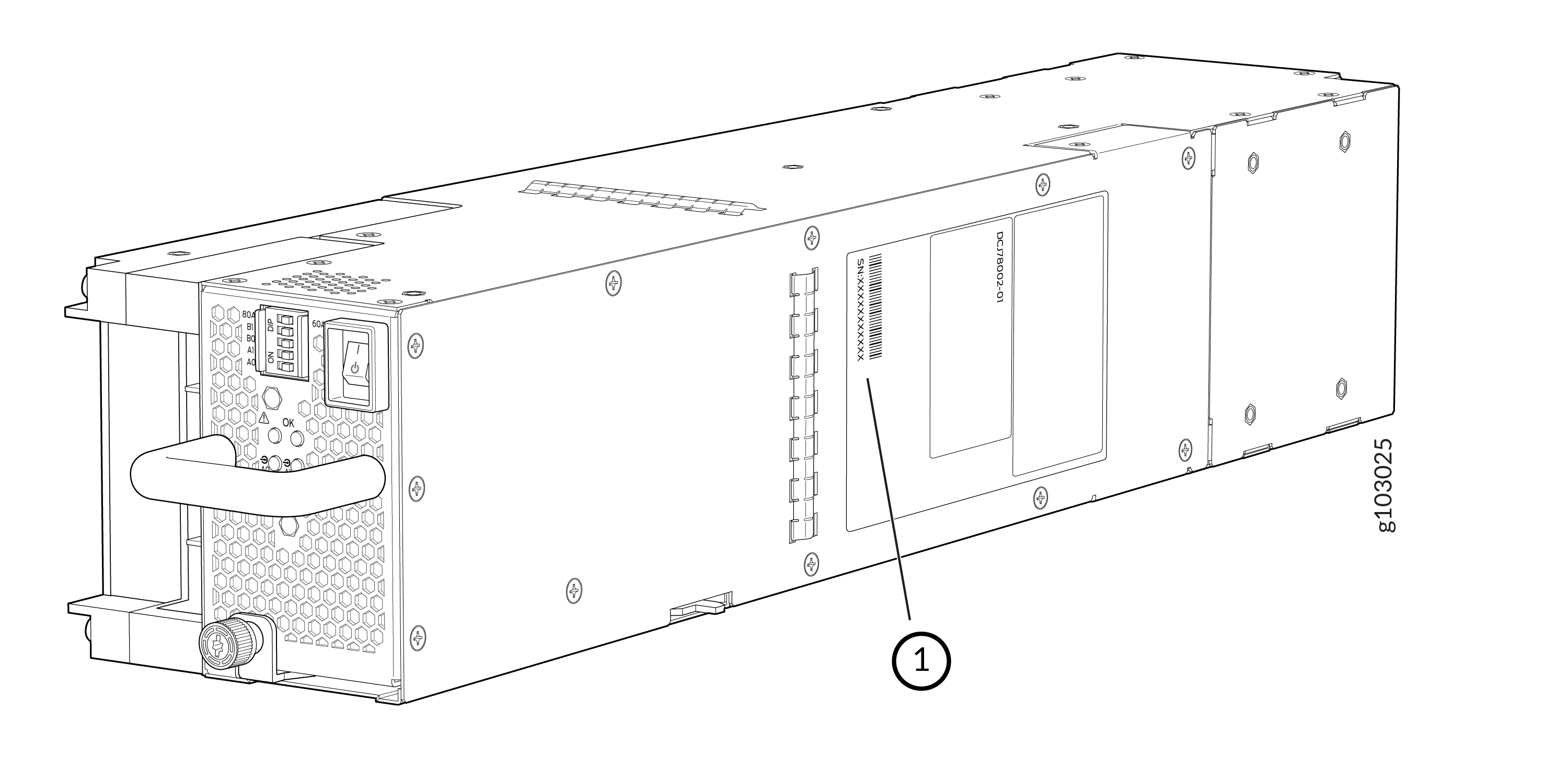

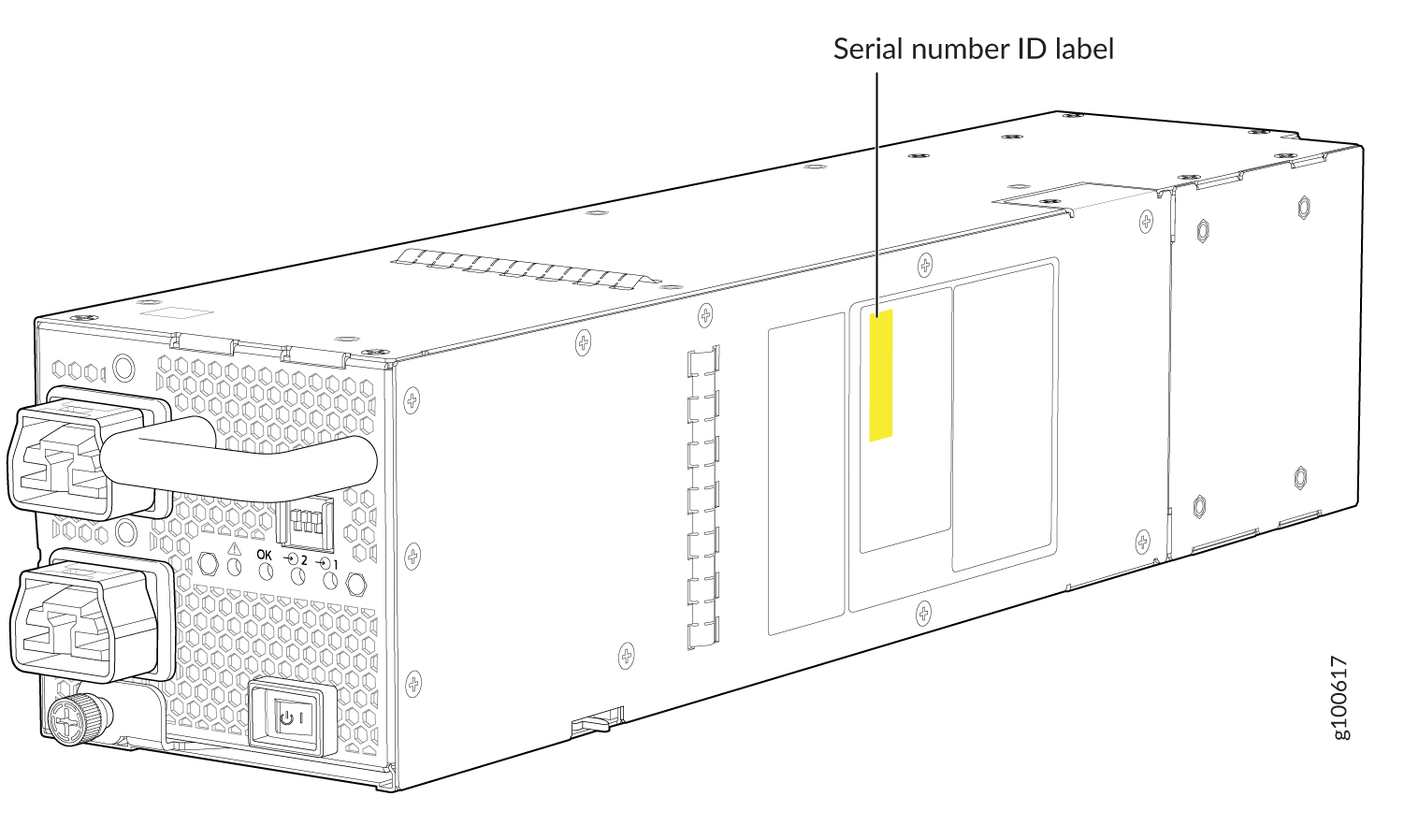

  • JNP10K-PWR-AC2 power supply—The serial ID label is on the right side of the power supply.

    Figure 3: JNP10K-PWR-AC2 Power Supply Serial Number LocationJNP10K-PWR-AC2 Power Supply Serial Number Location

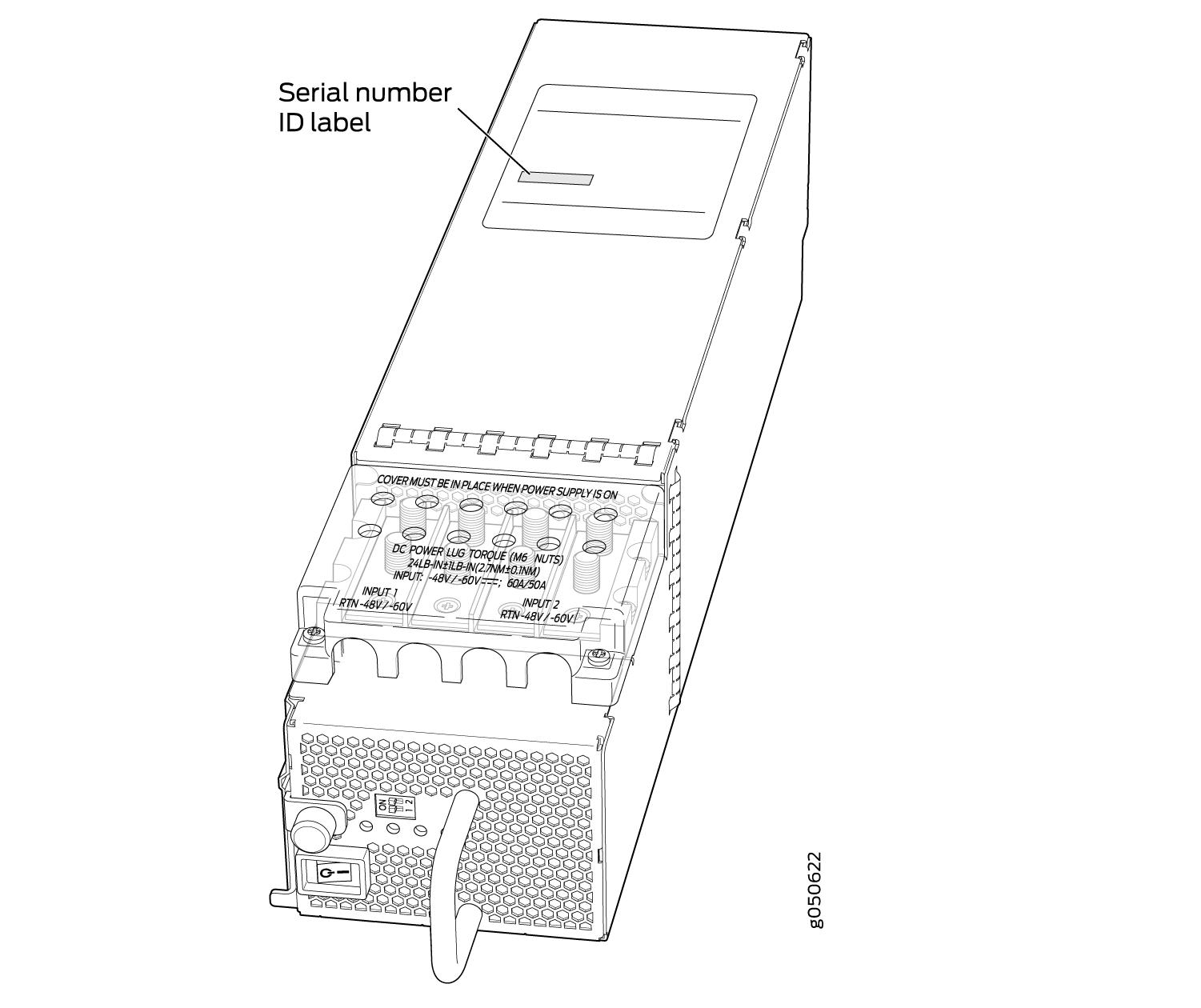

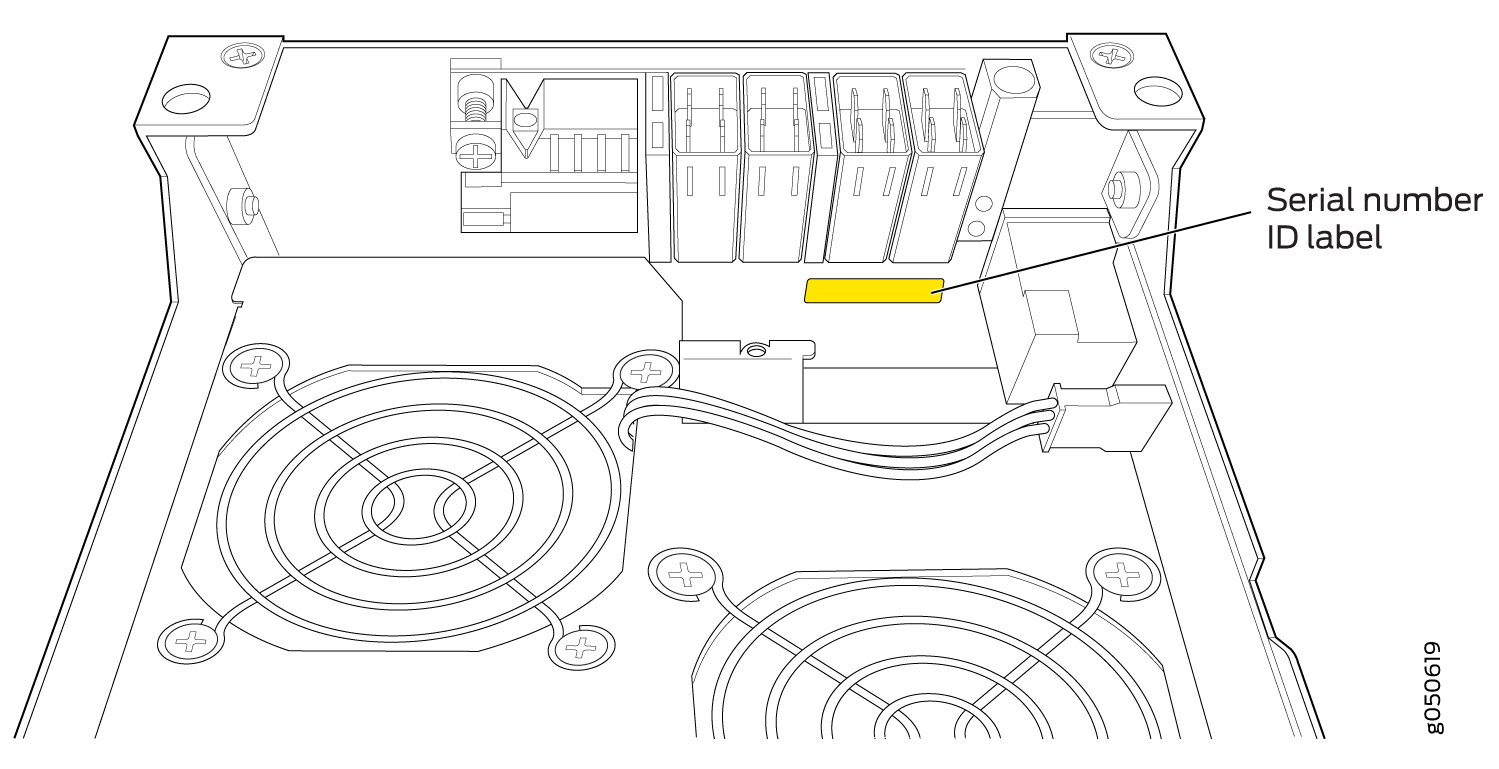

  • JNP10K-PWR-DC power supply—The serial number ID label is on the top surface of the DC power supply.

    Figure 4: JNP10K-PWR DC Power Supply Serial Number LocationJNP10K-PWR DC Power Supply Serial Number Location

  • JNP10K-PWR-DC2 power supply—The serial number ID label is on the left side of the power supply.

    Figure 5: JNP10K-PWR-DC2 Power Supply Serial Number LocationJNP10K-PWR-DC2 Power Supply Serial Number Location

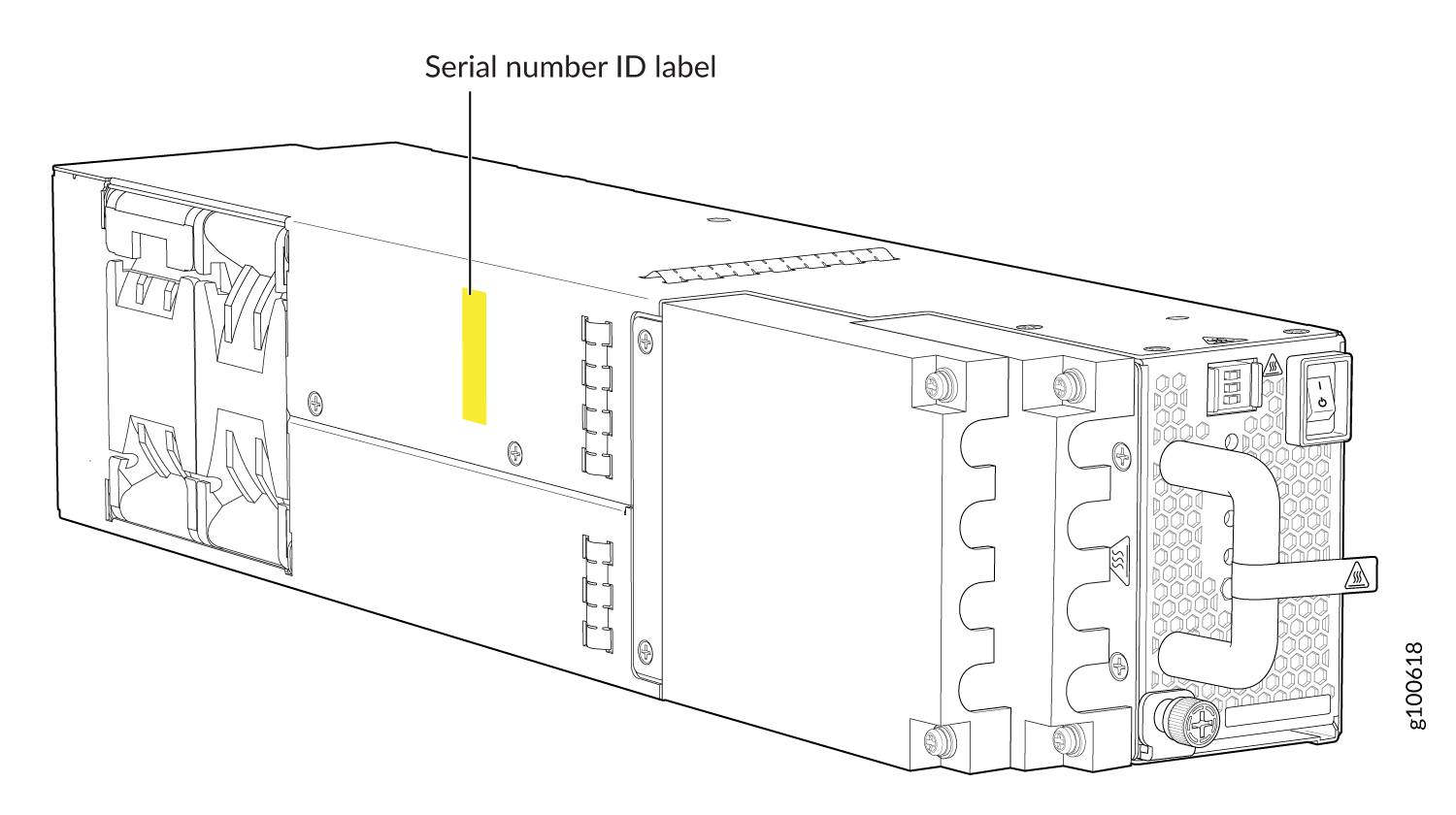

  • JNP10K-PWR-DC3 power supply—The serial number ID label is on the right side of the power supply. See Figure 6.

    Figure 6: JNP10K-PWR-DC3 Power Supply Serial Number Location JNP10K-PWR-DC3 Power Supply Serial Number Location
      1
    —

    Serial number ID label



Locate the Serial Number ID Labels on PTX10008 Fan Trays and Fan Tray Controllers

The two fan trays and their associated fan tray controllers installed in a PTX10008 are field-replaceable units (FRUs). You must remove each FRU from the router chassis to see the FRU serial number ID label.

  • Fan tray—The serial number ID label for all fan tray models (JNP10008-FAN and JNP10008-FAN2) is located on the inside of the fan tray at the base of the fan tray Control Board.

    Figure 7: PTX10008 Fan Tray Serial Number LocationPTX10008 Fan Tray Serial Number Location

  • Fan tray controller—The serial number ID label for all fan tray controller models (JNP10008-FAN-CTRL and JNP10008-FTC2) is located on the top of the fan tray controller.

    Figure 8: PTX10008 Fan Tray Controller Serial Number LocationPTX10008 Fan Tray Controller Serial Number Location

Locate the Serial Number ID Labels on PTX10008 Routing and Control Boards

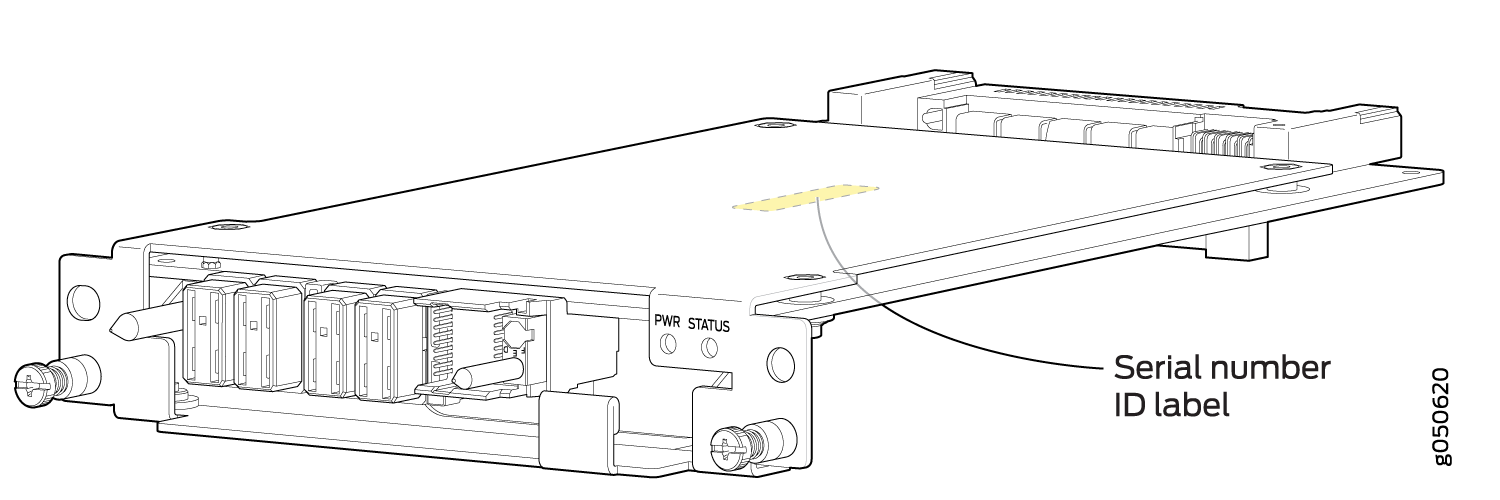

The serial number ID label for a Routing and Control Board (RCB) is located on the connector end of the unit.

Figure 9: PTX10008 Routing and Control Board Serial Number LocationPTX10008 Routing and Control Board Serial Number Location

Locate the Serial Number ID Labels on a PTX10008 Line Card

The serial number ID label for a line card is located on the connector end of the card.

Figure 10: PTX10008 Line Card Serial Number LocationPTX10008 Line Card Serial Number Location

Locate the Serial Number ID Labels on a PTX10008 Switch Interface Board

The serial number ID label for a Switch Interface Board (SIB) is located on the printed circuit board. See Figure 11 and Figure 12.

Figure 11: JNP10008-SF and JNP10008-SF3 SIBs SIB Serial Number LocationJNP10008-SF and JNP10008-SF3 SIBs SIB Serial Number Location
Figure 12: JNP10008-SF5 SIBs SIB Serial Number Location JNP10008-SF5 SIBs SIB Serial Number Location

Locate the Serial Number ID Label on a PTX10008 SATA SSD

The serial number for a SATA SSD is located on top of the drive.

Figure 13: PTX10008 SATA SSD Serial Number LocationPTX10008 SATA SSD Serial Number Location

See Also

Contact Customer Support to Obtain a Return Materials Authorization for a PTX10008 Router or Component

If you are returning a PTX10008 router or component to Juniper Networks for repair or replacement, you must first obtain a Return Materials Authorization (RMA) from the Juniper Networks Technical Assistance Center (JTAC).

After locating the serial number of the device or component you want to return, open a service request with Juniper Networks Technical Assistance Center (JTAC) on the Web or by telephone.

For instructions on locating the serial number of the device or component you want to return, see the following device instructions:

Before you request an RMA from JTAC, be prepared to provide the following information:

  • Your existing service request number, if you have one

  • Serial number of the component

  • Your name, organization name, telephone number, fax number, and shipping address

  • Details of the failure or problem

  • Type of activity being performed on the device when the problem occurred

  • Configuration data displayed by one or more show commands

You can contact JTAC 24 hours a day, seven days a week on the Web or by telephone:

Note:

For international or direct-dial options in countries without toll-free numbers, see https://www.juniper.net/support/requesting-support.html.

If you are contacting JTAC by telephone, enter your 12-digit service request number followed by the pound (#) key for an existing case, or press the star (*) key to be routed to the next available support engineer.

The support representative validates your request and issues an RMA number for return of the component.

How to Pack a PTX10008 or Component for Shipping

Follow this procedure if you are returning a PTX10008 chassis or component to Juniper Networks for repair or replacement.

Before you pack a PTX10008 or component:

  • Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage. See Prevention of Electrostatic Discharge Damage.

  • Pack your chassis or component using one of these materials:

    • Use the packing material from the replacement chassis or component

    • Retrieve the original shipping carton and packing materials

Contact your JTAC representative if you do not have these materials, to learn about approved packing materials. See Contact Customer Support to Obtain a Return Materials Authorization for a PTX10008 Router or Component.

Ensure that you have the following parts and tools available:

  • ESD grounding strap.

  • Electrostatic bag, one for each component.

  • If you are returning the chassis:

    • A 13/32-in. or 10-mm open-end or socket wrench to install the bracket bolts on the chassis and shipping pallet

    • An appropriate screwdriver for the mounting screws used on your rack.

How to Pack a PTX10008 Chassis for Shipping

The PTX10008 is shipped in a cardboard box that has a two-layer wooden pallet base with foam cushioning between the layers. The router chassis is bolted to the pallet base with four pallet fasteners, two on each side of the chassis. See Figure 14 for the stacking configuration of the PTX10008.

Figure 14: Stacking Configuration for Packing the PTX10008 ChassisStacking Configuration for Packing the PTX10008 Chassis

To pack a PTX10008 for shipping:

  1. Power down the chassis and remove the power cables. See Power Off a PTX10008.
  2. Remove the cables that connect the PTX10008 to all external devices.
  3. Remove all line cards and pack them in their original shipping containers. See How to Pack a PTX10008 or Component for Shipping.
  4. Install covers over blank slots.

    Leave components that came installed in the chassis, such as the Routing Control Boards or power supplies.

  5. Move the wooden pallet and packing material to a staging area as close to the router as possible. Make sure there is enough space to move the chassis from the rack to the wooden pallet.
  6. Position a mechanical lift under the device. If a mechanical lift is not available, have three people support the weight of the router while another person uses the screwdriver to remove the front mounting screws that attach the chassis mounting brackets to the rack. For PTX10008 removal, see Remove a PTX10008 from a Four-Post Rack Using a Mechanical Lift or Remove a PTX10008 Manually from a Four-Post Rack.
  7. Remove the router from the rack (see PTX10008 Chassis Lifting Guidelines) and place the router on the shipping pallet. Position the router on the pallet so that the front of the router is facing the silkscreened “front” mark on the pallet. The pallet also has crop marks to guide you in positioning the chassis.
  8. Use the 13/32-in. or 10-mm open-end or socket wrench to install the four sets of brackets and bolts that secure the chassis to the wooden pallet.
  9. Slide the plastic cover over the router chassis. The plastic cover is part of the router’s original packing materials.
  10. Place the packing foam on top of and around the router.
  11. Place the power cords in the box.
  12. Remove the rack mount kit from the rack and place it and the connecting screws in the accessory box.
  13. If you are returning accessories or FRUs with the router, pack them as instructed in How to Pack a PTX10008 or Component for Shipping.
  14. Verify that all accessories are present. See Compare the PTX10008 Order to the Packing List.
  15. Slide the cardboard box over the chassis, making sure that the arrows on the box point up and the pallet fasteners to secure the cardboard box to the wooden pallet are near the bottom.

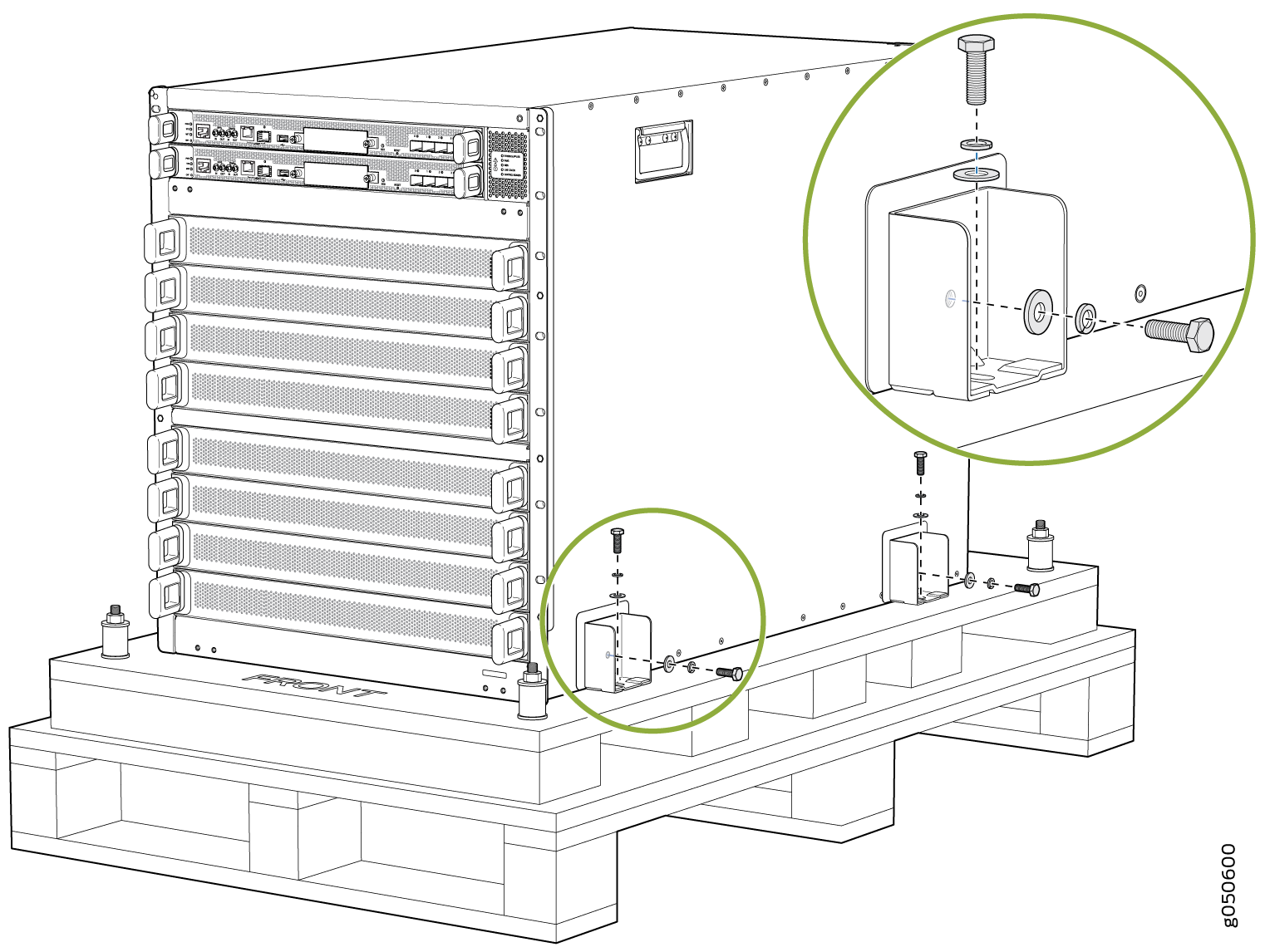

  16. Attach the cardboard box to the wooden pallet by screwing two screws into each of the four pallet fasteners. See Figure 15.
    Figure 15: Attach the PTX10008 to the PalletAttach the PTX10008 to the Pallet
  17. Write the RMA number on the exterior of the box to ensure proper tracking.

How to Pack PTX10008 Components for Shipping

Before you begin packing a router component, ensure that you have the following parts and tools available:

  • Antistatic bag, one for each component

  • Electrostatic discharge (ESD) grounding strap

CAUTION:

Do not stack router components. Return individual components in separate boxes if they do not fit together on one level in the shipping box.

To pack and ship PTX10008 components:

  1. Place individual FRUs in antistatic bags.
  2. Use the original packing materials if they are available. If the original packing materials are not available, ensure the component is adequately packed to prevent damage during transit. The packing material you use must be able to support the weight of the component.
  3. Ensure that the components are adequately protected with packing materials and packed so that the pieces are prevented from moving around inside the carton.
  4. Close the top of the cardboard shipping box and seal it with packing tape.
  5. Write the RMA number on the exterior of the box to ensure proper tracking.

Related Documentation

arrow_backward PREVIOUS Contact Customer Support
NEXT arrow_forward General Safety Guidelines and Warnings
external-footer-nav
