PTX10008 Power Planning for JNP10008-SF Switch Fabric

Power Requirements for PTX10008 Components in a JNP10008-SF Fabric

Table 1 lists the power requirements for the PTX10008 router running the JNP10008-SF switch fabric under typical voltage conditions and optics.

Table 1: Power Consumption JNP10008-SF Fabric Systems
Component	Description	At 25° C	At 55° C
JNP10008-SF	PTX10008 Switch Interface Board	170 W	235 W
JNP10008-FAN	PTX10008 fan tray	225 W	475 W
JNP10008-FAN2	PTX10008 enhanced fan tray	600 W	1280 W at maximum fan speed
JNP10K-RE0	PTX10008 standard Routing Control Board	50 W	100 W
JNP10K-RE1 or JNP10K-RE1-LT	PTX10008 enhanced Routing Control Board	150 W	175 W
PTX10K-LC1101	PTX10008 30-port QSFP28 line card	890 W	1750 W
PTX10K-LC1102	PTX10008 36-port QSFP+ line card	520 W	675 W
PTX10K-LC1104	PTX10008 coherent DWDM line card	900 W	1050 W
PTX10K-LC1105	PTX10008 30-port MACsec QSFP28 line card	950 W	1250 W
QFX10000-60S-60Q	QFX10000 60-port SFP+ and 6-port QSFP+ line card	365 W	465 W

CAUTION:

To ensure adequate power and to avoid raising a power alarm, we recommend that you maintain n +1 power supplies in your router at all times. Replace failed power supplies immediately to prevent unexpected failures.

If a new line card is installed in an operational router, power management does not power on the line card if the increased power demand exceeds the total available power, including redundant power. If redundant power is used to power on the line card, a minor alarm is raised, which becomes a major alarm in five minutes if the condition is not corrected.

You can view the total power provided to the chassis, the power required to operate the chassis and the components installed in it, and the balance power available in the chassis by using the show chassis power detail command.

Calculate Power Requirements for a PTX10008

Use the Power Calculator or the information in this topic to calculate power requirements of your PTX10008 configuration and the number of power supplies required for different PTX10008 router configurations.

CAUTION:

To ensure adequate power and to avoid raising a power alarm, we recommend that you maintain n +1 power supplies in JNP10008-SF configurations at all times. Replace failed power supplies immediately to prevent unexpected failures.

If a new line card is installed in an operational router, power management does not power on the line card if the increased power demand exceeds the total available power, including redundant power. If redundant power is used to power on the line card, a minor alarm is raised, which becomes a major alarm in five minutes if the condition is not corrected.

Note:

The calculations in this topic represent the maximum power requirements that you need to budget for your PTX10008 router configuration. The actual power consumption of your router will be less than the calculated results shown here and will vary based on the hardware and software configuration of your router, the amount of traffic passing through the line cards, and environmental variables such as room temperature.

Before you begin these calculations:

Ensure you understand the different router configurations. See PTX10008 Configurations and Upgrade Options.
Ensure that you know the power requirements of different router components. See Power Requirements for PTX10008 Components in a JNP10008-SF Fabric.

This topic describes these tasks:

Calculate the Power Consumption of Your PTX10008 Configuration
Calculate the Number of Power Supplies Required for Your PTX10008 Configuration

Calculate the Power Consumption of Your PTX10008 Configuration

Use the following procedure to determine the maximum power you need to supply to the router. To calculate maximum system power consumption, you first determine the combined maximum internal power requirements of all the router components and then divide this result by the power supply output power.

To calculate maximum system power consumption:

Determine the maximum power consumption of the base chassis components (that is, the components other than the line cards). Use Table 2 if your router is configured as either the standard base or redundant configuration.

Table 2: Chassis Power Consumption for Standard Configurations
Chassis Component	Base Configuration	Premium Configuration
JNP10008-FAN	950 W	950 W
JNP10008-FAN2 * JNP10008-FAN3 **	—	—
JNP10K-RE0, or JNP10K-RE1	175 W	350 W
JNP10008-SF	1175 W (5 SIBs)	1410 W (6 SIBs)
`Total`	`2300 W`	`2710 W`
* JNP10008-FAN2 is an optional upgrade that replaces JNP10008-FAN. Use 2,560 W for JNP10008-FAN2 configurations. JNP10008-FAN2 systems require JNP10K-PWR-AC3, JNP10K-PWR-AC2, or JNP10K-PWR-DC2 power supplies. ** JNP10008-FAN3 is an optional upgrade that replaces JNP10008-FAN or JNPT10008-FAN2. JNP10008-FAN3 systems require JNP10K-PWR-AC3, JNP10K-PWR-AC2, or JNP10K-PWR-DC2 power supplies.

Calculate the maximum internal power consumption of the entire router by adding in the power requirements of each line card. See Table 3 for a chart of the power needed for line cards.

Table 3: Line Card Power Consumption
Line Cards	PTX10K-LC1101	PTX10K-LC1102	PTX10K-LC1104	PTX10K-LC1105	QFX10000-60S-6Q
1	1150 W	675 W	1050 W	1250 W	455 W
2	2300 W	1350 W	2100 W	2500 W	910 W
3	3450 W	2025 W	3150 W	3750 W	1365 W
4	4600 W	2700 W	4200 W	5000 W	1820 W
5	5750 W	3375 W	—	6250 W	2275 W
6	6900 W	4050 W	—	7500 W	2730 W
7	8050 W	4725 W	—	8750 W	3185 W
8	9200 W	5400 W	—	10,000 W	3640 W
Note: * The PTX10K-LC1201-36CD power numbers do not include the power draw of optical transceivers. See the Hardware Compatibility Tool for further information.

Note:

The PTX10K-LC1104 line card is designed to comply with NEBS regulations on the PTX10008 Packet Transport Router when these routers are used in typical configurations. In a typical configuration, a PTX10008 router supports up to eight line cards, with up to four PTX10K-LC1104 line cards in any of the eight slots.

For example, for a PTX10008 with five PTX10K-LC1102 line cards and three PTX10K-LC1101 line cards, the maximum power consumption is:

= 5 (power consumed by PTX10K-LC1102 in watts) + 3 (power consumed by PTX10K-LC1101 line cards in watts)

= 5 (675 W) + 3 (1150 W)

= (3375 W + 3450 W)

= 6825 W

Add the power consumption from Step 1 and the total line card consumption from Step 2.
To continue from the previous example, add the wattage from five PTX10K-LC1102 and three PTX10K-LC1101 cards to a premium configuration.

(6825 W) + (2710 W)

= 9535 W required

Calculate the Number of Power Supplies Required for Your PTX10008 Configuration

Use this procedure to calculate the number of power supplies required by your router configuration. The minimum power configuration for PTX10008 routers is three power supplies. However, using the calculated minimum power configuration does not prevent the system from raising a power alarm. If you are running the router in a JNP10008-SF switch fabric configuration, you must configure your router for n+1 power supplies to ensure you do not log power alarms.

To calculate the number of power supplies required for your minimum router configuration:

Determine the power available from the power supplies. Table 4 shows the power available for installed power supplies.

Note:

DC systems are supported only in the redundant configuration.

Table 4: Total Power Available
Power Supply Module Models	With Three Power Supplies	With Four Power Supplies	With Five Power Supplies
JNP10K-PWR-AC	8,100 W	10,800 W	13,500 W
JNP10K-PWR-AC2 dual feed, high power (30-A) setting	16,500 W	22,000 W	27,500 W
JNP10K-PWR-AC2 single feed, high power (30-A) setting	15,000 W	20,000 W	25,000 W
JNP10K-PWR-AC2, dual feed, low power (20-A) setting	9,000 W	12,000 W	15,000 W
JNP10K-PWR-AC2, single feed, low power (20-A) setting	8,100 W	10,800 W	13,500 W
JNP10K-PWR-AC3, single active feed, (15-A) setting	7,500 W	10,000 W	12,500 W
JNP10K-PWR-AC3, two active feeds, (15-A) setting	15,000 W	20,000 W	25,000 W
JNP10K-PWR-AC3, three active feeds, (15-A) setting	22,500 W	30,000 W	37,500 W
JNP10K-PWR-AC3, four active feeds, (15-A) setting	23,400 W	31,200 W	39,000 W
JNP10K-PWR-AC3, single active feed, (20-A) setting	9,000 W	12,000 W	15,000 W
JNP10K-PWR-AC3, two active feeds, (20-A) setting; (either A0 and A1 or B0 and B1)	18,000 W	24,000 W	30,000 W
JNP10K-PWR-AC3, three or four active feeds, (20-A) setting	23,400 W	31,200 W	39,000 W
JNP10K-PWR-DC	7,500 W	10,000 W	12,500 W
JNP10K-PWR-DC2 dual feed, high power (80-A) setting	16,500 W	22,000 W	27,500 W
JNP10K-PWR-DC2 dual feed, low power (60-A) setting	13,200 W	17,600 W	22,000 W
JNP10K-PWR-DC2 single feed, high power (80-A) setting	8,250 W	11,000 W	13,750 W
JNP10K-PWR-DC2 single feed, low power (60-A) setting	6,600 W	8,800 W	11,000 W
JNP10K-PWR-DC3, single active feed, low-power (60 A) setting	6,600 W	8,800 W	11,000 W
JNP10K-PWR-DC3, two active feeds, low-power (60 A) setting	13,200 W	17,600 W	22,000 W
JNP10K-PWR-DC3, three active feeds, low-power (60 A) setting	19,800 W	26,400 W	33,000 W
JNP10K-PWR-DC3, four active feeds, low-power (60 A) setting	23,400 W	31,200 W	39,000 W
JNP10K-PWR-DC3, single active feed, high-power (80 A) setting	9,000 W	12,000 W	15,000 W
JNP10K-PWR-DC3, two active feeds, high-power (80 A) setting (either A0 and A1, or B0 and B1)	18,000 W	24,000 W	30,000 W
JNP10K-PWR-DC3, three or four active feeds, high-power (80 A) setting	23,400 W	31,200 W	39,000 W

Note:

The JNP10K-PWR-AC2 power supply has a set of DIP switches on the faceplate that allows you to configure the power supply for either high power (30 A) or low power (20 A) input mode. If any JNP10K-PWR-AC2 power supply is set to 20 A, then the power budget for all power supplies installed in the system becomes 20 A, regardless of whether other power supplies are set at 30 A. This design helps prevent overloading of the power supply that is set to 20 A. See Table 5 for details about setting the DIP switches and available power.

Table 5: Power Input and Output Voltages for JNP10K-PWR-AC2 Power Supplies
INP0 (Switch 1)	INP1 (Switch 2)	H/L (High Input 30 A/Low Input 20A)	Output Power
On	On	On (30 A)	5500 W
On	On	Off (20 A)	3000 W
On	Off	On (30 A)	5000 W
Off	On	On (30 A)	5000 W
On	Off	Off (20 A)	2700 W
Off	On	Off (20 A)	2700 W

Note:

The JNP10K-PWR-AC3 power supply has a set of five DIP switches on the faceplate that allows you to configure the power supply for either high power (20 A) or low power (15 A) input mode. If any JNP10K-PWR-AC3 power supply is set to 15 A, then the power budget for all power supplies installed in the system becomes 15 A, regardless of whether other power supplies are set at 20 A. This design helps prevent overloading of the power supply that is set to 15 A.

Table 6: Power Input and Output Voltages for JNP10K-PWR-AC3 Power Supplies
INP-A0 (Switch 0)	INP-A1 (Switch 1)	INP-B0 (Switch 2)	INP-B1 (Switch 3)	Switch 4 (High Input 20 A/Low Input 15 A)	Output Power
15-A
Off	Off	Off	On	Off (15 A)	2500 W
Off	Off	On	Off	Off (15 A)	2500 W
Off	Off	On	On	Off (15 A)	5000 W
Off	On	Off	Off	Off (15 A)	2500 W
Off	On	Off	On	Off (15 A)	5000 W
Off	On	On	On	Off (15 A)	7500 W
Off	On	On	Off	Off (15 A)	5000 W
On	Off	Off	Off	Off (15 A)	2500 W
On	Off	Off	On	Off (15 A)	5000 W
On	Off	On	Off	Off (15 A)	5000 W
On	Off	On	On	Off (15 A)	7500 W
On	On	Off	Off	Off (15 A)	5000 W
On	On	Off	On	Off (15 A)	7500 W
On	On	On	Off	Off (15 A)	7500 W
On	On	On	On	Off (15 A)	7800 W
20-A
Off	Off	Off	On	On (20 A)	3000 W
Off	Off	On	Off	On (20 A)	3000 W
Off	Off	On	On	On (20 A)	6000 W
Off	On	Off	Off	On (20 A)	3000 W
Off	On	Off	On	On (20 A)	6000 W
Off	On	On	Off	On (20 A)	6000 W
Off	On	On	On	On (20 A)	7800 W
On	Off	Off	Off	On (20 A)	3000 W
On	Off	Off	On	On (20 A)	6000 W
On	Off	On	Off	On (20 A)	6000 W
On	Off	On	On	On (20 A)	7800 W
On	On	Off	Off	On (20 A)	6000 W
On	On	Off	On	On (20 A)	7800 W
On	On	On	Off	On (20 A)	7800 W
On	On	On	On	On (20 A)	7800 W

Table 7: Power Input and Output Voltages for JNP10K-PWR-DC3 Power Supplies
INP-A0 (Switch 0)	INP-A1 (Switch 1)	INP-B0 (Switch 2)	INP-B1 (Switch 3)	Switch 4 (Low Input 60 A/ High Input 80 A)	Output Power
60 A
Off	Off	Off	On	Off (60 A)	2200 W
Off	Off	On	Off	Off (60 A)	2200 W
Off	Off	On	On	Off (60 A)	4400 W
Off	On	Off	Off	Off (60 A)	2200 W
Off	On	Off	On	Off (60 A)	4400 W
Off	On	On	Off	Off (60 A)	4400 W
Off	On	On	On	Off (60 A)	6600 W
On	Off	Off	Off	Off (60 A)	2200 W
On	Off	Off	On	Off (60 A)	4400 W
On	Off	On	Off	Off (60 A)	4400 W
On	Off	On	On	Off (60 A)	6600 W
On	On	Off	Off	Off (60 A)	4400 W
On	On	Off	On	Off (60 A)	6600 W
On	On	On	Off	Off (60 A)	6600 W
On	On	On	On	Off (60 A)	7800 W
80 A
Off	Off	Off	On	On (80 A)	3000 W
Off	Off	On	Off	On (80 A)	3000 W
Off	Off	On	On	On (80 A)	6000 W
Off	On	Off	Off	On (80 A)	3000 W
Off	On	Off	On	On (80 A)	6000 W
Off	On	On	Off	On (80 A)	6000 W
Off	On	On	On	On (80 A)	7800 W
On	Off	Off	Off	On (80 A)	3000 W
On	Off	Off	On	On (80 A)	6000 W
On	Off	On	Off	On (80 A)	6000 W
On	Off	On	On	On (80 A)	7800 W
On	On	Off	Off	On (80 A)	6000 W
On	On	Off	On	On (80 A)	7800 W
On	On	On	Off	On (80 A)	7800 W
On	On	On	On	On (80 A)	7800 W

Determine the total power required for your configuration with line cards installed. The total power available to the chassis is calculated by dividing the wattage needed by the power rating, and then rounding up.
In the previous examples, we calculated that a premium PTX10008 AC system would require 9535 W with five PTX10K-LC1102 and three PTX10K-LC1101 line cards. In this example, we calculate the total power available for the 2700 W JNP10K-PWR-AC power supplies:

= (9535 W) / (2700 W)

= 3.5

Round up the result to 4 AC power supplies to determine the minimum power level.

CAUTION:
The minimum power level does not prevent the system from raising a power alarm. Add an additional power supply for redundancy (n+1) to ensure you have covered the maximum power budget for your specific configuration.
In our example, a basic configuration (3 power supplies, standard) would require two additional power supplies, one for the minimum power level and second as the redundant power supply. In a redundant AC system (6 power supplies, standard), the system would have sufficient power supplies for both minimum and n+1 redundancy.
Calculate how much power the power supplies need. To determine the power required, multiply the number of power supplies by the power supply wattage and divide by the efficiency of the power supply. The efficiency rate accounts for the loss of energy within the power supply and is 89 percent for PTX10008 power supplies.
For example, if you have an AC system with four power supplies:

= 4 (2700 W) / (efficiency rating)

= (10800 W) / (0.89)

= 12135 W

JNP10K-PWR-AC Power Specifications

PTX10008 and PTX10016 redundant-configuration routers can use either AC or DC power supplies; base-configuration routers are AC only. You can run the JNP10K-PWR-AC power supply only in routers in which you have installed the JNP10008-SF or JNP10016-SF switch fabric.

Table 8 lists the power specifications for the AC power supply (JNP10K-PWR-AC) used in a PTX10008 or PTX10016 chassis.

Table 8: Power Specifications for a JNP10K-PWR-AC Power Supply
Item	Specification
AC input voltage	Operating range: 200–240 VAC
AC input line frequency	50–60 Hz
AC input current rating	16 A
AC output power	2700 W

CAUTION:

Use a 2-pole circuit breaker rated at 25 A in the building installation and the system, or as per local electrical code.

Table 9 shows the physical specifications for an AC power supply.

Table 9: Physical Specifications for a JNP10K-PWR-AC Power Supply
Specification	Value
Height	3.4 in. (8.64 cm)
Width	3.6 in. (9.14 cm)
Depth	14.4 in. (36.58 cm)
Weight	6.8 lb (3.08 kg)

JNP10K-PWR-AC2 Power Specifications

The JNP10K-PWR-AC2 power supply supports AC, HVAC, and HVDC. You can run JNP10K-PWR-AC2 power supplies in either a JNP10008-SF or a JNP10008-SF3 system. If you are upgrading a JNP10008-SF system to use JNP10K-PWR-AC2 power supplies, also upgrade your fans and fan tray controllers to ensure the proper airflow. JNP10K-PWR-AC2 power supplies require JNP10008-FAN2 and JNP10008-FTC2 cooling systems.

Table 10 lists the power specifications for the AC power supply (JNP10K-PWR-AC2) used in a PTX10008 or PTX10016 chassis.

Table 10: Power Specifications for a JNP10K-PWR-AC2 Power Supply
Item	Specifications
AC input voltage	180–305 VAC
DC input voltage	190–410 VDC
Input current rating	28.5 A
DC output power	5500 W with dual feed and 5000 W with single feed

Table 11 shows the physical specifications for a JNP10K-PWR-AC2 power supply.

Table 11: Physical Specifications for a JNP10K-PWR-AC2 Power Supply
Specification	Value
Height	3.4 in. (8.64 cm)
Width	3.6 in. (9.14 cm)
Depth	16.6 in. (42.16 cm)
Weight	11.4 lb (5.17 kg)

JNP10K-PWR-AC3 Power Specifications

The JNP10K-PWR-AC3 power supply supports AC.

Table 12 lists the power specifications for the AC power supply (JNP10K-PWR-AC3) used in a PTX10004 chassis.

Table 12: Power Specifications for a JNP10K-PWR-AC3 Power Supply
Specification	Value
AC input voltage	180–264 VAC
Input current rating	16 A
DC output power	12.3 V

Table 13 shows the physical specifications for a JNP10K-PWR-AC3 power supply.

Table 13: Physical Specifications for a JNP10K-PWR-AC3 Power Supply
Specification	Value
Height	3.386 in. (8.60 cm)
Width	3.584 in. (9.10 cm)
Depth	17.15 (43.57 cm)
Weight	12.8 lbs (5.8 kg)

JNP10K-PWR-AC3 Power Cable Specifications

The JNP10K-PWR-AC3 power supply operates in two modes:

20-A input with 7800 W or 6000 W or 3000 W output
15-A input with 7800 W or 7500 W, or 5000 W, or 2500 W output

Note:

When power cords with right angle plugs at the PSU end are selected, they must be in pairs of Right Angle Left Plugs for inputs A0 or B0 and Extended Right Angle Left Plugs for inputs A1 or B1.

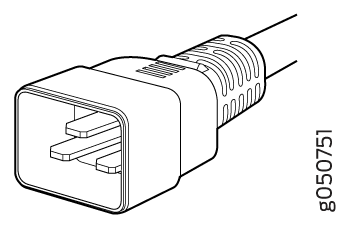

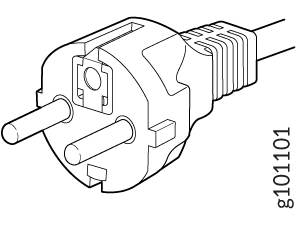

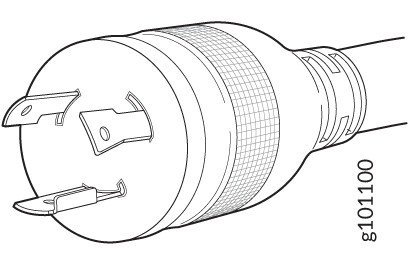

See Table 14 for a list of appropriate cables.

Warning:

Do not run JNP10K-PWR-AC3 power supplies using 16-A or 20-A cables if connected to 15-A input.

CAUTION:

You can prevent AC power cables from being exposed to hot air exhaust by always routing the power cables away from the fan trays and power supplies.

With right angle power cords and the baffle installed, the power cords will be exposed to hot exhaust air. The IEC C21 plugs have a temperature rating of 155C and the power cord cables have a rating of 90C.

Table 14: JNP10K-PWR-AC3 Power Cable Specifications for 20-A and 15-A Input
Locale	Cord Set Rating	Plug Standard	Spare Juniper Model Number
Straight Plug at PSU Input
Australia and New Zealand	15 A, 250 VAC	AS/NZS 3112	CBL-PWRC21-AU
Europe (except Italy, Switzerland, and United Kingdom)	16A, 250 VAC	CEE 7/7	CBL-PWRC21-EU
Italy	16A, 250 VAC	CEI 23-16	CBL-PWRC21-IT
North America	20A, 250 VAC	Locking NEMA L6-20P	CBL-PWRC21-US-L
North America	20A, 250 VAC	NEMA 6-20P	CBL-PWRC21-US
International	16A, 250VAC	IEC-309 316P6W	CBL-PWRC21-316P6
North America	20A, 250 VAC	IEC-309 320P6W	CBL-PWRC21-320P6
Japan	20A, 250 VAC	NEMA L6-20P	CBL-PWRC21-JP-L
China	16A, 250 VAC	GB2099-1	CBL-PWRC21-CN
North America	20A, 250 VAC	IEC-320-C20	CBL-PWRC21-C20-NA
Europe	16A, 250 VAC	IEC-320-C20	CBL-PWRC21-C20-EU
Japan	20A, 250 VAC	IEC-320-C20	CBL-PWRC21-C20-JP
China	16A, 250 VAC	IEC-320-C20	CBL-PWRC21-C20-CN
Switzerland	16A, 250 VAC	SEV1011	CBL-PWRC21-SZ
South Africa	16A, 250 VAC	RA SANs 164/1	CBL-PWRC21-SA
India	16A, 250VAC	RA IS 1293	CBL-PWRC21-IN
United Kingdom	16A, 250 VAC	BS 1363	CBL-PWRC21-UK
Israel	16A, 250 VAC	SI 32/1971 Type IL/3G	CBL-PWRC21-IL
Brazil	16A, 250 VAC	NBR 14136 Type BR/3	CBL-PWRC21-BR
Argentina	16A, 250 VAC	IRAM 2073 Type RA/3	CBL-PWRC21-AR
Right Angle Left Plug at PSU Input
USA	20A, 250 VAC	NEMA L6-20P	CBL-PWRC21R-US-L
USA	20A, 250 VAC	NEMA 6-20P	CBL-PWRC21R-US
Europe	16A, 250 VAC	CEE 7/7	CBL-PWRC21R-EU
Australia	15A, 250 VAC	AS/NZ 3112	CBL-PWRC21R-AU
Italy	16A, 250 VAC	CEI 23-50	CBL-PWRC21R-IT
International	16A, 250 VAC	IEC 60309 316P6W	CBL-PWRC21R-316P6
North America	16A, 250VAC	IEC 60309 320P6W	CBL-PWRC21R-320P6
Japan	20A, 250 VAC	NEMA L6-20P	CBL-PWRC21R-JP-L
China	16A, 250 VAC	GB2099-1	CBL-PWRC21R-CN
North America	16A, 250 VAC	IEC-60320 C20	CBL-PWRC21R-C20-NA
Europe	16A, 250 VAC	IEC 60320 C20	CBL-PWRC21R-C20-EU
Japan	20A, 250 VAC	IEC 60320 C20	CBL-PWRC21R-C20-JP
China	16A, 250 VAC	IEC 60320 C20	CBL-PWRC21R-C20-CN
Switzerland	16A, 250 VAC	SEV 1011	CBL-PWRC21R-SZ
South Africa	16A, 250 VAC	SANS 164/1	CBL-PWRC21R-SA
India	16A, 250 VAC	IS 1293, RA	CBL-PWRC21R-IN
United Kingdom	16A, 250 VAC	BS1363	CBL-PWRC21R-UK
Israel	16A, 250 VAC	SI 32/1971 TYPE IL/3G	CBL-PWRC21R-IL
Brazil	16A, 250 VAC	NBR 14136 TYP BR/3	CBL-PWRC21R-BR
Argentina	16A, 250 VAC	IRAM 2073 TYPE RA/3	CBL-PWRC21R-AR
Extended Right Angle Left Plug at PSU Input
USA	20A, 250 VAC	NEMA L6-20P	CBL-PWRC21RL-US-L
USA	20 A, 250 VAC	NEMA 6-20P	CBL-PWRC21RL-US
Europe	16A, 250 VAC	CEE 7/7	CBL-PWRC21RL-EU
Australia	15A, 250 VAC	AS/NZ 3112	CBL-PWRC21RL-AU
Italy	16A, 250 VAC	CEI 23-50	CBL-PWRC21RL-IT
International	16A, 250 VAC	IEC-60309 316P6W	CBL-PWRC21RL-316P6
North America	20A, 250 VAC	IEC-60309 320P6W	CBL-PWRC21RL-320P6
Japan	20A, 250 VAC	NEMA L6-20P	CBL-PWRC21RL-JP-L
China	16A, 250 VAC	GB2099-1	CBL-PWRC21RL-CN
North America	20A, 250 VAC	IEC-60320 C20	CBL-PWRC21RL-C20NA
Europe	16A, 250 VAC	IEC-60320 C20	CBL-PWRC21RL-C20EU
Japan	20A, 250 VAC	ICE-60320 C20	CBL-PWRC21RL-C20JP
China	16A, 250 VAC	IEC-60320 C20	CBL-PWRC21RL-C20CN
Switzerland	16A, 250 VAC	SEV 1011	CBL-PWRC21RL-SZ
South Africa	16A, 250 VAC	SANS 164/1	CBL-PWRC21RL-SA
India	16A, 250 VAC	IS1293, RA	CBL-PWRC21RL-IN
United Kingdom	16A, 250 VAC	BS 1363	CBL-PWRC21RL-UK
Israel	16A, 250 VAC	SI 32/1971 Type IL/3G	CBL-PWRC21RL-IL
Brazil	16A, 250 VAC	NBR 14136 Type BR/3	CBL-PWRC21RL-BR
Argentina	16A, 250 VAC	IRAM 2073 Type RA/3	CBL-PWRC21RL-AR

PTX10008 Power Cables Specifications

Most sites distribute power through a main conduit that leads to frame-mounted power distribution panels, one of which can be located at the top of the rack that houses the router. An AC power cord connects each power supply to the power distribution panel.

Note:

In North America, AC power cords must not exceed 15 feet (approximately 4.5 meters) in length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords shipped with the router to North America and Canada are in compliance.

PTX10008 AC, high-voltage alternating current (HVAC), and high-voltage direct current (HVDC) power supplies have specific cord requirements. Use the following sections to determine the cable requirements based on the model of your power supply and any mode settings:

For JNP10K-PWR-AC, see JNP10K-PWR-AC Power Cable Specifications
For JNP10K-PWR-AC2 with 20-A input, see JNP10K-PWR-AC2 Power Cable Specifications
For JNP10K-PWR-AC2 with 30-A input, see JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input

JNP10K-PWR-AC Power Cable Specifications
JNP10K-PWR-AC2 Power Cable Specifications
JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input

JNP10K-PWR-AC Power Cable Specifications

Each JNP10K-PWR-AC power supply has two independent 16 A rated AC inlets on the faceplate.

Each detachable AC power cord is 8 feet (approximately 2.5 meters) long. The coupler end of the appliancecord inserts into the AC appliance inlet on the faceplate of the AC power supply. The coupler type is C19 as described by the International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.

Table 15 lists the AC power cord specifications for JNP10K-PWR-AC for various countries and regions.

Table 15: AC Power Cord Specifications for JNP10K-PWR-AC Power Supplies
Country/Region	Electrical Specifications	Plug Standards	Juniper Model Number
Argentina	250 VAC, 16 A, 50 Hz	IRAM Type RA/3/20	CBL-EX-PWR-C19-AR
Australia	250 VAC, 15 A, 50 Hz	AS/NZS 3112 Type SAA/3/15	CBL-EX-PWR-C19-AU
Brazil	250 VAC, 16 A, 50 Hz	NBR 14136: 2002 Type BR/3/20	CBL-EX-PWR-C19-BR
China	250 VAC, 16 A, 50 Hz	GB 1002 Type PRC/3/16	CBL-EX-PWR-C19-CH
Europe (except Italy, Switzerland, and United Kingdom)	250 VAC, 16 A, 50 Hz	CEE (7) VII Type VIIG	CBL-EX-PWR-C19-EU
India	250 AC, 16 A, 50 Hz	SABS 164/1:1992 Type ZA/3	CBL-EX-PWR-C19-SA
Israel	250 AC, 16 A, 50 Hz	SI 32/1971 Type IL/3	CBL-EX-PWR-C19-IL
Italy	250 VAC, 16 A, 50 Hz	CEI 23-16 Type I/3/16	CBL-EX-PWR-C19-IT
Japan	250 VAC, 16 A, 60 Hz	NEMA 6–20 Type N6/20	CBL-EX-PWR-C19-JP (default)
Japan	250 VAC, 16 A, 60 Hz	NEMA L6–20P Type NEMA Locking	CBL-EX-PWR-C19-JPL
Korea	250 VAC, 16 A, 50 Hz	CEE (7) VII Type VIIG	CBL-EX-PWR-C19-KR
North America	250 VAC, 16 A, 60 Hz	NEMA 6–20 Type N6/20	CBL-EX-PWR-C19-US (default)
North America	250 VAC, 16 A, 60 Hz	NEMA L6–20P Type NEMA Locking	CBL-EX-PWR-C19-USL
South Africa	250 VAC, 16 A, 50 Hz	SABS 164/1:1992 Type ZA/3	CBL-EX-PWR-C19-SA
Switzerland	250 VAC, 16 A, 50 Hz	SEV 5934/2 Type 23G	CBL-EX-PWR-C19-SZ
United Kingdom	250 VAC, 13 A, 50 Hz	BS 1363/A Type BS89/13	CBL-EX-PWR-C19-UK
Worldwide (except Japan)	250 VAC, 16 A, 50 Hz	EN 60320-2-2/1	CBL-EX-PWR-C19-C20

JNP10K-PWR-AC2 Power Cable Specifications

The JNP10K-PWR-AC2 power supply operates in two modes:

JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input shows cables and connectors for 30-A input with 5500-W output. One end of the cable has a type SAF-D-GRID Series (3-5958P4) Anderson APP-400 connector, rated 30A/400V/105C, while the other end of the cable is bare wire.
Table 16 shows cables appropriate for 20-A input with 3000-W output. One end of the cable has a type SAF-D-GRID Series (3-5958P4) Anderson APP-400 connector, rated 30A/400V/105C. An example of the connector is shown in Figure 1.

Warning:

Do not run JNP10K-PWR-AC2 power supplies using 16-A or 20-A cables if connected to 30-A input.

CAUTION:

You can prevent AC power cables from being exposed to hot air exhaust by always routing the power cables away from the fan trays and power supplies.

CAUTION:

It is important to connect both input feeds of the JNP10K-PWR-AC2 power supply to AC mains before loading the system with power.

Table 16: JNP10K-PWR-AC2 Power Cable Specifications for 20-A Input
Locale	Cord Set Rating	Plug Standards	Spare Juniper Model Number
Argentina	16 A, 250 VAC	IRAM 2073 Type RA/3	CBL-JNP-SG4-AR
Australia and New Zealand	15 A, 250 VAC	AS/NZS 3112	CBL-JNP-SG4-AU
Brazil	16 A, 250 VAC	NBR 14136 Type BR/3	CBL-JNP-SG4-BR
China	16 A, 250 VAC	GB2099	CBL-JNP-SG4-CH
China, Europe, and Japan	16 A, 250 VAC	C20 to Anderson 3-5958p4	CBL-JNP-SG4-C20-CH
Europe (except Italy, Switzerland, and United Kingdom)	20 A, 250 VAC	CEE 7/7	CBL-JNP-SG4-EU
Great Britain	13 A, 250 VAC,	BS1363	CBL-JNP-SG4-UK
India	16 A, 250 VAC	SANS 164/1	CBL-JNP-SG4-SA
Israel	16 A, RA, 250 VAC	SI 32/1971 Type IL/3C	CBL-JNP-SG4-IL
Italy	16 A, 250 VAC	CEI 23-50	CBL-JNP-SG4-IT
North America	20 A, 250 VAC	C20 to Anderson 3-5958p4	CBL-JNP-SG4-C20
	16 A, 250 VAC	Locking NEMA L6-20P	CBL-JNP-SG4-US-L
	16 A, 250 VAC	NEMA 6-20P	CBL-JNP-SG4-US
	20 A, 277 V	NEMA I7-20P	CBL-JNP-SG4-HVAC
South Africa	16 A, 250 VAC	SANS 164/1	CBL-JNP-SG4-SA
Switzerland	16 A, 250 VAC	CEI 23-50	CBL-JNP-SG4-SZ

Figure 1: Bare Cable with Anderson Connector

JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input

The JNP10K-PWR-AC2 AC or HVDC power supply require a high current cable assembly when set for 30-A input. One end of the cable has a type SAF-D-GRID Series (3-5958P4) Anderson APP-400 connector, rated 30A/400V/105C, while the other end of the cable is bare wire. See Figure 2 and Table 17. These cables are separately orderable and are not shipped automatically with JNP10K-PWR-AC2 orders. An example of the right-angle cable and connector is shown in Figure 4.

For connection to AC systems, Juniper provides a cable with either a NEMA 30-A connector (Figure 2) or an IEC 330P6W connector (Figure 3).

Figure 2: NEMA 30-A Connector

Figure 3: IEC 330P6W Connector

Table 17: 30-A Cabling Options
	Locale	Cord Set Rating	Plug Standards	Connector	Spare Juniper Model Number
AC/HVDC power cord	Any	30-A, 400 VAC	UL 950 and IEC 60950	Anderson/straight to bare wire	CBL-PWR2-BARE
AC/HVDC power cord	Any	30-A, 400 VAC	UL 950 and IEC 60950	Anderson/right-angle to bare wire	CBL-PWR2-BARE-RA
AC power cord	Continental Europe	30-A 250 VAC	UL 950 and IEC332P6	Anderson/right-angle to IEC 332P6	CBL-PWR2-332P6W-RA
	Continental Europe	30-A 250 VAC	UL 950 and IEC332P6	Anderson/straight to IEC332P6	CBL-PWR2-332P6W
	North America	30-A 250 VAC	IEC330P6	Anderson/right-angle to IEC 330P6	CBL-PWR2-330P6W-RA
		30-A 250 VAC	IEC330P6	Anderson/straight to IEC 330P6	CBL-PWR2-330P6W
		30-A 250 VAC	UL 498, CSA	Anderson/right-angle to L6-30P (NEMA-30A)	CBL-PWR2-L6-30P-RA
		30-A 250 VAC	UL 498, IEC5958P4	Anderson/straight to L6-30P (NEMA-30A)	CBL-PWR2-L6-30P

Figure 4: Right-Angle, Bare Cable with Anderson Connector

1 — Black wire – “+” or “-“ for HVDC and “Hot or neutral” for AC	3 — White wire – “+” or “-“ for HVDC and “Hot or neutral” for AC
2 — Green wire - Ground

JNP10K-PWR-DC Power Specifications

The DC power supply (JNP10K-PWR-DC) is supported only in routers in which you have installed the JNP10008-SF or JNP10016-SF switch fabric. Table 18 lists the power specifications for the JNP10K-PWR-DC power supply used in PTX10008 and PTX10016 routers.

Table 18: Power Specifications for the JNP10K-PWR-DC Power Supply
Item	Specifications
DC input voltage	Minimum operating voltage: –40 VDC Nominal operating voltage: –48 VDC Operating voltage range: –40 VDC through –72 VDC
DC input current rating	60 A maximum at nominal operating voltage (–48 VDC) for each input terminal
Output power	2500 W

Table 19 shows the physical specifications of the JNP10K-PWR-DC power supply.

Table 19: Physical Specifications of the JNP10K-PWR-DC Power Supply
Specification	Value
Height	3.4 in. (8.64 cm)
Width	3.6 in. (9.14 cm)
Depth	14.4 in. (36.58 cm)
Weight	6 lb (2.72 kg)

JNP10K-PWR-DC2 Power Specifications

If you are upgrading a JNP10008-SF system to use JNP10K-PWR-DC2 power supplies, also upgrade your fans and fan tray controllers to ensure the proper airflow. JNP10K-PWR-DC2 power supplies require JNP10008-FAN2 and JNP10008-FTC2 cooling systems.Table 20 lists the power specifications for the dual DC power supply used in a PTX10008 chassis.

Table 20: Power Specifications for the JNP10K-PWR-DC2 Power Supply
Item	Specifications
DC input voltage	Minimum operating voltage: –40 VDC Nominal operating voltage: –48 VDC Operating voltage range: –40 VDC through –72 VDC
DC input current rating	76-A maximum at minimum operating voltage (-40 VDC) with 80-A DIP switch setting and 5500-W output load 64-A maximum at nominal operating voltage (–48 VDC) with 80-A DIP switch setting and 5500-W output load 60-A maximum at minimum operating voltage (-40 VDC) with 60-A DIP switch setting and 4400-W output load 50-A maximum at nominal operating voltage (-48 VDC) with 60-A DIP switch setting and 4400-W output load
Output power	2200 W for low input (60-A) single feed 4400 W for low input (60-A) dual feed 2750 W for high input (80-A) single feed 5500 W for high input (80-A) dual feed

Table 21 shows the physical specifications for a JNP10K-PWR-DC2 power supply.

Table 21: Physical Specifications of a JNP10K-PWR-DC2 Power Supply
Specification	Value
Height	3.4 in. (8.64 cm)
Width	3.6 in. (1.63 cm)
Depth	16.05 in. (40.77 cm)
Weight	8.6 lb (3.9 kg)

JNP10K-PWR-DC3 Power Specifications

If you are upgrading a JNP10008-SF system to use JNP10K-PWR-DC3 power supplies, also upgrade your fans and fan tray controllers to ensure the proper airflow. Table 22 lists the power specifications for the DC power supply (JNP10K-PWR-DC3) used in PTX10008 routers.

Table 22: Power Specifications for the JNP10K-PWR-DC3 Power Supply
Item	Specifications
DC input voltage	Minimum operating voltage: -40 VDC Nominal operating voltage: -48 VDC Operating voltage range: -40 VDC through -72 VDC
Input current rating	60 A/80 A
Output power	12.3 VDC

Table 23 shows the physical specifications for a JNP10K-PWR-DC3 power supply.

Table 23: Physical Specifications of a JNP10K-PWR-DC3 Power Supply
Specification	Value
Height	3.386 in. (8.60 cm)
Width	3.584 in. (9.10 cm)
Depth	15.391 in. (39.09 cm)
Weight	12.8 lb. (5.7 kg)

For more information, see:

PTX10008 Packet Transport Router Hardware Guide

ON THIS PAGE

PTX10008 Power Planning for JNP10008-SF Switch Fabric

Power Requirements for PTX10008 Components in a JNP10008-SF Fabric

Calculate Power Requirements for a PTX10008

Calculate the Power Consumption of Your PTX10008 Configuration

Calculate the Number of Power Supplies Required for Your PTX10008 Configuration

JNP10K-PWR-AC Power Specifications

JNP10K-PWR-AC2 Power Specifications

JNP10K-PWR-AC3 Power Specifications

JNP10K-PWR-AC3 Power Cable Specifications

PTX10008 Power Cables Specifications

JNP10K-PWR-AC Power Cable Specifications

JNP10K-PWR-AC2 Power Cable Specifications

JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input

JNP10K-PWR-DC Power Specifications

JNP10K-PWR-DC2 Power Specifications

JNP10K-PWR-DC3 Power Specifications

Stay in touch

Helped me install or use the product
Accelerated my deployment

Discuss the product with a co-worker
Make a purchase inquiry

PTX10008 Packet Transport Router Hardware Guide

ON THIS PAGE

PTX10008 Power Planning for JNP10008-SF Switch Fabric

Power Requirements for PTX10008 Components in a JNP10008-SF Fabric

Calculate Power Requirements for a PTX10008

Calculate the Power Consumption of Your PTX10008 Configuration

Calculate the Number of Power Supplies Required for Your PTX10008 Configuration

JNP10K-PWR-AC Power Specifications

JNP10K-PWR-AC2 Power Specifications

JNP10K-PWR-AC3 Power Specifications

JNP10K-PWR-AC3 Power Cable Specifications

PTX10008 Power Cables Specifications

JNP10K-PWR-AC Power Cable Specifications

JNP10K-PWR-AC2 Power Cable Specifications

JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input

JNP10K-PWR-DC Power Specifications

JNP10K-PWR-DC2 Power Specifications

JNP10K-PWR-DC3 Power Specifications

Related Documentation

Stay in touch
