CSDS Single MX Series (ECMP Based Consistent Hashing) and Scaled-Out SRX Series Firewalls (Standalone)
date_range
04-Apr-24

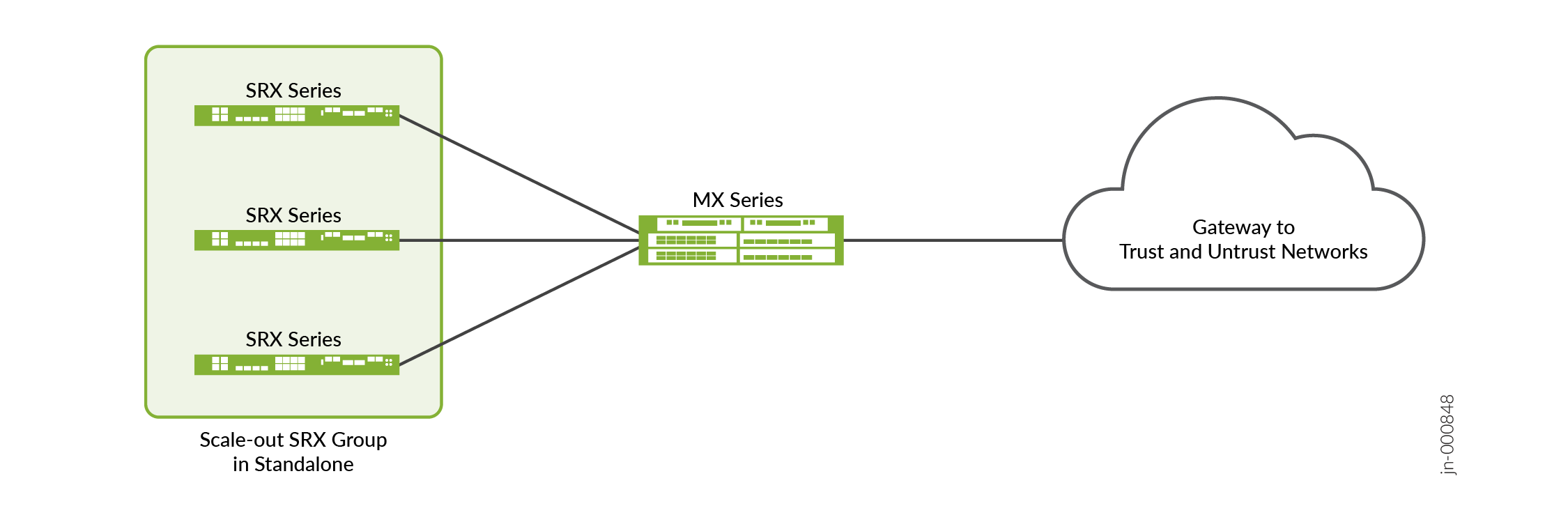

Figure 1 illustrates the CSDS topology with single MX Series router and scaled-out SRX Series Firewalls in standalone mode.
Figure 1: Single MX Series (ECMP based Consistent Hashing) and Scaled-Out SRX Series Firewalls
(Standalone)
