Example: Single MX Series (ECMP Based Consistent Hashing) and Scaled-Out SRX Series Firewalls (Standalone) for NAT and Stateful Firewall

date_range 23-Apr-24
arrow_backward
arrow_forward

In this configuration, you’ll learn to set up a single MX Series with scaled-out SRX Series Firewalls in standalone for NAT and stateful firewall services.

Overview

Table 1 shows the deployment components used in the example.

Table 1: Deployment Details
CSDS Components Details
Forwarding Layer MX304 with Junos OS Release 23.4R1 or later
Services Layer vSRX 3.0 with Junos OS Release 23.4R1 or later
Redundancy

Single MX Series with ECMP based Consistent Hashing for load balancer.

SRX Series Firewalls (Standalone)

Features NAPT44 and stateful firewall (IPv4 Support)
Additional Component Gateway router for TRUST and UNTRUST networks. The example uses MX Series. You can use any device.

See Table 2 and Table 3 for traffic flow.

Table 2: Traffic Flows for NAT
Feature Traffic Flow Component IP Address and Port Number
NAPT44 on SRX Series Firewall (SRX1) Original source data client 140.0.0.0/8 and port 22279
Original destination Internet server 100.1.1.0/24 and port 70
After NAT source 192.168.64.0/24 and port 2480
After NAT destination 100.1.1.0/24 and port 70
NAPT44 on SRX Series Firewall (SRX2) Original source data client 140.0.0.0/8 and port 22279
Original destination Internet server 100.1.1.0/24 and port 70
After NAT source 192.169.64.0/24 and port 2480
After NAT destination 100.1.1.0/24 and port 70
NAPT44 on SRX Series Firewall (SRX3) Original source data client 140.0.0.0/8 and port 22279
Original destination Internet server 100.1.1.0/24 and port 70
After NAT source 192.170.64.0/24 and port 2480
After NAT destination 100.1.1.0/24 and port 70
Table 3: Traffic Flows for Stateful Firewall Services
Feature Traffic Flow Component IP Address

Stateful firewall services on SRX Series Firewalls

(SRX1, SRX2 and SRX3)

 Source data client 141.0.0.0/8
Destination Internet server 100.1.1.0/24
SRX Series with stateful firewall - Source 141.0.0.0/8
SRX Series with stateful firewall - Destination 100.1.1.0/24

See Table 4 and Table 5 for traffic flow.

Table 4: Load Balancer to SRX Series Firewalls for NAT Services
Flow Type Traffic Flow Component IP Address
Forward Flow Source Load Balancer (Route Filter on MX Series) 0.0.0.0/0
Reverse Flow Destination Load Balancer (Routing-Based) Based on unique NAT pool IP address range
Table 5: Load Balancer to SRX Series Firewalls for Stateful Firewall Services
Flow Type Traffic Flow Component IP Address
Forward Flow Source Load Balancer (Route Filter on MX Series) 0.0.0.0/0
Reverse Flow Destination Load Balancer (Route Filter on MX Series) 141.0.0.0/8

Topology Illustration

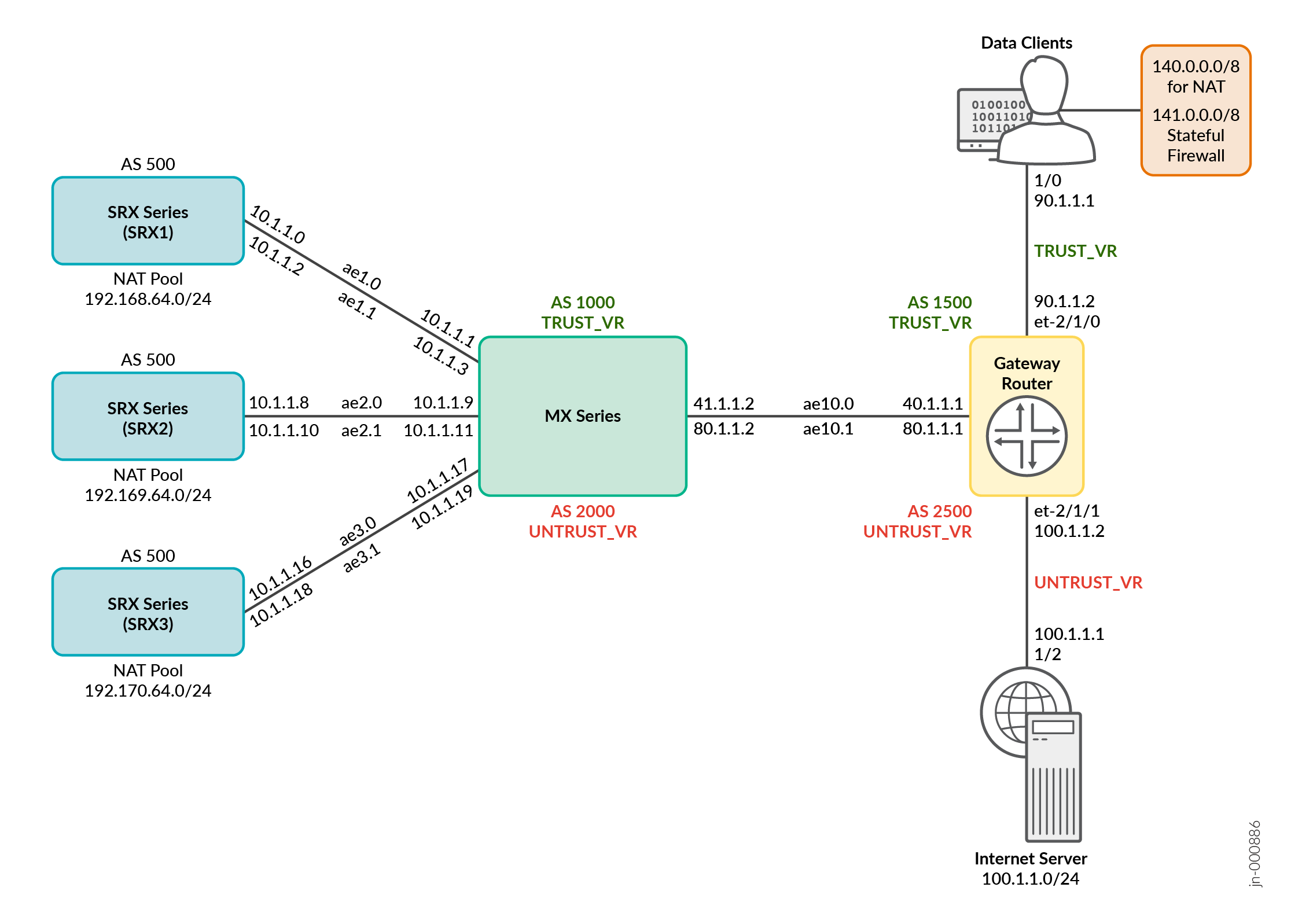

Figure 1: Single MX Series (ECMP based Consistent Hashing) and Scaled-Out SRX Series Firewalls for NAT and Stateful Firewall Services Single MX Series (ECMP based Consistent Hashing) and Scaled-Out SRX Series Firewalls for NAT and Stateful Firewall Services

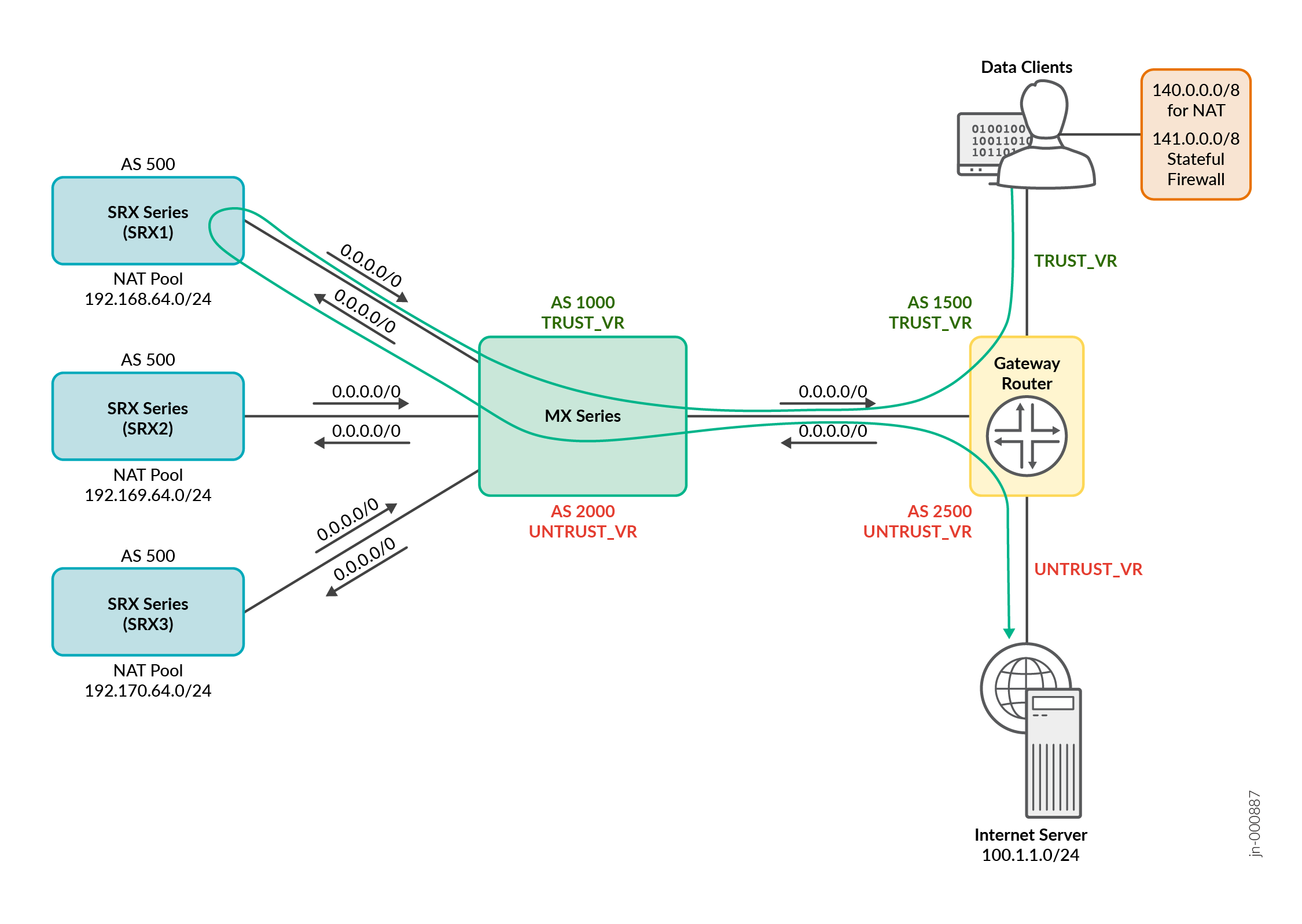

Figure 2: Route Advertisements for Forward Flow for NAPT44 and Stateful Firewall Services Route Advertisements for Forward Flow for NAPT44 and Stateful Firewall Services

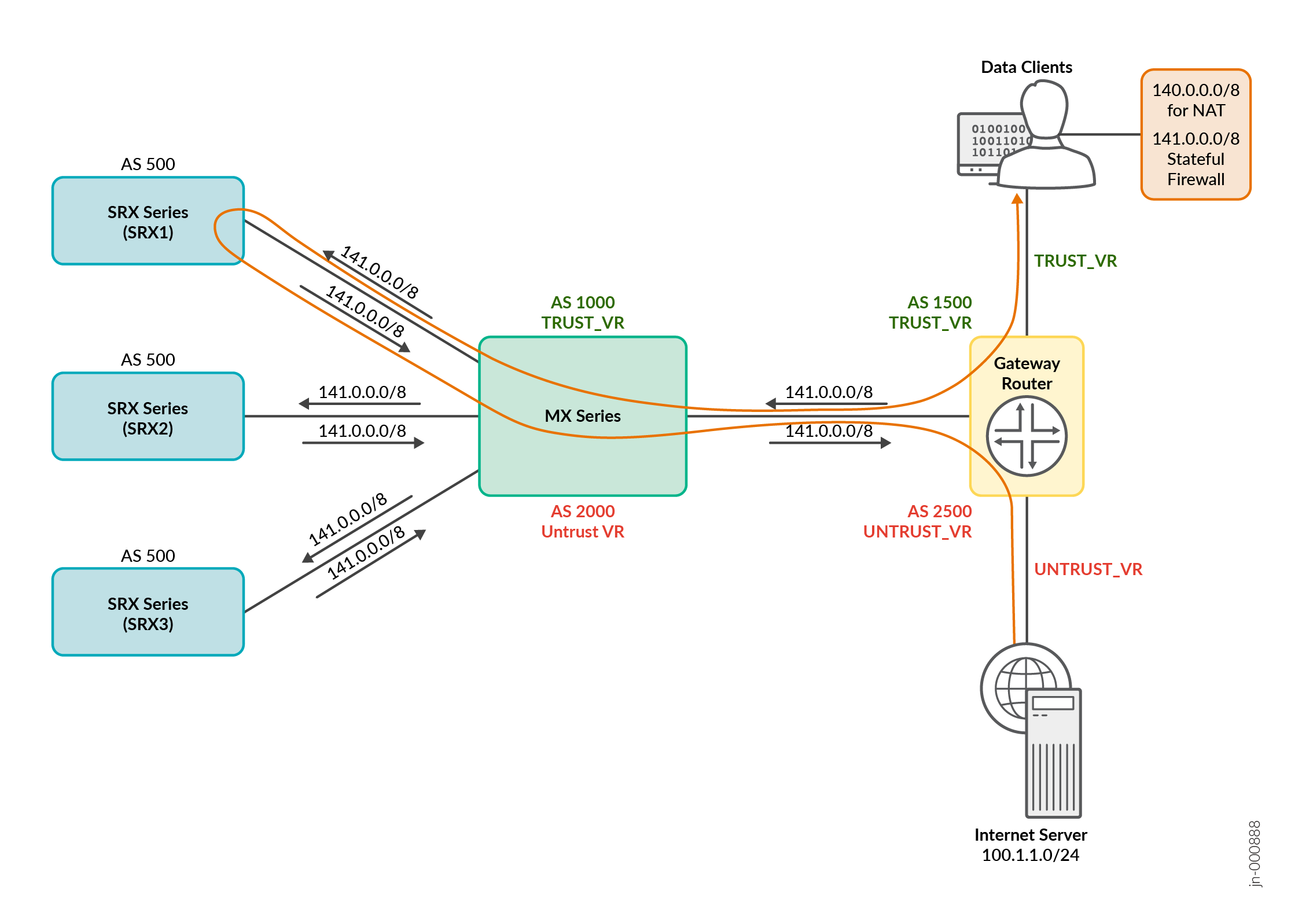

Figure 3: Route Advertisements for Reverse Flow for Stateful Firewall Services Route Advertisements for Reverse Flow for Stateful Firewall Services

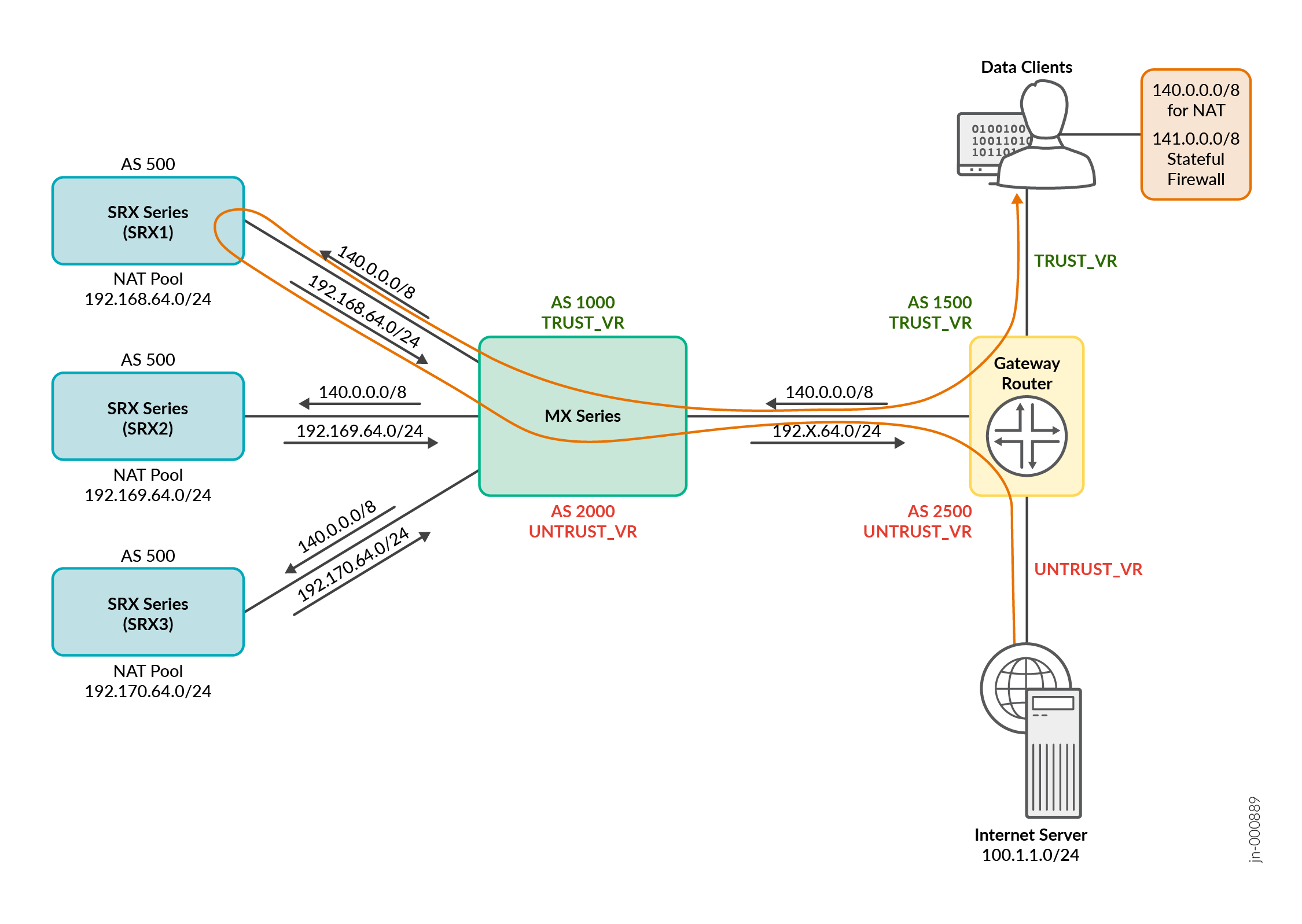

Figure 4: Route Advertisements for Reverse Flow for NAT44 Services Route Advertisements for Reverse Flow for NAT44 Services

Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, copy and paste the commands into the CLI at the [edit] hierarchy level, and then enter commit from configuration mode.

These configurations are captured from a lab environment and are provided for reference only. Actual configurations might vary based on the specific requirements of your environment.

The following items show a list of configuration components for this example:

  • Configure MX Series
  • Configure the Gateway router
  • Configure SRX1
  • Configure SRX2
  • Configure SRX3
Configure MX Series
content_copy zoom_out_map
[edit]
set interfaces et-0/0/0 gigether-options 802.3ad ae1
set interfaces et-0/0/1 gigether-options 802.3ad ae2
set interfaces et-0/0/2 gigether-options 802.3ad ae3
set interfaces et-0/0/7 gigether-options 802.3ad ae1
set interfaces et-0/0/8 gigether-options 802.3ad ae2
set interfaces et-0/0/9 gigether-options 802.3ad ae3
set interfaces et-0/0/10 gigether-options 802.3ad ae10
set interfaces et-0/0/11 gigether-options 802.3ad ae10
set interfaces et-0/1/0 gigether-options 802.3ad ae10
set interfaces et-0/1/1 gigether-options 802.3ad ae10
set interfaces et-0/1/2 gigether-options 802.3ad ae10
set interfaces ae1 vlan-tagging
set interfaces ae1 aggregated-ether-options minimum-links 1
set interfaces ae1 aggregated-ether-options lacp active
set interfaces ae1 aggregated-ether-options lacp periodic fast
set interfaces ae1 unit 0 vlan-id 1
set interfaces ae1 unit 0 family inet address 10.1.1.1/31
set interfaces ae1 unit 0 family inet6 address 10:1:1::1/127
set interfaces ae1 unit 1 vlan-id 2
set interfaces ae1 unit 1 family inet address 10.1.1.3/31
set interfaces ae1 unit 1 family inet6 address 10:1:1::3/127
set interfaces ae2 vlan-tagging
set interfaces ae2 aggregated-ether-options minimum-links 1
set interfaces ae2 aggregated-ether-options lacp active
set interfaces ae2 aggregated-ether-options lacp periodic fast
set interfaces ae2 unit 0 vlan-id 9
set interfaces ae2 unit 0 family inet address 10.1.1.9/31
set interfaces ae2 unit 0 family inet6 address 10:2:2::1/127
set interfaces ae2 unit 1 vlan-id 10
set interfaces ae2 unit 1 family inet address 10.1.1.11/31
set interfaces ae2 unit 1 family inet6 address 10:2:2::3/127
set interfaces ae3 vlan-tagging
set interfaces ae3 aggregated-ether-options minimum-links 1
set interfaces ae3 aggregated-ether-options lacp active
set interfaces ae3 aggregated-ether-options lacp periodic fast
set interfaces ae3 unit 0 vlan-id 9
set interfaces ae3 unit 0 family inet address 10.1.1.17/31
set interfaces ae3 unit 0 family inet6 address 10:3:3::1/127
set interfaces ae3 unit 1 vlan-id 10
set interfaces ae3 unit 1 family inet address 10.1.1.19/31
set interfaces ae3 unit 1 family inet6 address 10:3:3::3/127
set interfaces ae10 flexible-vlan-tagging
set interfaces ae10 encapsulation flexible-ethernet-services
set interfaces ae10 aggregated-ether-options minimum-links 1
set interfaces ae10 aggregated-ether-options lacp active
set interfaces ae10 aggregated-ether-options lacp periodic fast
set interfaces ae10 unit 40 vlan-id 40
set interfaces ae10 unit 40 family inet address 40.1.1.2/30
set interfaces ae10 unit 40 family inet6 address 40:1:1::2/124
set interfaces ae10 unit 80 vlan-id 80
set interfaces ae10 unit 80 family inet address 80.1.1.2/30
set interfaces ae10 unit 80 family inet6 address 80:1:1::2/124
set routing-instances TRUST_VR instance-type virtual-router
set routing-instances TRUST_VR routing-options autonomous-system 1000
set routing-instances TRUST_VR routing-options autonomous-system independent-domain no-attrset
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router type external
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router export def_route_for_client-2-server
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router peer-as 1500
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router local-as 1000
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router bfd-liveness-detection minimum-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router bfd-liveness-detection minimum-receive-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router bfd-liveness-detection multiplier 3
set routing-instances TRUST_VR protocols bgp group MX-to-TRUST_GW_Router neighbor 40.1.1.1
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 type external
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 import pfe_consistent_hash
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 export trust-to-untrust-export
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 peer-as 500
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 local-as 1000
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 multipath
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-receive-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection multiplier 3
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx1 neighbor 10.1.1.0
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 type external
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 import pfe_consistent_hash
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 export trust-to-untrust-export
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 peer-as 500
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 local-as 1000
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 multipath
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-receive-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection multiplier 3
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx2 neighbor 10.1.1.8
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 type external
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 import pfe_consistent_hash
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 export trust-to-untrust-export
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 peer-as 500
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 local-as 1000
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 multipath
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-receive-interval 300
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection multiplier 3
set routing-instances TRUST_VR protocols bgp group MX-to-vsrx3 neighbor 10.1.1.16
set routing-instances TRUST_VR interface ae1.0
set routing-instances TRUST_VR interface ae2.0
set routing-instances TRUST_VR interface ae3.0
set routing-instances TRUST_VR interface ae10.40
set policy-options policy-statement def_route_for_client-2-server term 1 from protocol bgp
set policy-options policy-statement def_route_for_client-2-server term 1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement def_route_for_client-2-server term 1 then next-hop self
set policy-options policy-statement def_route_for_client-2-server term 1 then accept
set policy-options policy-statement def_route_for_client-2-server term 2 then reject
set policy-options policy-statement pfe_consistent_hash from route-filter 0.0.0.0/0 exact
set policy-options policy-statement pfe_consistent_hash then load-balance consistent-hash
set policy-options policy-statement pfe_consistent_hash then accept
set policy-options policy-statement trust-to-untrust-export term 1 from protocol bgp
set policy-options policy-statement trust-to-untrust-export term 1 from protocol static
set policy-options policy-statement trust-to-untrust-export term 1 then next-hop self
set policy-options policy-statement trust-to-untrust-export term 1 then accept
set policy-options policy-statement trust-to-untrust-export term 2 then reject
set routing-instances UNTRUST_VR instance-type virtual-router
set routing-instances UNTRUST_VR routing-options autonomous-system 2000
set routing-instances UNTRUST_VR routing-options autonomous-system independent-domain no-attrset
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router type external
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router export client_sfw_and_nat_pool_prefix_export
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router peer-as 2500
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router local-as 2000
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router bfd-liveness-detection minimum-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router bfd-liveness-detection minimum-receive-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router bfd-liveness-detection multiplier 3
set routing-instances UNTRUST_VR protocols bgp group MX-to-UNTRUST_GW_Router neighbor 80.1.1.1
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 type external
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 import pfe_sfw_return_consistent_hash
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 export untrust-to-trust-export
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 peer-as 500
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 local-as 2000
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 multipath
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection minimum-receive-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 bfd-liveness-detection multiplier 3
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx1 neighbor 10.1.1.2
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 type external
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 import pfe_sfw_return_consistent_hash
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 export untrust-to-trust-export
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 peer-as 500
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 local-as 2000
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 multipath
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection minimum-receive-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 bfd-liveness-detection multiplier 3
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx2 neighbor 10.1.1.10
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 type external
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 import pfe_sfw_return_consistent_hash
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 export untrust-to-trust-export
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 peer-as 500
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 local-as 2000
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 multipath
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection minimum-receive-interval 300
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 bfd-liveness-detection multiplier 3
set routing-instances UNTRUST_VR protocols bgp group MX-to-vsrx3 neighbor 10.1.1.18
set routing-instances UNTRUST_VR interface ae1.1
set routing-instances UNTRUST_VR interface ae2.1
set routing-instances UNTRUST_VR interface ae3.1
set routing-instances UNTRUST_VR interface ae10.80
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 from protocol bgp
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 from route-filter 140.0.0.0/8 exact
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 from route-filter 141.0.0.0/8 exact
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 from route-filter 192.168.64.0/24 exact
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 from route-filter 192.169.64.0/24 exact
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 from route-filter 192.170.64.0/24 exact
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 then next-hop self
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 1 then accept
set policy-options policy-statement client_sfw_and_nat_pool_prefix_export term 2 then reject
set policy-options policy-statement pfe_sfw_return_consistent_hash from route-filter 140.0.0.0/8 exact
set policy-options policy-statement pfe_sfw_return_consistent_hash from route-filter 141.0.0.0/8 exact
set policy-options policy-statement pfe_sfw_return_consistent_hash then load-balance consistent-hash
set policy-options policy-statement pfe_sfw_return_consistent_hash then accept
set policy-options policy-statement untrust-to-trust-export term 1 from protocol bgp
set policy-options policy-statement untrust-to-trust-export term 1 from protocol static
set policy-options policy-statement untrust-to-trust-export term 1 then next-hop self
set policy-options policy-statement untrust-to-trust-export term 1 then accept
set policy-options policy-statement untrust-to-trust-export term 2 then reject
set policy-options policy-statement pfe_lb_hash term source_hash from route-filter 0.0.0.0/0 exact
set policy-options policy-statement pfe_lb_hash term source_hash then load-balance source-ip-only
set policy-options policy-statement pfe_lb_hash term source_hash then accept
set policy-options policy-statement pfe_lb_hash term dest_hash from route-filter 140.0.0.0/8 exact
set policy-options policy-statement pfe_lb_hash term dest_hash from route-filter 141.0.0.0/8 exact
set policy-options policy-statement pfe_lb_hash term dest_hash then load-balance destination-ip-only
set policy-options policy-statement pfe_lb_hash term dest_hash then accept
set policy-options policy-statement pfe_lb_hash term ALL-ELSE then load-balance per-packet
set policy-options policy-statement pfe_lb_hash term ALL-ELSE then accept
set routing-options forwarding-table export pfe_lb_hash
Configure Gateway Router
content_copy zoom_out_map
[edit]
set interfaces ae10 flexible-vlan-tagging
set interfaces ae10 encapsulation flexible-ethernet-services
set interfaces ae10 aggregated-ether-options minimum-links 1
set interfaces ae10 aggregated-ether-options lacp active
set interfaces ae10 aggregated-ether-options lacp periodic fast
set interfaces ae10 unit 40 vlan-id 40
set interfaces ae10 unit 40 family inet address 40.1.1.1/30
set interfaces ae10 unit 80 vlan-id 80
set interfaces ae10 unit 80 family inet address 80.1.1.1/30
set interfaces ae11 flexible-vlan-tagging
set interfaces ae11 encapsulation flexible-ethernet-services
set interfaces ae11 aggregated-ether-options minimum-links 1
set interfaces ae11 aggregated-ether-options lacp active
set interfaces ae11 aggregated-ether-options lacp periodic fast
set interfaces ae11 unit 41 vlan-id 41
set interfaces ae11 unit 41 family inet address 41.1.1.1/30
set interfaces ae11 unit 81 vlan-id 81
set interfaces ae11 unit 81 family inet address 81.1.1.1/30
set interfaces et-2/1/0 unit 0 family inet address 90.1.1.2/30
set routing-instances TRUST_VR instance-type virtual-router
set routing-instances TRUST_VR routing-options autonomous-system 1500
set routing-instances TRUST_VR routing-options static route 140.0.0.0/8 next-hop 90.1.1.1
set routing-instances TRUST_VR routing-options static route 141.0.0.0/8 next-hop 90.1.1.1
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust type external
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust export client_to_server_export
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust peer-as 1000
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust local-as 1500
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust bfd-liveness-detection minimum-interval 300
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust bfd-liveness-detection minimum-receive-interval 300
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust bfd-liveness-detection multiplier 3
set routing-instances TRUST_VR protocols bgp group trust_GW-to-MX1_trust neighbor 40.1.1.2
set routing-instances TRUST_VR protocols bgp multipath
set routing-instances TRUST_VR interface et-2/1/0.0
set routing-instances TRUST_VR interface ae10.40
set policy-options policy-statement client_to_server_export term 1 from protocol static
set policy-options policy-statement client_to_server_export term 1 from route-filter 141.0.0.0/8 orlonger
set policy-options policy-statement client_to_server_export term 1 from route-filter 140.0.0.0/8 orlonger
set policy-options policy-statement client_to_server_export term 1 then accept
set policy-options policy-statement client_to_server_export term 2 then reject
set routing-instances UNTRUST_VR instance-type virtual-router
set routing-instances UNTRUST_VR routing-options autonomous-system 2500
set routing-instances UNTRUST_VR routing-options static route 0.0.0.0/0 discard
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust type external
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust export server_to_client_export
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust peer-as 2000
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust local-as 2500
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust bfd-liveness-detection minimum-interval 300
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust bfd-liveness-detection minimum-receive-interval 300
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust bfd-liveness-detection multiplier 3
set routing-instances UNTRUST_VR protocols bgp group Untrust_GW-to-MX1_Untrust neighbor 80.1.1.2
set routing-instances UNTRUST_VR protocols bgp multipath
set routing-instances UNTRUST_VR interface et-2/1/1.0
set routing-instances UNTRUST_VR interface ae10.80
set policy-options policy-statement server_to_client_export term t1 from protocol static
set policy-options policy-statement server_to_client_export term t1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement server_to_client_export term t1 then accept
set policy-options policy-statement server_to_client_export term t2 then reject
set policy-options policy-statement ECMP_POLICY-LB then load-balance per-packet
set routing-options forwarding-table export ECMP_POLICY-LB
Configure SRX1
content_copy zoom_out_map
[edit]
set security zones security-zone vr-1_trust_zone host-inbound-traffic system-services all
set security zones security-zone vr-1_trust_zone host-inbound-traffic protocols all
set security zones security-zone vr-1_trust_zone interfaces ae1.0
set security zones security-zone vr-1_untrust_zone host-inbound-traffic system-services all
set security zones security-zone vr-1_untrust_zone host-inbound-traffic protocols all
set security zones security-zone vr-1_untrust_zone interfaces ae1.1
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match source-address sfw_source_prefix_140.0.0.0/8
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match destination-address any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match application any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY then permit
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match source-address sfw_source_prefix_141.0.0.0/8
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match destination-address any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match application any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY then permit
set security address-book global address sfw_source_prefix_140.0.0.0/8 140.0.0.0/8
set security address-book global address sfw_source_prefix_141.0.0.0/8 141.0.0.0/8
set security nat source pool vsrx1_nat_pool address 192.168.64.0/24
set security nat source pool vsrx1_nat_pool address-pooling paired
set security nat source rule-set vsrx1_nat_rule-set from zone vr-1_trust_zone
set security nat source rule-set vsrx1_nat_rule-set to zone vr-1_untrust_zone
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match source-address 140.0.0.0/8
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match destination-address 0.0.0.0/0
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match application any
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 then source-nat pool vsrx1_nat_pool
set interfaces et-1/0/0 gigether-options 802.3ad ae1
set interfaces et-1/0/1 gigether-options 802.3ad ae1
set interfaces ae1 vlan-tagging
set interfaces ae1 aggregated-ether-options minimum-links 1
set interfaces ae1 aggregated-ether-options lacp active
set interfaces ae1 aggregated-ether-options lacp periodic fast
set interfaces ae1 unit 0 vlan-id 1
set interfaces ae1 unit 0 family inet address 10.1.1.0/31
set interfaces ae1 unit 0 family inet6 address 10:1:1::0/127
set interfaces ae1 unit 1 vlan-id 2
set interfaces ae1 unit 1 family inet address 10.1.1.2/31
set interfaces ae1 unit 1 family inet6 address 10:1:1::2/127
set routing-instances VR-1 instance-type virtual-router
set routing-instances VR-1 routing-options static route 192.168.64.0/24 discard
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST type external
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST export trust_export_policy
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST local-as 500
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-receive-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection multiplier 3
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST neighbor 10.1.1.1 peer-as 1000
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST type external
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST export untrust_export_policy
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST local-as 500
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-receive-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection multiplier 3
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST neighbor 10.1.1.3 peer-as 2000
set routing-instances VR-1 interface ae1.0
set routing-instances VR-1 interface ae1.1
set policy-options policy-statement trust_export_policy term 1 from protocol bgp
set policy-options policy-statement trust_export_policy term 1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement trust_export_policy term 1 then next-hop self
set policy-options policy-statement trust_export_policy term 1 then accept
set policy-options policy-statement trust_export_policy term 2 then reject
set policy-options policy-statement untrust_export_policy term 1 from protocol bgp
set policy-options policy-statement untrust_export_policy term 1 from route-filter 141.0.0.0/8 orlonger
set policy-options policy-statement untrust_export_policy term 1 then accept
set policy-options policy-statement untrust_export_policy term 2 from protocol static
set policy-options policy-statement untrust_export_policy term 2 from route-filter 192.168.64.0/24 orlonger
set policy-options policy-statement untrust_export_policy term 2 then accept
set policy-options policy-statement untrust_export_policy term 3 then reject
set policy-options policy-statement ecmp_policy_lab then load-balance per-packet
set routing-options forwarding-table export ecmp_policy_lab
Configure SRX2
content_copy zoom_out_map
[edit]
set security zones security-zone vr-1_trust_zone host-inbound-traffic system-services all
set security zones security-zone vr-1_trust_zone host-inbound-traffic protocols all
set security zones security-zone vr-1_trust_zone interfaces ae1.0
set security zones security-zone vr-1_untrust_zone host-inbound-traffic system-services all
set security zones security-zone vr-1_untrust_zone host-inbound-traffic protocols all
set security zones security-zone vr-1_untrust_zone interfaces ae1.1
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match source-address sfw_source_prefix_140.0.0.0/8
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match destination-address any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match application any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY then permit
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match source-address sfw_source_prefix_141.0.0.0/8
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match destination-address any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match application any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY then permit
set security address-book global address sfw_source_prefix_140.0.0.0/8 140.0.0.0/8
set security address-book global address sfw_source_prefix_141.0.0.0/8 141.0.0.0/8
set security nat source pool vsrx1_nat_pool address 192.169.64.0/24
set security nat source pool vsrx1_nat_pool address-pooling paired
set security nat source rule-set vsrx1_nat_rule-set from zone vr-1_trust_zone
set security nat source rule-set vsrx1_nat_rule-set to zone vr-1_untrust_zone
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match source-address 140.0.0.0/8
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match destination-address 0.0.0.0/0
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match application any
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 then source-nat pool vsrx1_nat_pool
set interfaces et-1/0/0 gigether-options 802.3ad ae1
set interfaces et-1/0/1 gigether-options 802.3ad ae1
set interfaces ae1 vlan-tagging
set interfaces ae1 aggregated-ether-options minimum-links 1
set interfaces ae1 aggregated-ether-options lacp active
set interfaces ae1 aggregated-ether-options lacp periodic fast
set interfaces ae1 unit 0 vlan-id 9
set interfaces ae1 unit 0 family inet address 10.1.1.8/31
set interfaces ae1 unit 0 family inet6 address 10:2:2::0/127
set interfaces ae1 unit 1 vlan-id 10
set interfaces ae1 unit 1 family inet address 10.1.1.10/31
set interfaces ae1 unit 1 family inet6 address 10:2:2::2/127
set routing-instances VR-1 instance-type virtual-router
set routing-instances VR-1 routing-options static route 192.169.64.0/24 discard
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST type external
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST export trust_export_policy
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST local-as 500
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-receive-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection multiplier 3
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST neighbor 10.1.1.9 peer-as 1000
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST type external
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST export untrust_export_policy
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST local-as 500
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-receive-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection multiplier 3
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST neighbor 10.1.1.11 peer-as 2000
set routing-instances VR-1 interface ae1.0
set routing-instances VR-1 interface ae1.1
set policy-options policy-statement trust_export_policy term 1 from protocol bgp
set policy-options policy-statement trust_export_policy term 1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement trust_export_policy term 1 then next-hop self
set policy-options policy-statement trust_export_policy term 1 then accept
set policy-options policy-statement trust_export_policy term 2 then reject
set policy-options policy-statement untrust_export_policy term 1 from protocol bgp
set policy-options policy-statement untrust_export_policy term 1 from route-filter 141.0.0.0/8 orlonger
set policy-options policy-statement untrust_export_policy term 1 then accept
set policy-options policy-statement untrust_export_policy term 2 from protocol static
set policy-options policy-statement untrust_export_policy term 2 from route-filter 192.169.64.0/24 orlonger
set policy-options policy-statement untrust_export_policy term 2 then accept
set policy-options policy-statement untrust_export_policy term 3 then reject
set policy-options policy-statement ecmp_policy_lab then load-balance per-packet
set routing-options forwarding-table export ecmp_policy_lab
Configure SRX3
content_copy zoom_out_map
[edit]
set security zones security-zone vr-1_trust_zone host-inbound-traffic system-services all
set security zones security-zone vr-1_trust_zone host-inbound-traffic protocols all
set security zones security-zone vr-1_trust_zone interfaces ae1.0
set security zones security-zone vr-1_untrust_zone host-inbound-traffic system-services all
set security zones security-zone vr-1_untrust_zone host-inbound-traffic protocols all
set security zones security-zone vr-1_untrust_zone interfaces ae1.1
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match source-address sfw_source_prefix_140.0.0.0/8
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match destination-address any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY match application any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SNAT_NAPT44_POLICY then permit
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match source-address sfw_source_prefix_141.0.0.0/8
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match destination-address any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY match application any
set security policies from-zone vr-1_trust_zone to-zone vr-1_untrust_zone policy SFW_POLICY then permit
set security address-book global address sfw_source_prefix_140.0.0.0/8 140.0.0.0/8
set security address-book global address sfw_source_prefix_141.0.0.0/8 141.0.0.0/8
set security nat source pool vsrx1_nat_pool address 192.170.64.0/24
set security nat source pool vsrx1_nat_pool address-pooling paired
set security nat source rule-set vsrx1_nat_rule-set from zone vr-1_trust_zone
set security nat source rule-set vsrx1_nat_rule-set to zone vr-1_untrust_zone
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match source-address 140.0.0.0/8
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match destination-address 0.0.0.0/0
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 match application any
set security nat source rule-set vsrx1_nat_rule-set rule vsrx1_nat_rule1 then source-nat pool vsrx1_nat_pool
set interfaces et-1/0/0 gigether-options 802.3ad ae1
set interfaces et-1/0/1 gigether-options 802.3ad ae1
set interfaces ae1 vlan-tagging
set interfaces ae1 aggregated-ether-options minimum-links 1
set interfaces ae1 aggregated-ether-options lacp active
set interfaces ae1 aggregated-ether-options lacp periodic fast
set interfaces ae1 unit 0 vlan-id 9
set interfaces ae1 unit 0 family inet address 10.1.1.16/31
set interfaces ae1 unit 0 family inet6 address 10:3:3::0/127
set interfaces ae1 unit 1 vlan-id 10
set interfaces ae1 unit 1 family inet address 10.1.1.18/31
set interfaces ae1 unit 1 family inet6 address 10:3:3::2/127
set routing-instances VR-1 instance-type virtual-router
set routing-instances VR-1 routing-options static route 192.170.64.0/24 discard
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST type external
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST export trust_export_policy
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST local-as 500
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection minimum-receive-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST bfd-liveness-detection multiplier 3
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_TRUST neighbor 10.1.1.17 peer-as 1000
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST type external
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST export untrust_export_policy
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST local-as 500
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection minimum-receive-interval 300
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST bfd-liveness-detection multiplier 3
set routing-instances VR-1 protocols bgp group Vsrx-to-MX_UNTRUST neighbor 10.1.1.19 peer-as 2000
set routing-instances VR-1 interface ae1.0
set routing-instances VR-1 interface ae1.1
set policy-options policy-statement trust_export_policy term 1 from protocol bgp
set policy-options policy-statement trust_export_policy term 1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement trust_export_policy term 1 then next-hop self
set policy-options policy-statement trust_export_policy term 1 then accept
set policy-options policy-statement trust_export_policy term 2 then reject
set policy-options policy-statement untrust_export_policy term 1 from protocol bgp
set policy-options policy-statement untrust_export_policy term 1 from route-filter 141.0.0.0/8 orlonger
set policy-options policy-statement untrust_export_policy term 1 then accept
set policy-options policy-statement untrust_export_policy term 2 from protocol static
set policy-options policy-statement untrust_export_policy term 2 from route-filter 192.170.64.0/24 orlonger
set policy-options policy-statement untrust_export_policy term 2 then accept
set policy-options policy-statement untrust_export_policy term 3 then reject
set policy-options policy-statement ecmp_policy_lab then load-balance per-packet
set routing-options forwarding-table export ecmp_policy_lab

Verification

The following items highlight a list of show commands used to verify the feature in this example.

  • Verify MX Series configuration
  • Verify SRX1 configuration
  • Verify SRX2 configuration
  • Verify SRX3 configuration
Verify MX Series Configuration
content_copy zoom_out_map
user@MX304> show route table TRUST_VR.inet 0.0.0.0/0 exact active-path
              TRUST_VR.inet.0: 11 destinations, 13 routes (11 active, 0 holddown, 0 hidden)
              + = Active Route, - = Last Active, * = Both
              0.0.0.0/0          *[BGP/170] 04:17:13, localpref 100
                                   AS path: 500 2000 2500 I, validation-state: unverified
                                 >  to 10.1.1.0 via ae1.0
                                    to 10.1.1.8 via ae2.0
                                    to 10.1.1.16 via ae3.0
content_copy zoom_out_map
user@MX304> show route table TRUST_VR.inet 0.0.0.0/0 exact active-path extensive
              TRUST_VR.inet.0: 11 destinations, 13 routes (11 active, 0 holddown, 0 hidden)
              0.0.0.0/0 (3 entries, 1 announced)
              TSI:
              KRT in-kernel 0.0.0.0/0 -> {list:10.1.1.0, 10.1.1.8, 10.1.1.16 Flags source ip load-balance}
              Page 0 idx 1, (group MX-to-TRUST_GW_Router type External) Type 1 val 0x12b05d48 (adv_entry)
                Advertised metrics:
                  Flags: Nexthop Change
                  Nexthop: Self
                  AS path: [1000] 500 2000 2500 I
                  Communities:
                 Advertise: 00000001
              Path 0.0.0.0
              from 10.1.1.0
              Vector len 4.  Val: 1
                     *BGP    Preference: 170/-101
                             Next hop type: Router, Next hop index: 0
                             Address: 0xf91865c
                             Next-hop reference count: 2, Next-hop session id: 0
                             Kernel Table Id: 0
                             Source: 10.1.1.0
                             Next hop: 10.1.1.0 via ae1.0, selected
                             Session Id: 0
                             Next hop: 10.1.1.8 via ae2.0
                             Session Id: 0
                             Next hop: 10.1.1.16 via ae3.0
                             Session Id: 0
                             State: <Active Ext LoadBalConsistentHash>
                             Local AS:  1000 Peer AS:   500
                             Age: 4:17:17
                             Validation State: unverified
                             Task: BGP_500_1000.10.1.1.0
                             Announcement bits (3): 0-KRT 1-BGP_Multi_Path 2-BGP_RT_Background
                             AS path: 500 2000 2500 I
                             Accepted Multipath
                             Localpref: 100
                             Router ID: 10.1.1.0
                             Thread: junos-main
content_copy zoom_out_map
user@MX304> show route table UNTRUST_VR.inet 141/8 active-path
              UNTRUST_VR.inet.0: 13 destinations, 15 routes (13 active, 0 holddown, 0 hidden)
              + = Active Route, - = Last Active, * = Both
              141.0.0.0/8        *[BGP/170] 04:18:15, localpref 100, from 10.1.1.2
                                   AS path: 500 1000 1500 I, validation-state: unverified
                                    to 10.1.1.2 via ae1.1
                                    to 10.1.1.10 via ae2.1
                                 >  to 10.1.1.18 via ae3.1
content_copy zoom_out_map
user@MX304> show route table UNTRUST_VR.inet 141/8 active-path extensive
              UNTRUST_VR.inet.0: 13 destinations, 15 routes (13 active, 0 holddown, 0 hidden)
              141.0.0.0/8 (3 entries, 1 announced)
              TSI:
              KRT in-kernel 141.0.0.0/8 -> {list:10.1.1.2, 10.1.1.10, 10.1.1.18 Flags destination ip load-balance}
              Page 0 idx 1, (group MX-to-UNTRUST_GW_Router type External) Type 1 val 0x12b073d0 (adv_entry)
                Advertised metrics:
                  Flags: Nexthop Change
                  Nexthop: Self
                  AS path: [2000] 500 1000 1500 I
                  Communities:
                 Advertise: 00000001
              Path 141.0.0.0
              from 10.1.1.2
              Vector len 4.  Val: 1
                     *BGP    Preference: 170/-101
                             Next hop type: Router, Next hop index: 0
                             Address: 0xf918b24
                             Next-hop reference count: 2, Next-hop session id: 0
                             Kernel Table Id: 0
                             Source: 10.1.1.2
                             Next hop: 10.1.1.2 via ae1.1
                             Session Id: 0
                             Next hop: 10.1.1.10 via ae2.1
                             Session Id: 0
                             Next hop: 10.1.1.18 via ae3.1, selected
                             Session Id: 0
                             State: <Active Ext LoadBalConsistentHash>
                             Local AS:  2000 Peer AS:   500
                             Age: 4:18:17
                             Validation State: unverified
                             Task: BGP_500_2000.10.1.1.2
                             Announcement bits (3): 0-KRT 1-BGP_Multi_Path 2-BGP_RT_Background
                             AS path: 500 1000 1500 I
                             Accepted Multipath
                             Localpref: 100
                             Router ID: 10.1.1.0
                             Thread: junos-main
content_copy zoom_out_map
user@MX304> show route table UNTRUST_VR.inet 192/8
              UNTRUST_VR.inet.0: 13 destinations, 15 routes (13 active, 0 holddown, 0 hidden)
              + = Active Route, - = Last Active, * = Both
              192.168.64.0/24    *[BGP/170] 03:31:16, localpref 100
                                   AS path: 500 I, validation-state: unverified
                                 >  to 10.1.1.2 via ae1.1
              192.169.64.0/24    *[BGP/170] 03:31:21, localpref 100
                                   AS path: 500 I, validation-state: unverified
                                 >  to 10.1.1.10 via ae2.1
              192.170.64.0/24    *[BGP/170] 03:31:27, localpref 100
                                   AS path: 500 I, validation-state: unverified
                                 >  to 10.1.1.18 via ae3.1
content_copy zoom_out_map
user@MX304> show bgp summary
              Warning: License key missing; requires 'bgp' license
              Threading mode: BGP I/O
              Default eBGP mode: advertise - accept, receive - accept
              Groups: 8 Peers: 8 Down peers: 0
              Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
              10.1.1.0                500        606        593       0       1     4:31:25 Establ
               TRUST_VR.inet.0: 1/1/1/0
              10.1.1.2                500        606        593       0       1     4:31:25 Establ
               UNTRUST_VR.inet.0: 2/2/2/0
              10.1.1.8                500        588        576       0       1     4:23:27 Establ
               TRUST_VR.inet.0: 1/1/1/0
              10.1.1.10               500        589        576       0       1     4:23:27 Establ
               UNTRUST_VR.inet.0: 2/2/2/0
              10.1.1.16               500        578        566       0       1     4:18:56 Establ
               TRUST_VR.inet.0: 1/1/1/0
              10.1.1.18               500        579        566       0       1     4:18:56 Establ
               UNTRUST_VR.inet.0: 2/2/2/0
              40.1.1.1               1500      12472      12247       0       1 3d 23:18:01 Establ
               TRUST_VR.inet.0: 2/2/2/0
              80.1.1.1               2500      12471      12257       0       1 3d 23:18:01 Establ
               UNTRUST_VR.inet.0: 1/1/1/0
content_copy zoom_out_map
user@MX304> show bfd session
              Warning: License key missing; requires 'bfd-liveness-detection' license
                                                               Detect   Transmit
              Address                  State     Interface      Time     Interval  Multiplier
              10.1.1.0                 Up        ae1.0          0.900     0.300        3
              10.1.1.2                 Up        ae1.1          0.900     0.300        3
              10.1.1.8                 Up        ae2.0          0.900     0.300        3
              10.1.1.10                Up        ae2.1          0.900     0.300        3
              10.1.1.16                Up        ae3.0          0.900     0.300        3
              10.1.1.18                Up        ae3.1          0.900     0.300        3
              40.1.1.1                 Up        ae10.40        0.900     0.300        3
              80.1.1.1                 Up        ae10.80        0.900     0.300        3
              8 sessions, 8 clients
              Cumulative transmit rate 26.7 pps, cumulative receive rate 26.7 pps
Verify SRX1 Configuration
content_copy zoom_out_map
user@SRX1> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.1               1000        596        606       0       0     4:32:18 Establ
  VR-1.inet.0: 2/2/2/0
10.1.1.3               2000        596        606       0       0     4:32:18 Establ
  VR-1.inet.0: 1/1/1/0
content_copy zoom_out_map
user@SRX1> show bfd session
                                                  Detect   Transmit
Address                  State     Interface      Time     Interval  Multiplier
10.1.1.1                 Up        ae1.0          0.900     0.300        3
10.1.1.3                 Up        ae1.1          0.900     0.300        3
2 sessions, 2 clients
Cumulative transmit rate 6.7 pps, cumulative receive rate 6.7 pps
content_copy zoom_out_map
user@SRX1> show route 0.0.0.0/0 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
0.0.0.0/0          *[BGP/170] 04:33:13, localpref 100
                      AS path: 2000 2500 I, validation-state: unverified
                    >  to 10.1.1.3 via ae1.1
content_copy zoom_out_map
user@SRX1> show route 140/8 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
140.0.0.0/8        *[BGP/170] 04:33:20, localpref 100
                      AS path: 1000 1500 I, validation-state: unverified
                    >  to 10.1.1.1 via ae1.0
content_copy zoom_out_map
user@SRX1> show route 141/8 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
141.0.0.0/8        *[BGP/170] 04:33:23, localpref 100
                      AS path: 1000 1500 I, validation-state: unverified
                    >  to 10.1.1.1 via ae1.0
Verify SRX2 Configuration
content_copy zoom_out_map
user@SRX2> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.9               1000        601        611       0       0     4:34:20 Establ
  VR-1.inet.0: 2/2/2/0
10.1.1.11              2000        600        611       0       0     4:34:20 Establ
  VR-1.inet.0: 1/1/1/0
content_copy zoom_out_map
user@SRX2> show bfd session
                                                  Detect   Transmit
Address                  State     Interface      Time     Interval  Multiplier
10.1.1.9                 Up        ae1.0          0.900     0.300        3
10.1.1.11                Up        ae1.1          0.900     0.300        3
2 sessions, 2 clients
Cumulative transmit rate 6.7 pps, cumulative receive rate 6.7 pps
content_copy zoom_out_map
user@SRX2> show route 0.0.0.0/0 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
0.0.0.0/0          *[BGP/170] 04:34:30, localpref 100
                      AS path: 2000 2500 I, validation-state: unverified
                    >  to 10.1.1.11 via ae1.1
content_copy zoom_out_map
user@SRX2> show route 140/8 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
140.0.0.0/8        *[BGP/170] 04:36:20, localpref 100
                      AS path: 1000 1500 I, validation-state: unverified
                    >  to 10.1.1.9 via ae1.0
content_copy zoom_out_map
user@SRX2> show route 141/8 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
141.0.0.0/8        *[BGP/170] 04:36:24, localpref 100
                      AS path: 1000 1500 I, validation-state: unverified
                    >  to 10.1.1.9 via ae1.0
Verify SRX3 Configuration
content_copy zoom_out_map
user@SRX3> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.1.1.17              1000        622        632       0       0     4:44:11 Establ
  VR-1.inet.0: 2/2/2/0
10.1.1.19              2000        622        634       0       0     4:44:11 Establ
  VR-1.inet.0: 1/1/1/0
content_copy zoom_out_map
user@SRX3> show bfd session
                                                  Detect   Transmit
Address                  State     Interface      Time     Interval  Multiplier
10.1.1.17                Up        ae1.0          0.900     0.300        3
10.1.1.19                Up        ae1.1          0.900     0.300        3
2 sessions, 2 clients
Cumulative transmit rate 6.7 pps, cumulative receive rate 6.7 pps
content_copy zoom_out_map
user@SRX3> show route 0.0.0.0/0 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
0.0.0.0/0          *[BGP/170] 04:44:23, localpref 100
                      AS path: 2000 2500 I, validation-state: unverified
                    >  to 10.1.1.19 via ae1.1
content_copy zoom_out_map
user@SRX3> show route 140/8 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
140.0.0.0/8        *[BGP/170] 04:44:51, localpref 100
                      AS path: 1000 1500 I, validation-state: unverified
                    >  to 10.1.1.17 via ae1.0
content_copy zoom_out_map
user@SRX3> show route 141/8 exact
VR-1.inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
141.0.0.0/8        *[BGP/170] 04:44:55, localpref 100
                      AS path: 1000 1500 I, validation-state: unverified
                    >  to 10.1.1.17 via ae1.0
arrow_backward PREVIOUS Example: Single MX Series (ECMP Based Consistent Hashing) and Scaled-Out SRX Series Firewalls (Standalone) for IPsec VPN
NEXT arrow_forward Example: Dual MX Series (ECMP Based Consistent Hashing) and Scaled-Out SRX Series Firewalls (Multinode HA) for NAT and Stateful Firewall
external-footer-nav
