Results Summary and Analysis
The JVD team has successfully validated E-Line, E-LAN, E-Tree, and Access E-Line services included in the Metro Ethernet Business Services JVD using Iometrix Lab in the Sky infrastructure. Over 12,000 test cases are executed to ensure the featured services meet MEF 3.0 compliance. The validation includes use cases delivered with EVPN-VPWS, EVPN Flexible Cross Connect, L2Circuit, L2VPN, and BGP-VPLS in the intra-AS and inter-AS scenarios.
The primary devices under test include MEF 3.0-certified products: ACX7024, ACX7100, ACX7509, and MX304. The below topology (Figure 1) illustrates the physical architecture built to support this solution in Juniper labs. Iometrix test probes are placed in the positions shown with blue icons to facilitate traffic flows and compliance examinations.
Throughout the validation, our goal is to remain aligned with MEF 3.0 mandatory certification requirements as defined by MEF 91 Carrier Ethernet Test Requirements standard. Test cases are categorized as mandatory or conditional mandatory.
- MANDATORY test cases, as included in MEF 3.0 certification, are covered by the JVD.
- CONDITIONAL MANDATORY test cases are not enforced, typically due to reliance upon optional features or attributes. In other words, these test scenarios only become mandatory when certain optional attributes are utilized. Depending on whether the conditions already exist in the Metro EBS network design, optional test cases may or may not be covered by the JVD.

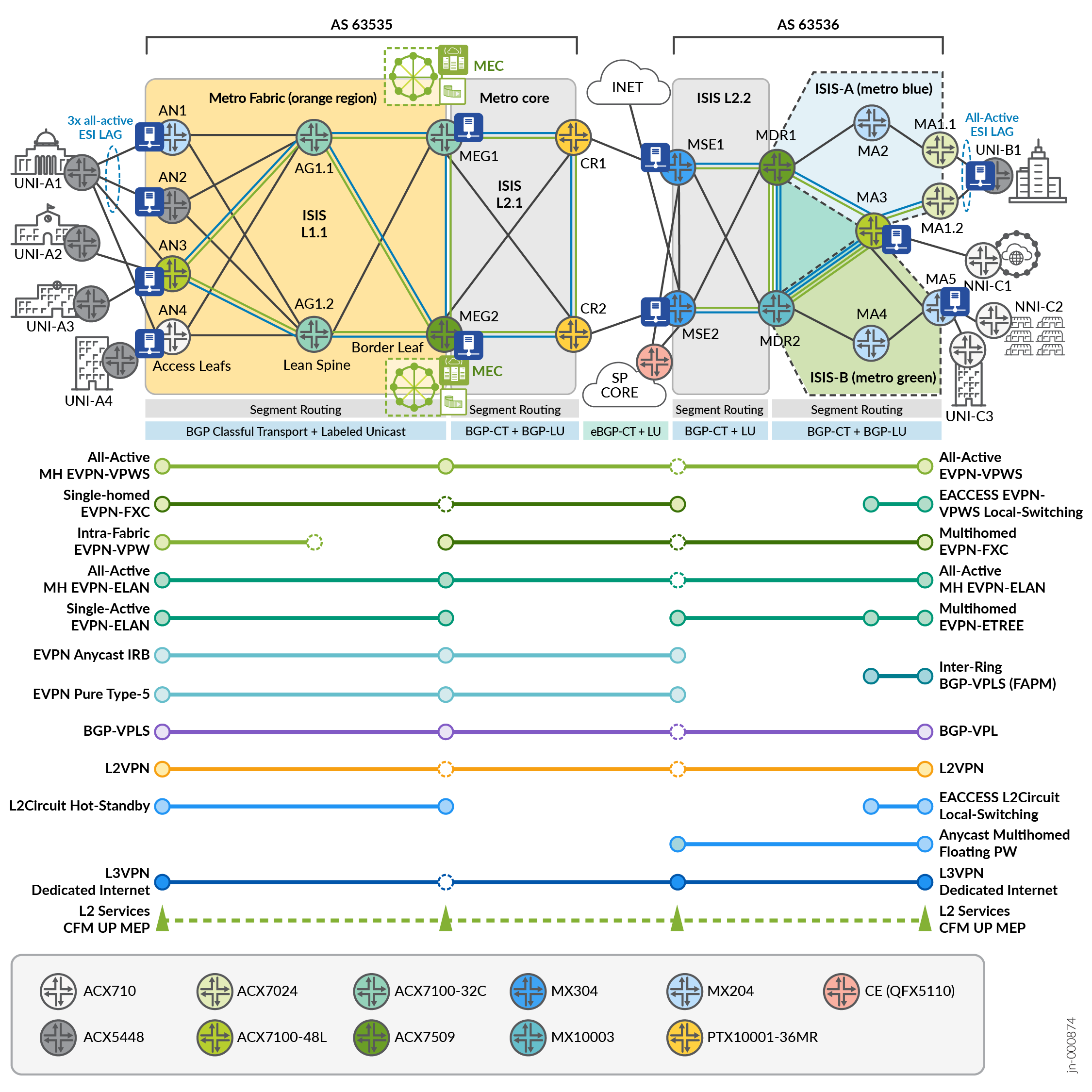

The solution architecture supports additional features and functionalities defined by MEF but beyond the scope of the unconditional mandatory certification criteria. Future JVD iterations may expand testing to include optional attributes.
In some cases, optional (conditional mandatory) attributes are covered to preserve the intentionality of the JVD itself, such as UNI resiliency. The test data identifies certification applicability criteria with additional columns to clearly identify areas where the validation tested beyond the scope of MEF 3.0 requirements.
.png)
The JVD validation focused on the following five major categories of test scenarios related to MEF 3.0. The test cases are executed from Iometrix Lab in the Sky infrastructure. All included test cases passed without exception.
- Functional Service Attributes and Parameters
- Layer 2 Control Protocol Frame Behaviors
- Service OAM Functionalities
- Bandwidth Profile Attributes and Parameters
- Service Performance Attributes and Parameters
Functional Service Attributes and Parameters
This category validates service functionalities and attributes defined for service types, including E-Line, E-LAN, E-Tree, and Access E-Line. It ensures these services meet the necessary operational characteristics and behaviors, such as Ethernet Virtual Connections (EVCs), VLAN handling, and service multiplexing.
Table 1 summarizes functional testing included in the JVD. For additional test information, see the Test Report Brief or contact your Juniper representative.
In each case, the number of endpoints is adjusted based on the service type. For example, E-LAN and E-Tree include a minimum of 3 sites, and E-Line is always two sites. As a result, test cases have additional multipliers (not shown below) to validate all possible combinations.
The Access E-Line test cases share similar functional goals as E-Line, E-LAN, and E-Tree but with a focus on validating OVC endpoints related to ENNI operations with single and double-tagged frames.
Test Type | Test Name | Service Type |
---|---|---|
Functional | Class of Service attributes and behaviors | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | EVC Service attributes | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | Non-Looping Frame Delivery for Broadcast, Multicast, and Unknown Unicast (High, Med, Low) | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | CE-VLAN Preservation for Untagged Service Frames | EPL, EP-LAN |
Functional | CE-VLAN Preservation for Tagged Service Frames (High, Med, Low) | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | CE-VLAN Preservation Priority Tagged Service Frames (High, Med, Low) | EPL, EP-LAN |
Functional | CE-VLAN Preservation Tagged Service Frames PCP 0-1 (Low) | EPL, EP-LAN |
Functional | CE-VLAN Preservation Tagged Service Frames PCP 2-3 (Med) | EPL, EP-LAN |
Functional | CE-VLAN Preservation Tagged Service Frames PCP 4-5 (High) | EPL, EP-LAN |
Functional | CE-VLAN Preservation Priority Tagged Service Frames PCP 0-1 (Low) | EPL, EP-LAN |
Functional | CE-VLAN Preservation Priority Tagged Service Frames PCP 2-3 (Med) | EPL, EP-LAN |
Functional | CE-VLAN Preservation Priority Tagged Service Frames PCP 4-5 (High) | EPL, EP-LAN |
Functional | CE-VLAN DEI Preservation Tagged Service Frames DEI 0-1 (High, Med, Low) | EPL, EP-LAN |
Functional | CE-VLAN DEI Preservation Priority Tagged Service Frames DEI 0-1 (High, Med, Low) | EPL, EP-LAN |
Functional | UNI Physical Layer, Mode, and Speed (High, Med, Low) | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | EVC Maximum Service Frame Size for Untagged | EPL, EP-LAN |
Functional | EVC Maximum Service Frame Size for Tagged (High, Med, Low) | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | CE-VLAN ID/EVC Map Service Frame Discard (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
Functional | Maximum CE-VLAN IDs per EVC EPs with All-to-One Bundling Enabled | EPL, EP-LAN |
Functional | Single Copy of Service Frame Delivery in Multipoint EVC for Broadcast (High, Med, Low) | EPL, EP-LAN, EVP-TREE |
Functional | Single Copy of Service Frame Delivery in Multipoint EVC for Multicast (High, Med, Low) | EPL, EP-LAN, EVP-TREE |
Functional | Single Copy of Service Frame Delivery in Multipoint EVC for Unknown Unicast (High, Med, Low) | EPL, EP-LAN, EVP-TREE |
Functional | Service Frame Transparency for Tagged to Tagged (High, Med, Low) | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
Functional | Service Frame Transparency for Untagged to Untagged | EPL, EP-LAN |
Functional | Service Frame Transparency for Priority Tagged to Priority Tagged (High, Med, Low) | EPL, EP-LAN |
Functional | Class of Service attributes and behaviors | Access E-Line |
Functional | OVC Service attributes | Access E-Line |
Functional | OVC CE-VLAN ID Preservation for Double-Tagged ENNI Frame (High, Med, Low) | Access E-Line |
Functional | Maximum Number of CE-VLAN ID per OVC EPs at the UNI with Custom number of CE-VLAN IDs for Double Tagged ENNI Frame (High, Med, Low) | Access E-Line |
Functional | OVC CE-VLAN PCP Preservation for Double-Tagged ENNI Frames PCP 0-1 (Low) | Access E-Line |
Functional | OVC CE-VLAN PCP Preservation for Double-Tagged ENNI Frames PCP 2-3 (Med) | Access E-Line |
Functional | OVC CE-VLAN PCP Preservation for Double-Tagged ENNI Frames PCP 4-5 (High) | Access E-Line |
Functional | ENNI Physical Layer, Mode, and Speed with Double-Tagged ENNI Frame (High, Med, Low) | Access E-Line |
Functional | OVC Maximum Frame Size with Double-Tagged ENNI Frame (High, Med, Low) | Access E-Line |
Functional | OVC End Point Map with ENNI Frame Discard (High, Med, Low) | Access E-Line |
Functional | OVC CE-VLAN ID Preservation with Tagged Service Frame (High, Med, Low) | Access E-Line |
Functional | Maximum Number of CE-VLAN ID per OVC EPs at the UNI with Custom number of CE-VLAN IDs for Tagged Service Frame (High, Med, Low) | Access E-Line |
Functional | OVC CE-VLAN PCP Preservation for Tagged ENNI Frames PCP 0-1 (Low) | Access E-Line |
Functional | OVC CE-VLAN PCP Preservation for Tagged ENNI Frames PCP 2-3 (Med) | Access E-Line |
Functional | OVC CE-VLAN PCP Preservation for Tagged ENNI Frames PCP 4-5 (High) | Access E-Line |
Functional | UNI Physical Layer, Mode and Speed for Tagged Service Frame (High, Med, Low) | Access E-Line |
Functional | OVC Maximum Frame Size for Tagged Service Frame (High, Med, Low) | Access E-Line |
Functional Test Cases: PASS
L2CP and SOAM Frame Behavior
This category tests the handling of Layer 2 Control Protocols (L2CP) and Service OAM (SOAM) frames, ensuring they are properly processed and managed by the system. It involves testing the correct tunneling and forwarding of control and management frames (for example, CCM, LBM, LTM, LTR). The validation ensures frames are properly identified and handled according to MEF network operation and maintenance standards. Where applicable, Class of Service attributes are included.
L2CP test cases are validated based on MEF frame handling expectations (MEF 45.1). The treatment of L2CP frames is dependent on whether the service is C-TAG Aware (CTA) or C-TAG Blind (CTB). In this context, CTA is referenced as VLAN-based, and CTB is referenced as a port-based service type.
JUNOS-Evolved ACX devices leverage the [mef-forwarding-profile] persona to allow customers flexible default behaviors for handling L2CP frame filtering. Without the MEF forwarding profile, the majority of L2CP MAC types are forwarded by design. Once the MEF forwarding profile is enabled, key L2CP MACs are filtered or forwarded based on MEF expectations for VLAN-based (CTA) or port-based (CTB) services. For strict alignment, firewall filtering allows selective MAC filtering treatment. Both approaches are used in the JVD with all configurations provided.
Table 2 explains MEF test cases comparing JUNOS-EVO behavior with and without enabling the MEF forwarding profile. By default, MX Series Routers implement the MEF Profile behavior without additional configuration.
For VLAN-based services, the expectation is to filter all L2CP MACs. This is the behavior when configuring the MEF forwarding profile. For additional test information, see the Test Report Brief or contact your Juniper representative.
Layer 2 Control Protocol MAC | MEF Behavior | MEF Profile Enabled | MEF Profile Disabled |
---|---|---|---|
01-80-C2-00-00-01 IEEE MAC Specific Destination Address | Filtered | Filtered | Filtered |
01-80-C2-00-00-02 IEEE Slow Protocols LACP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-02 IEEE Slow Protocols Marker Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-02 IEEE Slow Protocols Link OAM Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-03 Nearest Non-TMPR Bridge Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-04 IEEE MAC Specific Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-05 Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-06 Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-07 MEF E-LMI Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-08 Provider Bridge Group Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-09 Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0A Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0E Nearest Bridge Individual LAN PTPv2 Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0E Nearest Bridge Individual LAN LLDP Destination Address | Filtered | Filtered | Filtered |
01-80-C2-00-00-20 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-21 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-22 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-23 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-24 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-25 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-26 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-27 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-28 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-29 MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-2A MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-2B MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-2C MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-2D MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-2E MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-2F MRP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-00 Nearest Customer Bridge Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0B Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0C Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0D Provider Bridge MVRPs Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0F Reserved Destination Address | Filtered | Filtered | Forwarded |
L2CP Test Cases: PASS
For Port-based services, the behavior is slightly different with more transparent processing of L2CP frames. In this case, with the MEF Profile configured, most L2CP MACs specified in MEF 45.1 have matching behavior, but the default actions allow extensibility to support CTB Option-2. A firewall filter can be used to filter the additional L2CP MACs selectively. For additional test information, see the Test Report Brief or contact your Juniper representative.
Layer 2 Control Protocol MAC | MEF Behavior | MEF Profile Enabled | MEF Profile Disabled |
---|---|---|---|
01-80-C2-00-00-01 IEEE MAC Specific Destination Address | Filtered | Filtered | Filtered |
01-80-C2-00-00-02 IEEE Slow Protocols LACP Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-02 IEEE Slow Protocols Marker Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-02 IEEE Slow Protocols Link OAM Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-03 Nearest Non-TMPR Bridge Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-04 IEEE MAC Specific Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-05 Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-06 Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-07 MEF E-LMI Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-08 Provider Bridge Group Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-09 Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0A Reserved Destination Address | Filtered | Filtered | Forwarded |
01-80-C2-00-00-0E Nearest Bridge Individual LAN PTPv2 Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-0E Nearest Bridge Individual LAN LLDP Destination Address | Filtered | Forwarded | Filtered |
01-80-C2-00-00-20 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-21 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-22 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-23 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-24 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-25 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-26 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-27 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-28 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-29 MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-2A MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-2B MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-2C MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-2D MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-2E MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-2F MRP Destination Address | Filtered | Forwarded | Forwarded |
01-80-C2-00-00-00 Nearest Customer Bridge Destination Address | Forwarded | Forwarded | Forwarded |
01-80-C2-00-00-0B Reserved Destination Address | Forwarded | Forwarded | Forwarded |
01-80-C2-00-00-0C Reserved Destination Address | Forwarded | Forwarded | Forwarded |
01-80-C2-00-00-0D Provider Bridge MVRPs Destination Address | Forwarded | Forwarded | Forwarded |
01-80-C2-00-00-0F Reserved Destination Address | Forwarded | Forwarded | Forwarded |
L2CP Test Cases: PASS
The L2CP validation includes the MEF forwarding profile configuration on ACX7000 platforms with an additional filter-set to match MEF CTB behavior expectations. The UNI configuration is applicable to any device with [ mef-forwarding-profile ] configuration. This configuration may be excluded for more selective L2CP processing behavior using only a firewall filter.
In this portion of the validation, two configuration variants are used. For VLAN-based services (CTA), only the MEF forwarding profile is used. MX Series Routers implement this behavior by default for VLAN-based services.
The second portion of the configuration (shown below) is for supporting port-based (CTB) services, which includes the MEF forwarding profile and an additional firewall filter for selectively discarding the specified L2CP MACs.
VLAN-based and Port-based Services system { packet-forwarding-options { mef-forwarding-profile; } } firewall { family ethernet-switching { filter l2cp { interface-specific; term discard-l2cp { from { destination-mac-address { 01:80:c2:00:00:07/48; 01:80:c2:00:00:0e/48; 01:80:c2:00:00:20/48; 01:80:c2:00:00:21/48; 01:80:c2:00:00:22/48; 01:80:c2:00:00:23/48; 01:80:c2:00:00:2a/48; 01:80:c2:00:00:2d/48; 01:80:c2:00:00:2e/48; 01:80:c2:00:00:2f/48; 01:80:c2:00:00:2b/48; 01:80:c2:00:00:24/48; 01:80:c2:00:00:25/48; 01:80:c2:00:00:26/48; 01:80:c2:00:00:27/48; 01:80:c2:00:00:28/48; 01:80:c2:00:00:29/48; 01:80:c2:00:00:2c/48; } } then { count l2cp_discard; discard; } }
For more information about the configurations used in this JVD and in Metro Ethernet Business Services JVD, see Juniper GitHub Repository or contact your Juniper representative.
Table 4 summarizes Service OAM testing included in the JVD. Every row represents multiple test cases where service frames are validated with different MEG Levels, each with high, medium, and low CoS attributes. For additional test information, please see the Test Report Brief or contact your Juniper representative.
Test Type | Test Name | Service Type |
---|---|---|
SOAM | Continuity Check Message Transparency for Untagged CCM Service Frame - MEG Level 6 and Level 7 | EPL, EP-LAN |
SOAM | Multicast Loopback Message Transparency for Untagged LBM Service Frame - MEG Level 6 and Level 7 | EPL, EP-LAN |
SOAM | Unicast Loopback Message Transparency for Untagged LBM Service Frame - MEG Level 6 and Level 7 | EPL, EP-LAN |
SOAM | Loopback Response Transparency for Untagged LBR Service Frame - MEG Level 6 and Level 7 | EPL, EP-LAN |
SOAM | Linktrace Message Transparency for Untagged LTM Service Frame - MEG Level 6 and Level 7 | EPL, EP-LAN |
SOAM | Linktrace Response Transparency for Untagged LTR Service Frame - MEG Level 6 level 7 | EPL, EP-LAN |
SOAM | Continuity Check Message Transparency for Tagged CCM Service Frame - MEG Level 6-7 (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
SOAM | Multicast Loopback Message Transparency for Tagged LBM Service Frame - MEG Level 6-7 (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
SOAM | Unicast Loopback Message Transparency for Tagged LBM Service Frame - MEG Level 6-7 (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
SOAM | Loopback Response Transparency for Tagged LBR Service Frame - MEG Level 6-7 (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
SOAM | Linktrace Message Transparency for Tagged LTM Service Frame - MEG Level 6-7 (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
SOAM | Linktrace Response Transparency for Tagged LTR Service Frame - MEG Level 6-7 (High, Med, Low) | EVPL, EVP-LAN, EVP-TREE |
SOAM | Continuity Check Message Transparency - Double Tagged CCM ENNI Frames - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Multicast Loopback Message Transparency - Double Tagged LBM ENNI Frames - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Unicast Loopback Message Transparency - Double Tagged LBM ENNI Frames - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Loopback Response Transparency - Double Tagged LBR ENNI Frames - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Linktrace Message Transparency - Double Tagged LTM ENNI Frames - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Linktrace Response Transparency - Double Tagged LTR ENNI Frames - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Continuity Check Message Transparency - Tagged CCM Service Frame - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Multicast Loopback Message Transparency - Tagged LBM Service Frame - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Unicast Loopback Message Transparency - Tagged LBM Service Frame - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (each with High, Med, Low) | Access E-Line |
SOAM | Loopback Response Transparency - Tagged LBR Service Frame - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Linktrace Message Transparency - Tagged LTM Service Frame - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
SOAM | Linktrace Response Transparency - Tagged LTR Service Frame - MEG Level 3, Level 4, Level 5, Level 6, and Level 7 (High, Med, Low) | Access E-Line |
Service OAM Test Cases: PASS
Bandwidth Profile Attributes and Parameters
This category verifies whether Bandwidth Profiles can meet the expectations for service delivery in Carrier Ethernet networks. It validates performance metrics like traffic policing to ensure proper traffic flow management in different service conditions.
The Bandwidth Profile (BWP) validates attributes such as the performance and enforcement of committed information rates (CIR), committed burst size (CBS), excess information rates (EIR), excess burst size, and traffic shaping to ensure that the service adheres to the agreed-upon bandwidth allocations. In addition, test cases include color-blind and color-aware functionalities, conformance for the delivery of different frame types, and validation of CoS behaviors.
Table 5 summarizes BWP testing included in the JVD. For additional test information, see Test Report Brief or contact your Juniper representative.
Test Type | Test Name | Service Type |
---|---|---|
BWP | Color Blind Ingress BWP - CIR Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - CBS Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - EIR Enforcement Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - EIR Enforcement Untagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - EBS Enforcement Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - EBS Enforcement Untagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - CIR and EIR Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS>0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - CBS and EBS Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS>0] and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - Unconditional Delivery of Broadcast Frames and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - Unconditional Delivery of Multicast Frames and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - Unconditional Delivery of Unicast Frames and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Blind Ingress BWP - Class of Service Discard and CoS ID per EVC & PCP | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE |
BWP | Color Aware Ingress BWP - CIR Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Color Awareness Verification Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - CBS Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - EIR Enforcement Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Color Awareness Verification Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - EBS Enforcement Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - CIR and EIR Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS>0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Color Awareness Verification Tagged Frames when [CIR/CBS>0, EIR/EBS>0 and CF=0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - CBS and EBS Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS>0] and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Unconditional Delivery of Broadcast Frames and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Unconditional Delivery of Multicast Frames and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Unconditional Delivery of Unicast Frames and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Aware Ingress BWP - Class of Service Discard and CoS ID per OVC EP & PCP - Color ID per PCP | Access E-Line |
BWP | Color Blind Ingress BWP - CIR Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - CBS Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS=0] and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - EIR Enforcement Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - EBS Enforcement Tagged Frames when [CIR/CBS=0 and EIR/EBS>0] and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - CIR and EIR Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS>0] and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - CBS and EBS Enforcement Tagged Frames when [CIR/CBS>0 and EIR/EBS>0] and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - Unconditional Delivery of Broadcast Frames and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - Unconditional Delivery of Multicast Frames and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - Unconditional Delivery of Unicast Frames and CoS ID per OVC EP & PCP | Access E-Line |
BWP | Color Blind Ingress BWP - Class of Service Discard and CoS ID per OVC EP & PCP | Access E-Line |
Bandwidth Profile Test Cases: PASS
Traffic is metered based on two-rate tricolor marking policers (TrTCM) largely defined by RFC4115. The following sample bandwidth profile is used in the validation and is applicable to ACX and MX Series Routers. Multiple bandwidth profiles are utilized throughout the validation depending on the MEF test case being executed. The following BWP is for the EVPL E-Line color-blind test case.
ACX7100 TrTCM Color-Blind Policer
firewall { family ccc { filter f_eline-evpn-vpws { interface-specific; term discard_pcp { from { learn-vlan-1p-priority [ 6 7 ]; } then { count discard_pcp6_7; discard; } } term high_class { from { learn-vlan-1p-priority [ 5 4 ]; } then { three-color-policer { two-rate high_policer; } count high_class; } } term medium_class { from { learn-vlan-1p-priority [ 3 2 ]; } then { three-color-policer { two-rate medium_policer; } count class_medium; } } term low_class { from { learn-vlan-1p-priority [ 0 1 ]; } then { three-color-policer { two-rate low_policer; } count class_low; } } term default { then { three-color-policer { two-rate low_policer; } count default; } } } three-color-policer high_policer { action { loss-priority high then discard; } two-rate { color-blind; committed-information-rate 3500000000; committed-burst-size 35k; peak-information-rate 3500000000; peak-burst-size 35125; } } three-color-policer low_policer { action { loss-priority high then discard; } two-rate { color-blind; committed-information-rate 22k; committed-burst-size 125; peak-information-rate 3500000000; peak-burst-size 35k; } } three-color-policer medium_policer { action { loss-priority high then discard; } two-rate { color-blind; committed-information-rate 3500000000; committed-burst-size 35k; peak-information-rate 7g; peak-burst-size 70k; } } }
The learn-vlan-1p-priority attribute matches the IEEE 802.1p VLAN priority in the outer position. In this example, the test case calls for matching traffic marked with 802.1p priority bits [6, 7] and discarding these packets while performing two-rate tricolor marking in color-blind mode, policing traffic individually classified as high, medium, and low. The policer is constructed with three main components:
- Two-Rate defines two bandwidth limits: guaranteed or Committed Information Rate (CIR) and Committed Burst Size (CBS); Peak Information Rate (PIR) and Peak Burst Size (PBS).
- Tricolor marking categorizes traffic as Green, Yellow,
or Red. Policers may mark traffic (soft policing) or elect to
discard traffic exceeding PIR (hard policing). In the example,
traffic marked with an implicit loss priority of high (red) is
discarded.
- Green traffic conforms to the defined guaranteed bandwidth (CIR) and burst (CBS) limits. Green traffic is given an implicit Packet Loss Priority (PLP) of low.
- Yellow traffic exceeds the committed (CIR) or burst (CBS) rates but remains within the peak (PIR) and burst (PBS) rates. Yellow traffic is given a PLP of medium-high.
- Red traffic exceeds PIR or PBS and is given a PLP of high.
- Color Mode defines if the policer is color-blind or color-aware. In color-blind mode, the policer ignores any premarked packets. In color-aware mode, the policer becomes cognizant of previously marked or metered packets and inspects the packet’s loss priority to be treated accordingly. The PLP value can be raised but not lowered. In other words, a packet received with a yellow loss priority (medium-high) can be marked as red but cannot be remarked as green.
Behavior Aggregate classifiers can also influence color-aware mode policers, so it is important to consider the appropriate packet-handling configuration.
The following configuration provides an example of a TrTCM color-aware mode policer utilized for an Access E-Line BWP test scenario. In this case, a cascade policer hierarchy is created by marking and metering traffic onto the next term to be aggregated and considered with other matching traffic priorities in the same policer.
The Coupling Flag (CF) attribute determines how yellow-marked traffic is handled, that is, traffic exceeding the CIR token bucket. When CF is enabled (CF=1), yellow frames equate to CIR+PIR and are not discarded when exceeding CIR. When CF is disabled (CF=0), yellow service frames exceeding CIR are discarded (CIR=PIR). MX Series Routers leverage CF=1 by default but can be configured for CF=0 by simply matching on the PLP and discarding (see CF0-yellow).
MX TrTCM Color-Aware Policer
firewall { family bridge { filter f-epl-option-1 { interface-specific; term high_class_discard { from { learn-vlan-1p-priority [ 6 7 ]; } then { count pcp_6_7; discard; } } term high_class { from { learn-vlan-1p-priority 4; } then { count high_pcp4; loss-priority high; next term; } } term color-envelop { from { learn-vlan-1p-priority [ 5 4 ]; } then { three-color-policer { two-rate high_policer; } count color-envelop; } } term medium_class-3 { from { learn-vlan-1p-priority 3; } then { three-color-policer { two-rate medium_policer; } count med-3; accept; } } term medium_class-2 { from { learn-vlan-1p-priority 2; } then { three-color-policer { two-rate medium_policer; } count med-2; next term; } } term CF0-yellow { from { loss-priority medium-high; learn-vlan-1p-priority 2; } then { count CFO-yellow; discard; } } term low_class { from { learn-vlan-1p-priority [ 0 1 ]; } then { three-color-policer { two-rate low_policer; } count low_class; } } term deault { then count default_traffic; } } } } three-color-policer high_policer { action { loss-priority high then discard; } two-rate { color-aware; committed-information-rate 3500000000; committed-burst-size 35k; peak-information-rate 3500000000; peak-burst-size 35125; } } three-color-policer low_policer { action { loss-priority high then discard; } two-rate { color-aware; committed-information-rate 22k; committed-burst-size 1500; peak-information-rate 3500000000; peak-burst-size 35k; } } three-color-policer medium_policer { action { loss-priority high then discard; } two-rate { color-aware; committed-information-rate 3500000000; committed-burst-size 35k; peak-information-rate 7g; peak-burst-size 70k; } } }
For more information about the configurations used in this JVD and in Metro Ethernet Business Services JVD, see Juniper GitHub Repository or contact your Juniper representative.
Service Performance Attributes and Parameters
This category tests performance characteristics like latency, jitter, Frame Loss Ratio (FLR), and availability in compliance with the specified Service Level Agreements (SLAs). It ensures that the service can meet the agreed-upon performance parameters for various traffic types (for example, unicast, multicast, broadcast) under real-world conditions, validating that service performance aligns with customer requirements.
Multiple test cases are executed for each topic, measuring one-way metrics in all directions based on the service type. The table below summarizes Performance testing included in the JVD. For additional test information, please see the Test Report Brief or contact your Juniper representative.
Test Type | Test Name | Service Type |
---|---|---|
Performance | One-Way Frame Delay Performance | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE, Access E-Line |
Performance | One-Way Mean Frame Delay Performance | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE, Access E-Line |
Performance | One-Way Inter-Frame Delay Variation Performance | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE, Access E-Line |
Performance | One-Way Frame Delay Range Performance | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE, Access E-Line |
Performance | One-Way Frame Loss Ratio Performance | EPL, EP-LAN, EVPL, EVP-LAN, EVP-TREE, Access E-Line |
Performance Test Cases: PASS
E-LINE Test Results Summary
Details of E-Line validation are available in the Metro as a Service: E-LINE section. Table 21 explains the E-Line service attributes and test scenarios applicable to MEF 3.0 certification and JVD validation. The scope of the validation aligns with MEF test requirements for E-Line:
- UNI Service Attributes and Test Requirements
- EVC Service Attributes and Test Requirements
- EVC per-UNI Service Attributes and Test Requirements
The tables provided in this section are based on MEF 91 Carrier Ethernet Test Requirements. The Certification Applicability column does not always equate to a mandatory requirement. Additional context is explained in the table descriptions and reference technical specifications. For example, some parameters may be [Enabled or Disabled] or [MUST be No] based on the defined MEF technical specifications. These may translate to optional or mandatory only under optional conditions. In such cases, the JVD may include or exclude these scenarios.
The JVD Test Coverage column confirms the attributes that are included and validated in the course of execution.
Index | UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | ||
---|---|---|---|---|---|---|
1 | UNI ID | String as specified in Section 9.1 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
2 | Physical Layer | List of Physical Layers as specified in Section 9.2 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
3 | Synchronous Mode 1 | List of Disabled or Enabled for each link in the UNI as specified in Section 9.3 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
4 | Number of Links 1 | At least 1 as specified in Section 9.4 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
5 | UNI Resiliency 1, J1 | None or 2-link Aggregation or Other as specified in Section 9.5 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ◉ |
6 | Service Frame Format | IEEE 802.3 - 2012 as specified in Section 9.6 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
7 | UNI Maximum Service Frame Size | At least 1522 Bytes as specified in Section 9.7 of MEF 10.3. SHOULD be > 1600 Bytes | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
8 | Service Multiplexing 3, J3 | Enabled or Disabled as specified in Section 9.8 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ◉ |
9 | CE-VLAN ID for Untagged and Priority Tagged Service Frames | A value in the range 1 to 4094 as specified in Section 9.9 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ◉ | EVPL ◉ |
10 | CE-VLAN ID/EVC Map | A map as specified in Section 9.10 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
11 | Maximum number of EVCs | At least 1 as specified in Section 9.11 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
12 | Bundling | Enabled or Disabled as specified in Section 9.12 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ❍ | EVPL ◉ |
13 | All to One Bundling | Enabled or Disabled as specified in Section 9.13 of MEF 10.3 | EPL ◉ | EVPL ❍ | EPL ◉ | EVPL ❍ |
14 | Token Share | Enabled or Disabled as specified in Section 8.2.1 of this MEF 6.2 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
15 | Envelopes | list of <Envelope ID. CF0, n>. where <Envelope ID. CF0 > is as specified in Section 12.1 of MEF 10.3 and n is the number of Bandwidth Profile Flows in the Envelope | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
16 | Ingress BWP per UNI J3 | Ingress BWP per UNI as specified in Section 9.14 of MEF 10.3 MUST be No | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
17 | Egress BWP per UNI J2 | Egress BWP per UNI as specified in Section 9.14 of MEF 10.3 MUST be No | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
18 | Link OAM 1 | Enabled or Disabled as specified in Section 9.16 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
19 | UNI MEG 1 | Enabled or Disabled as specified in Section 9.17 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
20 | E-LMI 1 | Enabled or Disabled as specified in Section 9.18 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
21 | UNI L2CP Address Set | CTB or CTB-2 or CTA as specified in MEF 45 table 10 for EVPL and in MEF 45.0.1 Table 11 for EPL | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
22 | UNI L2CP peering 2 | None or list of {Destination Address, Protocol Identifier) or list of {Destination Address Protocol Identifier Link Identifier) to be Peered as specified in MEF 45 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
2 Protocols not on the list are either Passed to EVC or Discarded based on the Destination Address.
3 Service Multiplexing requires the instantiation of at least two services at the UNI, which is outside the scope of the MEF 3.0 CE certification program. This is covered in the JVD.
J1 UNI Resiliency is not mandated by MEF but included in the JVD as a foundational attribute with EVPN all-active ESI and further explained in Metro Ethernet Business Services JVD.
J2 MEF 10.4 updates Egress Equivalence Class Service to an optional attribute and is no longer included in MEF 3.0.
J3 Optional but covered in JVD.
Index | EVC Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | ||
---|---|---|---|---|---|---|
1 | EVC Type | MUST be Point-to-Point as specified in Section 8.1 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
2 | EVC ID J3 | String as specified in Section 8.2 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
3 | UNI List | List of <UNI ID, UNI Role> pairs as specified in Section 8.3 of MEF 10.3 for UNIs associated by the EVC | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
4 | Maximum Number of UNIs | MUST be two as specified in Section 8.4 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
5 | Unicast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
6 | Multicast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
7 | Broadcast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
8 | CE-VLAN ID Preservation | Enabled or Disabled as specified in Section 8.6.1 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
9 | CE-VLAN CoS Preservation 4 | Enabled or Disabled as specified in Section 8.6.2 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
10 | EVC Performance | List of performance metrics and associated parameters and performance objectives as specified in Section 8.8 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
11 | EVC Maximum Service Frame Size | At least 1522 as specified in Section 8.9 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
12 | Service Frame Transparency | Data Service Frame as specified in Section 8.5.3 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
13 | Continuity Check Message Transparency | CCM functions as an operation that runs on a MEP for service monitoring as specified in 8.2 of MEF 30.1 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
14 | Loopback Message Transparency | Needed for compliant MEF Service OAM implementation as specified in 8.3 of MEF 30.1 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
15 | Linktrace Response Transparency | Needed for compliant MEF Service OAM implementation as specified in 8.4 of MEF 30.1 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
4 CE-VLAN ID Preservation testing includes the Service Frame Transparency verification.
J3 Optional but covered in JVD.
Index | EVC Per-UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | ||
---|---|---|---|---|---|---|
1 | UNI EVC ID | String as specified in Section 10.1 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
2 | Class of Service Identifier for Data Service Frame | EVC or CE-VLAN CoS or IP value(s) and corresponding CoS Name as specified in Section 10.2.1 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
3 | Class of Service Identifier for L2CP Service Frame | "All" or list of each L2CP in the EVC and corresponding CoS Name as specified in Section 10.2.2 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
4 | Class of Service Identifier for SOAM Service Frame | Basis same as for Data Service Frames as specified in Section 10.2.3 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
5 | Color Identifier for Service Frame | None or EVC or CE-VLAN CoS or CE-VLAN Tag DEI or IP as specified in Section 10.3 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
6 | Egress Equivalence Class Identifier for Data Service Frames | CE-VLAN CoS or IP value(s) and corresponding CoS Name(s) as specified in Section 10.4.1 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ◉ | EVPL ◉ |
7 | Egress Equivalence Class Identifier for L2CP Service Frame | "All" or list of each L2CP in the EVC and corresponding Egress Equivalence Class as specified in Section 10.4.2 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ◉ | EVPL ◉ |
8 | Egress Equivalence Class Identifier for SOAM Service Frame | Basis same as for Data Service Frames as specified in Section 10.4.3 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ◉ | EVPL ◉ |
9 | Ingress Bandwidth Profile per EVC J3 | Ingress Bandwidth Profile per EVC as specified in Section 10.5 of MEF 10.3 MUST be No | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
10 | Egress Bandwidth Profile per EVC J2 | Egress Bandwidth Profile per EVC as specified in Section 10.7 of MEF 10.3 MUST be No | EPL ❍ | EVPL ❍ | EPL ❍ | EVPL ❍ |
11 | Ingress Bandwidth Profile per Class of Service Identifier | No or Parameters with Bandwidth Profile as defined in Section 10.6 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ◉ | EVPL ◉ |
12 | Egress Bandwidth Profile per Egress Equivalence Class J2 | No or Parameters with Bandwidth Profile as defined in Section 10.8 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ❍ | EVPL ❍ |
13 | Source MAC Address Limit 5 | Enabled or Disabled as specified in Section 10.9 of MEF 10.3 | EPL ❍ | EVPL ◉ | EPL ❍ | EVPL ❍ |
14 | Test MEG J3 | Enabled or Disabled as specified in Section 10.10 of MEF 10.3 | EPL ❍ | EVPL ❍ | EPL ◉ | EVPL ◉ |
15 | Subscriber MEG MIP | Enabled or Disabled as specified in Section 10.11 of MEF 10.3 | EPL ◉ | EVPL ◉ | EPL ❍ | EVPL ❍ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
5 Optional attribute. Supported but not covered in JVD.
J2 MEF 10.4 updates Egress Equivalence Class Service to an optional attribute and is no longer included in MEF 3.0.
J3 Optional but covered in JVD.
E-LAN Test Results Summary
E-LAN validation details are available in the Metro as a Service: E-LAN section. Table 10 explains the E-LAN service attributes and test scenarios applicable to MEF 3.0 certification and what is covered by the validation. The scope of the validation aligns with MEF test requirements for E-LAN:
- UNI Service Attributes and Test Requirements
- EVC Service Attributes and Test Requirements
- EVC per-UNI Service Attributes and Test Requirements
The tables provided in this section are based on MEF 91 Test Requirements. The Certification Applicability column does not always equate to a mandatory requirement. Additional context is explained in the table descriptions and reference technical specifications. For example, some parameters may be [Enabled or Disabled] or [MUST be No] based on the defined MEF technical specifications. These parameters may translate to optional or mandatory only under optional conditions. In such cases, the JVD may include or exclude these scenarios.
The JVD Test Coverage column confirms the attributes that are included and validated in the course of execution.
Index | UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | ||
---|---|---|---|---|---|---|
1 | UNI ID | String as specified in Section 9.1 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
2 | Physical Layer | List of Physical Layers as specified in Section 9.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
3 | Synchronous Mode 1 | List of Disabled or Enabled for each link in the UNI as specified in Section 9.3 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
4 | Number of Links 1 | At least 1 as specified in Section 9.4 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
5 | UNI Resiliency 1, J1 | None or 2-link Aggregation or Other as specified in Section 9.5 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ◉ |
6 | Service Frame Format | IEEE 802.3 - 2012 as specified in Section 9.6 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
7 | UNI Maximum Service Frame Size | At least 1522 Bytes as specified in Section 9.7 of MEF 10.3. SHOULD be > 1600 Bytes | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
8 | Service Multiplexing 3, J3 | Enabled or Disabled as specified in Section 9.8 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ◉ |
9 | CE-VLAN ID for Untagged and Priority Tagged Service Frames | A value in the range 1 to 4094 as specified in Section 9.9 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
10 | CE-VLAN ID/EVC Map | A map as specified in Section 9.10 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
11 | Maximum number of EVCs | At least 1 as specified in Section 9.11 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
12 | Bundling | Enabled or Disabled as specified in Section 9.12 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ◉ | EP-LAN ❍ | EVP-LAN ◉ |
13 | All to One Bundling | Enabled or Disabled as specified in Section 9.13 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ❍ |
14 | Token Share | Enabled or Disabled as specified in Section 8.2.1 of this MEF 6.2 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
15 | Envelopes | list of <Envelope ID. CF0, n>. where <Envelope ID. CF0 > is as specified in Section 12.1 of MEF 10.3 and n is the number of Bandwidth Profile Flows in the Envelope | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
16 | Ingress BWP per UNI J3 | Ingress BWP per UNI as specified in Section 9.14 of MEF 10.3 MUST be No | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
17 | Egress BWP per UNI J2 | Egress BWP per UNI as specified in Section 9.14 of MEF 10.3 MUST be No | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
18 | Link OAM 1 | Enabled or Disabled as specified in Section 9.16 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
19 | UNI MEG 1 | Enabled or Disabled as specified in Section 9.17 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
20 | E-LMI 1 | Enabled or Disabled as specified in Section 9.18 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
21 | UNI L2CP Address Set | CTB or CTB-2 or CTA as specified in MEF 45 table 10 for EVPL and in MEF 45.0.1 Table 11 for EPL | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
22 | UNI L2CP peering 2 | None or list of {Destination Address, Protocol Identifier) or list of {Destination Address Protocol Identifier Link Identifier) to be Peered as specified in MEF 45 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
2 Protocols not on the list are either Passed to EVC or Discarded based on the Destination Address.
3 Service Multiplexing requires the instantiation of at least two services at the UNI, which is outside the scope of the MEF 3.0 CE certification program. This is covered in the JVD.
J1 UNI Resiliency is not mandated by MEF but included in the JVD as a foundational attribute with EVPN all-active ESI and further explained in Metro Ethernet Business Services JVD.
J2 MEF 10.4 updates Egress Equivalence Class Service to an optional attribute and is no longer included in MEF 3.0.
J3 Optional but covered in JVD.
Index | EVC Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | ||
---|---|---|---|---|---|---|
1 | EVC Type | MUST be Multipoint-to-Multipoint as specified in Section 8.1 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
2 | EVC ID | String as specified in Section 8.2 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
3 | UNI List | List of <UNI ID, UNI Role> pairs as specified in Section 8.3 of MEF 10.3 for UNIs associated by the EVC | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
4 | Maximum Number of UNIs | Two or three or greater as specified in Section 8.4 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
5 | Unicast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
6 | Multicast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
7 | Broadcast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
8 | CE-VLAN ID Preservation 4 | Enabled or Disabled as specified in Section 8.6.1 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
9 | CE-VLAN CoS Preservation | Enabled or Disabled as specified in Section 8.6.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
10 | EVC Performance | List of performance metrics and associated parameters and performance objectives as specified in Section 8.8 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
11 | EVC Maximum Service Frame Size | At least 1522 as specified in Section 8.9 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
12 | Service Frame Transparency | Data Service Frame as specified in Section 8.5.3 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
13 | Continuity Check Message Transparency | CCM functions as an operation that runs on a MEP for service monitoring as specified in 8.2 of MEF 30.1 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
14 | Loopback Message Transparency | Needed for compliant MEF Service OAM implementation as specified in 8.3 of MEF 30.1 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
15 | Linktrace Response Transparency | Needed for compliant MEF Service OAM implementation as specified in 8.4 of MEF 30.1 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
4 CE-VLAN ID Preservation testing includes the Service Frame Transparency verification.
Index | EVC Per-UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | ||
---|---|---|---|---|---|---|
1 | UNI EVC ID | String as specified in Section 10.1 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
2 | Class of Service Identifier for Data Service Frame | EVC or CE-VLAN CoS or IP value(s) and corresponding CoS Name as specified in Section 10.2.1 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
3 | Class of Service Identifier for L2CP Service Frame | “All” or list of each L2CP in the EVC and corresponding CoS Name as specified in Section 10.2.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
4 | Class of Service Identifier for SOAM Service Frame | Basis same as for Data Service Frames as specified in Section 10.2.3 of MEF10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
5 | Color Identifier for Service Frame | None or EVC or CE-VLAN CoS or CE-VLAN Tag DEI or IP as specified in Section 10.3 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
6 | Egress Equivalence Class Identifier for Data Service Frames 4 | CE-VLAN CoS or IP value(s) and corresponding CoS Name(s) as specified in Section 10.4.1 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
7 | Egress Equivalence Class Identifier for L2CP Service Frames 4 | “All” or list of each L2CP in the EVC and corresponding Egress Equivalence Class as specified in Section 10.4.2 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
8 | Egress Equivalence Class Identifier for SOAM Service Frames 4 | Basis same as for Data Service Frames as specified in Section 10.4.3 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
9 | Ingress Bandwidth Profile per EVC | Ingress Bandwidth Profile per EVC as specified in Section 10.5 of MEF 10.3 MUST be No | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
10 | Egress Bandwidth Profile per EVC J2 | Egress Bandwidth Profile per EVC as specified in Section 10.7 of MEF 10.3 MUST be No | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ❍ | EVP-LAN ❍ |
11 | Ingress Bandwidth Profile per Class of Service Identifier J3 | No or Parameters with Bandwidth Profile as defined in Section 10.6 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ◉ | EVP-LAN ◉ |
12 | Egress Bandwidth Profile per Egress Equivalence Class 4, J2 | No or Parameters with Bandwidth Profile as defined in Section 10.8 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ❍ | EVP-LAN ❍ |
13 | Source MAC Address Limit 5 | Enabled or Disabled as specified in Section 10.9 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ❍ | EVP-LAN ❍ |
14 | Test MEG 1 | Enabled or Disabled as specified in Section 10.10 of MEF 10.3 | EP-LAN ❍ | EVP-LAN ❍ | EP-LAN ◉ | EVP-LAN ◉ |
15 | Subscriber MEG MIP | Enabled or Disabled as specified in Section 10.11 of MEF 10.3 | EP-LAN ◉ | EVP-LAN ◉ | EP-LAN ❍ | EVP-LAN ❍ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
4 Refer to Egress Bandwidth Profile per Egress Equivalence Class.
5 Optional attribute. Supported but not covered in JVD.
J2 MEF 10.4 updates Egress Equivalence Class Service to an optional attribute and is no longer included in MEF 3.0.
J3 Optional but covered in JVD.
E-TREE Test Results Summary
E-Tree validation details are available in the Metro as a Service: E-TREE section. Table 26 explains the E-Tree service attributes and test scenarios applicable to MEF 3.0 certification and what is covered by in the validation. The scope of the validation aligns with MEF test requirements for E-Tree:
- UNI Service Attributes and Test Requirements
- EVC Service Attributes and Test Requirements
- EVC per-UNI Service Attributes and Test Requirements
The tables provided in this section are based on MEF 91 Test Requirements. The Certification Applicability column does not always equate to a mandatory requirement. Additional context is explained in the table descriptions and reference technical specifications. For example, some parameters may be [Enabled or Disabled] or [MUST be No] based on the defined MEF technical specifications. These may translate to optional or mandatory only under optional conditions. In such cases, the JVD may include or exclude these scenarios. Only the EVP-Tree service type is included in the validation, as reflected in the table.
The JVD Test Coverage column confirms the attributes that are included and validated in the course of execution.
Index | UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | |
---|---|---|---|---|---|
1 | UNI Identifier | String as specified in Section 9.1 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
2 | Physical Layer | List of Physical Layers as specified in Section 9.2 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
3 | Synchronous Mode 1 | List of Disabled or Enabled for each link in the UNI as specified in Section 9.3 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
4 | Number of Links 1 | At least 1 as specified in Section 9.4 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
5 | UNI Resiliency 1, J1 | None or 2-link Aggregation or Other as specified in Section 9.5 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
6 | Service Frame Format | IEEE Std. 802.3 – 2012 as specified in Section 9.6 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
7 | UNI Maximum Service Frame Size | At least 1522 B as specified in Section 9.7 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
8 | Service Multiplexing 3, J3 | Enabled or Disabled as specified in Section 9.8 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
9 | CE-VLAN ID for Untagged and Priority Tagged Service Frames | A value in the range 1 to 4094 as specified in Section 9.9 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ◉ |
10 | CE-VLAN ID/EVC Map | A map as specified in Section 9.10 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
11 | Maximum number of EVCs | At least 1 as specified in Section 9.11 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
12 | Bundling | Enabled or Disabled as specified in Section 9.12 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ◉ |
13 | All to One Bundling J4 | Enabled or Disabled as specified in Section 9.13 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ❍ | EVP-Tree ❍ |
14 | Token Share | Enabled or Disabled as specified in Section 8.2.1 of this MEF 6.2 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
15 | Envelopes | list of <Envelope ID, CF0, n >, where <Envelope ID, CF0 > is as specified in Section 12.1 of MEF 10.3 and n is the number of Bandwidth Profile Flows in the Envelope | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
16 | Ingress BWP per UNI J3 | Ingress BWP per UNI as specified in Section 9.14 of MEF 10.3 MUST be No | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
17 | Egress BWP per UNI J2 | Egress BWP per UNI as specified in Section 9.14 of MEF 10.3 MUST be No | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
18 | Link OAM 1 | Enabled or Disabled as specified in Section 9.16 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
19 | UNI MEG 1 | Enabled or Disabled as specified in Section 9.17 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
20 | E-LMI 1 | Enabled or Disabled as specified in Section 9.18 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
21 | UNI L2CP Address Set | CTB or CTB-2 or CTA as specified in MEF 45 table 11 for EVP-Tree and Table 12 for EP-Tree | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
22 | UNI L2CP peering 2 | None or list of {Destination Address, Protocol Identifier} or list of {Destination Address, Protocol Identifier, Link Identifier} to be Peered as specified in MEF 45 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
2 Protocols not on the list are either Passed to EVC or Discarded based on the Destination Address.
3 Service Multiplexing requires the instantiation of at least two services at the UNI, which is outside the scope of the MEF 3.0 CE certification program. This is covered in the JVD.
J1 UNI Resiliency is not mandated by MEF but included in the JVD as a foundational attribute with EVPN all-active ESI and further explained in Metro Ethernet Business Services JVD.
J2 MEF 10.4 updates Egress Equivalence Class of Service to an optional attribute and is no longer included in MEF 3.0.
J3 Optional but covered in JVD.
J4 All-to-One Bundling is an EP-Tree service. Supported but not covered in the JVD.
Index | EVC Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | |
---|---|---|---|---|---|
1 | EVC Type | MUST be Rooted-Multipoint as specified in Section 8.1 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
2 | EVC ID | String as specified in Section 8.2 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
3 | UNI List | List of <UNI ID, UNI Role> pairs as specified in Section 8.3 of MEF 10.3 for UNIs associated by the EVC | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
4 | Maximum Number of UNIs | Two or three or greater as specified in Section 8.4 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
5 | Unicast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
6 | Multicast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
7 | Broadcast Service Frame Delivery | Discard or Deliver Unconditionally or Deliver Conditionally as specified in Section 8.5.2 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
8 | CE-VLAN ID Preservation 4 | Enabled or Disabled as specified in Section 8.6.1 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
9 | CE-VLAN CoS Preservation | Enabled or Disabled as specified in Section 8.6.2 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
10 | EVC Performance | List of performance metrics and associated parameters and performance objectives as specified in Section 8.8 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
11 | EVC Maximum Service Frame Size | At least 1522 as specified in Section 8.9 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
12 | Service Frame Transparency | Data Service Frame as specified in Section 8.5.3 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
13 | Continuity Check Message Transparency | CCM functions as an operation that runs on a MEP for service monitoring as specified in 8.2 of MEF 30.1 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
14 | Loopback Message Transparency | Needed for compliant MEF Service OAM implementation as specified in 8.3 of MEF 30.1 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
15 | Linktrace Response Transparency | Needed for compliant MEF Service OAM implementation as specified in 8.4 of MEF 30.1 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
4 CE-VLAN ID Preservation testing includes the Service Frame Transparency verification.
Index | EVC Per-UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested | |
---|---|---|---|---|---|
1 | UNI EVC ID | String as specified in Section 10.1 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
2 | Class of Service Identifier for Data Service Frame | EVC or CE-VLAN CoS or IP value(s) and corresponding CoS Name as specified in Section 10.2.1 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
3 | Class of Service Identifier for L2CP Service Frame | “All” or list of each L2CP in the EVC and corresponding CoS Name as specified in Section 10.2.2 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
4 | Class of Service Identifier for SOAM Service Frame | Basis same as for Data Service Frames as specified in Section 10.2.3 of MEF10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
5 | Color Identifier for Service Frame | None or EVC or CE-VLAN CoS or CE-VLAN Tag DEI or IP as specified in Section 10.3 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
6 | Egress Equivalence Class Identifier for Data Service Frames 4 | CE-VLAN CoS or IP value(s) and corresponding CoS Name(s) as specified in Section 10.4.1 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ◉ |
7 | Egress Equivalence Class Identifier for L2CP Service Frames 4 | “All” or list of each L2CP in the EVC and corresponding Egress Equivalence Class as specified in Section 10.4.2 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ◉ |
8 | Egress Equivalence Class Identifier for SOAM Service Frames 4 | Basis same as for Data Service Frames as specified in Section 10.4.3 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ◉ |
9 | Ingress Bandwidth Profile per EVC J3 | Ingress Bandwidth Profile per EVC as specified in Section 10.5 of MEF 10.3 MUST be No | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
10 | Egress Bandwidth Profile per EVC J2 | Egress Bandwidth Profile per EVC as specified in Section 10.7 of MEF 10.3 MUST be No | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ❍ |
11 | Ingress Bandwidth Profile per Class of Service Identifier | No or Parameters with Bandwidth Profile as defined in Section 10.6 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ◉ |
12 | Egress Bandwidth Profile per Egress Equivalence Class J2 | No or Parameters with Bandwidth Profile as defined in Section 10.8 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ❍ |
13 | Source MAC Address Limit 5 | Enabled or Disabled as specified in Section 10.9 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ◉ | EVP-Tree ❍ |
14 | Test MEG 1 | Enabled or Disabled as specified in Section 10.10 of MEF 10.3 | EP-Tree ❍ | EVP-Tree ❍ | EVP-Tree ◉ |
15 | Subscriber MEG MIP | Enabled or Disabled as specified in Section 10.11 of MEF 10.3 | EP-Tree ◉ | EVP-Tree ◉ | EVP-Tree ❍ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
4 Refer to Egress Bandwidth Profile per Egress Equivalence Class.
5 Optional attribute. Supported but not covered in JVD.
J2 MEF 10.4 updates Egress Equivalence Class Service to an optional attribute and is no longer included in MEF 3.0.
J3 Optional but covered in JVD.
Access E-LINE (E-Access) Test Results Summary
Access E-Line validation details are available in the Metro as a Service: Access E-LINE section. Table 16 explains the Access E-Line service attributes and test scenarios applicable to MEF 3.0 certification and what is covered in the validation. The scope of the validation aligns with MEF test requirements for Access E-Line:
- Operator UNI Service Attributes and Test Requirements
- EVC Service Attributes and Test Requirements
- EVC per-UNI Service Attributes and Test Requirements
The tables provided in this section are based on MEF 91 Test Requirements. The Certification Applicability column does not always equate to a mandatory requirement. Additional context is explained in the table descriptions and reference technical specifications. For example, some parameters may be [Enabled or Disabled] or [MUST be No] based on the defined MEF technical specifications. These may translate to optional or mandatory only under optional conditions. In such cases, the JVD may include or exclude these scenarios.
The JVD Test Coverage column confirms the attributes that are included and validated in the course of execution.
Index | Operator UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
---|---|---|---|---|
1 | Operator UNI Identifier | A string that is unique across the Operator CEN as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
2 | Operator UNI Physical Layer | A subset of the PHYs listed in IEEE Std. 802.3 – 2012 for each physical link as specified in Table 25 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
3 | Operator UNI Synchronous Mode 1 | A list of items, one for each physical link, where each item can equal either Enabled or Disabled as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
4 | Operator UNI Number of Links1 | A strictly positive integer as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
5 | Operator UNI Link Aggregation 1 | None, 2-Link Active/Standby, All Active, or Other as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
6 | Operator UNI Port Conversation ID to Aggregation Link Map 1 | See IEEE Std. 802.1AX – 2014 as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
7 | Operator UNI Service Frame Format | Ethernet MAC Frame conforming to Clause 3 of IEEE 802.3-2012 as specified in Table 25 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
8 | Operator UNI Maximum Service Frame Size | An integer number of bytes greater than or equal to 1522 as specified in Table 25 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
9 | Operator UNI Default CE-VLAN ID | An integer in the range 1,2, ... ,4094 as specified in Table 25 of MEF 26.2 | Access E-Line ◉ | Access E-Line ❍ |
10 | Operator UNI Maximum Number of OVC End Points | A strictly positive integer as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
11 | Operator UNI Maximum Number of CE-VLAN IDs per OVC End Point | A strictly positive integer as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
12 | Operator UNI Ingress Bandwidth Profile per UNI 3 | Parameters or Disabled When Parameters, several parameter values need to be agreed to by the SP/SO and Operator as specified in Table 25 of MEF 26.2 (single bandwidth profile flow) | Access E-Line ❍ | Access E-Line ◉ |
13 | Operator UNI Egress Bandwidth Profile per UNI 3 | Parameters or Disabled When Parameters, several parameter values need to be agreed to by the SP/SO and Operator as specified in Table 25 of MEF 26.2 (single bandwidth profile flow) | Access E-Line ❍ | Access E-Line ❍ |
14 | Operator UNI Link OAM 1 | Enabled or Disabled as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
15 | Operator UNI MEG 1 | Enabled or Disabled as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
16 | Operator UNI LAG Link MEG 1 | Enabled or Disabled as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | |
17 | Operator UNI E-LMI 1 | Enabled or Disabled as specified in Table 25 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
18 | Operator UNI Token Share | Enabled or Disabled as specified in Table 25 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
19 | Operator UNI Envelopes | A list of entries of the form <Envelope ID value, Envelope Coupling Flag value> as specified in Table 25 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
20 | Operator UNI L2CP Address set | CTB or CTB-2 or CTA as specified in MEF 45.0.1 Table A-1 | Access E-Line ◉ | Access E-Line ◉ |
21 | Operator UNI L2CP Peering 2 | The L2CP Peering service attribute value MUST be an empty list, or a list of entries identifying protocols to be Peered where each entry consists of {Destination Address, Protocol Identifier} or {Destination Address, Protocol Identifier, Link Identifier} | Access E-Line ◉ | Access E-Line ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
2 Protocols not on the list are either Passed to EVC or Discarded based on the Destination Address.
3 Ingress Bandwidth Profile per Class of Service Identifier is mandatory for Access E-Line and Transit E-Line services. Other ingress or egress bandwidth profiles in combination with Ingress Bandwidth Profile per Class of Service Identifier are to be handled between subscriber/service provider/operator. Ingress Bandwidth Profile is included in the JVD.
Index | OVC Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
---|---|---|---|---|
1 | OVC Identifier | A unique identifier within the Operator’s network for the OVC as specified in Table 6 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
2 | OVC Type | OVC type as specified in Table 6 of MEF 26.2. Access E-Line MUST be Point-to-Point | Access E-Line ◉ | Access E-Line ◉ |
3 | OVC End Point List | A list of OVC End Point Identifiers as specified in Table 6 of MEF 26.2. Access E-Line MUST have one OVC End Point at an ENNI and one OVC End Point at a UNI | Access E-Line ◉ | Access E-Line ◉ |
4 | Maximum Number of UNI OVC End Points | An integer greater than or equal to 0 as specified in Table 6 of MEF 26.2. MUST be 1 for Access E-Line | Access E-Line ◉ | Access E-Line ◉ |
5 | Maximum Number of ENNI OVC End Points | A strictly positive integer as specified in Table 6 of MEF 26.2. MUST be 1 for Access E-Line | Access E-Line ◉ | Access E-Line ◉ |
6 | OVC Maximum Frame Size | At least 1526 as specified in Table 6 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
7 | OVC CE-VLAN ID Preservation | Can be one of Preserve, Strip, or Retain as specified in Table 6 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
8 | OVC CE-VLAN CoS (PCP) Preservation | Enabled or Disabled as specified in Table 6 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
9 | OVC S-VLAN ID Preservation | Enabled or Disabled in MEF 51 Table 5 and as defined in MEF 26.1. The attribute has been removed from 26.2 | Access E-Line ❍ | Access E-Line ❍ |
10 | OVC S-VLAN CoS (PCP) Preservation | Enabled or Disabled as specified in Table 6 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
11 | Color Forwarding | Yes or No in MEF 51 Table 5 and as defined in MEF 26.1. The attribute has been removed from 26.2 | Access E-Line ❍ | Access E-Line ❍ |
12 | Service Level Specification | Any combination of some or all of performance metrics defined in MEF 26.2 can be used in an SLS | Access E-Line ◉ | Access E-Line ◉ |
13 | Unicast Frame Delivery | Conditional or Unconditional or Discard as specified in Table 6 of MEF 26.2. If Conditional, the conditions need to be specified. The Operator MUST support unconditional unicast frame delivery | Access E-Line ◉ | Access E-Line ◉ |
14 | Multicast Frame Delivery | Conditional or Unconditional or Discard as specified in Table 6 of MEF 26.2. If Conditional, the conditions need to be specified. The Operator MUST support unconditional multicast frame delivery | Access E-Line ◉ | Access E-Line ◉ |
15 | Broadcast Frame Delivery | Conditional or Unconditional or Discard as specified in Table 6 of MEF 26.2. If Conditional, the conditions need to be specified. The Operator MUST support unconditional broadcast frame delivery | Access E-Line ◉ | Access E-Line ◉ |
16 | OVC Available MEG Level | OVC Available MEG Level (0,1,2, … ,7 or None) as specified in Table 6 of MEF 26.2. It specifies the lowest MEG Level available for the Service Provider or SOAM Super Operator | Access E-Line ◉ | Access E-Line ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
Index | Endpoint at UNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
---|---|---|---|---|
1 | OVC End Point Identifier | A unique identifier within the Operator’s network for a specific OVC at the UNI. Specified in MEF 26.2 Table 30. | Access E-Line ❍ | Access E-Line ◉ |
2 | OVC End Point Map | The CE-VLAN ID(s) that map to the OVC End Point at the UNI. Specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ◉ |
3 | OVC End Point Class of Service Identifiers | The way that a Class of Service Name is determined for ingress Service Frames at a UNI as specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ◉ |
4 | Ingress Bandwidth Profile per OVC End Point 3 | Ingress policing on all ingress EI Frames mapped to the OVC End Point as specified in MEF 26.2 Table 30. MUST be No for Access E-Line. | Access E-Line ❍ | Access E-Line ❍ |
5 | Ingress Bandwidth Profile per Class of Service Identifier (Name) | Ingress policing by the Operator on all ingress frames with the CoS ID for a given OVC End Point at a UNI as specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ◉ |
6 | Egress Bandwidth Profile per OVC End Point 3 | Egress policing and shaping on all egress EI Frames mapped to the OVC End Point as specified in MEF 26.2 Table 30. MUST be No for Access E-Line. | Access E-Line ❍ | Access E-Line ❍ |
7 | Egress Bandwidth Profile per Class of Service Identifier (Name) 3 | Traffic limiting of egress Service Frames with the CoS ID mapped to the OVC End Point at a UNI. Specified in MEF 26.2 Table 30. | Access E-Line ❍ | Access E-Line ❍ |
8 | Source MAC Address Limit 5 | Enabled or Disabled as specified in as specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ❍ |
9 | Maintenance End Point (MEP) List | A list of MEPs, with their direction (Up or Down), MEG and MEG level, to be enabled at the OVC End Point. Specified in MEF 26.2 Table 30. | Access E-Line ❍ | Access E-Line ❍ |
10 | Subscriber MEG MIP | The indication of the instantiation of a MIP, Enabled or Disabled as specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ❍ |
Index | Endpoint at ENNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
1 | OVC End Point Identifier | A unique identifier within the Operator’s network for the OVC End Point. Specified in MEF 26.2 Table 30. | Access E-Line ❍ | Access E-Line ◉ |
2 | Trunk Identifier | A pair of S-VLAN ID values used on the ENNI for distinguishing between Root and Leaf originated frames. Not applicable for Access E-Line Services and has been removed from 26.2 | Access E-Line ❍ | Access E-Line ❍ |
3 | OVC End Point Map | Each S-VLAN ID value associated with an instance of an OVC Service, as defined in this document, MUST map to a distinct End Point of Type = ‘OVC’. Specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ◉ |
4 | Class of Service Identifier for ENNI Frames | The way that a Class of Service Name is determined for ingress ENNI Frames at an ENNI as specified in MEF 26.2 Table 30 | Access E-Line ◉ | Access E-Line ◉ |
5 | Ingress Bandwidth Profile per OVC End Point 3 | Ingress policing on all ingress EI Frames mapped to the OVC End Point as specified in MEF 26.2 Table 30. MUST be No for Access E-Line. | Access E-Line ❍ | Access E-Line ❍ |
6 | Ingress Bandwidth Profile per Class of Service Identifier (Name) | Ingress policing by the Operator on all ingress ENNI frames with the CoS ID mapped to the OVC End Point as specified in MEF 26.2 Table 30 | Access E-Line ◉ | Access E-Line ◉ |
7 | Egress Bandwidth Profile per OVC End Point 3 | Egress policing and shaping on all egress EI Frames mapped to the OVC End Point as specified in MEF 26.2 Table 30. MUST be No for Access E-Line. | Access E-Line ❍ | Access E-Line ❍ |
8 | Egress Bandwidth Profile per Class of Service Identifier 3 | Traffic limiting of egress Service Frames with the CoS ID mapped to the OVC End Point at an ENNI. Specified in MEF 26.2 Table 30. | Access E-Line ❍ | Access E-Line ❍ |
9 | Source MAC Address Limit 5 | Enabled or Disabled as specified in as specified in MEF 26.2 Table 30. | Access E-Line ◉ | Access E-Line ❍ |
10 | Maintenance End Point (MEP) List | A list of MEPs, with their direction (Up or Down), MEG and MEG level, to be enabled at the OVC End Point. Specified in MEF 26.2 Table 30. | Access E-Line ❍ | Access E-Line ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
3 Ingress Bandwidth Profile per Class of Service Identifier is mandatory for Access E-Line and Transit E-Line services. Other ingress or egress bandwidth profiles in combination with Ingress Bandwidth Profile per Class of Service Identifier are to be handled between subscriber/service provider/operator. Ingress Bandwidth Profile is included in the JVD.
5 Optional attribute Supported but not covered in JVD.
Index | ENNI Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
---|---|---|---|---|
1 | Operator ENNI Identifier | A string that is unique across the ENNIs of the Operator CEN as specified in Table 24 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
2 | S-VLAN ID Control | Full or Partial as specified in Table 24 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
3 | Maximum Number of OVCs | A strictly positive integer as specified in Table 24 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
4 | Maximum Number of OVC End Points per OVC | A strictly positive integer as specified in Table 24 of MEF 26.2 (MUST be two for Access E-Line) | Access E-Line ◉ | Access E-Line ◉ |
5 | ENNI Token Share | Enabled or Disabled as specified in Table 24 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
6 | ENNI Envelopes | A list of entries of the form <Envelope ID value, Envelope Coupling Flag value> as specified in Table 24 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
Index | Common Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
7 | ENNI Peering Identifier | A string that is unique across all of the ENNIs between the Operator CENs as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
8 | ENNI Physical Layer | A subset of the PHYs listed in IEEE Std. 802.3 – 2012 for each physical link as specified in Table 3 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
9 | ENNI Frame Format | Ethernet MAC Frame conforming to Clause 3 of IEEE 802.3-2012 as specified in Table 3 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
10 | ENNI Number of Links 1 | A strictly positive integer as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ◉ |
11 | ENNI Link Aggregation 1 | None, 2-Link Active/Standby, All Active, or Other as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
12 | ENNI Port Conversation ID to Aggregation Link Map 1 | See IEEE Std. 802.1AX – 2014 as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
13 | ENNI MEG 1 | Enabled or Disabled as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
14 | ENNI LAG Link MEG 1 | Enabled or Disabled as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
15 | ENNI Link OAM 1 | Enabled or Disabled as specified in Table 3 of MEF 26.2 | Access E-Line ❍ | Access E-Line ❍ |
Index | Operator Multilateral Service Attributes | Summary Description | Certification Applicability ◉ = Tested ❍= Not Tested | JVD Test Coverage ◉ = Tested ❍= Not Tested |
16 | ENNI L2CP Peering 2 | The L2CP Peering service attribute value MUST be an empty list, or a list of entries identifying protocols to be Peered where each entry consists of {Destination Address, Protocol Identifier} or {Destination Address, Protocol Identifier, Link Identifier} | Access E-Line ◉ | Access E-Line ◉ |
17 | ENNI Tagged L2CP Frame Processing | An ENNI Tagged L2CP Frame Processing Service Attribute SHOULD be 802.1 compliant | Access E-Line ◉ | Access E-Line ◉ |
18 | ENNI Maximum Frame Size | The maximum length ENNI Frame in bytes that can be reliably processed as specified in Table 5 of MEF 26.2 | Access E-Line ◉ | Access E-Line ◉ |
Reference: MEF 91 Carrier Ethernet Test Requirements
1 As per MEF 91, control and management protocols such as E-LMI, Link OAM, Service OAM UNI-MEG, Service OAM ENNI-MEG, Test MEG, or protection mechanisms that may be operating at the external interfaces are outside the scope of the MEF 3.0 CE certification program. The deployment and verification of these protocols are to be handled between subscriber/service provider/operator.
2 Protocols not on the list are either Passed to EVC or Discarded based on the Destination Address.
