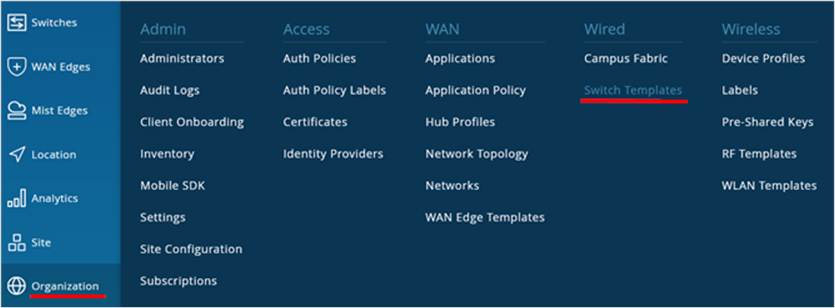

APPENDIX: Switch Template Configuration Examples

Third-Party RADIUS Server Configuration

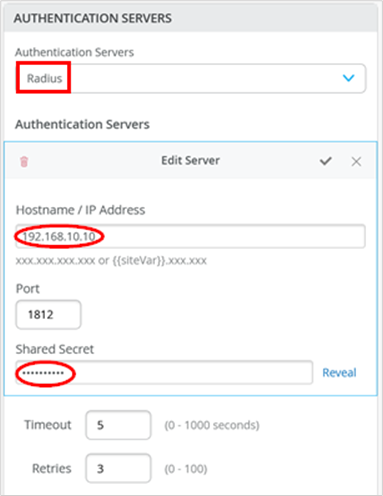

At the beginning of the switch template, you can configure third-party RADIUS servers. The minimum items that must be configured are:

• Select Authentication Servers=Radius
• Add at least one new authentication server:
  • Configure the hostname or IP address through which this RADIUS server responds to requests.
  • Set a shared secret between the switch and the server to allow communication.

You must perform a similar process on the RADIUS server for each client. Configure the RADIUS server, the IP address of the client and the shared secret. Ensure you define the vendor-specific dictionary for the switch that acts as the RADIUS client.

Mist Authentication Configuration

There is not much to configure if you intend to use Juniper Mist Access Assurance:

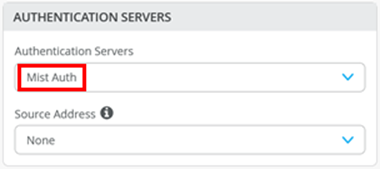

• Select as Authentication Servers=Mist Auth

Figure 1: Authentication Servers Configuration

Port Profiles Used for Testing

The following port profiles were used during testing:

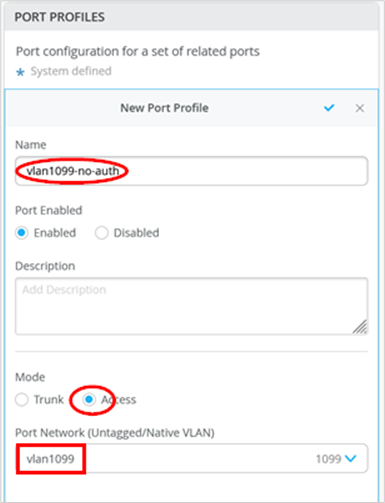

• All static GBP tag assignments used one without any special authentication:
  • Port Profile Name=vlan1099-no-auth
  • Mode=Access
  • Port Network=vlan1099

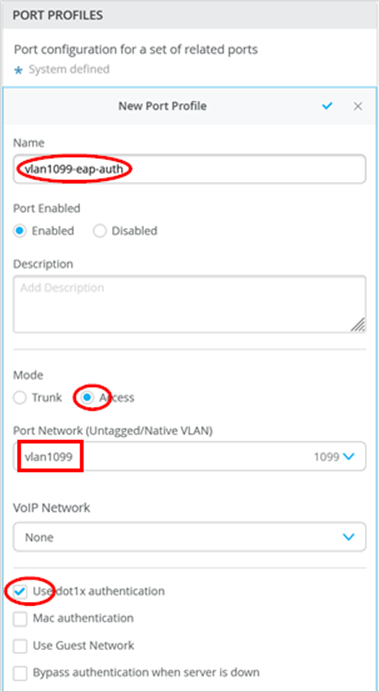

• All dynamic GBP tag assignments with 802.1X supplicants used:
  • Port Profile Name=vlan1099-eap-auth
  • Mode=Access
  • Port Network=vlan1099
  • Use dot1x authentication=Enabled

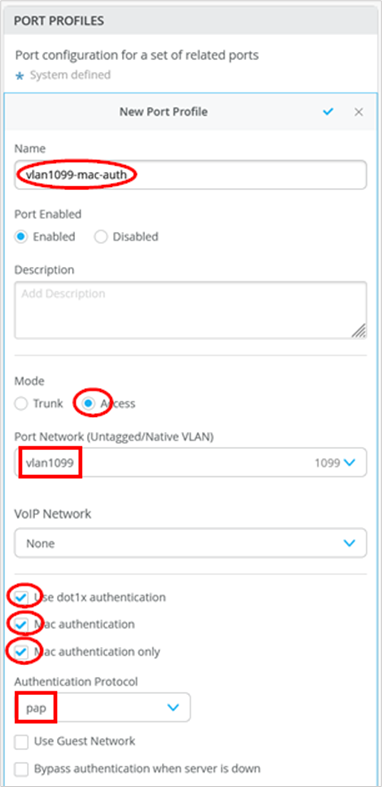

• All dynamic GBP tag assignments via MAC address used:
  • Port Profile Name=vlan1099-mac-auth
  • Mode=access
  • Port Network=vlan1099
  • Use dot1x authentication=Enabled
  • Mac authentication=Enabled
  • Mac authentication only=Enabled

    This prevents the switch from attempting an EAP-based authentication which would fail and cause 60 seconds of delay.

  • Authentication Protocol=pap

    This was easier to configure on the RADIUS server side.

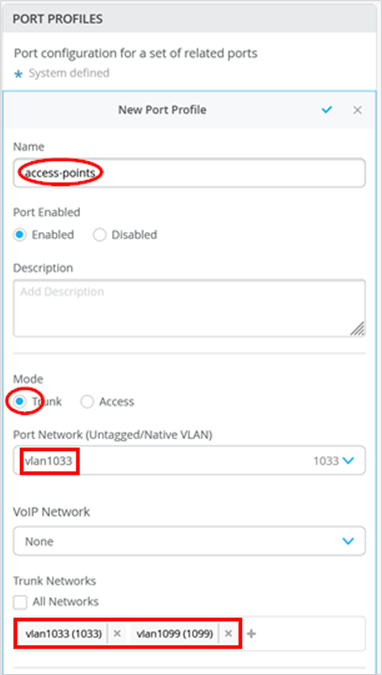

• Finally, for the access point, we used the following port profile:
  • Port Profile Name=access-points
  • Mode=Trunk
  • Port Network=vlan1033
  • Trunk Networks=vlan1033 and vlan1099


GBP Tag Assignments

We’ve used different GBP tag assignment configurations depending on the test cases.

Figure 2 shows a list of GBP tag assignments that were used for testing the RADIUS servers with MAB and 802.1X clients.

Figure 2: Dynamic GBP Tags

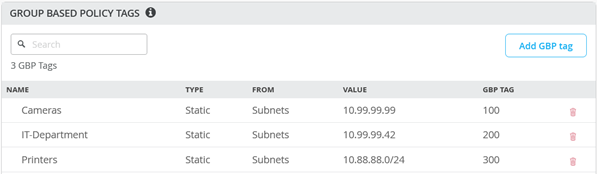

Figure 3 shows a list of GBP tag assignments that were used for testing static, IP address-based assignments.

Figure 3: Static GBP Tags

• For the entire GBP tag assignment testing, more permutations of static assignments were used but we do not list them here.

GBP Policy Assignments

Most of the time, the following matrix of SGT policy enforcements to block or allow traffic between GBP tags were used.

Figure 4: GBP Policy Assignments
