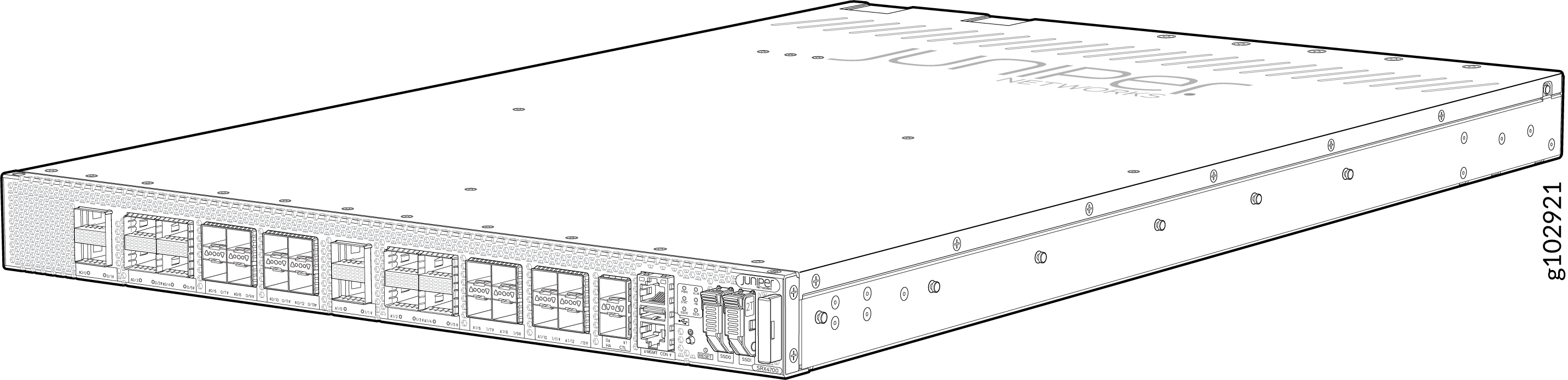

SRX4700 Firewall Overview
The Juniper Networks SRX4700 Firewall is a compact 1-U fixed form factor, high-performance, next-generation firewall device that offers scalable security services. The firewall supports 1.4-Tbps Internet Mix (IMIX) throughput, is suited for service providers, cloud providers, and large enterprises. In addition, enterprises can deploy the SRX4700 as data center core and data center edge firewalls and as a secure software-defined WAN (SD-WAN) hub.
The firewall is available in both AC-powered and DC-powered models.

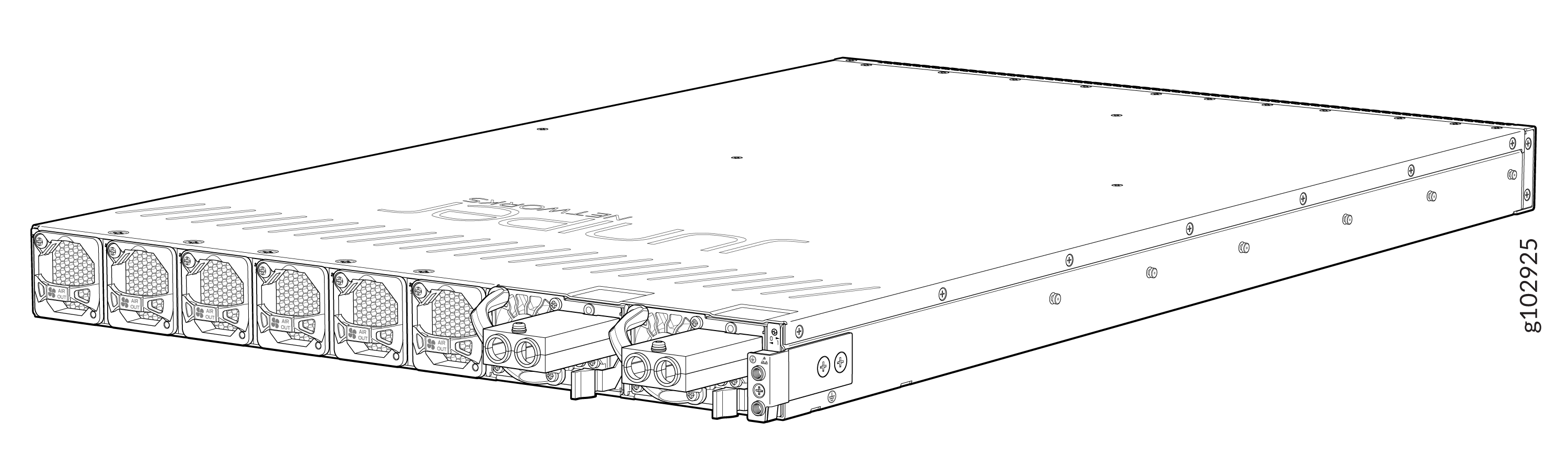

SRX4700 (AC)—SRX4700 Firewall with dual AC power supplies

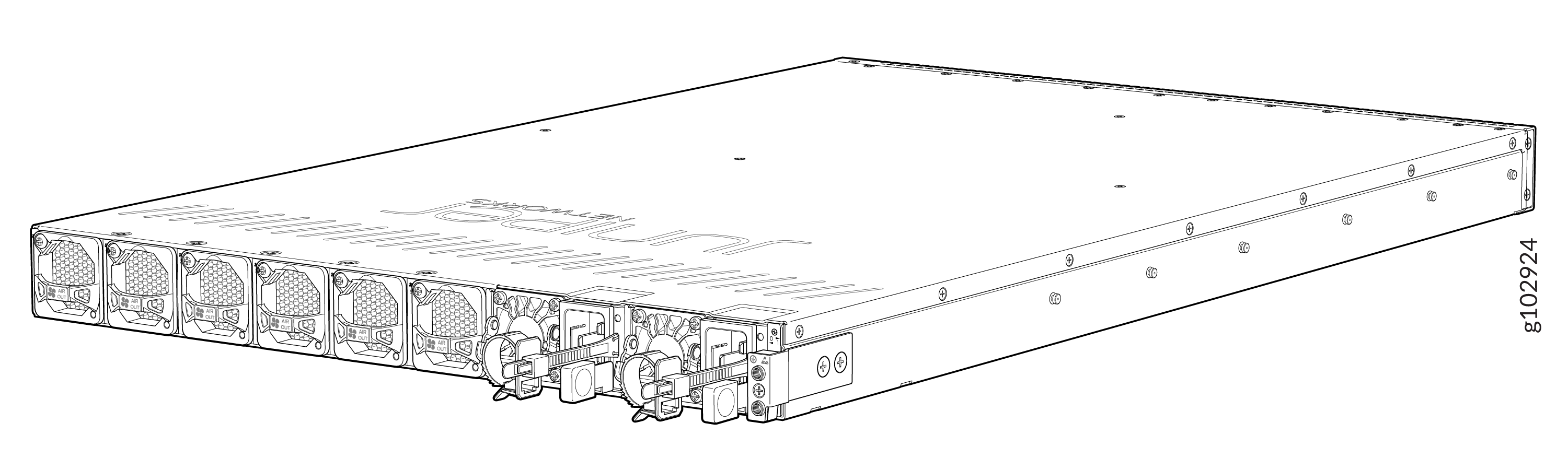

SRX4700 (DC)—SRX4700 Firewall with dual DC power supplies
The SRX4700 Firewall is shipped with two field-replaceable solid-state drives (SSDs): one 1 TB SSD and one 2 TB SSD.
Field-Replaceable Units
Field-replaceable units (FRUs) are components that you can replace at your site. The following FRUs in the firewall are hot-removable and hot-insertable—that is, you can remove and replace them without powering off the firewall or disrupting the firewall functions:
Fan modules
Power Supply Units
Transceivers
Solid-state drives (SSDs) are FRUs that are not hot-removable and hot-insertable. You need to power off the firewall to replace them.
If you have a Juniper J-Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.
System Software
Junos® operating system (Junos OS) powers the SRX4700 Firewall, and Juniper Security Director Cloud manages it. Juniper Security Director Cloud is a unified management experience that connects the organization’s current deployments with future architectural rollouts.
Juniper Security Director Cloud uses a single policy framework that enables the implementation of consistent security policies across any environment. The policy framework also expands zero trust to all parts of the network from the edge to the data center.
Benefits
High availability hardware—We've engineered the SRX4700 with hardware redundancy for cooling and power supply. With the firewall’s high availability, service providers can maintain an always-on infrastructure base that helps meet stringent service-level agreements (SLAs) across the core.
Advanced threat prevention—You can secure your network with Juniper ATP Cloud integrated with the SRX4700. Juniper ATP Cloud provides advanced threat mitigation and detection capabilities, which help protect your network against potential vulnerabilities such as zero-day attacks and other unknown threats.
Easy management and scalability—The SRX4700 provides centralized management using Juniper’s unified management experience, including zero-touch provisioning (ZTP), unbroken visibility, intelligent rule placement, and simplified policy configuration and automation. Supports Network Address Translation (NAT) and automated IPsec VPN deployments via wizards.
