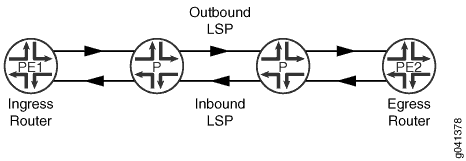

Basic LSP Configuration

The LSP metric is used to indicate the ease or difficulty of sending traffic over a particular LSP. Lower LSP metric values (lower cost) increase the likelihood of an LSP being used. Conversely, high LSP metric values (higher cost) decrease the likelihood of an LSP being used.

The LSP metric can be specified dynamically by the router or explicitly by the user as described in the following sections:

• Configuring Dynamic LSP Metrics
• Configuring Static LSP Metrics
• Configuring RSVP LSP Conditional Metrics
• Preserve the IGP Metric in RSVP LSP Routes

You can provide a textual description for an LSP by enclosing any descriptive text that includes spaces within quotation marks (" "). The descriptive text you include is displayed in the detail output of the show mpls lsp or the show mpls container-lsp command.

Adding a text description for an LSP has no effect on the operation of the LSP. The LSP text description can be no more than 80 characters in length.

To provide a textual description for an LSP, include the description statement at any of the following hierarchy levels:

• [edit protocols mpls label-switched-path lsp-name]

• [edit protocols mpls container-label-switched-path lsp-name]

• [edit protocols mpls static-label-switched-path lsp-name]

• [edit logical-systems logical-system-name protocols mpls label-switched-path lsp-name]

• [edit logical-systems logical-system-name protocols mpls static-label-switched-path lsp-name]

Before you begin:

• Configure the device interfaces.

• Configure the device for network communication.

• Enable MPLS on the device interfaces.

• Configure an LSP in the MPLS domain.

To add a text description for an LSP:

1. Enter any text describing the LSP.

   For example:

2. Verify and commit the configuration.

   For example:

3. View the description of an LSP using the show mpls lsp detail or show mpls container-lsp detail command, depending on the type of LSP configured.

Soft preemption attempts to establish a new path for a preempted LSP before tearing down the original LSP. The default behavior is to tear down a preempted LSP first, signal a new path, and then reestablish the LSP over the new path. In the interval between when the path is taken down and the new LSP is established, any traffic attempting to use the LSP is lost. Soft preemption prevents this type of traffic loss. The trade-off is that during the time when an LSP is being soft preempted, two LSPs with their corresponding bandwidth requirements are used until the original path is torn down.

MPLS soft preemption is useful for network maintenance. For example, you can move all LSPs away from a particular interface, then take the interface down for maintenance without interrupting traffic. MPLS soft preemption is described in detail in RFC 5712, MPLS Traffic Engineering Soft Preemption.

Soft preemption is a property of the LSP and is disabled by default. You configure it at the ingress of an LSP by including the soft-preemption statement:

You can include this statement at the following hierarchy levels:

• [edit protocols mpls label-switched-path lsp-name]

• [edit logical-systems logical-system-name protocols mpls label-switched-path lsp-name]

You can also configure a timer for soft preemption. The timer designates the length of time the router should wait before initiating a hard preemption of the LSP. At the end of the time specified, the LSP is torn down and resignaled. The soft-preemption cleanup timer has a default value of 30 seconds; the range of permissible values is 0 through 180 seconds. A value of 0 means that soft preemption is disabled. The soft-preemption cleanup timer is global for all LSPs.

Configure the timer by including the cleanup-timer statement:

You can include this statement at the following hierarchy levels:

• [edit protocols rsvp preemption soft-preemption]

• [edit logical-systems logical-system-name protocols rsvp preemption soft-preemption]

When there is insufficient bandwidth to establish a more important LSP, you might want to tear down a less important existing LSP to free the bandwidth. You do this by preempting the existing LSP.

Whether an LSP can be preempted is determined by two properties associated with the LSP:

• Setup priority—Determines whether a new LSP that preempts an existing LSP can be established. For preemption to occur, the setup priority of the new LSP must be higher than that of the existing LSP. Also, the act of preempting the existing LSP must produce sufficient bandwidth to support the new LSP. That is, preemption occurs only if the new LSP can be set up successfully.

• Reservation priority—Determines the degree to which an LSP holds on to its session reservation after the LSP has been set up successfully. When the reservation priority is high, the existing LSP is less likely to give up its reservation, and hence it is unlikely that the LSP can be preempted.

You cannot configure an LSP with a high setup priority and a low reservation priority, because permanent preemption loops might result if two LSPs are allowed to preempt each other. You must configure the reservation priority to be higher than or equal to the setup priority.

The setup priority also defines the relative importance of LSPs on the same ingress router. When the software starts, when a new LSP is established, or during fault recovery, the setup priority determines the order in which LSPs are serviced. Higher-priority LSPs tend to be established first and hence enjoy more optimal path selection.

To configure the LSP’s preemption properties, include the priority statement:

For a list of hierarchy levels at which you can include this statement, see the statement summary section for this statement.

Both setup-priority and reservation-priority can be a value from 0 through 7. The value 0 corresponds to the highest priority, and the value 7 to the lowest. By default, an LSP has a setup priority of 7 (that is, it cannot preempt any other LSPs) and a reservation priority of 0 (that is, other LSPs cannot preempt it). These defaults are such that preemption does not happen. When you are configuring these values, the setup priority should always be less than or equal to the hold priority.

Administrative groups, also known as link coloring or resource class, are manually assigned attributes that describe the “color” of links, such that links with the same color conceptually belong to the same class. You can use administrative groups to implement a variety of policy-based LSP setups.

Administrative groups are meaningful only when constrained-path LSP computation is enabled.

You can assign up to 32 names and values (in the range 0 through 31), which define a series of names and their corresponding values. The administrative names and values must be identical across all routers within a single domain.

To configure administrative groups, follow these steps:

1. Define multiple levels of service quality by including the admin-groups statement:

   You can include this statement at the following hierarchy levels:

   • [edit protocols mpls]

   • [edit logical-systems logical-system-name protocols mpls]

   The following configuration example illustrates how you might configure a set of administrative names and values for a domain:

2. Define the administrative groups to which an interface belongs. You can assign multiple groups to an interface. Include the interface statement:

   You can include this statement at the following hierarchy levels:

   • [edit protocols mpls]

   • [edit logical-systems logical-system-name protocols mpls]

   If you do not include the admin-group statement, an interface does not belong to any group.

   IGPs use the group information to build link-state packets, which are then flooded throughout the network, providing information to all nodes in the network. At any router, the IGP topology, as well as administrative groups of all the links, is available.

   Changing the interface’s administrative group affects only new LSPs. Existing LSPs on the interface are not preempted or recomputed to keep the network stable. If LSPs need to be removed because of a group change, issue the clear rsvp session command.

   Note:

   When configuring administrative groups and extended administrative groups together for a link, both the types of administrative groups must be configured on the interface.

3. Configure an administrative group constraint for each LSP or for each primary or secondary LSP path. Include the label-switched-path statement:

   You can include the label-switched-path statement at the following hierarchy levels:

   • [edit protocols mpls]

   • [edit logical-systems logical-system-name protocols mpls]

   If you omit the include-all, include-any, or exclude statements, the path computation proceeds unchanged. The path computation is based on the constrained-path LSP computation. For information about how the constrained-path LSP computation is calculated, see How CSPF Selects a Path.

   Note:

   Changing the LSP’s administrative group causes an immediate recomputation of the route; therefore, the LSP might be rerouted.

As an option, you can configure multiple LSPs between the same pair of ingress and egress routers. This is useful for balancing the load among the LSPs because all LSPs, by default, have the same preference level. To prefer one LSP over another, set different preference levels for individual LSPs. The LSP with the lowest preference value is used. The default preference for RSVP LSPs is 7 and for LDP LSPs is 9. These preference values are lower (more preferred) than all learned routes except direct interface routes.

To change the default preference value, include the preference statement:

For a list of hierarchy levels at which you can include this statement, see the statement summary section for this statement.

The Junos implementation of RSVP supports the Record Route object, which allows an LSP to actively record the routers through which it transits. You can use this information for troubleshooting and to prevent routing loops. By default, path route information is recorded. To disable recording, include the no-record statement:

For a list of hierarchy levels at which you can include the record and no-record statements, see the statement summary section for the statement.

Once an LSP has been established, topology or resources changes might, over time, make the path suboptimal. A new path might have become available that is less congested, has a lower metric, and traverses fewer hops. You can configure the router to recompute paths periodically to determine whether a more optimal path has become available.

If reoptimization is enabled, an LSP can be rerouted through different paths by constrained-path recomputations. However, if reoptimization is disabled, the LSP has a fixed path and cannot take advantage of newly available network resources. The LSP is fixed until the next topology change breaks the LSP and forces a recomputation.

Reoptimization is not related to failover. A new path is always computed when topology failures occur that disrupt an established path.

Because of the potential system overhead involved, you need to carefully control the frequency of reoptimization. Network stability might suffer when reoptimization is enabled. By default, the optimize-timer statement is set to 0 (that is, it is disabled).

LSP optimization is meaningful only when constrained-path LSP computation is enabled, which is the default behavior. For more information about constrained-path LSP computation, see Disabling Constrained-Path LSP Computation. Also, LSP optimization is only applicable to ingress LSPs, so it is only necessary to configure the optimize-timer statement on the ingress router. The transit and egress routers require no specific configuration to support LSP optimization (other than to have MPLS enabled).

To enable path reoptimization, include the optimize-timer statement:

For a list of hierarchy levels at which you can include this statement, see the statement summary section for this statement.

Once you have configured the optimize-timer statement, the reoptimization timer continues its countdown to the configured value even if you delete the optimize-timer statement from the configuration. The next optimization uses the new value. You can force the Junos OS to use a new value immediately by deleting the old value, committing the configuration, configuring the new value for the optimize-timer statement, and then committing the configuration again.

After reoptimization is run, the result is accepted only if it meets the following criteria:

1. The new path is not higher in IGP metric. (The metric for the old path is updated during computation, so if a recent link metric changed somewhere along the old path, it is accounted for.)

2. If the new path has the same IGP metric, it is not more hops away.

3. The new path does not cause preemption. (This is to reduce the ripple effect of preemption causing more preemption.)

4. The new path does not worsen congestion overall.

   The relative congestion of the new path is determined as follows:

   1. The percentage of available bandwidth on each link traversed by the new path is compared to that for the old path, starting from the most congested links.

   2. For each current (old) path, the software stores the four smallest values for bandwidth availability for the links traversed in ascending order.

   3. The software also stores the four smallest bandwidth availability values for the new path, corresponding to the links traversed in ascending order.

   4. If any of the four new available bandwidth values are smaller than any of the corresponding old bandwidth availability values, the new path has at least one link that is more congested than the link used by the old path. Because using the link would cause more congestion, traffic is not switched to this new path.

   5. If none of the four new available bandwidth values is smaller than the corresponding old bandwidth availability values, the new path is less congested than the old path.

When all the above conditions are met, then:

1. If the new path has a lower IGP metric, it is accepted.

2. If the new path has an equal IGP metric and lower hop count, it is accepted.

3. If you choose least-fill as a load balancing algorithm, LSPs are load balanced as follows:

   1. The LSP is moved to a new path that is utilized at least 10% less than the current path. This might reduce congestion on the current path by only a small amount. For example, if an LSP with 1 MB of bandwidth is moved off a path carrying a minimum of 200 MB, congestion on the original path is reduced by less than 1%.

   2. For random or most-fill algorithms, this rule does not apply.

   The following example illustrates how the least-fill load balancing algorithm works.

   Figure 1: least-fill Load Balancing Algorithm Example

   As shown in Figure 1, there are two potential paths for an LSP to traverse from router A to router H, the odd links from L1 through L13 and the even links from L2 through L14. Currently, the router is using the even links as the active path for the LSP. Each link between the same two routers (for example, router A and router B) has the same bandwidth:

   • L1, L2 = 10GE

   • L3, L4 = 1GE

   • L5, L6 = 1GE

   • L7, L8 = 1GE

   • L9, L10 = 1GE

   • L11, L12 = 10GE

   • L13, L14 = 10GE

   The 1GE links are more likely to be congested. In this example, the odd 1GE links have the following available bandwidth:

   • L3 = 41%

   • L5 = 56%

   • L7 = 66%

   • L9 = 71%

   The even 1GE links have the following available bandwidth:

   • L4 = 37%

   • L6 = 52%

   • L8 = 61%

   • L10 = 70%

   Based on this information, the router would calculate the difference in available bandwidth between the odd links and the even links as follows:

   • L4 - L3 = 41% - 37% = 4%

   • L6 - L5 = 56% - 52% = 4%

   • L8 - L7 = 66% - 61% = 5%

   • L10 - L9 = 71% - 70% = 1%

   The total additional bandwidth available over the odd links is 14% (4% + 4% + 5% + 1%). Since 14% is greater than 10% (the least-fill algorithm minimum threshold), the LSP is moved to the new path over the odd links from the original path using the even links.

4. Otherwise, the new path is rejected.

You can disable the following reoptimization criteria (a subset of the criteria listed previously):

• If the new path has the same IGP metric, it is not more hops away.

• The new path does not cause preemption. (This is to reduce the ripple effect of preemption causing more preemption.)

• The new path does not worsen congestion overall.

• If the new path has an equal IGP metric and lower hop count, it is accepted.

To disable them, either issue the clear mpls lsp optimize-aggressive command or include the optimize-aggressive statement:

You can include this statement at the following hierarchy levels:

• [edit protocols mpls]

• [edit logical-systems logical-system-name protocols mpls]

Including the optimize-aggressive statement in the configuration causes the reoptimization procedure to be triggered more often. Paths are rerouted more frequently. It also limits the reoptimization algorithm to the IGP metric only.

Because of network and router resource constraints, it is typically inadvisable to configure a short interval for the optimize timer. However, under certain circumstances, it might be desirable to reoptimize a path sooner than would normally be provided by the optimize timer.

For example, an LSP is traversing a preferred path that subsequently fails. The LSP is then switched to a less desirable path to reach the same destination. Even if the original path is quickly restored, it could take an excessively long time for the LSP to use it again, because it has to wait for the optimize timer to reoptimize the network paths. For such situations, you might want to configure the smart optimize timer.

When you enable the smart optimize timer, an LSP is switched back to its original path so long as the original path has been restored within 3 minutes of going down. Also, if the original path goes down again within 60 minutes, the smart optimize timer is disabled, and path optimization behaves as it normally does when the optimize timer alone is enabled. This prevents the router from using a flapping link.

The smart optimize timer is dependant on other MPLS features to function properly. For the scenario described here in which an LSP is switched to an alternate path in the event of a failure on the original path, it is assumed that you have configured one or more of the MPLS traffic protection features, including fast reroute, link protection, and standby secondary paths. These features help to ensure that traffic can reach its destination in the event of a failure.

At the least, you must configure a standby secondary path for the smart optimize timer feature to work properly. Fast reroute and link protection are more temporary solutions to a network outage. A secondary path ensures that there is a stable alternate path in the event the primary path fails. If you have not configured any sort of traffic protection for an LSP, the smart optimize timer by itself does not ensure that traffic can reach its destination. For more information about MPLS traffic protection, see MPLS and Traffic Protection.

When a primary path fails and the smart optimize timer switches traffic to the secondary path, the router might continue to use the secondary path even after the primary path has been restored. If the ingress router completes a CSPF calculation, it might determine that the secondary path is the better path.

This might be undesirable if the primary path should be the active path and the secondary path should be used as a backup only. Also, if the secondary path is being used as the active path (even though the primary path has been reestablished) and the secondary path fails, the smart optimize timer feature will not automatically switch traffic back to the primary path. However, you can enable protection for the secondary path by configuring node and link protection or an additional standby secondary path, in which case, the smart optimize timer can be effective.

Specify the time in seconds for the smart optimize timer using the smart-optimize-timer statement:

You can include this statement at the following hierarchy levels:

• [edit protocols mpls]

• [edit logical-systems logical-system-name protocols mpls]

By default, each LSP can traverse a maximum of 255 hops, including the ingress and egress routers. To modify this value, include the hop-limit statement:

For a list of hierarchy levels at which you can include this statement, see the statement summary section for this statement.

The number of hops can be from 2 through 255. (A path with two hops consists of the ingress and egress routers only.)

Each LSP has a bandwidth value. This value is included in the sender’s Tspec field in RSVP path setup messages. You can specify a bandwidth value in bits per second. If you configure more bandwidth for an LSP, it should be able to carry a greater volume of traffic. The default bandwidth is 0 bits per second.

A nonzero bandwidth requires that transit and egress routers reserve capacity along the outbound links for the path. The RSVP reservation scheme is used to reserve this capacity. Any failure in bandwidth reservation (such as failures at RSVP policy control or admission control) might cause the LSP setup to fail. If there is insufficient bandwidth on the interfaces for the transit or egress routers, the LSP is not established.

To specify a bandwidth value for a signaled LSP, include the bandwidth statement:

For a list of hierarchy levels at which you can include this statement, see the statement summary section for this statement.

Automatic bandwidth allocation allows an MPLS tunnel to automatically adjust its bandwidth allocation based on the volume of traffic flowing through the tunnel. You can configure an LSP with minimal bandwidth; this feature can dynamically adjust the LSP’s bandwidth allocation based on current traffic patterns. The bandwidth adjustments do not interrupt traffic flow through the tunnel.

You set a sampling interval on an LSP configured with automatic bandwidth allocation. The average bandwidth is monitored during this interval. At the end of the interval, an attempt is made to signal a new path for the LSP with the bandwidth allocation set to the maximum average value for the preceding sampling interval. If the new path is successfully established and the original path is removed, the LSP is switched over to the new path. If a new path is not created, the LSP continues to use its current path until the end of the next sampling interval, when another attempt is made to establish a new path. Note that you can set minimum and maximum bandwidth values for the LSP.

During the automatic bandwidth allocation interval, the router might receive a steady increase in traffic (increasing bandwidth utilization) on an LSP, potentially causing congestion or packet loss. To prevent this, you can define a second trigger to prematurely expire the automatic bandwidth adjustment timer before the end of the current adjustment interval.

Automatic bandwidth allocation allows an MPLS tunnel to automatically adjust its bandwidth allocation based on the volume of traffic flowing through the tunnel. You can configure an LSP with minimal bandwidth, and this feature can dynamically adjust the LSP’s bandwidth allocation based on current traffic patterns. The bandwidth adjustments do not interrupt traffic flow through the tunnel.

At the end of the automatic bandwidth allocation time interval, the current maximum average bandwidth usage is compared with the allocated bandwidth for the LSP. If the LSP needs more bandwidth, an attempt is made to set up a new path where bandwidth is equal to the current maximum average usage. If the attempt is successful, the LSP’s traffic is routed through the new path and the old path is removed. If the attempt fails, the LSP continues to use its current path.

If you have configured link and node protection for the LSP and traffic has been switched to the bypass LSP, the automatic bandwidth allocation feature continues to operate and take bandwidth samples from the bypass LSP. For the first bandwidth adjustment cycle, the maximum average bandwidth usage taken from the original link and node-protected LSP is used to resignal the bypass LSP if more bandwidth is needed. (Link and node protection are not supported on QFX Series switches.)

If you have configured fast-reroute for the LSP, you might not be able to use this feature to adjust the bandwidth. Because the LSPs use a fixed filter (FF) reservation style, when a new path is signaled, the bandwidth might be double-counted. Double-counting can prevent a fast-reroute LSP from ever adjusting its bandwidth when automatic bandwidth allocation is enabled. (Fast reroute is not supported on QFX Series switches.)

To configure automatic bandwidth allocation, complete the steps in the following sections:

When an LSP changes from being up to being down, or from down to up, this transition takes effect immediately in the router software and hardware. However, when advertising LSPs into IS-IS and OSPF, you may want to damp LSP transitions, thereby not advertising the transition until a certain period of time has transpired (known as the hold time). In this case, if the LSP goes from up to down, the LSP is not advertised as being down until it has remained down for the hold-time period. Transitions from down to up are advertised into IS-IS and OSPF immediately. Note that LSP damping affects only the IS-IS and OSPF advertisements of the LSP; other routing software and hardware react immediately to LSP transitions.

To damp LSP transitions, include the advertisement-hold-time statement:

seconds can be a value from 0 through 65,535 seconds. The default is 5 seconds.

You can include this statement at the following hierarchy levels:

• [edit protocols mpls]

• [edit logical-systems logical-system-name protocols mpls]

This example shows how to configure an entropy label for a BGP labeled unicast to achieve end-to-end load balancing using entropy labels. When an IP packet has multiple paths to reach its destination, Junos OS uses certain fields of the packet headers to hash the packet to a deterministic path. This requires an entropy label, a special load-balancing label that can carry the flow information. LSRs in the core simply use the entropy label as the key to hash the packet to the correct path. An entropy label can be any label value between 16 to 1048575 (regular 20-bit label range). Since this range overlaps with the existing regular label range, a special label called entropy label indicator (ELI) is inserted before the entropy label. ELI is a special label assigned by IANA with the value of 7.

BGP labeled unicasts generally concatenate RSVP or LDP LSPs across multiple IGP areas or multiple autonomous systems. RSVP or LDP entropy labels are popped at the penultimate hop node, together with the RSVP or LDP label. This feature enables the use of entropy labels at the stitching points to bridge the gap between the penultimate hop node and the stitching point, in order to achieve end-to-end entropy label load balancing for BGP traffic.

If you disable constrained-path label-switched path (LSP) computation, as described in Disabling Constrained-Path LSP Computation, you can configure LSPs manually or allow the LSPs to follow the IGP path.

When explicit-path LSPs are configured, the LSP is established along the path you specified. If the path is topologically not feasible, either because the network is partitioned or insufficient resources are available along some parts of the path, the LSP will fail. No alternative paths can be used. If the setup succeeds, the LSP stays on the defined path indefinitely.

To configure an explicit-path LSP, follow these steps:

1. Configure the path information in a named path, as described in Creating Named Paths. To configure complete path information, specify every router hop between the ingress and egress routers, preferably using the strict attribute. To configure incomplete path information, specify only a subset of router hops, using the loose attribute in places where the path is incomplete.

   For incomplete paths, the MPLS routers complete the path by querying the local routing table. This query is done on a hop-by-hop basis, and each router can figure out only enough information to reach the next explicit hop. It might be necessary to traverse a number of routers to reach the next (loose) explicit hop.

   Configuring incomplete path information creates portions of the path that depend on the current routing table, and this portion of the path can reroute itself as the topology changes. Therefore, an explicit-path LSP that contains incomplete path information is not completely fixed. These types of LSPs have only a limited ability to repair themselves, and they tend to create loops or flaps depending on the contents of the local routing table.

2. To configure the LSP and point it to the named path, use either the primary or secondary statement, as described in Configuring Primary and Secondary LSPs.

3. Disable constrained-path LSP computation by including the no-cspf statement either as part of the LSP or as part of a primary or secondary statement. For more information, see Disabling Constrained-Path LSP Computation.

4. Configure any other LSP properties.

Using explicit-path LSPs has the following drawbacks:

• More configuration effort is required.

• Configured path information cannot take into account dynamic network bandwidth reservation, so the LSPs tend to fail when resources become depleted.

• When an explicit-path LSP fails, you might need to manually repair it.

Because of these limitations, we recommend that you use explicit-path LSPs only in controlled situations, such as to enforce an optimized LSP placement strategy resulting from computations with an offline simulation software package.

On the ingress router, create an explicit-path LSP, and specify the transit routers between the ingress and egress routers. In this configuration, no constrained-path computation is performed. For the primary path, all intermediate hops are strictly specified so that its route cannot change. The secondary path must travel through router 14.1.1.1 first, then take whatever route is available to reach the destination. The remaining route taken by the secondary path is typically the shortest path computed by the IGP.

LSPs are established with bandwidth reservations configured for the maximum amount of traffic you expect to traverse the LSP. Not all LSPs carry the maximum amount of traffic over their links at all times. For example, even if the bandwidth for link A has been completely reserved, actual bandwidth might still be available but not currently in use. This excess bandwidth can be used by allowing other LSPs to also use link A, oversubscribing the link. You can oversubscribe the bandwidth configured for individual class types or specify a single value for all of the class types using an interface.

You can use oversubscription to take advantage of the statistical nature of traffic patterns and to permit higher utilization of links.

The following examples describe how you might use bandwidth oversubscription and undersubscription:

• Use oversubscription on class types where peak periods of traffic do not coincide in time.

• Use oversubscription of class types carrying best-effort traffic. You take the risk of temporarily delaying or dropping traffic in exchange for making better utilization of network resources.

• Give different degrees of oversubscription or undersubscription of traffic for the different class types. For instance, you configure the subscription for classes of traffic as follows:

  • Best effort—ct0 1000

  • Voice—ct3 1

When you undersubscribe a class type for a multiclass LSP, the total demand of all RSVP sessions is always less than the actual capacity of the class type. You can use undersubscription to limit the utilization of a class type.

The bandwidth oversubscription calculation occurs on the local router only. Because no signaling or other interaction is required from other routers in the network, the feature can be enabled on individual routers without being enabled or available on other routers which might not support this feature. Neighboring routers do not need to know about the oversubscription calculation, they rely on the IGP.

The following sections describe the types of bandwidth oversubscription available in the Junos OS:

• LSP Size Oversubscription

• LSP Link Size Oversubscription

• Class Type Oversubscription and Local Oversubscription Multipliers

For LSP size oversubscription, you simply configure less bandwidth than the peak rate expected for the LSP. You also might need to adjust the configuration for automatic policers. Automatic policers manage the traffic assigned to an LSP, ensuring that it does not exceed the configured bandwidth values. LSP size oversubscription requires that the LSP can exceed its configured bandwidth allocation.

Policing is still possible. However, the policer must be manually configured to account for the maximum bandwidth planned for the LSP, rather than for the configured value.

You can increase the maximum reservable bandwidth on the link and use the inflated values for bandwidth accounting. Use the subscription statement to oversubscribe the link. The configured value is applied to all class type bandwidth allocations on the link. For more information about link size oversubscription, see Configuring the Bandwidth Subscription Percentage for LSPs.

Local oversubscription multipliers (LOMs) allow different oversubscription values for different class types. LOMs are useful for networks where the oversubscription ratio needs to be configured differently on different links and where oversubscription values are required for different classes. You might use this feature to oversubscribe class types handling best-effort traffic, but use no oversubscription for class types handling voice traffic. An LOM is calculated locally on the router. No information related to an LOM is signaled to other routers in the network.

An LOM is configurable on each link and for each class type. The per-class type LOM allows you to increase or decrease the oversubscription ratio. The per-class-type LOM is factored into all local bandwidth accounting for admission control and IGP advertisement of unreserved bandwidths.

The LOM calculation is tied to the bandwidth model (MAM, extended MAM, and Russian dolls) used, because the effect of oversubscription across class types must be accounted for accurately.

By default, RSVP allows all of a class type’s bandwidth (100 percent) to be used for RSVP reservations. When you oversubscribe a class type for a multiclass LSP, the aggregate demand of all RSVP sessions is allowed to exceed the actual capacity of the class type.

If you want to oversubscribe or undersubscribe all of the class types on an interface using the same percentage bandwidth, configure the percentage using the subscription statement:

For a list of hierarchy levels at which you can include this statement, see the statement summary section.

To undersubscribe or oversubscribe the bandwidth for each class type, configure a percentage for each class type (ct0, ct1, ct2, and ct3) option for the subscription statement. When you oversubscribe a class type, an LOM is applied to calculate the actual bandwidth reserved. See Class Type Oversubscription and Local Oversubscription Multipliers for more information.

For a list of hierarchy levels at which you can include this statement, see the statement summary section.

percentage is the percentage of class type bandwidth that RSVP allows to be used for reservations. It can be a value from 0 through 65,000 percent. If you specify a value greater than 100, you are oversubscribing the interface or class type.

The value you configure when you oversubscribe a class type is a percentage of the class type bandwidth that can actually be used. The default subscription value is 100 percent.

You can use the subscription statement to disable new RSVP sessions for one or more class types. If you configure a percentage of 0, no new sessions (including those with zero bandwidth requirements) are permitted for the class type.

Existing RSVP sessions are not affected by changing the subscription factor. To clear an existing session, issue the clear rsvp session command. For more information on the clear rsvp session command, see the CLI Explorer.

Junos supports ICMP error message generation towards source for error conditions like TTL expiry, unreachable destination, unreachable destination (DF), redirect, etc. for IPv4, IPv6, and MPLS packets.

Starting from Junos OS Release 23.4R1, Junos supports ICMP error message generation for MTU exceed errors in an MPLS environment.

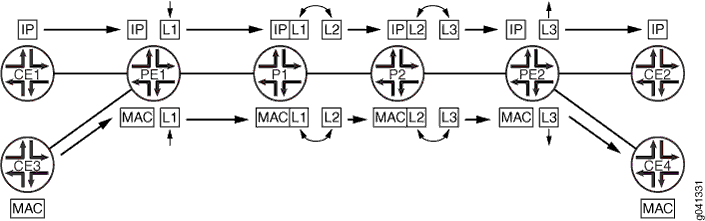

If a MPLS labeled packet failure occurs at the egress interface of the core or transit nodes due to MTU exceed errors, an ICMP error message is generated towards the peer PE device terminating the LSP. The peer PE device decapsulates the MPLS header and routes the ICMP error message to the source device. The return path could be either pure IP path or a different LSP based on the state of the device’s routing table. The source or customer edge device receives the ICMP error message and adjusts the packet size to avoid MTU errors.

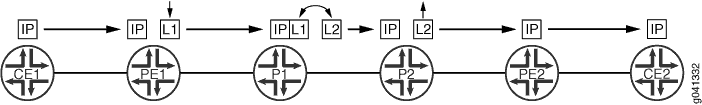

RFC3032 defines ICMP tunnel mechanism to handle ICMP error message generation for MPLS packets for TTL expiry and MTU exceeded exceptions.

The following are some of the benefits of ICMP error message generation for MTU exceed errors in an MPLS environment:

• Understand if the cause of failure was due to MTU exceed errors.

• Know about MTU exceeded failures on transit nodes and ingress nodes in an MPLS setup.

• Supports the use case where an application on your network communicates to the endpoint over a Layer 3 VPN (unicast) or static LSP network.

To enable ICMP MTU exceed error message generation, you need to configure ICMP tunneling by enabling the icmp-tunnelling statement at the [edit protocol mpls] hierarchy level on the core and transit devices.

When you configure the chained-composite-next-hop transit <> statement at the [edit routing-options forwarding-table] hierarchy level and MPLS MTU exception on transit router, there is no guarantee for the ICMP error message generation to work.

When you configure the chained-composite-next-hop transit <> statement at the [edit routing-options forwarding-table] hierarchy level on the ingress router, and ingress and egress interfaces are on different FPCs/PFEs, with ingress FPC/PFE performing more than 1 MPLS label addition, then, the ICMP error generation for MPLS MTU exception on ingress router will not be accurate.

ICMP error message generation is not supported for:

• Layer 2 VPN and Layer 2 Circuit configurations.

• Multicast configurations with traffic carried over MPLS. MTU exceptions packets will be counted and dropped.
