Configure Policy-Based IPsec VPN with Certificates

Step-by-Step Procedure

The following example requires you to navigate various levels in the configuration hierarchy. For instructions on how to do that, see Using the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To configure PKI:

1. Configure an IP address and protocol family on the Gigabit Ethernet interfaces.

   content_copy zoom_out_map

   [edit interfaces]
   user@host# set ge-0/0/0 unit 0 family inet address 192.168.10.1/24
   user@host# set ge-0/0/3 unit 0 family inet address 10.1.1.2/30


2. Configure a default route to the Internet next hop.

   content_copy zoom_out_map

   [edit]
   user@host# set routing-options static route 0.0.0.0/0 next-hop 10.1.1.1


3. Set the system time and date.

   content_copy zoom_out_map

   [edit]
   user@host# set system time-zone PST8PDT


   After the configuration is committed, verify the clock settings using the show system uptime command.

   content_copy zoom_out_map

   user@host> show system uptime
   Current time: 2007-11-01 17:57:09 PDT
   System booted: 2007-11-01 14:36:38 PDT (03:20:31 ago)
   Protocols started: 2007-11-01 14:37:30 PDT (03:19:39 ago)
   Last configured: 2007-11-01 17:52:32 PDT (00:04:37 ago) by root
   5:57PM up 3:21, 4 users, load averages: 0.00, 0.00, 0.00

4. Set the NTP server address.

   content_copy zoom_out_map

   user@host> set date ntp 130.126.24.24
   1 Nov 17:52:52 ntpdate[5204]: step time server 172.16.24.24 offset -0.220645 sec


5. Set the DNS configuration.

   content_copy zoom_out_map

   [edit]
   user@host# set system name-server 172.31.2.1
   user@host# set system name-server 172.31.2.2


Step-by-Step Procedure

1. Create a trusted CA profile.

   content_copy zoom_out_map

   [edit]
   user@host# set security pki ca-profile ms-ca ca-identity example.com


2. Create a revocation check to specify a method for checking certificate revocation.

   Set the refresh interval, in hours, to specify the frequency in which to update the CRL. The default values are next-update time in CRL, or 1 week, if no next-update time is specified.

   content_copy zoom_out_map

   [edit]
   user@host# set security pki ca-profile ms-ca revocation-check crl refresh-interval 48


   In the revocation-check configuration statement, you can use the disable option to disable the revocation check or select the crl option to configure the CRL attributes. You can select the disable on-download-failure option to allow the sessions matching the CA profile, when CRL download failed for a CA profile. The sessions will be allowed only if no old CRL is present in the same CA profile.

3. Specify the location (URL) to retrieve the CRL (HTTP or LDAP). By default, the URL is empty and uses CDP information embedded in the CA certificate.

   content_copy zoom_out_map

   [edit]
   user@host# set security pki ca-profile ms-ca revocation-check crl url http://srv1.example.com/CertEnroll/EXAMPLE.crl


   Currently you can configure only one URL. Support for backup URL configuration is not available.

4. Specify an e-mail address to send the certificate request directly to a CA administrator.

   content_copy zoom_out_map

   user@host# set security pki ca-profile ms-ca administrator email-address certadmin@example.com


5. Commit the configuration:

   content_copy zoom_out_map

   user@host# commit and-quit
   commit complete
   Exiting configuration mode


Step-by-Step Procedure

When the CA profile is configured, the next step is to generate a key pair on the Juniper Networks device. To generate the private and public key pair:

1. Create a certificate key pair.

   content_copy zoom_out_map

   user@host> request security pki generate-key-pair certificate-id ms-cert size 1024

Results

After the public-private key pair is generated, the Juniper Networks device displays the following:

Generated key pair ms-cert, key size 1024 bits

Step-by-Step Procedure

1. Generate a local digital certificate request in the PKCS-10 format. See request security pki generate-certificate-request.

   content_copy zoom_out_map

   user@host> request security pki generate-certificate-request certificate-id ms-cert subject "CN=john doe,CN=10.1.1.2,OU=sales,O=example, L=Sunnyvale,ST=CA,C=US" email user@example.net filename ms-cert-req
   Generated certificate request
   -----BEGIN CERTIFICATE REQUEST-----
   MIIB3DCCAUUCAQAwbDERMA8GA1UEAxMIam9obiBkb2UxDjAMBgNVBAsTBXNhbGVz
   MRkwFwYDVQQKExBKdW5pcGVyIE5ldHdvcmtzMRIwEAYDVQQHEwlTdW5ueXZhbGUx
   CzAJBgNVBAgTAkNBMQswCQYDVQQGEwJVUzCBnzANBgkqhkiG9w0BAQEFAAOBjQAw
   gYkCgYEA5EG6sgG/CTFzX6KC/hz6Czal0BxakUxfGxF7UWYWHaWFFYLqo6vXNO8r
   OS5Yak7rWANAsMob3E2X/1adlQIRi4QFTjkBqGI+MTEDGnqFsJBqrB6oyqGtdcSU
   u0qUivMvgKQVCx8hpx99J3EBTurfWL1pCNlBmZggNogb6MbwES0CAwEAAaAwMC4G
   CSqGSIb3DQEJDjEhMB8wHQYDVR0RBBYwFIESInVzZXJAanVuaXBlci5uZXQiMA0G
   CSqGSIb3DQEBBQUAA4GBAI6GhBaCsXk6/1lE2e5AakFFDhY7oqzHhgd1yMjiSUMV
   djmf9JbDz2gM2UKpI+yKgtUjyCK/lV2ui57hpZMvnhAW4AmgwkOJg6mpR5rsxdLr
   4/HHSHuEGOF17RHO6x0YwJ+KE1rYDRWj3Dtz447ynaLxcDF7buwd4IrMcRJJI9ws
   -----END CERTIFICATE REQUEST-----
   Fingerprint:
   47:b0:e1:4c:be:52:f7:90:c1:56:13:4e:35:52:d8:8a:50:06:e6:c8 (sha1)
   a9:a1:cd:f3:0d:06:21:f5:31:b0:6b:a8:65:1b:a9:87 (md5)

   In the sample of the PKCS10 certificate, the request starts with and includes the BEGIN CERTIFICATE REQUEST line and ends with and includes the END CERTIFICATE REQUEST line. This portion can be copied and pasted to your CA for enrollment. Optionally, you can also offload the ms-cert-req file and send that to your CA.

2. Submit the certificate request to the CA, and retrieve the certificate.

Step-by-Step Procedure

1. Load the local certificate, CA certificate, and CRL.

   content_copy zoom_out_map

   user@host> file copy ftp://192.168.10.10/certnew.cer certnew.cer /var/tmp//...transferring.file.........crYdEC/100% of 1459 B 5864 kBps
   user@host> file copy ftp:// 192.168.10.10/CA-certnew.cer CA-certnew.cer /var/tmp//...transferring.file.........UKXUWu/100% of 1049 B 3607 kBps
   user@host> file copy ftp:// 192.168.10.10/certcrl.crl certcrl.crl /var/tmp//...transferring.file.........wpqnpA/100% of 401 B 1611 kBps


   You can verify that all files have been uploaded by using the command file list.

2. Load the certificate into local storage from the specified external file.

   You must also specify the certificate ID to keep the proper linkage with the private or public key pair. This step loads the certificate into the RAM cache storage of the PKI module, checks the associated private key, and verifies the signing operation.

   content_copy zoom_out_map

   user@host> request security pki local-certificate load certificate-id ms-cert filename certnew.cer
   Local certificate loaded successfully

3. Load the CA certificate from the specified external file.

   You must specify the CA profile to associate the CA certificate to the configured profile.

   content_copy zoom_out_map

   user@host> request security pki ca-certificate load ca-profile ms-ca filename CA-certnew.cer
   Fingerprint:
   1b:02:cc:cb:0f:d3:14:39:51:aa:0f:ff:52:d3:38:94:b7:11:86:30 (sha1)
   90:60:53:c0:74:99:f5:da:53:d0:a0:f3:b0:23:ca:a3 (md5)
   Do you want to load this CA certificate ? [yes,no] (no) yes
   CA certificate for profile ms-ca loaded successfully

4. Load the CRL into the local storage.

   The maximum size of the CRL is 5 MB. You must specify the associated CA profile in the command.

   content_copy zoom_out_map

   user@host> request security pki crl load ca-profile ms-ca filename certcrl.crl
   CRL for CA profile ms-ca loaded successfully

Results

Verify that all local certificates are loaded.

user@host> show security pki local-certificate certificate-id ms-cert detail Certificate
identifier: ms-cert
Certificate version: 3
Serial number: 3a01c5a0000000000011
Issuer:
Organization: Example, Organizational unit: example, Country: US, State:
CA, Locality: Sunnyvale,
Common name: LAB
Subject:
Organization: Example, Organizational unit: example, Country: US,
State: CA, Locality: Sunnyvale,
Common name: john doe
Alternate subject: "user@example.net", fqdn empty, ip empty
Validity:
Not before: 11- 2-2007 22:54
Not after: 11- 2-2008 23:04
Public key algorithm: rsaEncryption(1024 bits)
30:81:89:02:81:81:00:e4:41:ba:b2:01:bf:09:31:73:5f:a2:82:fe
1c:fa:0b:36:a5:d0:1c:5a:91:4c:5f:1b:11:7b:51:66:16:1d:a5:85
15:82:ea:a3:ab:d7:34:ef:2b:39:2e:58:6a:4e:eb:58:03:40:b0:ca
1b:dc:4d:97:ff:56:9d:95:02:11:8b:84:05:4e:39:01:a8:62:3e:31
31:03:1a:7a:85:b0:90:6a:ac:1e:a8:ca:a1:ad:75:c4:94:bb:4a:94
8a:f3:2f:80:a4:15:0b:1f:21:a7:1f:7d:27:71:01:4e:ea:df:58:bd
69:08:d9:41:99:98:20:36:88:1b:e8:c6:f0:11:2d:02:03:01:00:01
Signature algorithm: sha1WithRSAEncryption
Distribution CRL:
ldap:///CN=LAB,CN=LABSRV1,CN=CDP,CN=Public%20Key%20Services,CN=Services,
CN=Configuration,DC=domain,DC=com?certificateRevocationList?base?
objectclass=cRLDistributionPoint
http://labsrv1.domain.com/CertEnroll/LAB.crl
Fingerprint:
c9:6d:3d:3e:c9:3f:57:3c:92:e0:c4:31:fc:1c:93:61:b4:b1:2d:58 (sha1)
50:5d:16:89:c9:d3:ab:5a:f2:04:8b:94:5d:5f:65:bd (md5)

You can display the individual certificate details by specifying certificate-ID in the command line.

Verify all CA certificates or the CA certificates of an individual CA profile (specified).

user@host> show security pki ca-certificate ca-profile ms-ca detail
Certificate identifier: ms-ca
Certificate version: 3
Serial number: 44b033d1e5e158b44597d143bbfa8a13
Issuer:
Organization: Example, Organizational unit: example, Country: US, State:
CA, Locality: Sunnyvale,
Common name: example
Subject:
Organization: Example, Organizational unit: example, Country: US, State:
CA, Locality: Sunnyvale,
Common name: example
Validity:
Not before: 09-25-2007 20:32
Not after: 09-25-2012 20:41
Public key algorithm: rsaEncryption(1024 bits)
30:81:89:02:81:81:00:d1:9e:6f:f4:49:c8:13:74:c3:0b:49:a0:56
11:90:df:3c:af:56:29:58:94:40:74:2b:f8:3c:61:09:4e:1a:33:d0
8d:53:34:a4:ec:5b:e6:81:f5:a5:1d:69:cd:ea:32:1e:b3:f7:41:8e
7b:ab:9c:ee:19:9f:d2:46:42:b4:87:27:49:85:45:d9:72:f4:ae:72
27:b7:b3:be:f2:a7:4c:af:7a:8d:3e:f7:5b:35:cf:72:a5:e7:96:8e
30:e1:ba:03:4e:a2:1a:f2:1f:8c:ec:e0:14:77:4e:6a:e1:3b:d9:03
ad:de:db:55:6f:b8:6a:0e:36:81:e3:e9:3b:e5:c9:02:03:01:00:01
Signature algorithm: sha1WithRSAEncryption
Distribution CRL:
ldap:///CN=LAB,CN=LABSRV1,CN=CDP,CN=Public%20Key%20Services,CN=Services,
CN=Configuration,DC=domain,DC=com?certificateRevocationList?base?
objectclass=cRLDistributionPoint
http://srv1.domain.com/CertEnroll/LAB.crl
Use for key: CRL signing, Certificate signing, Non repudiation
Fingerprint:
1b:02:cc:cb:0f:d3:14:39:51:aa:0f:ff:52:d3:38:94:b7:11:86:30 (sha1)
90:60:53:c0:74:99:f5:da:53:d0:a0:f3:b0:23:ca:a3 (md5)

Verify all loaded CRLs or the CRLs of the specified individual CA profile.

user@host> show security pki crl ca-profile ms-ca detail
CA profile: ms-ca
CRL version: V00000001
CRL issuer: emailAddress = certadmin@example.net, C = US, ST = CA,
L = Sunnyvale, O = Example, OU = example, CN = example
Effective date: 10-30-2007 20:32
Next update: 11- 7-2007 08:52

Verify the certificate path for the local certificate and the CA certificate.

user@host> request security pki local-certificate verify certificate-id ms-cert
Local certificate ms-cert verification success
user@host> request security pki ca-certificate verify ca-profile ms-ca
CA certificate ms-ca verified successfully

Step-by-Step Procedure

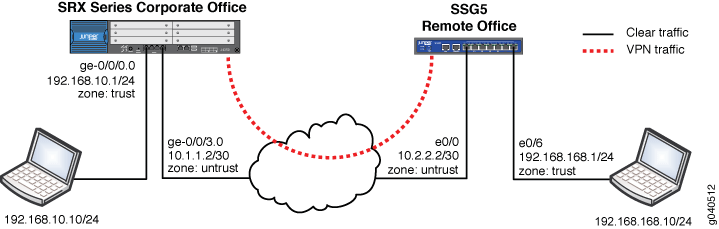

To configure the IPsec VPN with the certificate, refer to the network diagram shown in Figure 1

1. Configure security zones and assign interfaces to the zones.

   In this example packets are incoming on ge-0/0/0, and the ingress zone is the trust zone.

   content_copy zoom_out_map

   [edit security zones security-zone]
   user@host# set trust interfaces ge-0/0/0.0
   user@host# set untrust interfaces ge-0/0/3.0


2. Configure host-inbound services for each zone.

   Host-inbound services are for traffic destined for the Juniper Networks device. These settings include but are not limited to the FTP, HTTP, HTTPS, IKE, ping, rlogin, RSH, SNMP, SSH, Telnet, TFTP, and traceroute.

   content_copy zoom_out_map

   [edit security zones security-zone]
   user@host# set trust host-inbound-traffic system-services all
   user@host# set untrust host-inbound-traffic system-services ike


3. Configure the address book entries for each zone.

   content_copy zoom_out_map

   [edit security zones security-zone]
   user@host# set trust address-book address local-net 192.168.10.0/24
   user@host# set untrust address-book address remote-net 192.168.168.0/24


4. Configure the IKE (Phase 1) proposal to use RSA encryption.

   content_copy zoom_out_map

   [edit security ike proposal rsa-prop1]
   user@host# set authentication-method rsa-signatures
   user@host# set encryption-algorithm 3des-cbc
   user@host# set authentication-algorithm sha1
   user@host# set dh-group group2


5. Configure an IKE policy.

   The phase 1 exchange can take place in either main mode or aggressive mode.

   content_copy zoom_out_map

   [edit security ike policy ike-policy1]
   user@host# set mode main
   user@host# set proposals rsa-prop1
   user@host# set certificate local-certificate ms-cert
   user@host# set certificate peer-certificate-type x509- signature
   user@host# set certificate trusted-ca use-all


6. Configure an IKE gateway.

   In this example, the peer is identified by an FQDN (hostname). Therefore the gateway IKE ID should be the remote peer domain name. You must specify the correct external interface or peer ID to properly identify the IKE gateway during Phase 1 setup.

   content_copy zoom_out_map

   [edit security ike gateway ike-gate]
   user@host# set external-interface ge-0/0/3.0
   user@host# set ike-policy ike-policy1
   user@host# set dynamic hostname ssg5.example.net


7. Configure the IPsec policy.

   This example uses the Standard proposal set, which includes esp-group2-3des-sha1 and esp-group2- aes128-sha1 proposals. However, a unique proposal can be created and then specified in the IPsec policy if needed.

   content_copy zoom_out_map

   [edit security ipsec policy vpn-policy1]
   user@host# set proposal-set standard
   user@host# set perfect-forward-secrecy keys group2


8. Configure the IPsec VPN with an IKE gateway and IPsec policy.

   In this example, the ike-vpn VPN name must be referenced in the tunnel policy to create a security association. Additionally, if required, an idle time and a proxy ID can be specified if they are different from the tunnel policy addresses.

   content_copy zoom_out_map

   [edit security ipsec vpn ike-vpn ike]
   user@host# set gateway ike-gate
   user@host# set ipsec-policy vpn-policy1


9. Configure bidirectional tunnel policies for VPN traffic.

   In this example, traffic from the host LAN to the remote office LAN requires a from-zone trust to-zone untrust tunnel policy. However, if a session needs to originate from the remote LAN to the host LAN, then a tunnel policy in the opposite direction from from-zone untrust to-zone trust is also required. When you specify the policy in the opposite direction as the pair-policy, the VPN becomes bidirectional. Note that in addition to the permit action, you also need to specify the IPsec profile to be used. Note that for tunnel policies, the action is always permit. In fact, if you are configuring a policy with the deny action, you will not see an option for specifying the tunnel.

   content_copy zoom_out_map

   [edit security policies from-zone trust to-zone untrust]
   user@host# set policy tunnel-policy-out match source-address local-net
   user@host# set policy tunnel-policy-out match destination-address remote-net
   user@host# set policy tunnel-policy-out match application any
   user@host# set policy tunnel-policy-out then permit tunnel ipsec-vpn ike-vpn pair-policy tunnel-policy-in
   user@host# top edit security policies from-zone untrust to-zone trust
   user@host# set policy tunnel-policy-in match source-address remote-net
   user@host# set policy tunnel-policy-in match destination-address local-net
   user@host# set policy tunnel-policy-in match application any
   user@host# set policy tunnel-policy-in then permit tunnel ipsec-vpn ike-vpn pair-policy tunnel-policy-out


10. Configure a source NAT rule and a security policy for Internet traffic.

    The device uses the specified source-nat interface, and translates the source IP address and port for outgoing traffic, using the IP address of the egress interface as the source IP address and a random higher port for the source port. If required, more granular policies can be created to permit or deny certain traffic.

    content_copy zoom_out_map

    [edit security nat source rule-set nat-out]
    user@host#set from zone trust
    user@host#set to zone untrust
    user@host#set rule interface-nat match source-address 192.168.10.0/24
    user@host#set rule interface-nat match destination-address 0.0.0.0/0
    user@host#set rule interface-nat then source-nat interface


    content_copy zoom_out_map

    [edit security policies from-zone trust to-zone untrust]
    user@host# set policy any-permit match source-address any
    user@host# set policy any-permit match destination-address any
    user@host# set policy any-permit match application any
    user@host# set policy any-permit then permit


11. Move the tunnel policy above the any-permit policy.

    content_copy zoom_out_map

    [edit security policies from-zone trust to-zone untrust]
    user@host# insert policy tunnel-policy-out before policy any-permit


    The security policy should be below the tunnel policy in the hierarchy because the policy list is read from top to bottom. If this policy were above the tunnel policy, then the traffic would always match this policy and would not continue to the next policy. Thus no user traffic would be encrypted.

12. Configure the tcp-mss setting for TCP traffic across the tunnel.

    TCP-MSS is negotiated as part of the TCP 3-way handshake. It limits the maximum size of a TCP segment to accommodate the MTU limits on a network. This is very important for VPN traffic because the IPsec encapsulation overhead along with the IP and frame overhead can cause the resulting ESP packet to exceed the MTU of the physical interface, causing fragmentation. Because fragmentation increases the bandwidth and device resources usage, and in general it should be avoided.

    The recommended value to use for tcp-mss is 1350 for most Ethernet-based networks with an MTU of 1500 or higher. This value might need to be altered if any device in the path has a lower value of MTU or if there is any added overhead such as PPP, Frame Relay, and so on. As a general rule, you might need to experiment with different tcp-mss values to obtain optimal performance.

    content_copy zoom_out_map

    user@host# set security flow tcp-mss ipsec-vpn mss mss-value
    Example:
    [edit]
    user@host# set security flow tcp-mss ipsec-vpn mss 1350
    user@host# commit and-quit
    commit complete
    Exiting configuration mode


Purpose

Confirm the VPN status by checking any IKE Phase 1 security associations status.

PKI related to IPsec tunnels is formed during Phase 1 setup. Completion of Phase 1 indicates that PKI was successful.

Action

From operational mode, enter the show security ike security-associations command.

user@host> show security ike security-associations


Index Remote Address State Initiator cookie Responder cookie Mode
 2010.2.2.2 UP af4f78bc135e4365 48a35f853ee95d21 Main

Meaning

The output indicates that:

• The remote peer is 10.2.2.2 and the status is UP, which means the successful association of Phase 1 establishment.

• The remote peer IKE ID, IKE policy, and external interfaces are all correct.

• Index 20 is a unique value for each IKE security association. You can use this output details to get further details on each security association. See Getting Details on Individual Security Associations.

Incorrect output would indicate that:

• The remote peer status is Down.

• There are no IKE security associations .

• There are IKE policy parameters, such as the wrong mode type (Aggr or Main), PKI issues, or Phase 1 proposals (all must match on both peers). For more information, see Troubleshooting IKE, PKI, and IPsec Issues.

• External interface is invalid for receiving the IKE packets. Check the configurations for PKI-related issues, check the key management daemon (kmd) log for any other errors, or run trace options to find the mismatch. For more information, see Troubleshooting IKE, PKI, and IPsec Issues.

Purpose

Get details on individual IKE.

Action

From operational mode, enter the show security ike security-associations index 20 detail command.

user@host> show security ike security-associations index 20 detail
IKE peer 10.2.2.2, Index 20,
Role: Responder, State: UP
Initiator cookie: af4f78bc135e4365, Responder cookie: 48a35f853ee95d21
Exchange type: Main, Authentication method: RSA-signatures
Local: 10.1.1.2:500, Remote: 10.2.2.2:500
Lifetime: Expires in 23282 seconds
Algorithms:
Authentication : sha1
Encryption : 3des-cbc
Pseudo random function: hmac-sha1
Traffic statistics:
Input bytes : 10249
Output bytes : 4249
Input packets: 10
Output packets: 9
Flags: Caller notification sent
IPsec security associations: 2 created, 1 deleted
Phase 2 negotiations in progress: 0

Meaning

The output displays the details of the individual IKE SAs such as role (initiator or responder), status, exchange type, authentication method, encryption algorithms, traffic statistics, Phase 2 negotiation status, and so on.

You can use the output data to:

• Know the role of the IKE SA. Troubleshooting is easier when the peer has the responder role.

• Get the traffic statistics to verify the traffic flow in both directions.

• Get the number of IPsec security associations created or in progress.

• Get the status of any completed Phase 2 negotiations.

Purpose

View IPsec (Phase 2) security associations.

When IKE Phase 1 is confirmed, view the IPsec (Phase 2) security associations.

Action

From operational mode, enter the show security ipsec security-associations command.

user@host> show security ipsec security-associations

total configured sa: 2
ID Gateway Port Algorithm SPI Life:sec/kb Mon vsys
<2 10.2.2.2 500 ESP:3des/sha1 bce1c6e0 1676/ unlim - 0
>2 10.2.2.2 500 ESP:3des/sha1 1a24eab9 1676/ unlim - 0

Meaning

The output indicates that:

• There is a configured IPsec SA pair available . The port number 500 indicates that a standard IKE port is used. Otherwise, it is Network Address Translation-Traversal (NAT-T), 4500, or random high port.

• The security parameter index (SPI) is used for both directions. The lifetime or usage limits of the SA is expressed either in seconds or in kilobytes. In the output, 1676/ unlim indicates Phase 2 lifetime is set to expire in 1676 seconds and there is no specified lifetime size.

• The ID number shows the unique index value for each IPsec SA.

• A hyphen (-) in the Mon column indicates that VPN monitoring is not enabled for this SA.

• The virtual system (vsys) is zero, which is the default value.

Phase 2 lifetime can be different from the Phase 1 lifetime because Phase 2 is not dependent on Phase 1 after the VPN is up.

Purpose

Display the individual IPsec SA details identified by the index number.

Action

From operational mode, enter the show security ipsec security-associations index 2 detail command.

user@host> show security ipsec security-associations index 2 detail
Virtual-system: Root
Local Gateway: 10.1.1.2, Remote Gateway: 10.2.2.2
Local Identity: ipv4_subnet(any:0,[0..7]=192.168.10.0/24)
Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.168.0/24)
DF-bit: clear
Policy-name: tunnel-policy-out
Direction: inbound, SPI: bce1c6e0, AUX-SPI: 0
Hard lifetime: Expires in 1667 seconds
Lifesize Remaining: Unlimited
Soft lifetime: Expires in 1093 seconds
Mode: tunnel, Type: dynamic, State: installed, VPN Monitoring: -
Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
Anti-replay service: enabled, Replay window size: 32
Direction: outbound, SPI: 1a24eab9, AUX-SPI: 0
Hard lifetime: Expires in 1667 seconds
Lifesize Remaining: Unlimited
Soft lifetime: Expires in 1093 seconds
Mode: tunnel, Type: dynamic, State: installed, VPN Monitoring: -
Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc
Anti-replay service: enabled, Replay window size: 32

Meaning

The output displays the local Identity and the remote Identity.

Note that a proxy ID mismatch can cause Phase 2 completion to fail. The proxy ID is derived from the tunnel policy (for policy-based VPNs). The local address and remote address are derived from the address book entries, and the service is derived from the application configured for the policy.

If Phase 2 fails due to a proxy ID mismatch, verify which address book entries are configured in the policy and ensure that the correct addresses are sent. Also ensure that the ports are matching. Double-check the service to ensure that the ports match for the remote and local servers.

If multiple objects are configured in a tunnel policy for source address, destination address, or application, then the resulting proxy ID for that parameter is changed to zeroes.

For example, assume the following scenario for a tunnel policy:

• Local addresses of 192.168.10.0/24 and 10.10.20.0/24

• Remote address of 192.168.168.0/24

• Application as junos-http

The resulting proxy ID is local 0.0.0.0/0, remote 192.168.168.0/24, service 80.

The resulting proxy IDs can affect the interoperability if the remote peer is not configured for the second subnet. Also, if you are employing a third-party vendor’s application, you might have to manually enter the proxy ID to match.

If IPsec fails to complete, then check the kmd log or use the set traceoptions command. For more information, see Troubleshooting IKE, PKI, and IPsec Issues.

Purpose

Check statistics and errors for an IPsec SA.

For troubleshooting purpose, check the Encapsulating Security Payload/Authentication Header (ESP/AH) counters for any errors with a particular IPsec SA.

Action

From operational mode, enter the show security ipsec statistics index 2 command.

user@host> show security ipsec statistics index 2
ESP Statistics:
Encrypted bytes: 674784
Decrypted bytes: 309276
Encrypted packets: 7029
Decrypted packets: 7029
AH Statistics:
Input bytes: 0
Output bytes: 0
Input packets: 0
Output packets: 0
Errors:
AH authentication failures: 0, Replay errors: 0
ESP authentication failures: 0, ESP decryption failures: 0
Bad headers: 0, Bad trailers: 0

Meaning

An error value of zero in the output indicates a normal condition.

We recommend running this command multiple times to observe any packet loss issues across a VPN. Output from this command also displays the statistics for encrypted and decrypted packet counters, error counters, and so on.

You must enable security flow trace options to investigate which ESP packets are experiencing errors and why. For more information, see Troubleshooting IKE, PKI, and IPsec Issues.

Purpose

Test traffic flow across the VPN after Phase 1 and Phase 2 have completed successfully. You can test traffic flow by using the ping command. You can ping from local host to remote host. You can also initiate pings from the Juniper Networks device itself.

This example shows how to initiate a ping request from the Juniper Networks device to the remote host. Note that when pings are initiated from the Juniper Networks device, the source interface must be specified to ensure that the correct route lookup takes place and the appropriate zones are referenced in the policy lookup.

In this example, the ge-0/0/0.0 interface resides in the same security zone as the local host and must be specified in the ping request so that the policy lookup can be from zone trust to zone untrust.

Action

From operational mode, enter the ping 192.168.168.10 interface ge-0/0/0 count 5 command.

user@host> ping 192.168.168.10 interface ge-0/0/0 count 5
PING 192.168.168.10 (192.168.168.10): 56 data bytes
64 bytes from 192.168.168.10: icmp_seq=0 ttl=127 time=8.287 ms
64 bytes from 192.168.168.10: icmp_seq=1 ttl=127 time=4.119 ms
64 bytes from 192.168.168.10: icmp_seq=2 ttl=127 time=5.399 ms
64 bytes from 192.168.168.10: icmp_seq=3 ttl=127 time=4.361 ms
64 bytes from 192.168.168.10: icmp_seq=4 ttl=127 time=5.137 ms
--- 192.168.168.10 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 4.119/5.461/8.287/1.490 ms

Purpose

Confirm the connectivity between a remote host and a local host.

Action

From operational mode, enter the ping 192.168.10.10 from ethernet0/6 command.

ssg5-> ping 192.168.10.10 from ethernet0/6

Type escape sequence to abort
Sending 5, 100-byte ICMP Echos to 192.168.10.10, timeout is 1 seconds from ethernet0/6
!!!!!
Success Rate is 100 percent (5/5), round-trip time min/avg/max=4/4/5 ms

Meaning

You can confirm end-to-end connectivity by using the ping command from the remote host to the local host. In this example, the command is initiated from the SSG5 device.

Failed end-to-end connectivity can indicate an issue with routing, policy, end host, or encryption/decryption of the ESP packets. To verify the exact causes of the failure:

• Check IPsec statistics for details on errors as described in Checking IPsec SA Statistics.

• Confirm end host connectivity by using the ping command from a host on the same subnet as the end host. If the end host is reachable by other hosts, then you can assume that the issue is not with the end host.

• Enable security flow trace options for troubleshooting the routing-related and policy-related issues.

Problem

The basic troubleshooting steps are as follows:

1. Identifying and isolating the problem.

2. Debugging the problem.

The common approach of starting troubleshooting is with the lowest layer of the OSI layers and working your way up the OSI stack to confirm the layer in which the failure occurs.

Solution

Basic steps for troubleshooting IKE, PKI, and IPsec are as follows:

• Confirm the physical connectivity of the Internet link at the physical and data link levels.

• Confirm that the Juniper Networks device has connectivity to the Internet next hop and connectivity to the remote IKE peer.

• Confirm IKE Phase 1 completion.

• Confirm IKE Phase 2 completion if IKE Phase 1 completion is successful.

• Confirm the traffic flow across the VPN (if the VPN is up and active).

Junos OS includes the trace options feature. Using this feature, you can enable a trace option flag to write the data from the trace option to a log file, which can be predetermined or manually configured and stored in flash memory. These trace logs can be retained even after a system reboot. Check the available flash storage before implementing trace options.

You can enable the trace options feature in configuration mode and commit the configuration to use the trace options feature. Similarly to disable trace options, you must deactivate trace options in configuration mode and commit the configuration.

Problem

Check the statistics on the free disk space in your device file systems.

Solution

From operational mode, enter the show system storage command.

user@host> show system storage
Filesystem Size Used Avail Capacity Mounted on
/dev/ad0s1a 213M 74M 137M 35% /
devfs 1.0K 1.0K 0B 100% /dev
devfs 1.0K 1.0K 0B 100% /dev/
/dev/md0 180M 180M 0B 100% /junos
/cf 213M 74M 137M 35% /junos/cf
devfs 1.0K 1.0K 0B 100% /junos/dev/
procfs 4.0K 4.0K 0B 100% /proc
/dev/bo0s1e 24M 13K 24M 0% /config
/dev/md1 168M 7.6M 147M 5% /mfs
/cf/var/jail 213M 74M 137M 35% /jail/var

The /dev/ad0s1a represents the onboard flash memory and is currently at 35 percent capacity.

Problem

View the log files to check security IKE debug messages, security flow debugs, and the state of logging to the syslog.

Solution

From operational mode, enter the show log kmd, show log pkid, show log security-trace, and show log messages commands.

user@host> show log kmd
user@host> show log pkid
user@host> show log security-trace
user@host> show log messages

You can view a list of all logs in the /var/log directory by using the show log command.

Log files can also be uploaded to an FTP server by using the file copy command.

(operational mode):
user@host> file copy path/filename dest-path/filename
Example:

user@host> file copy /var/log/kmd ftp://192.168.10.10/kmd.log

ftp://192.168.10.10/kmd.log 100% of 35 kB 12 MBps

Problem

To view success or failure messages for IKE or IPsec, you can view the kmd log by using the show log kmd command. Because the kmd log displays some general messages, it can be useful to obtain additional details by enabling IKE and PKI trace options.

Generally, it is best practice to troubleshoot the peer that has the responder role. You must obtain the trace output from the initiator and responder to understand the cause of a failure.

Configure IKE tracing options.

Solution

user@host> configure
Entering configuration mode

[edit]
user@host# edit security ike traceoptions
[edit security ike traceoptions]

user@host# set file ?
Possible completions:
<filename> Name of file in which to write trace information
files Maximum number of trace files (2..1000)
match Regular expression for lines to be logged
no-world-readable Don't allow any user to read the log file
size Maximum trace file size (10240..1073741824)
world-readable Allow any user to read the log file

[edit security ike traceoptions]

user@host# set flag ?
Possible completions:
all Trace everything
certificates Trace certificate events
database Trace security associations database events
general Trace general events
ike Trace IKE module processing
parse Trace configuration processing
policy-manager Trace policy manager processing
routing-socket Trace routing socket messages
timer Trace internal timer events

If you do not specify file names for the <filename> field, then all IKE trace options are written to the kmd log.

You must specify at least one flag option to write trace data to the log. For example:

• file size — Maximum size of each trace file, in bytes. For example, 1 million (1,000,000 ) can generate a maximum file size of 1 MB.

• files — Maximum number of trace files to be generated and stored in a flash memory device.

You must commit your configuration to start the trace.

Problem

Enable PKI trace options to identify whether an IKE failure is related to the certificate or to a non-PKI issue.

Solution

[edit security pki traceoptions]

user@host# set file ?
Possible completions:
<filename> Name of file in which to write trace information
files Maximum number of trace files (2..1000)
match Regular expression for lines to be logged
no-world-readable Don't allow any user to read the log file
size Maximum trace file size (10240..1073741824)
world-readable Allow any user to read the log file

[edit security pki traceoptions]

user@host# set flag ?
Possible completions:
all Trace with all flags enabled
certificate-verification PKI certificate verification tracing
online-crl-check PKI online crl tracing

Problem

Configure the recommended settings for IKE and PKI trace options.

The IKE and PKI trace options use the same parameters, but the default filename for all PKI-related traces is found in the pkid log.

Solution

user@host> configure
Entering configuration mode

[edit security ike traceoptions]
user@host# set file size 1m
user@host# set flag ike
user@host# set flag policy-manager
user@host# set flag routing-socket
user@host# set flag certificates

[edit security pki traceoptions]
user@host# set file size 1m
user@host# set flag all
user@host# commit and-quit
commit complete
Exiting configuration mode

Problem

Understand the output of the show log kmd command when the IKE Phase 1 and Phase 2 conditions are successful.

Solution

Nov 7 11:52:14 Phase-1 [responder] done for local=ipv4(udp:500,[0..3]=
10.1.1.2) remote=fqdn(udp:500,[0..15]=ssg5.example.net)
Nov 7 11:52:14 Phase-2 [responder] done for
p1_local=ipv4(udp:500,[0..3]=10.1.1.2) p1_remote=fqdn(udp:500,[0..15]=ssg5.example.net)
p2_local=ipv4_subnet(any:0,[0..7]=192.168.10.0/24)
p2_remote=ipv4_subnet(any:0,[0..7]=192.168.168.0/24)

The sample output indicates:

• 10.1.1.2—Local address.

• ssg5.example.net —Remote peer (hostname with FQDN).

• udp: 500—NAT-T was not negotiated.

• Phase 1 [responder] done—Phase 1 status, along with the role (initiator or responder).

• Phase 2 [responder] done—Phase 1 status, along with the proxy ID information.

  You can also confirm the IPsec SA status by using the verification commands mentioned in Confirming IKE Phase 1 Status.

Problem

Understanding the output of the show log kmd command, where the IKE Phase 1 condition is a failure, helps in determining the reason for the VPN not establishing Phase 1.

Solution

Nov 7 11:52:14 Phase-1 [responder] failed with error(No proposal chosen) for
local=unknown(any:0,[0..0]=) remote=fqdn(udp:500,[0..15]=ssg5.example.net)
Nov 7 11:52:14 10.1.1.2:500 (Responder) <-> 10.2.2.2:500 { 011359c9 ddef501d - 2216ed2a bfc50f5f [-
1] / 0x00000000 } IP; Error = No proposal chosen (14)

The sample output indicates:

• 10.1.1.2—Local address.

• ssg5.example.net —Remote peer (hostname with FQDN).

• udp: 500—NAT-T was not negotiated.

• Phase-1 [responder] failed with error (No proposal chosen)—Phase 1 failure because of proposal mismatch.

To resolve this issue, ensure that the parameters for the IKE gateway Phase 1 proposals on both the responder and the initiator match. Also confirm that a tunnel policy exists for the VPN.

Problem

Understand the output of the show log kmd command when the IKE Phase 1 condition is a failure. This helps in determining the reason for the VPN not establishing Phase 1.

Solution

Nov 7 12:06:36 Unable to find phase-1 policy as remote peer:10.2.2.2 is not recognized.
Nov 7 12:06:36 Phase-1 [responder] failed with error(Authentication failed) for
local=ipv4(udp:500,[0..3]=10.1.1.2) remote=ipv4(any:0,[0..3]=10.2.2.2)
Nov 7 12:06:36 10.1.1.2:500 (Responder) <-> 10.2.2.2:500 { f725ca38 dad47583 - dab1ba4c ae26674b [-
1] / 0x00000000 } IP; Error = Authentication failed (24)

The sample output indicates:

• 10.1.1.2—Local address.

• 10.2.2.2—Remote peer

• Phase 1 [responder] failed with error (Authentication failed)—Phase 1 failure due to the responder not recognizing the incoming request originating from a valid gateway peer. In the case of IKE with PKI certificates, this failure typically indicates that an incorrect IKE ID type was specified or entered.

To resolve this issue, confirm that the correct peer IKE ID type is specified on the local peer based on the following:

• How the remote peer certificate was generated

• Subject Alternative Name or DN information in the received remote peer certificate

Problem

Understand the output of the show log kmd command when the IKE Phase 1 condition is a failure.

Solution

Nov 7 13:52:39 Phase-1 [responder] failed with error(Timeout) for local=unknown(any:0,[0..0]=)
remote=ipv4(any:0,[0..3]=10.2.2.2)

The sample output indicates:

• 10.1.1.2—Llocal address.

• 10.2.2.2—Remote peer.

• Phase 1 [responder] failed with error(Timeout)—Phase 1 failure.

  This error indicates that either the IKE packet is lost enroute to the remote peer or there is a delay or no response from the remote peer.

Because this timeout error is the result of waiting on a response from the PKI daemon, you must review the PKI trace options output to see whether there is a problem with PKI.

Problem

Understand the output of the show log kmd command when the IKE Phase 2 condition is a failure.

Solution

Nov 7 11:52:14 Phase-1 [responder] done for local=ipv4(udp:500,[0..3]=
10.1.1.2) remote=fqdn(udp:500,[0..15]=ssg5.example.net)
Nov 7 11:52:14 Failed to match the peer proxy ids
p2_remote=ipv4_subnet(any:0,[0..7]=192.168.168.0/24)
p2_local=ipv4_subnet(any:0,[0..7]=10.10.20.0/24) for the remote peer:ipv4(udp:500,[0..3]=10.2.2.2)
Nov 7 11:52:14 KMD_PM_P2_POLICY_LOOKUP_FAILURE: Policy lookup for Phase-2 [responder] failed for
p1_local=ipv4(udp:500,[0..3]=10.1.1.2) p1_remote=ipv4(udp:500,[0..3]=10.2.2.2)
p2_local=ipv4_subnet(any:0,[0..7]=10.10.20.0/24)
p2_remote=ipv4_subnet(any:0,[0..7]=192.168.168.0/24)
Nov 7 11:52:14 10.1.1.2:500 (Responder) <-> 10.2.2.2:500 { 41f638eb cc22bbfe - 43fd0e85 b4f619d5 [0]
/ 0xc77fafcf } QM; Error = No proposal chosen (14)

The sample output indicates:

• 10.1.1.2—Local address.

• ssg5.example.net —Remote peer (IKE ID type hostname with FQDN).

• Phase 1 [responder] done—Phase 1 success.

• Failed to match the peer proxy ids—The Incorrect proxy IDs are received. In the previous sample, the two proxy IDs received are 192.168.168.0/24 (remote) and 10.10.20.0/24 (local) (for service=any). Based on the configuration given in this example, the expected local address is 192.168.10.0/24. This shows that there is a mismatch of configurations on the local peer, resulting in the failure of proxy ID match.

  To resolve this issue, correct the address book entry or configure the proxy ID on either peer so that it matches the other peer.

  The output also indicates the reason for failure is No proposal chosen. However in this case you also see the message Failed to match the peer proxy ids.

Problem

Understand the output of the show log kmd command when the IKE Phase 2 condition is a failure.

Solution

Nov 7 11:52:14 Phase-1 [responder] done for local=ipv4(udp:500,[0..3]=
10.1.1.2) remote=fqdn(udp:500,[0..15]=ssg5.example.net)
Nov 7 11:52:14 10.1.1.2:500 (Responder) <-> 10.2.2.2:500 { cd9dff36 4888d398 - 6b0d3933 f0bc8e26 [0]
/ 0x1747248b } QM; Error = No proposal chosen (14)

The sample output indicates:

• 10.1.1.2 —Local address.

• fqdn(udp:500,[0..15]=ssg5.example.net—Remote peer.

• Phase 1 [responder] done—Phase 1 success.

• Error = No proposal chosen—No proposal was chosen during Phase 2. This issue is due to proposal mismatch between the two peers.

  To resolve this issue, confirm that the Phase 2 proposals match on both peers.

Problem

Troubleshoot common problems related to IKE and PKI.

Enabling the trace options feature helps you to gather more information on the debugging issues than is obtainable from the normal log entries. You can use the trace options log to understand the reasons for IKE or PKI failures.

Solution

Methods for troubleshooting the IKE -and-PKI-related issues:

• Ensure that the clock, date, time zone, and daylight savings settings are correct. Use NTP to keep the clock accurate.

• Ensure that you use a two-letter country code in the "C=" (country) field of the DN.

  For example: use “US” and not “USA” or “United States.” Some CAs require that the country field of the DN be populated, allowing you to enter the country code value only with a two-letter value.

• Ensure that if a peer certificate is using multiple OU=or CN= fields, you are using the distinguished name with container method (the sequence must be maintained and is case- sensitive).

• If the certificate is not valid yet, check the system clock and, if required, adjust the system time zone or just add a day in the clock for a quick test.

• Ensure that a matching IKE ID type and value are configured.

• PKI can fail due to a revocation check failure. To confirm this, temporarily disable revocation checking and see whether IKE Phase 1 is able to complete.

  To disable revocation checking, use the following command in configure mode:

  set security pki ca-profile <ca-profile> revocation-check disable
