Solution Architecture

Juniper Mist Wired Assurance Overview

Juniper Mist Wired Assurance is a cloud service that brings automated operations and service levels to the campus fabric for switches, IoT devices, APs, servers, and printers. It is about simplifying every step of the way, starting from Day 0 for seamless onboarding and autoprovisioning through Day 2 and beyond for operations and management. Juniper Networks® EX Series Switches provide rich Junos OS streaming telemetry that enable the insights for switch health metrics and anomaly detection, as well as Mist AI™ capabilities.

Mist’s AI engine and Marvis® Virtual Network Assistant further simplify troubleshooting while streamlining helpdesk operations by monitoring events and recommending actions. Marvis is one step towards the Self-Driving Network™, turning insights into actions and fundamentally transforming Information Technology (IT) operations from reactive troubleshooting to proactive remediation.

Juniper Mist™ cloud services are 100% programmable using open Application Programming Interfaces (APIs) for full automation, integration with your operational support systems, or both. Operational support systems include IT applications, ticketing systems, and IP management systems.

Juniper Mist™ delivers unique capabilities for the WAN, LAN, and Wireless networks such as the following:

• User Interface (UI) or API-driven configuration at scale.
• Service-level expectations (SLEs) for key performance metrics such as throughput, capacity, roaming, and uptime.
• Marvis® Virtual Network Assistant—An integrated AI engine that provides rapid troubleshooting of full stack network issues, trending analysis, anomaly detection, and proactive problem remediation.
• Single management system.
• License management.
• Premium Analytics for long term trending and data storage.

For more information about Juniper Mist Wired Assurance, see the following datasheet: https://www.juniper.net/content/dam/www/assets/datasheets/us/en/cloud-services/juniper-mist- wired-assurance-datasheet.pdf

Campus Fabric Core-Distribution High-Level Architecture

EVPN multihoming, with an EVPN-VXLAN architecture, decouples the overlay network from the underlay network. This approach addresses the needs of the modern enterprise network by allowing network administrators to create logical Layer 2 networks across one or more Layer 3 networks. In an EVPN multihoming deployment, the use of EVPN VXLAN supports native traffic isolation using routing instances; commonly called virtual routing and forwarding (VRFs) for macro-segmentation purposes.

The Juniper Mist™ portal workflow makes it easy to create campus fabrics.

Figure 1: High-level Campus Fabric Creation

Underlay Network

An EVPN-VXLAN fabric architecture makes the network infrastructure simple and consistent across campuses and data centers. All the collapsed core devices must be connected to each other using a Layer 3 infrastructure.

You can use any Layer 3 routing protocol to exchange loopback addresses between the core and distribution devices. BGP provides benefits such as better prefix filtering, traffic engineering, and route tagging. Mist configures eBGP as the underlay routing protocol in this example. Juniper Mist automatically provisions private autonomous system numbers and all BGP configuration for the underlay and overlay for only the campus fabric. There are options to provide additional BGP speakers to allow you to peer with external BGP peers.

Underlay BGP is used to learn loopback addresses from peers so that the overlay BGP can establish neighbors using the loopback address. The overlay is then used to exchange EVPN routes.

Figure 2: Pt-Pt Links Using /31 Addressing Between Collapsed Core Switches

Network overlays enable connectivity and addressing independent of the physical network. Ethernet frames are wrapped in IP UDP datagrams, which are encapsulated into IP for transport over the underlay. VXLAN enables virtual Layer 2 subnets or VLANs to span underlying physical Layer 3 network.

In a VXLAN overlay network, each Layer 2 subnet or segment is uniquely identified by a Virtual Network Identifier (VNI). A VNI segments traffic the same way that a VLAN ID does. This mapping occurs on the core, distribution, and border gateway, which can reside on the core or services block. As is the case with VLANs, endpoints within the same virtual network can communicate directly with each other.

Endpoints in different virtual networks require a device that supports inter-VXLAN routing, which is typically a router, or a high-end switch known as a Layer 3 gateway. The entity that performs VXLAN encapsulation and decapsulation is called a VTEP. Each VTEP is known as the Layer 2 gateway and typically assigned with the device's loopback address. This is also where VXLAN (commonly known as VNI) to VLAN mapping exists.

Figure 3: VXLAN VTEP Tunnels

VXLAN can be deployed as a tunnelling protocol across a Layer 3 IP campus fabric without a control plane protocol. However, the use of VXLAN tunnels alone does not change the flood and learn behavior of the Ethernet protocol.

The two primary methods for using VXLAN without a control plane protocol are static unicast VXLAN tunnels and VXLAN tunnels. These methods are signaled with a multicast underlay and do not solve the inherent flood and learn problem and are difficult to scale in large multitenant environments. These methods are not in the scope of this documentation.

Understanding EVPN

Ethernet VPN is a BGP extension to distribute endpoint reachability information such as MAC and IP addresses to other BGP peers. This control plane technology uses Multiprotocol BGP (MP-BGP) for MAC and IP address endpoint distribution, where MAC addresses are treated as type 2 EVPN routes. EVPN enables devices acting as VTEPs to exchange reachability information with each other about their endpoints.

Juniper supported EVPN standards: https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/concept/evpn.html

What is EVPN-VXLAN: https://www.juniper.net/us/en/research-topics/what-is-evpn-vxlan.html

The benefits of using EVPNs include:

• MAC address mobility
• Multitenancy
• Load balancing across multiple links
• Fast convergence
• High availability
• Scale
• Standards-based interoperability

EVPN provides multipath forwarding and redundancy through an all-active model. The collapsed core layer can have up to four devices in a ring or mesh topology. If one core device fails, traffic flows use the remaining active links.

The technical capabilities of EVPN include:

• Minimal flooding—EVPN creates a control plane that shares end host MAC addresses between VTEPs.
• Multihoming—EVPN supports multihoming for client devices. A control protocol like EVPN that enables synchronization of endpoint addresses between the distribution switches is needed to support multihoming, because traffic traveling across the topology needs to be intelligently moved across multiple paths.
• Aliasing—EVPN leverages all-active multihoming when connecting devices to the distribution layer of a campus fabric. The connection from the multihomed distribution layer switches is called an ESI-LAG, while the access layer devices connect to each distribution switch using standard LACP.
• Split horizon—Split horizon prevents the looping of broadcast, unknown unicast, and multicast (BUM) traffic in a network. With split horizon, a packet is never sent back over the same interface it was received on, which prevents loops.

Overlay Network (Data Plane)

VXLAN is the overlay data plane encapsulation protocol that tunnels Ethernet frames between network endpoints over the underlay network. Devices that perform VXLAN encapsulation and decapsulation for the network are referred to as a VTEP. Before a VTEP sends a frame into a VXLAN tunnel, it wraps the original frame in a VXLAN header that includes a VNI. The VNI maps the packet to the original VLAN at the ingress switch. After applying a VXLAN header, the frame is encapsulated into a UDP/IP packet for transmission to the remote VTEP over the IP fabric, where the VXLAN header is removed and the VNI to VLAN translation happens at the egress switch.

Figure 4: VXLAN Header

VTEPs are software entities tied to a device’s loopback address that source and terminate VXLAN tunnels. VXLAN tunnels in an EVPN multihoming fabric are provisioned only at the collapsed core switches.

Overlay Network (Control Plane)

MP-BGP with EVPN signalling acts as the overlay control plane protocol. Adjacent switches peer using their loopback addresses using next hops announced by the underlay BGP sessions. The collapsed core devices establish eBGP sessions between each other. When there is a Layer 2 forwarding table update on any switch participating in campus fabric, it sends a BGP update message with the new MAC route to other devices in the fabric. Those devices then update their local EVPN database and routing tables. In EVPN multihoming fabrics, the control plane exchange happens through interior BGP and each collapsed core switch acts as a route reflector.

Figure 5: EVPN Overlay Network iBGP Synchronization

Resiliency and Load Balancing

We support Bidirectional Forwarding Detection (BFD) as part of the BGP protocol implementation. This provides fast convergence in the event of a device or link failure without relying on the routing protocol’s timers. Mist configured BFD minimum intervals of 1000ms and 3000ms in the underlay and overlay respectively. Load balancing, per packet by default, is supported across all core-distribution links within the campus fabric using ECMP enabled at the forwarding plane.

Ethernet Segment Identifier (ESI)

When the access layer multihomes to the distribution layer devices in a campus fabric, an ESI-LAG is formed on the distribution layer devices. This ESI is a 10-octet integer that identifies the Ethernet segment amongst the distribution layer switches participating in the ESI. MP-BGP is the control plane protocol used to coordinate this information. ESI-LAG enables link failover in the event of a bad link, supports active-active load balancing, and is automatically assigned by Juniper Mist.

Figure 6: Resiliency and Load Balancing

Access Layer

The access layer provides network connectivity to end-user devices, such as personal computers, VoIP phones, printers, and IoT devices as well as connectivity to wireless APs. In this example, we use Juniper APs as the access point devices. Evolving IT departments are looking for a cohesive approach for managing wired and wireless networks. Juniper Networks has a solution that can simplify and automate operations and end-to-end troubleshooting, ultimately evolving into the Self-Driving Network™.

The access switch itself is only demanded to support IEEE 802.3ad Link Aggregation and active LACP on two uplinks towards the collapsed core switches of the EVPN multihoming fabric. The VLANs configured on the ports where the wired client and APs are attached are then multiplexed and tagged on the uplinks.

Single or Multi PoD Design

Juniper Mist campus fabrics support deployments with only one PoD (formally called Site-Design) or multiple PoDs. The organizational deployment shown below targets enterprises who need to align with a multi-POD structure:

Figure 7: Multiple PoD Design Example

Juniper Access Points

In our network, we choose Juniper APs as our preferred access point devices. They are designed from the ground up to meet the stringent networking needs of the modern cloud and smart device era. Juniper Mist delivers unique capabilities for both wired and wireless LAN:

• Wired and wireless assurance—Juniper Mist is enabled with Wired and Wireless Assurance. Once configured, service-level expectations (SLEs) for key wired and wireless performance metrics such as throughput, capacity, roaming, and uptime are addressed in the Juniper Mist platform. This JVD uses Juniper Mist Wired Assurance services.
• Marvis—An integrated AI engine that provides rapid wired and wireless troubleshooting, trending analysis, anomaly detection, and proactive problem remediation.

VRF Segmentation

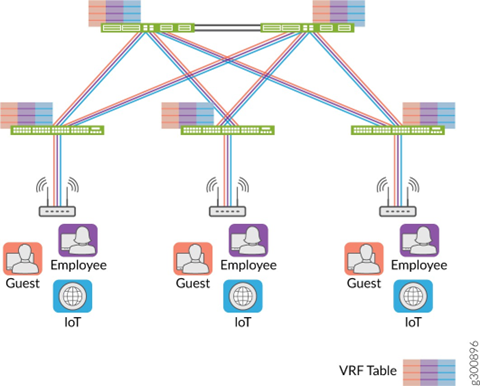

VRF segmentation is used to organize users and devices in groups on a shared network while separating and isolating the different groups. The routing devices on the network create and maintain a separate virtual routing and forwarding (VRF) table for each group. The users and devices in a group are placed in one VRF segment and can communicate with each other, but they cannot communicate with users in another VRF segment. If you want to send and receive traffic from one VRF segment to another VRF segment, you must configure the routing path on the WAN router of the fabric which can also implement stateful firewalls.

Supported Platforms for Campus Fabric EVPN Multihoming
