Multiple VLAN Registration Protocol
Understanding Multiple VLAN Registration Protocol (MVRP)
Multiple VLAN Registration Protocol (MVRP) is a Layer 2 messaging protocol that automates the creation and management of virtual LANs, thereby reducing the time you have to spend on these tasks. Use MVRP on Juniper Networks switches to dynamically register and unregister active VLANs on trunk interfaces. Using MVRP means that you do not have to manually register VLANs on all connections—that is, you do not need to explicitly bind a VLAN to each trunk interface. With MVRP, you configure a VLAN on one switch interface and the VLAN configuration is distributed through all active switches in the domain.
MVRP is an application protocol of the Multiple Registration Protocol (MRP) and is defined in the IEEE 802.1ak standard. MRP and MVRP replace Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) and overcome GARP and GVRP limitations.
MVRP on QFabric systems does not support private VLANs.
If your QFabric system connects to servers that host many virtual machines that require their own VLANs, using MVRP can save you the time and effort that would be required to manually create and administer the VLANs on the ports that connect to the servers. For example, if a virtual machine moves between servers—and therefore connects to a different redundant server Node group interface—MVRP can configure the appropriate VLAN membership on the new server Node group interface.
When using MVRP on a QFabric system, you must manually create on the QFabric the VLANs that exist on the attached servers because the QFabric implementation of MVRP does not allow VLANs to be created dynamically. However, you do not need to manually assign VLAN membership to the QFabric ports that connect to the servers. MVRP automatically assigns VLAN membership to server-facing QFabric ports when it learns about a VLAN from an attached server.
- MVRP Operations
- How MVRP Updates, Creates, and Deletes VLANs on Switches
- MVRP Is Disabled by Default on Switches
- MRP Timers Control MVRP Updates
- MVRP Uses MRP Messages to Transmit Switch and VLAN States
- Compatibility Issues with Junos OS Releases of MVRP
- QFabric Requirements
- Determining Whether MVRP is Working
MVRP Operations
MVRP stays synchronized by using MVRP protocol data units (PDUs). These PDUs specify which QFabric systems and switches are members of which VLANs, and which switch interfaces are in each VLAN. The MVRP PDUs are sent to other switches in the QFabric system when an MVRP state change occurs, and the receiving switches update their MVRP states accordingly. MVRP timers dictate when PDUs can be sent and when switches receiving MVRP PDUs can update their MVRP information.
In addition to this behavior, QFX switches include a mode—called passive mode—in which an MVRP-configured interface does not announce its membership in a VLAN or send any VLAN declarations (updates) unless it receives registration for that VLAN from a peer (server) on that interface. By default MVRP-configured interfaces behave in the standard manner and automatically send PDU updates to announce any VLAN changes. (This is called active mode.)
To enable passive mode on an interface, enter and commit this statement:
set protocols mvrp interface interface-name passive
To keep VLAN membership information current, MVRP removes switches and interfaces when they become unavailable. Pruning VLAN information has these benefits:
Limits the network VLAN configuration to active participants, thereby reducing network overhead.
Limits broadcast, unknown unicast, and multicast (BUM) traffic to interested devices.
MVRP is disabled by default and is valid only for trunk interfaces.
How MVRP Updates, Creates, and Deletes VLANs on Switches
When any MVRP-member VLAN is changed, that VLAN sends a protocol data unit (PDU) to all other MVRP-member active VLANs. The PDU informs the other VLANs which switches and interfaces currently belong to the sending VLAN. This way, all MVRP-member VLANs are always updated with the current VLAN state of all other MVRP-member VLANs. Timers dictate when PDUs can be sent and when switches receiving MVRP PDUs can update their MVRP VLAN information.
In addition to sending PDU updates, MVRP dynamically creates VLANs on member interfaces when a new VLAN is added to any one interface. This way, VLANs created on one member switch are propagated to other member switches as part of the MVRP message exchange process.
To keep VLAN membership information current, MVRP removes switches and interfaces when they become unavailable. Pruning VLAN information has these benefits:
Limits the network VLAN configuration to active participants, thereby reducing network overhead.
Limits broadcast, unknown unicast, and multicast (BUM) traffic to interested devices.
MVRP Is Disabled by Default on Switches
MVRP is disabled by default on the switches and, when enabled, affects only trunk interfaces. Once you enable MVRP, all VLAN interfaces on the switch belong to MVRP (the default normal registration mode) and those interfaces accept PDU messages and send their own PDU messages. To prevent one or more interfaces from participating in MVRP, you can specifically configure an interface to forbidden registration mode instead of the default normal mode.
VLAN updating, dynamic VLAN configuration through MVRP, and VLAN pruning are all active on trunk interfaces when MVRP is enabled.
MRP Timers Control MVRP Updates
MVRP registration and updates are controlled by timers that are part of the MRP. The timers define when MVRP PDUs can be sent and when MVRP information can be updated on a switch.
The timers are set on a per-interface basis, and on EX Series switches that use Juniper Networks Junos operating system (Junos OS) with support for the Enhanced Layer 2 Software (ELS) configuration style, the timers are also set on a per-switch basis.
On an EX Series switch that uses Junos OS with support for ELS, if the timer value set on an interface level is different from the value set on a switch level, the value on the interface level takes precedence.
The following MRP timers are used to control the operation of MVRP:
Join timer—Controls the interval for the next MVRP PDU transmit opportunity.
Leave timer—Controls the period of time that an interface on the switch waits in the leave state before changing to the unregistered state.
LeaveAll timer—Controls the frequency with which the interface generates LeaveAll messages.
Unless there is a compelling reason to change the timer settings, leave the default settings in place. Modifying timers to inappropriate values can cause an imbalance in the operation of MVRP.
MVRP Uses MRP Messages to Transmit Switch and VLAN States
MVRP uses MRP messages to register and declare MVRP states for a switch or VLAN and to inform the switching network that a switch or VLAN is leaving MVRP. These messages are communicated as part of the PDU sent by any switch interface to the other switches in the network.
The following MRP messages are communicated for MVRP:
Empty—MVRP information is not declared and no VLAN is registered.
In—MVRP information is not declared but a VLAN is registered.
JoinEmpty—MVRP information is declared but no VLAN is registered.
JoinIn—MVRP information is declared and a VLAN is registered.
Leave—MVRP information that was previously declared is withdrawn.
LeaveAll—Unregister all VLANs on the switch. VLANs must re-register to participate in MVRP.
New—The MVRP information is new and a VLAN might not be registered yet.
Compatibility Issues with Junos OS Releases of MVRP
Except in Junos OS Releases 11.2 and earlier, MVRP has conformed with IEEE standard 802.1ak and IEEE Draft 802.1Q regarding the inclusion of an extra byte in the protocol data units (PDUs) sent and received by MVRP. Table 1 outlines the MVRP versions and whether or not each version includes the extra byte in the PDU. Table 1 also labels each MVRP version with a scenario number, which is used throughout the remainder of this discussion for brevity.
MVRP in Junos OS Releases 11.2 and Earlier For EX Series Switches That Do Not Support Enhanced Layer 2 Software (ELS) Configuration Style Scenario 1 |
MVRP in Junos OS Releases 11.3 and Later For EX Series Switches That Do Not Support ELS Scenario 2 |
MVRP in Junos OS Releases 13.2 and Later For EX Series Switches With Support For ELS Scenario 3 |
|---|---|---|
Includes extra byte in the PDU |
By default, does not include extra byte in the PDU |
By default, includes extra byte in the PDU |
As a result of the non-conformance of Releases 11.2 and earlier and changes in the standards with regard to the extra byte, a compatibility issue exists between some of the Junos OS versions of MVRP. This issue can result in some versions of MVRP not recognizing PDUs without the extra byte.
To address this compatibility issue, the MVRP versions described in scenarios 2 and 3 include the ability to control whether or not the PDU includes the extra byte. Before using these controls, however, you must understand each scenario that applies to your environment and plan carefully so that you do not inadvertently create an additional compatibility issue between the MVRP versions in scenarios 2 and 3.
Table 2 provides a summary of environments that include the various MVRP scenarios and whether or not a particular environment requires you to take action.
Environment |
Action Required? |
Action Description |
|---|---|---|
Includes MVRP versions in scenario 1 only |
No |
— |
Includes MVRP versions in scenario 2 only |
No |
— |
Includes MVRP versions in scenario 3 only |
No |
— |
Includes MVRP versions in scenarios 1 and 2. MVRP version in scenario 2 is in its default state. |
Yes |
On switches running MVRP version in scenario 2, use the |
Includes MVRP versions in scenarios 1 and 3. MVRP version in scenario 3 is in its default state. |
No |
— |
Includes MVRP versions in scenarios 2 and 3, and both versions are in their respective default states |
Yes |
Do one of the following:
|
QFabric Requirements
When configuring MVRP on a QFabric system, you can enable it globally or enable it only on the trunk ports that need to carry VLAN traffic from the attached servers. You also must manually create the expected VLANs, but you do not have to assign VLAN membership to the server-facing redundant server Node ports (as mentioned previously). However, you do have to manually assign VLAN membership to the uplink ports on the redundant server Node group and network Node group devices that will carry the VLAN traffic. Table 3 summarizes the VLAN requirements for redundant server Node groups and network Node groups:
| Node Group Type | Interface | Assign VLAN Membership to Trunk Ports? |
Redundant server Node group |
Server-facing trunk |
No |
Redundant server Node group |
Uplink trunk (to interconnect device) |
Yes |
Network Node groups |
Uplink trunk (to interconnect device) |
Yes |
Determining Whether MVRP is Working
You can determine whether the switches in your network are running incompatible versions of MVRP by issuing the show mvrp statistics command. For more information on diagnosing and correcting this MVRP compatibility situation, see Configuring Multiple VLAN Registration Protocol (MVRP) on Switches.
See Also
Understanding Multiple VLAN Registration Protocol (MVRP) for Dynamic VLAN Registration
Multiple VLAN Registration Protocol (MVRP) is a Layer 2 messaging protocol that manages the addition, deletion, and renaming of active virtual LANs, thereby reducing network administrators’ time spent on these tasks. Use MVRP on Juniper Networks MX Series routers, EX Series switches and SRX Series Firewalls to dynamically register and unregister active VLANs on trunk interfaces. Using MVRP means that you do not have to manually register VLANs on all connections—that is, you do not need to explicitly bind a VLAN to each trunk interface. With MVRP, you configure a VLAN on one interface and the VLAN configuration is distributed through all active interfaces in the domain.
The primary purpose of MVRP is to manage dynamic VLAN registration in Layer 2 networks. In managing dynamic VLAN registration, MVRP also prunes VLAN information.
MVRP is an Layer 2 application protocol of the Multiple Registration Protocol (MRP) and is defined in the IEEE 802.1ak standard. MRP and MVRP were designed by IEEE to perform the same functions as Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) while overcoming some GARP and GVRP limitations, in particular, limitations involving bandwidth usage and convergence time in large networks with large numbers of VLANs.
MVRP was created by IEEE as a replacement application for GVRP. MVRP and GVRP cannot be run concurrently to share VLAN information in a Layer 2 network.
This topic describes:
- How MVRP Works
- Using MVRP
- MVRP Registration Modes
- MRP Timers Control MVRP Updates
- MVRP Uses MRP Messages to Transmit Device and VLAN States
- MVRP Limitations
How MVRP Works
When any MVRP-member VLAN is changed, that VLAN sends a protocol data unit (PDU) to all other MVRP-member active VLANs. The PDU informs the other VLANs which devices and interfaces currently belong to the sending VLAN. This way, all MVRP-member VLANs are always updated with the current VLAN state of all other MVRP-member VLANs. Timers dictate when PDUs can be sent and when devices receiving MVRP PDUs can update their MVRP VLAN information.
The VLAN registration information sent by MVRP protocol data units (PDUs) includes the current VLANs membership—that is, which routers are members of which VLANs—and which router interfaces are in which VLAN. MVRP shares all information in the PDU with all routers participating in MVRP in the Layer 2 network.
MVRP stays synchronized using these PDUs. The routers in the network participating in MVRP receive these PDUs during state changes and update their MVRP states accordingly. MVRP timers dictate when PDUs can be sent and when routers receiving MVRP PDUs can update their MVRP information.
In addition to sending PDU updates, MVRP dynamically creates VLANs on member interfaces when a new VLAN is added to any one interface. This way, VLANs created on one member device are propagated to other member devices as part of the MVRP message exchange process.
VLAN information is distributed as part of the MVRP message exchange process and can be used to dynamically create VLANs, which are VLANs created on one switch and propagated to other routers as part of the MVRP message exchange process. Dynamic VLAN creation using MVRP is enabled by default, but can be disabled.
As part of ensuring that VLAN membership information is current, MVRP removes routers and interfaces from the VLAN information when they become unavailable. Pruning VLAN information has these benefits:
Limits the network VLAN configuration to active participants only, reducing network overhead.
Targets the scope of broadcast, unknown unicast, and multicast (BUM) traffic to interested devices only.
Using MVRP
MVRP is disabled by default on the devices and, when enabled, affects only trunk interfaces. Once you enable MVRP, all VLAN interfaces on the device belong to MVRP (the default normal registration mode) and those interfaces accept PDU messages and send their own PDU messages. To prevent one or more interfaces from participating in MVRP, you can specifically configure an interface to forbidden registration mode instead of the default normal mode.
VLAN updating, dynamic VLAN configuration through MVRP, and VLAN pruning are all active on trunk interfaces when MVRP is enabled.
MVRP Registration Modes
The MVRP registration mode defines whether an interface does or does not participate in MVRP.
The following MVRP registration modes are configurable:
forbidden—The interface does not register or declare VLANS (except statically configured VLANs).
normal—The interface accepts MVRP messages and participates in MVRP. This is the default registration mode setting.
restricted—The interface ignores all MVRP JOIN messages received for VLANs that are not statically configured on the interface.
MRP Timers Control MVRP Updates
MVRP registration and updates are controlled by timers that are part of the MRP protocol. These timers are set on a per-interface basis and define when MVRP PDUs can be sent and when MVRP information can be updated on a switch.
The following timers are used to control the operation of MVRP:
Join timer—Controls the interval for the next MVRP PDU transmit opportunity.
Leave timer—Controls the period of time that an interface on the switch waits in the Leave state before changing to the unregistered state.
LeaveAll timer—Controls the frequency with which the interface generates LeaveAll messages.
Maintain default timer settings unless there is a compelling reason to change the settings. Modifying timers to inappropriate values might cause an imbalance in the operation of MVRP.
MVRP Uses MRP Messages to Transmit Device and VLAN States
MVRP uses MRP messages to register and declare MVRP states for a switch and to inform the Layer 2 network that a switch is leaving MVRP. These messages are communicated as part of the PDU to communicate the state of a particular switch interface on the Layer 2 network to the other switches in the network.
The following messages are communicated for MVRP:
Empty—VLAN information is not being declared and is not registered.
In—VLAN information is not being declared but is registered.
JoinEmpty—VLAN information is being declared but not registered.
JoinIn—VLAN information is being declared and is registered.
Leave—VLAN information that was previously registered is being withdrawn.
LeaveAll—All registrations will be de-registered. Participants that want to participate in MVRP will need to re-register.
New—VLAN information is new and possibly not previously registered.
MVRP Limitations
The following limitations apply when configuring MVRP:
MVRP works with Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP), but not with VLAN Spanning Tree Protocol (VSTP).
MVRP is allowed only on single tagged trunk ports.
MVRP is not allowed if a physical interface has more than one logical interface.
MVRP is only allowed if a logical has one trunk interface (unit 0).
Configuring Multiple VLAN Registration Protocol (MVRP) on Switches
Multiple VLAN Registration Protocol (MVRP) is used to manage dynamic VLAN registration in a LAN. You can use MVRP on QFX switches and on EX Series switches that support or do not support ELS.
MVRP is disabled by default.
To enable MVRP or set MVRP options, follow these instructions:
- Enabling MVRP on Switches With ELS Support
- Enabling MVRP on Switches Without ELS Support
- Enabling MVRP on Switches With QFX Support
- Disabling MVRP
- Disabling Dynamic VLANs on EX Series Switches
- Configuring Timer Values
- Configuring Passive Mode on QFX Switches
- Configuring MVRP Registration Mode on EX Switches
- Using MVRP in a Mixed-Release EX Series Switching Network
Enabling MVRP on Switches With ELS Support
This example uses Junos OS for EX Series switches with support for the Enhanced Layer 2 Software (ELS) configuration style. MVRP can only be enabled on trunk interfaces.
For ELS details, see Using the Enhanced Layer 2 Software CLI.
MVRP can only be enabled on trunk interfaces. To enable MVRP on a trunk interface:
[edit protocols mvrp] user@switch# set interface interface-name
Enabling MVRP on Switches Without ELS Support
This example uses Junos OS for EX Series switches that do not support the Enhanced Layer 2 Software (ELS) configuration style. For ELS details, see Using the Enhanced Layer 2 Software CLI.
Multiple VLAN Registration Protocol (MVRP) is used to manage dynamic VLAN registration in a LAN. You can use MVRP on EX Series switches.
MVRP is disabled by default on EX Series switches.
MVRP can only be enabled on trunk interfaces. To enable MVRP on a trunk interface:
[edit protocols mvrp] user@switch# set interface all
To enable MVRP on a specific trunk interface:
[edit protocols mvrp] user@switch# set interface xe-0/0/1.0
Enabling MVRP on Switches With QFX Support
Multiple VLAN Registration Protocol (MVRP) automates the creation and management of VLANs. When using MVRP on a QFabric system, you must manually create on the QFabric the VLANs that exist on the attached servers because the QFabric implementation of MVRP does not allow VLANs to be created dynamically. However, you do not need to manually assign VLAN membership to the QFabric ports that connect to the servers. MVRP automatically assigns VLAN membership to server-facing QFabric ports when it learns about a VLAN from an attached server. .
MVRP is disabled by default. To enable MVRP or set MVRP options, follow these instructions:
This example uses Junos OS for EX Series switches with support for the Enhanced Layer 2 Software (ELS) configuration style. MVRP can only be enabled on trunk interfaces.
For ELS details, see Using the Enhanced Layer 2 Software CLI.
MVRP can only be enabled on trunk interfaces. To enable MVRP on a trunk interface:
[edit protocols mvrp] user@qfabric# set interface interface-name
On QFX Series switches, you must configure specific interfaces—you
cannot specify interface all. You can enable MVRP on an
interface range.
Disabling MVRP
MVRP is disabled by default. Perform this procedure only if you have previously enabled MVRP.
You can disable MVRP globally only. To disable MVRP on all trunk interfaces on a switch with ELS support, use one of the following commands:
user@switch# deactivate protocols mvrp user@switch# delete protocols mvrp
To disable MVRP on all trunk interfaces of a QFX switch, an EX switch without ELS Support or an entire QFabric system:
[edit protocols mvrp] user@switch# set disable
To disable MVRP on a specific trunk QFX switch or an EX switch without interface support:
[edit protocols mvrp] user@qfabric# set disable interface interface-name
[edit protocols mvrp] user@switch# set disable interface xe-0/0/1.0
See Also
Disabling Dynamic VLANs on EX Series Switches
By default, dynamic VLANs can be created on interfaces participating in MVRP. Dynamic VLANs are VLANs created on one switch that are propagated to other switches dynamically, in this case, using MVRP.
Dynamic VLAN creation through MVRP cannot be disabled per switch interface. To disable dynamic VLAN creation for interfaces participating in MVRP, you must disable it for all interfaces on the switch.
To disable dynamic VLAN creation:
[edit protocols mvrp] user@switch# set no-dynamic-vlan
See Also
Configuring Timer Values
The timers in MVRP define the amount of time all interfaces on a switch or a specific interface wait to join or leave MVRP, or to send or process the MVRP information for the switch after receiving an MVRP PDU. The join timer controls the amount of time the switch waits to accept a registration request, the leave timer controls the period of time that the switch waits in the Leave state before changing to the unregistered state, and the leaveall timer controls the frequency with which the LeaveAll messages are communicated.
The default MVRP timer values are 200 ms for the join timer, 1000 ms for the leave timer, and 10 seconds for the leaveall timer.
Maintain default timer settings unless there is a compelling reason to change the settings. Modifying timers to inappropriate values might cause an imbalance in the operation of MVRP.
On an EX Series switch that uses Junos OS with support for ELS, if the timer value set on an interface level is different from the value set on a switch level, then the value on the interface level takes precedence.
To set the join timer for all interfaces on the switch:
[edit protocols mvrp] user@switch# set join-timer milliseconds
[edit protocols mvrp] user@switch# set interface all join-timer 300
To set the join timer for a specific interface:
[edit protocols mvrp] user@switch# set interface interface-name join-timer milliseconds
[edit protocols mvrp] user@qfabric# set interface interface-name 300
[edit protocols mvrp] user@switch# set interface xe-0/0/1.0 300
To set the leave timer for all interfaces on the switch:
[edit protocols mvrp] user@switch# set leave-timer milliseconds
[edit protocols mvrp] user@switch# set interface all leave-timer 1200
To set the leave timer for a specific interface:
[edit protocols mvrp] user@switch# set interface interface-name leave-timer milliseconds
[edit protocols mvrp] user@qfabric# set interface interface-name leave-timer 1200
To set the leaveall timer for all interfaces on the switch:
[edit protocols mvrp] user@switch# set leaveall-timer seconds
[edit protocols mvrp] user@qfabric# set interface interface-name leaveall-timer 12000
[edit protocols mvrp] user@switch# set interface all leaveall-timer 12000
To set the leaveall timer for a specific interface:
[edit protocols mvrp] user@switch# set interface interface-name leaveall-timer seconds
[edit protocols mvrp] user@switch# set interface xe-0/0/1.0 leaveall-timer 12000
See Also
Configuring Passive Mode on QFX Switches
QFX switches include a mode—called passive mode—in which an MVRP-configured interface does not announce its membership in a VLAN or send any VLAN declarations (updates) unless it receives registration for that VLAN from a peer (server).
To configure an interface to operate in passive mode:
[edit protocols mvrp] user@qfabric# set interface interface-name passive
Configuring MVRP Registration Mode on EX Switches
Not supported in QFabric.
The default MVRP registration mode for any interface participating in MVRP is normal. An interface in normal registration mode participates in MVRP when MVRP is enabled on the switch.
You can change the registration mode of a specific interface
to forbidden. An interface in forbidden registration mode
does not participate in MVRP even if MVRP is enabled on the switch.
To set an interface to forbidden registration mode:
[edit protocols mvrp] user@switch# set interface xe-0/0/1.0 registration forbidden
[edit protocols mvrp] user@switch# set interface all registration forbidden
To set an interface to normal registration mode:
[edit protocols mvrp] user@switch# set interface xe-0/0/1.0 registration normal
[edit protocols mvrp] user@switch# set interface xe-0/0/1.0 registration normal
To set all interfaces to normal registration mode:
[edit protocols mvrp] user@switch# set interface all registration normal
See Also
Using MVRP in a Mixed-Release EX Series Switching Network
Except in Junos OS Releases 11.2 and earlier, MVRP has conformed with IEEE standard 802.1ak and IEEE Draft 802.1Q regarding the inclusion of an extra byte in the protocol data units (PDUs) sent and received by MVRP.
As a result of the non-comformance of releases 11.2 and earlier and changes in the standards regarding the extra byte, the following mixed environments can arise in EX Series switches without ELS support:
Mixed environment A: MVRP in Junos OS Releases 11.2 and earlier includes the extra byte, while MVRP in Junos OS Releases 11.3 and later for EX Series switches that do not support the Enhanced Layer 2 Software (ELS) configuration style does not include the extra byte.
Mixed environment B: MVRP in Junos OS Releases 13.2 and later for EX Series switches with support for ELS includes the extra byte, while MVRP in Junos OS Releases 11.3 and later for EX Series switches that do not support ELS does not include the extra byte.
As a result of changes in the standards with regard to the extra byte, MVRP in Junos OS Releases 13.2 and later for EX Series switches with support for the Enhanced Layer 2 Software (ELS) includes the extra byte, while MVRP in Junos OS Releases 11.3 and later for EX Series switches that do not support ELS does not include the extra byte. A compatibility issue arises, wherein the ELS version of MVRP does not recognize PDUs without the extra byte sent by the non-ELS version of MVRP.
A compatibility issue arises in mixed environments A and B, wherein the versions of MVRP that include the extra byte do not recognize PDUs that do not include the extra byte.
If your network has a mix of MVRP versions, you can alter MVRP on the switches running Release 11.3 and later on switches that do not support ELS so they include the extra byte in the PDU and are therefore, compatible with the other MVRP versions.
A compatibility issue arises in mixed environments A and B, wherein the versions of MVRP that include the extra byte do not recognize PDUs that do not include the extra byte.
For more information about these issues, see Understanding Multiple VLAN Registration Protocol (MVRP).
To make MVRP on on switches that do not support ELS (Release 11.3 or later) compatible with MVRP in the other releases:
[edit protocols mvrp] user@switch# set add-attribute-length-in-pdu
If your network includes a mix of EX Series switches running ELS and non-ELS versions of MVRP, you can eliminate the compatibility issue by entering the following command on the switches running the ELS version of MVRP:
[edit protocols mvrp] user@switch# set no-attribute-length-in-pdu
The no-attribute-length-in-pdu statement prevents
the ELS version of MVRP from sending PDUs with the extra byte, thereby
eliminating the compatibility issue with the non-ELS version of MVRP.
You can recognize an MVRP version compatibility issue by observing
the switch running the ELS version of MVRP. Because a switch running
the ELS version of MVRP cannot interpret an unmodified PDU from a
switch running the non-ELS version of MVRP, the switch will not add
VLANs from the non-ELS version of MVRP. When you use the show
mvrp statistics command in the ELS version of MVRP, the values
for Received Join Empty and Received Join In will incorrectly display zero, even
though the value for the Received MVRP PDUs without
error has been increased. Another indication that
MVRP is having a version compatibility issue is that unexpected VLAN
activity, such as multiple VLAN creation, takes place on the switch
running the ELS version of MVRP.
Configuring Multiple VLAN Registration Protocol (MVRP) to Manage Dynamic VLAN Registration on Security Devices
Starting in Junos OS Release 15.1X49-D80, Multiple VLAN Registration Protocol (MVRP) to manage dynamic VLAN registration is supported on SRX1500 devices. Multiple VLAN Registration Protocol (MVRP) is used to manage dynamic VLAN registration in a Layer 2 network. You can configure MVRP on SRX Series Firewalls.
MVRP is disabled by default on SRX Series Firewalls.
To enable MVRP and to set MVRP options, follow these instructions:
- Enabling MVRP
- Changing the Registration Mode to Disable Dynamic VLANs
- Configuring Timer Values
- Configuring the Multicast MAC Address for MVRP
- Configuring an MVRP Interface as a Point-to-Point Interface
- Configuring MVRP Tracing Options
- Disabling MVRP
Enabling MVRP
MVRP can be enabled only on trunk interfaces.
To enable MVRP on a specific trunk interface (here, interface ge-0/0/1):
[edit protocols mvrp] user@host# set interface ge-0/0/1
Changing the Registration Mode to Disable Dynamic VLANs
When the registration mode for an interface is set to normal (the default), dynamic VLANs are created on interfaces participating
in MVRP. The dynamic VLANs created on one SRX Series Firewall are then
propagated by means of MVRP to other SRX Series Firewalls in the topology.
However, dynamic VLAN creation through MVRP can be disabled for all trunk interfaces or for individual trunk interfaces.
Configuring Timer Values
The timers in MVRP define the amount of time an interface waits to join or leave MVRP or to send or process the MVRP information for the router or switch after receiving an MVRP PDU:
The join timer controls the amount of time the router or switch waits to accept a registration request.
The leave timer controls the period of time that the router or switch waits in the Leave state before changing to the unregistered state.
The leaveall timer controls the frequency with which the LeaveAll messages are communicated.
The default MVRP timer values are 200 ms for the join timer, 1000 ms for the leave timer, and 60 seconds for the leaveall timer.
Maintain default timer settings unless there is a compelling reason to change the settings. Modifying timers to inappropriate values might cause an imbalance in the operation of MVRP.
To set the join timer at 300 ms for a specific interface (here, interface ge-0/0/1):
[edit protocols mvrp] user@host# set interface ge-0/0/1 join-timer (MVRP) 300
To set the leave timer at 400 ms for a specific interface (here, interface ge-0/0/1):
[edit protocols mvrp] user@host# set interface ge-0/0/1 leave-timer 400
To set the leaveall timer at 20 seconds for a specific interface (here, interface ge-0/0/1):
[edit protocols mvrp] user@host# set interface ge-0/0/1 leaveall-timer 20
See Also
Configuring the Multicast MAC Address for MVRP
MVRP uses the customer MVRP multicast MAC address when MVRP is enabled. However, you can configure MVRP to use the provider MVRP multicast MAC address instead.
To configure MVRP to use the provider MVRP multicast MAC address:
[edit protocols mvrp] user@host# set bpdu-destination-mac-address provider-bridge-group;
See Also
Configuring an MVRP Interface as a Point-to-Point Interface
Specify that a configured interface is connected point-to-point. If specified, a point-to-point subset of the MRP state machine provides a simpler and more efficient method to accelerate convergence on the network.
To specify that an MVRP interface is point-to-point (here, interface ge-0/0/1):
[edit protocols mvrp] user@host# set interface ge-0/0/1 point-to-point (MVRP) ;
See Also
Configuring MVRP Tracing Options
Set MVRP protocol-level tracing options.
To specify MVRP protocol tracing (here, the file is /var/log/mvrp-log, size is 2m, number of files is 28, the option world-readable indicates the log can be read by user, and MVRP
is flagging events):
[edit protocols mvrp] user@host# edit traceoptions file /var/log/mvrp-log size 2m files 28 world-readable flag events
Disabling MVRP
MVRP is disabled by default. You need to perform this procedure only if MVRP is previously enabled.
To disable MVRP on all trunk interfaces, use one of the following commands:
[edit] user@host# deactivate protocols mvrp user@host# delete protocols mvrp
See Also
Example: Configuring Automatic VLAN Administration on QFX Switches Using MVRP
As the numbers of servers and VLANs attached to a QFabric systems increase, VLAN administration becomes complex and the task of efficiently configuring VLANs on multiple redundant server Node group devices becomes increasingly difficult. To partially automate VLAN administration, you can enable Multiple VLAN Registration Protocol (MVRP) on your QFabric system. If your QFabric system connects to servers that host many virtual machines that require their own VLANs, using MVRP can save you the time and effort that would be required to manually configure and administer the VLANs on the interfaces that connect to the servers. For example, if a virtual machine moves between servers—and therefore connects to a different redundant server Node group interface—MVRP can configure the appropriate VLAN membership on the new server Node group interface.
Only trunk interfaces can be enabled for MVRP.
This example describes how to configure MVRP on a QFabric system.
- Requirements
- Overview and Topology
- Configuring VLANs and Network Node Group Interfaces
- Configuring the Redundant Server Node Group
- Verification
Requirements
This example uses the following hardware and software components:
One QFabric system
Junos OS Release 13.1 for the QFX Series
Overview and Topology
MVRP ensures that the VLAN membership information on the trunk interface is updated as the switch’s access interfaces become active or inactive in the configured VLANs in a static or dynamic VLAN creation setup.
You do not need to explicitly bind a VLAN to the trunk interface. When MVRP is enabled, the trunk interface advertises all the VLANs that are active (bound to access interfaces) on that switch. An MVRP-enabled trunk interface does not advertise VLANs that have been configured on the switch but that are not currently bound to an access interface. Thus, MVRP provides the benefit of reducing network overhead—by limiting the scope of broadcast, unknown unicast, and multicast (BUM) traffic to interested devices only.
When VLAN access interfaces become active or inactive, MVRP ensures that the updated information is advertised on the trunk interface. Thus, in this example, distribution Switch C does not forward traffic to inactive VLANs.
A redundant server Node group device is connected to a server that hosts virtual machines for three customers, each of which requires its own VLAN.
customer-1: VLAN ID 100customer-2: VLAN ID 200customer-3: VLAN ID 300
Topology
Table 4 explains the components of the example topology.
| Settings | Settings |
|---|---|
Hardware |
|
VLAN names and IDs |
|
Interfaces |
Redundant server Node group device interfaces:
Network Node group device interface:
|
Configuring VLANs and Network Node Group Interfaces
To configure VLANs, bind the VLANs to the server-facing trunk interface, and enable MVRP on the trunk interface of the network Node group device, perform these tasks:
Procedure
CLI Quick Configuration
To quickly configure VLANs on the QFabric system, assign VLAN membership to the uplink port on the network Node group device, and configure the uplink port to be trunk:
[edit] set vlans customer-1 vlan-id 100 set vlans customer-2 vlan-id 200 set vlans customer-3 vlan-id 300 set interfaces NNG:xe-0/0/1 unit 0 family ethernet-switching port-mode trunk set interfaces NNG:xe-0/0/1 unit 0 family ethernet-switching vlan members [customer-1 customer-2 customer-3]
As recommended as a best practice, default MVRP timers are used in this example, so they are not configured. The default values associated with each MVRP timer are: 200 ms for the join timer, 1000 ms for the leave timer, and 10000 ms for the leaveall timer. Modifying timers to inappropriate values might cause an imbalance in the operation of MVRP.
Step-by-Step Procedure
To create the VLANs and configure the network Node group device for MVRP, follow these steps. Note that you are creating VLANs for the entire QFabric system, so you do not need to create them on specific QFabric devices.
Configure the VLAN for customer 1:
[edit] user@qfabric# set vlans customer-1 vlan-id 100
Configure the VLAN for customer 2:
[edit] user@qfabric# set vlans customer-2 vlan–id 200
Configure the VLAN for customer 3:
[edit] user@qfabric# set vlans customer-3 vlan–id 300
Configure an uplink interface (one that connects to an interconnect device) to be a trunk:
[edit] user@qfabric# set interfaces NNG:xe-0/0/1 unit 0 family ethernet-switching port-mode trunk
Configure the uplink interface to be a member of all three VLANs:
[edit] user@qfabric# set interfaces NNG:xe-0/0/1 unit 1 family ethernet-switching vlan members [customer-1 customer-2 customer-3]
Note:If you want the uplink interface to be a member of all the VLANs in the QFabric system, you can enter
allinstead of specifying the individual VLANs.
Results
Check the results of the configuration on the network Node group device:
[edit]
user@qfabric# show interfaces NNG:xe-0/0/1.0
family ethernet-switching {
port-mode trunk;
vlan {
members customer-1 customer-2 customer-3;
}
}
[edit]
user@qfabric# show vlans
customer-1 {
vlan-id 100;
}
customer-2 {
vlan-id 200;
}
customer-3 {
vlan-id 300;
}
Configuring the Redundant Server Node Group
Procedure
CLI Quick Configuration
To quickly configure the redundant server Node group device for MVRP:
[edit] set interfaces RSNG:xe-0/1/1 unit 0 family ethernet-switching port-mode trunk set interfaces RSNG:xe-0/1/1 unit 0 family ethernet-switching vlan members [customer-1 customer-2 customer-3] set interfaces RSNG:xe-0/0/1 unit 0 family ethernet-switching port-mode trunk set protocols mvrp interface RSNG:xe-0/0/1.0 passive
Step-by-Step Procedure
To configure the redundant server Node group device, follow these steps. Note that you do not need to configure the VLANs on the server-facing interface (RSNG:xe-0/0/1), but you do need to configure the VLANs on the uplink interface. Also notice that in this example you configure the server-facing interface to be passive, which means that it will not announce its membership in a VLAN or send any VLAN declarations (updates) unless it receives registration for that VLAN from the server.
Configure an uplink interface (one that connects to the interconnect device) to be a trunk:
[edit] user@qfabric# set interfaces RSNG:xe-0/1/1 unit 0 family ethernet-switching port-mode trunk
Configure the uplink interface to be a member of all three VLANs:
[edit] user@qfabric# set interfaces NNG:xe-0/1/1 unit 0 family ethernet-switching vlan members [customer-1 customer-2 customer-3]
Configure an interface that connects to the server that hosts multiple virtual machines to be a trunk:
[edit] user@qfabric# set interfaces RSNG:xe-0/0/1 unit 0 family ethernet-switching port-mode trunk
Enable MVRP on the server-facing trunk interface and configure it to be passive:
[edit] user@qfabric# set protocols mvrp interface RSNG:xe-0/0/1.0 passive
Results
Check the results of the configuration for the redundant server Node group:
[edit]
user@qfabric# show interfaces RSNG:xe-0/0/1.0
family ethernet-switching {
port-mode trunk;
}
[edit]
user@qfabric# show interfaces RSNG:xe-0/1/1.0
family ethernet-switching {
port-mode trunk;
}
passive
}
[edit] user@qfabric# show protocols mvrp interface RSNG:xe-0/0/1.0;
Verification
To confirm that the configuration is updating VLAN membership, perform these tasks:
Verifying That MVRP Is Enabled On The QFabric System
Purpose
Verify that MVRP is enabled on the appropriate interfaces
Action
Show the MVRP configuration:
user@qfabric> show mvrp MVRP configuration MVRP status : Enabled MVRP timers (ms): Interface Join Leave LeaveAll -------------- ----- -------- ----------- NNG:xe-0/0/1.0 200 1000 10000 RSNG:xe-0/0/1.0 200 1000 10000 RSNG:xe-0/1/1.0 200 1000 10000 Interface Status Registration Mode -------------- -------- ----------------- NNG:xe-0/0/1.0 Enabled Normal RSNG:xe-0/1/1.0 Enabled Normal RSNG:xe-0/0/1.0 Enabled Passive
Meaning
The results show that MVRP is enabled on the appropriate network Node group and redundant server Node group interfaces and that the default timers are used.
Example: Configuring Automatic VLAN Administration Using MVRP on EX Series Switches with ELS Support
This example uses Junos OS for EX Series switches with support for the Enhanced Layer 2 Software (ELS) configuration style. If your switch runs software that does not support ELS, see Example: Configuring Automatic VLAN Administration Using MVRP on EX Series Switches. For ELS details, see Using the Enhanced Layer 2 Software CLI.
As a network expands and the number of clients and VLANs increases, VLAN administration becomes complex and the task of efficiently configuring VLANs on multiple EX Series switches becomes increasingly difficult. However, you can automate VLAN administration by enabling Multiple VLAN Registration Protocol (MVRP) on the network.
MVRP also dynamically creates VLANs, further simplifying the network overhead required to statically configure VLANs.
Only trunk interfaces can be enabled for MVRP.
This example describes how to use MVRP to automate administration of VLAN membership changes within your network and how to use MVRP to dynamically create VLANs:
- Requirements
- Overview and Topology
- Configuring VLANs and MVRP on Access Switch A
- Configuring VLANs and MVRP on Access Switch B
- Configuring VLANS and MVRP on Distribution Switch C
- Verification
Requirements
This example uses the following hardware and software components:
Two EX Series access switches
One EX Series distribution switch
Junos OS Release 13.2X50-D10 or later for EX Series switches
Before you configure MVRP on an interface, you must enable one of the following spanning tree protocols on that interface:
Rapid Spanning-Tree Protocol (RSTP). For more information about RSTP, see Understanding RSTP .
Multiple Spanning-Tree Protocol (MSTP). For more information about MSTP, see Understanding MSTP.
Overview and Topology
MVRP is used to manage dynamic VLAN registration in a LAN. It can also be used to dynamically create VLANs.
This example uses MVRP to dynamically create VLANs on the switching network. Alternatively, you can disable dynamic VLAN creation and create VLANs statically. Enabling MVRP on the trunk interface of each switch in your switching network ensures that the active VLAN information for the switches in the network is propagated to each switch through the trunk interfaces, assuming dynamic VLAN creation is enabled for MVRP.
MVRP ensures that the VLAN membership information on the trunk interface is updated as the switch’s access interfaces become active or inactive in the configured VLANs in a static or dynamic VLAN creation setup.
You do not need to explicitly bind a VLAN to the trunk interface. When MVRP is enabled, the trunk interface advertises all the VLANs that are active (bound to access interfaces) on that switch. An MVRP-enabled trunk interface does not advertise VLANs that are configured on the switch but are not currently bound to an access interface. Thus, MVRP provides the benefit of reducing network overhead—by limiting the scope of broadcast, unknown unicast, and multicast (BUM) traffic to interested devices only.
When VLAN access interfaces become active or inactive, MVRP ensures that the updated information is advertised on the trunk interface. Thus, in this example, distribution Switch C does not forward traffic to inactive VLANs.
This example shows a network with three VLANs: finance, sales, and lab. All three VLANs are running the same version of Junos OS. If switches in this network were running a mix of Junos OS releases that included Release 11.3, additional configuration would be necessary—see Configuring Multiple VLAN Registration Protocol (MVRP) on Switches for details.
Topology

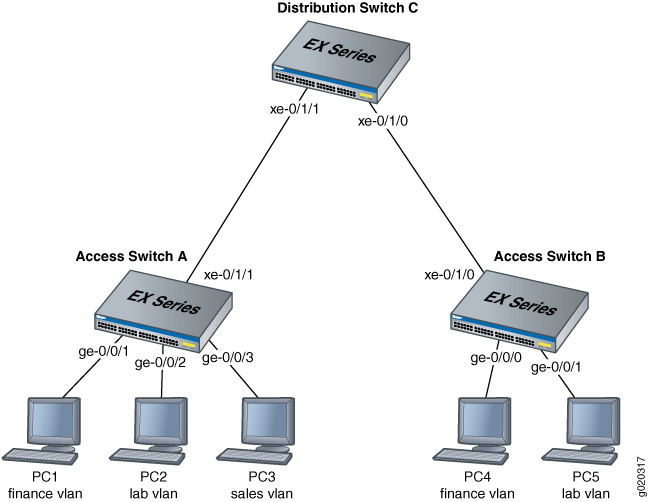

Figure 1 shows MVRP configured on two access switches and one distribution switch.
Table 5 explains the components of the example topology.
| Settings | Settings |
|---|---|
Switch hardware |
|
VLAN names and tag IDs |
finance, tag 100 lab, tag 200 sales, tag 300 |
Interfaces |
Access Switch A interfaces:
Access Switch B interfaces:
Distribution Switch C interfaces:
|
Configuring VLANs and MVRP on Access Switch A
To configure VLANs on the switch, bind access interfaces to the VLANs, and enable MVRP on the trunk interface of access Switch A, perform these tasks:
Procedure
CLI Quick Configuration
To quickly configure access Switch A for MVRP, copy the following commands and paste them into the switch terminal window of Switch A:
[edit]
set vlans finance vlan-id 100
set vlans lab vlan-id 200
set vlans sales vlan-id 300
set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members finance
set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members lab
set interfaces ge-0/0/3 unit 0 family ethernet-switching vlan members sales
set interfaces xe-0/1/1 unit 0 family ethernet-switching interface-mode trunk
set protocols mvrp interface xe-0/1/1 This example uses default MVRP timers. The default values associated with each MVRP timer are: 200 ms for the join timer, 1000 ms for the leave timer, and 10000 ms (10 seconds) for the leaveall timer. We recommend retaining the use of default timer values as modifying timers to inappropriate values might cause an imbalance in the operation of MVRP. However, if you choose to change the default settings, keep in mind that on an EX Series switch that uses Junos OS with support for ELS, if the timer value set on an interface level is different from the value set on a switch level, then the value on the interface level takes precedence.
Step-by-Step Procedure
To configure access Switch A for MVRP:
Configure the finance VLAN:
[edit] user@Access-Switch-A# set vlans finance vlan-id 100
Configure the lab VLAN:
[edit] user@Access-Switch-A# set vlans lab vlan–id 200
Configure the sales VLAN:
[edit] user@Access-Switch-A# set vlans sales vlan–id 300
Configure an Ethernet interface as a member of the finance VLAN:
[edit] user@Access-Switch-A# set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members finance
Configure an Ethernet interface as a member of the lab VLAN:
[edit] user@Access-Switch-A# set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members lab
Configure an Ethernet interface as a member of the sales VLAN:
[edit] user@Access-Switch-A# set interfaces ge-0/0/3 unit 0 family ethernet-switching vlan members sales
Configure a trunk interface:
[edit] user@Access-Switch-A# set interfaces xe-0/1/1 unit 0 family ethernet-switching interface-mode trunk
Enable MVRP on the trunk interface:
[edit] user@Access-Switch-A# set protocols mvrp interface xe-0/1/1
Results
Check the results of the configuration on Switch A:
[edit]
user@Access-Switch-A# show
interfaces {
ge-0/0/1 {
unit 0 {
family ethernet-switching {
vlan {
members finance;
}
}
}
}
ge-0/0/2 {
unit 0 {
family ethernet-switching {
vlan {
members lab;
}
}
}
}
ge-0/0/3 {
unit 0 {
family ethernet-switching {
vlan {
members sales;
}
}
}
}
xe-0/1/1 {
unit 0 {
family ethernet-switching {
interface-mode trunk;
}
}
}
}
protocols {
mvrp {
interface xe-0/1/1;
}
}
vlans {
finance {
vlan-id 100;
}
lab {
vlan-id 200;
}
sales {
vlan-id 300;
}
}
Configuring VLANs and MVRP on Access Switch B
To configure three VLANs on the switch, bind access interfaces for PC4 and PC5 to the VLANs, and enable MVRP on the trunk interface of access Switch B, perform these tasks:
Procedure
CLI Quick Configuration
To quickly configure Access Switch B for MVRP, copy the following commands and paste them into the switch terminal window of Switch B:
[edit]
set vlans finance vlan-id 100
set vlans lab vlan-id 200
set vlans sales vlan-id 300
set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members finance
set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members lab
set interfaces xe-0/1/0 unit 0 family ethernet-switching interface-mode trunk
set protocols mvrp interface xe-0/1/0 Step-by-Step Procedure
To configure access Switch B for MVRP:
Configure the finance VLAN:
[edit] user@Access-Switch-B# set vlans finance vlan-id 100
Configure the lab VLAN:
[edit] user@Access-Switch-B# set vlans lab vlan–id 200
Configure the sales VLAN:
[edit] user@Access-Switch-B# set vlans sales vlan–id 300
Configure an Ethernet interface as a member of the finance VLAN:
[edit] user@Access-Switch-B# set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members finance
Configure an Ethernet interface as a member of the lab VLAN:
[edit] user@Access-Switch-B# set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members lab
Configure a trunk interface:
user@Access-Switch-B# set interfaces xe-0/1/0 unit 0 family ethernet-switching interface-mode trunk
Enable MVRP on the trunk interface:
[edit] user@Access-Switch-B# set protocols mvrp xe-0/1/0
Note:This example uses default MVRP timers. The default values associated with each MVRP timer are: 200 ms for the join timer, 1000 ms for the leave timer, and 10000 ms (10 seconds) for the leaveall timer. We recommend retaining the use of default timer values as modifying timers to inappropriate values might cause an imbalance in the operation of MVRP. However, if you choose to change the default values, keep in mind that on an EX Series switch that uses Junos OS with support for ELS, if the timer value set on an interface level is different from the value set on a switch level, then the value on the interface level takes precedence.
Results
Check the results of the configuration for Switch B:
[edit]
user@Access-Switch-B# show
interfaces {
ge-0/0/0 {
unit 0 {
family ethernet-switching {
vlan {
members finance;
}
}
}
}
ge-0/0/1 {
unit 0 {
family ethernet-switching {
vlan {
members lab;
}
}
}
}
xe-0/1/0 {
unit 0 {
family ethernet-switching {
interface-mode trunk;
}
}
}
}
protocols {
mvrp {
interface xe-0/1/0;
}
}
vlans {
finance {
vlan-id 100;
}
lab {
vlan-id 200;
}
sales {
vlan-id 300;
}
}
Configuring VLANS and MVRP on Distribution Switch C
Procedure
CLI Quick Configuration
To quickly configure distribution Switch C for MVRP, copy the following commands and paste them into the switch terminal window of distribution Switch C:
[edit]
set interfaces xe-0/1/1 unit 0 family ethernet-switching interface-mode trunk
set interfaces xe-0/1/0 unit 0 family ethernet-switching interface-mode trunk
set protocols mvrp interface xe-0/1/1
set protocols mvrp interface xe-0/1/0 Step-by-Step Procedure
To configure distribution Switch C for MVRP:
Configure the trunk interface to access Switch A:
[edit] user@Distribution-Switch-C# set interfaces xe-0/1/1 unit 0 family ethernet-switching interface-mode trunk
Configure the trunk interface to access Switch B:
[edit] user@Distribution-Switch-C# set interfaces xe-0/1/0 unit 0 family ethernet-switching interface-mode trunk
Enable MVRP on the trunk interface for xe-0/1/1 :
[edit] user@Distribution-Switch-C# set protocols mvrp interface xe-0/1/1
Enable MVRP on the trunk interface for xe-0/1/0 :
[edit] user@Distribution-Switch-C# set protocols mvrp interface xe-0/1/0
Results
Check the results of the configuration for Switch C:
[edit]
user@Distribution Switch-C# show
interfaces {
xe-0/1/0 {
unit 0 {
family ethernet-switching {
interface-mode trunk;
}
}
}
xe-0/1/1 {
unit 0 {
family ethernet-switching {
interface-mode trunk;
}
}
}
}
protocols {
mvrp {
interface xe-0/1/0;
interface xe-0/1/1;
}
Verification
To confirm that the configuration is updating VLAN membership, perform these tasks:
- Verifying That MVRP Is Enabled on Access Switch A
- Verifying That MVRP Is Updating VLAN Membership on Access Switch A
- Verifying That MVRP Is Enabled on Access Switch B
- Verifying That MVRP Is Updating VLAN Membership on Access Switch B
- Verifying That MVRP Is Enabled on Distribution Switch C
- Verifying That MVRP Is Updating VLAN Membership on Distribution Switch C
Verifying That MVRP Is Enabled on Access Switch A
Purpose
Verify that MVRP is enabled on the switch.
Action
Show the MVRP configuration:
user@Access-Switch-A> show mvrp MVRP configuration for routing instance 'default-switch' MVRP dynamic VLAN creation : Enabled MVRP BPDU MAC address : Customer bridge group (01-80-C2-00-00-21) MVRP timers (ms) Interface Join Leave LeaveAll xe-0/1/1 200 1000 10000
Meaning
The results show that MVRP is enabled on the trunk interface of Switch A and that the default timers are used.
Verifying That MVRP Is Updating VLAN Membership on Access Switch A
Purpose
Verify that MVRP is updating VLAN membership by displaying the Ethernet switching interfaces and associated VLANs that are active on Switch A.
Action
List Ethernet switching interfaces on the switch:
user@Access-Switch-A> show ethernet-switching interface
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
ge-0/0/1.0 65535 tagged
finance 100
65535 Forwarding
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
ge-0/0/2.0 65535 tagged
lab 200
65535 Forwarding
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
ge-0/0/3.0 65535 tagged
sales 300
65535 Forwarding
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
xe-0/1/1.0 65535 tagged
finance 100
65535 Forwarding
lab 200
65535 Forwarding
Meaning
MVRP has automatically added finance and lab as VLAN members on the trunk interface because they are being advertised by access Switch B.
Verifying That MVRP Is Enabled on Access Switch B
Purpose
Verify that MVRP is enabled on the switch.
Action
Show the MVRP configuration:
user@Access-Switch-B> show mvrp MVRP configuration for routing instance 'default-switch' MVRP dynamic VLAN creation : Enabled MVRP BPDU MAC address : Customer bridge group (01-80-C2-00-00-21) MVRP timers (ms) Interface Join Leave LeaveAll xe-0/1/0 200 1000 10000
Meaning
The results show that MVRP is enabled on the trunk interface of Switch B and that the default timers are used.
Verifying That MVRP Is Updating VLAN Membership on Access Switch B
Purpose
Verify that MVRP is updating VLAN membership by displaying the Ethernet switching interfaces and associated VLANs that are active on Switch B.
Action
List Ethernet switching interfaces on the switch:
user@Access-Switch-B> show ethernet-switching interface
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
ge-0/0/0.0 65535 tagged
finance 100
65535 Forwarding
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
ge-0/0/1.0 65535 tagged
lab 200
65535 Forwarding
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
xe-0/1/0.0 65535 tagged
finance 100
65535 Forwarding
lab 200
65535 Forwarding
sales 300
65535 Forwarding
Meaning
MVRP has automatically added finance, lab, and sales as VLAN members on the trunk interface because they are being advertised by access Switch A.
Verifying That MVRP Is Enabled on Distribution Switch C
Purpose
Verify that MVRP is enabled on the switch.
Action
Show the MVRP configuration:
user@Distribution-Switch-C> show mvrp MVRP configuration for routing instance 'default-switch' MVRP dynamic VLAN creation : Enabled MVRP BPDU MAC address : Customer bridge group (01-80-C2-00-00-21) MVRP timers (ms) Interface Join Leave LeaveAll xe-0/1/1 200 1000 10000 xe-0/1/0 200 1000 10000
Meaning
The results show that MVRP is enabled on the trunk interfaces of Switch C and that the default timers are used.
Verifying That MVRP Is Updating VLAN Membership on Distribution Switch C
Purpose
Verify that MVRP is updating VLAN membership on distribution Switch C by displaying the Ethernet switching interfaces and associated VLANs on distribution Switch C.
Action
List the Ethernet switching interfaces on the switch:
user@Distribution-Switch-C> show ethernet-switching interface
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
xe-0/1/1.0 65535 tagged
mvrp_100
65535 Forwarding
mvrp_200
65535 Forwarding
mvrp_300
65535 Forwarding
Routing Instance Name : default-switch
Logical Interface flags (DL - disable learning, AD - packet action drop,
LH - MAC limit hit, DN - interface down )
Logical Vlan TAG MAC STP Logical Tagging
interface members limit state interface flags
xe-0/1/0.0 65535 tagged
mvrp_100
65535 Forwarding
mvrp_200
65535 Forwarding
List the VLANs that were created dynamically using MVRP on the switch:
user@Distribution-Switch-C> show mvrp dynamic-vlan-memberships
MVRP dynamic vlans for routing instance 'default-switch'
(s) static vlan, (f) fixed registration
VLAN ID Interfaces
100 xe-0/1/1.0
xe-0/1/0.0
200 xe-0/1/1.0
xe-0/1/0.0
300 xe-0/1/1.0
Note that this scenario does not have any fixed registration, which is typical when MVRP is enabled.
Meaning
Distribution Switch C has two trunk interfaces. Interface xe-0/1/1.0 connects Distribution Switch C to Access
Switch A and is, therefore, updated to show that it is a member
of all the VLANs that are active on Switch A. Any traffic for
those VLANs will be passed on from Switch C to Switch A, through interface xe-0/1/1.0. Interface xe-0/1/0.0 connects Switch C to Switch B and is updated to show that it is
a member of the two VLANs that are active on Switch B. Thus, Switch
C sends traffic for finance and lab to both Switch
A and Switch B. But Switch C sends traffic for sales only
to Switch A.
Switch C also has three dynamic VLANs created using MVRP: mvrp_100, mvrp_200, and mvrp_300. The dynamically created
VLANs mvrp_100 and mvrp_200 are active on interfaces xe-0/1/1.0 and xe-0/1/0.0, and dynamically created
VLAN mvrp_300 is active on interface xe-0/1/1.0.
Example: Configuring Automatic VLAN Administration Using MVRP on EX Series Switches
This example uses Junos OS for EX Series switches that does not support the Enhanced Layer 2 Software (ELS) configuration style. If your switch runs software that supports ELS, see Example: Configuring Automatic VLAN Administration Using MVRP on EX Series Switches with ELS Support. For ELS details, see Using the Enhanced Layer 2 Software CLI.
As a network expands and the number of clients and VLANs increases, VLAN administration becomes complex and the task of efficiently configuring VLANs on multiple EX Series switches becomes increasingly difficult. To automate VLAN administration, you can enable Multiple VLAN Registration Protocol (MVRP) on the network.
MVRP also dynamically creates VLANs, further simplifying the network overhead required to statically configure VLANs.
Only trunk interfaces can be enabled for MVRP.
This example describes how to use MVRP to automate administration of VLAN membership changes within your network and how to use MVRP to dynamically create VLANs:
- Requirements
- Overview and Topology
- Configuring VLANs and MVRP on Access Switch A
- Configuring VLANs and MVRP on Access Switch B
- Configuring VLANS and MVRP on Distribution Switch C
- Verification
Requirements
This example uses the following hardware and software components:
Two EX Series access switches
One EX Series distribution switch
Junos OS Release 10.0 or later for EX Series switches
Overview and Topology
MVRP is used to manage dynamic VLAN registration in a LAN. It can also be used to dynamically create VLANs.
This example uses MVRP to dynamically create VLANs on the switching network. You can disable dynamic VLAN creation and create VLANs statically, if desired. Enabling MVRP on the trunk interface of each switch in your switching network ensures that the active VLAN information for the switches in the network is propagated to each switch through the trunk interfaces, assuming dynamic VLAN creation is enabled for MVRP.
MVRP ensures that the VLAN membership information on the trunk interface is updated as the switch’s access interfaces become active or inactive in the configured VLANs in a static or dynamic VLAN creation setup.
You do not need to explicitly bind a VLAN to the trunk interface. When MVRP is enabled, the trunk interface advertises all the VLANs that are active (bound to access interfaces) on that switch. An MVRP-enabled trunk interface does not advertise VLANs that have been configured on the switch but that are not currently bound to an access interface. Thus, MVRP provides the benefit of reducing network overhead—by limiting the scope of broadcast, unknown unicast, and multicast (BUM) traffic to interested devices only.
When VLAN access interfaces become active or inactive, MVRP ensures that the updated information is advertised on the trunk interface. Thus, in this example, distribution Switch C does not forward traffic to inactive VLANs.
This example shows a network with three VLANs: finance, sales, and lab. All three VLANs are running the same version of Junos OS. If switches in this network were running a mix of Junos OS releases that included Release 11.3, additional configuration would be necessary—see Configuring Multiple VLAN Registration Protocol (MVRP) on Switches for details.
Access Switch A has been configured to support all three VLANS and all three VLANS are active, bound to interfaces that are connected to personal computers:
ge-0/0/1—Connects PC1 as a member of finance, VLAN ID 100
ge-0/0/2—Connects PC2 as a member of lab, VLAN ID 200
ge-0/0/3—Connects PC3 as a member of sales, VLAN ID 300
Access Switch B has also been configured to support three VLANS. However, currently only two VLANs are active, bound to interfaces that are connected to personal computers:
ge-0/0/0—Connects PC4 as a member of finance, VLAN ID 100
ge-0/0/1—Connects PC5 as a member of lab, VLAN ID 200
Distribution Switch C learns the VLANs dynamically using MVRP through the connection to the access switches. Distribution Switch C has two trunk interfaces:
xe-0/1/1—Connects the switch to access Switch A.
xe-0/1/0—Connects the switch to access Switch B.
Topology
Figure 2 shows MVRP configured on two access switches and one distribution switch.
Table 6 explains the components of the example topology.
| Settings | Settings |
|---|---|
Switch hardware |
|
VLAN names and tag IDs |
finance, tag 100 lab, tag 200 sales, tag 300 |
Interfaces |
Access Switch A interfaces:
Access Switch B interfaces:
Distribution Switch C interfaces:
|
Configuring VLANs and MVRP on Access Switch A
To configure VLANs on the switch, bind access interfaces to the VLANs, and enable MVRP on the trunk interface of access Switch A, perform these tasks:
Procedure
CLI Quick Configuration
To quickly configure access Switch A for MVRP, copy the following commands and paste them into the switch terminal window of Switch A:
[edit]
set vlans finance vlan-id 100
set vlans lab vlan-id 200
set vlans sales vlan-id 300
set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members finance
set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members lab
set interfaces ge-0/0/3 unit 0 family ethernet-switching vlan members sales
set interfaces xe-0/1/1 unit 0 family ethernet-switching port-mode trunk
set protocols mvrp interface xe-0/1/1.0 As recommended as a best practice, default MVRP timers are used in this example. The default values associated with each MVRP timer are: 200 ms for the join timer, 1000 ms for the leave timer, and 10000 ms for the leaveall timer. Modifying timers to inappropriate values might cause an imbalance in the operation of MVRP.
Step-by-Step Procedure
To configure access Switch A for MVRP:
Configure the finance VLAN:
[edit] user@Access-Switch-A# set vlans finance vlan-id 100
Configure the lab VLAN:
[edit] user@Access-Switch-A# set vlans lab vlan–id 200
Configure the sales VLAN:
[edit] user@Access-Switch-A# set vlans sales vlan–id 300
Configure an Ethernet interface as a member of the finance VLAN:
[edit] user@Access-Switch-A# set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members finance
Configure an Ethernet interface as a member of the lab VLAN:
[edit] user@Access-Switch-A# set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members lab
Configure an Ethernet interface as a member of the sales VLAN:
[edit] user@Access-Switch-A# set interfaces ge-0/0/3 unit 0 family ethernet-switching vlan members sales
Configure a trunk interface:
[edit] user@Access-Switch-A# set interfaces xe-0/1/1 unit 0 family ethernet-switching port-mode trunk
Enable MVRP on the trunk interface:
[edit] user@Access-Switch-A# set protocols mvrp interface xe-0/1/1.0
Results
Check the results of the configuration on Switch A:
[edit]
user@Access-Switch-A# show
interfaces {
ge-0/0/1 {
unit 0 {
family ethernet-switching {
vlan {
members finance;
}
}
}
}
ge-0/0/2 {
unit 0 {
family ethernet-switching {
vlan {
members lab;
}
}
}
}
ge-0/0/3 {
unit 0 {
family ethernet-switching {
members sales;
}
}
}
}
xe-0/1/1 {
unit 0 {
family ethernet-switching {
port-mode trunk;
}
}
}
}
protocols {
mvrp {
interface xe-0/1/1.0;
}
}
vlans {
finance {
vlan-id 100;
}
lab {
vlan-id 200;
}
sales {
vlan-id 300;
}
}
Configuring VLANs and MVRP on Access Switch B
To configure three VLANs on the switch, bind access interfaces for PC4 and PC5 to the VLANs, and enable MVRP on the trunk interface of access Switch B, perform these tasks:
Procedure
CLI Quick Configuration
To quickly configure Access Switch B for MVRP, copy the following commands and paste them into the switch terminal window of Switch B:
[edit]
set vlans finance vlan-id 100
set vlans lab vlan-id 200
set vlans sales vlan-id 300
set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members finance
set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members lab
set interfaces xe-0/1/0 unit 0 family ethernet-switching port-mode trunk
set protocols mvrp interface xe-0/1/0.0 Step-by-Step Procedure
To configure access Switch B for MVRP:
Configure the finance VLAN:
[edit] user@Access-Switch-B# set vlans finance vlan-id 100
Configure the lab VLAN:
[edit] user@Access-Switch-B# set vlans lab vlan–id 200
Configure the sales VLAN:
[edit] user@Access-Switch-B# set vlans sales vlan–id 300
Configure an Ethernet interface as a member of the finance VLAN:
[edit] user@Access-Switch-B# set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members finance
Configure an Ethernet interface as a member of the lab VLAN:
[edit] user@Access-Switch-B# set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members lab
Configure a trunk interface:
user@Access-Switch-B# set interfaces xe-0/1/0 unit 0 family ethernet-switching port-mode trunk
Enable MVRP on the trunk interface:
[edit] user@Access-Switch-B# set protocols mvrp xe-0/1/0.0
Note:As we recommend as a best practice, default MVRP timers are used in this example. The default values associated with each MVRP timer are: 200 ms for the join timer, 1000 ms for the leave timer, and 10000 ms for the leaveall timer. Modifying timers to inappropriate values might cause an imbalance in the operation of MVRP.
Results
Check the results of the configuration for Switch B:
[edit]
user@Access-Switch-B# show
interfaces {
ge-0/0/0 {
unit 0 {
family ethernet-switching {
vlan {
members finance;
}
}
}
}
ge-0/0/1 {
unit 0 {
family ethernet-switching {
vlan {
members lab;
}
}
}
}
xe-0/1/0 {
unit 0 {
family ethernet-switching {
port-mode trunk;
}
}
}
}
protocols {
mvrp {
interface xe-0/1/0.0;
}
}
vlans {
finance {
vlan-id 100;
}
lab {
vlan-id 200;
}
sales {
vlan-id 300;
}
}
Configuring VLANS and MVRP on Distribution Switch C
Procedure
CLI Quick Configuration
To quickly configure distribution Switch C for MVRP, copy the following commands and paste them into the switch terminal window of distribution Switch C:
[edit]
set interfaces xe-0/1/1 unit 0 family ethernet-switching port-mode trunk
set interfaces xe-0/1/0 unit 0 family ethernet-switching port-mode trunk
set protocols mvrp interface xe-0/1/1.0
set protocols mvrp interface xe-0/1/0.0 Step-by-Step Procedure
To configure distribution Switch C for MVRP:
Configure the trunk interface to access Switch A:
[edit] user@Distribution-Switch-C# set interfaces xe-0/1/1 unit 0 family ethernet-switching port-mode trunk
Configure the trunk interface to access Switch B:
[edit] user@Distribution-Switch-C# set interfaces xe-0/1/0 unit 0 family ethernet-switching port-mode trunk
Enable MVRP on the trunk interface for xe-0/1/1 :
[edit] user@Distribution-Switch-C# set protocols mvrp interface xe-0/1/1.0
Enable MVRP on the trunk interface for xe-0/1/0 :
[edit] user@Distribution-Switch-C# set protocols mvrp interface xe-0/1/0.0
Results
Check the results of the configuration for Switch C:
[edit]
user@Distribution Switch-C# show
interfaces {
xe-0/1/0 {
unit 0 {
family ethernet-switching {
port-mode trunk;
}
}
}
xe-0/1/1 {
unit 0 {
family ethernet-switching {
port-mode trunk;
}
}
}
}
protocols {
mvrp {
interface xe-0/1/0.0;
interface xe-0/1/1.0;
}
Verification
To confirm that the configuration is updating VLAN membership, perform these tasks:
- Verifying That MVRP Is Enabled on Access Switch A
- Verifying That MVRP Is Updating VLAN Membership on Access Switch A
- Verifying That MVRP Is Enabled on Access Switch B
- Verifying That MVRP Is Updating VLAN Membership on Access Switch B
- Verifying That MVRP Is Enabled on Distribution Switch C
- Verifying That MVRP Is Updating VLAN Membership on Distribution Switch C
Verifying That MVRP Is Enabled on Access Switch A
Purpose
Verify that MVRP is enabled on the switch.
Action
Show the MVRP configuration:
user@Access-Switch-A> show mvrp MVRP configuration MVRP status : Enabled MVRP dynamic VLAN creation : Enabled MVRP timers (ms): Interface Join Leave LeaveAll -------------- ----- -------- ----------- all 200 1000 10000 xe-0/1/1.0 200 1000 10000 Interface Status Registration Mode -------------- -------- ----------------- all Disabled Normal xe-0/1/1.0 Enabled Normal
Meaning
The results show that MVRP is enabled on the trunk interface of Switch A and that the default timers are used.
Verifying That MVRP Is Updating VLAN Membership on Access Switch A
Purpose
Verify that MVRP is updating VLAN membership by displaying the Ethernet switching interfaces and associated VLANs that are active on Switch A.
Action
List Ethernet switching interfaces on the switch:
user@Access-Switch-A> show ethernet-switching interfaces
Interface State VLAN members Tag Tagging Blocking
ge-0/0/1.0 up finance 100 untagged unblocked
ge-0/0/2.0 up lab 200 untagged unblocked
ge-0/0/3.0 up sales 300 untagged unblocked
xe-0/1/1.0 up finance 100 untagged unblocked
lab 200 untagged unblocked
Meaning
MVRP has automatically added finance and lab as VLAN members on the trunk interface because they are being advertised by access Switch B.
Verifying That MVRP Is Enabled on Access Switch B
Purpose
Verify that MVRP is enabled on the switch.
Action
Show the MVRP configuration:
user@Access-Switch-B> show mvrp MVRP configuration MVRP status : Enabled MVRP dynamic VLAN creation : Enabled MVRP timers (ms): Interface Join Leave LeaveAll -------------- ----- -------- ----------- all 200 1000 10000 xe-0/1/0.0 200 1000 10000 Interface Status Registration Mode -------------- -------- ----------------- all Disabled Normal xe-0/1/0.0 Enabled Normal
Meaning
The results show that MVRP is enabled on the trunk interface of Switch B and that the default timers are used.
Verifying That MVRP Is Updating VLAN Membership on Access Switch B
Purpose
Verify that MVRP is updating VLAN membership by displaying the Ethernet switching interfaces and associated VLANs that are active on Switch B.
Action
List Ethernet switching interfaces on the switch:
user@Access-Switch-B> show ethernet-switching interfaces
Interface State VLAN members Tag Tagging Blocking
ge-0/0/0.0 up finance 100 untagged unblocked
ge-0/0/1.0 up lab 200 untagged unblocked
xe-0/1/1.0 up finance 100 untagged unblocked
lab 200 untagged unblocked
sales 300 untagged unblocked
Meaning
MVRP has automatically added finance, lab, and sales as VLAN members on the trunk interface because they are being advertised by access Switch A.
Verifying That MVRP Is Enabled on Distribution Switch C
Purpose
Verify that MVRP is enabled on the switch.
Action
Show the MVRP configuration:
user@Distribution-Switch-C> show mvrp MVRP configuration MVRP status : Enabled MVRP dynamic VLAN creation : Enabled MVRP timers (ms): Interface Join Leave LeaveAll -------------- ----- -------- ----------- all 200 1000 10000 xe-0/0/1.0 200 1000 10000 xe-0/1/1.0 200 1000 10000 Interface Status Registration Mode -------------- -------- ----------------- all Disabled Normal xe-0/0/1.0 Enabled Normal xe-0/1/1.0 Enabled Normal
Verifying That MVRP Is Updating VLAN Membership on Distribution Switch C
Purpose
Verify that MVRP is updating VLAN membership on distribution Switch C by displaying the Ethernet switching interfaces and associated VLANs on distribution Switch C.
Action
List the Ethernet switching interfaces on the switch:
user@Distribution-Switch-C> show ethernet-switching interfaces
Interface State VLAN members Tag Tagging Blocking
xe-0/1/1.0 up __mvrp_100__ unblocked
__mvrp_200__ unblocked
__mvrp_300__ unblocked
xe-0/1/0.0 up __mvrp_100__ unblocked
__mvrp_200__ unblocked
List the VLANs that were created dynamically using MVRP on the switch:
user@Distribution-Switch-C> show mvrp dynamic-vlan-memberships
MVRP dynamic vlans for routing instance 'default-switch'
(s) static vlan, (f) fixed registration
VLAN ID Interfaces
100 xe-0/1/1.0
xe-0/1/0.0
200 xe-0/1/1.0
xe-0/1/0.0
300 xe-0/1/1.0
Note that this scenario does not have any fixed registration, which is typical when MVRP is enabled.
Meaning
Distribution Switch C has two trunk interfaces. Interface xe-0/1/1.0 connects distribution Switch C to Access Switch A and is therefore updated to show that it is a member of all the VLANs that are active on Switch A. Any traffic for those VLANs will be passed on from distribution Switch C to Switch A, through interface xe-0/1/1.0. Interface xe-0/1/0.0 connects distribution Switch C to Switch B and is updated to show that it is a member of the two VLANs that are active on Switch B. Thus, distribution Switch C sends traffic for finance and lab to both Switch A and Switch B. But distribution Switch C sends traffic for sales only to Switch A.
Distribution Switch C also has three dynamic VLANs created using MVRP: mvrp_100, mvrp_200, and mvrp_300. The dynamically created VLANs mvrp_100 and mvrp_200 are active on interfaces xe-0/1/1.0 and xe-0/1/1.0, and dynamically created VLAN mvrp_300 is active on interface xe-0/1/1.0.
Verifying That MVRP Is Working Correctly on Switches
Purpose
After configuring your switch to participate in MVRP, verify that the configuration is properly set and that MVRP messages are being sent and received on your switch.
Action
Confirm that MVRP is enabled on your switch.
user@switch> show mvrp Global MVRP configuration MVRP status : Enabled MVRP dynamic vlan creation: Enabled MVRP Timers (ms): Interface Join Leave LeaveAll -------------- ---- ----- -------- all 200 600 10000 xe-0/1/1.0 200 600 10000 Interface based configuration: Interface Status Registration Dynamic VLAN Creation -------------- -------- ------------ --------------------- all Disabled Fixed Enabled xe-0/1/1.0 Enabled Normal Enabled
Confirm that MVRP messages are being sent and received on your switch.
user@switch> show mvrp statistics interface xe-0/1/1.0 MVRP statistics MRPDU received : 3342 Invalid PDU received : 0 New received : 2 Join Empty received : 1116 Join In received : 2219 Empty received : 2 In received : 2 Leave received : 1 LeaveAll received : 1117 MRPDU transmitted : 3280 MRPDU transmit failures : 0 New transmitted : 0 Join Empty transmitted : 1114 Join In transmitted : 2163 Empty transmitted : 1 In transmitted : 1 Leave transmitted : 1 LeaveAll transmitted : 1111
Meaning
The output of show mvrp shows that interface xe-0/1/1.0 is enabled for MVRP participation as shown in the
status in the Interface based configuration field.
The output for show mvrp statistics interface xe-0/1/1.0 confirms that MVRP messages are being transmitted and received on
the interface.
You can identify an MVRP compatibility issue on EX Series switches by looking at the output from this command. If Join Empty received and Join In received incorrectly display zero, even though the value for MRPDU received has been increased, you are probably running different versions of Junos OS, including Release 11.3, on the switches in this network. Another indication that MVRP is having a version problem is that unexpected VLAN activity, such as multiple VLAN creation, takes place on the switch running the earlier release version. To remedy these problems, see Configuring Multiple VLAN Registration Protocol (MVRP) on Switches .
Verifying That MVRP Is Working Correctly on EX Series Switches with ELS Support
Purpose
This task uses Junos OS for EX Series switches with support for the Enhanced Layer 2 Software (ELS) configuration style. If your switch runs software that does not support ELS, see Verifying That MVRP Is Working Correctly on Switches. For ELS details, see Using the Enhanced Layer 2 Software CLI.
After configuring your EX Series switch to participate in MVRP, verify that the configuration is properly set and that MVRP messages are being sent and received on your switch.
Action
Confirm that MVRP is enabled on your switch.
user@switch> show mvrp MVRP configuration for routing instance 'default-switch' MVRP dynamic VLAN creation : Enabled MVRP BPDU MAC address : Customer bridge group (01-80-C2-00-00-21) MVRP timers (ms) Interface Join Leave LeaveAll xe-0/1/1 200 1000 10000
Confirm that MVRP messages are being sent and received on your switch.
user@switch> show mvrp statistics MVRP statistics for routing instance 'default-switch' Interface name : xe-0/1/1 VLAN IDs registered : 117 Sent MVRP PDUs : 118824 Received MVRP PDUs without error: 118848 Received MVRP PDUs with error : 0 Transmitted Join Empty : 5229 Transmitted Leave All : 2 Recieved Join In : 11884924 Transmitted Join In : 1835 Transmitted Empty : 93606408 Transmitted Leave : 888 Transmitted In : 13780024 Transmitted New : 2692 Received Leave All : 118761 Received Leave : 97 Received In : 3869 Received Empty : 828 Received Join Empty : 2020152 Received New : 224 ...
Meaning
The output of show mvrp shows that interface
xe-0/1/1 is enabled for MVRP participation.
The output for show mvrp statistics confirms that
MVRP messages are being transmitted and received on interface xe-0/1/1.
You can identify an MVRP compatibility issue by observing
the output from this command. If Received Join Empty and Received Join In incorrectly
display zero, even though the value for Received MVRP
PDUs without error has been increased, you are probably
running different versions of Junos OS on the switches in this network.
Another indication that MVRP is having a version problem is that unexpected
VLAN activity, such as multiple VLAN creation, takes place on the
switch running the earlier release version. To remedy these problems,
see Configuring Multiple VLAN Registration Protocol
(MVRP) on Switches .
Verifying That MVRP Is Working Correctly
Purpose
After configuring your MX Series router or EX Series switch to participate in Multiple VLAN Registration Protocol (MVRP), verify that the configuration is properly set and that MVRP messages are being sent and received on your switch.
Action
Confirm that the router is declaring VLANs.
Show that MVRP is enabled:
user@host> show mvrp MVRP configuration for routing instance 'default-switch' MVRP dynamic VLAN creation : Enabled MVRP BPDU MAC address : Customer bridge group (01-80-C2-00-00-21) MVRP timers (ms) Interface Join Leave LeaveAll ge-11/3/0 200 800 10000
Show the MVRP applicant state:
user@host> show mvrp applicant-state MVRP applicant state for routing instance 'default-switch' (VO) Very anxious observer, (VP) Very anxious passive, (VA) Very anxious new, (AN) Anxious new, (AA) Anxious active, (QA) Quiet active, (LA) Leaving active, (AO) Anxious observer, (QO) Quiet observer, (LO) Leaving observer, (AP) Anxious passive, (QP) Quiet passive VLAN Id Interface State 100 ge-11/3/0 Declaring (QA) 200 ge-11/3/0 Declaring (QA) 300 ge-11/3/0 Declaring (QA)Confirm that VLANs are registered on interfaces.
List VLANs in the registered state:
user@host> show mvrp registration-state MVRP registration state for routing instance 'default-switch' VLAN Id Interface Registrar Forced Managed STP State State State State 100 ge-11/3/0 Registered Registered Normal Forwarding 200 ge-11/3/0 Registered Registered Normal Forwarding 300 ge-11/3/0 Empty Empty Normal ForwardingDisplay a list of VLANs created dynamically.
List dynamic VLAN membership:
user@host> show mvrp dynamic-vlan-memberships MVRP dynamic vlans for routing instance 'default-switch' (s) static vlan, (f) fixed registration VLAN Id Interfaces 100 ge-3/3/0 ge-3/0/5 200 ge-3/3/0 ge-3/0/5
Meaning
The output of show mvrp applicant-state shows
that trunk interface ge-11/3/0 is declaring (sending out)
interest in the VLAN IDs 100, 200, and 300, and MVRP is operating properly.
The output of show mvrp registrant-state shows the
registrar state for VLANs 100 and 200 as Registered, indicating that these VLANs are receiving traffic from a customer
site. VLAN 300 is in an Empty state and is not receiving
traffic from a customer site.
The output of the show mvrp dynamic-vlan-membership shows that VLANs 100 and 200 are created dynamically
(here, on an MX Series router operating as an aggregation switch between
MX Series routers operating as edge switches). VLANs created statically
are marked with an (s) (which is not indicated in this output).
Change History Table
Feature support is determined by the platform and release you are using. Use Feature Explorer to determine if a feature is supported on your platform.
