Unpacking the MX2008

Unpacking the MX2008 Router Overview

To unpack the router:

  1. Gather the tools required to unpack the router. See:

  2. Remove the router, accessory box, and all parts from the shipping crate. See:

  3. Unpack the router transport kit, if ordered. See:

  4. Verify that all parts have been received. See:

Tools and Parts Required to Unpack the MX2008 Router

To unpack the router and prepare for installation, you need the following tools:

  • Phillips (+) screwdriver, number 1, 2, and 3

  • 1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the shipping pallet

  • Blank panels to cover any slots not occupied by a component

See Also

Unpacking the MX2008 Router

The router is shipped in a wooden crate. A wooden pallet forms the base of the crate. The router chassis is bolted to this pallet. Metal latches secure the top and bottom in place. Quick Start installation instructions, a rack mount tray (for four-post or open-frame rack mounting), a pallet jack attachment, an EMI cover, and a cardboard accessory box are also included in the shipping crate. The total weight of the container including the router, FRUs, and accessories is 1343 lb (609.18 kg).

Note:

Depending on your configuration, the MX2008 might be shipped with additional components already installed.

Note:

The MX2008 can be ordered with extended EMI covers and extended cable managers.

There are two styles of shipping crates for the MX2008. Figure 1 shows the smaller crate that measures 66.25 in. (168.3 cm) high, 42.0 in. (106.7 cm) wide, and 48.0 in. (121.9 cm) deep. Figure 2 shows the larger crate that measures 68.4 in. (173.7 cm) high, 44.4 in. (112.8 cm) wide, and 51.6 in. (131.1 cm) deep. If you are not sure which crate you have, plan for the larger crate.

The total weight of the shipping crate with router and accessories varies depending on your configuration. See MX2008 Physical Specifications for more details.

Figure 1: MX2008 Shipping Crate Dimensions (Smaller)MX2008 Shipping Crate Dimensions (Smaller)

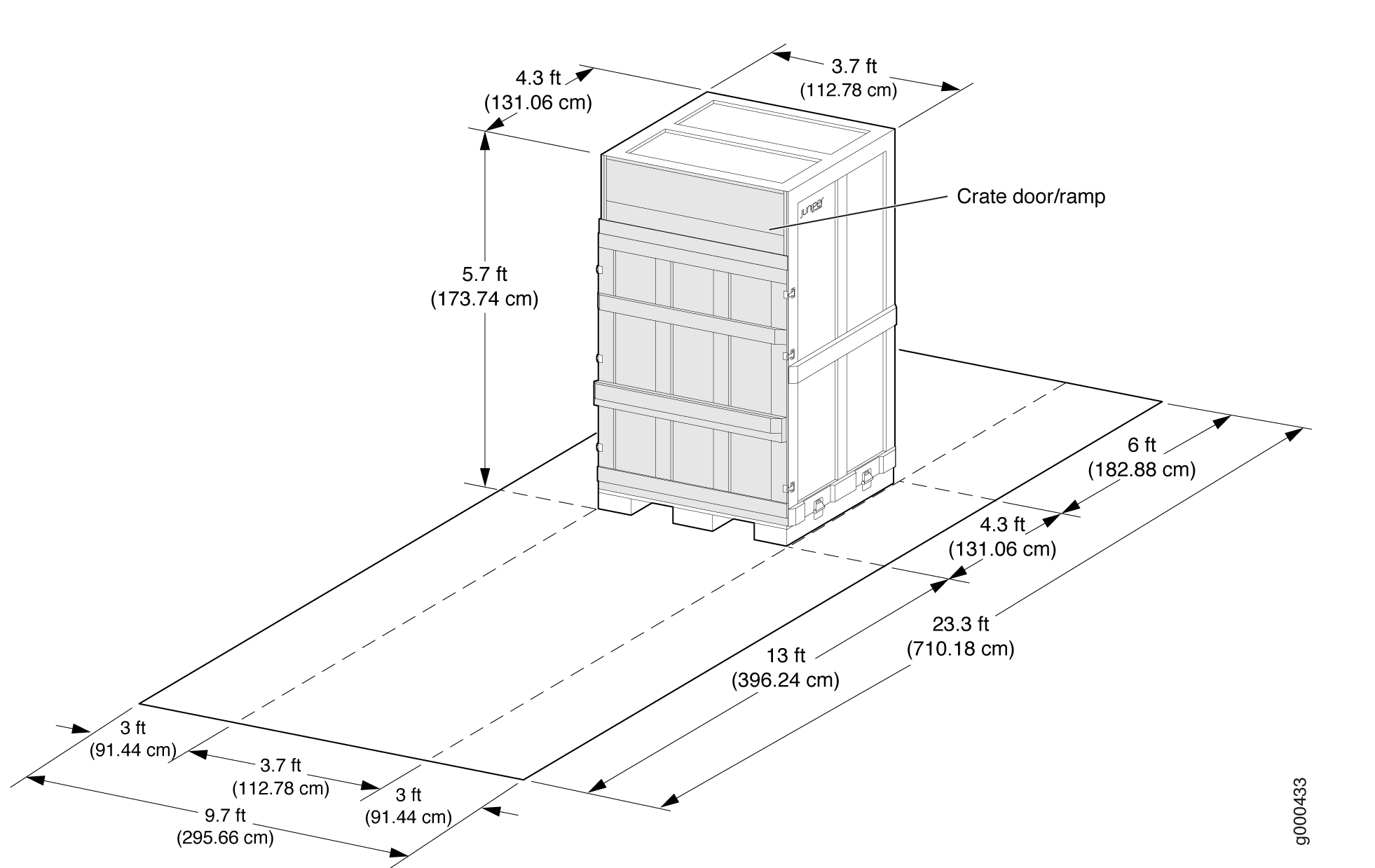

Figure 2: MX2008 Shipping Crate Dimensions (Larger)MX2008 Shipping Crate Dimensions (Larger)
Note:

The router is maximally protected inside the shipping crate. Do not unpack it until you are ready to begin installation.

To unpack the router:

  1. Move the shipping crate to an electrostatic discharge (ESD) approved staging area as close to the installation site as possible, where you have enough room to remove the components from the chassis. While the chassis is bolted to the shipping pallet, you can use a forklift or pallet jack to move it.
  2. Position the shipping crate with the arrows pointing up.
  3. Open all the latches on the shipping crate.
  4. Remove the front door of the shipping crate and set it aside (see Figure 3).
  5. Using a two-person team, slide the remainder of the shipping crate off the pallet.
  6. Remove the foam covering the top of the router.
  7. Remove the large mounting tray, pallet jack attachment, accessory box, and the Quick Start installation instructions.
    Note:

    If you ordered a router transport kit, see Unpacking the MX2008 Router Transport Kit.

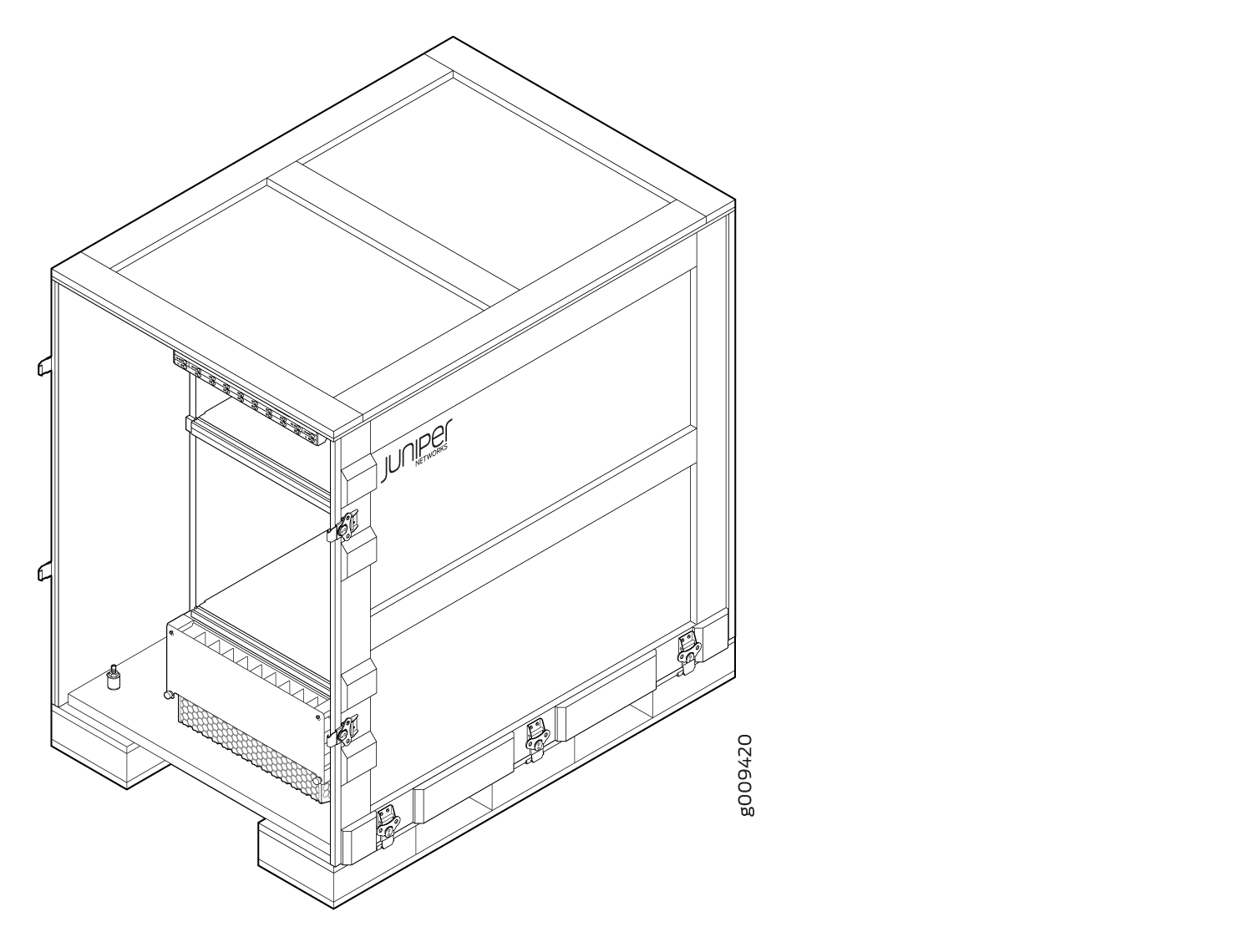

    Figure 3: Unpacking the MX2008Unpacking the MX2008
  8. Verify the parts received against the list.
  9. Remove the vapor corrosion inhibitor (VCI) packs attached to the pallet, being careful not to break the VCI packs open.
  10. To remove the brackets holding the chassis to the pallet, use a 9/16-in (14 mm) socket wrench, and use a number 2 Phillips screwdriver to remove the bolts and screws from the brackets.
  11. Set the shipping brackets aside for later use to secure the router to the pallet jack attachment.
    Note:

    If you ordered a router transport kit, see Unpacking the MX2008 Router Transport Kit for instructions on how to unpack and install the router transport kit.

  12. Save the shipping crate cover, pallet, and packing materials in case you need to move or ship the router at a later time.

See Also

Verifying the MX2008 Parts Received

A packing list is included in each shipment. Check the parts in the shipment against the items on the packing list. The packing list specifies the part numbers and descriptions of each part in your order.

If any part is missing, contact a customer service representative.

A fully configured router contains the router chassis with installed components, listed in Table 1, and an accessory box, which contains the parts listed in Table 2. The parts shipped with your router can vary depending on the configuration you ordered.

Table 1: Parts List for a Fully Configured MX2008 Router

Component

Quantity

Chassis, including backplane, and craft interface.

1

EMI cover

1

Four-post mounting shelf

1

Open-frame mounting shelf (optional)

1

MPCs

Up to 10

Adapter cards

Up to 10

MICs

Up to 20

SFBs

Up to 8

Routing and Control Board (RCBs)

1 or 2

Power distribution modules (PDMs)

Up to 2

Power supply modules (PSMs)

Up to 9

Fan trays

2

PSM air filter

1

Air filter (lower)

1

Card-cage cable manager and air filter

1

Cable manager (lower)

1

DC cable manager (rear)

2

Quick Start installation instructions

1

Blank panels for slots without components installed

One blank panel for each slot not occupied by a component.
Table 2: Accessory Box Parts List

Part

Quantity

Screws to mount chassis

14

Terminal block plug, 3 pole, 5.08 mm spacing, 12 A, to connect the router alarms

2

Label, accessories contents, MX2008

1

USB flash drive with Junos OS

1

Read me first document

1

Affidavit for T1 connection

1

Juniper Networks Product Warranty

1

End User License Agreement

1

Document sleeve

1

3" x 5" pink bag

2

9" x 12" pink bag, ESD

2

Accessory box, 19 x 12 x 3"

1

ESD wrist strap with cable

1
Note:

We no longer include the RJ-45 console cable with the DB-9 adapter as part of the device package. If the console cable and adapter are not included in your device package, or if you need a different type of adapter, you can order the following separately:

  • RJ-45 to DB-9 adapter (JNP-CBL-RJ45-DB9)

  • RJ-45 to USB-A adapter (JNP-CBL-RJ45-USBA)

  • RJ-45 to USB-C adapter (JNP-CBL-RJ45-USBC)

If you want to use RJ-45 to USB-A or RJ-45 to USB-C adapter you must have X64 (64-Bit) Virtual COM port (VCP) driver installed on your PC. See, https://ftdichip.com/drivers/vcp-drivers/ to download the driver.

See Also

Unpacking the MX2008 Router Transport Kit

The router transport kit is shipped in a wooden crate. A wooden pallet forms the base of the crate. Metal clips secure the top and front of the crate in place.

The router transport kit shipping container measures 36 in. (91.4 cm) high, 32 in. (81.3 cm) wide, and 44.5 in. (113 cm) deep (see Figure 4). The total weight of the container containing the router transport kit is 200 lb (90.71 kg).

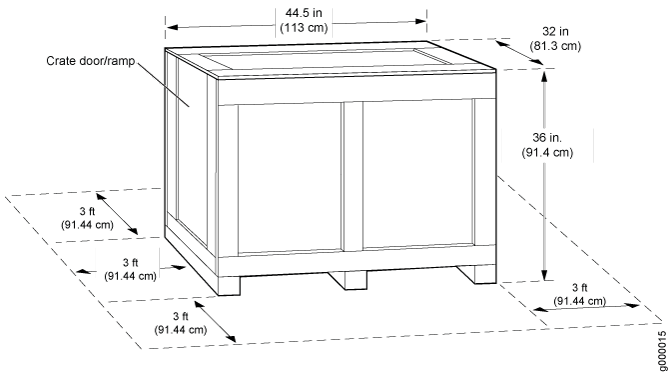

Figure 4: Router Transport Kit Crate DimensionsRouter Transport Kit Crate Dimensions
Note:

The router transport kit is maximally protected inside the shipping crate. Do not unpack it until you are ready to begin installation.

To unpack the router transport kit:

  1. Move the router transport kit shipping crate to an ESD-approved staging area, where you have enough room to remove the kit for assembly.
  2. Position the shipping crate with the arrows pointing up.
  3. Remove the metal clips on the shipping crate that secure the top and front to the crate (see Figure 5).
    Figure 5: Open Router Transport Kit Shipping CrateOpen Router Transport Kit Shipping Crate
  4. Remove the top and front of the shipping crate, and set them aside.
  5. Remove the two wing nuts that secure the wooden brace to the shipping crate platform, and set them aside.

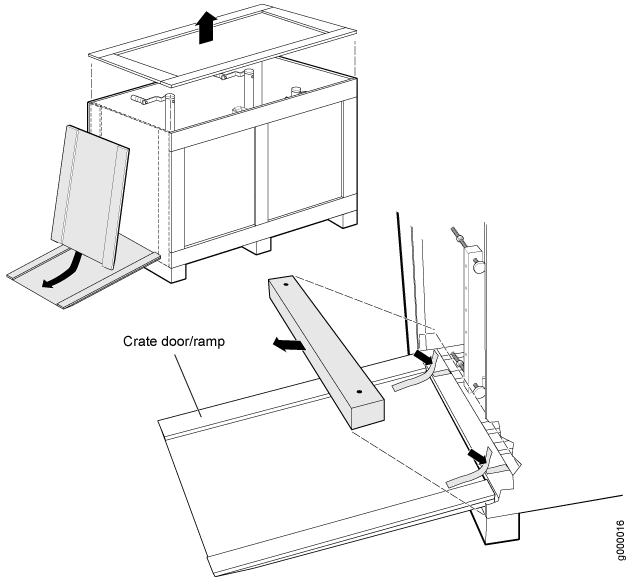

  6. Align the crate door with the shipping crate platform, and secure the door to the platform by using the attached velcro straps (see Figure 6).
    Figure 6: Router Transport Kit Shipping Crate DoorRouter Transport Kit Shipping Crate Door
  7. Remove the router transport kit from the shipping container.
  8. Remove the vapor corrosion inhibitor (VCI) packs attached to the pallet, being careful not to break the VCI packs open.
  9. Save the shipping crate cover, pallet, and packing materials in case you need to move or ship the router transport kit at a later time.
