Introduction to OAM Connectivity Fault Management (CFM)
SUMMARY This section describes the Operation, Administration, and Management (OAM) of connectivity fault management (CFM).
Ethernet OAM Connectivity Fault Management
The connectivity fault management (CFM) is defined in IEEE 802.1ag. This topic emphasizes the use of CFM in a Metro Ethernet environment.
The major features of CFM are:
-
Fault monitoring using the continuity check protocol. This protocol serves as a neighbor discovery and health check protocol that identifies and maintains adjacencies at the VLAN or link level.
-
Path discovery and fault verification using the linktrace protocol. Similar to IP traceroute, this protocol maps the path taken to a destination MAC address through one or more bridged networks between the source and destination.
-
Fault isolation using the loopback protocol. Similar to IP ping, this protocol works with the continuity check protocol during troubleshooting.
CFM divides the service network into different administrative domains, such as operators, providers, and customers. These domains might belong to separate administrative domains.
Every administrative domain is linked with one maintenance domain that contains sufficient information for self-management, enable end-to-end monitoring, and prevent security breaches. Each maintenance domain is associated with a maintenance domain level ranging from 0 to 7, based on the network hierarchy. The outermost domains are allocated a higher level than the innermost domains. Customer end points have the highest maintenance domain level.
Each service instance in a CFM maintenance domain is called a maintenance association. A maintenance association consists of a full mesh of maintenance endpoints (MEPs) that share similar characteristics. MEPs are active CFM entities that generate and respond to CFM protocol messages.
There is also a maintenance intermediate point (MIP), which is a CFM entity similar to the MEP. However, MIP is relatively passive and only responds to CFM messages.
MEPs can be up MEPs or down MEPs. A link can connect a MEP at level 5 to a MEP at level 7. The interface at level 5 is an up MEP (because the other end of the link is at MEP level 7), and the interface at level 7 is a down MEP (because the other end of the link is at MEP level 5).
In a Metro Ethernet network, CFM is commonly used at two levels:
-
By the service provider to check the connectivity among its provider edge (PE) routers
-
By the customer to check the connectivity among its customer edge (CE) routers
Note:The configured customer CFM level must be greater than service provider CFM level.
In many Metro Ethernet networks, CFM is used to monitor connectivity over a VPLS and bridge network.
In ACX Series routers, OAM for VPLS is supported only on ACX5048, ACX5096, and ACX5448 routers and OAM for EVPN is supported only on ACX5448 and ACX710 routers.
CFM support on PTX10001-36MR, PTX10004, PTX10008, and PTX10016 devices includes the following limitations:
-
Maintenance End Point (MEP) and maintenance Intermediate Point (MIP) related limitations—You cannot configure:
-
Up MEP and down MEP at same level on an interface.
-
-
If the up MEP is higher than the down MEP, the system does not drop the CCM PDUs selectively and allows them to pass through without interruption.
-
DM related timestamping on AE with child links across multiple PFEs is not supported.
-
CFM packets take on the default queue. There is no forwarding class to queue (fc-to-queue) mapping, in the following instances:
-
Egress traffic, if cos-rewrite is not configured
-
Untagged traffic
-
-
The configuration of
vlan-id-list
on OAM enabled IFLs can impact CFM scaling. -
CFM packets that are host-bound and host-generated, don’t bypass the configured firewall filters for both ingress and egress direction.
IEEE 802.1ag OAM Connectivity Fault Management
Junos OS supports IEEE 802.1ag connectivity fault management. Ethernet interfaces on M7i and M10i routers with the Enhanced CFEB (CFEB-E) and on M120, M320, MX Series, T Series, and PTX Series routers support the IEEE 802.1ag standard for Operation, Administration, and Management (OAM). The IEEE 802.1ag standard facilitates Ethernet connectivity fault management (CFM) that helps to monitor an Ethernet network comprising one or more service instances.
In Junos OS Release 9.3 and later, CFM also supports aggregated Ethernet interfaces. CFM sessions operate in distributed mode on the Flexible PIC Concentrator (FPC) on aggregated Ethernet interfaces. As a result, graceful Routing Engine switchover (GRES) is supported on aggregated Ethernet interfaces. In releases before Junos OS Release 13.3, CFM sessions operate in centralized mode on the Routing Engine. However, CFM sessions are not supported on aggregated Ethernet interfaces if the interfaces that form the aggregated Ethernet bundle are in mixed mode. Additionally, CFM sessions with a continuity check message (CCM) interval of 10 milliseconds are not supported over aggregated Ethernet interfaces.
CFM sessions are distributed by default. All CFM sessions must operate in either only
distributed or only centralized mode. A mixed operation of distributed and centralized
modes for CFM sessions is not supported. To disable the distribution of CFM sessions on
aggregated Ethernet interfaces and make the sessions operate in centralized mode, include
the no-aggregate-delegate-processing
statement at the [edit
protocols oam ethernet connectivity-fault-management]
hierarchy level.
As a requirement for Ethernet OAM 802.1ag to work, distributed periodic packet
management (PPM) runs on the Routing Engine and Packet Forwarding Engine. You can only
disable PPM on the Packet Forwarding Engine. To disable PPM on the PFE, include the
ppm no-delegate-processing
statement at the [edit
routing-options ppm]
hierarchy level.
-
MX Series Virtual Chassis does not support distributed inline connectivity fault management.
-
ACX Series routers support CFM on aggregated Ethernet interfaces with continuity check interval of 100 milliseconds or higher.
-
CFM sessions are supported on aggregated Ethernet interfaces if the interfaces that form the aggregated Ethernet bundle are in mixed mode when the
no-aggregate-delegate-processing
command is enabled. -
Starting in Junos OS Release 14.2, for CFM sessions in centralized mode, we recommend that you configure a maximum of 40 CFM sessions with continuity check message (CCM) interval of 100 milliseconds (100 ms) or a maximum of 400 CFM sessions with CCM interval of 1 second (1 s). If CFM sessions are configured beyond this limit, CFM might not work as expected. You might observe issues when the state of multiple links change or when the line cards are restarted.
Note that these limits have been derived by considering a protocol data unit (PDU) load of 400 packets per second (pps) on the Routing Engine. This limit varies depending on the Routing Engine load. If the Routing Engine experiences heavy load, expect some variations to this limit.
Starting in Junos
OS Release 10.3, CFM is not supported on untagged aggregated Ethernet member links on
interfaces configured on Modular Port Concentrators (MPCs) and Modular Interface Cards
(MICs) on MX Series routers. However, CFM is supported on both untagged and tagged
aggregated Ethernet logical interfaces configured on MPCs and
MICs.Starting
in Junos OS Release 12.3, CFM does not support Multichassis Link Aggregation (MC-LAG). We
recommend not to configure the mc-ae
statement when you configure CFM.
Starting in Junos OS Release 11.3, on T Series and M320 routers, CFM is not supported on
interfaces configured with CCC encapsulation. If you configure CFM, the system displays the
following message: “MEPs cannot be configured on ccc interface on this
platform
”.
Starting in Junos OS Release 17.4, you can enable support for IEEE 802.1ag CFM on pseudowire service interfaces by configuring maintenance intermediate points (MIPs) on the pseudowire service interfaces. Pseudowire service interfaces support configuring of subscriber interfaces over MPLS pseudowire termination. Termination of subscriber interfaces over PW enables network operators to extend their MPLS domain from the Access/Aggregation network to the service edge and use uniform MPLS label provisioning for a larger portion of their network.
The CFM MIP session is supported only on the pseudowire services interface and not on the pseudowire services tunnel interface.
IEEE 802.1ag OAM supports graceful Routing Engine switchover (GRES). IEEE 802.1ag OAM is supported on untagged, single tagged, and stacked VLAN interfaces.
On EX Series switches, to use the CFM feature, you must first add the CFM to basic Junos OS by installing an enhanced feature license (EFL). See Licenses for EX Series for more details.
- Connectivity Fault Management Key Elements
- Best Practices for Configuring 802.1ag Ethernet OAM for VPLS
Connectivity Fault Management Key Elements
Figure 1 shows the relationships among the customer, provider, and operator Ethernet bridges, maintenance domains, maintenance association end points (MEPs), and maintenance intermediate points (MIPs).
On ACX Series routers, the maintenance intermediate points (MIP) are supported only on the ACX5048 and ACX5096 routers.

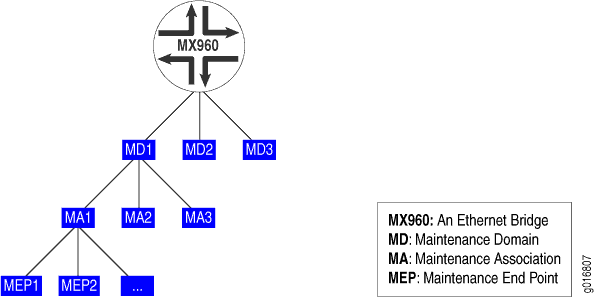

A maintenance association is a set of MEPs configured with the same maintenance association identifier and maintenance domain level. Figure 2 shows the hierarchical relationships between the Ethernet bridge, maintenance domains, maintenance associations, and MEPs.
Best Practices for Configuring 802.1ag Ethernet OAM for VPLS
The logical interfaces in a VPLS routing instance may have the same or different VLAN configurations. VLAN normalization is required to switch packets correctly among these interfaces. VLAN normalization is effectively VLAN translation wherein the VLAN tags of the received packet need to be translated if they are different than the normalized VLAN tags.
For MX Series routers, the normalized VLAN is specified using one of the following configuration statements in the VPLS routing instance:
vlan-id vlan-number
vlan-id none
vlan-tags outer outer-vlan-number inner inner-vlan-number
You must configure vlan-maps
explicitly on all interfaces
belonging to the routing instance.
The following forwarding path considerations must be observed:
Packet receive path:
This is the forwarding path for packets received on the interfaces.
802.1ag Ethernet OAM for VPLS uses implicit interface filters and forwarding table filters to flood, accept, and drop the CFM packets.
Packet transmit path:
The JUNOS Software uses the router’s hardware-based forwarding for CPU-generated packets.
For Down MEPs, the packets are transmitted on the interface on which the MEP is configured.
In MX series routers, for Up MEPs, the packet must be flooded to other interfaces in the VPLS routing instance. The router creates a flood route tied to a flood next hop (with all interfaces to flood) and then sources the packet to be forwarded with this flood route.
The router also uses implicit-based forwarding for CPU generated packets. The result is for the flood next hop tied to the flood route to be tied to the filter term. The filter term uses match criteria to correctly identify the host- generated packets.
