Example: Configuring Unicast RPF (On a Router)
This example shows how to help defend ingress interfaces against denial-of-service (DoS) and distributed denial-of-service (DDoS) attacks by configuring unicast RPF on a customer-edge interface to filter incoming traffic.
Overview

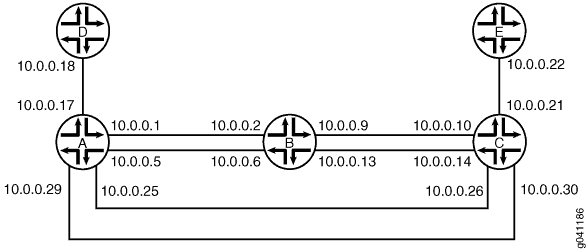

In this example, Device A is using OSPF to advertise a prefix for the link that connects to Device D. Device B has unicast RPF configured. OSPF is enabled on the links between Device B and Device C and the links between Device A and Device C, but not on the links between Device A and Device B. Therefore, Device B learns about the route to Device D through Device C.
If ingress filtering is used in an environment where DHCP or BOOTP is used, it should be ensured that the packets with a source address of 0.0.0.0 and a destination address of 255.255.255.255 are allowed to reach the relay agent in routers when appropriate.
This example also includes a fail filter. When a packet fails the unicast RPF check, the fail filter is evaluated to determine if the packet should be accepted anyway. The fail filter in this example allows Device B’s interfaces to accept Dynamic Host Configuration Protocol (DHCP) packets. The filter accepts all packets with a source address of 0.0.0.0 and a destination address of 255.255.255.255.
Configuration
CLI Quick Configuration
To quickly configure
this example, copy the following commands, paste them into a text
file, remove any line breaks, change any details necessary to match
your network configuration, and then copy and paste the commands into
the CLI at the [edit]
hierarchy level.
Device A
set interfaces fe-1/2/0 unit 1 family inet address 10.0.0.1/30 set interfaces fe-0/0/2 unit 5 family inet address 10.0.0.5/30 set interfaces fe-0/0/1 unit 17 family inet address 10.0.0.17/30 set interfaces fe-0/1/1 unit 25 family inet address 10.0.0.25/30 set interfaces fe-1/1/1 unit 29 family inet address 10.0.0.29/30 set protocols ospf export send-direct set protocols ospf area 0.0.0.0 interface fe-0/1/1.25 set protocols ospf area 0.0.0.0 interface fe-1/1/1.29 set policy-options policy-statement send-direct from protocol direct set policy-options policy-statement send-direct from route-filter 10.0.0.16/30 exact set policy-options policy-statement send-direct then accept
Device B
set interfaces fe-1/2/0 unit 2 family inet rpf-check fail-filter rpf-special-case-dhcp set interfaces fe-1/2/0 unit 2 family inet address 10.0.0.2/30 set interfaces fe-1/1/1 unit 6 family inet rpf-check fail-filter rpf-special-case-dhcp set interfaces fe-1/1/1 unit 6 family inet address 10.0.0.6/30 set interfaces fe-0/1/1 unit 9 family inet rpf-check fail-filter rpf-special-case-dhcp set interfaces fe-0/1/1 unit 9 family inet address 10.0.0.9/30 set interfaces fe-0/1/0 unit 13 family inet rpf-check fail-filter rpf-special-case-dhcp set interfaces fe-0/1/0 unit 13 family inet address 10.0.0.13/30 set protocols ospf area 0.0.0.0 interface fe-0/1/1.9 set protocols ospf area 0.0.0.0 interface fe-0/1/0.13 set routing-options forwarding-table unicast-reverse-path active-paths set firewall filter rpf-special-case-dhcp term allow-dhcp from source-address 0.0.0.0/32 set firewall filter rpf-special-case-dhcp term allow-dhcp from destination-address 255.255.255.255/32 set firewall filter rpf-special-case-dhcp term allow-dhcp then count rpf-dhcp-traffic set firewall filter rpf-special-case-dhcp term allow-dhcp then accept set firewall filter rpf-special-case-dhcp term default then log set firewall filter rpf-special-case-dhcp term default then reject
Device C
set interfaces fe-1/2/0 unit 10 family inet address 10.0.0.10/30 set interfaces fe-0/0/2 unit 14 family inet address 10.0.0.14/30 set interfaces fe-1/0/2 unit 21 family inet address 10.0.0.21/30 set interfaces fe-1/2/2 unit 26 family inet address 10.0.0.26/30 set interfaces fe-1/2/1 unit 30 family inet address 10.0.0.30/30 set protocols ospf area 0.0.0.0 interface fe-1/2/0.10 set protocols ospf area 0.0.0.0 interface fe-0/0/2.14 set protocols ospf area 0.0.0.0 interface fe-1/2/2.26 set protocols ospf area 0.0.0.0 interface fe-1/2/1.30
Device D
set interfaces fe-1/2/0 unit 18 family inet address 10.0.0.18/30
Device E
set interfaces fe-1/2/0 unit 22 family inet address 10.0.0.22/30
Configuring Device A
Step-by-Step Procedure
The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode.
To configure Device A:
Configure the interfaces.
content_copy zoom_out_map[edit interfaces] user@A# set fe-1/2/0 unit 1 family inet address 10.0.0.1/30 user@A# set fe-0/0/2 unit 5 family inet address 10.0.0.5/30 user@A# set fe-0/0/1 unit 17 family inet address 10.0.0.17/30 user@A# set fe-0/1/1 unit 25 family inet address 10.0.0.25/30 user@A# set fe-1/1/1 unit 29 family inet address 10.0.0.29/30
Configure OSPF.
content_copy zoom_out_map[edit protocols ospf] user@A# set export send-direct user@A# set area 0.0.0.0 interface fe-0/1/1.25 user@A# set area 0.0.0.0 interface fe-1/1/1.29
Configure the routing policy.
content_copy zoom_out_map[edit policy-options policy-statement send-direct] user@A# set from protocol direct user@A# set from route-filter 10.0.0.16/30 exact user@A# set then accept
If you are done configuring Device A, commit the configuration.
content_copy zoom_out_map[edit] user@A# commit
Configuring Device B
Step-by-Step Procedure
The following example requires you to navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Using the CLI Editor in Configuration Mode.
To configure Device B:
Configure the interfaces.
content_copy zoom_out_map[edit interfaces] user@B# set fe-1/2/0 unit 2 family inet address 10.0.0.2/30 user@B# set fe-1/1/1 unit 6 family inet address 10.0.0.6/30 user@B# set fe-0/1/1 unit 9 family inet address 10.0.0.9/30 user@B# set fe-0/1/0 unit 13 family inet address 10.0.0.13/30
Configure OSPF.
content_copy zoom_out_map[edit protocols ospf area 0.0.0.0] user@B# set interface fe-0/1/1.9 user@B# set interface fe-0/1/0.13
Configure unicast RPF, and apply the optional fail filter.
content_copy zoom_out_map[edit interfaces] user@B# set fe-1/2/0 unit 2 family inet rpf-check fail-filter rpf-special-case-dhcp user@B# set fe-1/1/1 unit 6 family inet rpf-check fail-filter rpf-special-case-dhcp user@B# set fe-0/1/1 unit 9 family inet rpf-check fail-filter rpf-special-case-dhcp user@B# set fe-0/1/0 unit 13 family inet rpf-check fail-filter rpf-special-case-dhcp
(Optional) Configure the fail filter that gets evaluated if a packet fails the RPF check.
content_copy zoom_out_map[edit firewall filter rpf-special-case-dhcp] user@B# set term allow-dhcp from source-address 0.0.0.0/32 user@B# set term allow-dhcp from destination-address 255.255.255.255/32 user@B# set term allow-dhcp then count rpf-dhcp-traffic user@B# set term allow-dhcp then accept user@B# set term default then log user@B# set term default then reject
(Optional) Configure only active paths to be considered in the RPF check.
This is the default behavior.
content_copy zoom_out_map[edit routing-options forwarding-table] user@B# set unicast-reverse-path active-paths
If you are done configuring Device B, commit the configuration.
content_copy zoom_out_map[edit] user@B# commit
Results
Confirm your configuration by issuing the show
firewall
, show interfaces
, show protocols
, show routing-options
, and show policy-options
commands. If the output does not display the intended configuration,
repeat the instructions in this example to correct the configuration.
Device A
user@A# show interfaces fe-1/2/0 { unit 1 { family inet { address 10.0.0.1/30; } } } fe-0/0/2 { unit 5 { family inet { address 10.0.0.5/30; } } } fe-0/0/1 { unit 17 { family inet { address 10.0.0.17/30; } } } fe-0/1/1 { unit 25 { family inet { address 10.0.0.25/30; } } } fe-1/1/1 { unit 29 { family inet { address 10.0.0.29/30; } } }
user@A# show protocols ospf { export send-direct; area 0.0.0.0 { interface fe-0/1/1.25; interface fe-1/1/1.29; } }
user@A# show policy-options policy-statement send-direct { from { protocol direct; route-filter 10.0.0.16/30 exact; } then accept; }
Device B
user@B# show firewall filter rpf-special-case-dhcp { term allow-dhcp { from { source-address { 0.0.0.0/32; } destination-address { 255.255.255.255/32; } } then { count rpf-dhcp-traffic; accept; } } term default { then { log; reject; } } } user@B# show interfaces fe-1/2/0 { unit 2 { family inet { rpf-check fail-filter rpf-special-case-dhcp; address 10.0.0.2/30; } } } fe-1/1/1 { unit 6 { family inet { rpf-check fail-filter rpf-special-case-dhcp; address 10.0.0.6/30; } } } fe-0/1/1 { unit 9 { family inet { rpf-check fail-filter rpf-special-case-dhcp; address 10.0.0.9/30; } } } fe-0/1/0 { unit 13 { family inet { rpf-check fail-filter rpf-special-case-dhcp; address 10.0.0.13/30; } } }
user@B# show protocols ospf { area 0.0.0.0 { interface fe-0/1/1.9; interface fe-0/1/0.13; } }
user@B# show routing-options forwarding-table { unicast-reverse-path active-paths; }
Enter the configurations on Device C, Device D, and Device E, as shown in CLI Quick Configuration.
Verification
Confirm that the configuration is working properly.
- Confirm That Unicast RPF Is Enabled
- Confirm That the Source Addresses Are Blocked
- Confirm That the Source Addresses Are Unblocked
Confirm That Unicast RPF Is Enabled
Purpose
Make sure that the interfaces on Device B have unicast RPF enabled.
Action
user@B> show interfaces fe-0/1/0.13 extensive Logical interface fe-0/1/0.13 (Index 73) (SNMP ifIndex 553) (Generation 208) Flags: SNMP-Traps 0x4000 Encapsulation: ENET2 Traffic statistics: Input bytes : 999390 Output bytes : 1230122 Input packets: 12563 Output packets: 12613 Local statistics: Input bytes : 998994 Output bytes : 1230122 Input packets: 12563 Output packets: 12613 Transit statistics: Input bytes : 396 0 bps Output bytes : 0 0 bps Input packets: 0 0 pps Output packets: 0 0 pps Protocol inet, MTU: 1500, Generation: 289, Route table: 22 Flags: Sendbcast-pkt-to-re, uRPF RPF Failures: Packets: 0, Bytes: 0 Addresses, Flags: Is-Preferred Is-Primary Destination: 10.0.0.12/30, Local: 10.0.0.13, Broadcast: 10.0.0.15, Generation: 241
Meaning
The uRPF flag confirms that unicast RPF is enabled on this interface.
Confirm That the Source Addresses Are Blocked
Purpose
Use the ping
command to make sure that Device
B blocks traffic from unexpected source addresses.
Action
From Device A, ping Device B’s interfaces, using 10.0.0.17 as the source address.
user@A> ping 10.0.0.6 source 10.0.0.17 PING 10.0.0.6 (10.0.0.6): 56 data bytes ^C --- 10.0.0.6 ping statistics --- 3 packets transmitted, 0 packets received, 100% packet loss
Meaning
As expected, the ping operation fails.
Confirm That the Source Addresses Are Unblocked
Purpose
Use the ping
command to make sure that Device
B does not block traffic when the RPF check is deactivated.
Action
Deactivate the RPF check on one of the interfaces.
Rerun the ping operation.
user@B> deactivate interfaces fe-1/1/1.6 family inet rpf-check user@A> ping 10.0.0.6 source 10.0.0.17 PING 10.0.0.2 (10.0.0.2): 56 data bytes 64 bytes from 10.0.0.2: icmp_seq=0 ttl=63 time=1.316 ms 64 bytes from 10.0.0.2: icmp_seq=1 ttl=63 time=1.263 ms ^C --- 10.0.0.2 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.263/1.289/1.316/0.027 ms
Meaning
As expected, the ping operation succeeds.
