AC Power Cord Specifications for Junos Space Appliances
This topic applies to the following Junos Space Appliances: JA1500 and JA2500.
The Junos Space Appliance is shipped with a pre-installed AC power supply module. A power cord suitable for your region is shipped along with the Junos Space Appliance.
The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.
The AC power cord provided with each power supply module is intended only for use with that power supply module and not for any other use.
In North America, AC power cords must not exceed 4.5 meters (approximately 14.76 feet) in length to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords supplied with the appliance are in compliance.
Table 1 lists AC power cord specifications provided for each country or region.
Country or Region | Electrical Specifications | Plug Standards | Juniper Model Number |
|---|---|---|---|
Australia | 250 VAC, 10 A, 50 Hz | AS/NZS 3112-1993 | CBL-JX-PWR-AU |
China | 250 VAC, 10 A, 50 Hz | GB 2009/GB 1002-1996 | CBL-JX-PWR-CH |
Europe (except Italy, Switzerland, and United Kingdom) | 250 VAC, 10 A, 50 Hz | CEE (7) VII | CBL-JX-PWR-EU |
Italy | 250 VAC, 10 A, 50 Hz | CEI 23-50 | CBL-JX-PWR-IT |
Japan | 125 VAC, 12 A, 50 Hz or 60 Hz | JIS 8303 | CBL-JX-PWR-JP |
Korea | 250 VAC, 10 A, 60 Hz | CEE (7) VII | CBL-JX-PWR-KR |
Switzerland | 250 VAC, 10 A, 50 Hz | SEV 1011 SEV 6534/2 | CBL-EX-PWR-C13-SZ |
United Kingdom | 250 VAC, 10 A, 50 Hz | BS 1363/A | CBL-JX-PWR-UK |
United States | 125 VAC, 10 A, 60 Hz | NEMA 5-15 | CBL-JX-PWR-US |

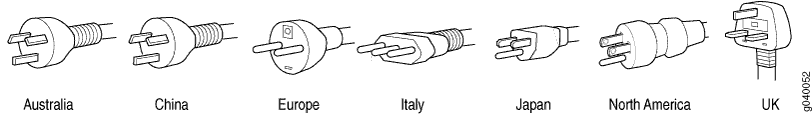

Figure 1 illustrates the plug on the power cord for some of the countries or regions listed in Table 1.
