Return Procedures for the PTX10016 Chassis and Components

date_range 17-Dec-21
arrow_backward
arrow_forward

To return a PTX10016 router or component, read the following sections:

Return a PTX10016 Router or Component for Repair or Replacement

If you need to return a PTX10016 router, or a component to Juniper Networks for repair or replacement:

  1. Determine the serial number of the component. For instructions, see Locate the Serial Number on a PTX10016 Router or Component.
  2. Obtain a Return Materials Authorization (RMA) number from the Juniper Technical Assistance Center (JTAC), as described in Contact Customer Support to Obtain a Return Materials Authorization for the PTX10016 Router or Component.
    Note:

    Do not return any component to Juniper Networks unless you have first obtained an RMA number. Juniper Networks reserves the right to refuse shipments that do not have an RMA. We return the refused shipments to the customer through collect freight.

  3. Pack the router or component for shipping, as described in How to Pack the PTX10016 Router or Component for Shipping.

For more information about return and repair policies, see the customer support page at https://www.juniper.net/support/guidelines.html.

Locate the Serial Number on a PTX10016 Router or Component

If you are returning a router or component to Juniper Networks for repair or replacement, you must locate the serial number of the router or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain a Return Materials Authorization (RMA). See Contact Customer Support to Obtain a Return Materials Authorization for the PTX10016 Router or Component.

If the router is operational and you can access the command-line interface (CLI), you can list serial numbers for the router and for some components with a CLI command. If you do not have access to the CLI or if the serial number for the component does not appear in the command output, you can locate the serial number ID label on the router or component.

Note:

If you want to find the serial number ID label on a component, you need to remove the component from the router chassis. You must have the required parts and tools available to perform this task.

List the PTX10016 Chassis and Component Details by Using the CLI

You can list the PTX10016 chassis and the components and their serial numbers by using the show chassis hardware clei-models CLI operational mode command.

Locate the Chassis Serial Number on the PTX10016 Router

The serial number ID label is located on a label on the right side of the chassis. See Figure 1 for the location on the PTX10016 router.

Figure 1: PTX10016 Router Serial Number LabelPTX10016 Router Serial Number Label

Locate the Serial Number ID Labels on PTX10016 Power Supplies

The power supplies installed in a PTX10016 are field-replaceable units (FRUs). For each FRU, you must remove the FRU from the router chassis to see the FRU serial number ID label.

  • JNP10K-PWR-AC power supply—The serial number ID label is on the right side of the power supply. See Figure 2.

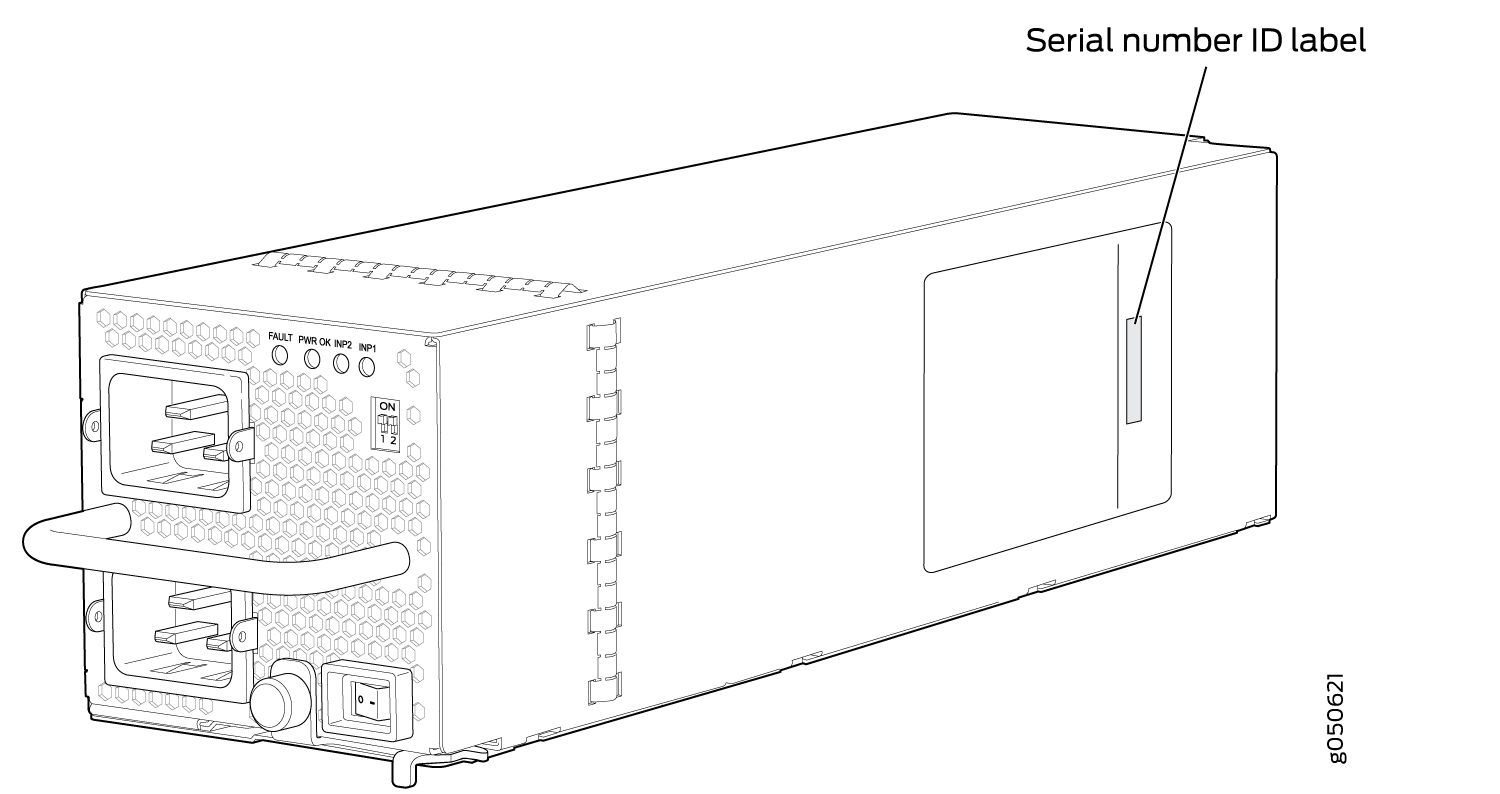

    Figure 2: JNP10K-PWR-AC Power Supply Serial Number LocationJNP10K-PWR-AC Power Supply Serial Number Location

  • JNP10K-PWR-AC2 power supply—The serial ID label is on the right side of the power supply. See Figure 3.

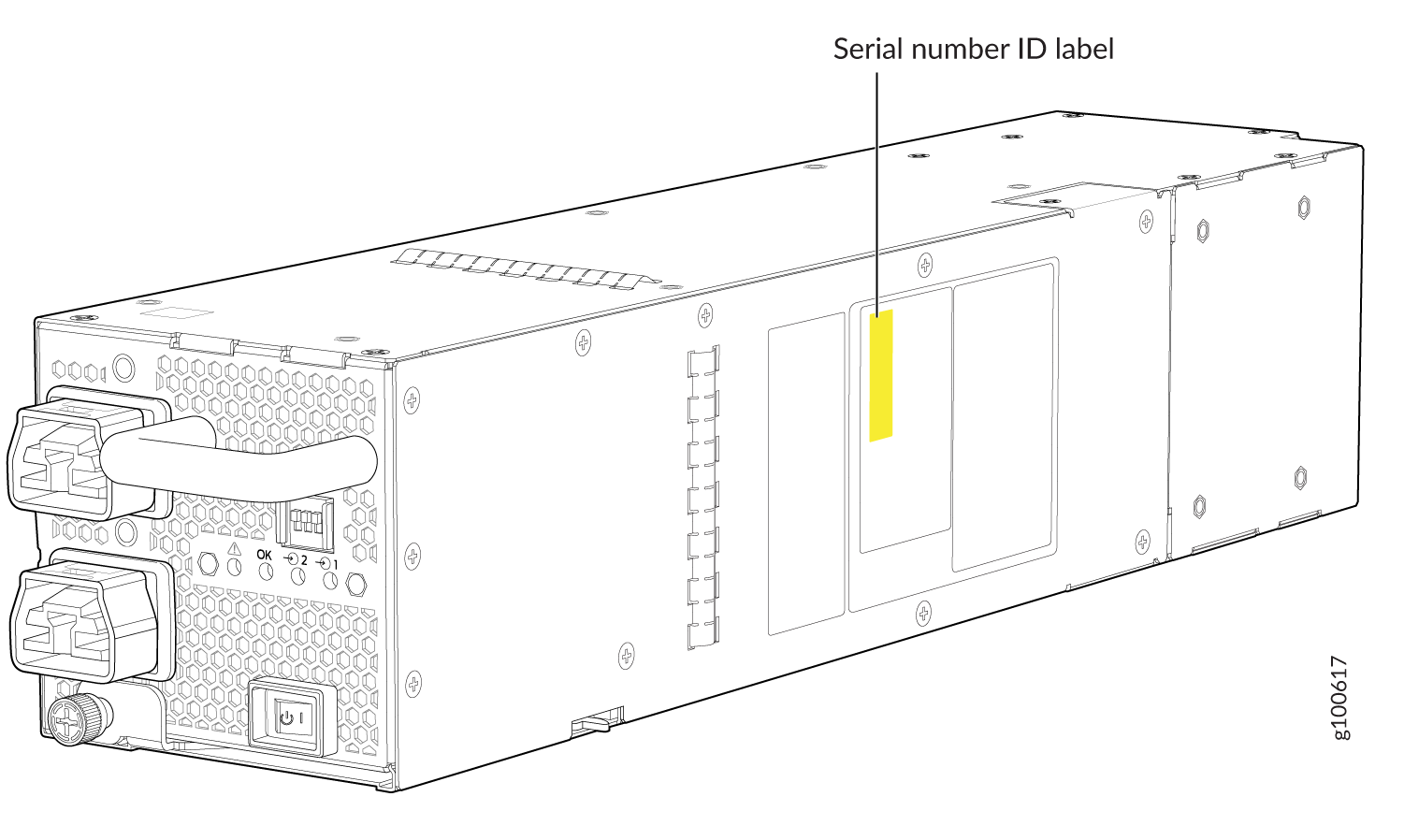

    Figure 3: JNP10K-PWR-AC2 Power Supply Serial Number LocationJNP10K-PWR-AC2 Power Supply Serial Number Location

  • JNP10K-PWR-DC power supply—The serial number ID label is on the left side of the power supply. See Figure 4.

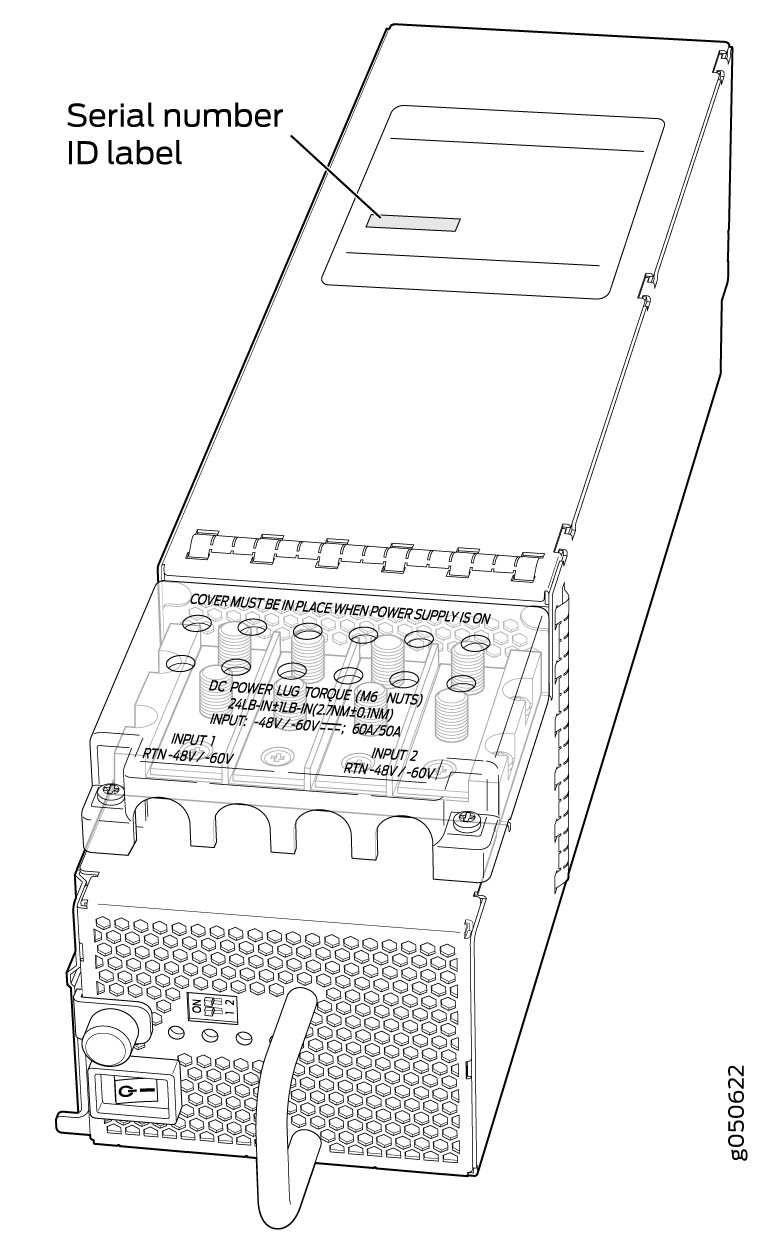

    Figure 4: JNP10K-PWR DC Power Supply Serial Number LocationJNP10K-PWR DC Power Supply Serial Number Location

  • JNP10K-PWR-DC2 power supply—The serial number ID label is on the left side of the power supply. See Figure 5.

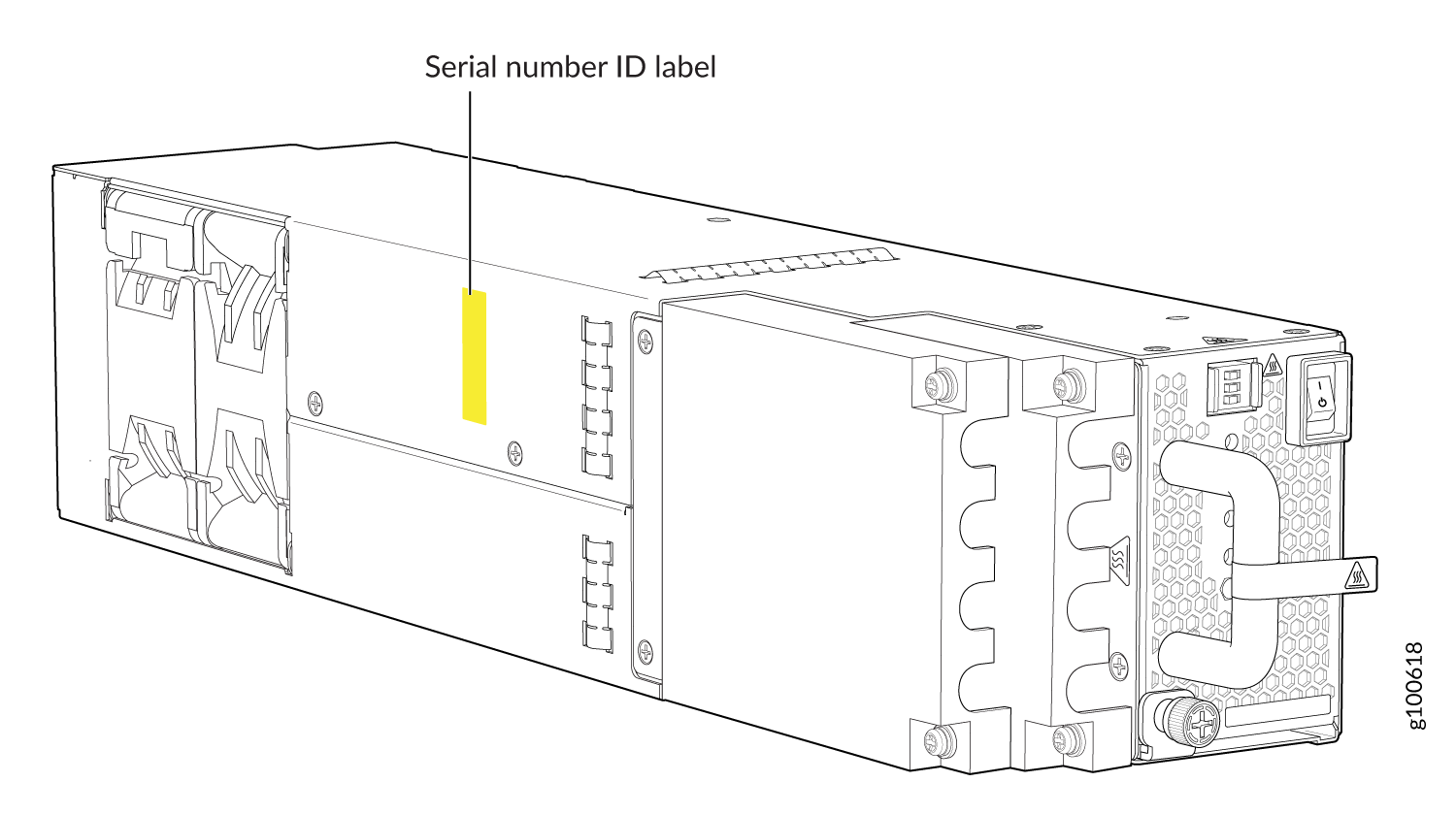

    Figure 5: JNP10K-PWR-DC2 Power Supply Serial Number LocationJNP10K-PWR-DC2 Power Supply Serial Number Location

Locate the Serial Number ID Labels on the PTX10016 Fan Trays and Fan Tray Controllers

The two fan trays and their associated fan tray controllers installed in the PTX10016 are field-replaceable units (FRUs). For each FRU, you must remove the FRU from the router chassis to see the FRU serial number ID label.

  • Fan tray—The serial number ID label for both the fan tray models is located on the inside of the fan tray at the base of the fan tray control board. See Figure 6.

    Figure 6: PTX10016 Fan Tray Serial Number LocationPTX10016 Fan Tray Serial Number Location

  • Fan tray controller—The serial number ID label for both the fan tray controller models is located on the top of the fan tray controller. See Figure 7.

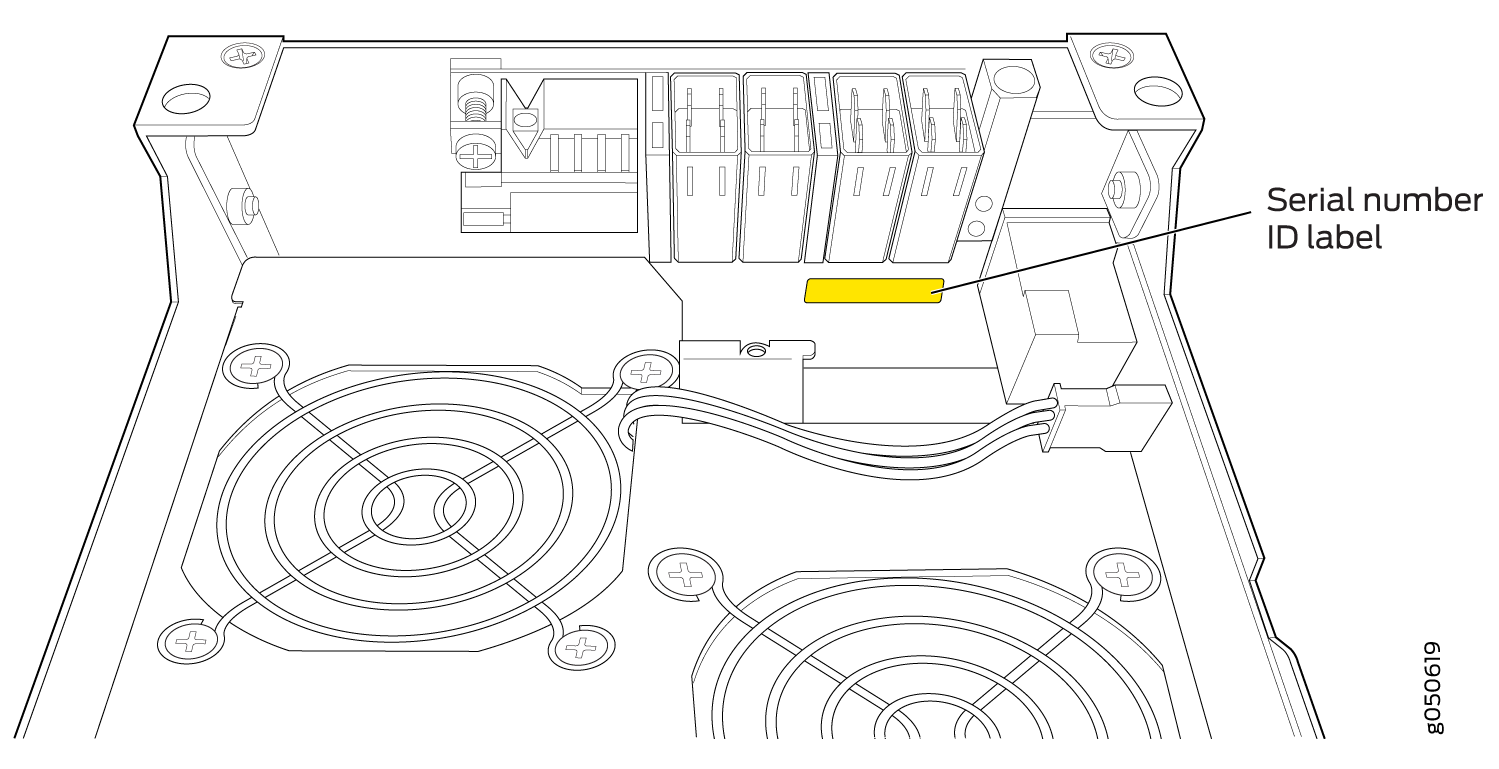

    Figure 7: PTX10016 Fan Tray Controller Serial Number LocationPTX10016 Fan Tray Controller Serial Number Location

Locate the Serial Number ID Labels on PTX10016 Routing and Control Boards

The serial number ID label for a Routing and Control Board (RCB) is located on the connector end of the unit. See Figure 8.

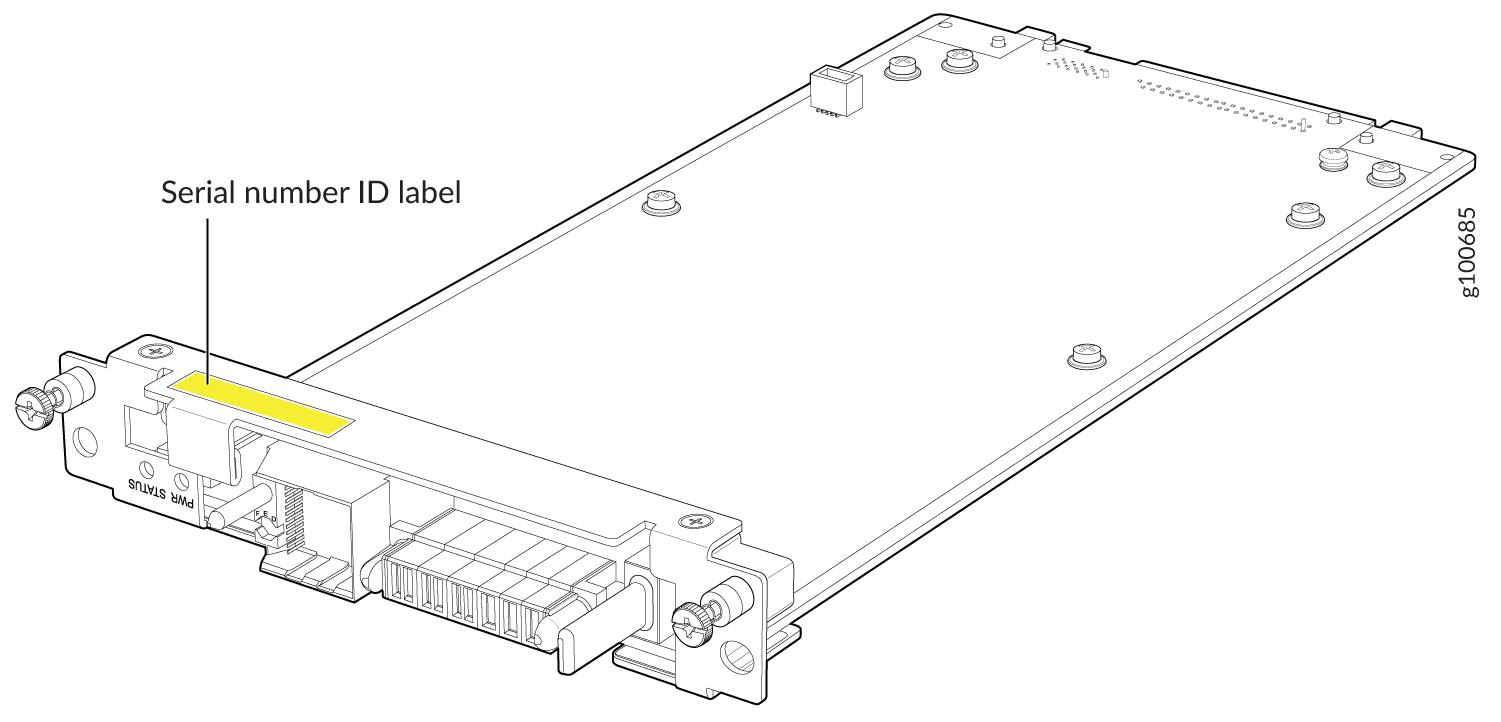

Figure 8: PTX10016 Routing and Control Board Serial Number LocationPTX10016 Routing and Control Board Serial Number Location

Locate the Serial Number ID Labels on the PTX10016 Line Cards

The serial number ID label for a line card is located on the connector end of the card. See Figure 9.

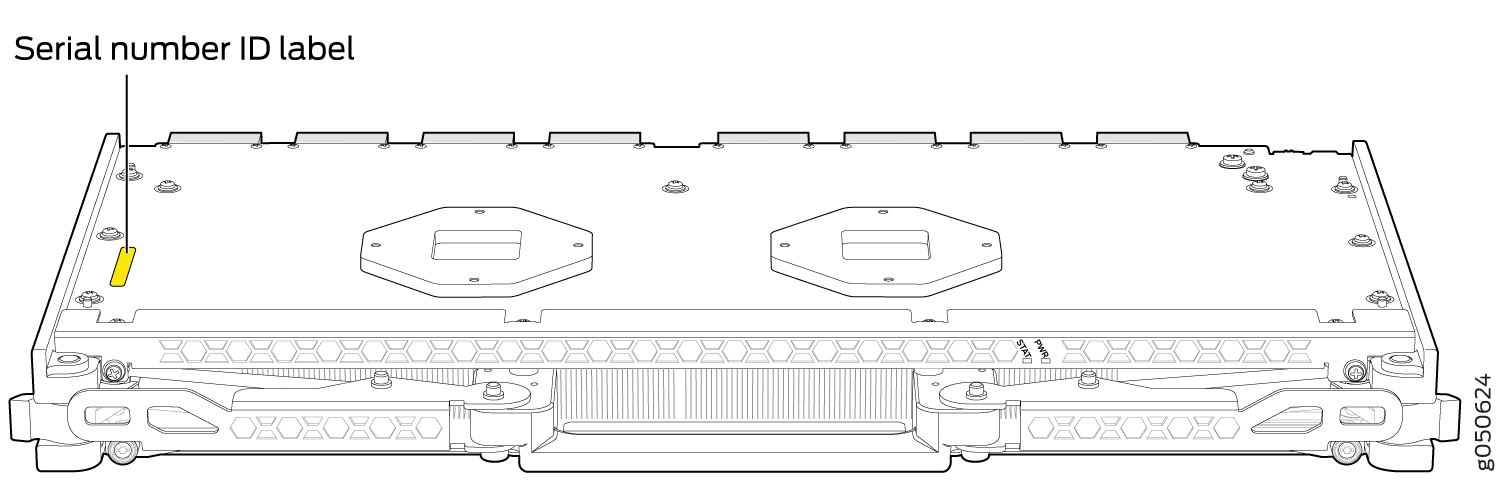

Figure 9: PTX10016 Line Card Serial Number LocationPTX10016 Line Card Serial Number Location

Locate the Serial Number ID Labels on the PTX10016 Switch Interface Boards (SIBs)

The serial number ID label for a SIB is located on the printed circuit board. See Figure 10 and Figure 11.

Figure 10: JNP10016-SF SIB Serial Number Location JNP10016-SF SIB Serial Number Location
Figure 11: JNP10016-SF3 SIB Serial Number Location JNP10016-SF3 SIB Serial Number Location
  1
—

Serial number ID label



Locate the Serial Number ID Label on the PTX10016 SATA SSD

The serial number for a SATA SSD is located on top of the drive. See Figure 12.

Figure 12: PTX10016 SATA SSD Serial Number LocationPTX10016 SATA SSD Serial Number Location

See Also

Contact Customer Support to Obtain a Return Materials Authorization for the PTX10016 Router or Component

If you are returning a PTX10016 router or component to Juniper Networks for repair or replacement, you must first obtain a Return Materials Authorization (RMA) from the Juniper Networks Technical Assistance Center (JTAC).

After locating the serial number of the device or component you want to return, open a service request with Juniper Networks Technical Assistance Center (JTAC) on the Web or by telephone.

For instructions on locating the serial number of the device or component you want to return, see the following device instructions:

Before you request an RMA from JTAC, be prepared to provide the following information:

  • Your existing service request number, if you have one

  • Serial number of the component

  • Your name, organization name, telephone number, fax number, and shipping address

  • Details of the failure or problem

  • Type of activity being performed on the device when the problem occurred

  • Configuration data displayed by one or more show commands

You can contact JTAC 24 hours a day, seven days a week on the Web or by telephone:

Note:

For international or direct-dial options in countries without toll-free numbers, see https://www.juniper.net/support/requesting-support.html.

If you are contacting JTAC by telephone, enter your 12-digit service request number followed by the pound (#) key for an existing case, or press the star (*) key to be routed to the next available support engineer.

The support representative validates your request and issues an RMA number for return of the component.

How to Pack the PTX10016 Router or Component for Shipping

Follow this procedure if you are returning a PTX10016 chassis or component to Juniper Networks for repair or replacement.

Before you pack a PTX10016 chassis or component:

  • Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage. See Prevention of Electrostatic Discharge Damage.

  • Pack your chassis or component using one of these materials:

    • Use the packing material from the replacement chassis or component

    • Retrieve the original shipping carton and packing materials

Contact your JTAC representative if you do not have these materials, to learn about approved packing materials. See Contact Customer Support to Obtain a Return Materials Authorization for the PTX10016 Router or Component.

Ensure that you have the following parts and tools available:

  • An electrostatic discharge (ESD) grounding strap (provided in the accessory kit)

  • Antistatic bag, one for each component

  • If you are returning the chassis:

    • A 13/32-in. or 10-mm open-end or socket wrench to install the bracket bolts on the chassis and shipping pallet

    • An appropriate screwdriver for the mounting screws used on your rack

How to Pack the PTX10016 Chassis for Shipping

The PTX10016 is shipped in a cardboard box that has a two-layer wooden pallet base with foam cushioning between the layers. The router chassis is bolted to the pallet base with four pallet fasteners, two on each side of the chassis. See Figure 13 for the stacking configuration of the PTX10016 router.

Figure 13: Configuration for Packing the PTX10016 Chassis Configuration for Packing the PTX10016 Chassis
  1
—

Corrugated cover

  4
—

PTX10016 router

  2
—

Accessory box

  5
—

Pallet

  3
—

Foam top



To pack the PTX10016 for shipping:

  1. Power down the chassis and remove the power cables. See Power Off the PTX10016 Router.
  2. Remove the cables that connect the PTX10016 to all external devices.
  3. Remove all line cards and pack them in their original shipping containers. See How to Pack the PTX10016 Router or Component for Shipping.
  4. Install covers over blank slots.

    Leave components that came installed in the chassis in the chassis, such as the control boards or power supplies.

  5. Move the wooden pallet and packing material to a staging area as close to the router as possible. Make sure there is enough space to move the chassis from the rack to the wooden pallet.
  6. Position a mechanical lift under the device. If a mechanical lift is not available, have three people support the weight of the router while another person uses the screwdriver to remove the front mounting screws that attach the chassis mounting brackets to the rack. For PTX10016 removal, see Remove the PTX10016 Router from a Four-Post Rack Using a Mechanical Lift.
  7. Remove the router from the rack (see PTX10016 Chassis Lifting Guidelines) and place the router on the shipping pallet. Position the router on the pallet so that the front of the router is facing the silkscreened “front” mark on the pallet. The pallet also has crop marks to guide you in positioning the chassis.
  8. Use the 13/32-in. or 10-mm open-end or socket wrench to install the four sets of brackets and bolts that secure the chassis to the wooden pallet.
  9. Slide the plastic cover over the router chassis. The plastic cover is part of the router’s original packing materials.
  10. Place the packing foam on top of and around the router.
  11. Place the power cords in the box.
  12. Remove the rack mount kit from the rack and place it and the connecting screws in the accessory box.
  13. If you are returning accessories or FRUs with the router, pack them as instructed in How to Pack PTX10016 Components for Shipping.
  14. Verify that all accessories are present. See Compare the PTX10016 Router Order to the Packing List.
  15. Slide the cardboard box over the chassis, making sure that the arrows on the box point up and the pallet fasteners to secure the cardboard box to the wooden pallet are near the bottom.
  16. Attach the cardboard box to the wooden pallet by screwing two screws into each of the four pallet fasteners. See Figure 14.

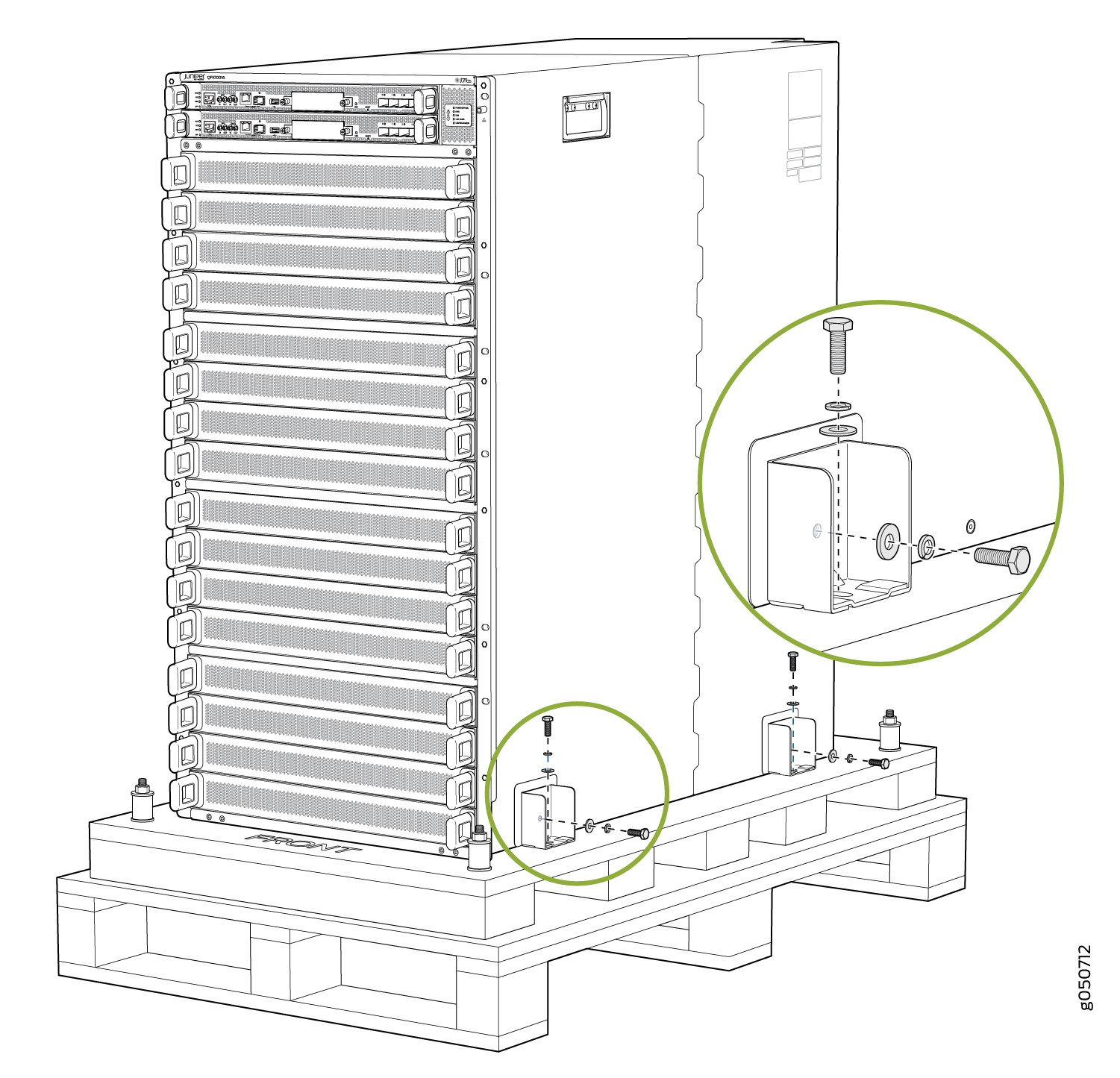

    Figure 14: Attach the PTX10016 Chassis to the PalletAttach the PTX10016 Chassis to the Pallet
  17. Write the RMA number on the exterior of the box to ensure proper tracking.

How to Pack PTX10016 Components for Shipping

Before you begin packing a router component, ensure that you have the following parts and tools available:

  • Antistatic bag, one for each component

  • An electrostatic discharge (ESD) grounding strap (provided in the accessory kit)

CAUTION:

Do not stack router components. Return individual components in separate boxes if they do not fit together on one level in the shipping box.

To pack and ship PTX10016 components:

  1. Place individual FRUs in antistatic bags.
  2. Use the original packing materials if they are available. If the original packing materials are not available, ensure that you pack the component adequately to prevent damage during transit. The packing material you use must be able to support the weight of the component.
  3. Ensure that you protect the components adequately with packing materials. You must also ensure that the components are packed such that you prevent the pieces from moving around inside the carton.
  4. Close the top of the cardboard shipping box and seal it with packing tape.
  5. Write the RMA number on the exterior of the box to ensure proper tracking.

Related Documentation

arrow_backward PREVIOUS Contact Customer Support
NEXT arrow_forward General Safety Guidelines and Warnings
footer-navigation

© 1999 - 2025 Juniper Networks, Inc. All rights reserved.

Scroll to top
