Table of Contents
- play_arrow Configuring Firewall Filters
- play_arrow Understanding How Firewall Filters Protect Your Network
- Firewall Filters Overview
- Router Data Flow Overview
- Stateless Firewall Filter Overview
- Understanding How to Use Standard Firewall Filters
- Understanding How Firewall Filters Control Packet Flows
- Stateless Firewall Filter Components
- Stateless Firewall Filter Application Points
- How Standard Firewall Filters Evaluate Packets
- Understanding Firewall Filter Fast Lookup Filter
- Understanding Egress Firewall Filters with PVLANs
- Selective Class-based Filtering on PTX Routers
- Guidelines for Configuring Firewall Filters
- Guidelines for Applying Standard Firewall Filters
- Supported Standards for Filtering
- Monitoring Firewall Filter Traffic
- Troubleshooting Firewall Filters
- play_arrow Firewall Filter Match Conditions and Actions
- Overview of Firewall Filters (OCX Series)
- Overview of Firewall Filter Profiles on ACX Series Routers (Junos OS Evolved)
- Understanding Firewall Filter Match Conditions
- Understanding Firewall Filter Planning
- Understanding How Firewall Filters Are Evaluated
- Understanding Firewall Filter Match Conditions
- Firewall Filter Flexible Match Conditions
- Firewall Filter Nonterminating Actions
- Firewall Filter Terminating Actions
- Firewall Filter Match Conditions and Actions (ACX Series Routers)
- Firewall Filter Match Conditions and Actions in ACX Series Routers (Junos OS Evolved)
- Firewall Filter Match Conditions for Protocol-Independent Traffic
- Firewall Filter Match Conditions for IPv4 Traffic
- Firewall Filter Match Conditions for IPv6 Traffic
- Firewall Filter Match Conditions Based on Numbers or Text Aliases
- Firewall Filter Match Conditions Based on Bit-Field Values
- Firewall Filter Match Conditions Based on Address Fields
- Firewall Filter Match Conditions Based on Address Classes
- Understanding IP-Based Filtering and Selective Port Mirroring of MPLS Traffic
- Firewall Filter Match Conditions for MPLS Traffic
- Firewall Filter Match Conditions for MPLS-Tagged IPv4 or IPv6 Traffic
- Firewall Filter Match Conditions for VPLS Traffic
- Firewall Filter Match Conditions for Layer 2 CCC Traffic
- Firewall Filter Match Conditions for Layer 2 Bridging Traffic
- Firewall Filter Support on Loopback Interface
- play_arrow Applying Firewall Filters to Routing Engine Traffic
- Configuring Logical Units on the Loopback Interface for Routing Instances in Layer 3 VPNs
- Example: Configuring a Filter to Limit TCP Access to a Port Based On a Prefix List
- Example: Configuring a Stateless Firewall Filter to Accept Traffic from Trusted Sources
- Example: Configure a Filter to Block Telnet and SSH Access
- Example: Configuring a Filter to Block TFTP Access
- Example: Configuring a Filter to Accept Packets Based on IPv6 TCP Flags
- Example: Configuring a Filter to Block TCP Access to a Port Except from Specified BGP Peers
- Example: Configuring a Stateless Firewall Filter to Protect Against TCP and ICMP Floods
- Example: Protecting the Routing Engine with a Packets-Per-Second Rate Limiting Filter
- Example: Configuring a Filter to Exclude DHCPv6 and ICMPv6 Control Traffic for LAC Subscriber
- Port Number Requirements for DHCP Firewall Filters
- Example: Configuring a DHCP Firewall Filter to Protect the Routing Engine
- play_arrow Applying Firewall Filters to Transit Traffic
- Example: Configuring a Filter for Use as an Ingress Queuing Filter
- Example: Configuring a Filter to Match on IPv6 Flags
- Example: Configuring a Filter to Match on Port and Protocol Fields
- Example: Configuring a Filter to Count Accepted and Rejected Packets
- Example: Configuring a Filter to Count and Discard IP Options Packets
- Example: Configuring a Filter to Count IP Options Packets
- Example: Configuring a Filter to Count and Sample Accepted Packets
- Example: Configuring a Filter to Set the DSCP Bit to Zero
- Example: Configuring a Filter to Set the DSCP Bit to Zero
- Example: Configuring a Filter to Match on Two Unrelated Criteria
- Example: Configuring a Filter to Accept DHCP Packets Based on Address
- Example: Configuring a Filter to Accept OSPF Packets from a Prefix
- Example: Configuring a Stateless Firewall Filter to Handle Fragments
- Configuring a Firewall Filter to Prevent or Allow IPv4 Packet Fragmentation
- Configuring a Firewall Filter to Discard Ingress IPv6 Packets with a Mobility Extension Header
- Example: Configuring an Egress Filter Based on IPv6 Source or Destination IP Addresses
- Example: Configuring a Rate-Limiting Filter Based on Destination Class
- play_arrow Configuring Firewall Filters in Logical Systems
- Firewall Filters in Logical Systems Overview
- Guidelines for Configuring and Applying Firewall Filters in Logical Systems
- References from a Firewall Filter in a Logical System to Subordinate Objects
- References from a Firewall Filter in a Logical System to Nonfirewall Objects
- References from a Nonfirewall Object in a Logical System to a Firewall Filter
- Example: Configuring Filter-Based Forwarding
- Example: Configuring Filter-Based Forwarding on Logical Systems
- Example: Configuring a Stateless Firewall Filter to Protect a Logical System Against ICMP Floods
- Example: Configuring a Stateless Firewall Filter to Protect a Logical System Against ICMP Floods
- Unsupported Firewall Filter Statements for Logical Systems
- Unsupported Actions for Firewall Filters in Logical Systems
- Filter-Based Forwarding for Routing Instances
- Forwarding Table Filters for Routing Instances on ACX Series Routers
- Configuring Forwarding Table Filters
- play_arrow Configuring Firewall Filter Accounting and Logging
- play_arrow Attaching Multiple Firewall Filters to a Single Interface
- Applying Firewall Filters to Interfaces
- Configuring Firewall Filters
- Multifield Classifier Example: Configuring Multifield Classification
- Multifield Classifier for Ingress Queuing on MX Series Routers with MPC
- Assigning Multifield Classifiers in Firewall Filters to Specify Packet-Forwarding Behavior (CLI Procedure)
- Understanding Multiple Firewall Filters in a Nested Configuration
- Guidelines for Nesting References to Multiple Firewall Filters
- Understanding Multiple Firewall Filters Applied as a List
- Guidelines for Applying Multiple Firewall Filters as a List
- Example: Applying Lists of Multiple Firewall Filters
- Example: Nesting References to Multiple Firewall Filters
- Example: Filtering Packets Received on an Interface Set
- play_arrow Attaching a Single Firewall Filter to Multiple Interfaces
- Interface-Specific Firewall Filter Instances Overview
- Interface-Specific Firewall Filter Instances Overview
- Filtering Packets Received on a Set of Interface Groups Overview
- Filtering Packets Received on an Interface Set Overview
- Example: Configuring Interface-Specific Firewall Filter Counters
- Example: Configuring a Stateless Firewall Filter on an Interface Group
- play_arrow Configuring Filter-Based Tunneling Across IP Networks
- Understanding Filter-Based Tunneling Across IPv4 Networks
- Firewall Filter-Based L2TP Tunneling in IPv4 Networks Overview
- Interfaces That Support Filter-Based Tunneling Across IPv4 Networks
- Components of Filter-Based Tunneling Across IPv4 Networks
- Example: Transporting IPv6 Traffic Across IPv4 Using Filter-Based Tunneling
- play_arrow Configuring Service Filters
- Service Filter Overview
- How Service Filters Evaluate Packets
- Guidelines for Configuring Service Filters
- Guidelines for Applying Service Filters
- Example: Configuring and Applying Service Filters
- Service Filter Match Conditions for IPv4 or IPv6 Traffic
- Service Filter Nonterminating Actions
- Service Filter Terminating Actions
- play_arrow Configuring Simple Filters
- play_arrow Configuring Layer 2 Firewall Filters
- Understanding Firewall Filters Used to Control Traffic Within Bridge Domains and VPLS Instances
- Example: Configuring Filtering of Frames by MAC Address
- Example: Configuring Filtering of Frames by IEEE 802.1p Bits
- Example: Configuring Filtering of Frames by Packet Loss Priority
- Example: Configuring Policing and Marking of Traffic Entering a VPLS Core
- Understanding Firewall Filters on OVSDB-Managed Interfaces
- Example: Applying a Firewall Filter to OVSDB-Managed Interfaces
- play_arrow Configuring Firewall Filters for Forwarding, Fragments, and Policing
- Filter-Based Forwarding Overview
- Firewall Filters That Handle Fragmented Packets Overview
- Stateless Firewall Filters That Reference Policers Overview
- Example: Configuring Filter-Based Forwarding on the Source Address
- Example: Configuring Filter-Based Forwarding to a Specific Outgoing Interface or Destination IP Address
- play_arrow Configuring Firewall Filters (EX Series Switches)
- Firewall Filters for EX Series Switches Overview
- Understanding Planning of Firewall Filters
- Understanding Firewall Filter Match Conditions
- Understanding How Firewall Filters Control Packet Flows
- Understanding How Firewall Filters Are Evaluated
- Understanding Firewall Filter Processing Points for Bridged and Routed Packets on EX Series Switches
- Firewall Filter Match Conditions, Actions, and Action Modifiers for EX Series Switches
- Platform Support for Firewall Filter Match Conditions, Actions, and Action Modifiers on EX Series Switches
- Support for Match Conditions and Actions for Loopback Firewall Filters on Switches
- Configuring Firewall Filters (CLI Procedure)
- Understanding How Firewall Filters Test a Packet's Protocol
- Understanding Filter-Based Forwarding for EX Series Switches
- Example: Configuring Firewall Filters for Port, VLAN, and Router Traffic on EX Series Switches
- Example: Configuring a Firewall Filter on a Management Interface on an EX Series Switch
- Example: Using Filter-Based Forwarding to Route Application Traffic to a Security Device
- Example: Applying Firewall Filters to Multiple Supplicants on Interfaces Enabled for 802.1X or MAC RADIUS Authentication
- Verifying That Policers Are Operational
- Troubleshooting Firewall Filters
- play_arrow Configuring Firewall Filters (QFX Series Switches, EX4600 Switches, PTX Series Routers)
- Overview of Firewall Filters (QFX Series)
- Understanding Firewall Filter Planning
- Planning the Number of Firewall Filters to Create
- Firewall Filter Match Conditions and Actions (QFX and EX Series Switches)
- Firewall Filter Match Conditions and Actions (QFX10000 Switches)
- Firewall Filter Match Conditions and Actions (PTX Series Routers)
- Firewall and Policing Differences Between PTX Series Packet Transport Routers and T Series Matrix Routers
- Configuring Firewall Filters
- Applying Firewall Filters to Interfaces
- Overview of MPLS Firewall Filters on Loopback Interface
- Configuring MPLS Firewall Filters and Policers on Switches
- Configuring MPLS Firewall Filters and Policers on Routers
- Configuring MPLS Firewall Filters and Policers
- Understanding How a Firewall Filter Tests a Protocol
- Understanding Firewall Filter Processing Points for Bridged and Routed Packets
- Understanding Filter-Based Forwarding
- Example: Using Filter-Based Forwarding to Route Application Traffic to a Security Device
- Configuring a Firewall Filter to De-Encapsulate GRE or IPIP Traffic
- Verifying That Firewall Filters Are Operational
- Monitoring Firewall Filter Traffic
- Troubleshooting Firewall Filter Configuration
- play_arrow Configuring Firewall Filter Accounting and Logging (EX9200 Switches)
-
- play_arrow Configuring Traffic Policers
- play_arrow Understanding Traffic Policers
- Policer Implementation Overview
- ARP Policer Overview
- Example: Configuring ARP Policer
- Understanding the Benefits of Policers and Token Bucket Algorithms
- Determining Proper Burst Size for Traffic Policers
- Controlling Network Access Using Traffic Policing Overview
- Traffic Policer Types
- Order of Policer and Firewall Filter Operations
- Understanding the Frame Length for Policing Packets
- Supported Standards for Policing
- Hierarchical Policer Configuration Overview
- Understanding Enhanced Hierarchical Policers
- Packets-Per-Second (pps)-Based Policer Overview
- Guidelines for Applying Traffic Policers
- Policer Support for Aggregated Ethernet Interfaces Overview
- Example: Configuring a Physical Interface Policer for Aggregate Traffic at a Physical Interface
- Firewall and Policing Differences Between PTX Series Packet Transport Routers and T Series Matrix Routers
- Hierarchical Policers on ACX Series Routers Overview
- Guidelines for Configuring Hierarchical Policers on ACX Series Routers
- Hierarchical Policer Modes on ACX Series Routers
- Processing of Hierarchical Policers on ACX Series Routers
- Actions Performed for Hierarchical Policers on ACX Series Routers
- Configuring Aggregate Parent and Child Policers on ACX Series Routers
- play_arrow Configuring Policer Rate Limits and Actions
- play_arrow Configuring Layer 2 Policers
- Hierarchical Policers
- Configuring a Policer Overhead
- Two-Color and Three-Color Policers at Layer 2
- Layer 2 Traffic Policing at the Pseudowire Overview
- Configuring a Two-Color Layer 2 Policer for the Pseudowire
- Configuring a Three-Color Layer 2 Policer for the Pseudowire
- Applying the Policers to Dynamic Profile Interfaces
- Attaching Dynamic Profiles to Routing Instances
- Using Variables for Layer 2 Traffic Policing at the Pseudowire Overview
- Configuring a Policer for the Complex Configuration
- Creating a Dynamic Profile for the Complex Configuration
- Attaching Dynamic Profiles to Routing Instances for the Complex Configuration
- Verifying Layer 2 Traffic Policers on VPLS Connections
- Understanding Policers on OVSDB-Managed Interfaces
- Example: Applying a Policer to OVSDB-Managed Interfaces
- play_arrow Configuring Two-Color and Three-Color Traffic Policers at Layer 3
- Two-Color Policer Configuration Overview
- Basic Single-Rate Two-Color Policers
- Bandwidth Policers
- Prefix-Specific Counting and Policing Actions
- Policer Overhead to Account for Rate Shaping in the Traffic Manager
- Three-Color Policer Configuration Overview
- Applying Policers
- Three-Color Policer Configuration Guidelines
- Basic Single-Rate Three-Color Policers
- Basic Two-Rate Three-Color Policers
- Example: Configuring a Two-Rate Three-Color Policer
- play_arrow Configuring Logical and Physical Interface Traffic Policers at Layer 3
- play_arrow Configuring Policers on Switches
- Overview of Policers
- Traffic Policer Types
- Understanding the Use of Policers in Firewall Filters
- Understanding Tricolor Marking Architecture
- Configuring Policers to Control Traffic Rates (CLI Procedure)
- Configuring Tricolor Marking Policers
- Understanding Policers with Link Aggregation Groups
- Understanding Color-Blind Mode for Single-Rate Tricolor Marking
- Understanding Color-Aware Mode for Single-Rate Tricolor Marking
- Understanding Color-Blind Mode for Two-Rate Tricolor Marking
- Understanding Color-Aware Mode for Two-Rate Tricolor Marking
- Example: Using Two-Color Policers and Prefix Lists
- Example: Using Policers to Manage Oversubscription
- Assigning Forwarding Classes and Loss Priority
- Configuring Color-Blind Egress Policers for Medium-Low PLP
- Configuring Two-Color and Three-Color Policers to Control Traffic Rates
- Verifying That Two-Color Policers Are Operational
- Verifying That Three-Color Policers Are Operational
- Troubleshooting Policer Configuration
- Troubleshooting Policer Configuration
-
- play_arrow Configuration Statements and Operational Commands
- play_arrow Troubleshooting
- play_arrow Knowledge Base
-
list Table of Contents
ON THIS PAGE
Example: Using AS Path Regular Expressions
date_range
24-Nov-23
An autonomous system (AS) path is a route attribute used by BGP. The AS path is used both for route selection and to prevent potential routing loops. This example shows how to use regular expressions with AS path numbers to locate a set of routes.
Requirements
No special configuration beyond device initialization is required before configuring this example.
Overview
Figure 1 shows several ASs connected through external BGP (EBGP) peering sessions. Each device is generating customer routes within its assigned address space.
Topology
Figure 1 shows the sample network.

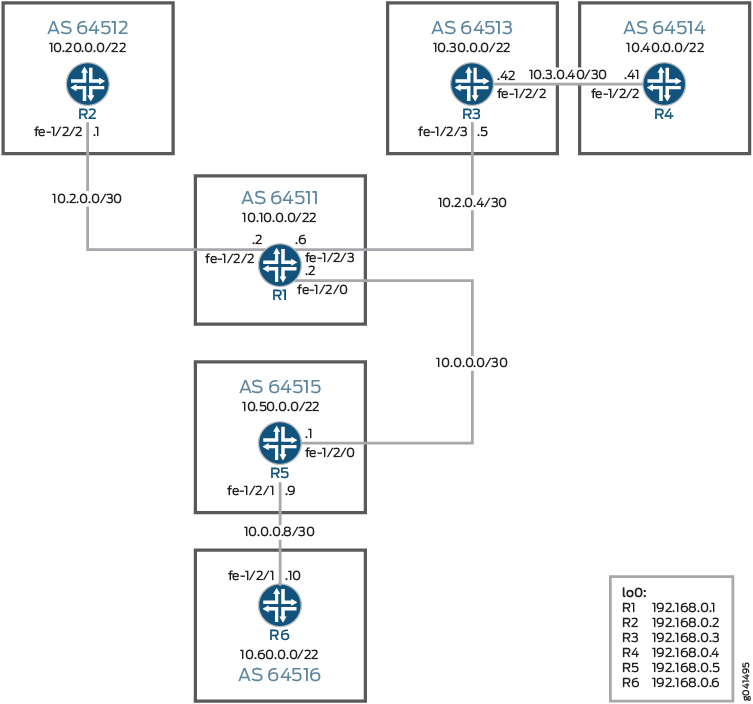

Figure 1: BGP Topology AS Regular Expressions
The administrators of AS 64516 want to reject all routes originating
in AS 64513 and AS 64514. Two AS path regular expressions called orig-in-64513 and orig-in-64514 are created and
referenced in a policy called reject-some-routes. The routing
policy is then applied as an import policy on Device R6.
CLI Quick Configuration shows the configuration for all of the devices in Figure 1.
The section #configuration488__policy-as-path-regex-st describes
the steps on Device R2 and Device R6. Verification shows how to use the aspath-regex option with
the show route command on Device R2 to locate routes using
regular expressions.
Configuration
CLI Quick Configuration
To quickly configure
this example, copy the following commands, paste them into a text
file, remove any line breaks, change any details necessary to match
your network configuration, and then copy and paste the commands into
the CLI at the [edit] hierarchy level.
Device R1
content_copy zoom_out_map
set interfaces fe-1/2/2 unit 0 description to-R2 set interfaces fe-1/2/2 unit 0 family inet address 10.2.0.2/30 set interfaces fe-1/2/3 unit 0 description to-R3 set interfaces fe-1/2/3 unit 0 family inet address 10.2.0.6/30 set interfaces fe-1/2/0 unit 0 description to-R5 set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.2/30 set interfaces lo0 unit 0 family inet address 192.168.0.1/32 set protocols bgp export send-static set protocols bgp group 64512 type external set protocols bgp group 64512 peer-as 64512 set protocols bgp group 64512 neighbor 10.2.0.1 set protocols bgp group 64513 type external set protocols bgp group 64513 peer-as 64513 set protocols bgp group 64513 neighbor 10.2.0.5 set protocols bgp group 64515 type external set protocols bgp group 64515 peer-as 64515 set protocols bgp group 64515 neighbor 10.0.0.1 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set routing-options static route 10.10.1.0/24 reject set routing-options static route 10.10.2.0/24 reject set routing-options static route 10.10.3.0/24 reject set routing-options autonomous-system 64511
Device R2
content_copy zoom_out_map
set interfaces fe-1/2/2 unit 0 description to-R1 set interfaces fe-1/2/2 unit 0 family inet address 10.2.0.1/30 set interfaces lo0 unit 0 family inet address 192.168.0.2/32 set protocols bgp export send-static set protocols bgp group 64511 type external set protocols bgp group 64511 peer-as 64511 set protocols bgp group 64511 neighbor 10.2.0.2 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set routing-options static route 10.20.1.0/24 reject set routing-options static route 10.20.2.0/24 reject set routing-options static route 10.20.3.0/24 reject set routing-options autonomous-system 64512
Device R3
content_copy zoom_out_map
set interfaces fe-1/2/3 unit 0 description to-R1 set interfaces fe-1/2/3 unit 0 family inet address 10.2.0.5/30 set interfaces fe-1/2/2 unit 0 description to-R4 set interfaces fe-1/2/2 unit 0 family inet address 10.3.0.42/30 set interfaces lo0 unit 0 family inet address 192.168.0.3/32 set protocols bgp export send-static set protocols bgp group 64511 type external set protocols bgp group 64511 peer-as 64511 set protocols bgp group 64511 neighbor 10.2.0.6 set protocols bgp group 64514 type external set protocols bgp group 64514 peer-as 64514 set protocols bgp group 64514 neighbor 10.3.0.41 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set routing-options static route 10.30.1.0/24 reject set routing-options static route 10.30.2.0/24 reject set routing-options static route 10.30.3.0/24 reject set routing-options autonomous-system 64513
Device R4
content_copy zoom_out_map
set interfaces fe-1/2/2 unit 0 description to-R3 set interfaces fe-1/2/2 unit 0 family inet address 10.3.0.41/30 set interfaces lo0 unit 0 family inet address 192.168.0.4/32 set protocols bgp export send-static set protocols bgp group 64513 type external set protocols bgp group 64513 peer-as 64513 set protocols bgp group 64513 neighbor 10.3.0.42 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set routing-options static route 10.40.1.0/24 reject set routing-options static route 10.40.2.0/24 reject set routing-options static route 10.40.3.0/24 reject set routing-options autonomous-system 64514
Device R5
content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 description to-R1 set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.1/30 set interfaces fe-1/2/1 unit 0 description to-R6 set interfaces fe-1/2/1 unit 0 family inet address 10.0.0.9/30 set interfaces lo0 unit 0 family inet address 192.168.0.5/32 set protocols bgp export send-static set protocols bgp group 64511 type external set protocols bgp group 64511 peer-as 64511 set protocols bgp group 64511 neighbor 10.0.0.2 set protocols bgp group 64516 type external set protocols bgp group 64516 peer-as 64516 set protocols bgp group 64516 neighbor 10.0.0.10 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set routing-options static route 10.50.1.0/24 reject set routing-options static route 10.50.2.0/24 reject set routing-options static route 10.50.3.0/24 reject set routing-options autonomous-system 64515
Device R6
content_copy zoom_out_map
set interfaces fe-1/2/1 unit 0 description to-R5 set interfaces fe-1/2/1 unit 0 family inet address 10.0.0.10/30 set interfaces lo0 unit 0 family inet address 192.168.0.6/32 set protocols bgp export send-static set protocols bgp group 64515 type external set protocols bgp group 64515 import reject-some-routes set protocols bgp group 64515 peer-as 64515 set protocols bgp group 64515 neighbor 10.0.0.9 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set policy-options policy-statement reject-some-routes term find-routes from as-path orig-in-64513 set policy-options policy-statement reject-some-routes term find-routes from as-path orig-in-64514 set policy-options policy-statement reject-some-routes term find-routes then reject set policy-options as-path orig-in-64513 ".* 64513" set policy-options as-path orig-in-64514 ".* 64514" set routing-options static route 10.60.1.0/24 reject set routing-options static route 10.60.2.0/24 reject set routing-options static route 10.60.3.0/24 reject set routing-options autonomous-system 64516
Procedure
Step-by-Step Procedure
The following example requires that you navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Use the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.
To configure Device R2:
Configure the device interfaces.
content_copy zoom_out_map[edit interfaces] user@R2# set fe-1/2/2 unit 0 description to-R1 user@R2# set fe-1/2/2 unit 0 family inet address 10.2.0.1/30 user@R2# set lo0 unit 0 family inet address 192.168.0.2/32
Configure the EBGP connection to Device R1.
content_copy zoom_out_map[edit protocols bgp] user@R2# set export send-static user@R2# set group 64511 type external user@R2# set group 64511 peer-as 64511 user@R2# set group 64511 neighbor 10.2.0.2
Configure the routing policy.
content_copy zoom_out_map[edit policy-options policy-statement send-static term 1] user@R2# set from protocol static user@R2# set then accept
Configure the static routes.
content_copy zoom_out_map[edit routing-options static] user@R2# set route 10.20.1.0/24 reject user@R2# set route 10.20.2.0/24 reject user@R2# set route 10.20.3.0/24 reject
Configure the AS number.
content_copy zoom_out_map[edit routing-options] user@R2# set autonomous-system 64512
Step-by-Step Procedure
The following example requires that you navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Use the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.
To configure Device R6:
Configure the device interfaces.
content_copy zoom_out_map[edit interfaces] user@R6# set fe-1/2/1 unit 0 description to-R5 user@R6# set fe-1/2/1 unit 0 family inet address 10.0.0.10/30 user@R6# set lo0 unit 0 family inet address 192.168.0.6/32
Configure the EBGP connection to Device R5.
content_copy zoom_out_map[edit protocols bgp] user@R6# set export send-static user@R6# set group 64515 type external user@R6# set group 64515 import reject-some-routes user@R6# set group 64515 peer-as 64515 user@R6# set group 64515 neighbor 10.0.0.9
Configure the routing policy that sends static routes.
content_copy zoom_out_map[edit policy-options policy-statement send-static term 1] user@R6# set from protocol static user@R6# set then accept
Configure the routing policy that rejects certain routes.
content_copy zoom_out_map[edit policy-options policy-statement reject-some-routes term find-routes] user@R6# set from as-path orig-in-64513 user@R6# set from as-path orig-in-64514 user@R6# set then reject [edit policy-options] user@R6# set as-path orig-in-64513 ".* 64513" user@R6# set as-path orig-in-64514 ".* 64514"
Configure the static routes.
content_copy zoom_out_map[edit routing-options static] user@R6# set route 10.60.1.0/24 reject user@R6# set route 10.60.2.0/24 reject user@R6# set route 10.60.3.0/24 reject
Configure the AS number.
content_copy zoom_out_map[edit routing-options] user@R6# set autonomous-system 64516
Results
From configuration mode, confirm your configuration
by entering the show interfaces, show protocols, show policy-options, and show routing-options commands. If the output does not display the intended configuration,
repeat the instructions in this example to correct the configuration.
Device R2
content_copy zoom_out_map
user@R2# show interfaces
fe-1/2/0 {
unit 0 {
description to-R1;
family inet {
address 10.2.0.1/30;
}
}
}
lo0 {
unit 0 {
family inet {
address 192.168.0.2/32;
}
}
}
content_copy zoom_out_map
user@R2# show protocols
bgp {
export send-static;
group 64511 {
type external;
peer-as 64511;
neighbor 10.2.0.2;
}
}
content_copy zoom_out_map
user@R2# show policy-options
policy-statement send-static {
term 1 {
from protocol static;
then accept;
}
}
content_copy zoom_out_map
user@R2# show routing-options
static {
route 10.20.1.0/24 reject;
route 10.20.2.0/24 reject;
route 10.20.3.0/24 reject;
}
autonomous-system 64512;
Device R6
content_copy zoom_out_map
user@R6# show interfaces
fe-1/2/0 {
unit 0 {
description to-R5;
family inet {
address 10.0.0.10/30;
}
}
}
lo0 {
unit 0 {
family inet {
address 192.168.0.6/32;
}
}
}
content_copy zoom_out_map
user@R6# show protocols
bgp {
export send-static;
group 64515 {
type external;
import reject-some-routes;
peer-as 64515;
neighbor 10.0.0.9;
}
}
content_copy zoom_out_map
user@R6# show policy-options
policy-statement reject-some-routes {
term find-routes {
from as-path [ orig-in-64513 orig-in-64514 ];
then reject;
}
}
policy-statement send-static {
term 1 {
from protocol static;
then accept;
}
}
as-path orig-in-64513 ".* 64513";
as-path orig-in-64514 ".* 64514";
content_copy zoom_out_map
user@R6# show routing-options
static {
route 10.60.1.0/24 reject;
route 10.60.2.0/24 reject;
route 10.60.3.0/24 reject;
}
autonomous-system 64516;
If you are done configuring the devices, enter commit from configuration mode.
Verification
Confirm that the configuration is working properly.
Finding Routes on Device R2
Purpose
On Device R2, use the show route aspath-regex command to locate routes
using regular expressions.
Action
Look for routes that are originated by Device R6 in AS 64516.
content_copy zoom_out_map
user@R2> show route terse aspath-regex ".* 64516" inet.0: 21 destinations, 21 routes (21 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both A V Destination P Prf Metric 1 Metric 2 Next hop AS path * ? 10.60.1.0/24 B 170 100 64511 64515 64516 I unverified >10.2.0.2 * ? 10.60.2.0/24 B 170 100 64511 64515 64516 I unverified >10.2.0.2 * ? 10.60.3.0/24 B 170 100 64511 64515 64516 I unverified >10.2.0.2
Look for routes that are originated in either AS 64514 or AS 64516.
content_copy zoom_out_map
user@R2> show route terse aspath-regex ".* (64514|64516)" inet.0: 21 destinations, 21 routes (21 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both A V Destination P Prf Metric 1 Metric 2 Next hop AS path * ? 10.40.1.0/24 B 170 100 64511 64513 64514 I unverified >10.2.0.2 * ? 10.40.2.0/24 B 170 100 64511 64513 64514 I unverified >10.2.0.2 * ? 10.40.3.0/24 B 170 100 64511 64513 64514 I unverified >10.2.0.2 * ? 10.60.1.0/24 B 170 100 64511 64515 64516 I unverified >10.2.0.2 * ? 10.60.2.0/24 B 170 100 64511 64515 64516 I unverified >10.2.0.2 * ? 10.60.3.0/24 B 170 100 64511 64515 64516 I unverified >10.2.0.2
Look for routes that use AS 64513 as a transit network.
content_copy zoom_out_map
user@R2> show route terse aspath-regex ".* 64513 .+" inet.0: 21 destinations, 21 routes (21 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both A V Destination P Prf Metric 1 Metric 2 Next hop AS path * ? 10.40.1.0/24 B 170 100 64511 64513 64514 I unverified >10.2.0.2 * ? 10.40.2.0/24 B 170 100 64511 64513 64514 I unverified >10.2.0.2 * ? 10.40.3.0/24 B 170 100 64511 64513 64514 I unverified
Meaning
The output shows the routing table entries that match the specified AS path regular expressions.
Making Sure That Routes Are Excluded on Device R6
Purpose
On Device R6, use the show route and show route hidden commands to make sure that routes originating
from AS 64513 and AS 64514 are excluded from Device R6’s routing
table.
Action
content_copy zoom_out_map
user@R6> show route 10.30.0/22 inet.0: 21 destinations, 21 routes (15 active, 0 holddown, 6 hidden)
content_copy zoom_out_map
user@R6> show route 10.40.0/22 inet.0: 21 destinations, 21 routes (15 active, 0 holddown, 6 hidden)
content_copy zoom_out_map
user@R6> show route hidden
inet.0: 21 destinations, 21 routes (15 active, 0 holddown, 6 hidden)
+ = Active Route, - = Last Active, * = Both
10.30.1.0/24 [BGP ] 02:24:47, localpref 100
AS path: 64515 64511 64513 I, validation-state: unverified
> to 10.0.0.9 via fe-1/2/1.0
10.30.2.0/24 [BGP ] 02:24:47, localpref 100
AS path: 64515 64511 64513 I, validation-state: unverified
> to 10.0.0.9 via fe-1/2/1.0
10.30.3.0/24 [BGP ] 02:24:47, localpref 100
AS path: 64515 64511 64513 I, validation-state: unverified
> to 10.0.0.9 via fe-1/2/1.0
10.40.1.0/24 [BGP ] 02:24:47, localpref 100
AS path: 64515 64511 64513 64514 I, validation-state: unverified
> to 10.0.0.9 via fe-1/2/1.0
10.40.2.0/24 [BGP ] 02:24:47, localpref 100
AS path: 64515 64511 64513 64514 I, validation-state: unverified
> to 10.0.0.9 via fe-1/2/1.0
10.40.3.0/24 [BGP ] 02:24:47, localpref 100
AS path: 64515 64511 64513 64514 I, validation-state: unverified
> to 10.0.0.9 via fe-1/2/1.0Meaning
The output shows that the 10.30.0/22 and 10.40.0/22 routes are rejected on Device R6.
