Example: Configuring a Policy Subroutine

date_range 24-Nov-23

arrow_backward

arrow_forward

This example demonstrates the use of a policy subroutine in a routing policy match condition.

Requirements

No special configuration beyond device initialization is required before configuring this example.

Overview

On Device R1, a policy called main is configured.

content_copy zoom_out_map
user@R1# show policy-options
policy-statement main {
    term subroutine-as-a-match {
        from policy subroutine;
        then accept;
    }
    term nothing-else {
        then reject;
    }
}

This main policy calls a subroutine called subroutine.

content_copy zoom_out_map
user@R1# show policy-options
policy-statement subroutine {
    term get-routes {
        from protocol static;
        then accept;
    }
    term nothing-else {
        then reject;
    }
}

The router evaluates the logic of main in a defined manner. The match criterion of from policy subroutine allows the routing device to locate the subroutine. All terms of the subroutine are evaluated, in order, following the normal policy processing rules. In this example, all static routes in the routing table match the subroutine with an action of accept. This returns a true result to the original, or calling, policy which informs the device that a positive match has occurred. The actions in the calling policy are executed and the route is accepted. All other routes in the routing table do not match the subroutine and return a false result to the calling policy. The device evaluates the second term of main and rejects the routes.

The actions in the subroutine do not actually accept or reject a specific route. The subroutine actions are only translated into a true or a false result. Actions that modify a route’s attributes, however, are applied to the route regardless of the outcome of the subroutine.

Device R1 in AS 64510 has multiple customer routes, some of which are static routes configured locally, and some of which are received from Device R2 and Device R3 through internal BGP (IBGP). AS 64510 is connected to Device R4 in AS 64511. The policy main is applied as an export policy in Device R1’s BGP peering session with Device R4. This causes Device R1 to send only its own static routes to Device R4. Because of the policy main, Device R1 does not send the routes received from its internal peers, Device R2 and Device R3.

When you are working with policy subroutines, it is important to remember that the default EBGP export policy is to advertise all learned BGP routes to all EBGP peers. This default policy is in effect in the main policy and also in the subroutine. Therefore, as shown in this example, if you do not want the default EBGP export policy to take effect, you must configure a then reject terminating action as the final term in both the main policy and in the policy subroutine. This example demonstrates what happens when the final then reject term is missing either from the main policy or from the policy subroutine.

Topology

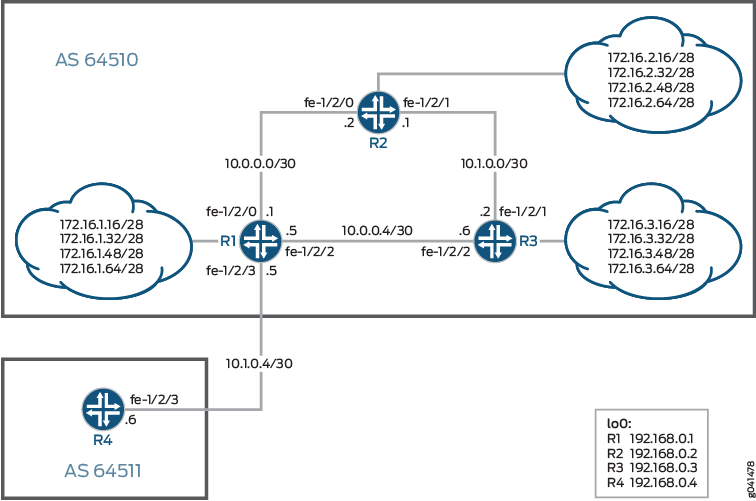

Figure 1 shows the sample network.

Figure 1: BGP Topology for Policy Subroutine

CLI Quick Configuration shows the configuration for all of the devices in Figure 1.

The section #configuration318__policy-subroutine-st describes the steps on Device R1.

CLI Quick Configuration

To quickly configure this example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, and then copy and paste the commands into the CLI at the [edit] hierarchy level.

Device R1

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 description to_R2
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.1/30
set interfaces fe-1/2/2 unit 0 description to_R3
set interfaces fe-1/2/2 unit 0 family inet address 10.0.0.5/30
set interfaces fe-1/2/3 unit 0 description to_R4
set interfaces fe-1/2/3 unit 0 family inet address 10.1.0.5/30
set interfaces lo0 unit 0 family inet address 192.168.0.1/32
set protocols bgp group int type internal
set protocols bgp group int local-address 192.168.0.1
set protocols bgp group int neighbor 192.168.0.2
set protocols bgp group int neighbor 192.168.0.3
set protocols bgp group to_64511 type external
set protocols bgp group to_64511 export main
set protocols bgp group to_64511 neighbor 10.1.0.6 peer-as 64511
set protocols ospf area 0.0.0.0 interface fe-1/2/0.0
set protocols ospf area 0.0.0.0 interface fe-1/2/2.0
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set policy-options policy-statement main term subroutine-as-a-match from policy subroutine
set policy-options policy-statement main term subroutine-as-a-match then accept
set policy-options policy-statement main term nothing-else then reject
set policy-options policy-statement subroutine term get-routes from protocol static
set policy-options policy-statement subroutine term get-routes then accept
set policy-options policy-statement subroutine term nothing-else then reject
set routing-options static route 172.16.1.16/28 discard
set routing-options static route 172.16.1.32/28 discard
set routing-options static route 172.16.1.48/28 discard
set routing-options static route 172.16.1.64/28 discard
set routing-options router-id 192.168.0.1
set routing-options autonomous-system 64510

Device R2

content_copy zoom_out_map
set interfaces fe-1/2/0 unit 0 description to_R1
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.2/30
set interfaces fe-1/2/1 unit 0 description to_R3
set interfaces fe-1/2/1 unit 0 family inet address 10.1.0.1/30
set interfaces lo0 unit 0 family inet address 192.168.0.2/32
set protocols bgp group int type internal
set protocols bgp group int local-address 192.168.0.2
set protocols bgp group int neighbor 192.168.0.1 export send-static
set protocols bgp group int neighbor 192.168.0.3
set protocols ospf area 0.0.0.0 interface fe-1/2/0.0
set protocols ospf area 0.0.0.0 interface fe-1/2/1.0
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set policy-options policy-statement send-static term 1 from protocol static
set policy-options policy-statement send-static term 1 then accept
set routing-options static route 172.16.2.16/28 discard
set routing-options static route 172.16.2.32/28 discard
set routing-options static route 172.16.2.48/28 discard
set routing-options static route 172.16.2.64/28 discard
set routing-options router-id 192.168.0.2
set routing-options autonomous-system 64510

Device R3

content_copy zoom_out_map
set interfaces fe-1/2/1 unit 0 description to_R2
set interfaces fe-1/2/1 unit 0 family inet address 10.1.0.2/30
set interfaces fe-1/2/2 unit 0 description to_R1
set interfaces fe-1/2/2 unit 0 family inet address 10.0.0.6/30
set interfaces lo0 unit 0 family inet address 192.168.0.3/32
set protocols bgp group int type internal
set protocols bgp group int local-address 192.168.0.3
set protocols bgp group int neighbor 192.168.0.1 export send-static
set protocols bgp group int neighbor 192.168.0.2
set protocols ospf area 0.0.0.0 interface fe-1/2/2.6
set protocols ospf area 0.0.0.0 interface fe-1/2/0.4
set protocols ospf area 0.0.0.0 interface lo0.0 passive
set policy-options policy-statement send-static from protocol static
set policy-options policy-statement send-static then accept
set routing-options static route 172.16.3.16/28 discard
set routing-options static route 172.16.3.32/28 discard
set routing-options static route 172.16.3.48/28 discard
set routing-options static route 172.16.3.64/28 discard
set routing-options router-id 192.168.0.3
set routing-options autonomous-system 64510

Device R4

content_copy zoom_out_map
set interfaces fe-1/2/3 unit 0 description to_R1
set interfaces fe-1/2/3 unit 0 family inet address 10.1.0.6/30
set interfaces lo0 unit 0 family inet address 192.168.0.4/32
set protocols bgp group ext type external
set protocols bgp group ext peer-as 64510
set protocols bgp group ext neighbor 10.1.0.5
set routing-options autonomous-system 64511

Procedure

Step-by-Step Procedure
Results

Step-by-Step Procedure

The following example requires that you navigate various levels in the configuration hierarchy. For information about navigating the CLI, see Use the CLI Editor in Configuration Mode in the Junos OS CLI User Guide.

To configure Device R1:

Configure the device interfaces.

content_copy zoom_out_map
[edit interfaces]
user@R1# set fe-1/2/0 unit 0 description to_R2
user@R1# set fe-1/2/0 unit 0 family inet address 10.0.0.1/30
user@R1# set fe-1/2/2 unit 0 description to_R3
user@R1# set fe-1/2/2 unit 0 family inet address 10.0.0.5/30
user@R1# set fe-1/2/3 unit 0 description to_R4
user@R1# set fe-1/2/3 unit 0 family inet address 10.1.0.5/30
user@R1# set lo0 unit 0 family inet address 192.168.0.1/32

Configure the internal BGP (IBGP) connections to Device R2 and Device R3.

content_copy zoom_out_map
[edit protocols bgp group int]
user@R1# set type internal
user@R1# set local-address 192.168.0.1
user@R1# set neighbor 192.168.0.2
user@R1# set neighbor 192.168.0.3

Configure the EBGP connection to Device R4.

content_copy zoom_out_map
[edit protocols bgp group to_64511]
user@R1# set type external
user@R1# set export main
user@R1# set neighbor 10.1.0.6 peer-as 64511

Configure OSPF connections to Device R2 and Device R3.

content_copy zoom_out_map
[edit protocols ospf area 0.0.0.0]
user@R1# set interface fe-1/2/0.0
user@R1# set interface fe-1/2/2.0
user@R1# set interface lo0.0 passive

Configure the policy main.

content_copy zoom_out_map
[edit policy-options policy-statement main term subroutine-as-a-match]
user@R1# set from policy subroutine
user@R1# set then accept
[edit policy-options policy-statement main term nothing-else]
user@R1# set then reject

Configure the policy subroutine.

content_copy zoom_out_map
[edit policy-options policy-statement subroutine term get-routes]
user@R1# set from protocol static
user@R1# set then accept
[edit policy-options policy-statement subroutine term nothing-else]
user@R1# set then reject

Configure the static route to the 172.16.5.0/24 network.

content_copy zoom_out_map
[edit routing-options static]
user@R1# set route 172.16.1.16/28 discard
user@R1# set route 172.16.1.32/28 discard
user@R1# set route 172.16.1.48/28 discard
user@R1# set route 172.16.1.64/28 discard

Configure the autonomous system (AS) number and router ID.

content_copy zoom_out_map
[edit routing-options]
user@R1# set router-id 192.168.0.1
user@R1# set autonomous-system 64510

Results

From configuration mode, confirm your configuration by entering the show interfaces, show protocols, show policy-options, and show routing-options commands. If the output does not display the intended configuration, repeat the instructions in this example to correct the configuration.

content_copy zoom_out_map
user@R1# show interfaces
fe-1/2/0 {
    unit 0 {
        description to_R2;
        family inet {
            address 10.0.0.1/30;
        }
    }
}
fe-1/2/2 {
    unit 0 {
        description to_R3;
        family inet {
            address 10.0.0.5/30;
        }
    }
}
fe-1/2/3 {
    unit 0 {
        description to_R4;
        family inet {
            address 10.1.0.5/30;
        }
    }
}
lo0 {
    unit 0 {
        family inet {
            address 192.168.0.1/32;
        }
    }
}

content_copy zoom_out_map
user@R1# show protocols
bgp {
    group int {
        type internal;
        local-address 192.168.0.1;
        neighbor 192.168.0.2;
        neighbor 192.168.0.3;
    }
    group to_64511 {
        type external;
        export main;
        neighbor 10.1.0.6 {
            peer-as 64511;
        }
    }
}
ospf {
    area 0.0.0.0 {
        interface fe-1/2/0.0;
        interface fe-1/2/2.0;
        interface lo0.0 {
            passive;
        }
    }
}

content_copy zoom_out_map
user@R1# show policy-options
policy-statement main {
    term subroutine-as-a-match {
        from policy subroutine;
        then accept;
    }
    term nothing-else {
        then reject;
    }
}
policy-statement subroutine {
    term get-routes {
        from protocol static;
        then accept;
    }
    term nothing-else {
        then reject;
    }
}

content_copy zoom_out_map
user@R1# show routing-options
static {
    route 172.6.1.16/28 discard;
    route 172.6.1.32/28 discard;
    route 172.6.1.48/28 discard;
    route 172.6.1.64/28 discard;
}
router-id 192.168.0.1;
autonomous-system 64510;

If you are done configuring the device, enter commit from configuration mode.

Verification

Confirm that the configuration is working properly.

Verifying the Routes on Device R1
Verifying the Route Advertisement to Device R4
Experimenting with the Default BGP Export Policy

Verifying the Routes on Device R1

Purpose
Action
Meaning

Purpose

On Device R1, check the static routes in the routing table.

Action

content_copy zoom_out_map
user@R1> show route protocol static

inet.0: 23 destinations, 23 routes (23 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

172.16.1.16/28     *[Static/5] 1d 02:02:13
                      Discard
172.16.1.32/28     *[Static/5] 1d 02:02:13
                      Discard
172.16.1.48/28     *[Static/5] 1d 02:02:13
                      Discard
172.16.1.64/28     *[Static/5] 1d 02:02:13
                      Discard

Meaning

Device R1 has four static routes.

Verifying the Route Advertisement to Device R4

Purpose
Action
Meaning

Purpose

On Device R1, make sure that the static routes are advertised to Device R4.

Action

content_copy zoom_out_map
user@R1> show route advertising-protocol bgp 10.1.0.6

inet.0: 23 destinations, 23 routes (23 active, 0 holddown, 0 hidden)
  Prefix                  Nexthop              MED     Lclpref    AS path
* 172.16.1.16/28          Self                                    I
* 172.16.1.32/28          Self                                    I
* 172.16.1.48/28          Self                                    I
* 172.16.1.64/28          Self                                    I

Meaning

As expected, Device R1 only advertises its static routes to Device R4.

Experimenting with the Default BGP Export Policy

Purpose
Action
Meaning

Purpose

See what can happen when you remove the final then reject term from the policy main or the policy subroutine.

Action

On Device R1, deactivate the final term in the policy main.

content_copy zoom_out_map
[edit  policy-options policy-statement main]
user@R1# deactivate term nothing-else
user@R1# commit

On Device R1, check to see which routes are advertised to Device R4.

content_copy zoom_out_map
user@R1> show route advertising-protocol bgp 10.1.0.6

inet.0: 23 destinations, 23 routes (23 active, 0 holddown, 0 hidden)
  Prefix                  Nexthop              MED     Lclpref    AS path
* 172.16.1.16/28          Self                                    I
* 172.16.1.32/28          Self                                    I
* 172.16.1.48/28          Self                                    I
* 172.16.1.64/28          Self                                    I
* 172.16.2.16/28          Self                                    I
* 172.16.2.32/28          Self                                    I
* 172.16.2.48/28          Self                                    I
* 172.16.2.64/28          Self                                    I
* 172.16.3.16/28          Self                                    I
* 172.16.3.32/28          Self                                    I
* 172.16.3.48/28          Self                                    I
* 172.16.3.64/28          Self                                    I

Now, all the BGP routes from Device R1 are sent to Device R4. This is because after the processing is returned to policy main, the default BGP export policy takes effect.

On Device R1, reactivate the final term in the policy main, and deactivate the final term in the policy subroutine.

content_copy zoom_out_map
[edit  policy-options policy-statement main]
user@R1# activate term nothing-else

[edit  policy-options policy-statement subroutine]
user@R1# deactivate term nothing-else
user@R1# commit

On Device R1, check to see which routes are advertised to Device R4.

content_copy zoom_out_map
user@R1> show route advertising-protocol bgp 10.1.0.6

inet.0: 23 destinations, 23 routes (23 active, 0 holddown, 0 hidden)
  Prefix                  Nexthop              MED     Lclpref    AS path
* 172.16.1.16/28          Self                                    I
* 172.16.1.32/28          Self                                    I
* 172.16.1.48/28          Self                                    I
* 172.16.1.64/28          Self                                    I
* 172.16.2.16/28          Self                                    I
* 172.16.2.32/28          Self                                    I
* 172.16.2.48/28          Self                                    I
* 172.16.2.64/28          Self                                    I
* 172.16.3.16/28          Self                                    I
* 172.16.3.32/28          Self                                    I
* 172.16.3.48/28          Self                                    I
* 172.16.3.64/28          Self                                    I

Now, all the BGP routes from Device R1 are sent to Device R4. This is because before the processing is returned to policy main, the default BGP export policy takes effect in the policy subroutine.

Meaning

To prevent the default BGP export policy from taking effect, you must include a final then reject term in the main policy and in all referenced subroutines.

arrow_backward PREVIOUS How a Routing Policy Subroutine Is Evaluated

NEXT arrow_forward Understanding Route Filters for Use in Routing Policy Match Conditions

Routing Policies, Firewall Filters, and Traffic Policers User Guide

ON THIS PAGE

Example: Configuring a Policy Subroutine

Requirements

Overview

Topology

Configuration

CLI Quick Configuration

Procedure

Step-by-Step Procedure

Results

Verification

Verifying the Routes on Device R1

Purpose

Action

Meaning

Verifying the Route Advertisement to Device R4

Purpose

Action

Meaning

Experimenting with the Default BGP Export Policy

Purpose

Action

Meaning

Stay in touch

Helped me install or use the product
Accelerated my deployment

Discuss the product with a co-worker
Make a purchase inquiry

Routing Policies, Firewall Filters, and Traffic Policers User Guide

ON THIS PAGE

Example: Configuring a Policy Subroutine

Requirements

Overview

Topology

Configuration

CLI Quick Configuration

Procedure

Step-by-Step Procedure

Results

Verification

Verifying the Routes on Device R1

Purpose

Action

Meaning

Verifying the Route Advertisement to Device R4

Purpose

Action

Meaning

Experimenting with the Default BGP Export Policy

Purpose

Action

Meaning

Related Documentation

Stay in touch
