- play_arrow Understanding and Configuring Junos Routing Policies
- play_arrow Overview
- Policy Framework Overview
- Comparison of Routing Policies and Firewall Filters
- Prefix Prioritization Overview
- FIB Prefix Prioritization
- Accounting of the Policer Overhead Attribute at the Interface Level
- Configuring the Accounting of Policer Overhead in Interface Statistics
- Understanding Routing Policies
- Protocol Support for Import and Export Policies
- Example: Applying Routing Policies at Different Levels of the BGP Hierarchy
- Default Routing Policies
- Example: Configuring a Conditional Default Route Policy
- play_arrow Evaluating Routing Policies Using Match Conditions, Actions, Terms, and Expressions
- How a Routing Policy Is Evaluated
- Categories of Routing Policy Match Conditions
- Routing Policy Match Conditions
- Route Filter Match Conditions
- Actions in Routing Policy Terms
- Summary of Routing Policy Actions
- Example: Configuring a Routing Policy to Advertise the Best External Route to Internal Peers
- Example: Configuring BGP to Advertise Inactive Routes
- Example: Using Routing Policy to Set a Preference Value for BGP Routes
- Example: Enabling BGP Route Advertisements
- Example: Rejecting Known Invalid Routes
- Example: Using Routing Policy in an ISP Network
- Understanding Policy Expressions
- Understanding Backup Selection Policy for OSPF Protocol
- Configuring Backup Selection Policy for the OSPF Protocol
- Configuring Backup Selection Policy for IS-IS Protocol
- Example: Configuring Backup Selection Policy for the OSPF or OSPF3 Protocol
- play_arrow Evaluating Complex Cases Using Policy Chains and Subroutines
- play_arrow Configuring Route Filters and Prefix Lists as Match Conditions
- Understanding Route Filters for Use in Routing Policy Match Conditions
- Understanding Route Filter and Source Address Filter Lists for Use in Routing Policy Match Conditions
- Understanding Load Balancing Using Source or Destination IP Only
- Configuring Load Balancing Using Source or Destination IP Only
- Walkup for Route Filters Overview
- Configuring Walkup for Route Filters to Improve Operational Efficiency
- Example: Configuring Route Filter Lists
- Example: Configuring Walkup for Route Filters Globally to Improve Operational Efficiency
- Example: Configuring Walkup for Route Filters Locally to Improve Operational Efficiency
- Example: Configuring a Route Filter Policy to Specify Priority for Prefixes Learned Through OSPF
- Example: Configuring the MED Using Route Filters
- Example: Configuring Layer 3 VPN Protocol Family Qualifiers for Route Filters
- Understanding Prefix Lists for Use in Routing Policy Match Conditions
- Example: Configuring Routing Policy Prefix Lists
- Example: Configuring the Priority for Route Prefixes in the RPD Infrastructure
- Configuring Priority for Route Prefixes in RPD Infrastructure
- play_arrow Configuring AS Paths as Match Conditions
- Understanding AS Path Regular Expressions for Use as Routing Policy Match Conditions
- Example: Using AS Path Regular Expressions
- Understanding Prepending AS Numbers to BGP AS Paths
- Example: Configuring a Routing Policy for AS Path Prepending
- Understanding Adding AS Numbers to BGP AS Paths
- Example: Advertising Multiple Paths in BGP
- Improve the Performance of AS Path Lookup in BGP Policy
- play_arrow Configuring Communities as Match Conditions
- Understanding BGP Communities, Extended Communities, and Large Communities as Routing Policy Match Conditions
- Understanding How to Define BGP Communities and Extended Communities
- How BGP Communities and Extended Communities Are Evaluated in Routing Policy Match Conditions
- Example: Configuring Communities in a Routing Policy
- Example: Configuring Extended Communities in a Routing Policy
- Example: Configuring BGP Large Communities
- Example: Configuring a Routing Policy Based on the Number of BGP Communities
- Example: Configuring a Routing Policy That Removes BGP Communities
- play_arrow Increasing Network Stability with BGP Route Flapping Actions
- play_arrow Tracking Traffic Usage with Source Class Usage and Destination Class Usage Actions
- Understanding Source Class Usage and Destination Class Usage Options
- Source Class Usage Overview
- Guidelines for Configuring SCU
- System Requirements for SCU
- Terms and Acronyms for SCU
- Roadmap for Configuring SCU
- Roadmap for Configuring SCU with Layer 3 VPNs
- Configuring Route Filters and Source Classes in a Routing Policy
- Applying the Policy to the Forwarding Table
- Enabling Accounting on Inbound and Outbound Interfaces
- Configuring Input SCU on the vt Interface of the Egress PE Router
- Mapping the SCU-Enabled vt Interface to the VRF Instance
- Configuring SCU on the Output Interface
- Associating an Accounting Profile with SCU Classes
- Verifying Your SCU Accounting Profile
- SCU Configuration
- SCU with Layer 3 VPNs Configuration
- Example: Grouping Source and Destination Prefixes into a Forwarding Class
- play_arrow Avoiding Traffic Routing Threats with Conditional Routing Policies
- Conditional Advertisement and Import Policy (Routing Table) with certain match conditions
- Conditional Advertisement Enabling Conditional Installation of Prefixes Use Cases
- Example: Configuring a Routing Policy for Conditional Advertisement Enabling Conditional Installation of Prefixes in a Routing Table
- play_arrow Protecting Against DoS Attacks by Forwarding Traffic to the Discard Interface
- play_arrow Improving Commit Times with Dynamic Routing Policies
- play_arrow Testing Before Applying Routing Policies
-
- play_arrow Configuring Firewall Filters
- play_arrow Understanding How Firewall Filters Protect Your Network
- Firewall Filters Overview
- Router Data Flow Overview
- Stateless Firewall Filter Overview
- Understanding How to Use Standard Firewall Filters
- Understanding How Firewall Filters Control Packet Flows
- Stateless Firewall Filter Components
- Stateless Firewall Filter Application Points
- How Standard Firewall Filters Evaluate Packets
- Understanding Firewall Filter Fast Lookup Filter
- Understanding Egress Firewall Filters with PVLANs
- Selective Class-based Filtering on PTX Routers
- Guidelines for Configuring Firewall Filters
- Guidelines for Applying Standard Firewall Filters
- Supported Standards for Filtering
- Monitoring Firewall Filter Traffic
- Troubleshooting Firewall Filters
- play_arrow Firewall Filter Match Conditions and Actions
- Overview of Firewall Filters (OCX Series)
- Overview of Firewall Filter Profiles on ACX Series Routers (Junos OS Evolved)
- Understanding Firewall Filter Match Conditions
- Understanding Firewall Filter Planning
- Understanding How Firewall Filters Are Evaluated
- Understanding Firewall Filter Match Conditions
- Firewall Filter Flexible Match Conditions
- Firewall Filter Nonterminating Actions
- Firewall Filter Terminating Actions
- Firewall Filter Match Conditions and Actions (ACX Series Routers)
- Firewall Filter Match Conditions and Actions in ACX Series Routers (Junos OS Evolved)
- Firewall Filter Match Conditions for Protocol-Independent Traffic
- Firewall Filter Match Conditions for IPv4 Traffic
- Firewall Filter Match Conditions for IPv6 Traffic
- Firewall Filter Match Conditions Based on Numbers or Text Aliases
- Firewall Filter Match Conditions Based on Bit-Field Values
- Firewall Filter Match Conditions Based on Address Fields
- Firewall Filter Match Conditions Based on Address Classes
- Understanding IP-Based Filtering and Selective Port Mirroring of MPLS Traffic
- Firewall Filter Match Conditions for MPLS Traffic
- Firewall Filter Match Conditions for MPLS-Tagged IPv4 or IPv6 Traffic
- Firewall Filter Match Conditions for VPLS Traffic
- Firewall Filter Match Conditions for Layer 2 CCC Traffic
- Firewall Filter Match Conditions for Layer 2 Bridging Traffic
- Firewall Filter Support on Loopback Interface
- play_arrow Applying Firewall Filters to Routing Engine Traffic
- Configuring Logical Units on the Loopback Interface for Routing Instances in Layer 3 VPNs
- Example: Configuring a Filter to Limit TCP Access to a Port Based On a Prefix List
- Example: Configuring a Stateless Firewall Filter to Accept Traffic from Trusted Sources
- Example: Configure a Filter to Block Telnet and SSH Access
- Example: Configuring a Filter to Block TFTP Access
- Example: Configuring a Filter to Accept Packets Based on IPv6 TCP Flags
- Example: Configuring a Filter to Block TCP Access to a Port Except from Specified BGP Peers
- Example: Configuring a Stateless Firewall Filter to Protect Against TCP and ICMP Floods
- Example: Protecting the Routing Engine with a Packets-Per-Second Rate Limiting Filter
- Example: Configuring a Filter to Exclude DHCPv6 and ICMPv6 Control Traffic for LAC Subscriber
- Port Number Requirements for DHCP Firewall Filters
- Example: Configuring a DHCP Firewall Filter to Protect the Routing Engine
- play_arrow Applying Firewall Filters to Transit Traffic
- Example: Configuring a Filter for Use as an Ingress Queuing Filter
- Example: Configuring a Filter to Match on IPv6 Flags
- Example: Configuring a Filter to Match on Port and Protocol Fields
- Example: Configuring a Filter to Count Accepted and Rejected Packets
- Example: Configuring a Filter to Count and Discard IP Options Packets
- Example: Configuring a Filter to Count IP Options Packets
- Example: Configuring a Filter to Count and Sample Accepted Packets
- Example: Configuring a Filter to Set the DSCP Bit to Zero
- Example: Configuring a Filter to Set the DSCP Bit to Zero
- Example: Configuring a Filter to Match on Two Unrelated Criteria
- Example: Configuring a Filter to Accept DHCP Packets Based on Address
- Example: Configuring a Filter to Accept OSPF Packets from a Prefix
- Example: Configuring a Stateless Firewall Filter to Handle Fragments
- Configuring a Firewall Filter to Prevent or Allow IPv4 Packet Fragmentation
- Configuring a Firewall Filter to Discard Ingress IPv6 Packets with a Mobility Extension Header
- Example: Configuring an Egress Filter Based on IPv6 Source or Destination IP Addresses
- Example: Configuring a Rate-Limiting Filter Based on Destination Class
- play_arrow Configuring Firewall Filters in Logical Systems
- Firewall Filters in Logical Systems Overview
- Guidelines for Configuring and Applying Firewall Filters in Logical Systems
- References from a Firewall Filter in a Logical System to Subordinate Objects
- References from a Firewall Filter in a Logical System to Nonfirewall Objects
- References from a Nonfirewall Object in a Logical System to a Firewall Filter
- Example: Configuring Filter-Based Forwarding
- Example: Configuring Filter-Based Forwarding on Logical Systems
- Example: Configuring a Stateless Firewall Filter to Protect a Logical System Against ICMP Floods
- Example: Configuring a Stateless Firewall Filter to Protect a Logical System Against ICMP Floods
- Unsupported Firewall Filter Statements for Logical Systems
- Unsupported Actions for Firewall Filters in Logical Systems
- Filter-Based Forwarding for Routing Instances
- Forwarding Table Filters for Routing Instances on ACX Series Routers
- Configuring Forwarding Table Filters
- play_arrow Configuring Firewall Filter Accounting and Logging
- play_arrow Attaching Multiple Firewall Filters to a Single Interface
- Applying Firewall Filters to Interfaces
- Configuring Firewall Filters
- Multifield Classifier Example: Configuring Multifield Classification
- Multifield Classifier for Ingress Queuing on MX Series Routers with MPC
- Assigning Multifield Classifiers in Firewall Filters to Specify Packet-Forwarding Behavior (CLI Procedure)
- Understanding Multiple Firewall Filters in a Nested Configuration
- Guidelines for Nesting References to Multiple Firewall Filters
- Understanding Multiple Firewall Filters Applied as a List
- Guidelines for Applying Multiple Firewall Filters as a List
- Example: Applying Lists of Multiple Firewall Filters
- Example: Nesting References to Multiple Firewall Filters
- Example: Filtering Packets Received on an Interface Set
- play_arrow Attaching a Single Firewall Filter to Multiple Interfaces
- Interface-Specific Firewall Filter Instances Overview
- Interface-Specific Firewall Filter Instances Overview
- Filtering Packets Received on a Set of Interface Groups Overview
- Filtering Packets Received on an Interface Set Overview
- Example: Configuring Interface-Specific Firewall Filter Counters
- Example: Configuring a Stateless Firewall Filter on an Interface Group
- play_arrow Configuring Filter-Based Tunneling Across IP Networks
- Understanding Filter-Based Tunneling Across IPv4 Networks
- Firewall Filter-Based L2TP Tunneling in IPv4 Networks Overview
- Interfaces That Support Filter-Based Tunneling Across IPv4 Networks
- Components of Filter-Based Tunneling Across IPv4 Networks
- Example: Transporting IPv6 Traffic Across IPv4 Using Filter-Based Tunneling
- play_arrow Configuring Service Filters
- Service Filter Overview
- How Service Filters Evaluate Packets
- Guidelines for Configuring Service Filters
- Guidelines for Applying Service Filters
- Example: Configuring and Applying Service Filters
- Service Filter Match Conditions for IPv4 or IPv6 Traffic
- Service Filter Nonterminating Actions
- Service Filter Terminating Actions
- play_arrow Configuring Simple Filters
- play_arrow Configuring Layer 2 Firewall Filters
- Understanding Firewall Filters Used to Control Traffic Within Bridge Domains and VPLS Instances
- Example: Configuring Filtering of Frames by MAC Address
- Example: Configuring Filtering of Frames by IEEE 802.1p Bits
- Example: Configuring Filtering of Frames by Packet Loss Priority
- Example: Configuring Policing and Marking of Traffic Entering a VPLS Core
- Understanding Firewall Filters on OVSDB-Managed Interfaces
- Example: Applying a Firewall Filter to OVSDB-Managed Interfaces
- play_arrow Configuring Firewall Filters for Forwarding, Fragments, and Policing
- Filter-Based Forwarding Overview
- Firewall Filters That Handle Fragmented Packets Overview
- Stateless Firewall Filters That Reference Policers Overview
- Example: Configuring Filter-Based Forwarding on the Source Address
- Example: Configuring Filter-Based Forwarding to a Specific Outgoing Interface or Destination IP Address
- play_arrow Configuring Firewall Filters (EX Series Switches)
- Firewall Filters for EX Series Switches Overview
- Understanding Planning of Firewall Filters
- Understanding Firewall Filter Match Conditions
- Understanding How Firewall Filters Control Packet Flows
- Understanding How Firewall Filters Are Evaluated
- Understanding Firewall Filter Processing Points for Bridged and Routed Packets on EX Series Switches
- Firewall Filter Match Conditions, Actions, and Action Modifiers for EX Series Switches
- Platform Support for Firewall Filter Match Conditions, Actions, and Action Modifiers on EX Series Switches
- Support for Match Conditions and Actions for Loopback Firewall Filters on Switches
- Configuring Firewall Filters (CLI Procedure)
- Understanding How Firewall Filters Test a Packet's Protocol
- Understanding Filter-Based Forwarding for EX Series Switches
- Example: Configuring Firewall Filters for Port, VLAN, and Router Traffic on EX Series Switches
- Example: Configuring a Firewall Filter on a Management Interface on an EX Series Switch
- Example: Using Filter-Based Forwarding to Route Application Traffic to a Security Device
- Example: Applying Firewall Filters to Multiple Supplicants on Interfaces Enabled for 802.1X or MAC RADIUS Authentication
- Verifying That Policers Are Operational
- Troubleshooting Firewall Filters
- play_arrow Configuring Firewall Filters (QFX Series Switches, EX4600 Switches, PTX Series Routers)
- Overview of Firewall Filters (QFX Series)
- Understanding Firewall Filter Planning
- Planning the Number of Firewall Filters to Create
- Firewall Filter Match Conditions and Actions (QFX and EX Series Switches)
- Firewall Filter Match Conditions and Actions (QFX10000 Switches)
- Firewall Filter Match Conditions and Actions (PTX Series Routers)
- Firewall and Policing Differences Between PTX Series Packet Transport Routers and T Series Matrix Routers
- Configuring Firewall Filters
- Applying Firewall Filters to Interfaces
- Overview of MPLS Firewall Filters on Loopback Interface
- Configuring MPLS Firewall Filters and Policers on Switches
- Configuring MPLS Firewall Filters and Policers on Routers
- Configuring MPLS Firewall Filters and Policers
- Understanding How a Firewall Filter Tests a Protocol
- Understanding Firewall Filter Processing Points for Bridged and Routed Packets
- Understanding Filter-Based Forwarding
- Example: Using Filter-Based Forwarding to Route Application Traffic to a Security Device
- Configuring a Firewall Filter to De-Encapsulate GRE or IPIP Traffic
- Verifying That Firewall Filters Are Operational
- Monitoring Firewall Filter Traffic
- Troubleshooting Firewall Filter Configuration
- play_arrow Configuring Firewall Filter Accounting and Logging (EX9200 Switches)
-
- play_arrow Configuration Statements and Operational Commands
- play_arrow Troubleshooting
- play_arrow Knowledge Base
-
Determining Proper Burst Size for Traffic Policers
Policer Burst Size Limit Overview
A policer burst-size limit controls the number of bytes of traffic that can pass unrestricted through a policed interface when a burst of traffic pushes the average transmit or receive rate above the configured bandwidth limit. The actual number of bytes of bursty traffic allowed to pass through a policed interface can vary from zero to the configured burst-size limit, depending on the overall traffic load.
By configuring a proper burst size, the effect of a lower shaped rate is alleviated. Use the burst-size-limit statement to configure the burst size.
If you set the burst-size limit too low, too many packets will be subjected to rate limiting. If you set the burst-size limit too high, too few packets will be rate-limited.
Consider these two main factors when determining the burst size to use:
The allowed duration of a blast of traffic on the line.
The burst size is large enough to handle the maximum transmission unit (MTU) size of the packets.
The following general guidelines apply to choosing a policer burst-size limit:
A burst-size limit should not be set lower than 10 times the MTU of the traffic on the interface to be policed.
The amount of time to allow a burst of traffic at the full line rate of a policed interface should not be lower than 5 ms.
The minimum and maximum values you can specify for a policer burst-size limit depends on the policer type (two-color or three-color).
The preferred method for choosing a burst-size limit is based on the line rate of the interface on which you apply the policer and the amount of time you want to allow a burst of traffic at the full line rate.
Effect of Burst-Size Limit
Bursty traffic requires a relatively large burst size so that extra tokens can be allocated into the token bucket for upcoming traffic to use.
- Bursty Traffic Policed Without a Burst-Size Limit
- Burst-Size Limit Configured to Match Bandwidth Limit and Flow Burstiness
- Burst-Size Limit That Depletes All Accumulated Tokens
Bursty Traffic Policed Without a Burst-Size Limit

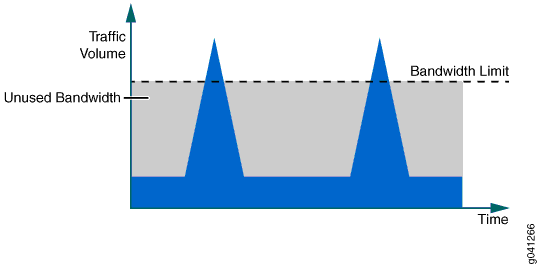

Figure 1 shows an extreme case of bursty traffic where the opportunity to allocate tokens is missed, and the bandwidth goes unused because a large burst size is not configured.
Burst-Size Limit Configured to Match Bandwidth Limit and Flow Burstiness

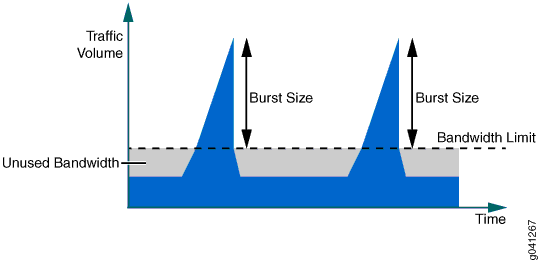

Figure 2 depicts how bandwidth usage changes when a large burst size is configured to handle bursty traffic. The large burst size minimizes the amount of unused bandwidth because tokens are being allocated in between the bursts of traffic that can be used during traffic peaks. The burst size determines the depth of the token bucket.
Burst-Size Limit That Depletes All Accumulated Tokens
Configuring a large burst size for the unused tokens creates another issue. If the burst size is set to a very large value, the burst of traffic can be transmitted from the interface at line rate until all the accumulated tokens in the token bucket are used up. This means that configuring a large burst size can allow too many packets to avoid rate limiting, which can lead to a traffic rate that exceeds the bandwidth limit for an extended period of time.
If the average rate is considered within 1 second, the rate is still below the configured bandwidth limit. However, the downstream device might not be able to handle bursty traffic, so some packets might be dropped.
Two Methods for Calculating Burst-Size Limit
For policers configured on MX Series, M120, and M320 routers, and EX Series switches, configurable burst-size limit values range from 1 ms through 600 ms of traffic at the policer rate (the configured bandwidth limit).
Because one burst size is not suitable for every traffic pattern, select the best burst size for an interface by performing experimental configurations. For your first test configuration, select the burst-size limit by using one of the calculation methods described in the next two sections.
- Calculation Based on Interface Bandwidth and Allowable Burst Time
- Calculation Based on Interface Traffic MTU
Calculation Based on Interface Bandwidth and Allowable Burst Time
If the bandwidth of the policed interface is known, the preferred method for calculating the policer burst-size limit is based on the following values:
bandwidth—Line rate of the policed interface (in bps units)burst-period—Allowable traffic-burst time (5 ms or longer)
To calculate policer bandwidth in bytes:
bandwidth X burst-period / 8
Calculation Based on Interface Traffic MTU
If the bandwidth of the policed interface is unknown, calculate the policer burst-size limit based on the following value:
interface MTU—Maximum transmission unit (in bytes) for the policed interface.
To calculate policer bandwidth in bytes:
interface MTU Χ 10
Comparison of the Two Methods

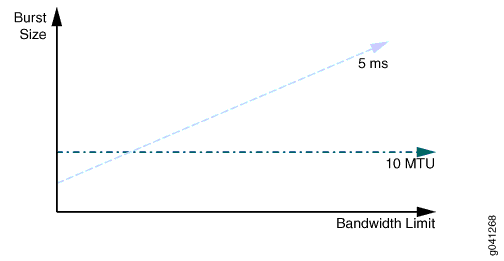

Figure 3 illustrates the relationship between the policer rate (the configured bandwidth limit) and the effective burst-size limit for the two methods of calculating the best policer burst-size limit. For the method based on interface bandwidth and allowable burst time, the correlation is labeled 5 ms. For the method based on MTU size, the correlation is labeled 10 MTU.
For a policer burst-size limit calculated using the 5 ms method, the effective burst-size limit is proportional to the configured bandwidth limit. With a very low bandwidth limit, the effective burst-size limit might be so small that the policer rate-limits traffic more aggressively than desired. For example, a traffic “burst” consisting of two MTU-sized packets might be rate-limited. In this scenario, a policer burst-size limit calculated using the 10 MTU method appears to be a better choice.
- 10 x MTU Method for Selecting Initial Burst Size for Gigabit Ethernet with 100 Kbps Bandwidth
- 5 ms Method for Selecting Initial Burst Size for Gigabit Ethernet Interface with 200 Mbps Bandwidth
- 200 Mbps Bandwidth Limit, 5 ms Burst Duration
- 200 Mbps Bandwidth Limit, 600 ms Burst Duration
10 x MTU Method for Selecting Initial Burst Size for Gigabit Ethernet with 100 Kbps Bandwidth
The following sequence illustrates the use of the 10 x MTU method for selecting an initial burst size for test configurations for a Gigabit Ethernet interface configured with a 100 Kbps bandwidth limit:
If you configure a 100 ms burst-size limit, the maximum amount of traffic allowed to pass through the interface unrestricted is 1250 bytes, calculated as follows:
content_copy zoom_out_map100,000 bps x 0.1 s 100 Kbps x 100 ms = ————————————————————— = 1250 bytes 8 bits per byte
In theory, a 10 x MTU burst size would allow up to 15,000 bytes to pass unrestricted. However, the maximum configurable burst-size limit for MX Series, M120, and M320 routers is 600 ms of the bandwidth limit. If you configure the maximum burst-size limit of 600 ms of the bandwidth limit, the maximum amount of traffic allowed to pass through the interface unrestricted is 7500 bytes, calculated as follows:
content_copy zoom_out_map100,000 bps x 0.6 s 100 Kbps x 600 ms = ————————————————————— = 7500 bytes 8 bits per byte
On a Gigabit Ethernet interface, a configured burst-size limit of 600 ms creates a burst duration of 60 μs at Gigabit Ethernet line rate, calculated as follows:
content_copy zoom_out_map7500 bytes 60,000 bits ———————————— = ——————————————————— = 0.00006 s = 60 μs 1 Gbps 1,000,000,000 bps
If the downstream device is unable to handle the amount of bursty traffic allowed using the initial burst size configuration, reduce the burst-size limit until you achieve acceptable results.
5 ms Method for Selecting Initial Burst Size for Gigabit Ethernet Interface with 200 Mbps Bandwidth
The following sequence illustrates the use of the 5 ms method for selecting an initial burst size for test configurations for a Gigabit Ethernet interface configured with a 200 Mbps bandwidth limit. This example calculation shows how a larger burst-size limit can affect the measured bandwidth rate.
If you configure a 5 ms burst-size limit, the maximum amount of traffic allowed to pass through the interface unrestricted is 125,000 bytes (approximately 83 1500-byte packets), calculated as follows:
content_copy zoom_out_map200,000,000 bps x 0.005 s 200 Mbps x 5 ms = —————————————————————————— = 125,000 bytes 8 bits per byte
On a Gigabit Ethernet interface, a configured burst-size limit of 5 ms creates a burst duration of 1 ms at Gigabit Ethernet line rate, calculated as follows:
content_copy zoom_out_map125,000 bytes 1,000,000 bits ——————————————— = ——————————————————— = 0.001 s = 1 ms 1 Gbps 1,000,000,000 bps
The average bandwidth rate in 1 second becomes 200 Mbps + 1 Mbps = 201 Mbps, which is a minimal increase over the configured bandwidth limit at 200 Mbps.
If you configure a 600 ms burst-size limit, the maximum amount of traffic allowed to pass through the interface unrestricted is 15 Mbytes (approximately 10,000 1500-byte packets), calculated as follows:
content_copy zoom_out_map200,000,000 bps x 0.6 s 200 Mbps x 600 ms = ————————————————————————— = 15,000,000 bytes 8 bits per byte
On a Gigabit Ethernet interface, a configured burst-size limit of 600 ms creates a burst duration of 120 ms at Gigabit Ethernet line rate, calculated as follows:
content_copy zoom_out_map15,000,000 bytes 120,000,000 bits —————————————— = ——————————————————— = 0.12 s = 120 ms 1 Gbps 1,000,000,000 bps
The average bandwidth rate in 1 second becomes 200 Mbps + 120 Mbps = 320 Mbps, which is much higher than the configured bandwidth limit at 200 Mbps.
200 Mbps Bandwidth Limit, 5 ms Burst Duration
If a 200 Mbps bandwidth limit is configured with a 5 ms burst size, the calculation becomes 200 Mbps x 5 ms = 125 Kbytes, which is approximately 83 1500-byte packets. If the 200 Mbps bandwidth limit is configured on a Gigabit Ethernet interface, the burst duration is 125000 bytes / 1 Gbps = 1 ms at the Gigabit Ethernet line rate.
200 Mbps Bandwidth Limit, 600 ms Burst Duration
If a large burst size is configured at 600 ms with the bandwidth limit configured at 200 Mbps, the calculation becomes 200 Mbps x 600 ms = 15 Mbytes. This creates a burst duration of 120 ms at the Gigabit Ethernet line rate. The average bandwidth rate in 1 second becomes 200 Mbps + 15 Mbytes = 320 Mbps, which is much higher than the configured bandwidth limit at 200 Mbps. This example shows that a larger burst size can affect the measured bandwidth rate.
