Removing the MX2020 DC Cable Manager
To remove the standard DC cable manager (see Figure 1):
- Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point. See the instructions for your site.
- Grasp the DC cable manager, lift up and pull straight out from the DC PDM on the rear of the chassis.
- Place the DC cable manager into an electrostatic bag and set it aside.
To remove the cable manager for the DC PDM (240 V China) and the universal (HVAC/HVDC) PDM (see Figure 2):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point. See the instructions for your site.
Using a screwdriver, loosen the two screws on each side of the cable manager (see Figure 2

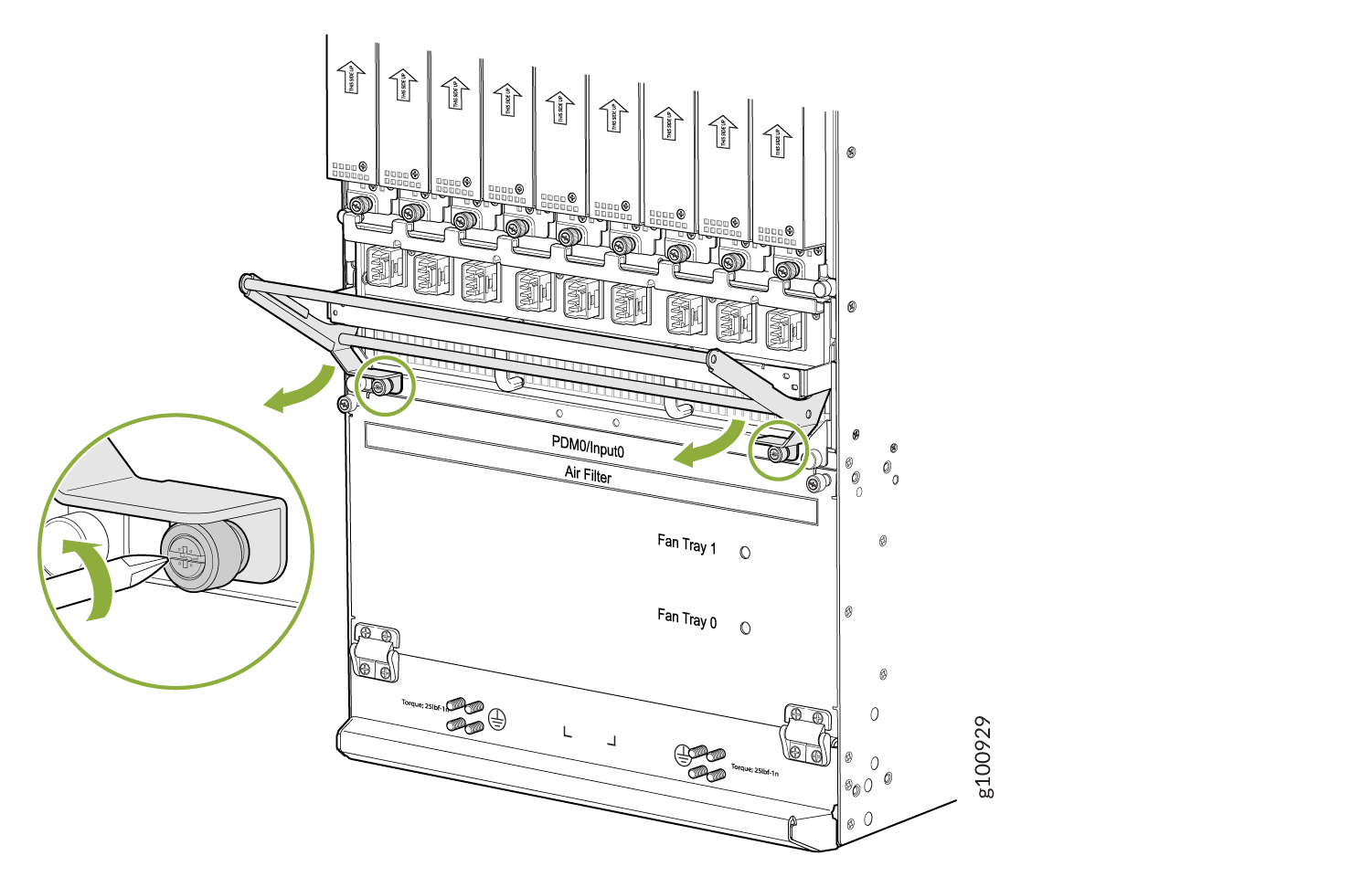

Figure 2: Removing the DC Cable Manager for DC PDM (240 V China) and the Universal (HVAC/HVDC) PDMGrasp the DC cable manager, lift up and pull straight out from the DC PDM on the rear of the chassis.
Place the DC cable manager into an electrostatic bag and set it aside.
