Removing the MX2020 Upper Cable Manager
date_range
09-Mar-21
Note:
To accommodate additional clearance, you may order an extended upper cable manager from Juniper Networks.
To remove the upper cable manager (see Figure 1):
- Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
- Loosen the two captive screws on the upper cable manager cover, and remove it.
- Using a Phillips (+) screwdriver (number 1 or 2), loosen the mounting screws on the upper cable manager.
- Grasp the upper cable manager, and pull it straight out from the studs on the front of the chassis.

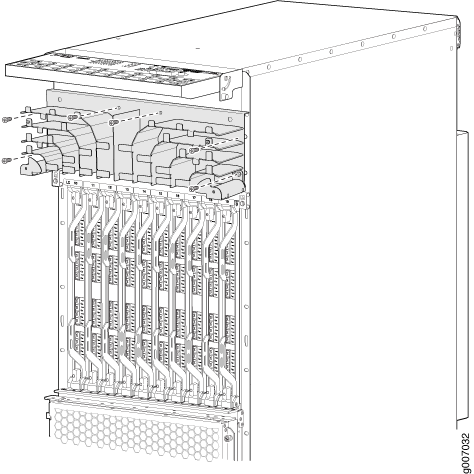

Figure 1: Removing
the Standard Upper Cable Manager
