Removing the MX2020 Lower Cable Manager

date_range 09-Mar-21
arrow_backward
arrow_forward
Note:

To accommodate additional clearance, you may order an extended lower cable manager from Juniper Networks.

To remove the lower cable manager (see Figure 1):

  1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
  2. Loosen the two captive screws on the lower cable manager cover, and remove it.
  3. Using a Phillips (+) screwdriver (number 1 or 2), loosen the mounting screws on the lower cable manager.
  4. Grasp the lower cable manager, and pull it straight out from the studs on the front of the chassis.

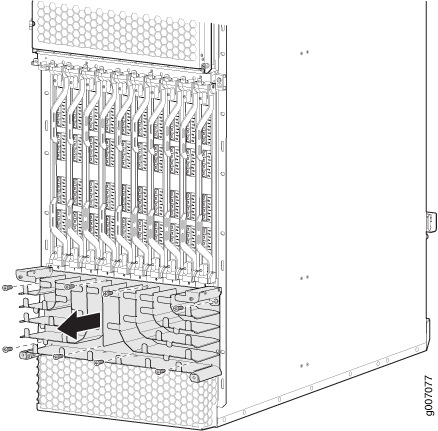

Figure 1: Removing the Standard Lower Cable ManagerRemoving the Standard Lower Cable Manager
