- play_arrow Overview
- play_arrow Understanding How Class of Service Manages Congestion and Defines Traffic Forwarding Behavior
- Understanding How Class of Service Manages Congestion and Controls Service Levels in the Network
- How CoS Applies to Packet Flow Across a Network
- The Junos OS CoS Components Used to Manage Congestion and Control Service Levels
- Mapping CoS Component Inputs to Outputs
- Default Junos OS CoS Settings
- Packet Flow Through the Junos OS CoS Process Overview
- Configuring Basic Packet Flow Through the Junos OS CoS Process
- Example: Classifying All Traffic from a Remote Device by Configuring Fixed Interface-Based Classification
- Interface Types That Do Not Support Junos OS CoS
-
- play_arrow Configuring Class of Service
- play_arrow Assigning Service Levels with Behavior Aggregate Classifiers
- Understanding How Behavior Aggregate Classifiers Prioritize Trusted Traffic
- Default IP Precedence Classifier
- Default DSCP and DSCP IPv6 Classifiers
- Default MPLS EXP Classifier
- Default IEEE 802.1p Classifier
- Default IEEE 802.1ad Classifier
- Default Aliases for CoS Value Bit Patterns Overview
- Defining Aliases for CoS Value Bit Patterns
- Configuring Behavior Aggregate Classifiers
- Applying Behavior Aggregate Classifiers to Logical Interfaces
- Example: Configuring and Applying a Default DSCP Behavior Aggregate Classifier
- Example: Configuring Behavior Aggregate Classifiers
- Understanding DSCP Classification for VPLS
- Example: Configuring DSCP Classification for VPLS
- Configuring Class of Service for MPLS LSPs
- Applying DSCP Classifiers to MPLS Traffic
- Applying MPLS EXP Classifiers to Routing Instances
- Applying MPLS EXP Classifiers for Explicit-Null Labels
- Manage Ingress Oversubscription with Traffic Class Maps
- play_arrow Assigning Service Levels with Multifield Classifiers
- Overview of Assigning Service Levels to Packets Based on Multiple Packet Header Fields
- Configuring Multifield Classifiers
- Using Multifield Classifiers to Set Packet Loss Priority
- Example: Configuring and Applying a Firewall Filter for a Multifield Classifier
- Example: Classifying Packets Based on Their Destination Address
- Example: Configuring and Verifying a Complex Multifield Filter
- play_arrow Controlling Network Access with Traffic Policing
- Controlling Network Access Using Traffic Policing Overview
- Effect of Two-Color Policers on Shaping Rate Changes
- Configuring Policers Based on Logical Interface Bandwidth
- Example: Limiting Inbound Traffic at Your Network Border by Configuring an Ingress Single-Rate Two-Color Policer
- Example: Performing CoS at an Egress Network Boundary by Configuring an Egress Single-Rate Two-Color Policer
- Example: Limiting Inbound Traffic Within Your Network by Configuring an Ingress Single-Rate Two-Color Policer and Configuring Multifield Classifiers
- Example: Limiting Outbound Traffic Within Your Network by Configuring an Egress Single-Rate Two-Color Policer and Configuring Multifield Classifiers
- Overview of Tricolor Marking Architecture
- Enabling Tricolor Marking and Limitations of Three-Color Policers
- Configuring and Applying Tricolor Marking Policers
- Configuring Single-Rate Tricolor Marking
- Configuring Two-Rate Tricolor Marking
- Example: Configuring and Verifying Two-Rate Tricolor Marking
- Applying Firewall Filter Tricolor Marking Policers to Interfaces
- Policer Overhead to Account for Rate Shaping in the Traffic Manager
- play_arrow Defining Forwarding Behavior with Forwarding Classes
- Understanding How Forwarding Classes Assign Classes to Output Queues
- Default Forwarding Classes
- Configuring a Custom Forwarding Class for Each Queue
- Configuring Up to 16 Custom Forwarding Classes
- Classifying Packets by Egress Interface
- Forwarding Policy Options Overview
- Configuring CoS-Based Forwarding
- Example: Configuring CoS-Based Forwarding
- Example: Configuring CoS-Based Forwarding for Different Traffic Types
- Example: Configuring CoS-Based Forwarding for IPv6
- Applying Forwarding Classes to Interfaces
- Understanding Queuing and Marking of Host Outbound Traffic
- Forwarding Classes and Fabric Priority Queues
- Default Routing Engine Protocol Queue Assignments
- Assigning Forwarding Class and DSCP Value for Routing Engine-Generated Traffic
- Example: Writing Different DSCP and EXP Values in MPLS-Tagged IP Packets
- Change the Default Queuing and Marking of Host Outbound Traffic
- Example: Configure Different Queuing and Marking Defaults for Outbound Routing Engine and Distributed Protocol Handler Traffic
- Overriding the Input Classification
- play_arrow Defining Output Queue Properties with Schedulers
- How Schedulers Define Output Queue Properties
- Default Schedulers Overview
- Configuring Schedulers
- Configuring Scheduler Maps
- Applying Scheduler Maps Overview
- Applying Scheduler Maps to Physical Interfaces
- Configuring Traffic Control Profiles for Shared Scheduling and Shaping
- Configuring an Input Scheduler on an Interface
- Understanding Interface Sets
- Configuring Interface Sets
- Interface Set Caveats
- Configuring Internal Scheduler Nodes
- Example: Configuring and Applying Scheduler Maps
- play_arrow Controlling Bandwidth with Scheduler Rates
- Oversubscribing Interface Bandwidth
- Configuring Scheduler Transmission Rate
- Providing a Guaranteed Minimum Rate
- PIR-Only and CIR Mode
- Excess Rate and Excess Priority Configuration Examples
- Controlling Remaining Traffic
- Bandwidth Sharing on Nonqueuing Packet Forwarding Engines Overview
- Configuring Rate Limits on Nonqueuing Packet Forwarding Engines
- Applying Scheduler Maps and Shaping Rate to DLCIs and VLANs
- Example: Applying Scheduler Maps and Shaping Rate to DLCIs
- Example: Applying Scheduling and Shaping to VLANs
- Applying a Shaping Rate to Physical Interfaces Overview
- Configuring the Shaping Rate for Physical Interfaces
- Example: Limiting Egress Traffic on an Interface Using Port Shaping for CoS
- Configuring Input Shaping Rates for Both Physical and Logical Interfaces
- play_arrow Setting Transmission Order with Scheduler Priorities and Hierarchical Scheduling
- Priority Scheduling Overview
- Configuring Schedulers for Priority Scheduling
- Associating Schedulers with Fabric Priorities
- Hierarchical Class of Service Overview
- Hierarchical Class of Service Network Scenarios
- Understanding Hierarchical Scheduling
- Priority Propagation in Hierarchical Scheduling
- Hierarchical CoS for Metro Ethernet Environments
- Hierarchical Schedulers and Traffic Control Profiles
- Example: Building a Four-Level Hierarchy of Schedulers
- Hierarchical Class of Service for Network Slicing
- Configuring Ingress Hierarchical CoS
- play_arrow Controlling Congestion with Scheduler RED Drop Profiles, Buffers, PFC, and ECN
- RED Drop Profiles for Congestion Management
- Determining Packet Drop Behavior by Configuring Drop Profile Maps for Schedulers
- Managing Congestion by Setting Packet Loss Priority for Different Traffic Flows
- Mapping PLP to RED Drop Profiles
- Managing Congestion on the Egress Interface by Configuring the Scheduler Buffer Size
- Managing Transient Traffic Bursts by Configuring Weighted RED Buffer Occupancy
- Example: Managing Transient Traffic Bursts by Configuring Weighted RED Buffer Occupancy
- Understanding PFC Using DSCP at Layer 3 for Untagged Traffic
- Configuring DSCP-based PFC for Layer 3 Untagged Traffic
- PFC Watchdog
- CoS Explicit Congestion Notification
- Example: Configuring Static and Dynamic ECN
- play_arrow Altering Outgoing Packet Headers Using Rewrite Rules
- Rewriting Packet Headers to Ensure Forwarding Behavior
- Applying Default Rewrite Rules
- Configuring Rewrite Rules
- Configuring Rewrite Rules Based on PLP
- Applying IEEE 802.1p Rewrite Rules to Dual VLAN Tags
- Applying IEEE 802.1ad Rewrite Rules to Dual VLAN Tags
- Rewriting IEEE 802.1p Packet Headers with an MPLS EXP Value
- Setting IPv6 DSCP and MPLS EXP Values Independently
- Configuring DSCP Values for IPv6 Packets Entering the MPLS Tunnel
- Setting Ingress DSCP Bits for Multicast Traffic over Layer 3 VPNs
- Applying Rewrite Rules to Output Logical Interfaces
- Rewriting MPLS and IPv4 Packet Headers
- Rewriting the EXP Bits of All Three Labels of an Outgoing Packet
- Defining a Custom Frame Relay Loss Priority Map
- Example: Per-Node Rewriting of EXP Bits
- Example: Rewriting CoS Information at the Network Border to Enforce CoS Strategies
- Example: Remarking Diffserv Code Points to MPLS EXPs to Carry CoS Profiles Across a Service Provider’s L3VPN MPLS Network
- Example: Remarking Diffserv Code Points to 802.1P PCPs to Carry CoS Profiles Across a Service Provider’s VPLS Network
- Assigning Rewrite Rules on a Per-Customer Basis Using Policy Maps
- Host Outbound Traffic IEEE802.1p Rewrite
- play_arrow Altering Class of Service Values in Packets Exiting the Network Using IPv6 DiffServ
- Resources for CoS with DiffServ for IPv6
- System Requirements for CoS with DiffServ for IPv6
- Terms and Acronyms for CoS with DiffServ for IPv6
- Default DSCP Mappings
- Default Forwarding Classes
- Juniper Networks Default Forwarding Classes
- Roadmap for Configuring CoS with IPv6 DiffServ
- Configuring a Firewall Filter for an MF Classifier on Customer Interfaces
- Applying the Firewall Filter to Customer Interfaces
- Assigning Forwarding Classes to Output Queues
- Configuring Rewrite Rules
- DSCP IPv6 Rewrites and Forwarding Class Maps
- Applying Rewrite Rules to an Interface
- Configuring RED Drop Profiles
- Configuring BA Classifiers
- Applying a BA Classifier to an Interface
- Configuring a Scheduler
- Configuring Scheduler Maps
- Applying a Scheduler Map to an Interface
- Example: Configuring DiffServ for IPv6
-
- play_arrow Configuring Platform-Specific Functionality
- play_arrow Configuring Class of Service on ACX Series Universal Metro Routers
- CoS on ACX Series Routers Features Overview
- Understanding CoS CLI Configuration Statements on ACX Series Routers
- DSCP Propagation and Default CoS on ACX Series Routers
- Configuring CoS on ACX Series Routers
- Classifiers and Rewrite Rules at the Global, Physical, and Logical Interface Levels Overview
- Configuring Classifiers and Rewrite Rules at the Global and Physical Interface Levels
- Applying DSCP and DSCP IPv6 Classifiers on ACX Series Routers
- Schedulers Overview for ACX Series Routers
- Shared and Dedicated Buffer Memory Pools on ACX Series Routers
- CoS for PPP and MLPPP Interfaces on ACX Series Routers
- CoS for NAT Services on ACX Series Routers
- Hierarchical Class of Service in ACX Series Routers
- Storm Control on ACX Series Routers Overview
- play_arrow Configuring Class of Service on MX Series 5G Universal Routing Platforms
- Junos CoS on MX Series 5G Universal Routing Platforms Overview
- CoS Features and Limitations on MX Series Routers
- Configuring and Applying IEEE 802.1ad Classifiers
- Scheduling and Shaping in Hierarchical CoS Queues for Traffic Routed to GRE Tunnels
- Example: Performing Output Scheduling and Shaping in Hierarchical CoS Queues for Traffic Routed to GRE Tunnels
- CoS-Based Interface Counters for IPv4 or IPv6 Aggregate on Layer 2
- Enabling a Timestamp for Ingress and Egress Queue Packets
- play_arrow Configuring Class of Service on PTX Series Packet Transport Routers
- CoS Features and Limitations on PTX Series Routers
- CoS Feature Differences Between PTX Series Packet Transport Routers and T Series Routers
- Understanding Scheduling on PTX Series Routers
- Virtual Output Queues on PTX Series Packet Transport Routers
- Example: Configuring Excess Rate for PTX Series Packet Transport Routers
- Identifying the Source of RED Dropped Packets on PTX Series Routers
- Configuring Queuing and Shaping on Logical Interfaces on PTX Series Routers
- Example: Configuring Queuing and Shaping on Logical Interfaces in PTX Series Packet Transport Routers
- Example: Configuring Strict-Priority Scheduling on a PTX Series Router
- CoS Support on EVPN VXLANs
- Understanding CoS CLI Configuration Statements on PTX Series Routers
- Classification Based on Outer Header of Decapsulation Tunnel
-
- play_arrow Configuration Statements and Operational Commands
Example: Configuring Per-Priority Shaping on MIC and MPC Interfaces

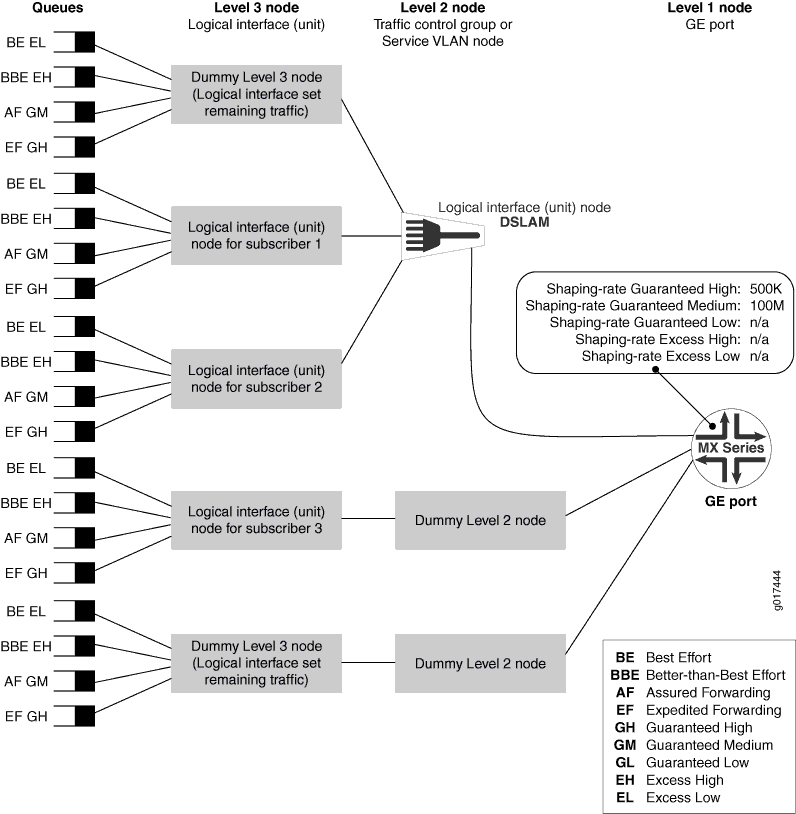

In practice, per-priority shaping is used with other traffic control profiles to control traffic as a whole. Consider the traffic control profile applied to the physical interface (port), as shown in Figure 1.

This example is more complex than those used before. In addition to a pair of subscribers in an interface set (DSLAM), the figure now adds the following:
A dummy level 3 scheduler node (
interface-set-remaining-traffic
) that provides scheduling for interface set members that do not have explicit class-of-service parameters configured.A subscriber (Subscriber 3) that is not a member of an interface set. A dummy level 2 node connects Subscriber 3’s level 3 node to level 1, making it appear to be at level 2.
A dummy level 3 scheduler node (
port-remaining-traffic
) in order to provide queues for traffic that does not have explicit class-of-service parameters configured.A dummy level 2 scheduler node to connect level 1 and level 3 scheduler nodes. This dummy level 2 scheduler node is internal only.
This example uses a gigabit Ethernet interface with five logical interface units, each one representing one of the level 3 nodes in Figure 1.
From the top of the figure to the bottom, the level 3 nodes are:
Unit 3 is scheduled as a “dummy” level 3 node because unit 3 is a member of an interface set (
ifset-1
) but there is no explicit CoS configuration.Unit 1 is scheduled as a logical interface node for subscriber 1 because unit 1 is a member of an interface set (
ifset-1
) and has an explicit CoS configuration under the[edit class-of-service interfaces]
hierarchy.Unit 2 is scheduled as a logical interface node for subscriber 2 because unit 2 is a member of an interface set (
ifset-1
) and has an explicit CoS configuration under the[edit class-of-service interfaces]
hierarchy.Unit 4 is scheduled as a logical interface node for subscriber 3 because unit 4 is not a member of an interface set but has an explicit CoS configuration under the
[edit class-of-service interfaces]
hierarchy level.Unit 5 is scheduled by another “dummy” level 3 node, this one for remaining traffic at the port level, because unit 5 is not a member of an interface set and has no explicit CoS configuration.
In this example, per-priority shaping is applied at the physical port level. The example uses three priorities, but other parameters are possible. The example does not use shaping rates, transmit rates, excess priorities, or other options for reasons of simplicity. The example uses five forwarding classes and leaves out a network control forwarding class that would typically be included in real configurations.
The example configuration is presented in several parts:
Interfaces configuration
Class-of-service forwarding classes and traffic control profiles configuration
Class-of-service interfaces configuration
Class-of-service schedulers and scheduler map configuration
Interfaces configuration:
[edit] interfaces { # A three member interface-set. interface-set ifset-1 { interface ge-1/1/0 { unit 1; unit 2; unit 3; } } # A ge port configured for "hierarchical-scheduling" and # vlans. 5 vlans are configured for the 5 level-3 scheduler # nodes # ge-1/1/0 { hierarchical-scheduler; vlan-tagging; unit 1 { vlan-id 1; } unit 2 { vlan-id 2; } unit 3 { vlan-id 3; } unit 4 { vlan-id 4; } unit 5 { vlan-id 5; } } }
Class-of-service forwarding classes and traffic control profiles configuration:
[edit class-of-service] forwarding-classes { queue 0 BE priority low; queue 1 BBE priority low; queue 2 AF priority low; queue 3 EF priority high; } traffic-control-profiles { tcp-if-portd { shaping-rate-priority-high 500k; shaping-rate-priority-medium 100m; } tcp-if-port-rem { scheduler-map smap-1; } tcp-ifset-rem { scheduler-map smap-1; } tcp-if-unit { scheduler-map smap-1; shaping-rate 10m; } }
Class-of-service interfaces configuration:
[edit class-of-service] interfaces { interface-set ifset-1 { output-traffic-control-profile-remaining tcp-ifset-rem; } ge-1/1/0 { output-traffic-control-profile tcp-if-port; output-traffic-control-profile-remaining tcp-if-port-rem; unit 1 { output-traffic-control-profile tcp-if-unit; } unit 2 { output-traffic-control-profile tcp-if-unit; } # Unit 3 present in the interface config and interface-set # config, but is absent in this CoS config so that we can # show traffic that uses the interface-set # remaining-traffic path. unit 4 { output-traffic-control-profile tcp-if-unit; } # Unit 5 is present in the interface config, but is absent # in this CoS config so that we can show traffic that # uses the if-port remaining-traffic path. } }
Class-of-service schedulers and scheduler map configuration:
[edit class-of-service] scheduler-maps { smap-1 { forwarding-class BE scheduler sched-be; forwarding-class BBE scheduler sched-bbe; forwarding-class AF scheduler sched-af; forwarding-class EF scheduler sched-ef; } schedulers { sched-be { priority low; } sched-bbe { priority low; } sched-af { priority medium-high; } sched-ef { priority high; } }
You can configure both a shaping rate and a per-priority shaping
rate. In this case, the legacy shaping-rate
statement specifies
the maximum rate for all traffic scheduled through the scheduler.
Therefore, the per-priority shaping rates must be less than or equal
to the overall shaping rate. So if there is a shaping-rate 400m
statement configured in a traffic control profile, you cannot configure
a higher value for a per-priority shaping rate (such as shaping-rate-priority-high
500m
). However, the sum of the per-priority shaping rates can
exceed the overall shaping rate: for shaping-rate 400m
you
can configure both shaping-rate-priority-high 300m
and shaping-rate-priority-low 200m
statements.
Generally, you cannot configure a shaping rate that is smaller than the guaranteed rate (which is why it is guaranteed). However, no such restriction is placed on per-priority shaping rates unless all shaping rates are for priority high or low or medium traffic.
This configuration is allowed (per-priority rates smaller than guaranteed rate):
[edit class-of-service] traffic-control-profile { tcp-for-ge-port { guaranteed-rate 500m; shaping-rate-priority-high 400m; shaping-rate-priority-medium 300m; shaping-rate-excess-high 100m; } }
However, this configuration generates an error (no excess per-priority rate, so the node can never achieve its guaranteed rate):
[edit class-of-service] traffic-control-profile { tcp-for-ge-port { guaranteed-rate 301m; shaping-rate-priority-high 100m; shaping-rate-priority-medium 100m; shaping-rate-priority-low 100m; } }
You verify configuration of per-priority shaping with the show class-of-service traffic-control-profile
command. This
example shows shaping rates established for the high and medium priorities
for a traffic control profile named tcp-ge-port
.
user@host# show class-of-service traffic-control-profile Traffic control profile: tcp-ae, Index: 22093 Shaping rate: 3000000000 Scheduler map: <default> Traffic control profile: tcp-ge-port, Index: 22093 Shaping rate priority high: 1000000000 Shaping rate priority medium: 9000000000 Scheduler map: <default>
There are no restrictions on or interactions between per-priority shaping rates and the excess rate. An excess rate (a weight) is specified as a percentage or proportion of excess bandwidth.
Table 1 shows where traffic control profiles containing per-priority shaping rates can be attached for both per-unit schedulers and hierarchical schedulers.
Type of Traffic Control Profile | Per-unit Allowed? | Hierarchical Allowed? |
---|---|---|
Port level | Yes | Yes |
Port level | No | Yes |
Port level | No | Yes |
Port level | No | No |
Port level | No | No |
Interface set | No | Yes |
Interface set | No | No |
Interface set | No | No |
Interface set | No | No |
Logical interface level | No | No |
Logical interface level | No | No |
