MX960 PIC Port and Interface Numbering
date_range
09-Mar-21
Each port on a PIC corresponds to a unique interface name in the CLI.
In the syntax of an interface name, a hyphen (-)
separates the media type from the FPC slot number (represented as an FPC in the CLI). The FPC
slot number corresponds to the first number in the interface. The
second number in the interface corresponds to the PIC number. The
last number in the interface matches the port number on the PIC. Slashes
(/) separate the FPC number from the PIC number and port
number:
type-fpc/pic/port
type—Media type, which identifies the network device. For example:
ge—Gigabit Ethernet interface
so—SONET/SDH interface
xe—10-Gigabit Ethernet interface
For a complete list of media types, see Interface Naming Overview.
fpc—Lowest slot number in which the FPC is installed. On the MX960 router, the FPCs occupy two slots and are represented in the CLI as
FPC 0throughFPC 10.pic—PIC number, 0 or 1 depending on the FPC slot.
For more information on specific PICs, see PICs Supported by MX240, MX480, and MX960 Routers in the MX Series Interface Module Reference.
port—Port number.
The MX960 supports up to six FPCs that install vertically and are numbered from left to right. Each FPC accepts up to two PICs.

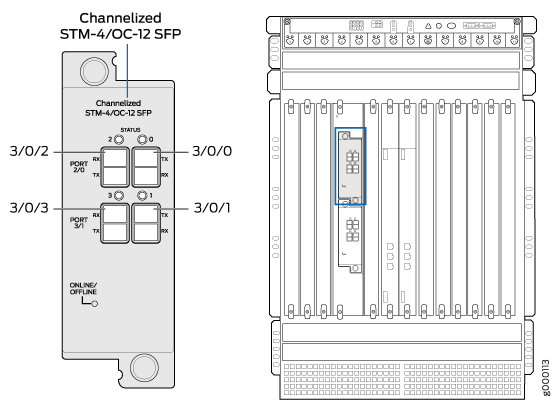

Figure 1 shows a Channelized OC12/STM4 Enhanced IQ (IQE) PIC with SFP installed in PIC slot0of an FPC installed in slot3 and slot4.
Figure 1: MX960 PIC Interface
Port Mapping
The show chassis hardware command output displays
a Channelized OC12/STM4 Enhanced IQ (IQE) PIC (4x CHOC12
IQE SONET) installed in an MX FPC Type 2.
content_copy zoom_out_map
user@host> show chassis hardware
...
FPC 3 REV 01 710-024386 JW9571 MX FPC Type 2
CPU REV 03 710-022351 KE2986 DPC PMB
PIC 0 REV 00 750-022630 DS1284 4x CHOC12 IQE SONET
Xcvr 0 REV 01 740-011782 PB821SG SFP-SX
Xcvr 1 REV 01 740-011782 PB829Q6 SFP-SX
Xcvr 2 REV 01 740-011613 P9F15NQ SFP-SX
Xcvr 3 REV 01 740-011782 P7N036X SFP-SX... The show interfaces terse command output displays
the channelized SONET OC12 interfaces (coc12), that correspond to the four ports located on the PIC.
content_copy zoom_out_map
user@host> show interfaces terse coc12* Interface Admin Link Proto Local Remote coc12-3/0/0 up up coc12-3/0/1 up up coc12-3/0/2 up up coc12-3/0/3 up up
