Form LAG

Release: Juniper Apstra 5.0

date_range 04-Nov-24

arrow_backward

arrow_forward

From the blueprint, navigate to Staged > Physical > Topology and select the node to add as a member of a LAG.

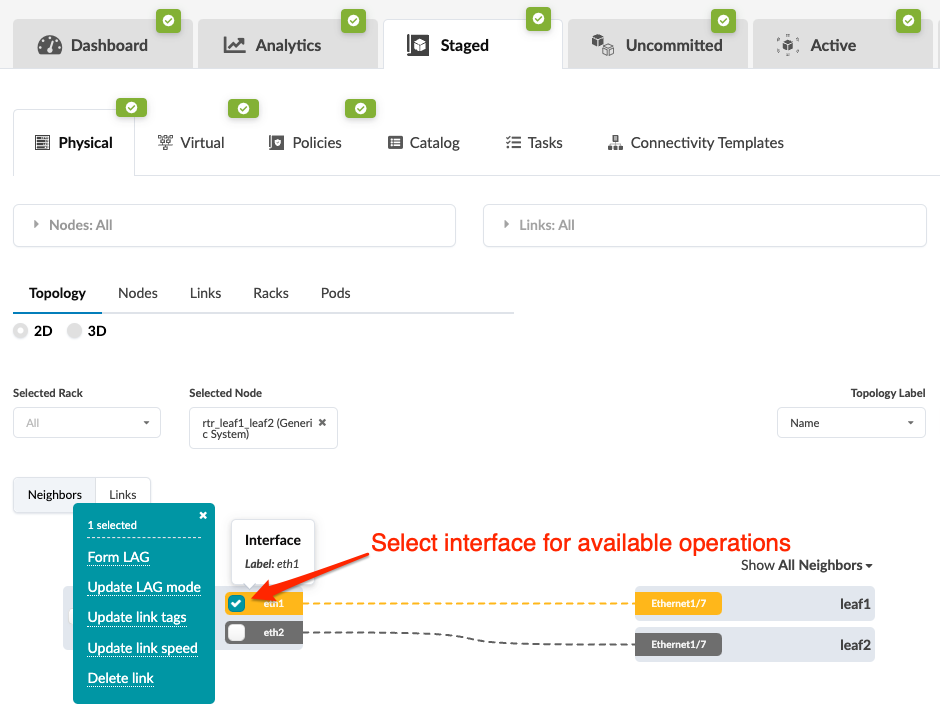

Select the interface check box to see the operations available for that interface (and that you have permissions for).

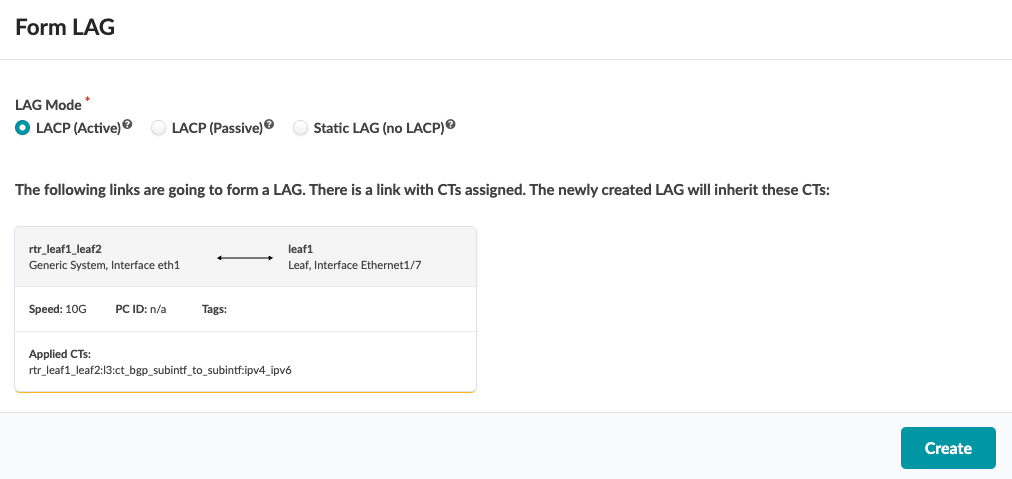

Click Form LAG and select the LAG mode:
- LACP (Active) - actively advertises LACP BPDU even when neighbors do not.
- LACP (Passive) - doesn't generate LACP BPDU until it sees one from a neighbor.
- Static LAG (no LACP) - Static LAGs don't participate in LACP and will conditionally operate in forwarding mode.
Click Update to stage your changes and return to the Topology view.
When you form a LAG, it inherits any connectivity templates assigned on the individual links. The LAG is created, but LACP configuration won't be pushed to the device until connectivity templates are applied. When you form a LAG, it inherits any connectivity templates assigned on the individual links.

When you're ready to activate your changes, commit them from the Uncommitted tab.

arrow_backward PREVIOUS Mixed Link Speeds between Leaf and Spine

NEXT arrow_forward Create Link in LAG
