Integers
Integers in Apstra
Integers are optional resource types for Freeform blueprints only. In Apstra, you create Integer pools in the global Resources catalog. When you're building your blueprint, you can assign an integer pool, then Apstra will automatically pull resources as needed. If you need to assign a specific integer, you can assign it manually.
Integer Pool Details
Integer pools include the following details:
| Name | A unique name to identify the resource pool |
| Ranges | The beginning and ending numbers of the range. |
Integer Pools in the Apstra GUI

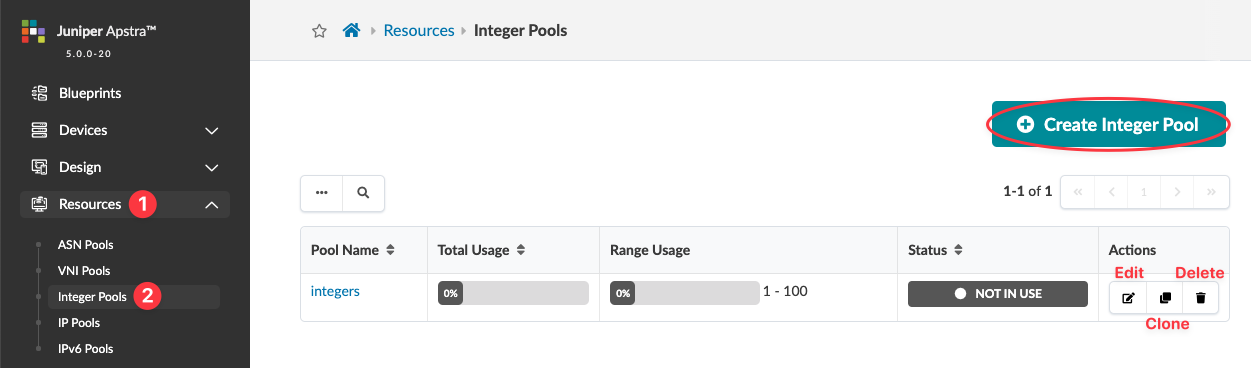

From the left navigation menu in the Apstra GUI, navigate to Resources > Integer Pools to go to the global catalog where you can create, edit and delete integer pools.
Create Integer Pool
- From the left navigation menu, navigate to Resources > Integer Pools and click Create Integer Pool.
- Enter a unique name and range. To add another range, click Add a range and enter the range.
- Click Create to create the pool and return to the table view.
Update Integer Pool
- From the left navigation menu, navigate to Resources > Integer Pools and click the Edit button for the pool to update.
- Make your changes. You can add, change and delete ranges, but you cannot remove integers that are in use.
- Click Update to update the pool and return to the table view.
Delete Integer Pool
- From the left navigation menu, navigate to Resources > Integer Pools and click the Delete button for the pool to delete.
- Click Delete to delete the pool and return to the table view.
