Add Links to Leaf

  1. From the blueprint, navigate to Staged > Physical > Topology and select a node that can connect to a leaf.
  2. Select the node check box to see the operations available for that node (and that you have permissions for).
    Note:

    You can also get to the selection page from the Nodes view. From the blueprint, navigate to Staged > Physical > Nodes, click the node name in the table, then click the node name that appears at the top of the Selection panel (on the right side of the page).

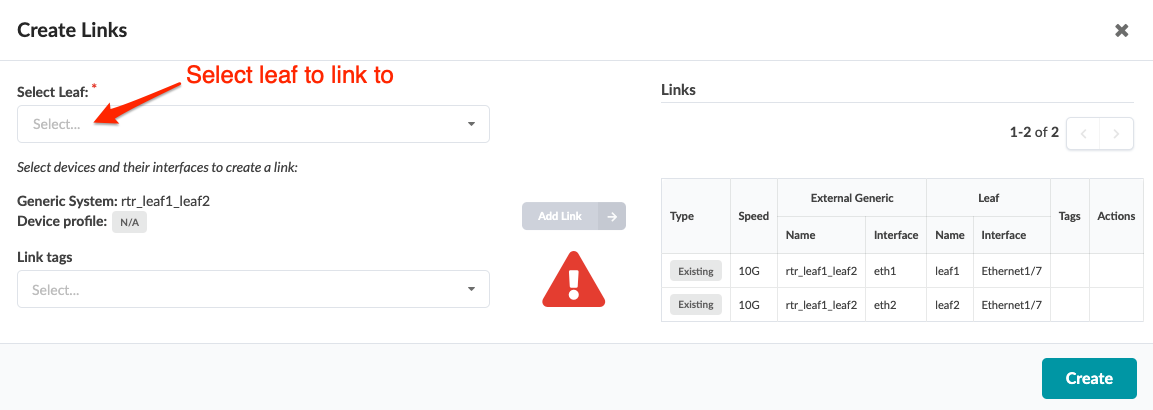

  3. Click Add links to leaf to go to its dialog.

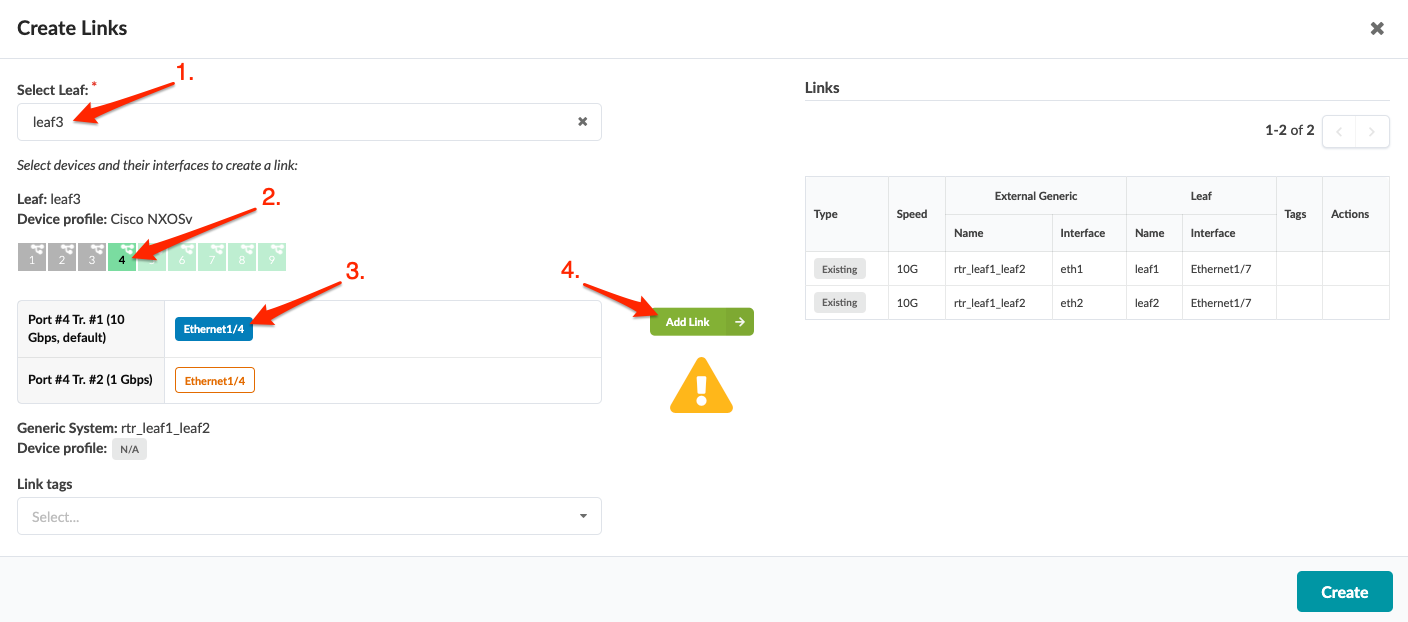

  4. Select the leaf to link to from the drop-down menu, then select an available port and transformation. The gray Add Link button turns green.

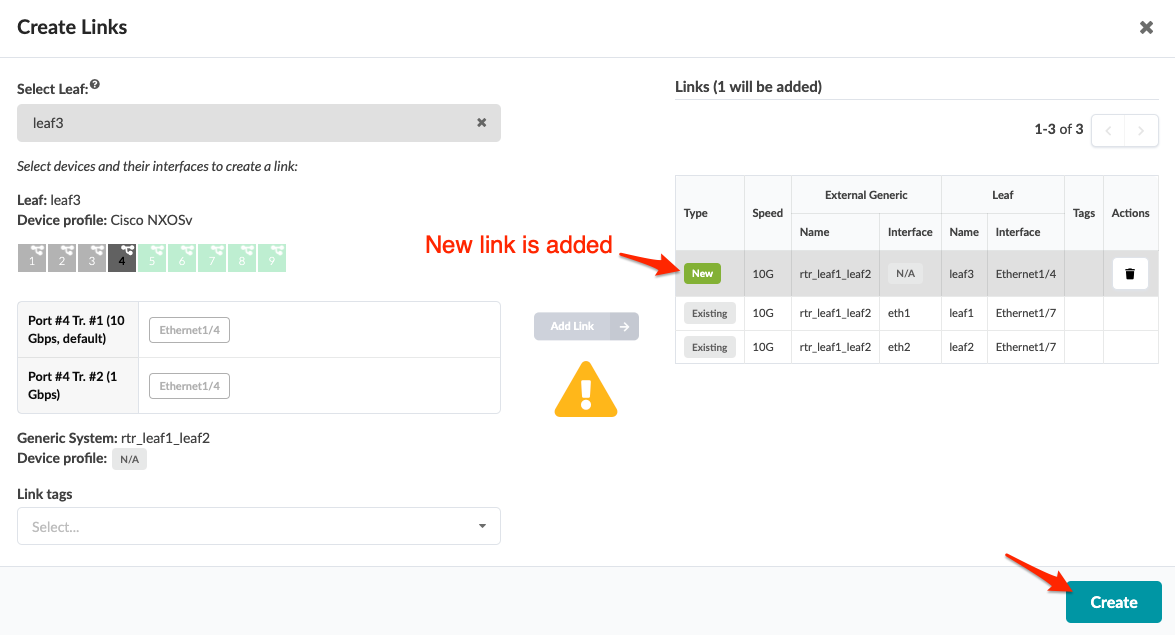

  5. Click Add Link. The link is added to the link table.

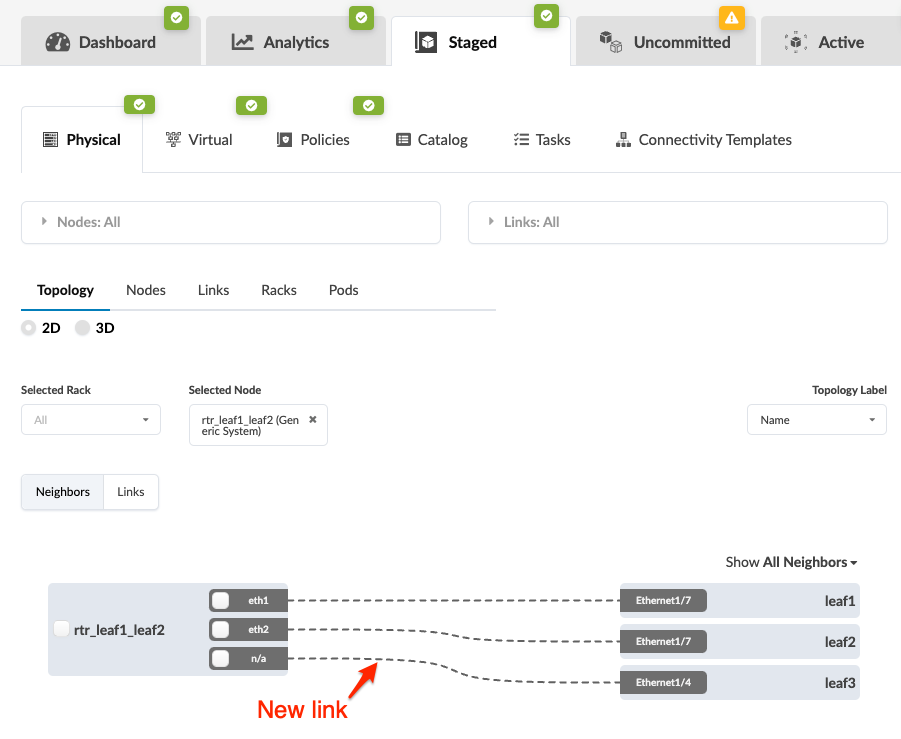

  6. Click Create to stage the change and return to the Topology view.

When you're ready to activate your changes, commit them from the Uncommitted tab.
