Systems Introduction (Freeform)

Release: Juniper Apstra 4.2

date_range 07-Feb-24

arrow_backward

arrow_forward

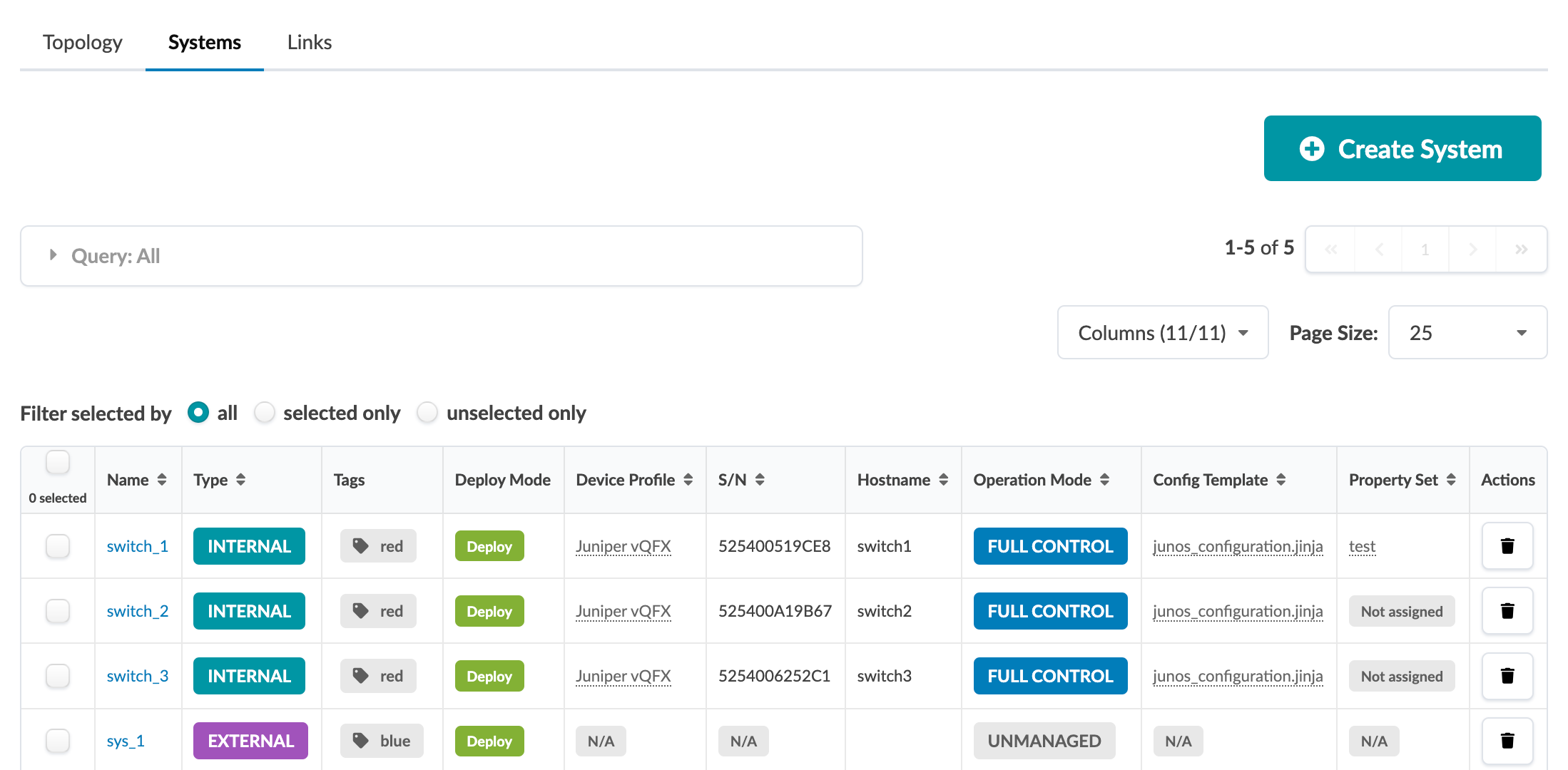

The Systems view (Staged > Physical > Systems) shows in a table format the collection of devices/objects that make up the network (similar to the Nodes view in Datacenter reference designs). The table includes information about internal and external systems in the blueprint, tags, deploy mode, assigned device profile, assigned system ID, hostname, operation mode (full control), assigned config template, and assigned property set. You can see details at a glance and tell if there are any issues with missing requirements. You can customize what appears in the table by selecting/deselecting elements in the columns drop-down list. You can perform various tasks from the Systems view as described in later sections.
