AAA Servers (Datacenter Blueprint)

Release: Juniper Apstra 4.2

date_range 07-Feb-24

arrow_backward

arrow_forward

AAA Servers Overview

AAA servers are used with interface policies. AAA servers include the following details:

Parameter	Description
Label	To identify the AAA server
Server Type	RADIUS 802.1x - If an 802.1x policy is bound to at least one interface on a switch, all defined AAA RADIUS 802.1x servers will be added to that switch. The server is not rendered unless it is needed. RADIUS COA (Change of Authorization) - Used by switches to enable Dynamic Authorization Server (DAS) requests from RADIUS servers. This enables the switch to 'trust' the given RADIUS server to do assign dynamic VLANs after authentication instead of during auth. All RADIUS COA implementations are hard-coded to auth port 3799.
Hostname
Auth Ports
Accounting Port	optional

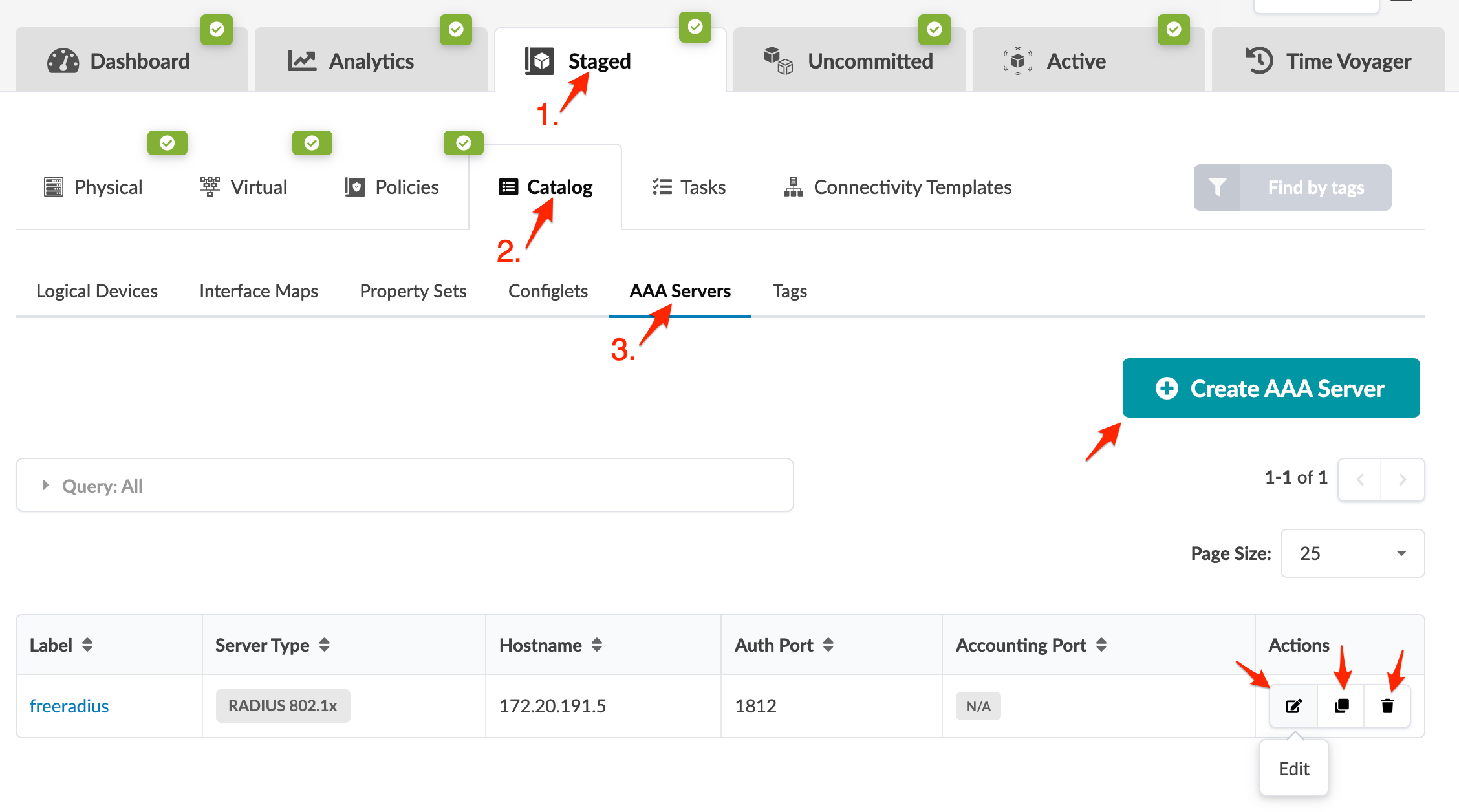

From the blueprint, navigate to Staged > Catalog > AAA Servers to go to the AAA servers catalog. You can create, clone, edit, and delete AAA servers.

Create AAA Server

From the blueprint, navigate to Staged > Catalog > AAA Servers and click Create AAA Server.
Enter a label, select the server type (RADIUS 802.1x, RADIUS COA), enter a hostname, key, auth port, and (optional) accounting port.
Click Create to stage the server and return to the table view.

Edit AAA Server

From the blueprint, navigate to Staged > Catalog > AAA Servers and click the Edit button for the AAA server to edit.
Make your changes, then click Update to stage the update and return to the table view.

Delete AAA Server

From the blueprint, navigate to Staged > Catalog > AAA Servers and click the Delete button for the AAA server to delete.
Click Delete to stage the deletion and return to the table view.

Configure AAA RADIUS Server

Configuring AAA RADIUS servers are external to Apstra software. The example below shows the files to configure for FreeRADIUS.

/etc/freeradius/clients.conf -- has credentials for each switch

content_copy zoom_out_map
client Arista-7280SR-48C6-1 {
    shortname = Arista-7280SR-48C6-1
    ipaddr    = 172.20.191.10
    secret    = testing123
    nastype   = other
}

/etc/freeradius/users -- has users and MAC addresses to authenticate. Tunnel-Private-Group-Id shows a dynamic VLAN ID, which is optional.

content_copy zoom_out_map
leaf1-server1 ClearText-Password := "password"

"52:54:00:37:d5:e1" Cleartext-Password := "52:54:00:37:d5:e1"
    Tunnel-Type = VLAN,
    Tunnel-Medium-Type = IEEE-802,
    Tunnel-Private-Group-Id = "50"

This example shows a simple credential; when you configure you may use any EAP method that both the client and RADIUS server support.

Configure Client Supplicant

Configuring client supplicant is external to Apstra software. The following is an example for wpa_supplicant.

/etc/wpa_supplicant/aos_wpa_supplicant.conf

content_copy zoom_out_map
# Ansible managed
ctrl_interface=/var/run/wpa_supplicant
# Default version is 0 - ensure we're using modern protocols.
eapol_version=2
# Don't scan for wifi.
ap_scan=0
# Hosts will be configured to authenticate with usernames that match their
# Slicer DUT name, configured in radius_server playbook.
network={
    key_mgmt=IEEE8021X
    eap=TTLS MD5
    identity="leaf1-server1"
    anonymous_identity="leaf1-server1"
    password="password"
    phase1="auth=MD5"
    phase2="auth=PAP password=password"
    eapol_flags=0
}
