Optimize Routing Zone Resource Usage (4.2.1)

date_range 07-Feb-24

arrow_backward

arrow_forward

In Apstra version 4.2.0 and later, resources used for routing zones are already optimized (enabled) by default. This means VRF configuration is rendered only on leafs where at least one server-endpoint is a member of a virtual network in that routing zone.

In Apstra versions earlier than 4.2.0, all routing zones required resources. When you upgrade an Apstra server from a pre-4.2.0 version to version 4.2.1 or later, optimization is disabled by default. Since enabling optimization is disruptive, you must manually enable it yourself in this case. (Remember, currently you can't upgrade to major releases, such as 4.2.0.)

From the blueprint, navigate to Staged > Fabric Settings > Fabric Policy and click Modify Settings.

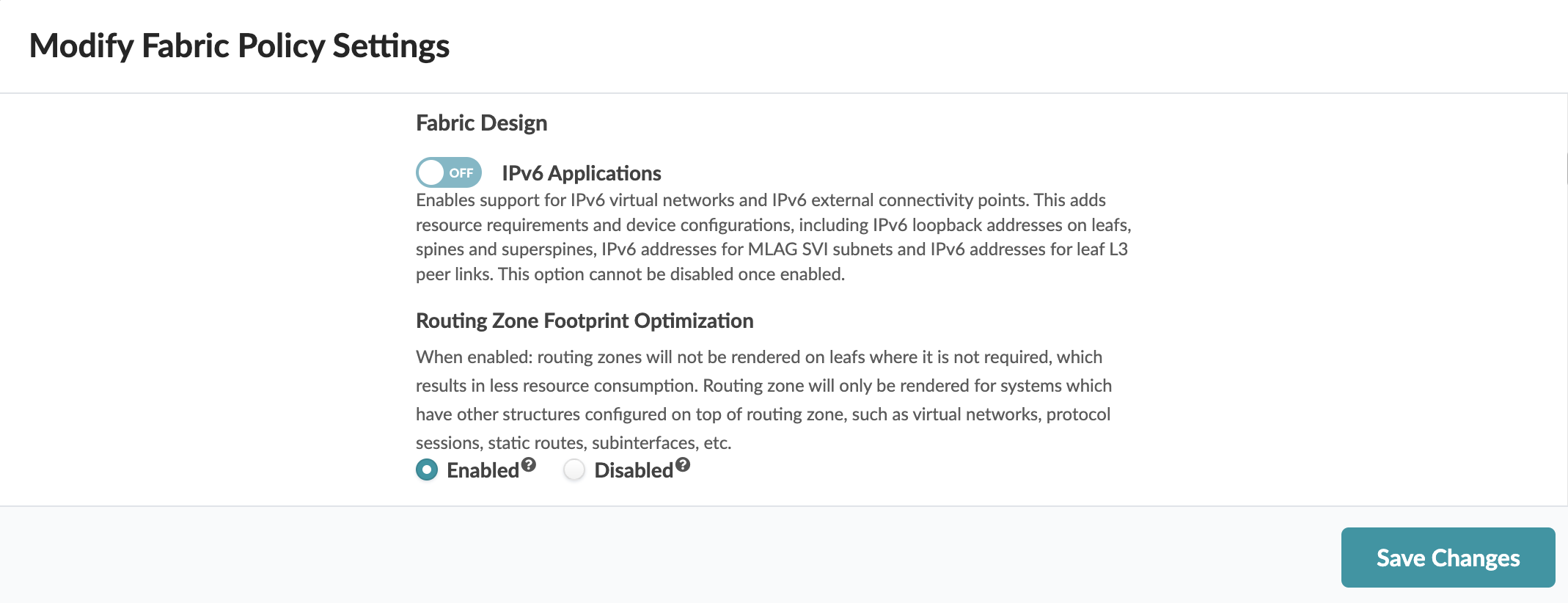

In the Modify Fabric Policy Settings dialog, in the Fabric Design section, for Routing Zone Footprint Optimization, select Disable or Enable, as appropriate, then click Save Changes.
- Disabled - Resources are required for all routing zones (active and inactive).
- Enabled - Resources are required only on active routing zones (at least one server-endpoint is a member of a virtual network in that routing zone).
